oil level TOYOTA PRIUS PLUG-IN HYBRID 2015 1.G Owners Manual

TABLE OF CONTENTSIndex
6
PRIUS PHV_OM_OM47A11U_(U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ........... 618
Fuel information ................. 629
Tire information .................. 633
6-2. Customization Customizable features ....... 647
6-3. Initialization Items to initialize................. 655
Reporting safety defects for U.S. owners ................ 658
Seat belt instructions for Canadian owners
(in French) ........................ 659
SRS airbag instructions for Canadian owners
(in French) ........................ 661 Abbreviation list ............... 674
Alphabetical index ............ 676
What to do if... .................. 688
6Vehicle specifications
7For owners
Index

439
4-2. Maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
General maintenance
Engine compartment
ItemsCheck points
Brake fluid Is the brake fluid at the correct
level? (
P. 472)
Engine/power control unit coolant Is the engine/power control unit
coolant at the correct level?
(P. 469)
Engine oil Is the engine oil at the correct
level?
(P. 465)
Exhaust system There should not be any fumes or
strange sounds.
Radiator/condenser The radiator and condenser
should be free from foreign
objects. (
P. 471)
Washer fluid Is there sufficient washer fluid?
(P. 474)
Listed below are the general maintenance items that should be per-
formed at the intervals specified in the “Owner’s Warranty Informa-
tion Booklet” or “Owner’s Manual Supplement/Scheduled
Maintenance Guide”. It is recommended that any problem you notice
should be brought to the attention of your Toyota dealer or qualified
service shop for advice.

446 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)

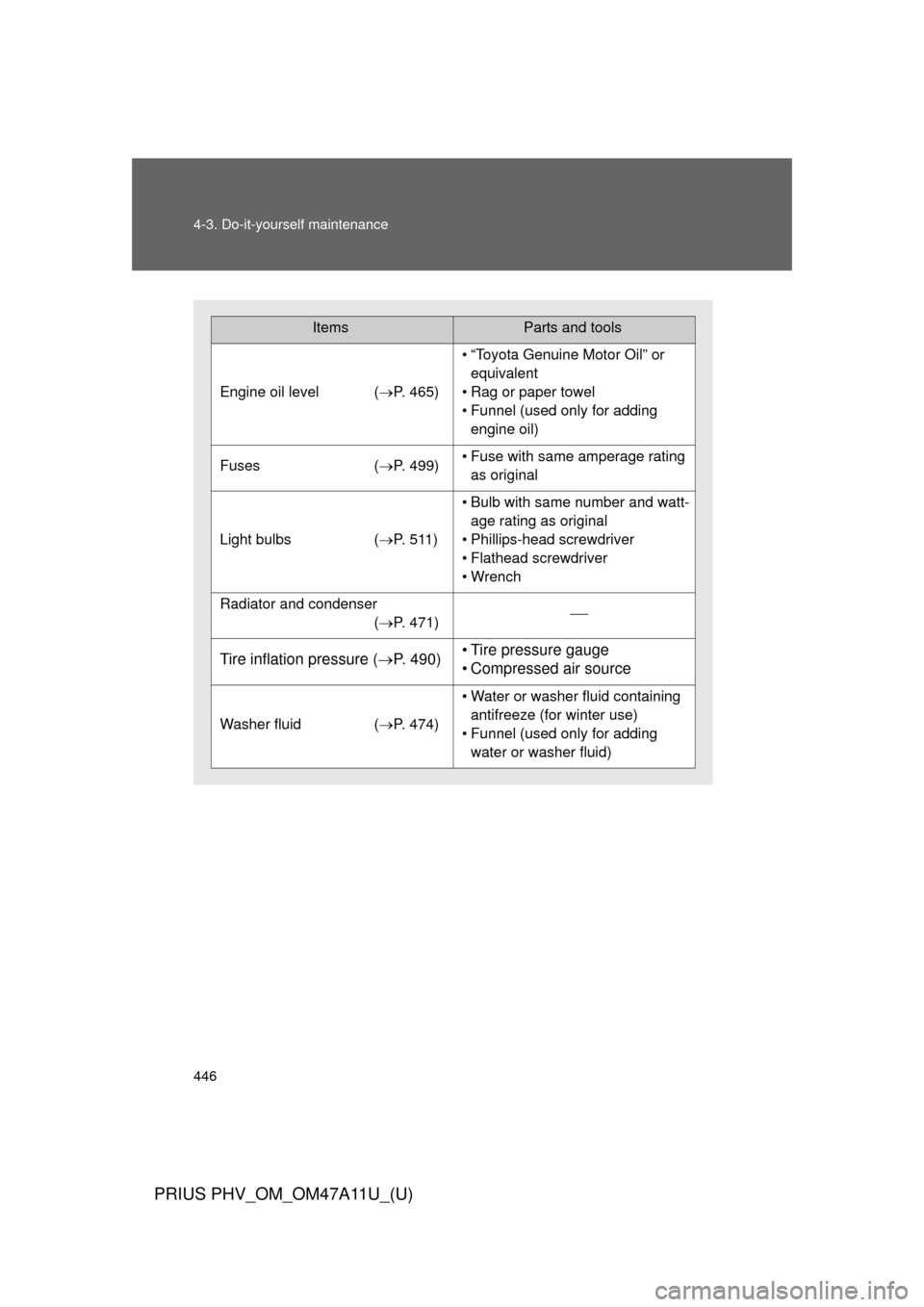

ItemsParts and tools
Engine oil level (P. 465)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 499)• Fuse with same amperage rating
as original
Light bulbs (P. 511)
• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
• Flathead screwdriver
• Wrench
Radiator and condenser (P. 471)
Tire inflation pressure ( P. 490)• Tire pressure gauge
• Compressed air source
Washer fluid ( P. 474)
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

464
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)

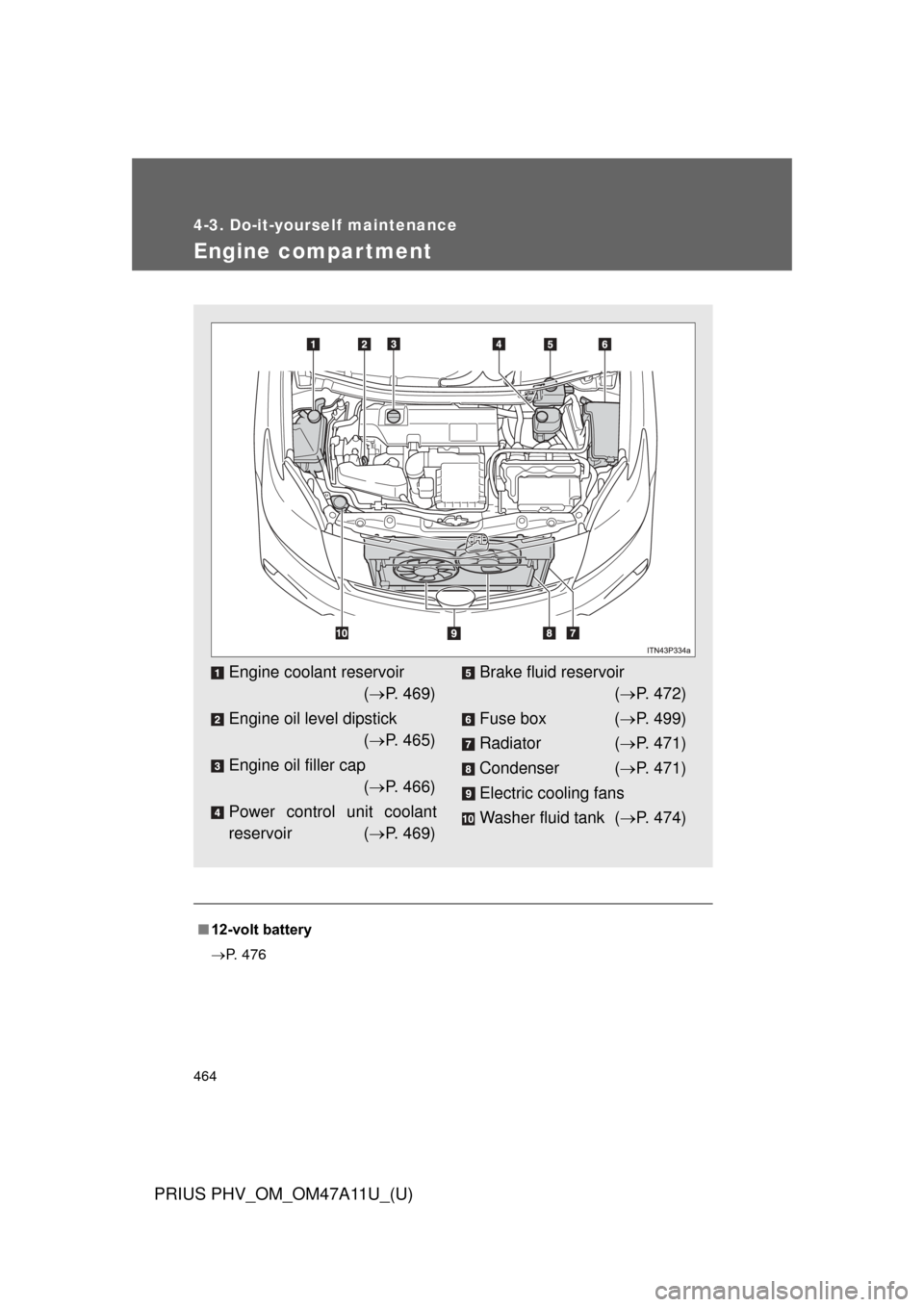

Engine compar tment
■12-volt battery
P. 476
Engine coolant reservoir
( P. 469)
Engine oil level dipstick ( P. 465)
Engine oil filler cap ( P. 466)
Power control unit coolant
reservoir ( P. 469)Brake fluid reservoir
( P. 472)
Fuse box ( P. 499)
Radiator ( P. 471)
Condenser ( P. 471)
Electric cooling fans
Washer fluid tank ( P. 474)

465
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care

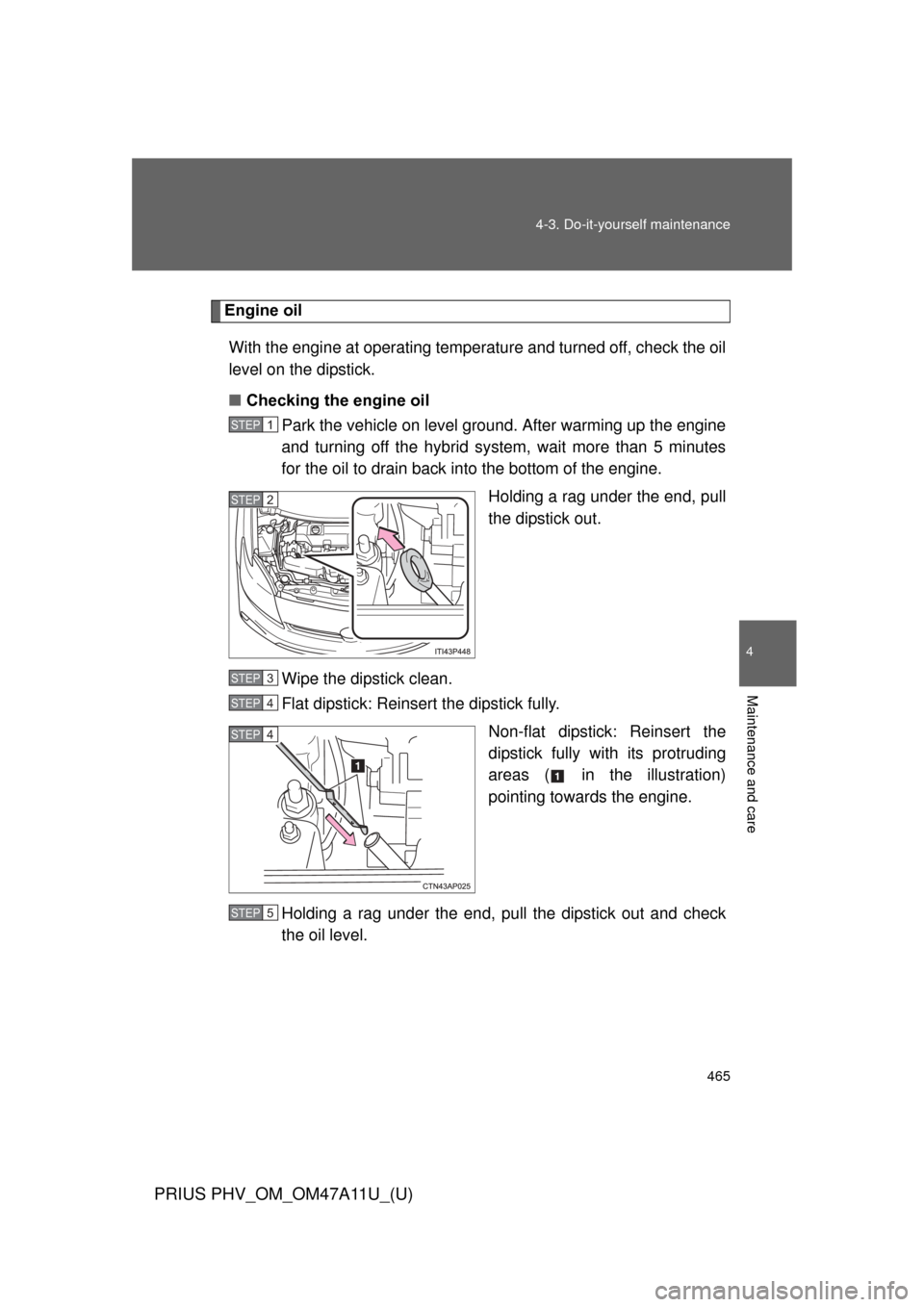

Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning off the hybrid system, wait more than 5 minutes
for the oil to drain back in to the bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Flat dipstick: Reinsert the dipstick fully. Non-flat dipstick: Reinsert the
dipstick fully with its protruding
areas ( in the illustration)
pointing towards the engine.
Holding a rag under the end, pull the dipstick out and check
the oil level.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 4
STEP 5

466 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
Flat dipstickLow
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Non-flat dipstickLow
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Wipe the dipstick and reinsert it fully.
■ Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.STEP 6

468 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call your Toyota dealer, service station or auto parts store for
information concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.

5
When trouble arises
569
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47A11U_(U)
NOTICE
■
While the engine oil level warning is displayed
Continued engine operation with low engine oil will damage the engine.
■ Engine oil maintenance message
The warning message is based on the projected driving range after engine
oil maintenance message is reset.
The system does not monitor the purity of the engine oil.

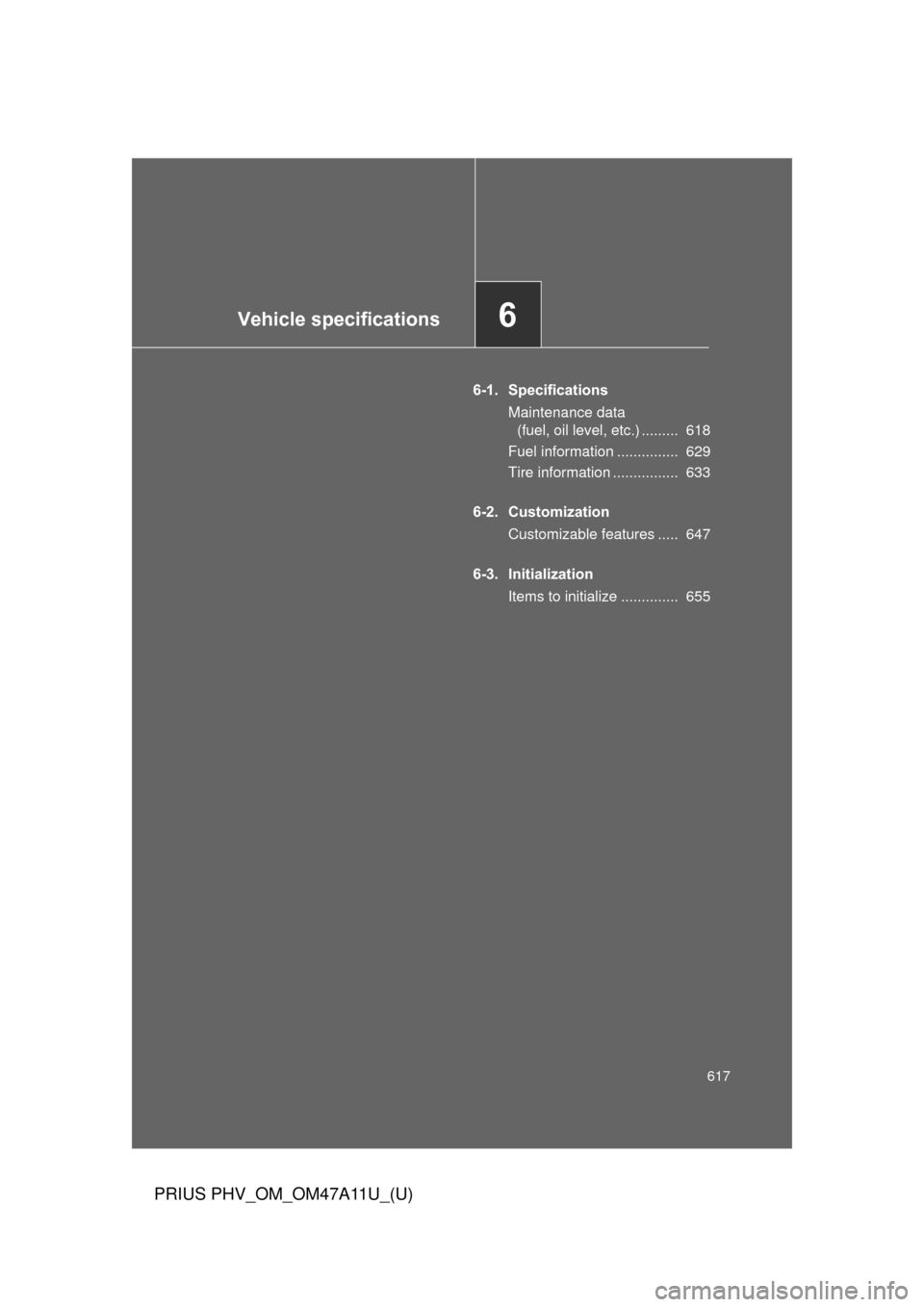

Vehicle specifications6
617
PRIUS PHV_OM_OM47A11U_(U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 618
Fuel information ............... 629
Tire information ................ 633
6-2. Customization Customizable features ..... 647
6-3. Initialization Items to initialize .............. 655

618
PRIUS PHV_OM_OM47A11U_(U)

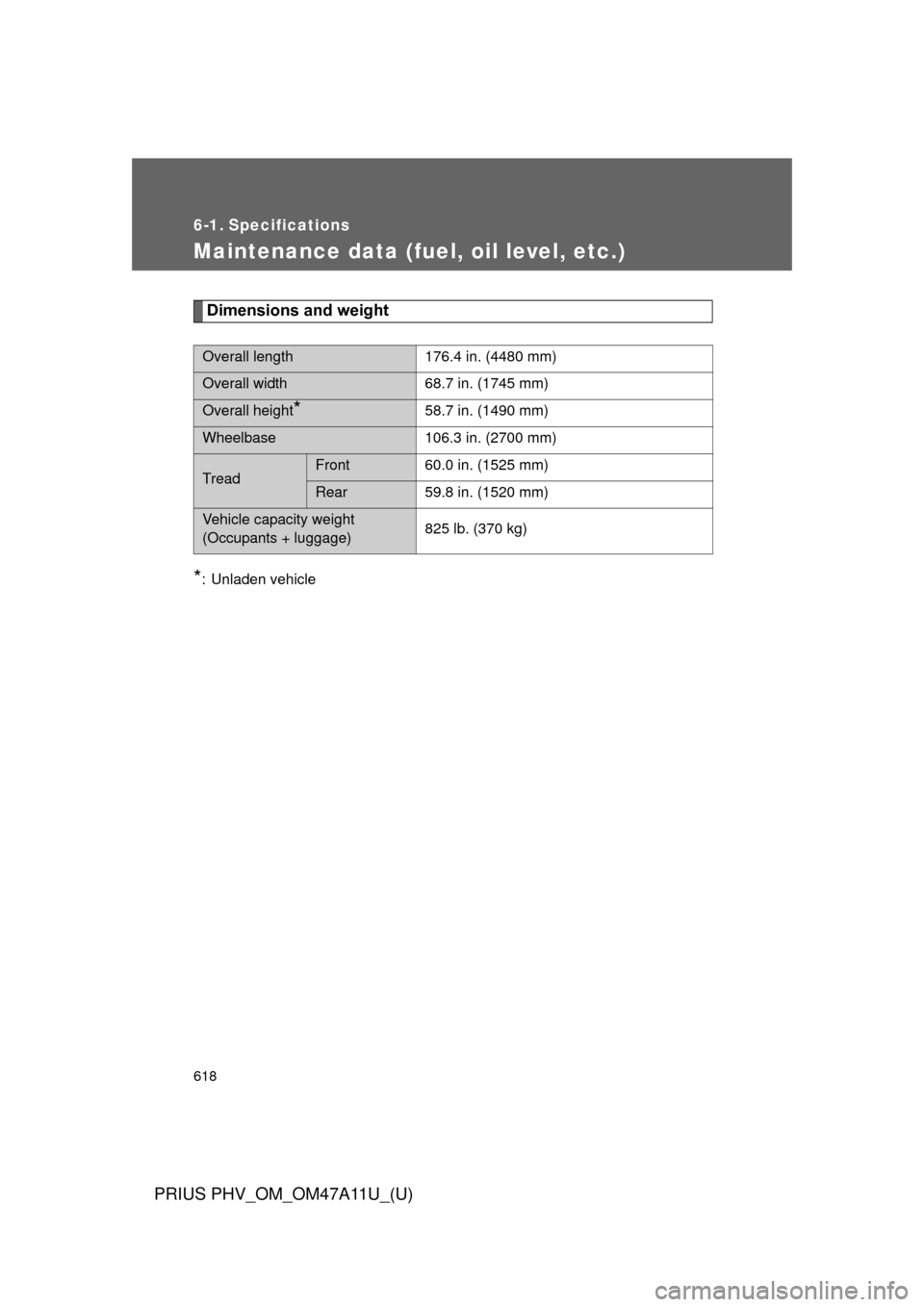

6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicle
Overall length176.4 in. (4480 mm)
Overall width68.7 in. (1745 mm)
Overall height*58.7 in. (1490 mm)
Wheelbase106.3 in. (2700 mm)
TreadFront60.0 in. (1525 mm)
Rear59.8 in. (1520 mm)
Vehicle capacity weight
(Occupants + luggage) 825 lb. (370 kg)
