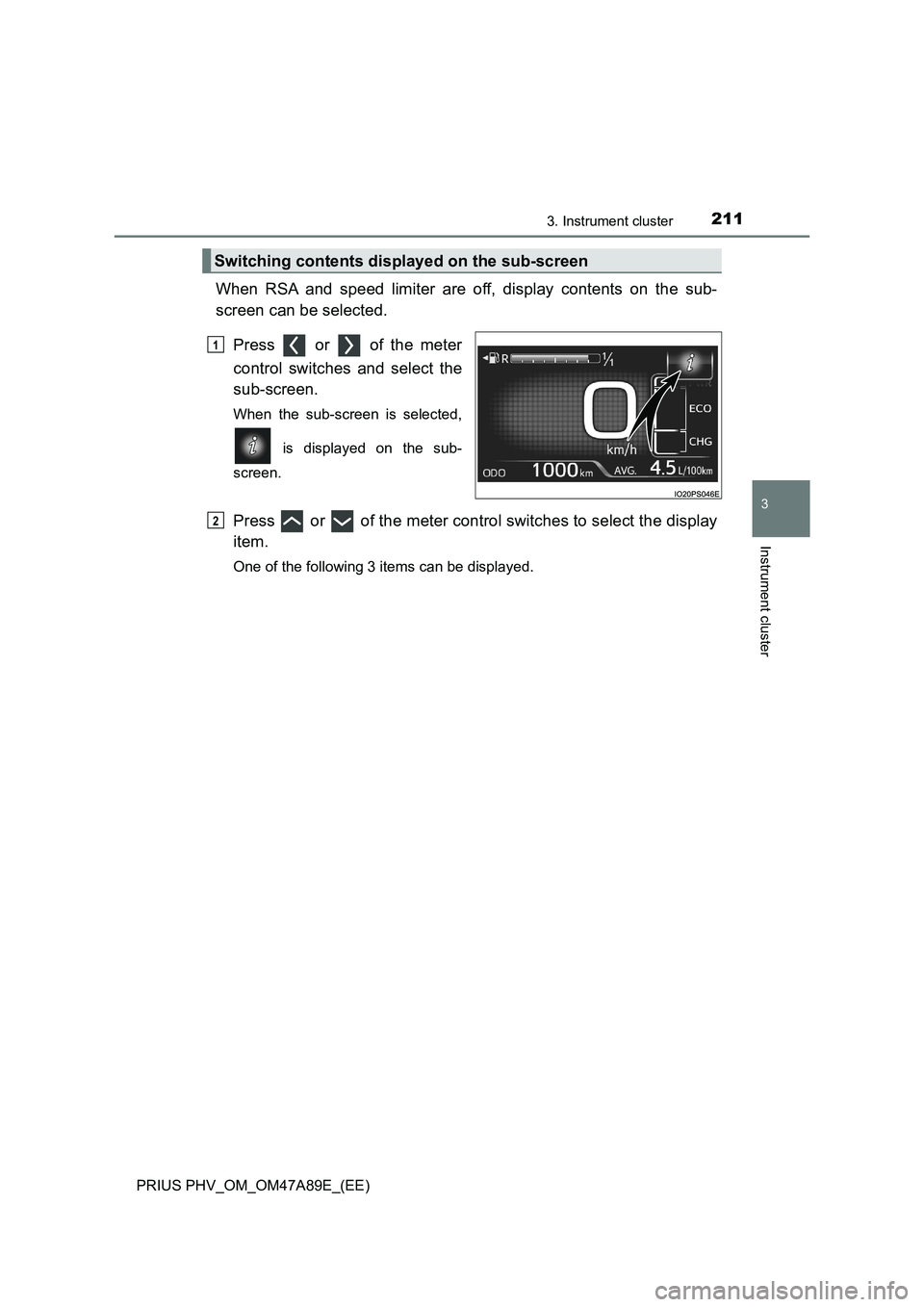

2113. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
When RSA and speed limiter are off, display contents on the sub-
screen can be selected.
Press or of the meter
control switches and select the
sub-screen.
When the sub-screen is selected,
is displayed on the sub-
screen.
Press or of the meter control switches to select the display
item.
One of the following 3 items can be displayed.
Switching contents displayed on the sub-screen
1
2

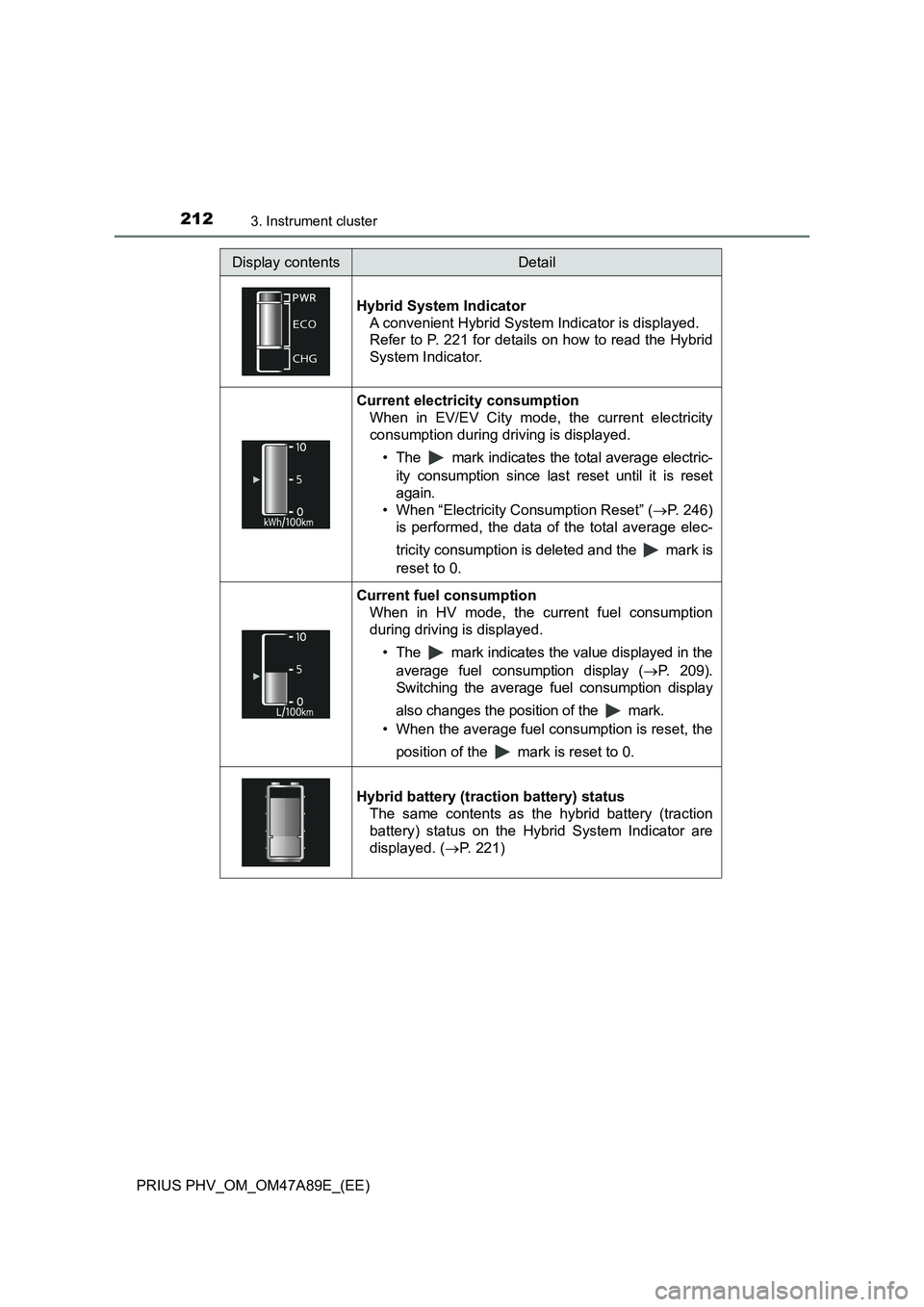

2123. Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
Display contentsDetail
Hybrid System Indicator
A convenient Hybrid System Indicator is displayed.
Refer to P. 221 for details on how to read the Hybrid
System Indicator.
Current electricity consumption
When in EV/EV City mode, the current electricity
consumption during driving is displayed.
• The mark indicates the total average electric-
ity consumption since last reset until it is reset
again.
• When “Electricity Consumption Reset” (P. 246)
is performed, the data of the total average elec-
tricity consumption is deleted and the mark is
reset to 0.
Current fuel consumption
When in HV mode, the current fuel consumption
during driving is displayed.
• The mark indicates the value displayed in the
average fuel consumption display (P. 209).
Switching the average fuel consumption display
also changes the position of the mark.
• When the average fuel consumption is reset, the
position of the mark is reset to 0.
Hybrid battery (traction battery) status
The same contents as the hybrid battery (traction
battery) status on the Hybrid System Indicator are
displayed. (P. 221)

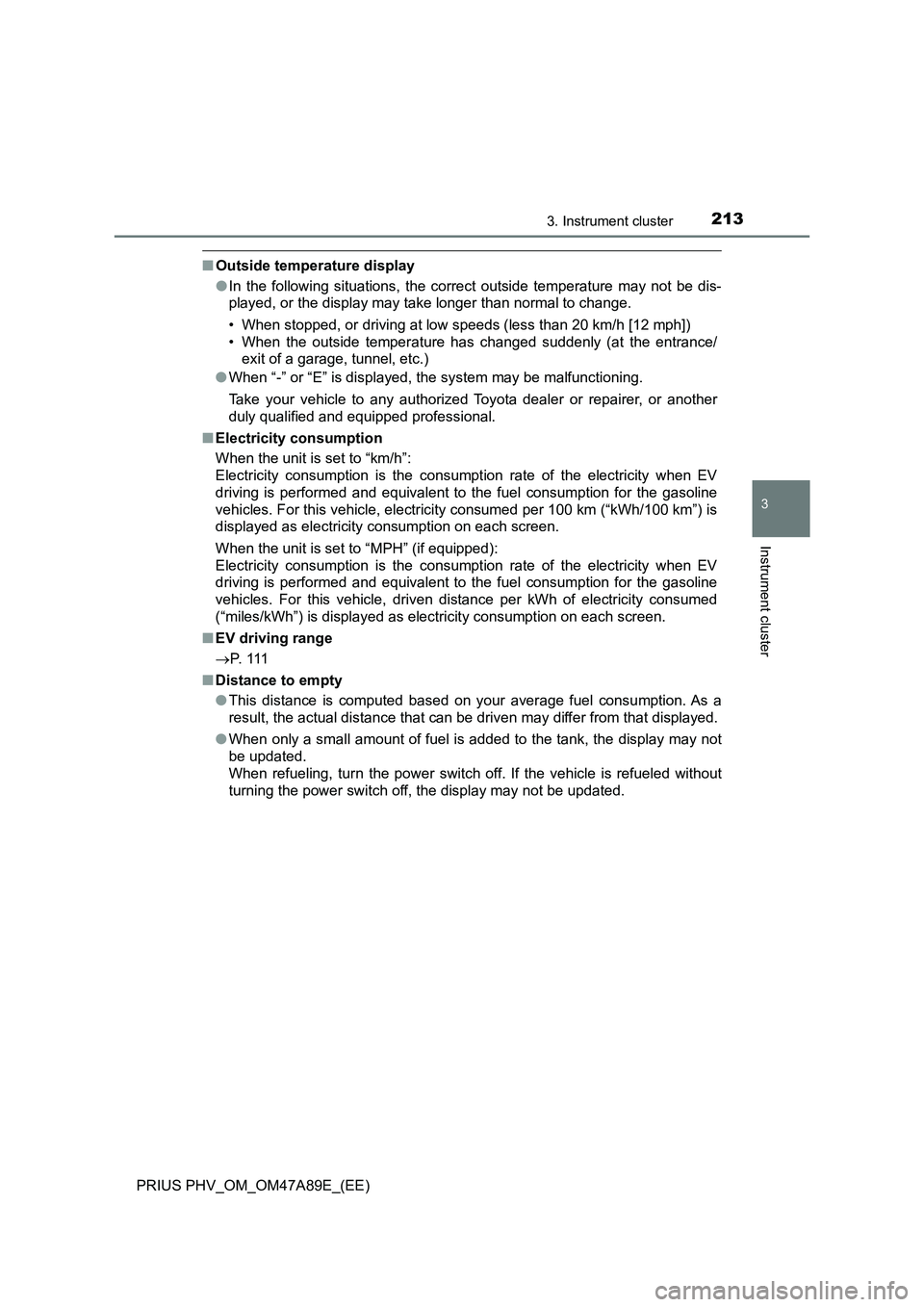

2133. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
■Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
●When “-” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
■Electricity consumption
When the unit is set to “km/h”:
Electricity consumption is the consumption rate of the electricity when EV
driving is performed and equivalent to the fuel consumption for the gasoline
vehicles. For this vehicle, electricity consumed per 100 km (“kWh/100 km”) is
displayed as electricity consumption on each screen.
When the unit is set to “MPH” (if equipped):
Electricity consumption is the consumption rate of the electricity when EV
driving is performed and equivalent to the fuel consumption for the gasoline
vehicles. For this vehicle, driven distance per kWh of electricity consumed
(“miles/kWh”) is displayed as electricity consumption on each screen.
■EV driving range
P. 111
■Distance to empty
●This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
●When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the power switch off. If the vehicle is refueled without
turning the power switch off, the display may not be updated.

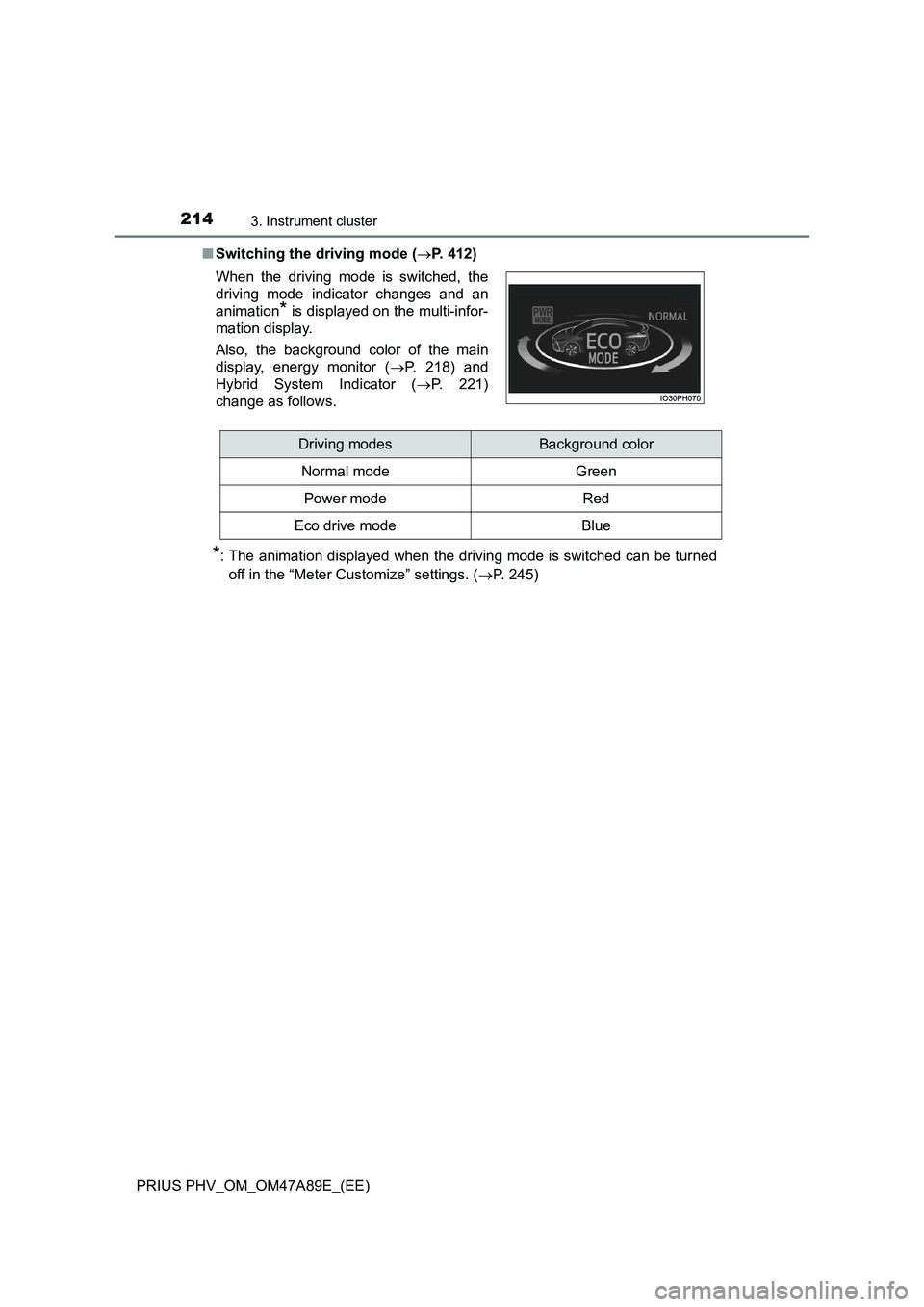

2143. Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)■Switching the driving mode (P. 412)
*: The animation displayed when the driving mode is switched can be turned
off in the “Meter Customize” settings. (P. 245) When the driving mode is switched, the
driving mode indicator changes and an
animation
* is displayed on the multi-infor-
mation display.
Also, the background color of the main
display, energy monitor (P. 218) and
Hybrid System Indicator (P. 221)
change as follows.
Driving modesBackground color
Normal mode Green
Power modeRed
Eco drive modeBlue

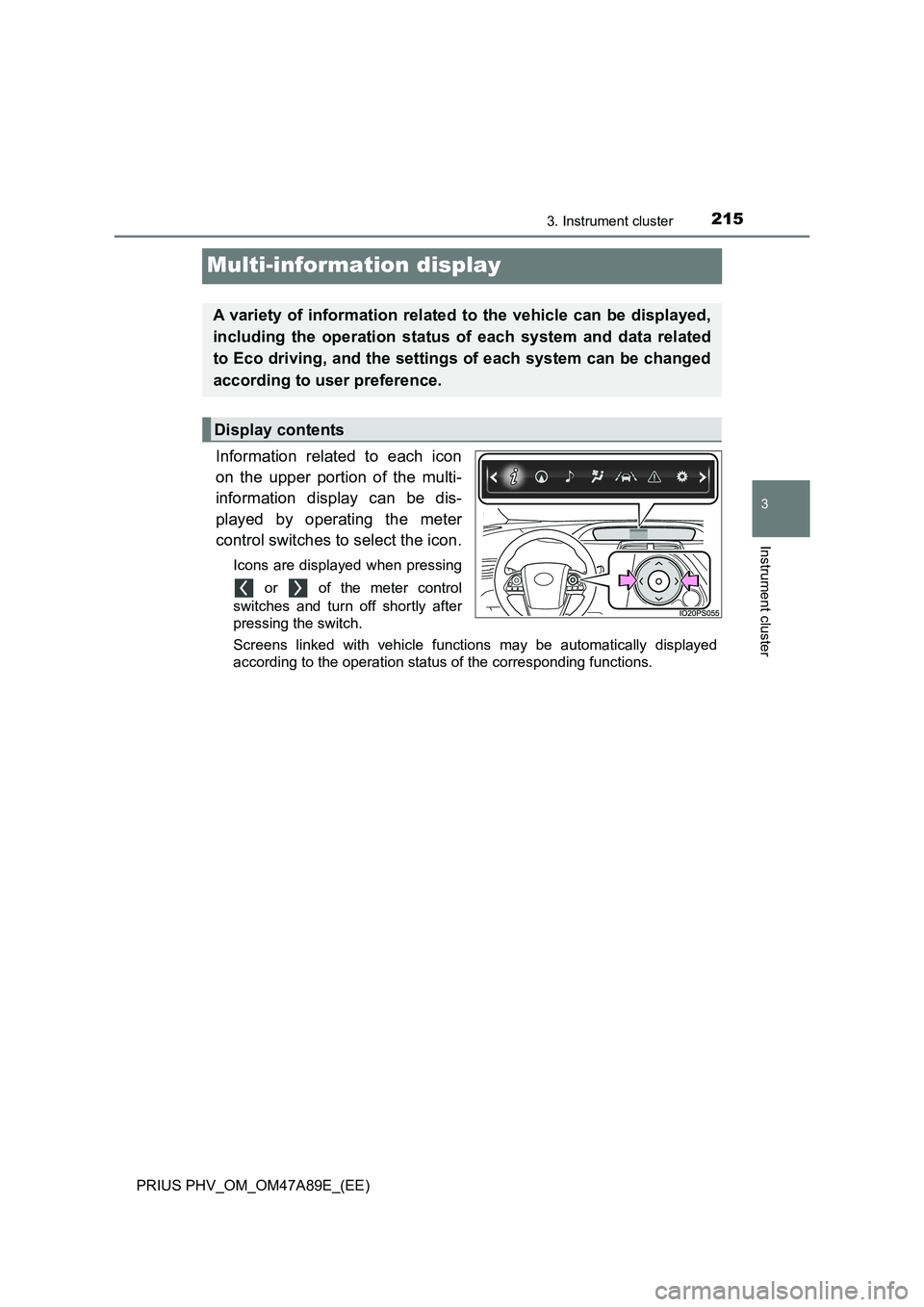

2153. Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
3
Instrument cluster
Multi-information display
Information related to each icon
on the upper portion of the multi-
information display can be dis-
played by operating the meter
control switches to select the icon.
Icons are displayed when pressing
or of the meter control
switches and turn off shortly after
pressing the switch.
Screens linked with vehicle functions may be automatically displayed
according to the operation status of the corresponding functions.
A variety of information related to the vehicle can be displayed,
including the operation status of each system and data related
to Eco driving, and the settings of each system can be changed
according to user preference.
Display contents

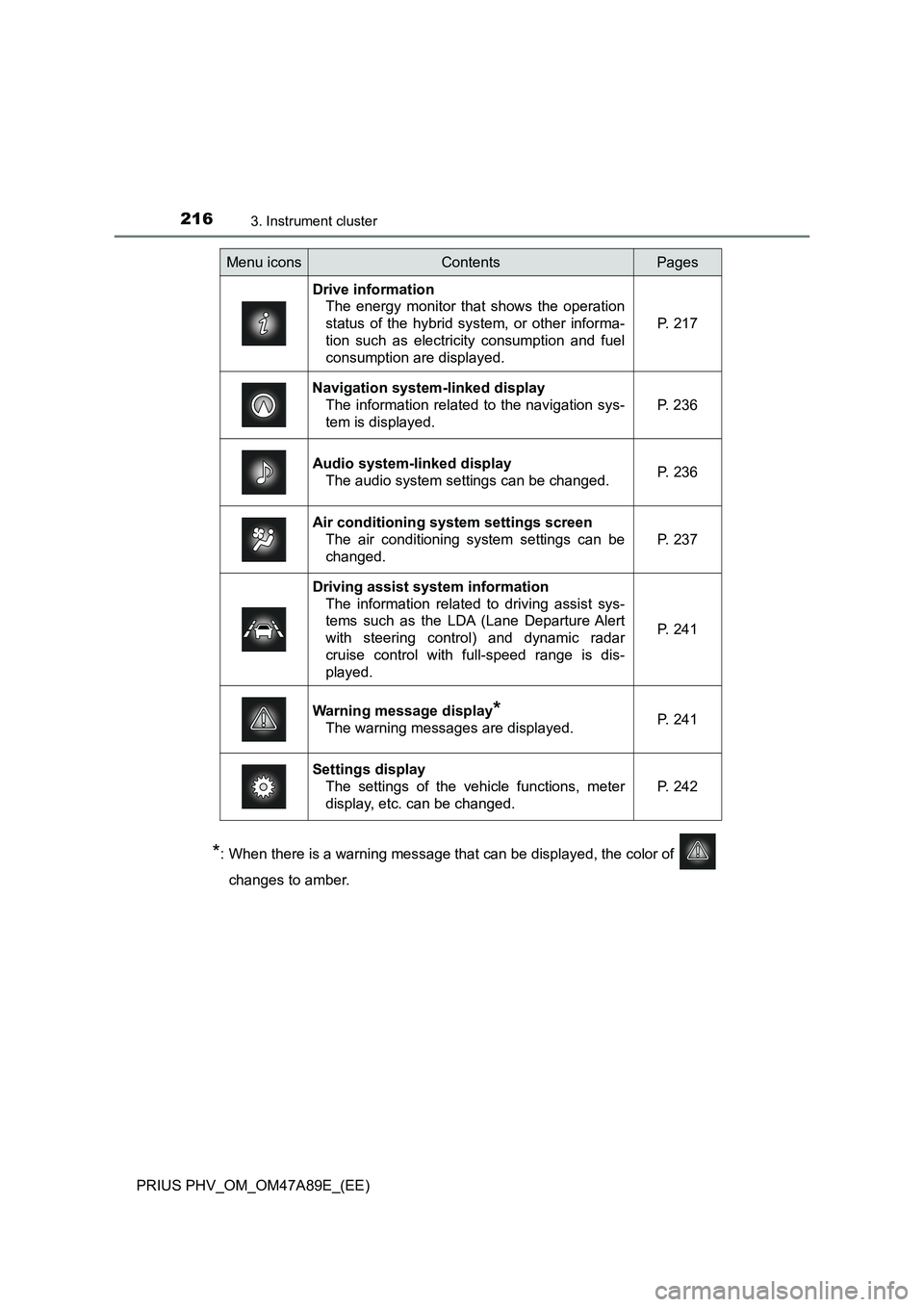

2163. Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
*: When there is a warning message that can be displayed, the color of
changes to amber.
Menu iconsContentsPages
Drive information
The energy monitor that shows the operation
status of the hybrid system, or other informa-
tion such as electricity consumption and fuel
consumption are displayed.P. 217
Navigation system-linked display
The information related to the navigation sys-
tem is displayed.P. 236
Audio system-linked display
The audio system settings can be changed.P. 236
Air conditioning system settings screen
The air conditioning system settings can be
changed.
P. 237
Driving assist system information
The information related to driving assist sys-
tems such as the LDA (Lane Departure Alert
with steering control) and dynamic radar
cruise control with full-speed range is dis-
played.
P. 241
Warning message display*
The warning messages are displayed.P. 241
Settings display
The settings of the vehicle functions, meter
display, etc. can be changed.
P. 242

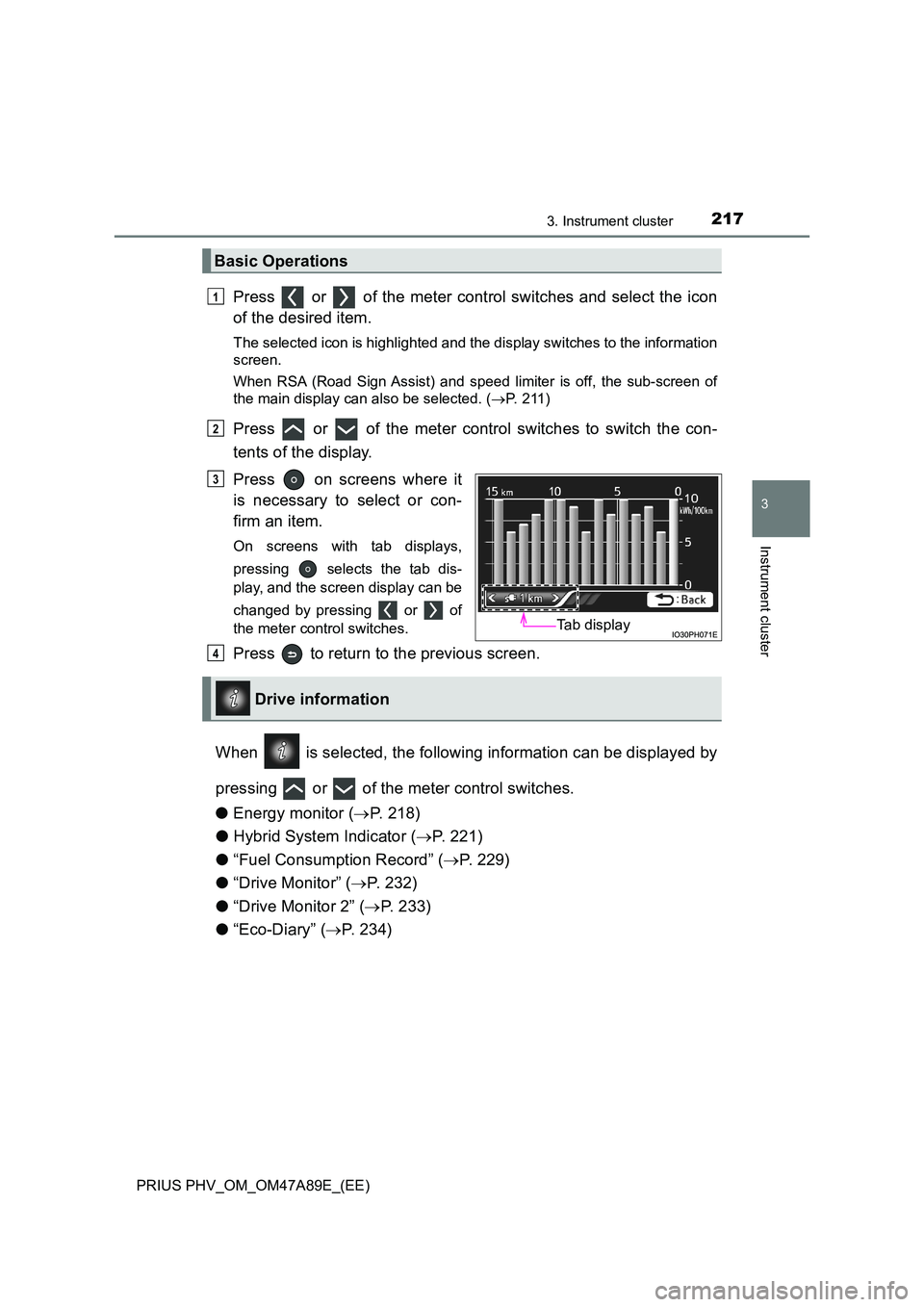

2173. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
Press or of the meter control switches and select the icon
of the desired item.
The selected icon is highlighted and the display switches to the information
screen.
When RSA (Road Sign Assist) and speed limiter is off, the sub-screen of
the main display can also be selected. ( P. 211)
Press or of the meter control switches to switch the con-
tents of the display.
Press on screens where it
is necessary to select or con-
firm an item.
On screens with tab displays,
pressing selects the tab dis-
play, and the screen display can be
changed by pressing or of
the meter control switches.
Press to return to the previous screen.
When is selected, the following information can be displayed by
pressing or of the meter control switches.
● Energy monitor (P. 218)
● Hybrid System Indicator (P. 221)
● “Fuel Consumption Record” (P. 229)
● “Drive Monitor” (P. 232)
● “Drive Monitor 2” (P. 233)
● “Eco-Diary” (P. 234)
Basic Operations
1
2
Tab display
3
Drive information
4

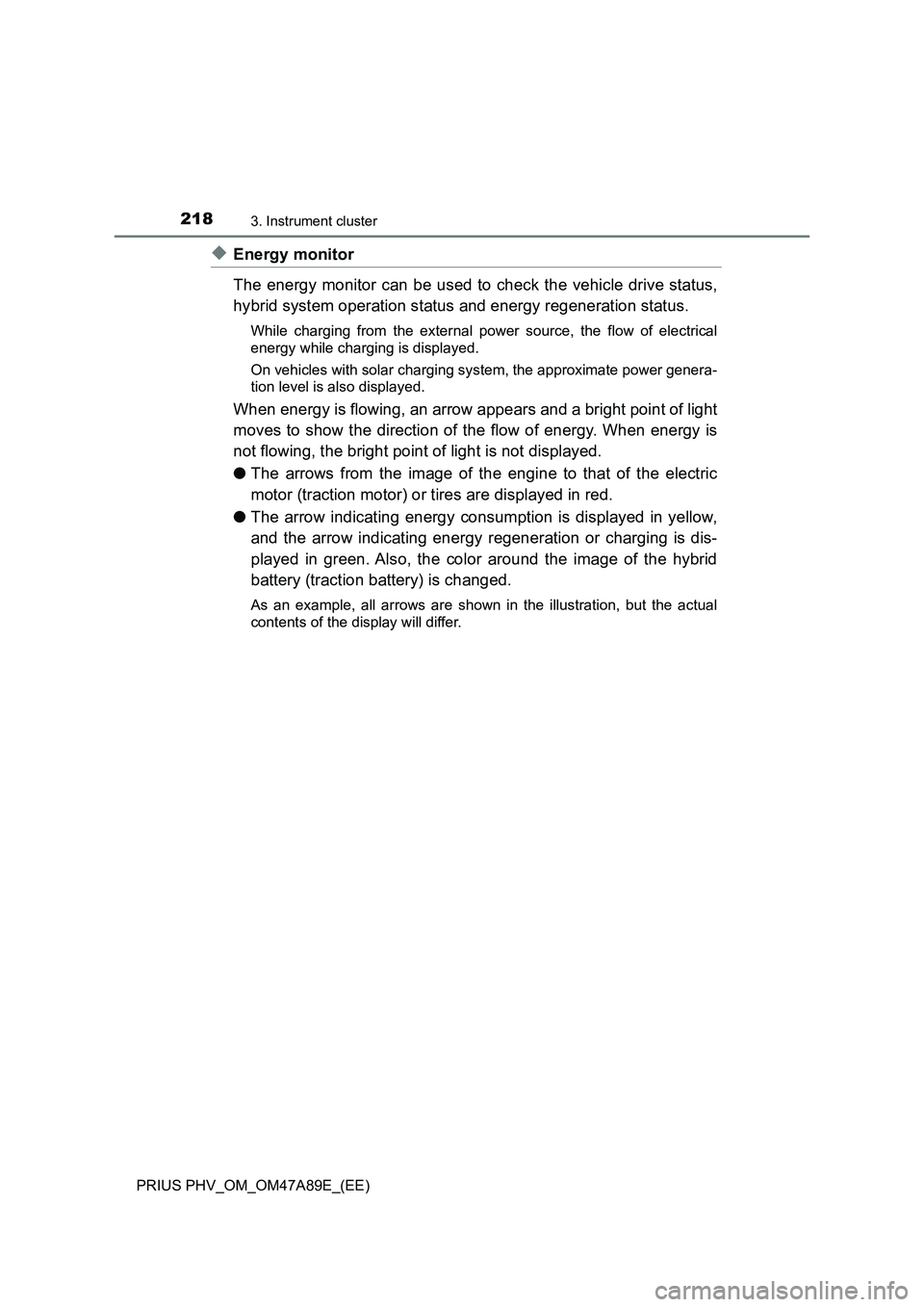

2183. Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
◆Energy monitor
The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
While charging from the external power source, the flow of electrical
energy while charging is displayed.
On vehicles with solar charging system, the approximate power genera-
tion level is also displayed.
When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light is not displayed.
●The arrows from the image of the engine to that of the electric
motor (traction motor) or tires are displayed in red.
●The arrow indicating energy consumption is displayed in yellow,
and the arrow indicating energy regeneration or charging is dis-
played in green. Also, the color around the image of the hybrid
battery (traction battery) is changed.
As an example, all arrows are shown in the illustration, but the actual
contents of the display will differ.

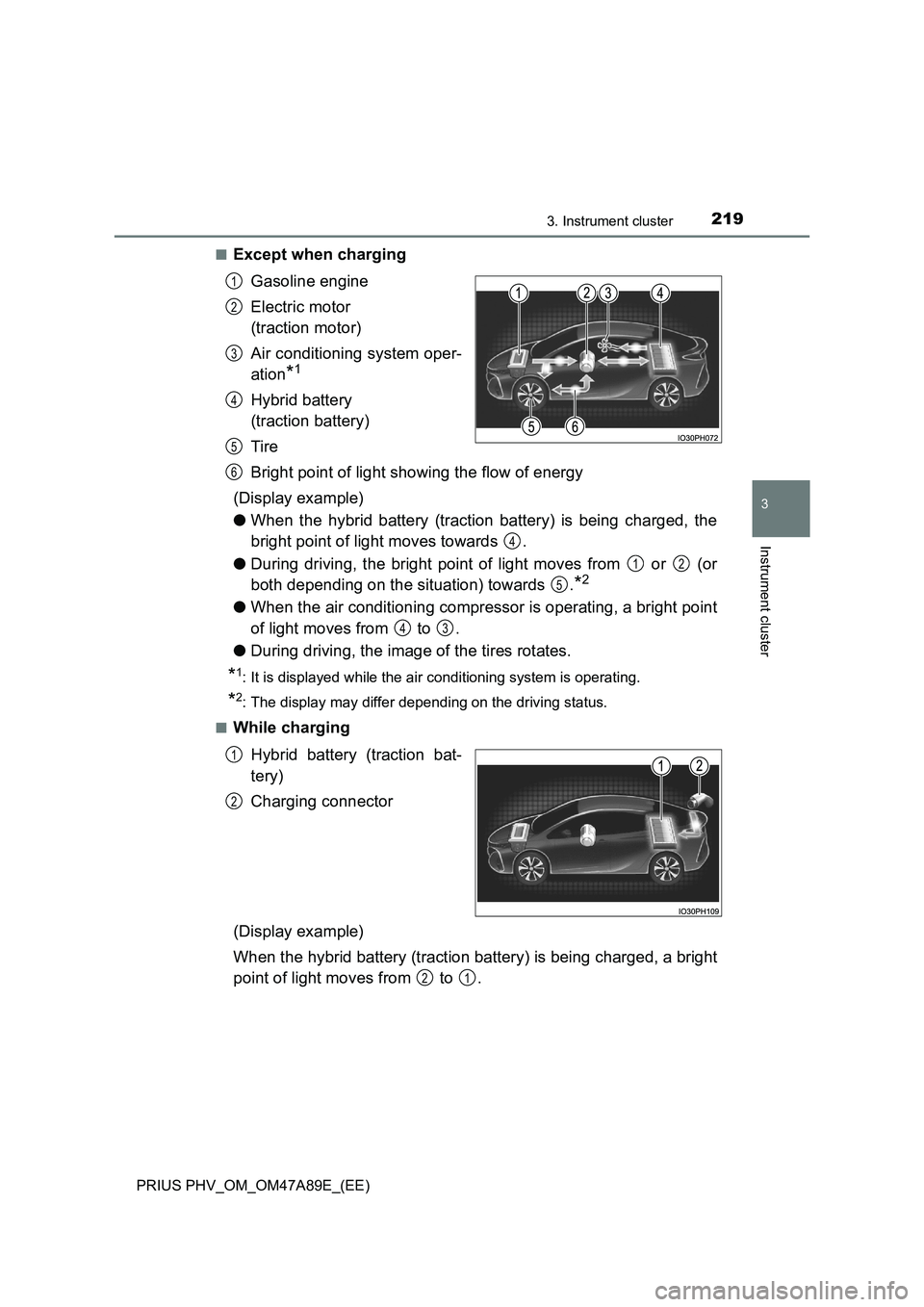

2193. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)■
Except when charging
Gasoline engine
Electric motor
(traction motor)
Air conditioning system oper-
ation
*1
Hybrid battery
(traction battery)
Tire
Bright point of light showing the flow of energy
(Display example)
●When the hybrid battery (traction battery) is being charged, the
bright point of light moves towards .
●During driving, the bright point of light moves from or (or
both depending on the situation) towards .
*2
●When the air conditioning compressor is operating, a bright point
of light moves from to .
●During driving, the image of the tires rotates.
*1: It is displayed while the air conditioning system is operating.
*2: The display may differ depending on the driving status.
■
While charging
Hybrid battery (traction bat-
tery)
Charging connector
(Display example)
When the hybrid battery (traction battery) is being charged, a bright
point of light moves from to .
1
2
3
4
5
6
4
12
5
43
1
2
21

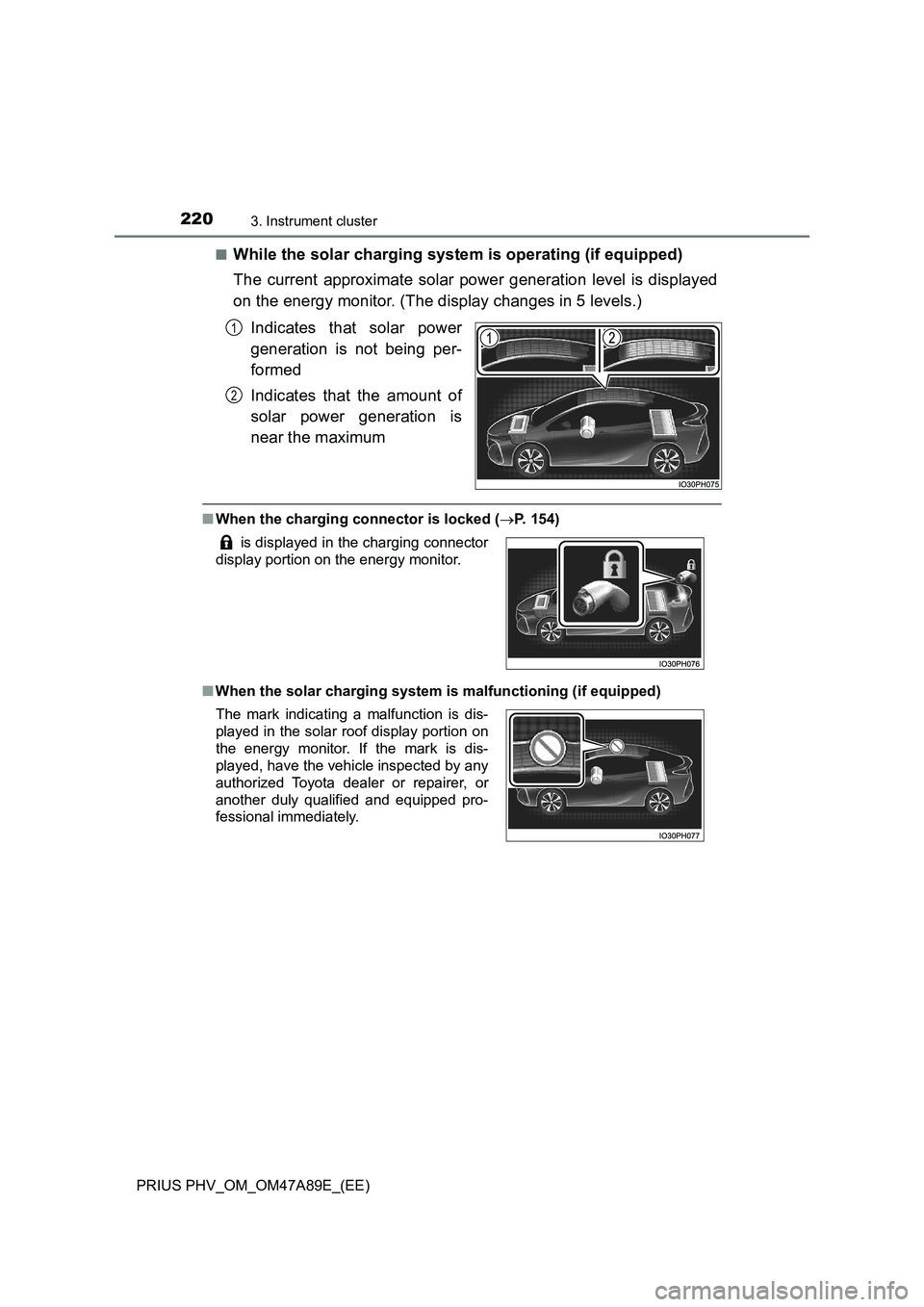

2203. Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)■
While the solar charging system is operating (if equipped)
The current approximate solar power generation level is displayed
on the energy monitor. (The display changes in 5 levels.)
Indicates that solar power
generation is not being per-
formed
Indicates that the amount of
solar power generation is
near the maximum
■When the charging connector is locked (P. 154)
■When the solar charging system is malfunctioning (if equipped)
1
2
is displayed in the charging connector
display portion on the energy monitor.
The mark indicating a malfunction is dis-
played in the solar roof display portion on
the energy monitor. If the mark is dis-
played, have the vehicle inspected by any
authorized Toyota dealer or repairer, or
another duly qualified and equipped pro-
fessional immediately.
