TOYOTA PRIUS PLUG-IN HYBRID 2016 Owners Manual

2013. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate a malfunction.
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Driver’s and front passenger’s seat belt
reminder lightP. 645
Rear passengers’ seat belt reminder light P. 645
*1Master warning light P. 645
*1Tire pressure warning light P. 645
Indicators
Warning lightsPages
IndicatorsPages
Turn signal indicator P. 339
Tail light indicator P. 341
Parking brake indicator P. 340
Headlight high beam indicator P. 341
Front fog light indicator P. 351
Rear fog light indicator P. 351

2023. Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
Security indicator P. 75, 81
“READY” indicator P. 327
Shift position indicators P. 333
*1, 2Slip indicator light P. 492
*1, 3VSC OFF indicator P. 493
Cruise control indicator P. 407
Radar cruise control indicator P. 397
Cruise control “SET” indicator P. 397
*1, 3PCS warning light P. 372
LDA indicator P. 385
Steering control indicator P. 386
*1Adaptive High-beam System indicator P. 346
“BSM” indicator (if equipped) P. 417
Toyota parking assist-sensor indicator
(if equipped) P. 432
*1, 3ICS OFF indicator (if equipped) P. 445
IndicatorsPages

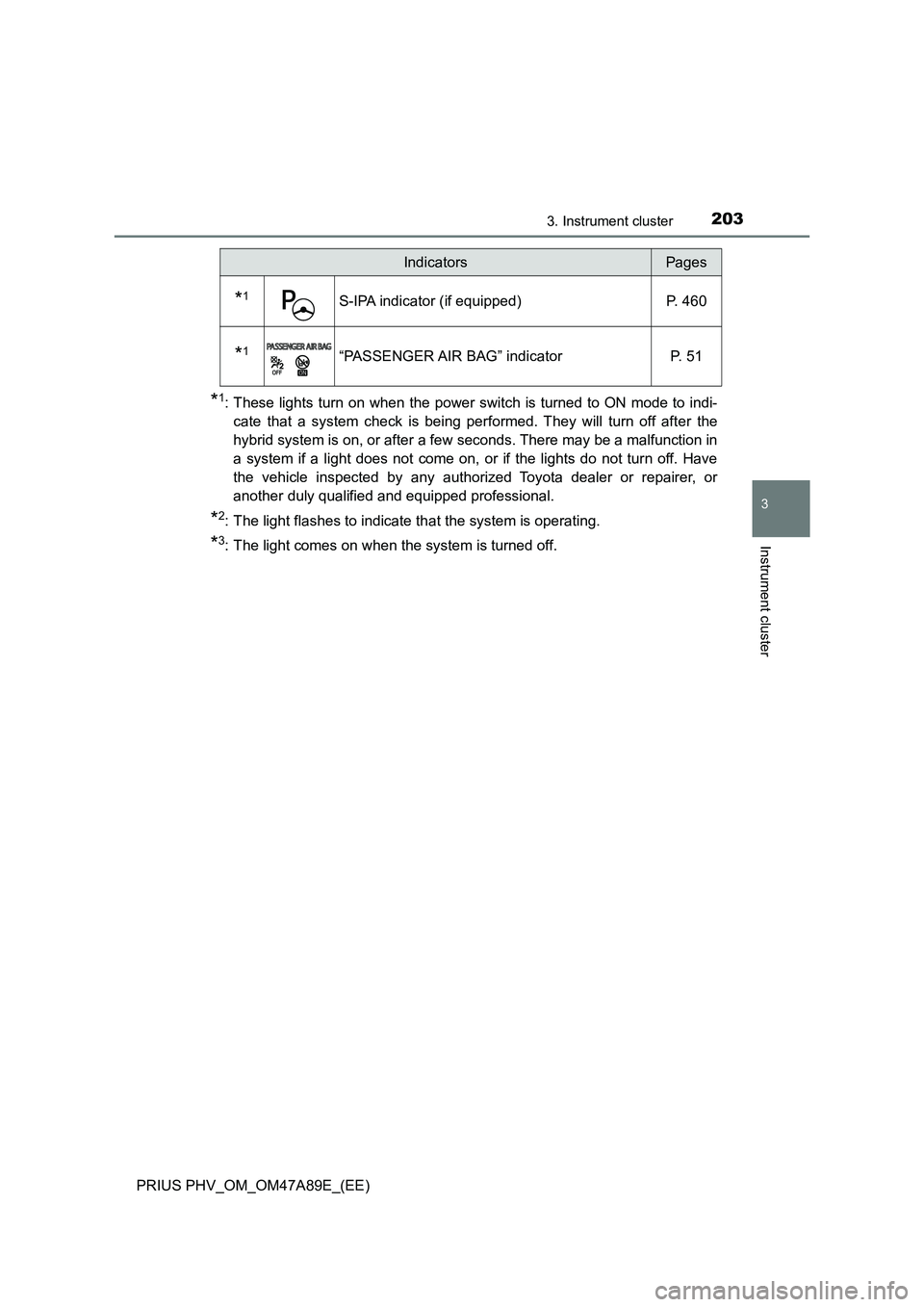

2033. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.
*1S-IPA indicator (if equipped) P. 460
*1“PASSENGER AIR BAG” indicator P. 51
IndicatorsPages

2043. Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)■
Main display and multi-information display
*1: The displayed indicator changes according to the current plug-in hybrid
system operation mode.
*2: The displayed indicator changes according to the current driving mode.
Indicators and symbols displayed on the display
IndicatorsPages
*1EV drive mode indicator P. 92
*1EV City mode indicator P. 92
*1Hybrid battery charge mode indicator P. 93
*2“ECO MODE” indicator P. 412
*2“PWR MODE” indicator P. 412
Speed limiter indicator P. 414
EV indicator P. 223

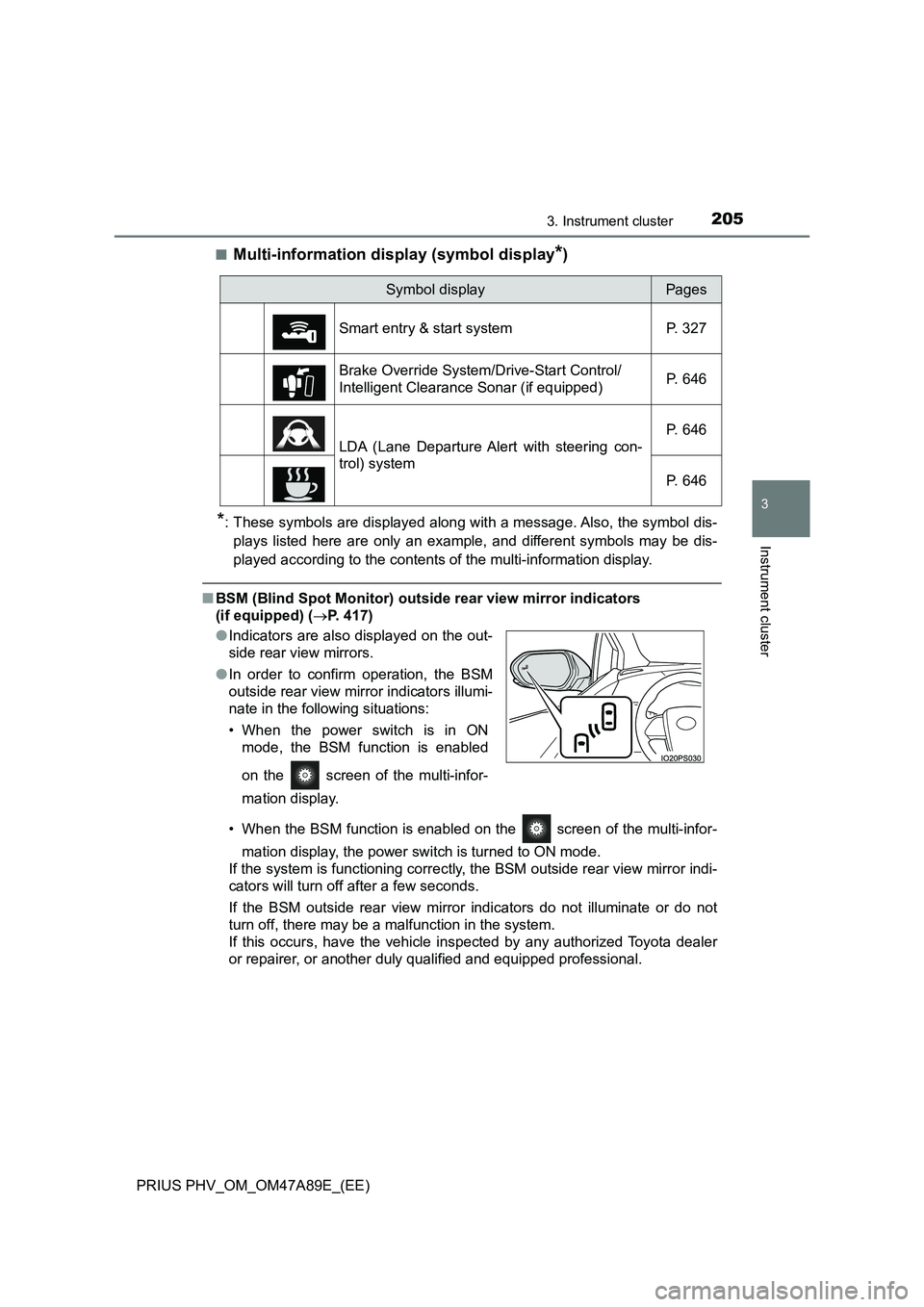

2053. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)■
Multi-information display (symbol display*)
*: These symbols are displayed along with a message. Also, the symbol dis-
plays listed here are only an example, and different symbols may be dis-
played according to the contents of the multi-information display.
■BSM (Blind Spot Monitor) outside rear view mirror indicators
(if equipped) (P. 417)
• When the BSM function is enabled on the screen of the multi-infor-
mation display, the power switch is turned to ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
Symbol displayPages
Smart entry & start system P. 327
Brake Override System/Drive-Start Control/
Intelligent Clearance Sonar (if equipped)P. 646
LDA (Lane Departure Alert with steering con-
trol) systemP. 646
P. 646
●Indicators are also displayed on the out-
side rear view mirrors.
●In order to confirm operation, the BSM
outside rear view mirror indicators illumi-
nate in the following situations:
• When the power switch is in ON
mode, the BSM function is enabled
on the screen of the multi-infor-
mation display.

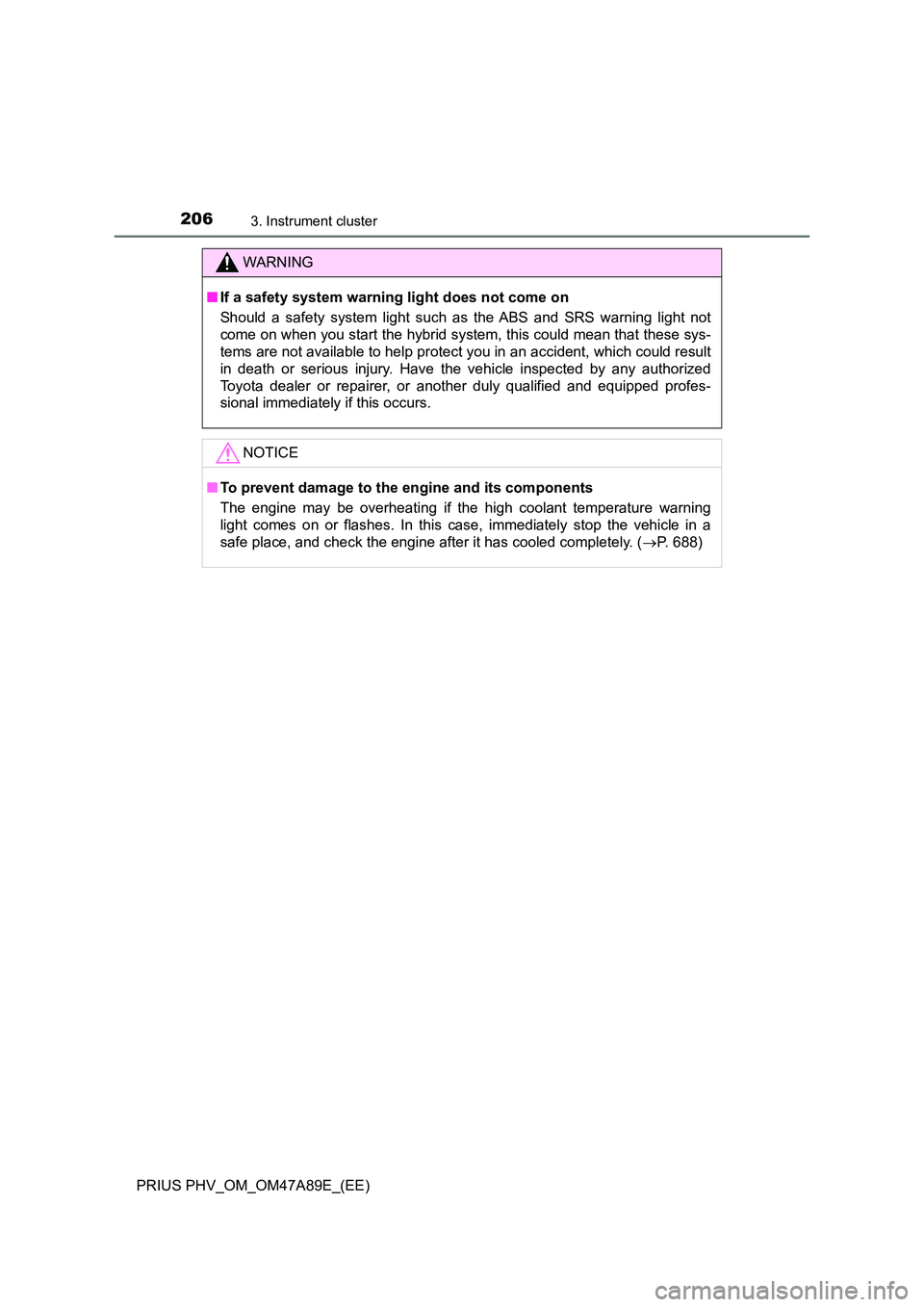

2063. Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately if this occurs.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning
light comes on or flashes. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. ( P. 688)

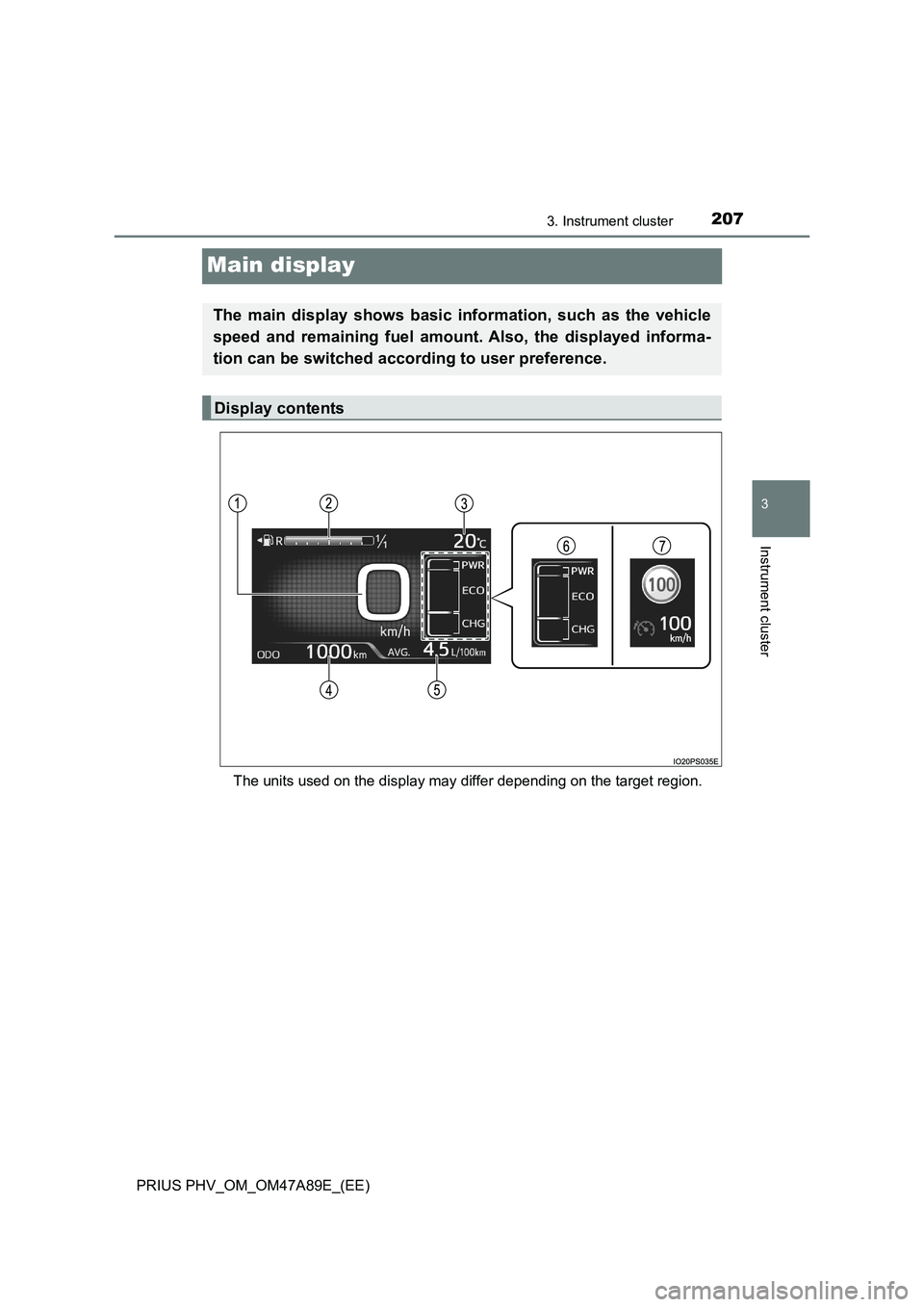

2073. Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
3
Instrument cluster
Main display
The units used on the display may differ depending on the target region.
The main display shows basic information, such as the vehicle
speed and remaining fuel amount. Also, the displayed informa-
tion can be switched according to user preference.
Display contents

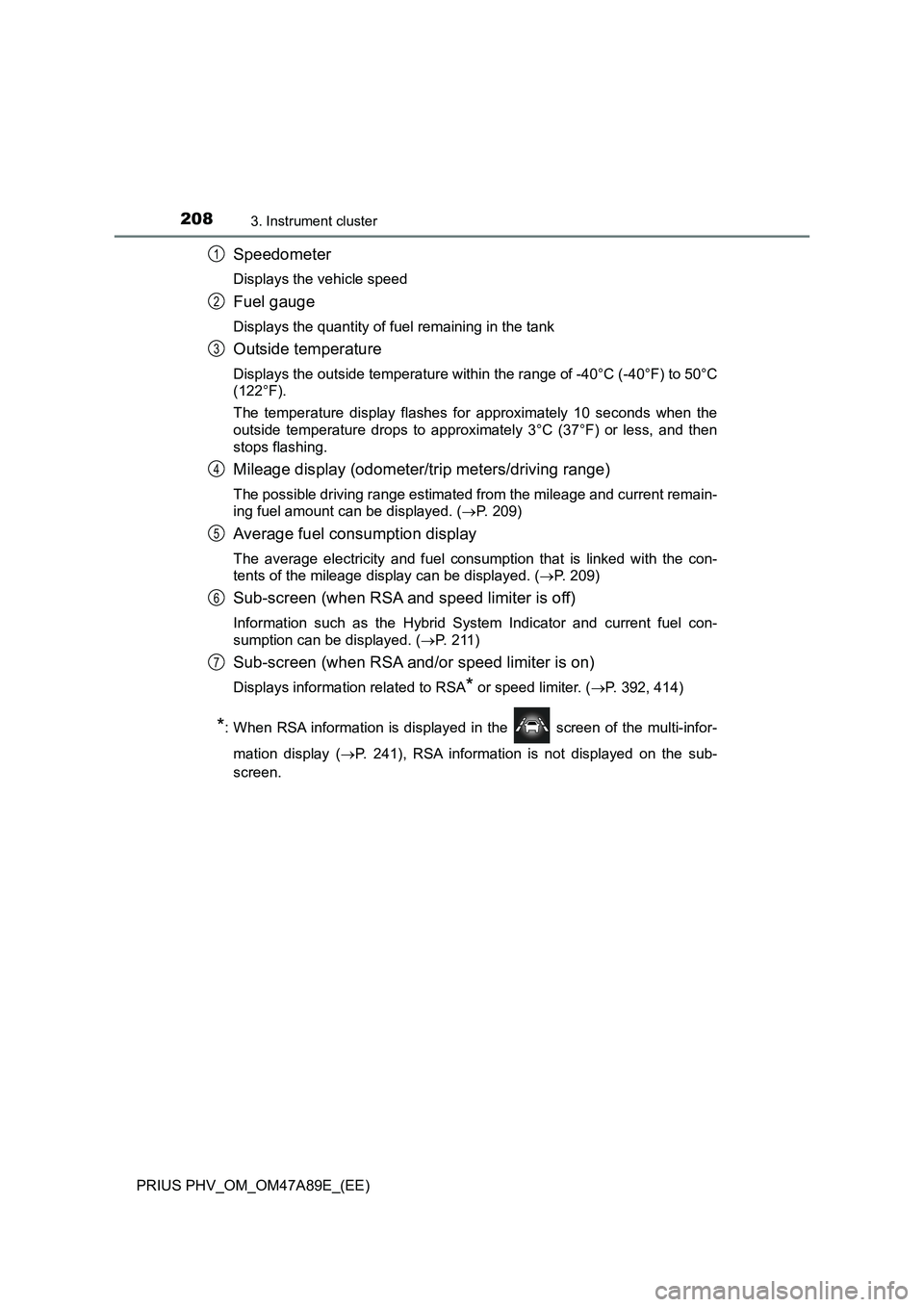

2083. Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F).
The temperature display flashes for approximately 10 seconds when the
outside temperature drops to approximately 3°C (37°F) or less, and then
stops flashing.
Mileage display (odometer/trip meters/driving range)
The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. (P. 209)
Average fuel consumption display
The average electricity and fuel consumption that is linked with the con-
tents of the mileage display can be displayed. (P. 209)
Sub-screen (when RSA and speed limiter is off)
Information such as the Hybrid System Indicator and current fuel con-
sumption can be displayed. (P. 211)
Sub-screen (when RSA and/or speed limiter is on)
Displays information related to RSA* or speed limiter. (P. 392, 414)
*: When RSA information is displayed in the screen of the multi-infor-
mation display (P. 241), RSA information is not displayed on the sub-
screen.
1
2
3
4
5
6
7

2093. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
Each time is pressed, the mileage display and fuel consumption
display change in the following order from 1 to 7.
Mileage display
Average fuel consumption dis-
play
After 1 to 7 are displayed, the dis-
plays return to 1.
Use the displayed average fuel
consumption as a reference.
Switching the mileage display and average fuel consumption
display
1
2

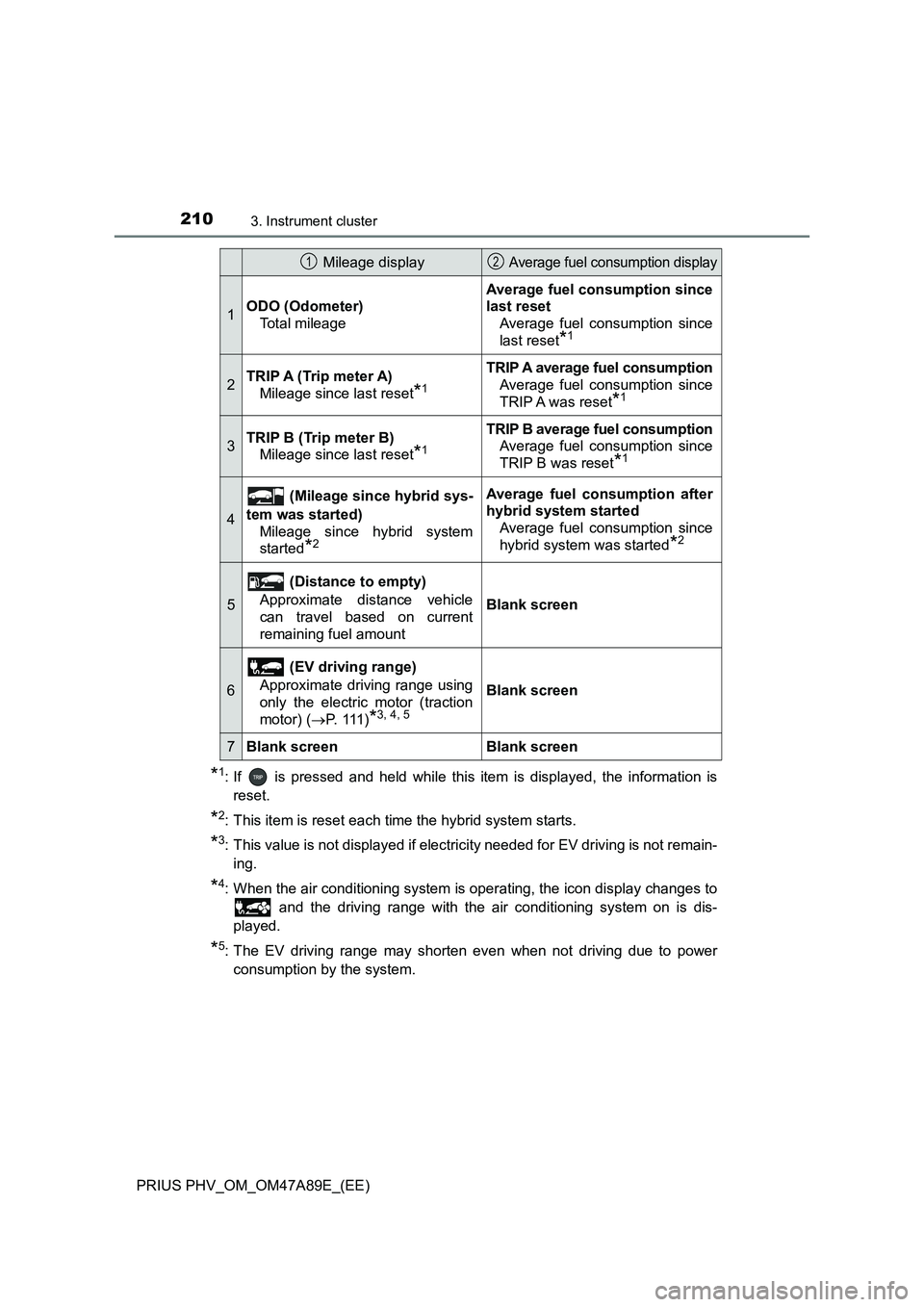

2103. Instrument cluster
PRIUS PHV_OM_OM47A89E_(EE)
*1: If is pressed and held while this item is displayed, the information is
reset.
*2: This item is reset each time the hybrid system starts.
*3: This value is not displayed if electricity needed for EV driving is not remain-
ing.
*4: When the air conditioning system is operating, the icon display changes to
and the driving range with the air conditioning system on is dis-
played.
*5: The EV driving range may shorten even when not driving due to power
consumption by the system.
Mileage display Average fuel consumption display
1ODO (Odometer)
Total mileage
Average fuel consumption since
last reset
Average fuel consumption since
last reset
*1
2TRIP A (Trip meter A)
Mileage since last reset
*1
TRIP A average fuel consumption
Average fuel consumption since
TRIP A was reset
*1
3TRIP B (Trip meter B)
Mileage since last reset
*1
TRIP B average fuel consumption
Average fuel consumption since
TRIP B was reset
*1
4
(Mileage since hybrid sys-
tem was started)
Mileage since hybrid system
started
*2
Average fuel consumption after
hybrid system started
Average fuel consumption since
hybrid system was started
*2
5
(Distance to empty)
Approximate distance vehicle
can travel based on current
remaining fuel amount
Blank screen
6
(EV driving range)
Approximate driving range using
only the electric motor (traction
motor) (P. 111 )
*3, 4, 5
Blank screen
7Blank screenBlank screen
