TOYOTA PRIUS PLUG-IN HYBRID 2018 Owners Manual

2613. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)■

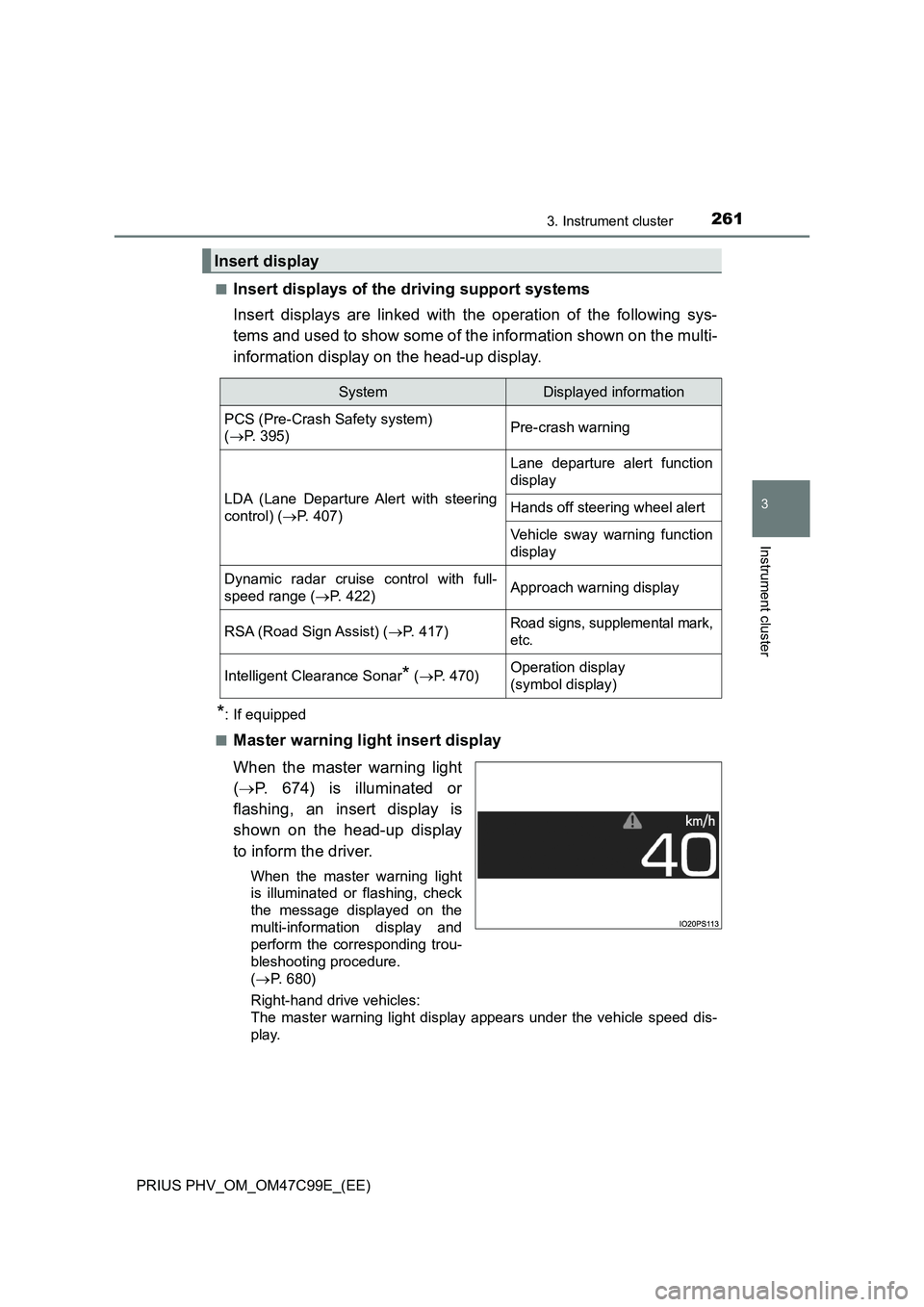

Insert displays of the driving support systems
Insert displays are linked with the operation of the following sys-
tems and used to show some of the information shown on the multi-
information display on the head-up display.
*: If equipped
■
Master warning light insert display
When the master warning light
(P. 674) is illuminated or
flashing, an insert display is
shown on the head-up display
to inform the driver.
When the master warning light
is illuminated or flashing, check
the message displayed on the
multi-information display and
perform the corresponding trou-
bleshooting procedure.
(P. 680)
Right-hand drive vehicles:
The master warning light display appears under the vehicle speed dis-
play.
Insert display
SystemDisplayed information
PCS (Pre-Crash Safety system)
(P. 395)Pre-crash warning
LDA (Lane Departure Alert with steering
control) (P. 407)
Lane departure alert function
display
Hands off steering wheel alert
Vehicle sway warning function
display
Dynamic radar cruise control with full-
speed range (P. 422)Approach warning display
RSA (Road Sign Assist) (P. 417)Road signs, supplemental mark,
etc.
Intelligent Clearance Sonar* (P. 470)Operation display
(symbol display)

2623. Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)
■Enabling/disabling of the head-up display
When the head-up display is turned off with the “HUD” switch, it is not dis-
played until the “HUD” switch is used to turn the head-up display on again.
(Operation of the head-up display is not linked with the power switch.)
■Display brightness
●The brightness of the head-up display is automatically adjusted according to
the operation status of the headlights (on/off) and the brightness of the sur-
roundings.
●When the brightness of the head-up display is adjusted to a certain level or
higher, the display automatically dims when the vehicle is stopped. Once the
vehicle starts off and the vehicle speed reaches approximately 5 km/h
(3.1 mph) or more, the display automatically returns to its previous bright-
ness.
■Vehicle speed display
In extremely cold environments, the display of the speedometer and the vehi-
cle speed of the head-up display may slightly differ.
■Head-up display
The head-up display may seem dark and hard to see when viewed through
sunglasses, especially polarized sunglasses.
■When the 12-volt battery is disconnected
The customize settings of the head-up display will be reset.

2633. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)

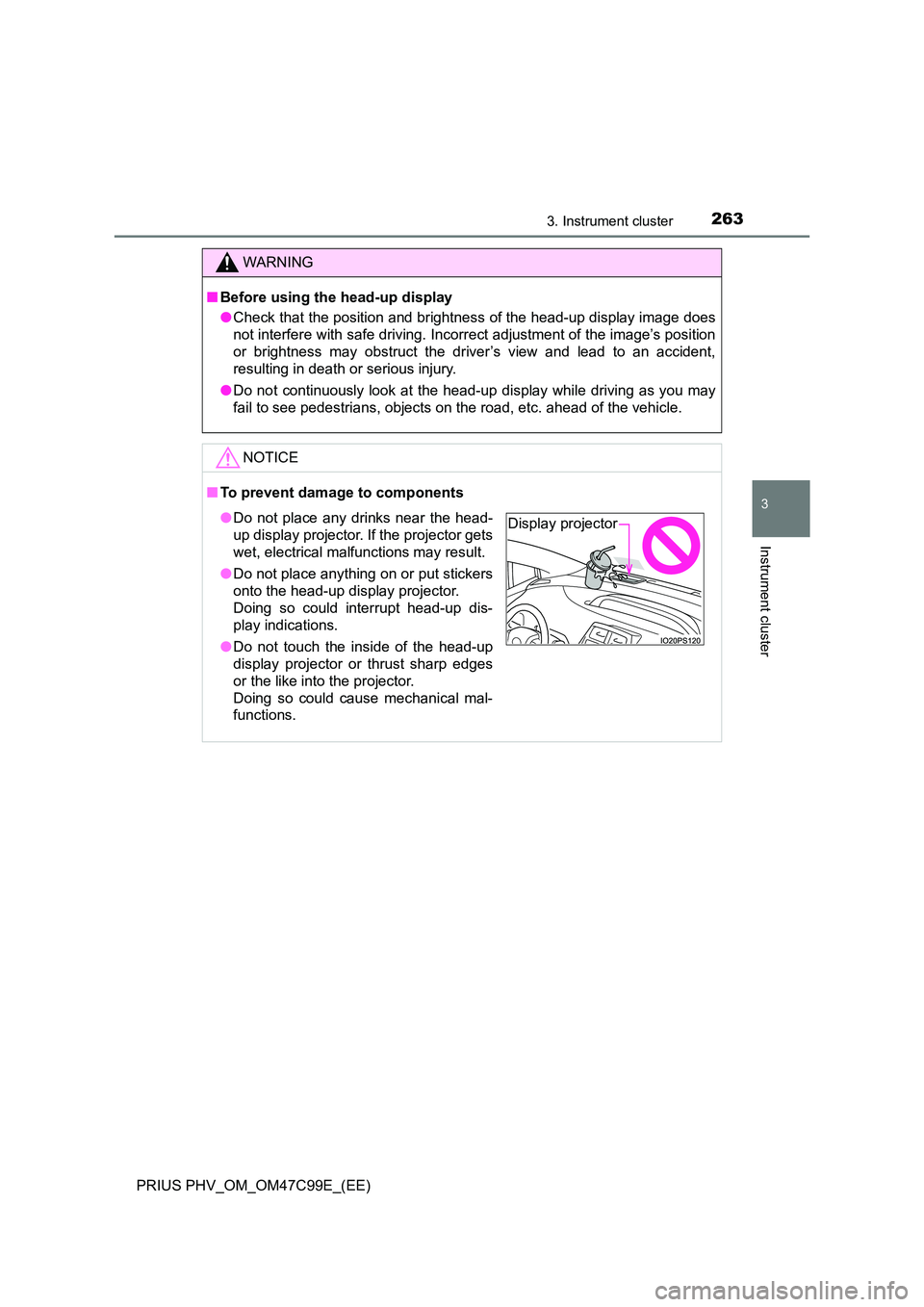

WARNING
■Before using the head-up display
● Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or brightness may obstruct the driver’s view and lead to an accident,
resulting in death or serious injury.
● Do not continuously look at the head-up display while driving as you may
fail to see pedestrians, objects on the road, etc. ahead of the vehicle.
NOTICE
■ To prevent damage to components
●Do not place any drinks near the head-
up display projector. If the projector gets
wet, electrical malfunctions may result.
● Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.
● Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.
Display projector

2643. Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)

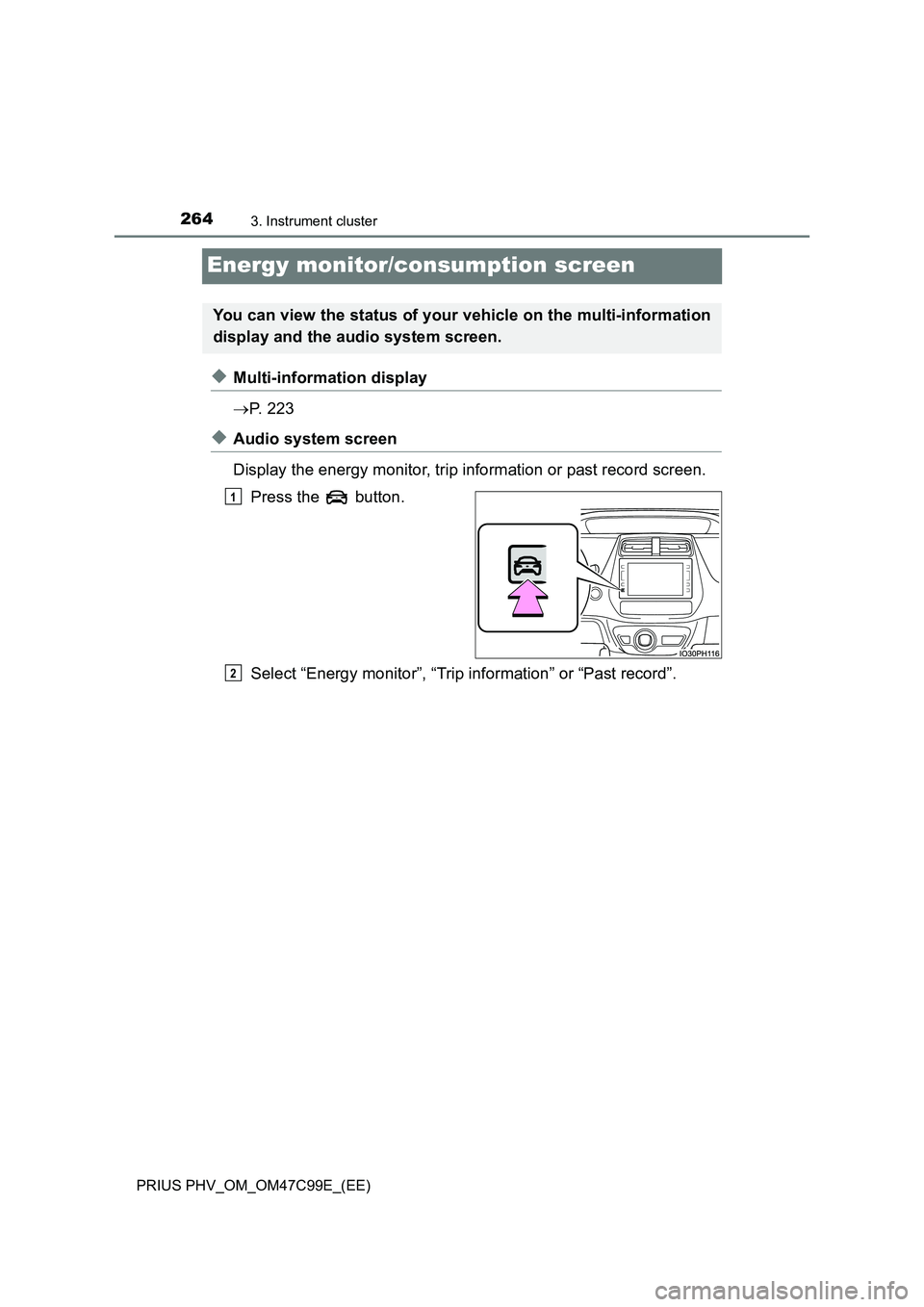

Energy monitor/consumption screen
◆Multi-information display
 P. 2 2 3
◆Audio system screen
Display the energy monitor, trip information or past record screen.
Press the button.
Select “Energy monitor”, “Trip information” or “Past record”.
You can view the status of your vehicle on the multi-information
display and the audio system screen.
1
2

2653. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)■

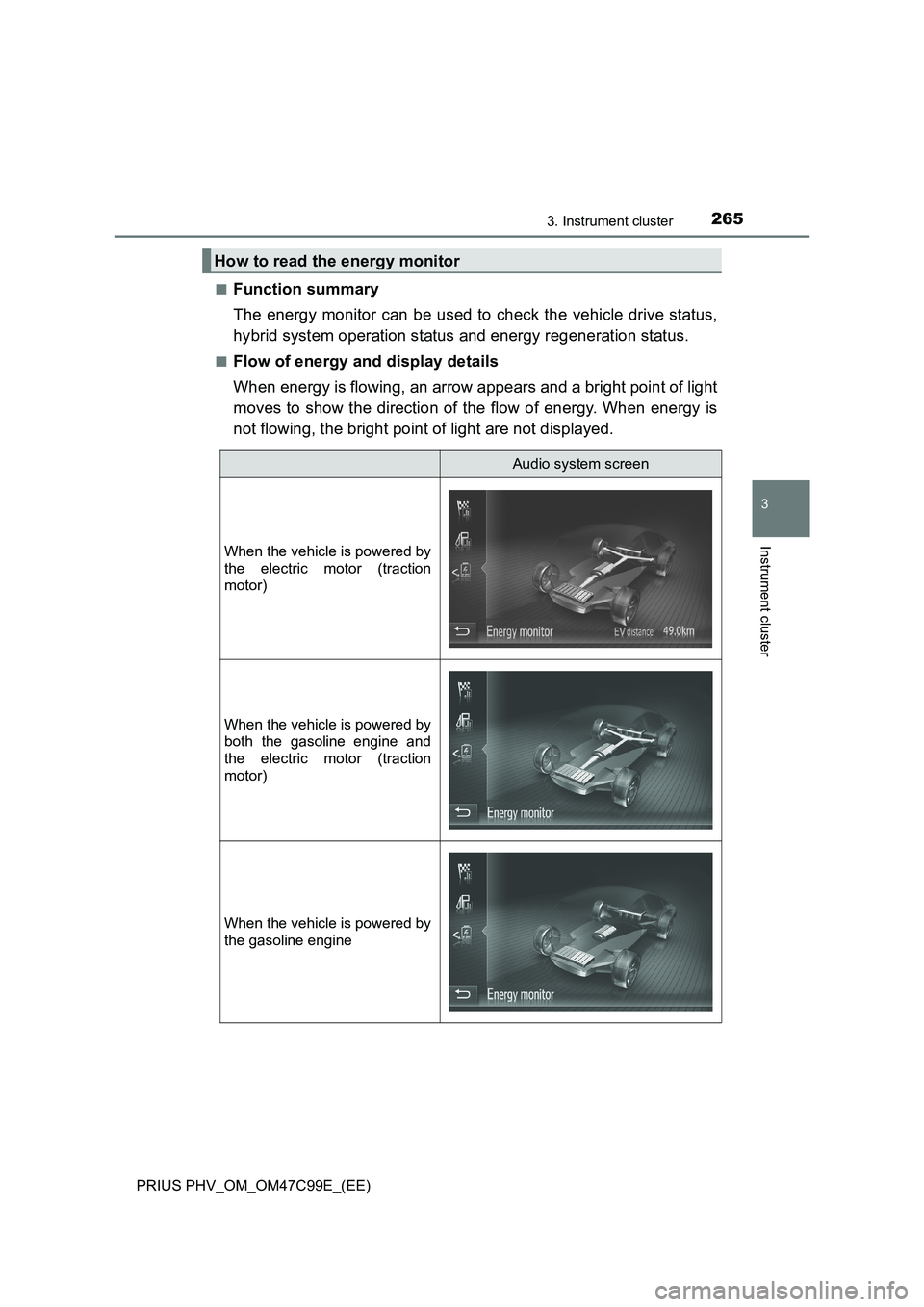

Function summary
The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
■Flow of energy and display details
When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light are not displayed.
How to read the energy monitor
Audio system screen
When the vehicle is powered by
the electric motor (traction
motor)
When the vehicle is powered by
both the gasoline engine and
the electric motor (traction
motor)
When the vehicle is powered by
the gasoline engine

2663. Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)

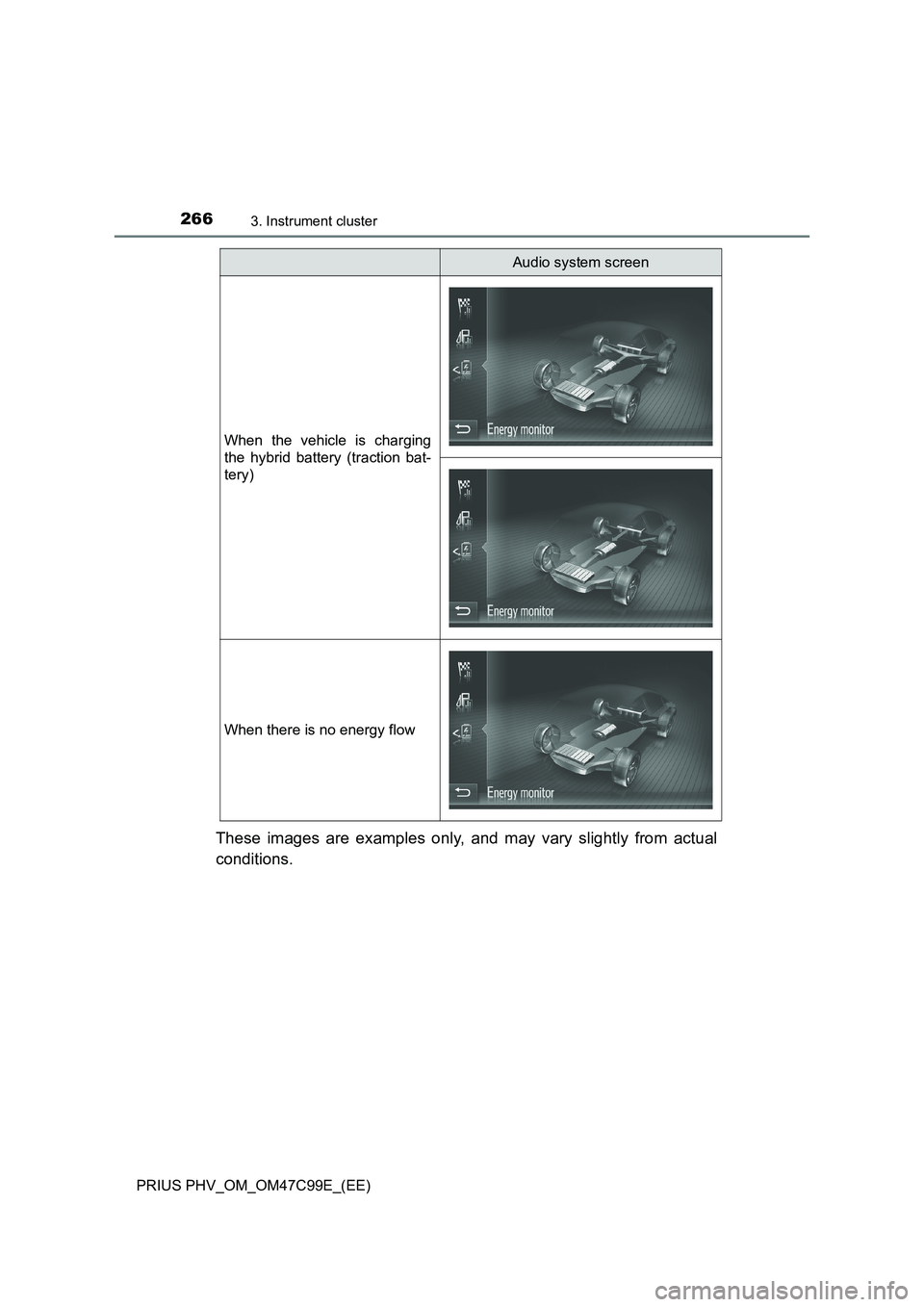

These images are examples only, and may vary slightly from actual
conditions.
When the vehicle is charging
the hybrid battery (traction bat-
tery)
When there is no energy flow
Audio system screen

2673. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)
The current remaining charge in the hybrid battery (traction battery) is
displayed on the energy monitor screen.
The system automatically switches to the HV mode when the neces-
sary amount of battery charge for EV driving in EV mode is insuffi-
cient.
The hybrid battery (traction bat-
tery) for EV mode is fully
charged
There is a remaining charge in
the hybrid battery (traction bat-
tery).
The hybrid battery (traction bat-
tery) for EV mode is not remain-
ing
The hybrid battery (traction bat-
tery) for HV mode is fully
charged
When the hybrid battery (traction
battery) charge for EV mode is
depleted, the hybrid battery (trac-
tion battery) charge for HV mode is
displayed.
The hybrid battery (traction battery) is not remaining
The image is an example only, and may vary slightly from actual condi-
tions.
The approximate distance that
can be driven using only the elec-
tric motor (traction motor).
• Displayed only in EV mode.
• When the air conditioning is on,
the displayed value may differ
from the Hybrid System Indicator.
(P. 234)
• The image is an example only,
and may vary slightly from actual
conditions.
Display of the remaining hybrid battery (traction battery)
1
2
3
4
EV driving range
5

2683. Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)■

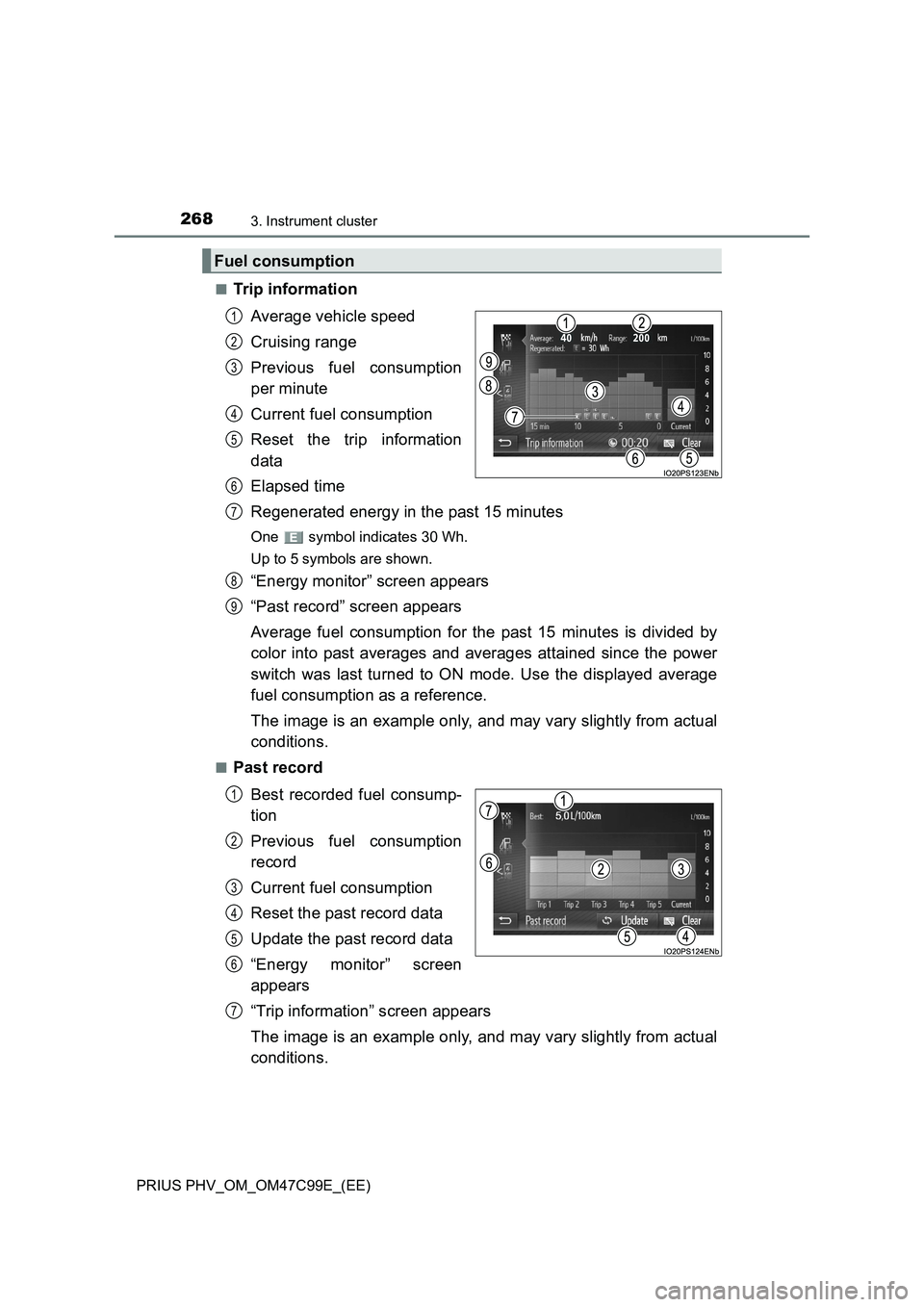

Trip information
Average vehicle speed
Cruising range
Previous fuel consumption
per minute
Current fuel consumption
Reset the trip information
data
Elapsed time
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
“Energy monitor” screen appears
“Past record” screen appears
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average
fuel consumption as a reference.
The image is an example only, and may vary slightly from actual
conditions.
■Past record
Best recorded fuel consump-
tion
Previous fuel consumption
record
Current fuel consumption
Reset the past record data
Update the past record data
“Energy monitor” screen
appears
“Trip information” screen appears
The image is an example only, and may vary slightly from actual
conditions.
Fuel consumption
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7

2693. Instrument cluster
3
Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)

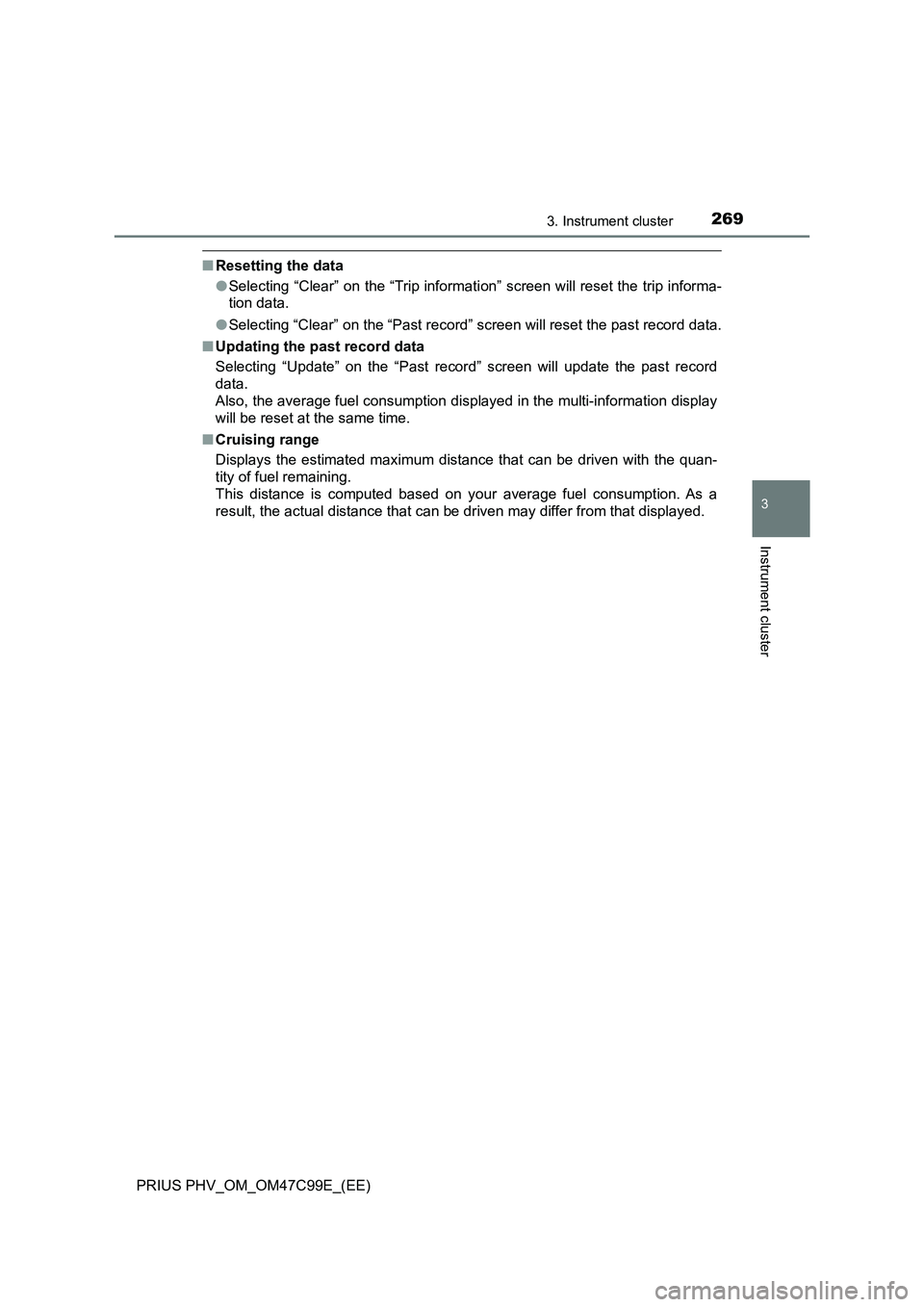

■Resetting the data
●Selecting “Clear” on the “Trip information” screen will reset the trip informa-
tion data.
●Selecting “Clear” on the “Past record” screen will reset the past record data.
■Updating the past record data
Selecting “Update” on the “Past record” screen will update the past record
data.
Also, the average fuel consumption displayed in the multi-information display
will be reset at the same time.
■Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.

2703. Instrument cluster
PRIUS PHV_OM_OM47C99E_(EE)
