Prius Plug-in Hybrid_OM_OM47D72E_(EE)
3
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ..........616
Cleaning and protecting
the vehicle interior ...........622
7-2. Maintenance
Maintenance
requirements....................628
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ......................631
Hood ..................................634
Positioning a floor jack .......636
Engine compartment..........637
Tires ...................................650
Tire inflation pressure ........665
Wheels ...............................667
Replacing the tire ...............669
Air conditioning filter ..........681
Wiper insert
replacement .....................685
Electronic key battery ........688
Checking and replacing
fuses ................................691
Light bulbs .........................695
8-1. Essential information
Emergency flashers .......... 704
If your vehicle has to
be stopped in an
emergency ...................... 705
If the vehicle is trapped in
rising water...................... 706
8-2. Steps to take in an
emergency
If your vehicle needs
to be towed ..................... 707
If you think something is
wrong .............................. 713
If a warning light turns on
or a warning buzzer
sounds ............................ 714
If a warning message is
displayed ......................... 723
If you have a flat tire .......... 731
If the hybrid system will
not start ........................... 749
If the electronic key does
not operate properly ........ 751
If the 12-volt battery is
discharged ...................... 755
If your vehicle
overheats ........................ 761
If the vehicle becomes
stuck................................ 766
7Maintenance and care8When trouble arises

615
7Maintenance and care
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 616
Cleaning and protecting
the vehicle interior ........... 622
7-2. Maintenance
Maintenance
requirements.................... 628
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 631
Hood .................................. 634
Positioning a floor jack ....... 636
Engine compartment.......... 637
Tires ................................... 650
Tire inflation pressure ........ 665
Wheels ............................... 667
Replacing the tire ............... 669
Air conditioning filter .......... 681
Wiper insert
replacement ..................... 685
Electronic key battery ........ 688
Checking and replacing
fuses ................................ 691
Light bulbs ......................... 695

6317-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
7
Maintenance and care
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
12-volt battery
condition
(P. 644)• Warm water • Baking soda • Grease
• Conventional wrench (for terminal clamp bolts)
• Distilled water
Engine/power
control unit
coolant level
(P. 641)• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
(P. 638)• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 6 9 1 )• Fuse with same amperage rating as original
Hybrid battery
(traction battery)
air intake vent
(P. 623)
• Vacuum cleaner, etc.
• Flathead screwdriver
Light bulbs
(P. 695)
• Bulb with same number and wattage rating as origi-
nal
• Flathead screwdriver
• Wrench
Radiator and
condenser
(P. 643)

Tire inflation
pressure
(P. 665)• Tire pressure gauge
• Compressed air source
Washer fluid
(P. 648)• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

6377-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
7
Maintenance and care
Engine compartment
IO73PH114
Engine coolant reservoir
( P. 641)
Fuse boxes ( P. 691)
Engine oil level dipstick
( P. 638)
Engine oil filler cap ( P. 639)
Washer fluid tank ( P. 648)
12-volt battery ( P. 644)
Power control unit coolant
reservoir ( P. 641)
Radiator ( P. 643)
Condenser ( P. 643)
Electric cooling fans
1
2
3
4
5
6
7
8
9
10

6917-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
7
Maintenance and care
Checking and replacing fuses
Turn the power switch off.
Confirm that the charging connector is not connected. Also, do not use the
Remote Air Conditioning System during the procedure.
Open the fuse box cover.
Engine compartment type A fuse box
While pushing the 2 claws, lift
up the cover.
When closing the cover, make
sure to attach the 2 claws.
Engine compartment type B fuse box
While pushing the 3 claws, lift
up the cover.
When closing the cover, make
sure to attach the 3 claws.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2

6927-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

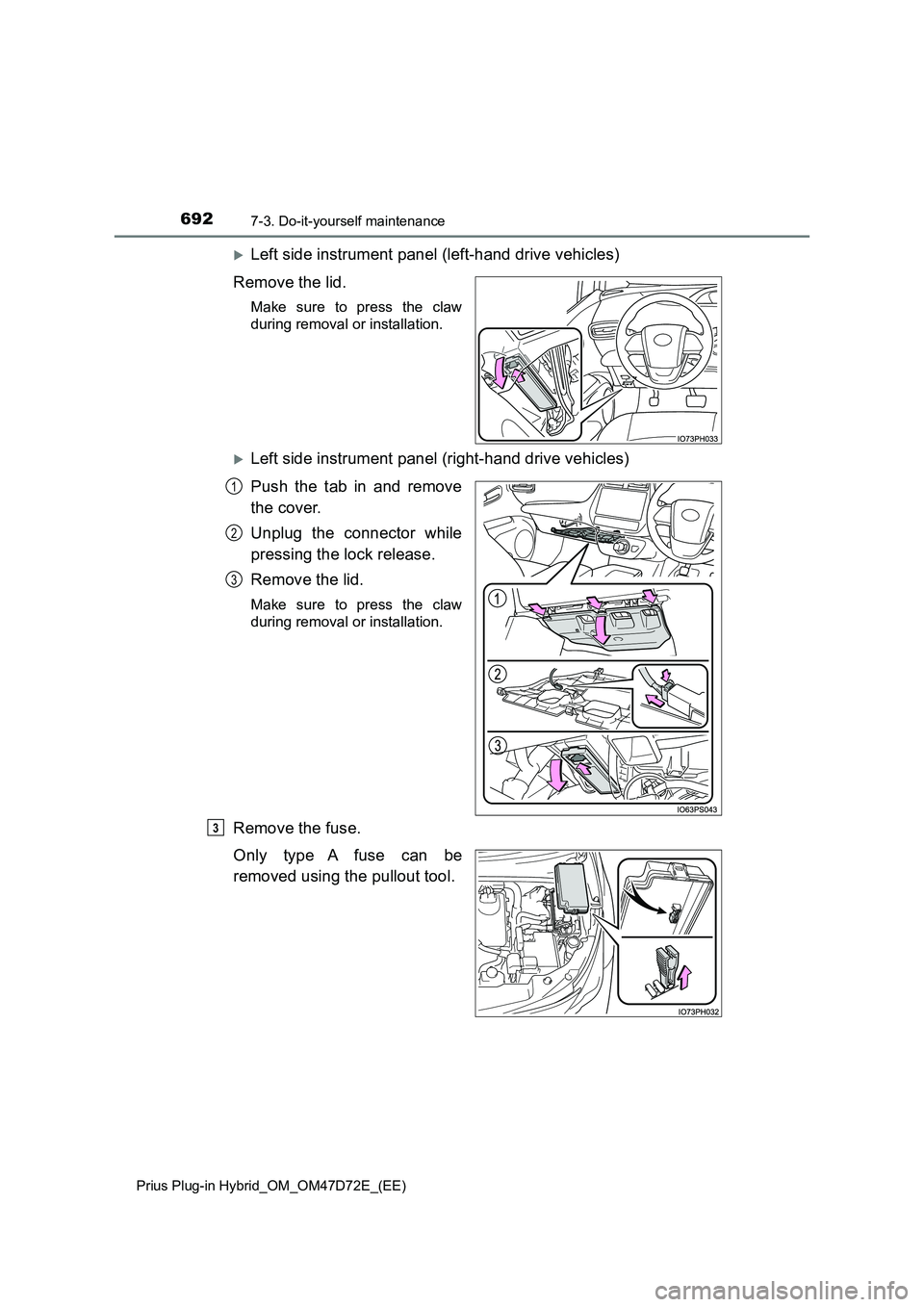

Left side instrument panel (left-hand drive vehicles)
Remove the lid.
Make sure to press the claw
during removal or installation.
Left side instrument panel (right-hand drive vehicles)
Push the tab in and remove
the cover.
Unplug the connector while
pressing the lock release.
Remove the lid.
Make sure to press the claw
during removal or installation.
Remove the fuse.
Only type A fuse can be
removed using the pullout tool.
1
2
3
3

6937-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
7
Maintenance and care
Check if the fuse is blown.
Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
4
1
2
Ty pe AType B
Ty pe C

6947-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 695)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.

7498-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
8
When trouble arises

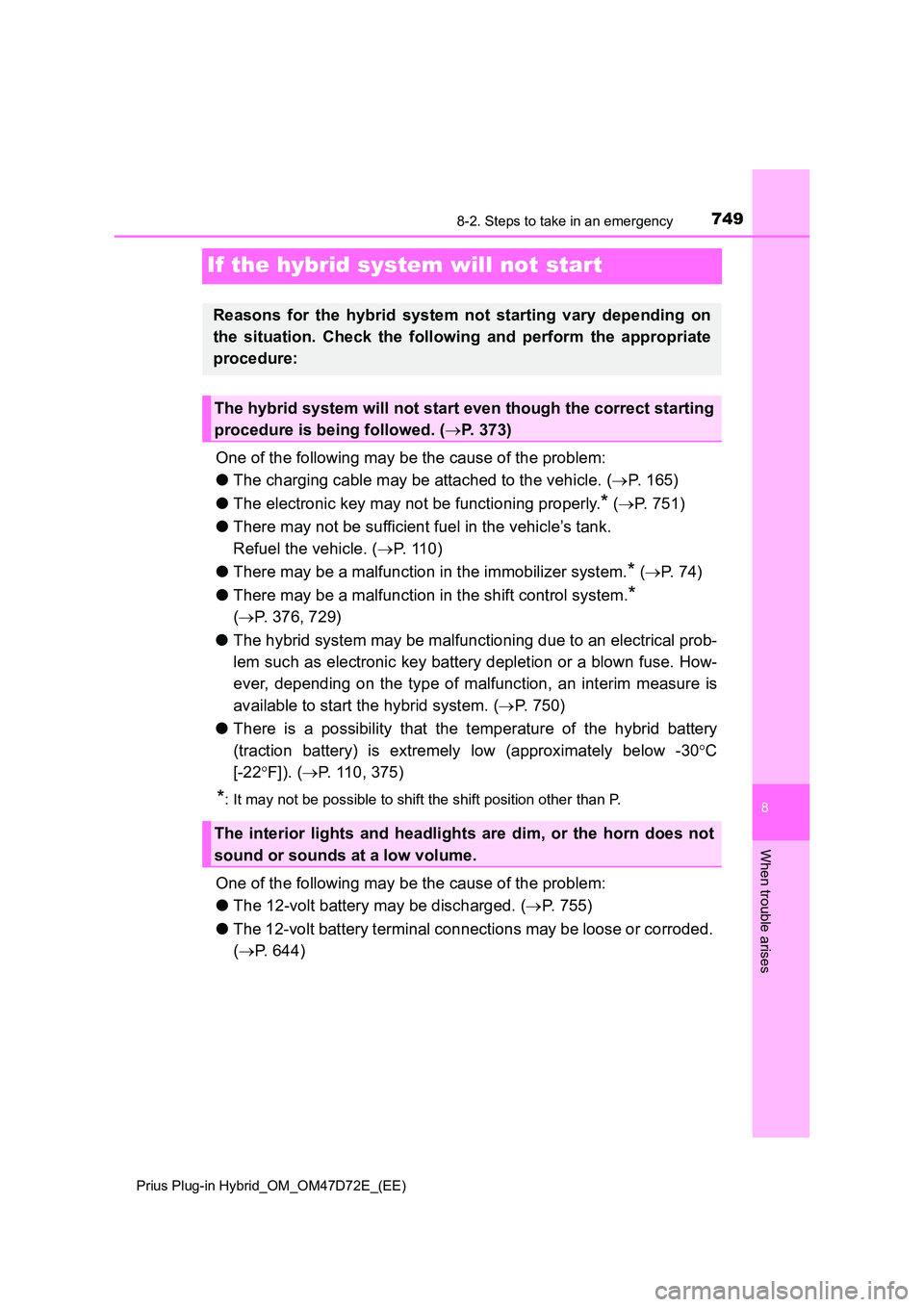

If the hybrid system will not start
One of the following may be the cause of the problem:
● The charging cable may be attached to the vehicle. (P. 165)
● The electronic key may not be functioning properly.* (P. 751)
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. ( P. 1 1 0 )
● There may be a malfunction in the immobilizer system.* (P. 7 4 )
● There may be a malfunction in the shift control system.*
( P. 376, 729)
● The hybrid system may be malfunctioning due to an electrical prob-
lem such as electronic key battery depletion or a blown fuse. How-
ever, depending on the type of malfunction, an interim measure is
available to start the hybrid system. ( P. 750)
● There is a possibility that the temperature of the hybrid battery
(traction battery) is extremely low (approximately below -30 C
[-22 F]). (P. 110, 375)
*: It may not be possible to shift the shift position other than P.
One of the following may be the cause of the problem:
● The 12-volt battery may be discharged. (P. 755)
● The 12-volt battery terminal connections may be loose or corroded.
( P. 644)
Reasons for the hybrid system not starting vary depending on
the situation. Check the following and perform the appropriate
procedure:
The hybrid system will not start even though the correct starting
procedure is being followed. ( P. 373)
The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.

804Alphabetical index
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Flat tire ...................................... 731
Floor mats .................................. 30
Fluid
Brake..................................... 778
Transmission......................... 777
Washer.................................. 648
Fog lights.................................. 397
Replacing light bulbs ............. 700
Switch ................................... 397
Follow me home system ......... 388
Footwell lights.......................... 591
Front doors............................... 283
Front fog lights ........................ 397
Replacing light bulbs ............. 700
Switch ................................... 397
Front passenger’s seat belt
reminder light ........................ 717
Front position lights ................ 387
Light switch ........................... 387
Replacing light bulbs ............. 700
Front seat concentrated
airflow mode (S-FLOW)......... 575
Front seats ............................... 339
Adjustment ............................ 339
Cleaning ................................ 622
Correct driving posture............ 32
Head restraints...................... 343
Seat heaters.......................... 589
Front turn signal lights............ 385
Replacing light bulbs ............. 700
Turn signal lever ................... 385
Fuel ........................................... 401
Capacity ................................ 772
Fuel gauge ............................ 222
Information ............................ 780
Refueling ............................... 401
Type ...................................... 772
Warning light ......................... 717
Fuel consumption ............ 244, 275
Average fuel consumption .... 244
Current fuel consumption ...... 275Fuel filler door.......................... 403
Opener .................................. 403
Refueling............................... 401
When the fuel filler door
cannot be opened............... 403
Fuses ........................................ 691
Glove box ................................. 595
Hands-free system (for
cellular phone)
*
Head restraints ........................ 343
Head-up display ....................... 264
Headlights ................................ 387
AHS (Adaptive High-beam
System) .............................. 391
Automatic headlight
leveling ............................... 389
Follow me home system ....... 388
Light switch ........................... 387
Replacing light bulbs............. 700
Heaters
Automatic air conditioning
system ................................ 572
Hybrid battery (traction
battery) ............................... 154
Outside rear view mirrors...... 577
Seat heaters ......................... 589
High coolant temperature
warning light .......................... 716
High mounted stoplight
Replacing .............................. 700
High-voltage components ...... 108
Hill-start assist control............ 559
Hood ......................................... 634
Hooks
Coat hooks............................ 613
Grocery bag hook ................. 601
Retaining hooks (floor mat)..... 30
F
G
H
