glove box TOYOTA PRIUS PLUG-IN HYBRID 2021 Owners Manual

TABLE OF CONTENTS4
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
5-5. Using the driving
support systems
Toyota Safety Sense .........405
PCS (Pre-Collision
System) ...........................418
LTA (Lane Tracing
Assist) ..............................429
RSA (Road Sign Assist).....445
Dynamic radar cruise
control with full-speed
range ...............................451
Driving mode select
switch...............................468
Speed limiter ......................470
BSM
(Blind Spot Monitor) .........473
• The Blind Spot Monitor
function ..........................489
• The Rear Crossing
Traffic Alert function.......493
Toyota parking
assist-sensor ...................499
Parking Support Brake
function ............................510
S-IPA (Simple Intelligent
Parking Assist
System) ...........................523
GPF (Gasoline Particulate
Filter) system ...................558
Driving assist systems .......559
5-6. Driving tips
Winter driving tips ..............5666-1. Using the air conditioning
system and defogger
Automatic air conditioning
system............................. 572
Remote Air Conditioning
System ............................ 585
Seat heaters ...................... 589
6-2. Using the interior lights
Interior lights list ................ 591
• Front interior light .......... 592
• Front personal lights ..... 592
• Rear interior light .......... 593
6-3. Using the storage features
List of storage features...... 594
• Glove box ...................... 595
• Console box .................. 595
• Cup holders .................. 596
• Bottle holders/
door pockets ................. 597
• Auxiliary boxes .............. 598
• Seat back pockets ........ 599
Luggage compartment
features ........................... 600
6-4. Using the other interior
features
Other interior features ....... 605
• Sun visors ..................... 605
• Vanity mirrors ................ 605
• Power outlets ................ 606
• Wireless charger ........... 607
• Armrest ......................... 613
• Coat hooks .................... 613
• Assist grips ................... 614
6Interior features

2974-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
4
Operation of each component
■Note for the entry function
●Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.
• The electronic key is on the instrument panel, floor, or in the door pockets
or glove box when the hybrid system is started or power switch modes
are changed.
●Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.
●As long as the electronic key is within the effective range, the doors may be
unlocked or locked by anyone.
●Even if the electronic key is not inside the vehicle, it may be possible to start
the hybrid system if the electronic key is near the window.
●The doors may unlock if a large amount of water splashes on the door han-
dle, such as in the rain or in a car wash when the electronic key is within the
effective range. (The door will automatically be locked after approximately
30 seconds if the doors are not opened and closed.)
●If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)
●Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.
●On some models: When the lock operation is performed using the lock sen-
sor, recognition signals will be shown up to two consecutive times. After this,
no recognition signals will be given.
●If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In this case, follow the
following correction procedures to wash the vehicle.
• Place the electronic key in a location 2 m (6 ft.) or more away from the
vehicle. (Take care to ensure that the key is not stolen.)
• Set electronic key to battery-saving mode to disable the smart entry &
start system. (P. 295)

3665-1. Before driving
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

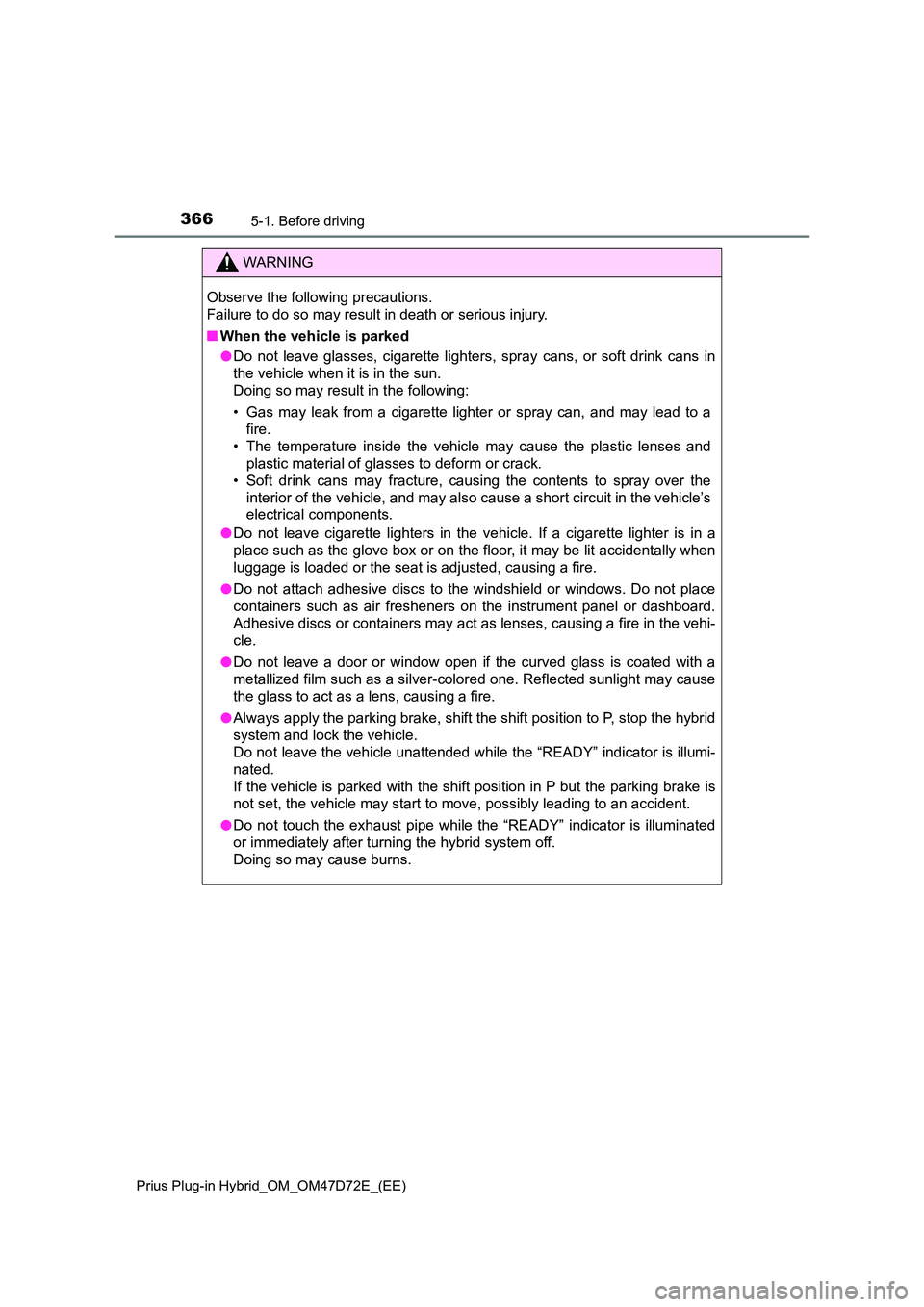

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When the vehicle is parked
● Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in
the vehicle when it is in the sun.
Doing so may result in the following:
• Gas may leak from a cigarette lighter or spray can, and may lead to a
fire.
• The temperature inside the vehicle may cause the plastic lenses and
plastic material of glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the
interior of the vehicle, and may also cause a short circuit in the vehicle’s
electrical components.
● Do not leave cigarette lighters in the vehicle. If a cigarette lighter is in a
place such as the glove box or on the floor, it may be lit accidentally when
luggage is loaded or the seat is adjusted, causing a fire.
● Do not attach adhesive discs to the windshield or windows. Do not place
containers such as air fresheners on the instrument panel or dashboard.
Adhesive discs or containers may act as lenses, causing a fire in the vehi-
cle.
● Do not leave a door or window open if the curved glass is coated with a
metallized film such as a silver-colored one. Reflected sunlight may cause
the glass to act as a lens, causing a fire.
● Always apply the parking brake, shift the shift position to P, stop the hybrid
system and lock the vehicle.
Do not leave the vehicle unattended while the “READY” indicator is illumi-
nated.
If the vehicle is parked with the shift position in P but the parking brake is
not set, the vehicle may start to move, possibly leading to an accident.
● Do not touch the exhaust pipe while the “READY” indicator is illuminated
or immediately after turning the hybrid system off.
Doing so may cause burns.

571

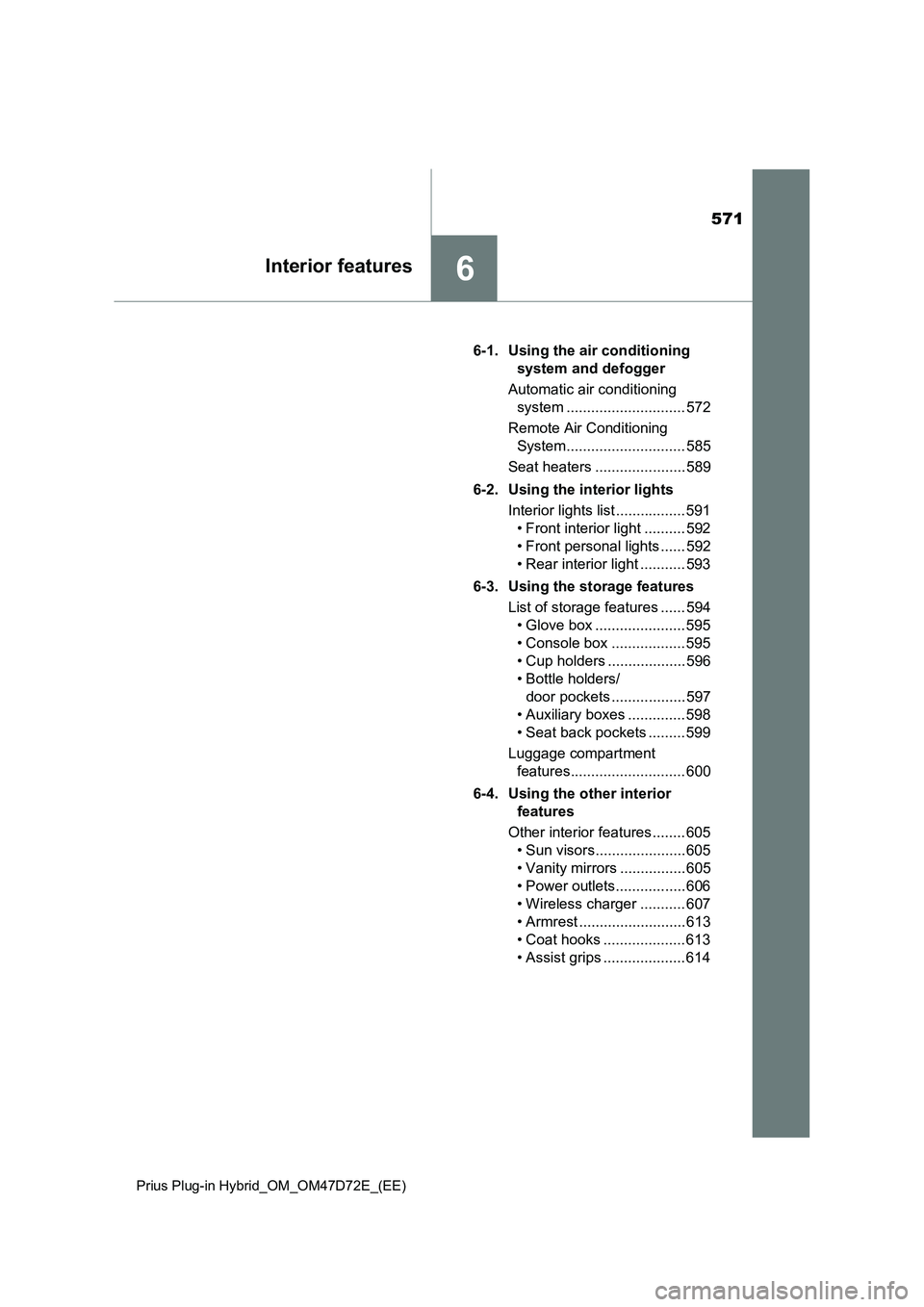

6Interior features
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
6-1. Using the air conditioning
system and defogger
Automatic air conditioning
system ............................. 572
Remote Air Conditioning
System............................. 585
Seat heaters ...................... 589
6-2. Using the interior lights
Interior lights list ................. 591
• Front interior light .......... 592
• Front personal lights ...... 592
• Rear interior light ........... 593
6-3. Using the storage features
List of storage features ...... 594
• Glove box ...................... 595
• Console box .................. 595
• Cup holders ................... 596
• Bottle holders/
door pockets .................. 597
• Auxiliary boxes .............. 598
• Seat back pockets ......... 599
Luggage compartment
features............................ 600
6-4. Using the other interior
features
Other interior features ........ 605
• Sun visors...................... 605
• Vanity mirrors ................ 605
• Power outlets................. 606
• Wireless charger ........... 607
• Armrest .......................... 613
• Coat hooks .................... 613
• Assist grips .................... 614

5946-3. Using the storage features
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

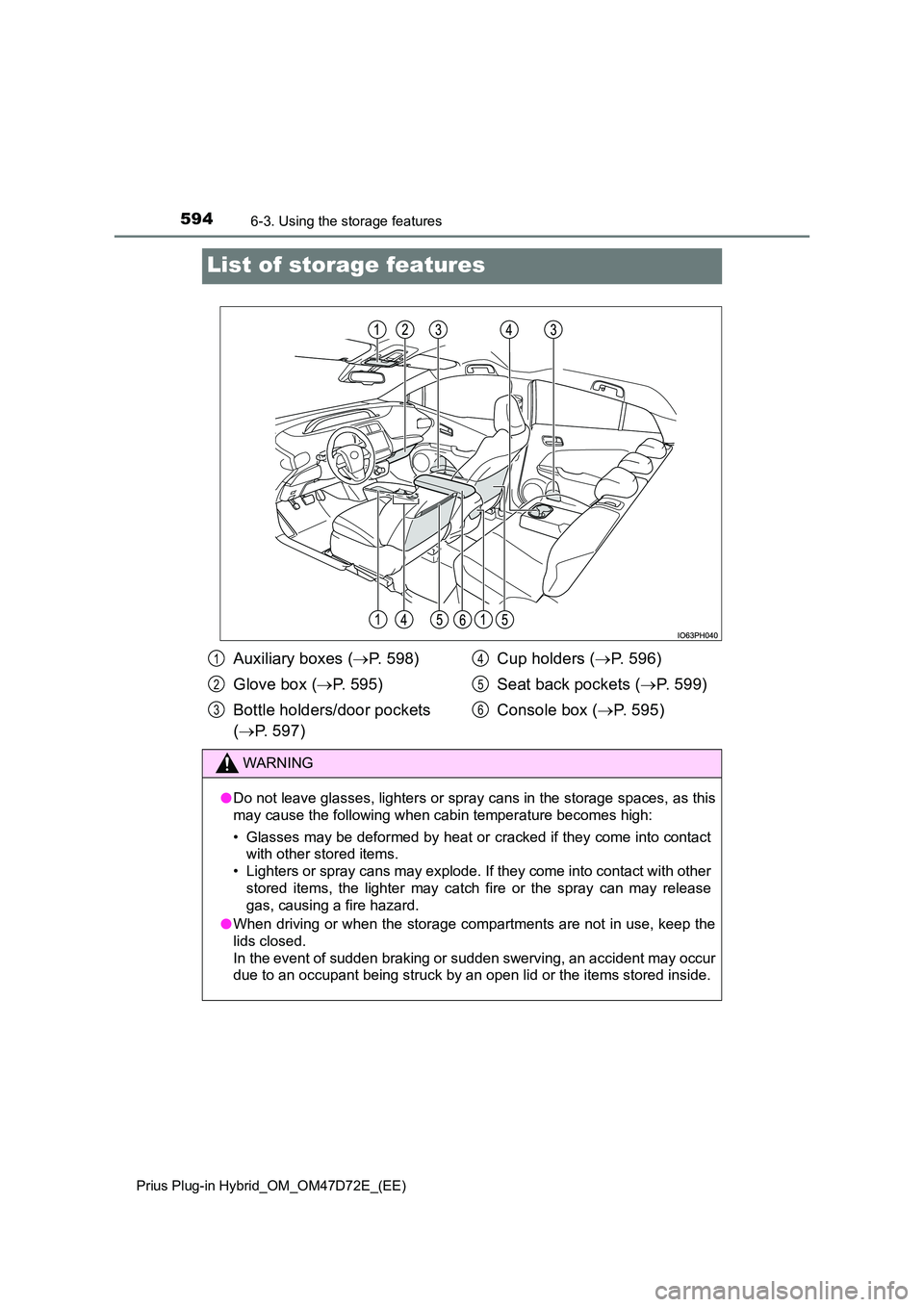

List of storage features
Auxiliary boxes ( P. 598)
Glove box ( P. 595)
Bottle holders/door pockets
( P. 597)
Cup holders ( P. 596)
Seat back pockets ( P. 599)
Console box ( P. 595)
WARNING
●Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
• Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release
gas, causing a fire hazard.
● When driving or when the storage compartments are not in use, keep the
lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
1
2
3
4
5
6

5956-3. Using the storage features
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
6
Interior features

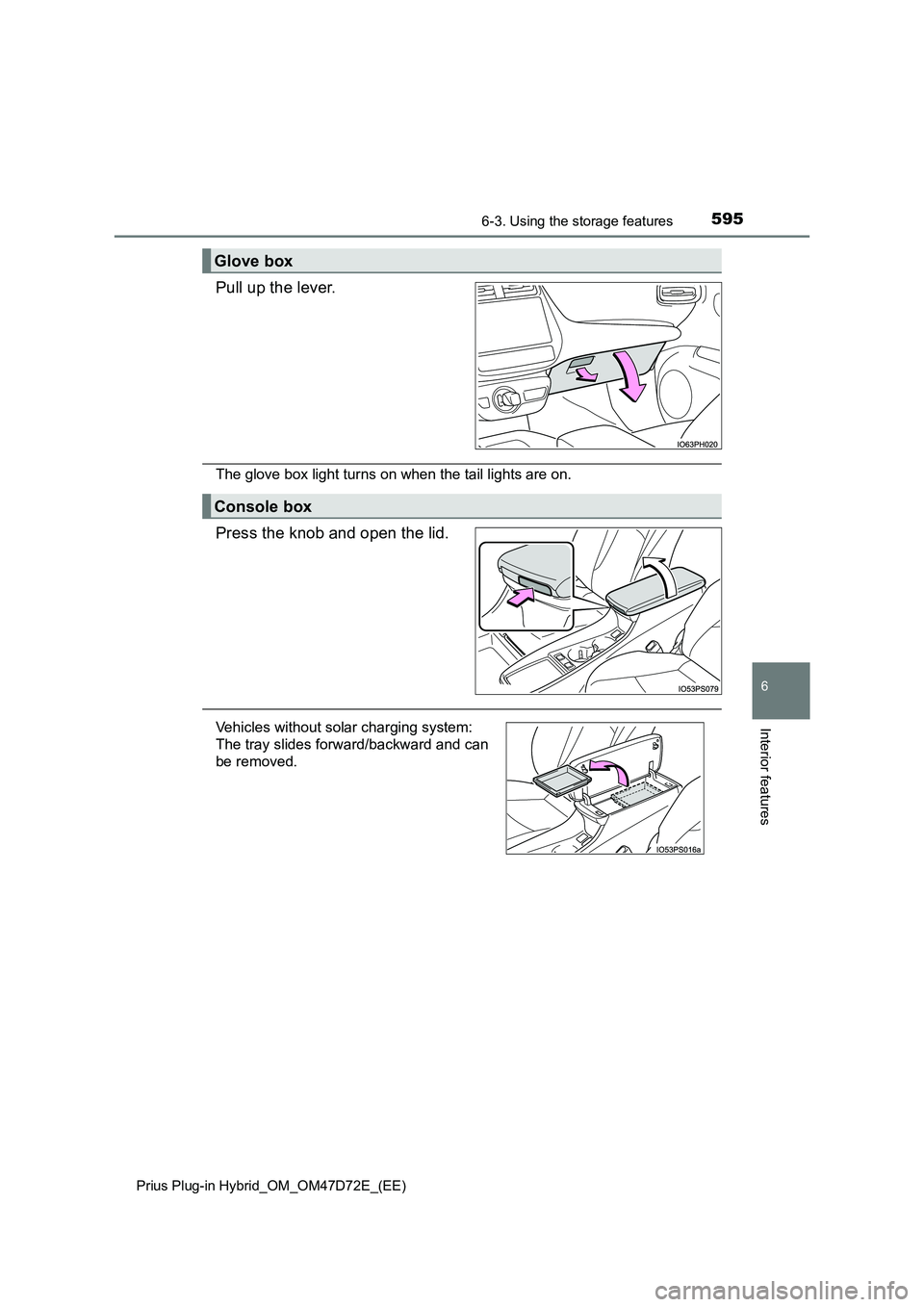

Pull up the lever.
The glove box light turns on when the tail lights are on.
Press the knob and open the lid.
Glove box
Console box
Vehicles without solar charging system:
The tray slides forward/backward and can
be removed.

6817-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
7
Maintenance and care
Air conditioning filter
Turn the power switch off.
Confirm that the charging connector is not connected. Also, do not use the
Remote Air Conditioning System during the procedure.
Open the front passenger’s door.
By keeping the door open, unexpected operation of the Remote Air Condi-
tioning System can be prevent. (P. 586)
Open the glove box and slide
off the damper.
Push in each side of the glove
box to disconnect the claws,
and then slowly and fully open
the glove box while supporting
it.
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Replacing the air conditioning filter
1
2
3
4

6827-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

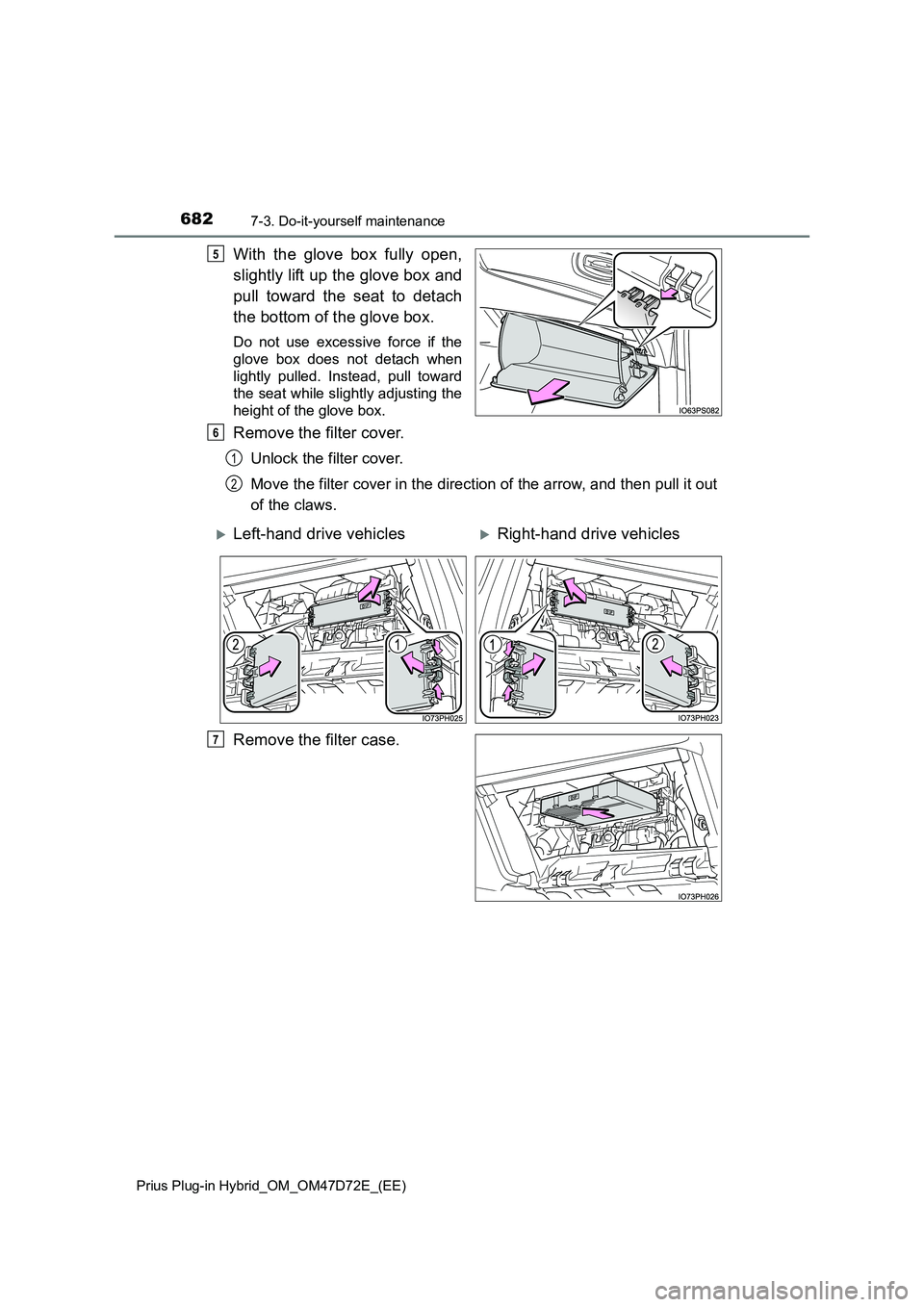

With the glove box fully open,
slightly lift up the glove box and
pull toward the seat to detach
the bottom of the glove box.
Do not use excessive force if the
glove box does not detach when
lightly pulled. Instead, pull toward
the seat while slightly adjusting the
height of the glove box.
Remove the filter cover.
Unlock the filter cover.
Move the filter cover in the direction of the arrow, and then pull it out
of the claws.
Remove the filter case.
5
6
1
2
Left-hand drive vehiclesRight-hand drive vehicles
7

6847-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

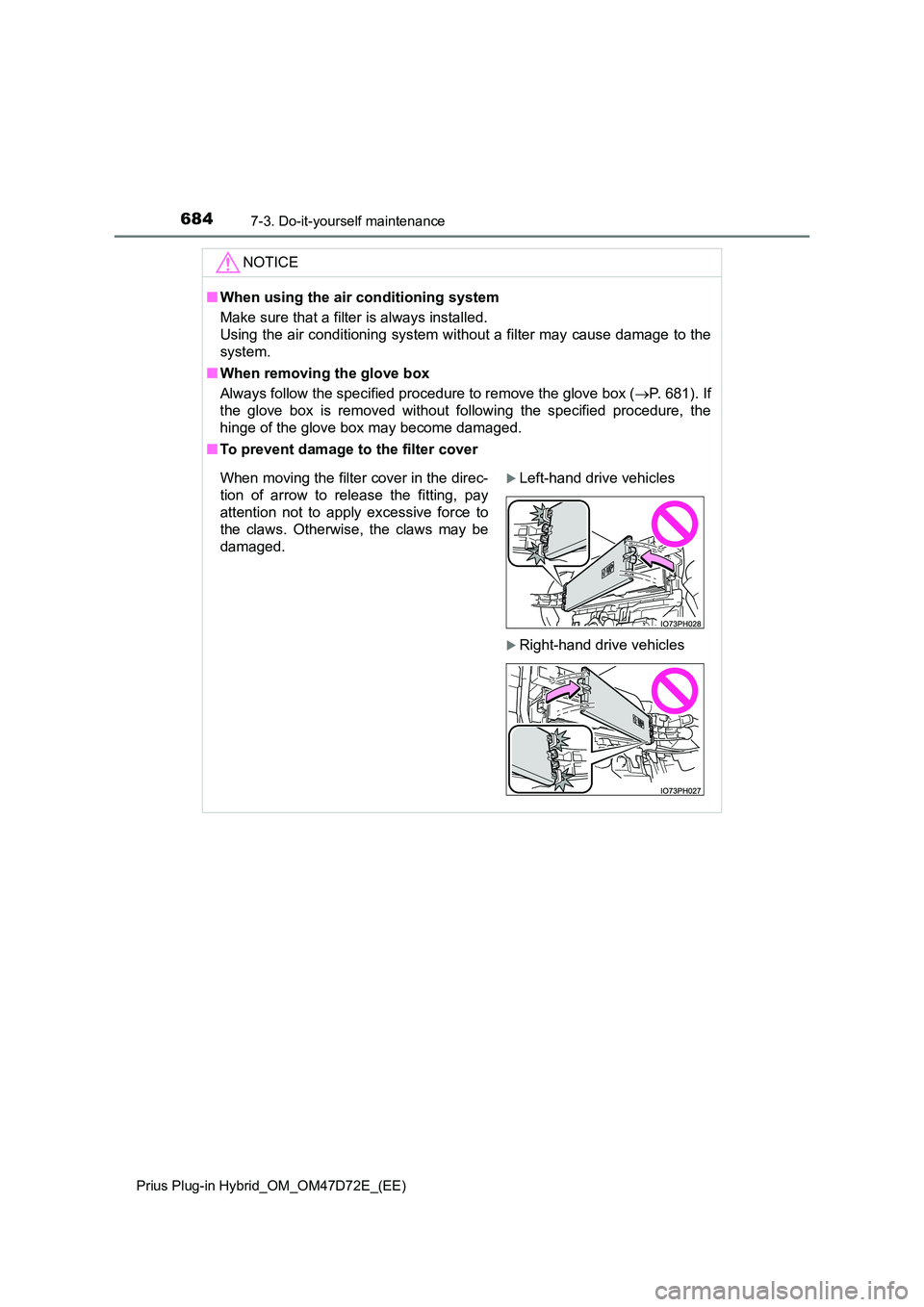

NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditi oning system without a filter may cause damage to the
system.
■ When removing the glove box
Always follow the specified procedure to remove the glove box ( P. 681). If
the glove box is removed without following the specified procedure, the
hinge of the glove box may become damaged.
■ To prevent damage to the filter cover
When moving the filter cover in the direc-
tion of arrow to release the fitting, pay
attention not to apply excessive force to
the claws. Otherwise, the claws may be
damaged.
Left-hand drive vehicles
Right-hand drive vehicles

804Alphabetical index
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Flat tire ...................................... 731
Floor mats .................................. 30
Fluid
Brake..................................... 778
Transmission......................... 777
Washer.................................. 648
Fog lights.................................. 397
Replacing light bulbs ............. 700
Switch ................................... 397
Follow me home system ......... 388
Footwell lights.......................... 591
Front doors............................... 283
Front fog lights ........................ 397
Replacing light bulbs ............. 700
Switch ................................... 397
Front passenger’s seat belt
reminder light ........................ 717
Front position lights ................ 387
Light switch ........................... 387
Replacing light bulbs ............. 700
Front seat concentrated
airflow mode (S-FLOW)......... 575
Front seats ............................... 339
Adjustment ............................ 339
Cleaning ................................ 622
Correct driving posture............ 32
Head restraints...................... 343
Seat heaters.......................... 589
Front turn signal lights............ 385
Replacing light bulbs ............. 700
Turn signal lever ................... 385
Fuel ........................................... 401
Capacity ................................ 772
Fuel gauge ............................ 222
Information ............................ 780
Refueling ............................... 401
Type ...................................... 772
Warning light ......................... 717
Fuel consumption ............ 244, 275
Average fuel consumption .... 244
Current fuel consumption ...... 275Fuel filler door.......................... 403
Opener .................................. 403
Refueling............................... 401
When the fuel filler door
cannot be opened............... 403
Fuses ........................................ 691
Glove box ................................. 595
Hands-free system (for
cellular phone)
*
Head restraints ........................ 343
Head-up display ....................... 264
Headlights ................................ 387
AHS (Adaptive High-beam
System) .............................. 391
Automatic headlight
leveling ............................... 389
Follow me home system ....... 388
Light switch ........................... 387
Replacing light bulbs............. 700
Heaters
Automatic air conditioning
system ................................ 572
Hybrid battery (traction
battery) ............................... 154
Outside rear view mirrors...... 577
Seat heaters ......................... 589
High coolant temperature
warning light .......................... 716
High mounted stoplight
Replacing .............................. 700
High-voltage components ...... 108
Hill-start assist control............ 559
Hood ......................................... 634
Hooks
Coat hooks............................ 613
Grocery bag hook ................. 601
Retaining hooks (floor mat)..... 30
F
G
H
