oil capacity TOYOTA PRIUS PLUG-IN HYBRID 2021 Owners Manual

15Pictorial index
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 398
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 566
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 618
Replacing the wiper insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 685
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 401
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 401
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 772
Charging port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Charging method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 650
Replacing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 669
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 779
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 566
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 650
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 731
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 634
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 634
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 773
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 761
Headlights/front position lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387
Front fog lights/rear fog lights . . . . . . . . . . . . . . . . . . . . . . . P. 397
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 385
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387
Back-up lights
Shifting the shift position to R . . . . . . . . . . . . . . . . . . . . . . . . . P. 3794
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 695, Watts: P. 779)
9
10
11
12
13
14

7709-1. Specifications
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Overall height may differ depending on the target region.
*3: Vehicles with 195/65R15 tires
*4: Vehicles with 215/45R17 tires
Dimensions and weights
Overall length4645 mm (182.9 in.)
Overall width1760 mm (69.3 in.)
Overall height*11470 mm (57.9 in.)*2
1490 mm (58.7 in.)*2
Wheelbase2700 mm (106.3 in.)
Tread*1
Front1530 mm (60.2 in.)*3
1510 mm (59.4 in.)*4
Rear1540 mm (60.6 in.)*3
1520 mm (59.8 in.)*4
Gross vehicle mass1930 kg (4255 lb.)
Maximum permissi-
ble axle capacityFront1060 kg (2337 lb.)
Rear1020 kg (2249 lb.)

7739-1. Specifications
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
9
Vehicle specifications
Generation/traction motor
Traction motor

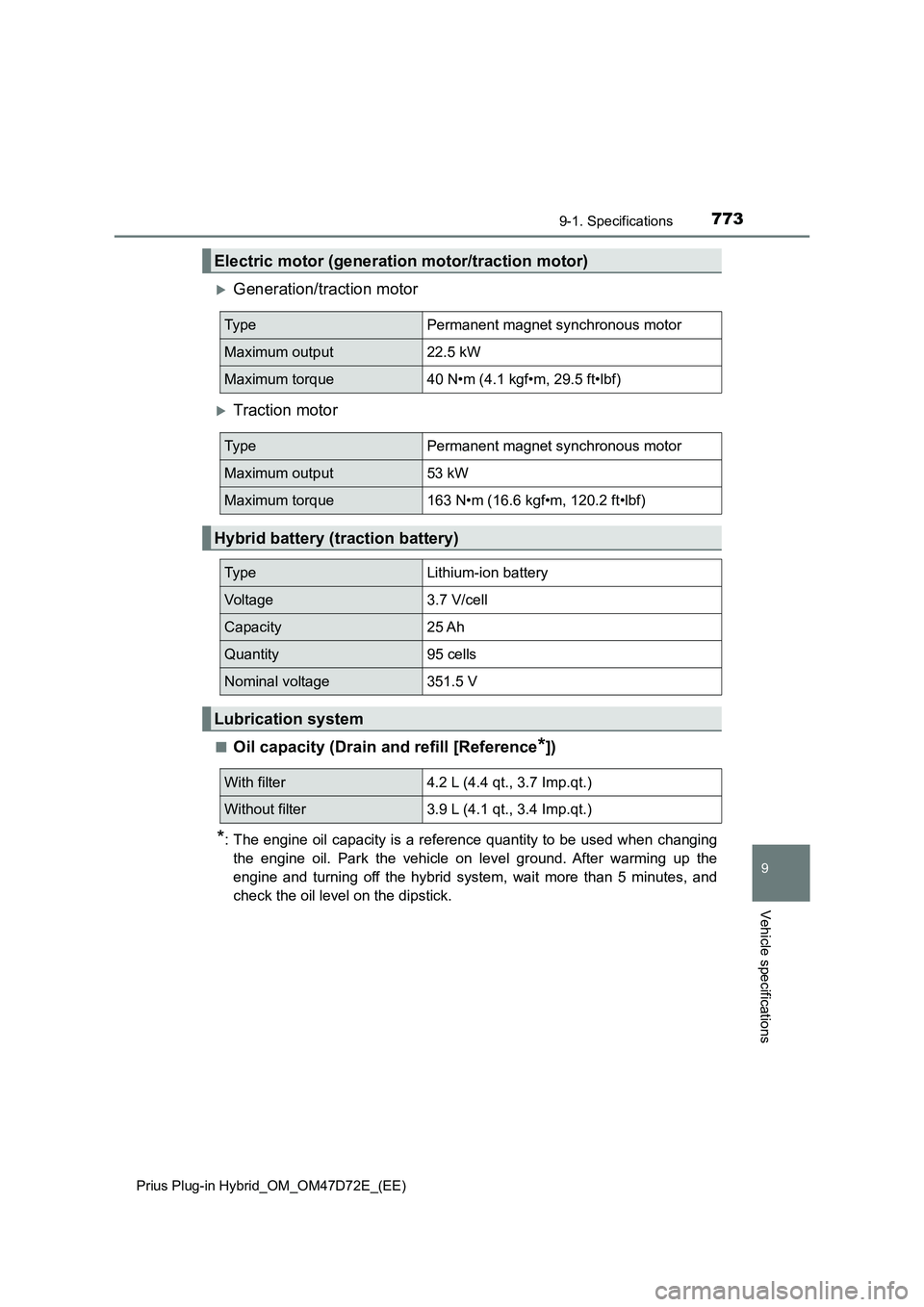

■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Park the vehicle on level ground. After warming up the
engine and turning off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
Electric motor (generation motor/traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output22.5 kW
Maximum torque40 N•m (4.1 kgf•m, 29.5 ft•lbf)
Ty p ePermanent magnet synchronous motor
Maximum output53 kW
Maximum torque163 N•m (16.6 kgf•m, 120.2 ft•lbf)
Hybrid battery (traction battery)
Ty p eLithium-ion battery
Voltage3.7 V/cell
Capacity25 Ah
Quantity95 cells
Nominal voltage351.5 V
Lubrication system
With filter4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter3.9 L (4.1 qt., 3.4 Imp.qt.)

803Alphabetical index
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Emergency brake signal ......... 560
Emergency flashers................. 704
Emergency brake signal ....... 560
Emergency tire puncture
repair kit ................................. 731
Energy monitor ................ 233, 272
Engine
Accessory mode ................... 375
Compartment ........................ 637
Engine switch ........................ 373
Exhaust gas precautions......... 50
Hood ..................................... 634
How to start the hybrid
system ................................ 373
Identification number............. 772
If the hybrid system will not
start..................................... 749
If your vehicle has to be
stopped in an emergency ... 705
Ignition switch (power
switch) ................................ 373
Overheating .......................... 761
Power switch ......................... 373
Engine coolant ......................... 641
Capacity ................................ 776
Checking ............................... 641
Preparing and checking
before winter....................... 566Engine oil ................................. 638
Capacity ................................ 773
Checking ............................... 638
Oil pressure warning light ..... 715
Preparing and checking
before winter....................... 566
Engine switch (power
switch) .................................... 373
Auto power off function ......... 375
Changing the power switch
modes................................. 375
If your vehicle has to be
stopped in an emergency ... 705
Starting the hybrid system .... 373
EPS (Electronic Power
Steering)................................. 560
Function ................................ 560
Warning light ......................... 715
EV City mode switch ................. 98
EV driving range ...................... 119
EV mode ..................................... 95
EV/HV mode selection
switch ....................................... 98
Exhaust gas precautions .......... 50

808Alphabetical index
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Navigation system*
Odometer .................................. 224
Oil
Engine oil .............................. 773
Opener
Back door .............................. 288
Fuel filler door ....................... 403
Hood ..................................... 634
Outside rear view mirrors ....... 350
Adjustment ............................ 350
BSM (Blind Spot Monitor) ..... 473
Folding .................................. 350
Outside rear view mirror
defoggers............................ 577
Outside temperature
display .................................... 222
Overhead console.................... 598
Overheating .............................. 761
P position switch ..................... 380
Panoramic view monitor
*
Parking assist sensors
Parking Support Brake
function ............................... 510
S-IPA (Simple Intelligent
Parking Assist System)....... 523
Toyota parking
assist-sensor ...................... 499Parking brake ........................... 386
Operation .............................. 386
Parking brake engaged
warning buzzer ................... 386
Parking lock ............................. 380
Parking Support Brake
function .................................. 510
PCS (Pre-Collision System) .... 418
Enabling/disabling the
system ................................ 422
Function ................................ 418
Warning light ......................... 716
Personal lights ......................... 591
Switch ................................... 592
Wattage ................................ 779
Plug-in hybrid system ............... 94
Driving tips ............................ 115
EV City mode .......................... 95
EV driving range ................... 119
EV mode ................................. 95
EV/HV mode selection
switch ................................... 98
Features.................................. 94
How to charge....................... 165
HV mode ................................. 95
Hybrid battery (traction
battery) charge mode ........... 95
Power control unit coolant ..... 641
Capacity ................................ 776
Checking ............................... 641
Preparing and checking
before winter....................... 566
Radiator ................................ 643
N
O
P

816
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

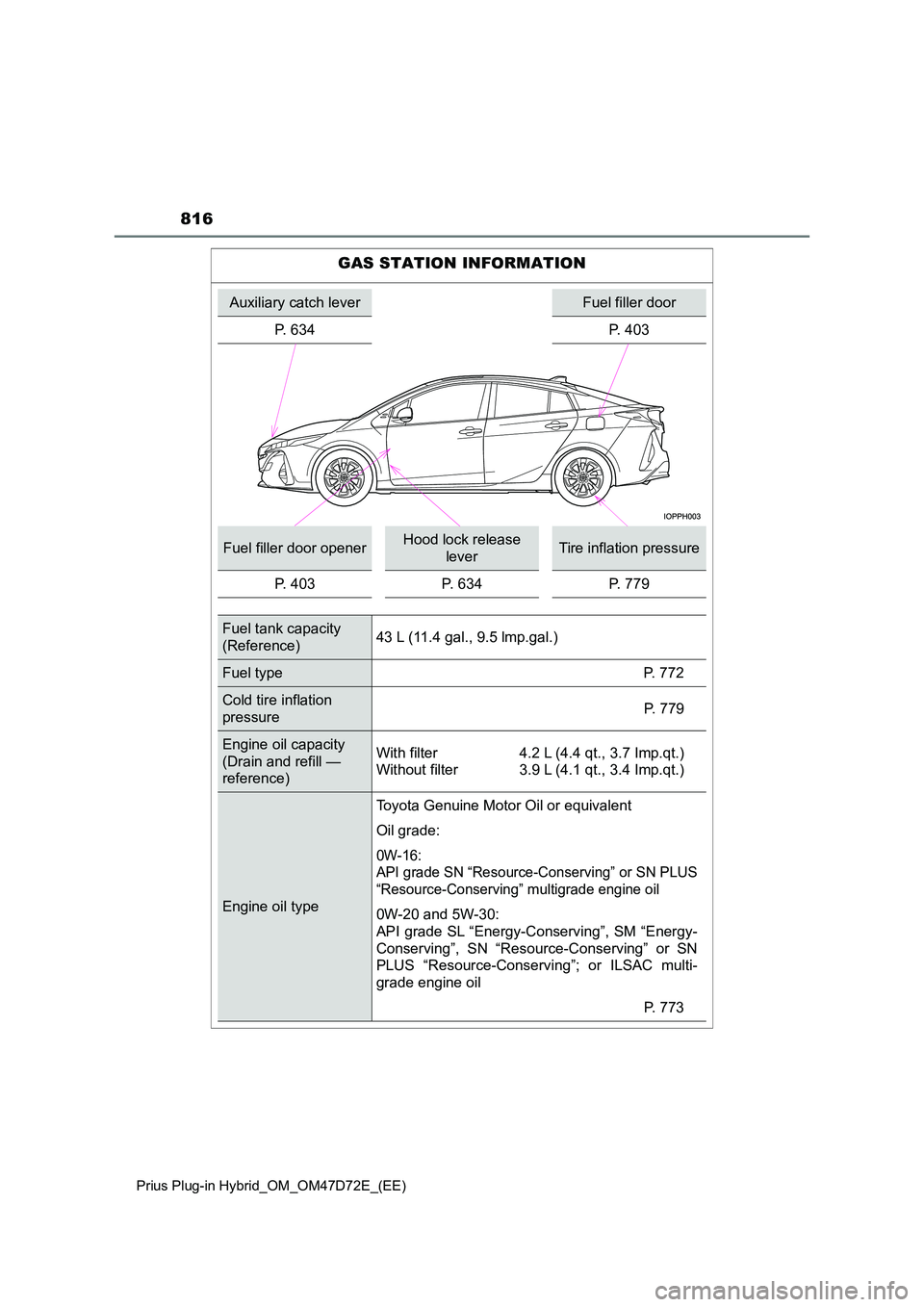

GAS STATION INFORMATION
Auxiliary catch leverFuel filler door
P. 634 P. 403
Fuel filler door openerHood lock release
leverTire inflation pressure
P. 403 P. 634 P. 779
Fuel tank capacity
(Reference) 43 L (11.4 gal., 9.5 lmp.gal.)
Fuel type P. 772
Cold tire inflation
pressure P. 779
Engine oil capacity
(Drain and refill —
reference)
With filter 4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter 3.9 L (4.1 qt., 3.4 Imp.qt.)
Engine oil type
Toyota Genuine Motor Oil or equivalent
Oil grade:
0W-16:
API grade SN “Resource-Conserving” or SN PLUS
“Resource-Conserving” multigrade engine oil
0W-20 and 5W-30:
API grade SL “Energy-Conserving”, SM “Energy-
Conserving”, SN “Resource-Conserving” or SN
PLUS “Resource-Conserving”; or ILSAC multi-
grade engine oil
P. 773
