6767-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

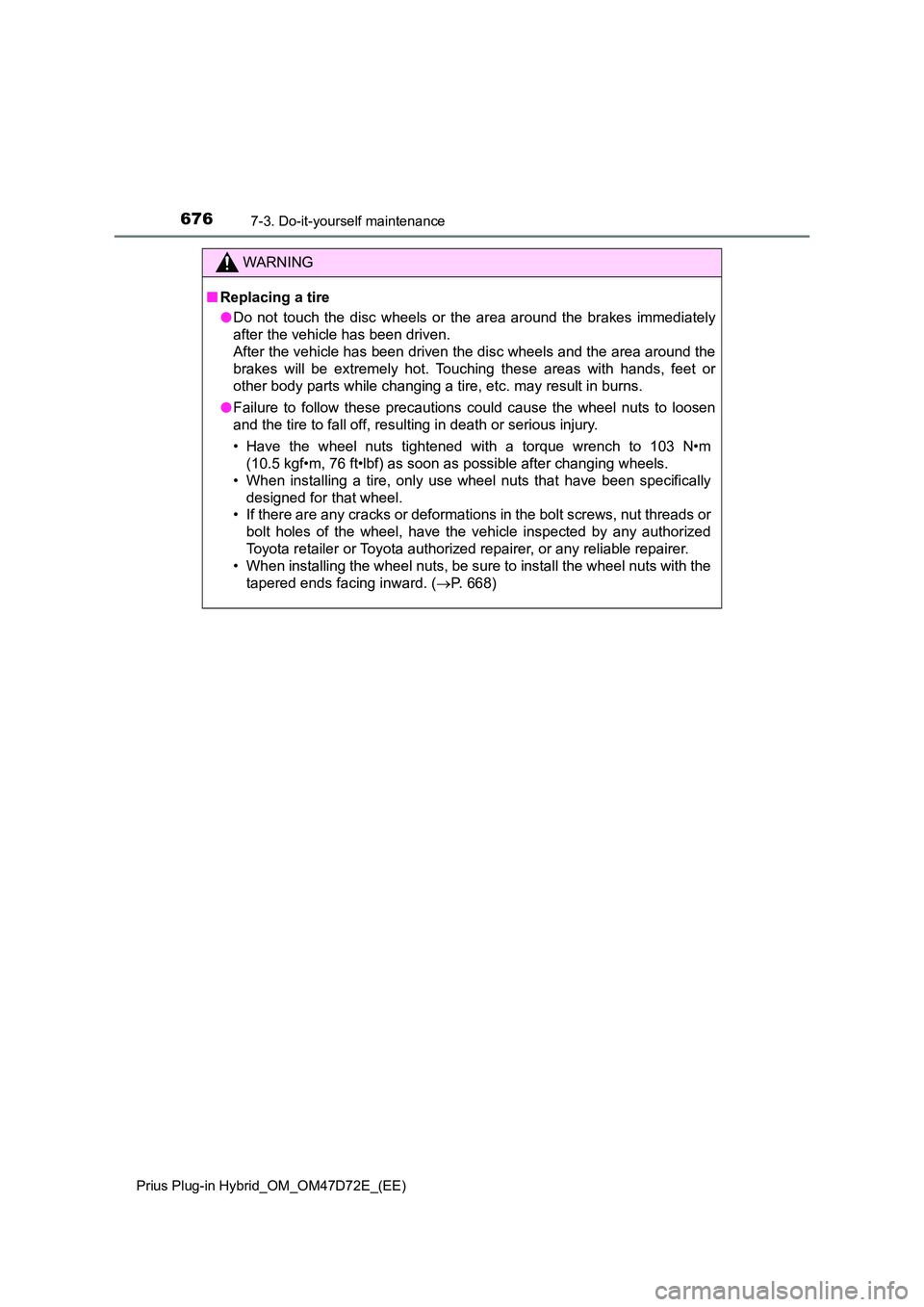

WARNING
■Replacing a tire
● Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or
other body parts while changing a tire, etc. may result in burns.
● Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 103 N•m
(10.5 kgf•m, 76 ft•lbf) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota retailer or Toyota authoriz ed repairer, or any reliable repairer.
• When installing the wheel nuts, be sure to install the wheel nuts with the
tapered ends facing inward. ( P. 668)

6777-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
7
Maintenance and care
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the tire and loosely
tighten each wheel nut by hand
by approximately the same
amount.
Turn the wheel nuts until the wash-
ers come into contact with the disc
wheel.
Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the tire jack and all tools.

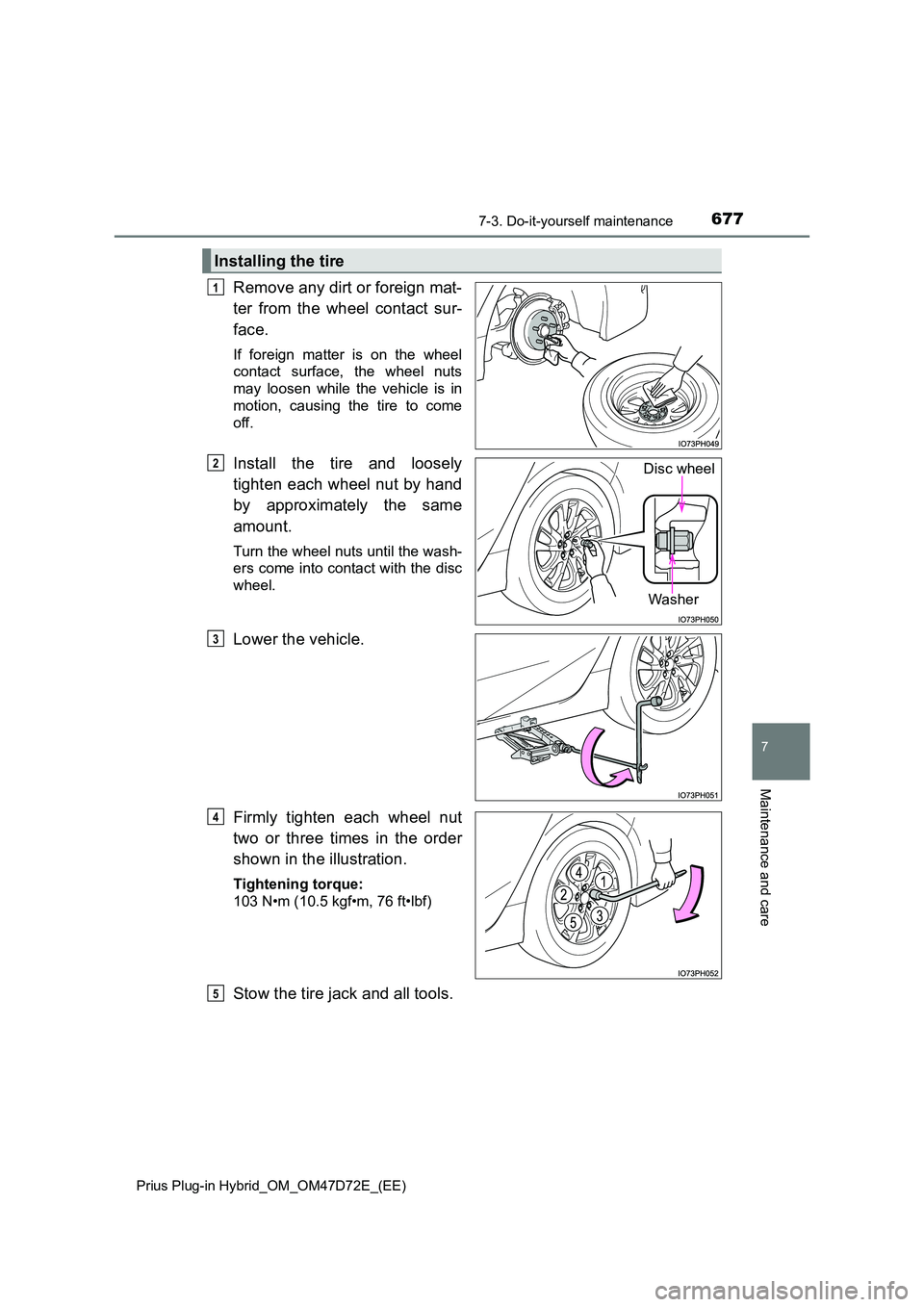

Installing the tire
1
Washer
Disc wheel2
3
4
5

7799-1. Specifications
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
9

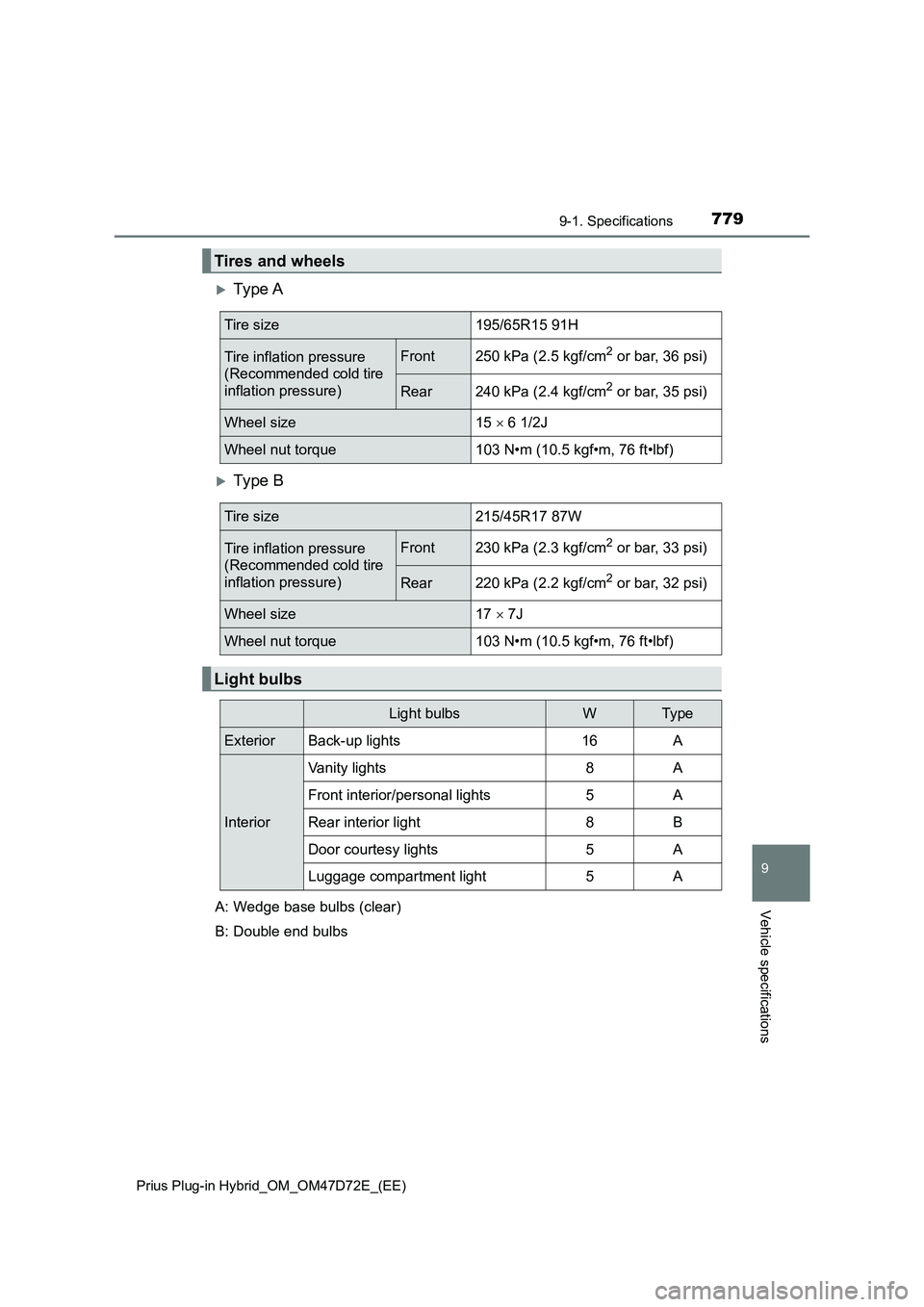

Vehicle specifications
Ty pe A
Ty pe B
Tires and wheels
Tire size195/65R15 91H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front250 kPa (2.5 kgf/cm2 or bar, 36 psi)
Rear240 kPa (2.4 kgf/cm2 or bar, 35 psi)
Wheel size15  6 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size215/45R17 87W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Wheel size17  7J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTyp e
ExteriorBack-up lights16A
Interior
Vanity lights8A
Front interior/personal lights5A
Rear interior light8B
Door courtesy lights5A
Luggage compartment light5A
A: Wedge base bulbs (clear)
B: Double end bulbs
