591-2. Child safety
1
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
For safety and security
QChild restraint system compatibility for each seating position
Compatibility of each seating position with child restraint sys tems
( P. 61) displays the type of child restraint systems that can be
used and possible seating positions for installation using symb ols.
Also, the recommended child restraint system that is suitable f or
your child can be selected.
Otherwise, check [Recommended child restraint systems and Com-
patibility table] for recommended child restraint systems. ( P. 6 5 )
Check the selected child restraint system together with the fol low-
ing [Before confirming the compatibility of each seating positi on
with child restraint systems].
QBefore confirming the compatibility of each seating position
with child restraint systems
Checking the child restraint system standards.
Use a child restraint system that conforms to UN(ECE) R44*1 or
UN(ECE) R129*1, 2.
The following approval mark is displayed on child restraint sys -
tems which are conformed.
Check for an approval mark attached to the child restraint sys-
tem.
Example of the displayed
regulation number
UN(ECE) R44 approval
mark*3
The weight range of the
child who is applicable for
an UN(ECE) R44 approval
mark is indicated.
UN(ECE) R129 approval
mark*3
The height range of the
child who is applicable as
well as available weights
for an UN(ECE) R129
approval mark is indicated.
Child restraint system compatibility for each seating position
1
1
2

601-2. Child safety
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
*1: UN(ECE) R44 and UN(ECE) R129 are U.N. regulations for child
restraint systems.
*2: The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
*3: The displayed mark may differ depending on the product.
Checking the category of the child restraint system.
Check the approval mark of the child restraint system for which
of the following categories the child restraint system is suita ble.
Also, if there are any uncertainties, check the user’s guide
included with the child restraint system or contact the retaile r of
the child restraint system.
•“universal”
• “semi-universal”
• “restricted”
• “vehicle specific”
2

611-2. Child safety
1
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
For safety and security

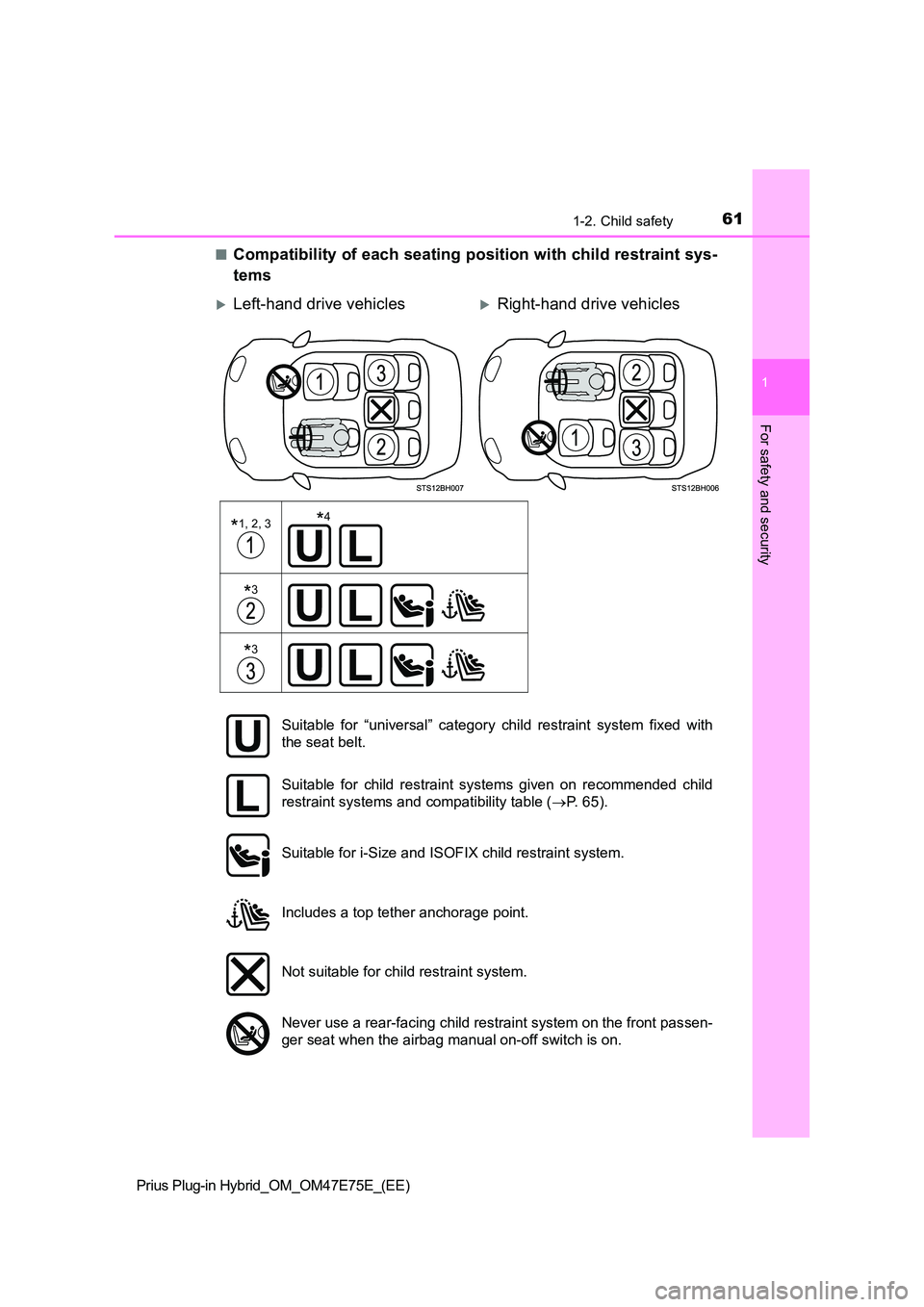

QCompatibility of each seating position with child restraint sys-
tems
Left-hand drive vehiclesRight-hand drive vehicles
*1, 2, 3

*3

*3

*4
Suitable for “universal” category child restraint system fixed with
the seat belt.
Suitable for child restraint systems given on recommended child
restraint systems and compatibility table ( P. 6 5 ) .
Suitable for i-Size and ISOFIX child restraint system.
Includes a top tether anchorage point.
Not suitable for child restraint system.
Never use a rear-facing child restraint system on the front passen-
ger seat when the airbag manual on-off switch is on.

621-2. Child safety
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

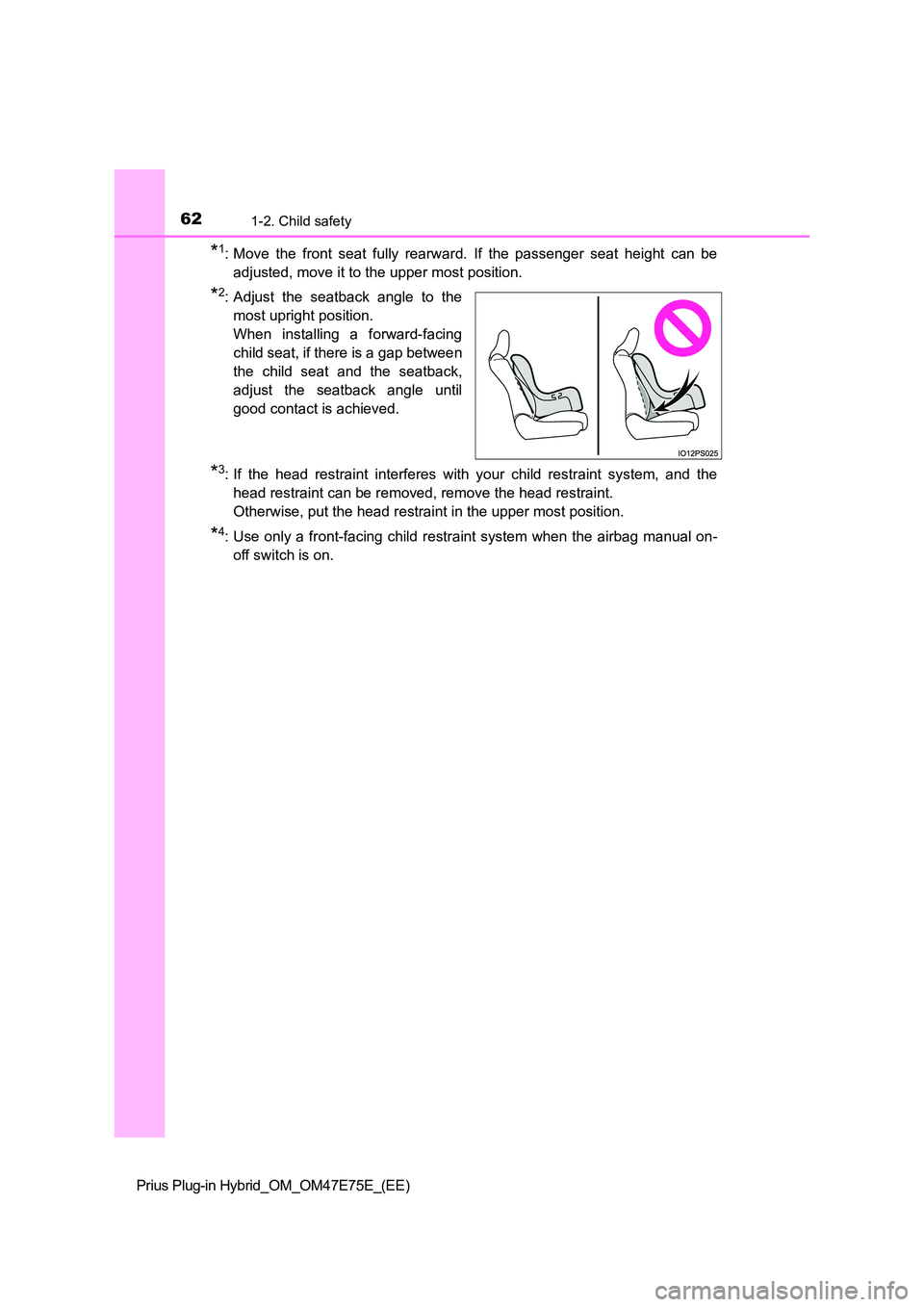

*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.
*3: If the head restraint interferes with your child restraint sys tem, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Use only a front-facing child restraint system when the airbag manual on-
off switch is on.

631-2. Child safety
1
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
For safety and security

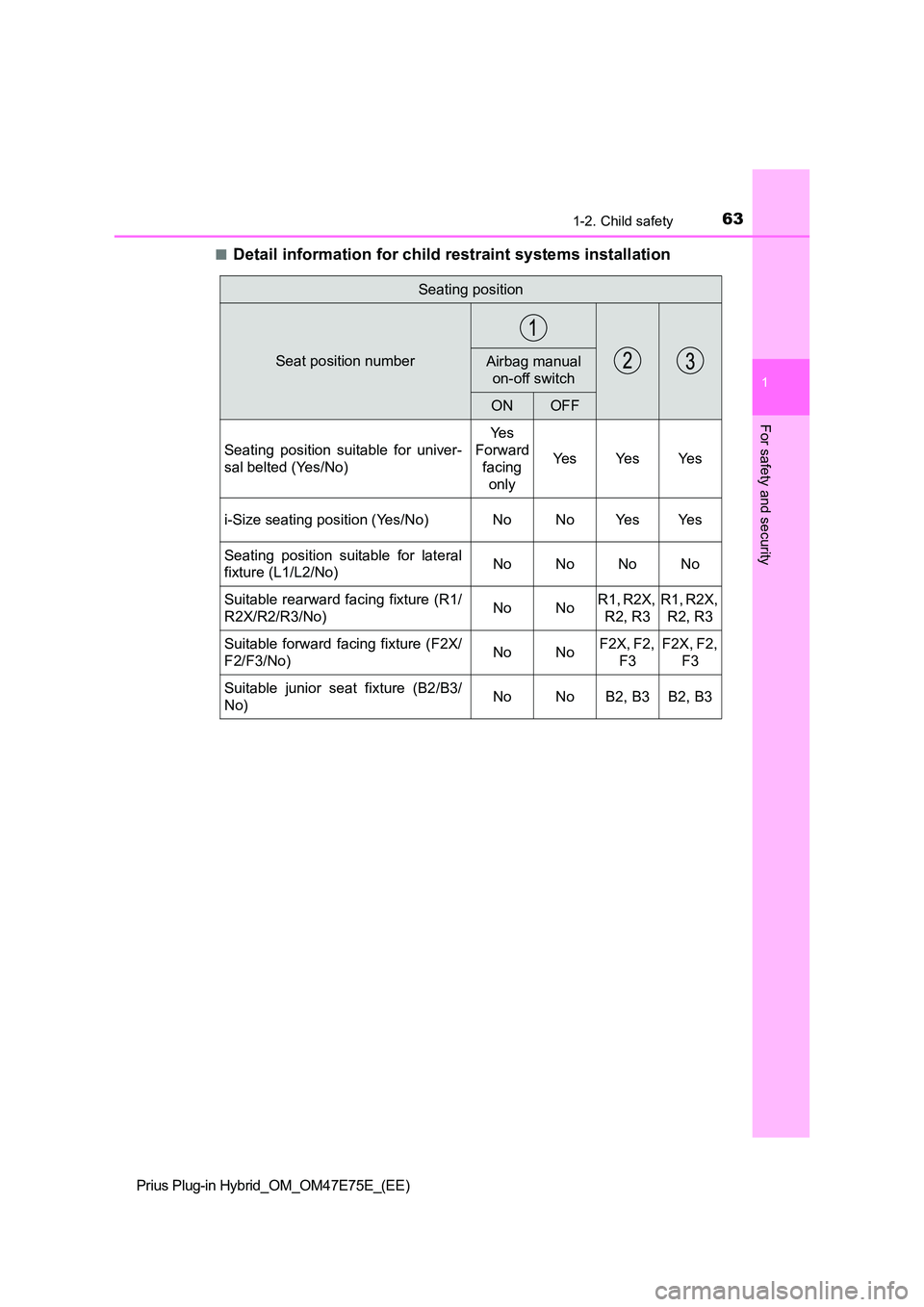

QDetail information for child restraint systems installation
Seating position
Seat position numberAirbag manual
on-off switch
ONOFF
Seating position suitable for univer-
sal belted (Yes/No)
Ye s
Forward
facing
only
Ye s Ye s Ye s
i-Size seating position (Yes/No) No No Yes Yes
Seating position suitable for lateral
fixture (L1/L2/No) No No No No
Suitable rearward facing fixture (R1/
R2X/R2/R3/No) No NoR1, R2X,
R2, R3
R1, R2X,
R2, R3
Suitable forward facing fixture (F2X/
F2/F3/No) No No F2X, F2,
F3
F2X, F2,
F3
Suitable junior seat fixture (B2/B3/
No) No No B2, B3 B2, B3

641-2. Child safety
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

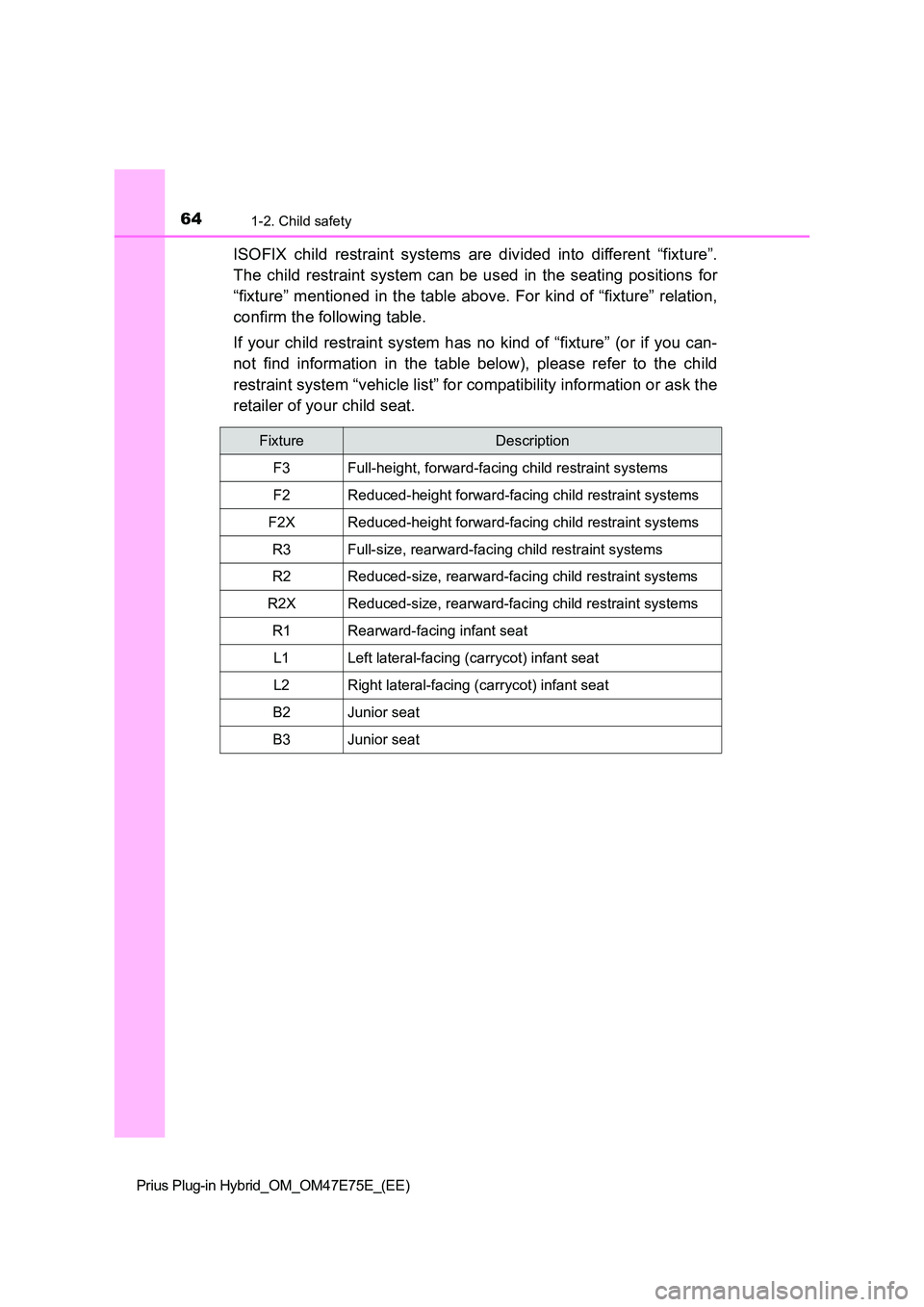

ISOFIX child restraint systems are divided into different “fixture”.
The child restraint system can be used in the seating positions for
“fixture” mentioned in the table above. For kind of “fixture” r elation,
confirm the following table.
If your child restraint system has no kind of “fixture” (or if you can-
not find information in the table below), please refer to the c hild
restraint system “vehicle list” for compatibility information o r ask the
retailer of your child seat.
FixtureDescription
F3 Full-height, forward-facing child restraint systems
F2 Reduced-height forward-facing child restraint systems
F2X Reduced-height forward-facing child restraint systems
R3 Full-size, rearward-facing child restraint systems
R2 Reduced-size, rearward-facing child restraint systems
R2X Reduced-size, rearward-facing child restraint systems
R1 Rearward-facing infant seat
L1 Left lateral-facing (carrycot) infant seat
L2 Right lateral-facing (carrycot) infant seat
B2 Junior seat
B3 Junior seat

651-2. Child safety
1
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
For safety and security
QRecommended child restraint systems and Compatibility table
The child restraint systems mentioned in the table may not be a vail-
able outside the EU area.
When securing some types of child restraint systems in rear sea t, it
may not be possible to properly use the seat belts in positions next
to the child restraint without interfering with it or affecting seat belt
effectiveness. Be sure your seat belt fits snugly across your s houl-
der and low on your hips. If it does not, or if it interferes w ith the
child restraint, move to a different position.
Failure to do so may result in death or serious injury.
Mass groupsRecommended Child
Restraint System
Seating position
Airbag
manual on-off
switch
ONOFF
0, 0+
Up to 13 kg
(28 lb.)
G0+, BABY SAFE PLUS
(Yes/No) N o Ye s Ye s Ye s
I
9 to 18 kg
(20 to 39 lb.)
DUO PLUS (Yes/No)
Ye s
Belt fix
only
Ye s
Belt fix
only
No No
II, III
15 to 36 kg
(34 to 79 lb.)
KIDFIX XP SICT (Yes/No) No No Yes Yes
MAXI PLUS (Yes/No)
Ye s
Belt fix
only
Ye s
Belt fix
only
Ye s Ye s

661-2. Child safety
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

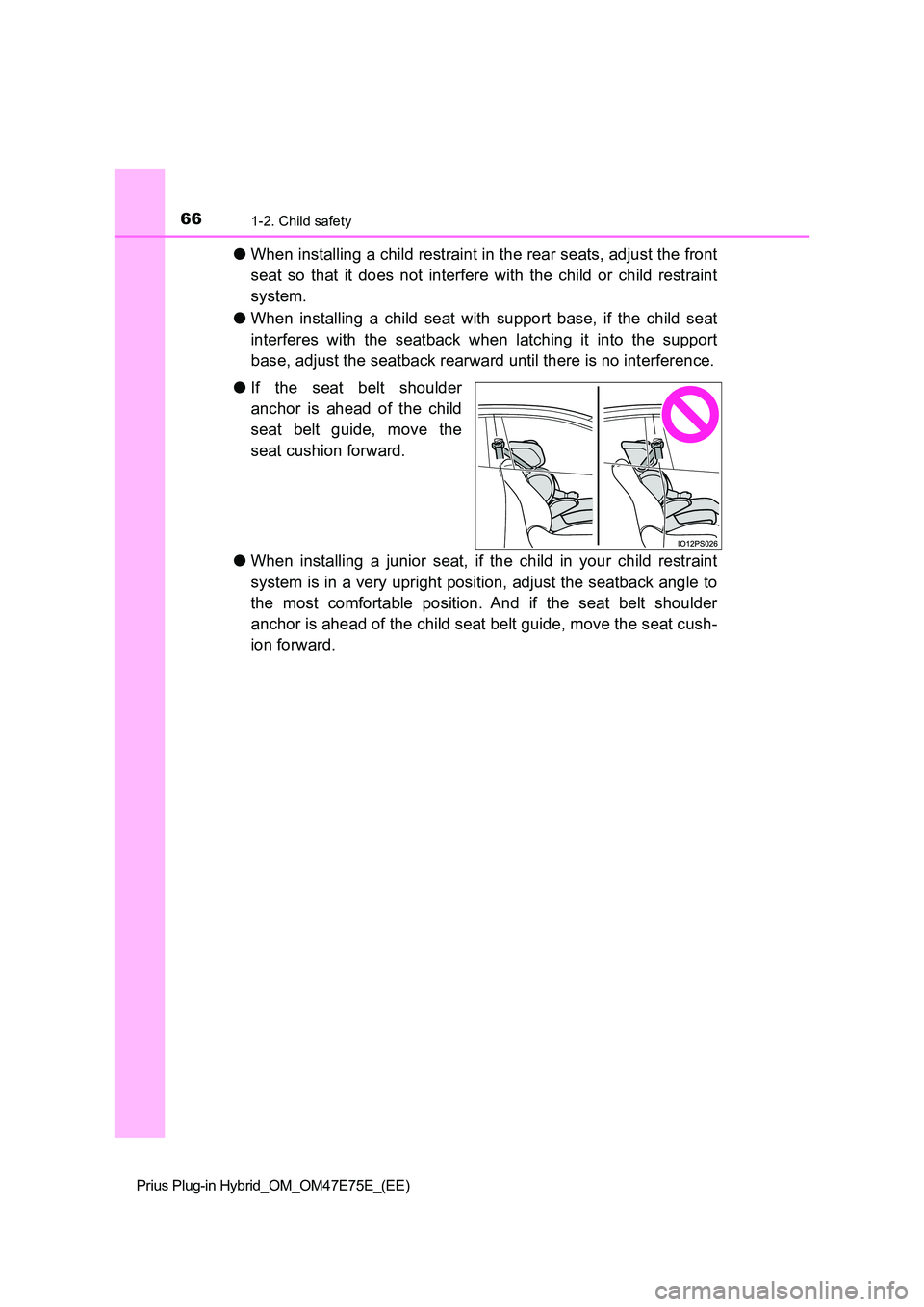

OWhen installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child rest raint
system.
O When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interferen ce.
O If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the
seat cushion forward.
O When installing a junior seat, if the child in your child restraint
system is in a very upright position, adjust the seatback angle to
the most comfortable position. And if the seat belt shoulder
anchor is ahead of the child seat belt guide, move the seat cus h-
ion forward.

671-2. Child safety
1
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
For safety and security

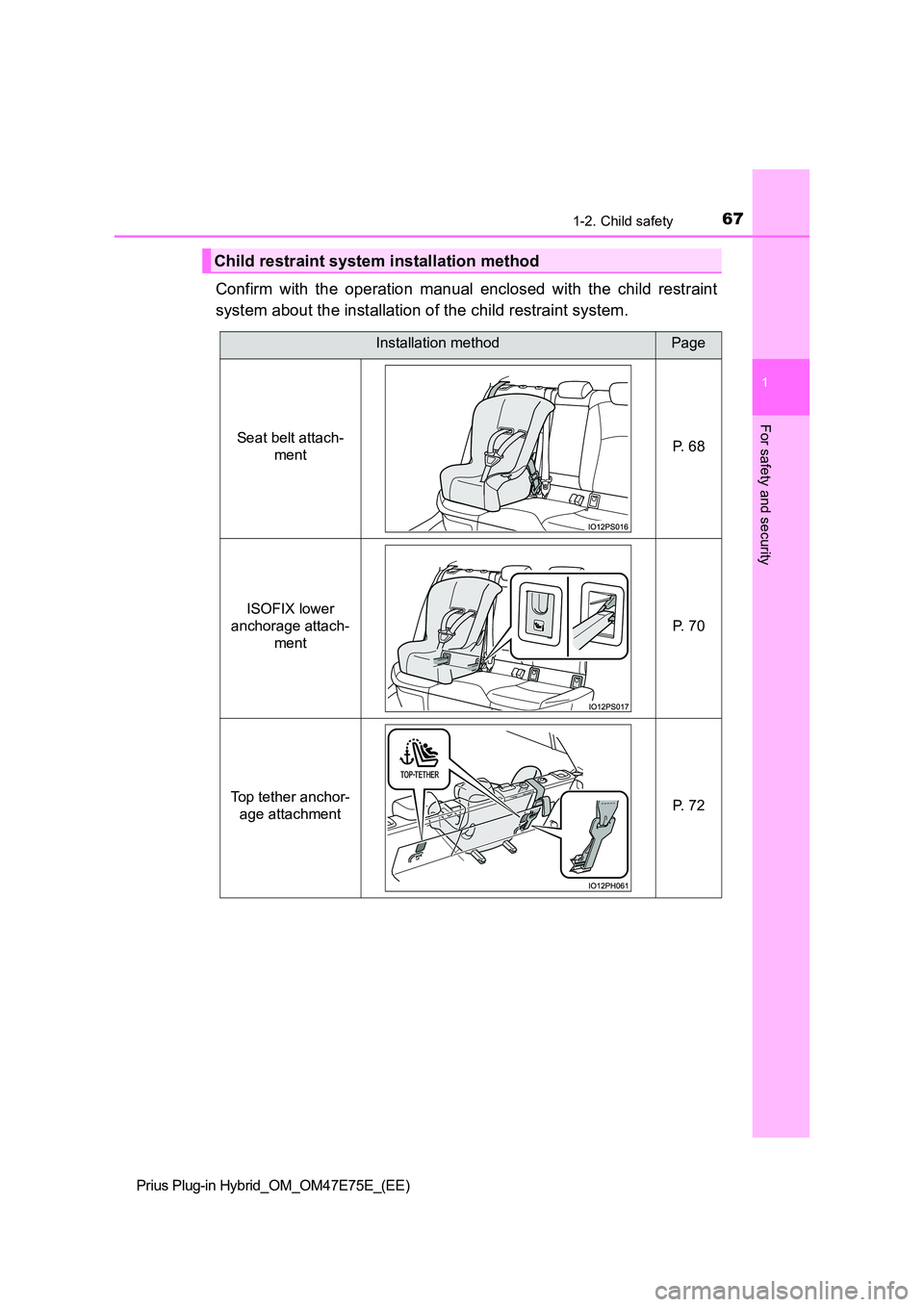

Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.
Child restraint system installation method
Installation methodPage
Seat belt attach-
ment P. 68
ISOFIX lower
anchorage attach-
ment
P. 70
Top tether anchor-
age attachmentP. 72

681-2. Child safety
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

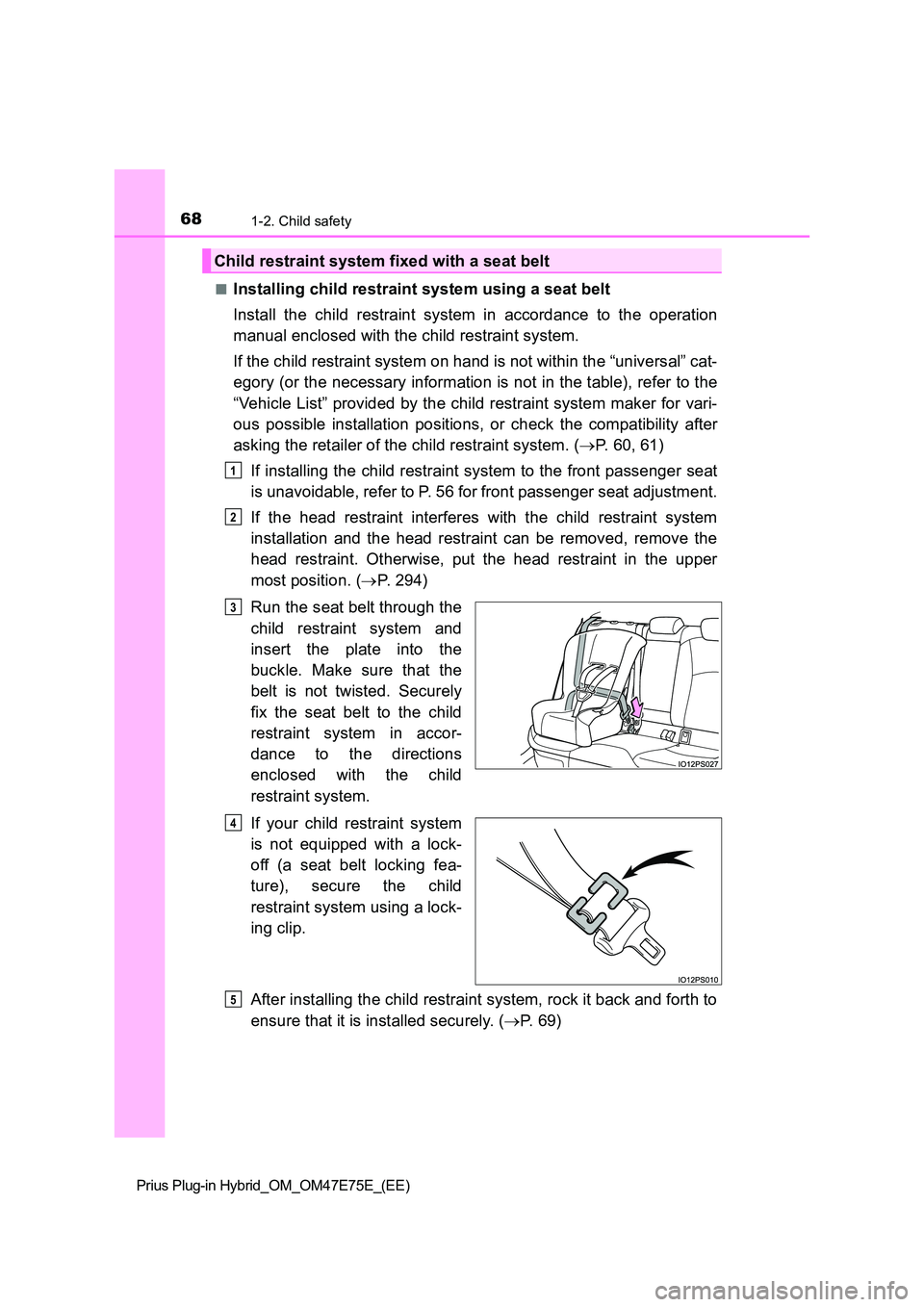

QInstalling child restraint system using a seat belt
Install the child restraint system in accordance to the operati on
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “univer sal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child restraint system. ( P. 6 0 , 6 1 )
If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 56 for front passenger seat adjustm ent.
If the head restraint interferes with the child restraint syste m
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. ( P. 294)
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted. Securely
fix the seat belt to the child
restraint system in accor-
dance to the directions
enclosed with the child
restraint system.
If your child restraint system
is not equipped with a lock-
off (a seat belt locking fea-
ture), secure the child
restraint system using a lock-
ing clip.
After installing the child restraint system, rock it back and f orth to
ensure that it is installed securely. ( P. 6 9 )
Child restraint system fixed with a seat belt
1
2
3
4
5
