3665-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)QIf a warning message is displayed on the multi-information display
A system may be temporarily unavailable or there may be a malfunction in
the system.
OIn the following situations, perform the actions specified in the table. When
the normal operating conditions are detected, the message will disappear
and the system will become operational.
If the message does not disappear, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
SituationActions
When the area around a cam-
era is covered with dirt, mois-
ture (fogged up, covered with
condensation, ice, etc.), or
other foreign matter
Using the wiper and A/C function,
remove the dirt and other attached mat-
ter. (P. 527)
When the temperature around
the front camera is outside of
the operational range, such as
when the vehicle is in the sun or
in an extremely cold environ-
ment
If the front camera is hot, such as after
the vehicle had been parked in the sun,
use the air conditioning system to
decrease the temperature around the
front camera.
If a sunshade was used when the vehi-
cle was parked, depending on its type,
the sunlight reflected from the surface
of the sunshade may cause the tem-
perature of the front camera to become
excessively high.
If the front camera is cold, such after the
vehicle is parked in an extremely cold
environment, use the air conditioning
system to increase the temperature
around the front camera.
The area in front of the front
camera is obstructed, such as
when the hood is open or a
sticker is attached to the part of
the windshield in front of the
front camera.
Close the hood, remove the sticker, etc.
to clear the obstruction.
When “Pre-Collision System
Unavailable” is displayed.Check whether there is attached materi-
als on the radar sensor and radar sensor
cover, and if there is, remove it.

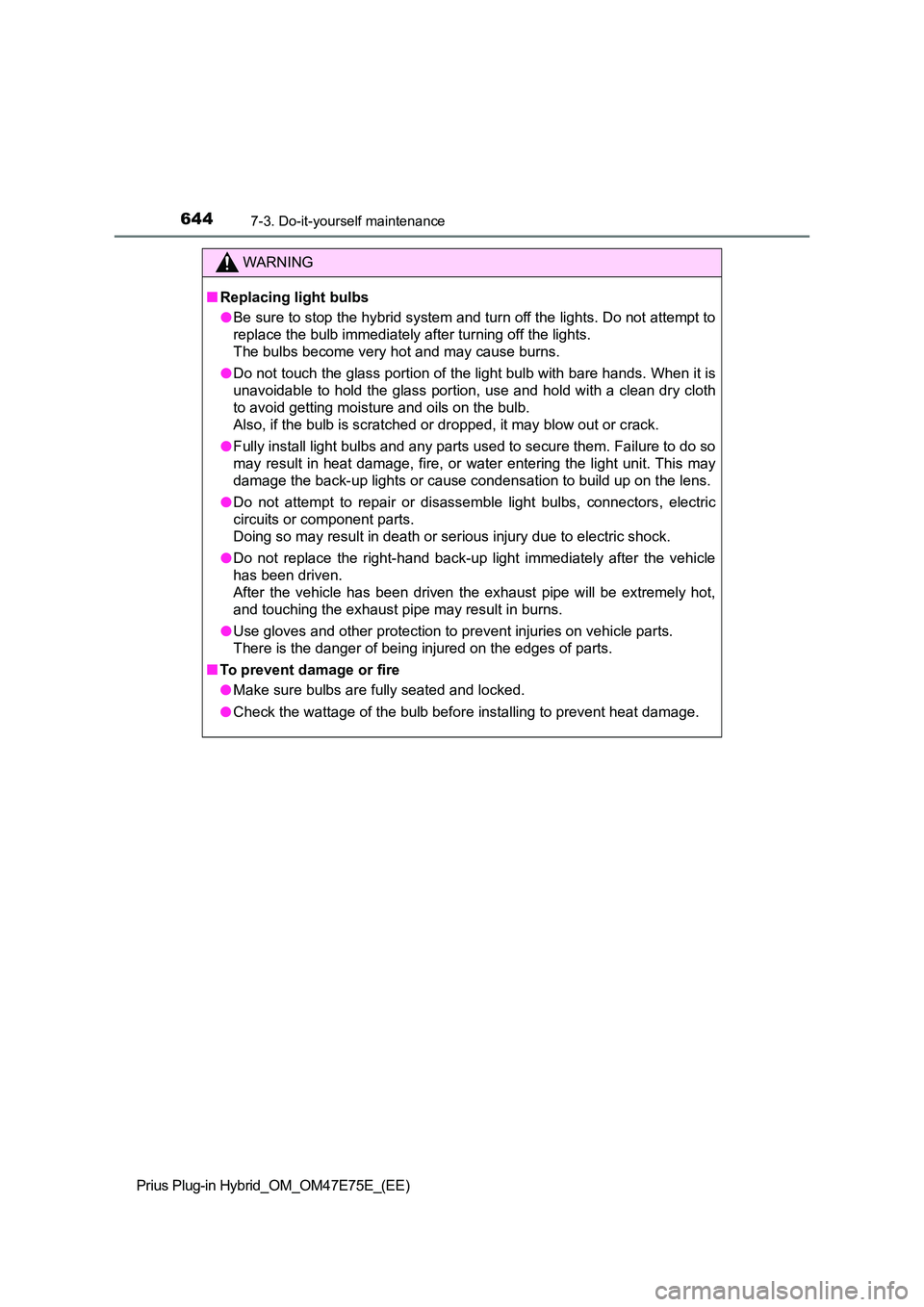

6447-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
QReplacing light bulbs
O Be sure to stop the hybrid system and turn off the lights. Do not attempt to
replace the bulb immediately after turning off the lights.
The bulbs become very hot and may cause burns.
O Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clea n dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or c rack.
O Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the light un it. This may
damage the back-up lights or cause condensation to build up on the lens.
O Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
O Do not replace the right-hand back-up light immediately after the vehicle
has been driven.
After the vehicle has been driven the exhaust pipe will be extr emely hot,
and touching the exhaust pipe may result in burns.
O Use gloves and other protection to prevent injuries on vehicle parts.
There is the danger of being injured on the edges of parts.
Q To prevent damage or fire
O Make sure bulbs are fully seated and locked.
O Check the wattage of the bulb before installing to prevent heat damage.

7048-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
The coolant level is satisfactory if it is between the “MAX” and
“MIN” lines on the reservoir.
Reservoir
“MAX” line
“MIN” line
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the hybrid system and turn the air conditioning system on to
check that the radiator cooling fans operate and to check for
coolant leaks from the radiator or hoses.
The fans operate when the temperature setting is adjusted to “L O” and
“A/C” switch ( ) is turned on immediately after a cold start. Co n-
firm that the fans are operating by checking the fan sound and air flow. If
it is difficult to check these, turn the “A/C” switch ( ) on and off
repeatedly. (The fans may not oper ate in freezing temperatures.)
If the fans are not operating:
Stop the hybrid system immediately and contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
If the fans are operating:
Have the vehicle inspected at the nearest any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repaire r.
4
1
2
3
5
6
7

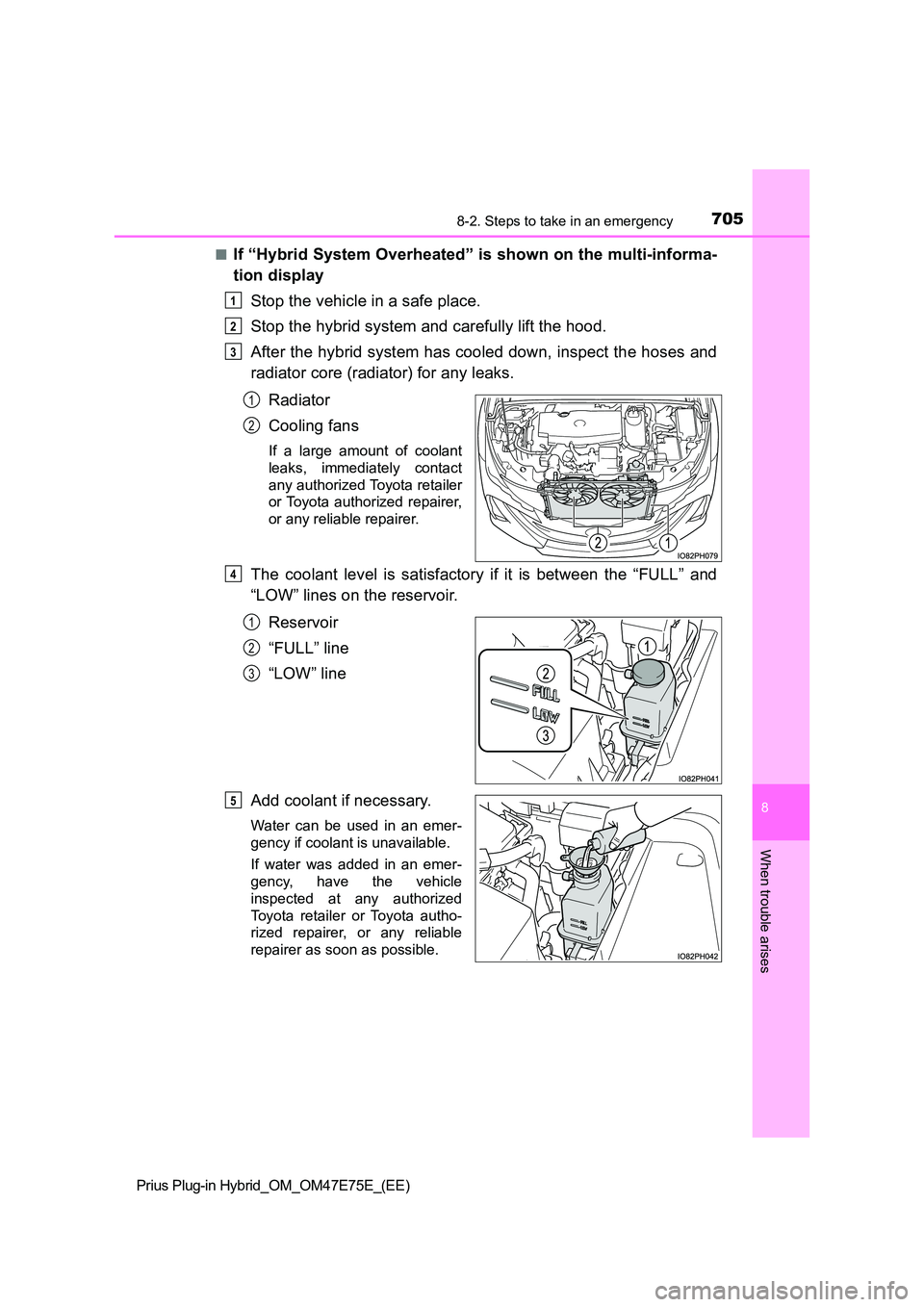

7058-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
QIf “Hybrid System Overheated” is shown on the multi-informa-
tion display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has cooled down, inspect the hoses and
radiator core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact
any authorized Toyota retailer
or Toyota authorized repairer,
or any reliable repairer.
The coolant level is satisfactory if it is between the “FULL” a nd
“LOW” lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
If water was added in an emer-
gency, have the vehicle
inspected at any authorized
Toyota retailer or Toyota autho-
rized repairer, or any reliable
repairer as soon as possible.
1
2
3
1
2
4
1
2
3
5
