TOYOTA PRIUS PLUS 2014 Owners Manual

3917-2. Steps to take in an emergency
PRIUS +_OM_OM47888E_(EE)
7
When trouble arises
(If equipped)
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control system
Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
(If equipped)
Indicates a malfunction in the pre-crash safety
system
A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional
immediately.
Indicates an engine oil pressure malfunction
A buzzer also sounds.
→ Immediately contact any authorized Toyota
dealer or repairer, or another duly qualified
and equipped professional.
Indicates that the hybrid system has overheated
This message may be displayed when driving
under severe operating conditions, and the out-
put of the hybrid system may temporarily
decrease in order to protect the system. (For
example, when driving up a long steep hill or
driving up a steep hill in reverse.)
A buzzer also sounds.
→ Stop and check. ( →P. 444)
Warning messageDetails/Actions
(Flashes)

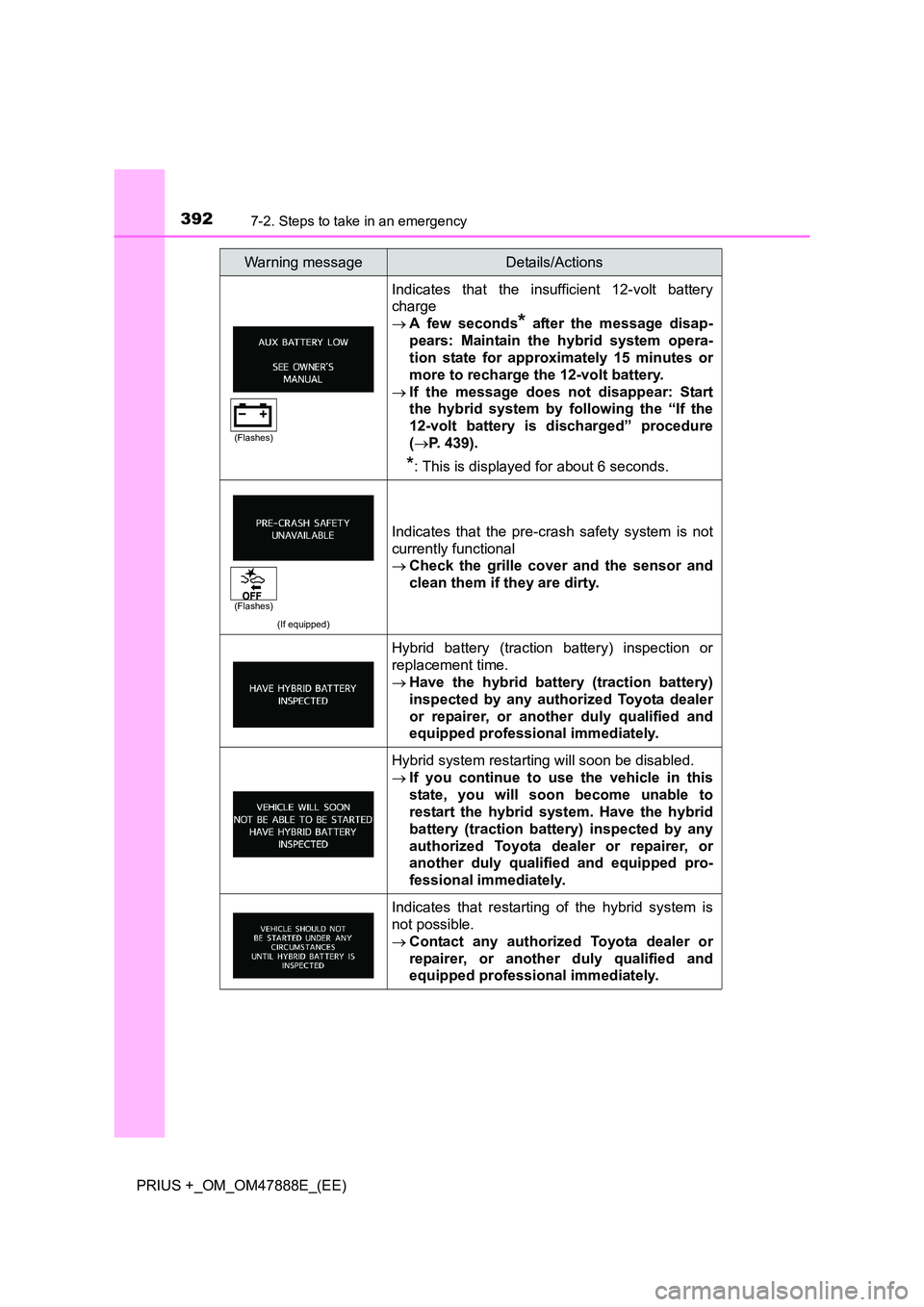

3927-2. Steps to take in an emergency
PRIUS +_OM_OM47888E_(EE)
Indicates that the insufficient 12-volt battery
charge
→A few seconds
* after the message disap-
pears: Maintain the hybrid system opera-
tion state for approximately 15 minutes or
more to recharge the 12-volt battery.
→ If the message does not disappear: Start
the hybrid system by following the “If the
12-volt battery is discharged” procedure
(→ P. 439).
*: This is displayed for about 6 seconds.
(If equipped)
Indicates that the pre-crash safety system is not
currently functional
→ Check the grille cover and the sensor and
clean them if they are dirty.
Hybrid battery (traction battery) inspection or
replacement time.
→Have the hybrid battery (traction battery)
inspected by any authorized Toyota dealer
or repairer, or another duly qualified and
equipped professional immediately.
Hybrid system restarting will soon be disabled.
→If you continue to use the vehicle in this
state, you will soon become unable to
restart the hybrid system. Have the hybrid
battery (traction battery) inspected by any
authorized Toyota dealer or repairer, or
another duly qualified and equipped pro-
fessional immediately.
Indicates that restarting of the hybrid system is
not possible.
→Contact any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional immediately.
Warning messageDetails/Actions
(Flashes)
(Flashes)

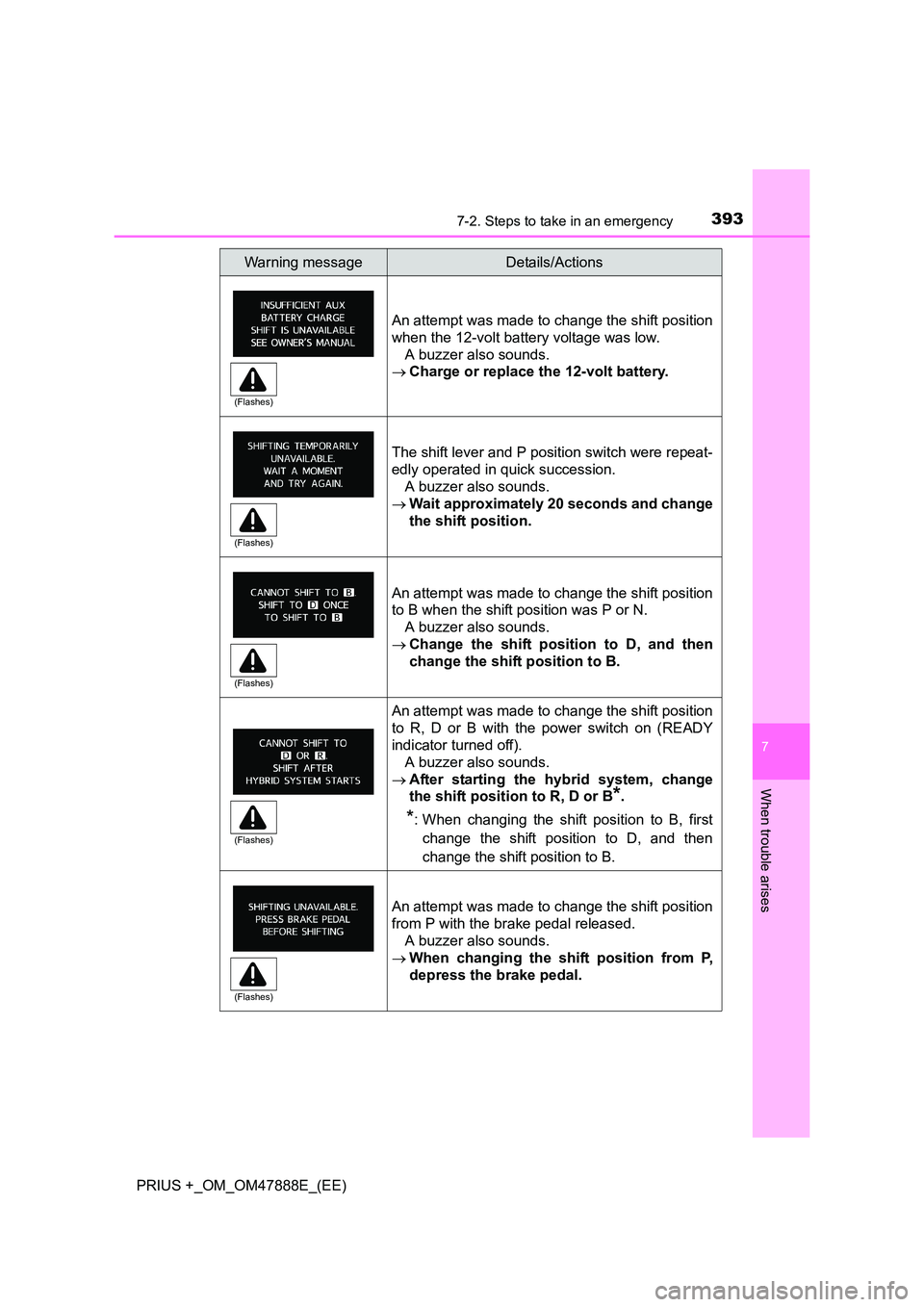

3937-2. Steps to take in an emergency
PRIUS +_OM_OM47888E_(EE)
7
When trouble arises
An attempt was made to change the shift position
when the 12-volt battery voltage was low. A buzzer also sounds.
→ Charge or replace the 12-volt battery.
The shift lever and P position switch were repeat-
edly operated in quick succession.
A buzzer also sounds.
→ Wait approximately 20 seconds and change
the shift position.
An attempt was made to change the shift position
to B when the shift position was P or N.
A buzzer also sounds.
→ Change the shift position to D, and then
change the shift position to B.
An attempt was made to change the shift position
to R, D or B with the power switch on (READY
indicator turned off).
A buzzer also sounds.
→ After starting the hybrid system, change
the shift position to R, D or B
*.
*: When changing the shift position to B, first
change the shift position to D, and then
change the shift position to B.
An attempt was made to change the shift position
from P with the brake pedal released. A buzzer also sounds.
→ When changing the shift position from P,
depress the brake pedal.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
(Flashes)
(Flashes)

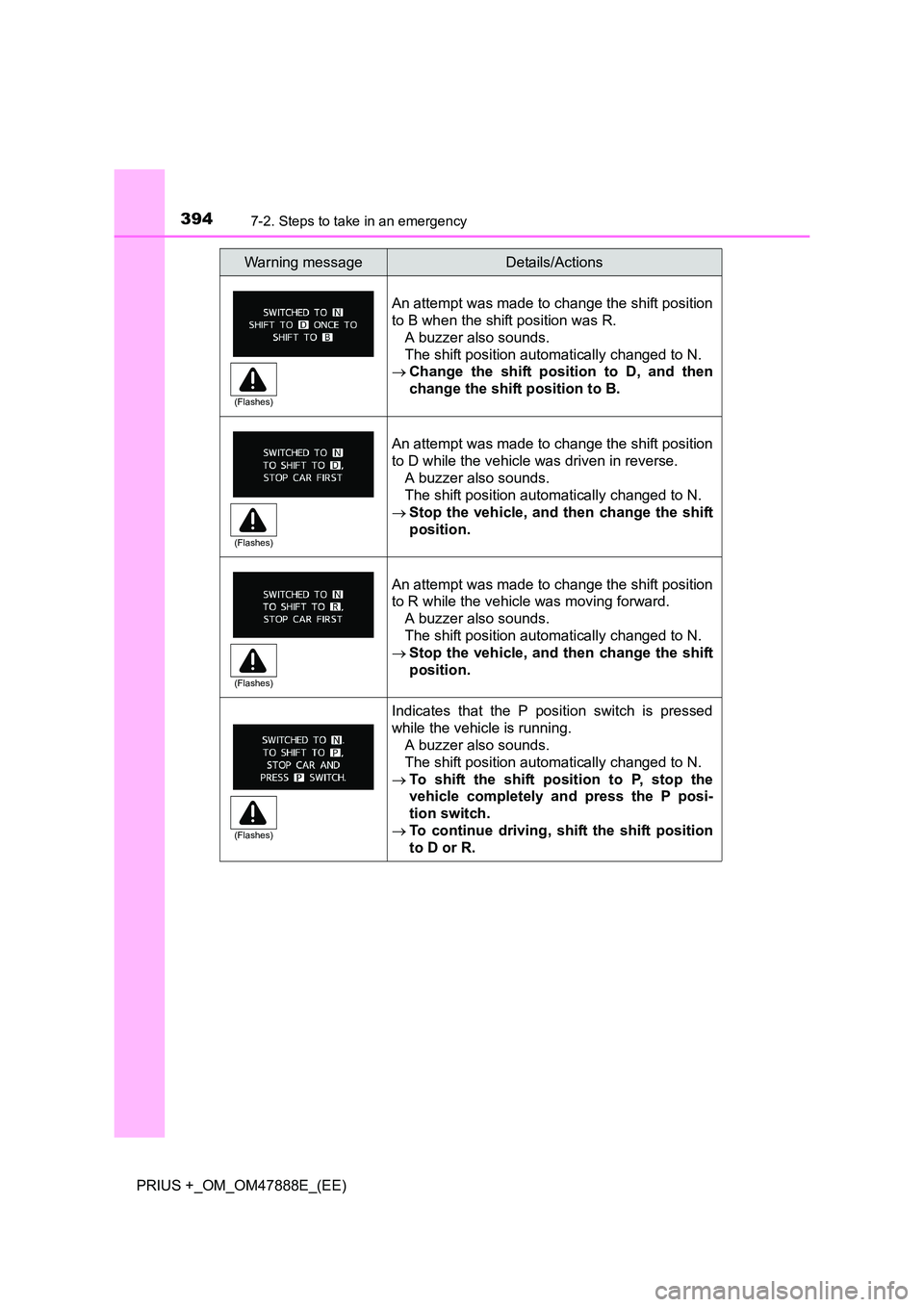

3947-2. Steps to take in an emergency
PRIUS +_OM_OM47888E_(EE)
An attempt was made to change the shift position
to B when the shift position was R. A buzzer also sounds.
The shift position automatically changed to N.
→ Change the shift position to D, and then
change the shift position to B.
An attempt was made to change the shift position
to D while the vehicle was driven in reverse.
A buzzer also sounds.
The shift position automatically changed to N.
→ Stop the vehicle, and then change the shift
position.
An attempt was made to change the shift position
to R while the vehicle was moving forward.
A buzzer also sounds.
The shift position automatically changed to N.
→ Stop the vehicle, and then change the shift
position.
Indicates that the P position switch is pressed
while the vehicle is running.
A buzzer also sounds.
The shift position automatically changed to N.
→ To shift the shift position to P, stop the
vehicle completely and press the P posi-
tion switch.
→ To continue driving, shift the shift position
to D or R.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
(Flashes)

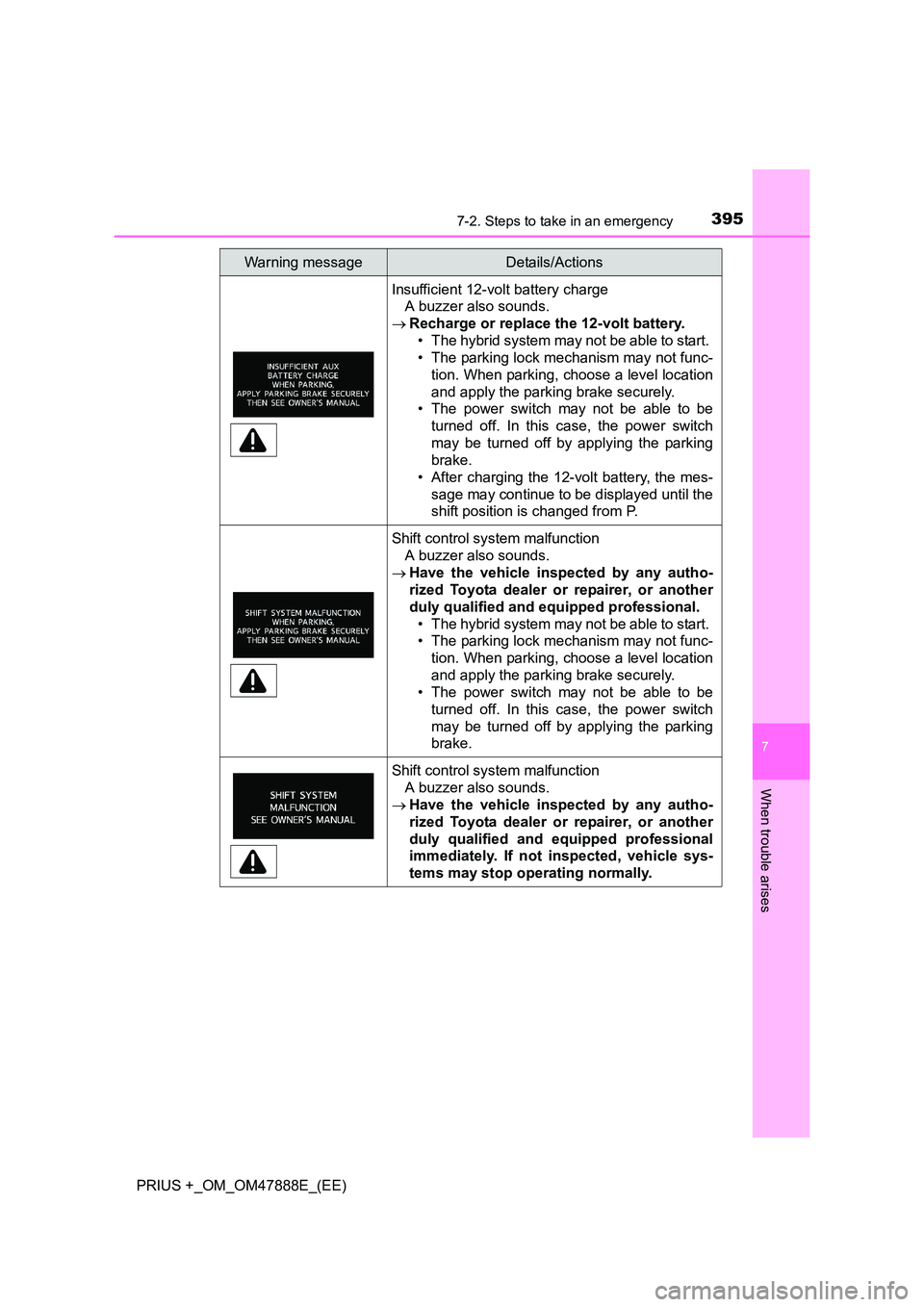

3957-2. Steps to take in an emergency
PRIUS +_OM_OM47888E_(EE)
7
When trouble arises
Insufficient 12-volt battery charge A buzzer also sounds.
→ Recharge or replace the 12-volt battery.
• The hybrid system may not be able to start.
• The parking lock mechanism may not func- tion. When parking, choose a level location
and apply the parking brake securely.
• The power switch may not be able to be
turned off. In this case, the power switch
may be turned off by applying the parking
brake.
• After charging the 12-volt battery, the mes- sage may continue to be displayed until the
shift position is changed from P.
Shift control system malfunction A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
• The hybrid system may not be able to start.
• The parking lock mechanism may not func- tion. When parking, choose a level location
and apply the parking brake securely.
• The power switch may not be able to be
turned off. In this case, the power switch
may be turned off by applying the parking
brake.
Shift control system malfunction A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional
immediately. If not inspected, vehicle sys-
tems may stop operating normally.
Warning messageDetails/Actions

3967-2. Steps to take in an emergency
PRIUS +_OM_OM47888E_(EE)
Shift control system communication malfunctionA buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
• The hybrid system may not be able to start.
• May not be switched to the P position. When parking, choose a level location and
apply the parking brake securely.
• The automatically P position selection func- tion ( →P. 211) may not function. Before
turning the power switch off, securely press
the P position switch, and be sure to check
that the shift position is in P by verifying the
shift position or P position switch operation
indicator lights.
• The power switch may not be able to be
turned off. In this case, the power switch
may be turned off by applying the parking
brake.
Indicates a malfunction in the LED headlight sys-
temA buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Warning messageDetails/Actions
(Turns on or
Flashes)

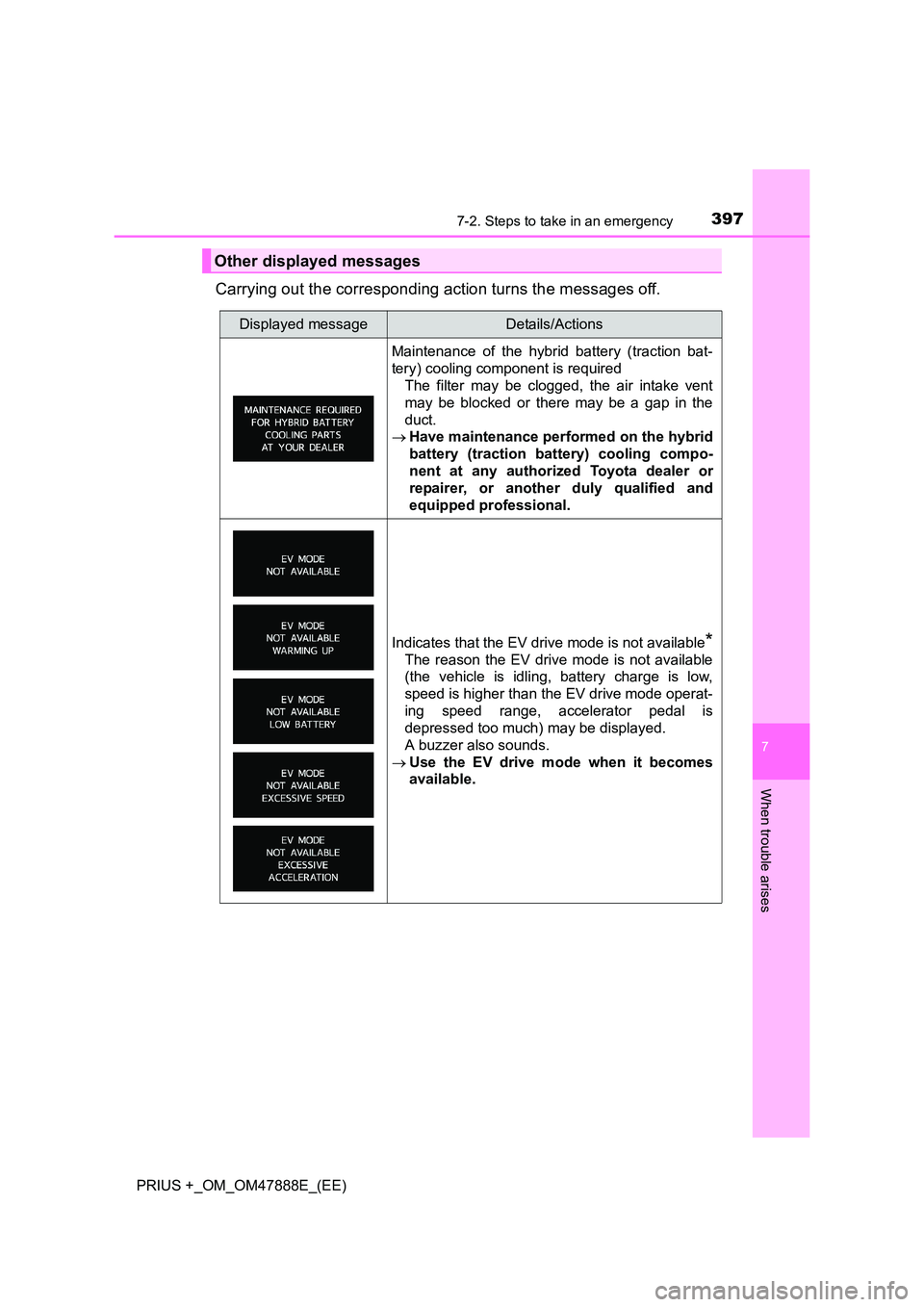

3977-2. Steps to take in an emergency
PRIUS +_OM_OM47888E_(EE)
7
When trouble arises
Carrying out the corresponding action turns the messages off.
Other displayed messages
Displayed messageDetails/Actions
Maintenance of the hybrid battery (traction bat-
tery) cooling component is requiredThe filter may be clogged, the air intake vent
may be blocked or there may be a gap in the
duct.
→ Have maintenance performed on the hybrid
battery (traction battery) cooling compo-
nent at any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional.
Indicates that the EV drive mode is not available*
The reason the EV drive mode is not available
(the vehicle is idling, battery charge is low,
speed is higher than the EV drive mode operat-
ing speed range, accelerator pedal is
depressed too much) may be displayed.
A buzzer also sounds.
→ Use the EV drive mode when it becomes
available.

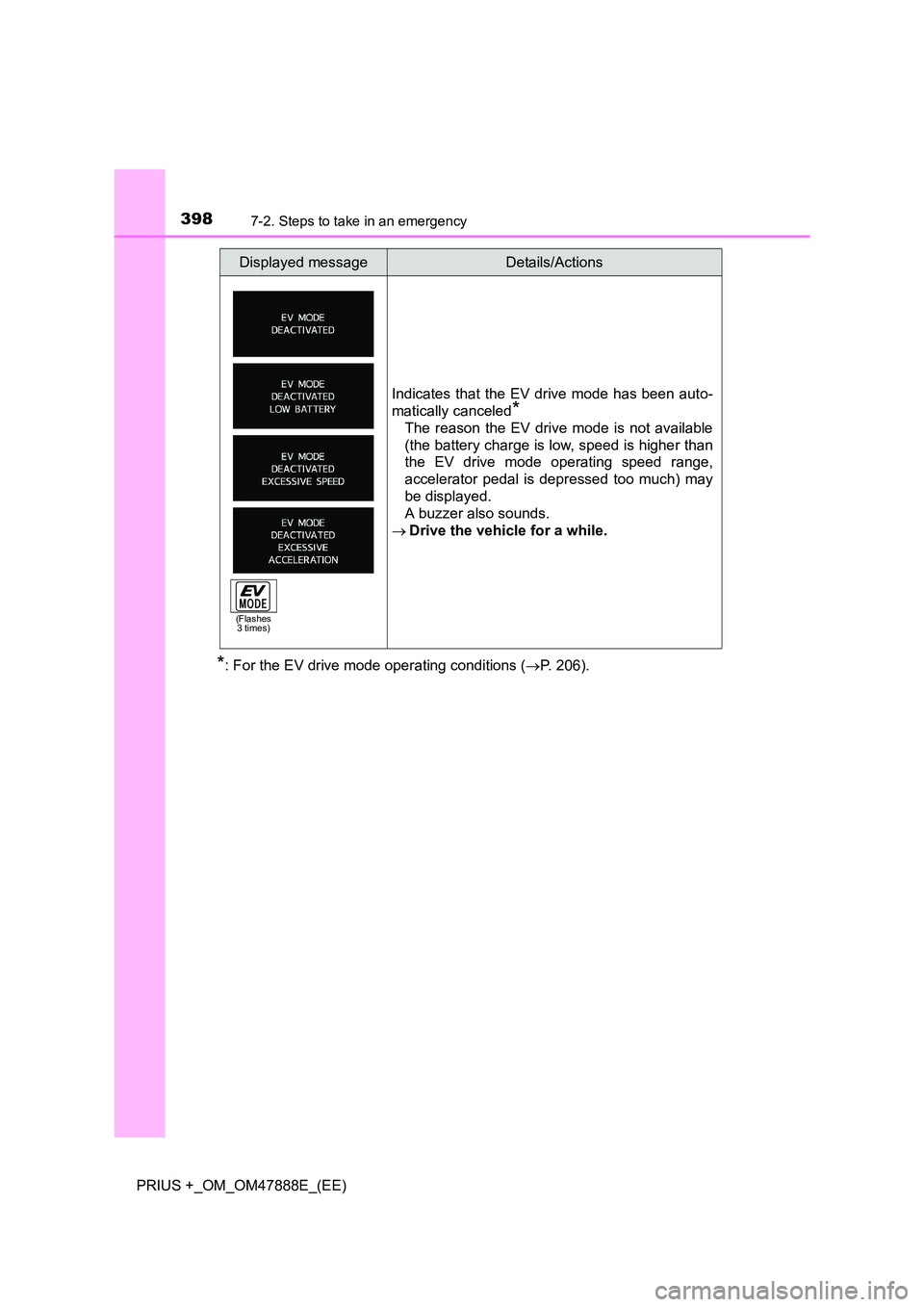

3987-2. Steps to take in an emergency
PRIUS +_OM_OM47888E_(EE)
*: For the EV drive mode operating conditions (→P. 206).
Indicates that the EV drive mode has been auto-
matically canceled
*
The reason the EV drive mode is not available
(the battery charge is low, speed is higher than
the EV drive mode operating speed range,
accelerator pedal is depressed too much) may
be displayed.
A buzzer also sounds.
→ Drive the vehicle for a while.
Displayed messageDetails/Actions
(Flashes
3 times)

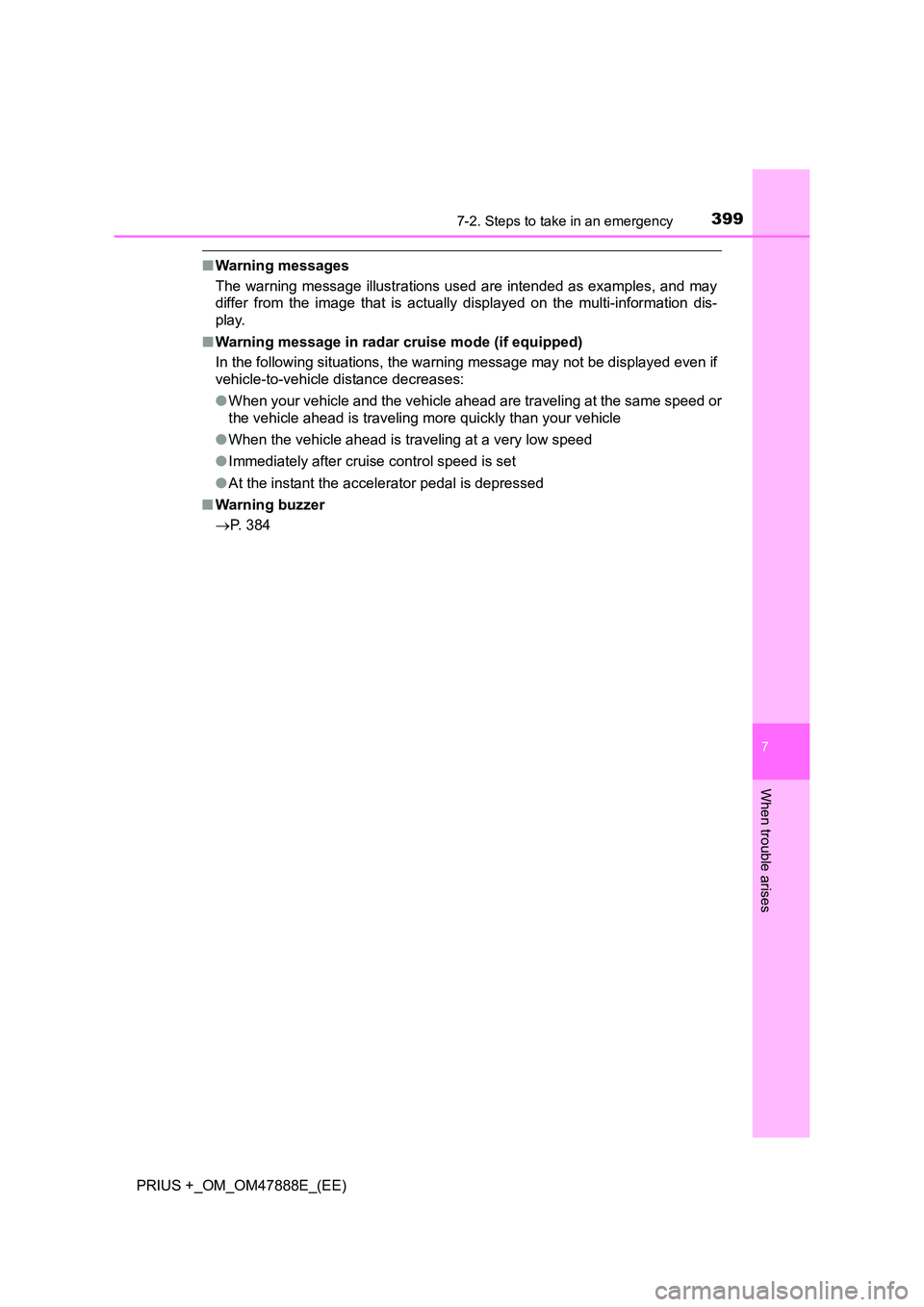

3997-2. Steps to take in an emergency
PRIUS +_OM_OM47888E_(EE)
7
When trouble arises
■Warning messages
The warning message illustrations used are intended as examples, and may
differ from the image that is actually displayed on the multi-information dis-
play.
■ Warning message in radar cruise mode (if equipped)
In the following situations, the warning message may not be displayed even if
vehicle-to-vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or
the vehicle ahead is traveling more quickly than your vehicle
● When the vehicle ahead is traveling at a very low speed
● Immediately after cruise control speed is set
● At the instant the accelerator pedal is depressed
■ Warning buzzer
→ P. 384

4007-2. Steps to take in an emergency
PRIUS +_OM_OM47888E_(EE)
InteriorbuzzerExterior buzzerWarning messageDetails/Actions

Power was turned off due to the
automatic power off function.
→ Next time when starting
the hybrid system, oper-
ate the hybrid system for
approximately 5 minutes
to recharge the 12-volt bat-
tery.
Contin-
uous
The driver’s door was opened
while any shift position other
than P was selected without
turning off the power switch.
→Shift the shift position to P.
Contin-
uousContin-
uous
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while any shift position
other than P was selected with-
out turning off the power switch.
→Shift the shift position to P.
→ Bring the electronic key
back into the vehicle.
Once
An attempt was made to start
the hybrid system without the
electronic key being present, or
the electronic key was not func-
tioning normally.
→Start the hybrid system
with the electronic key
present.
An attempt was made to drive
when the regular key was not
inside the vehicle.
→Confirm that the elec-
tronic key is inside the
vehicle.
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)
