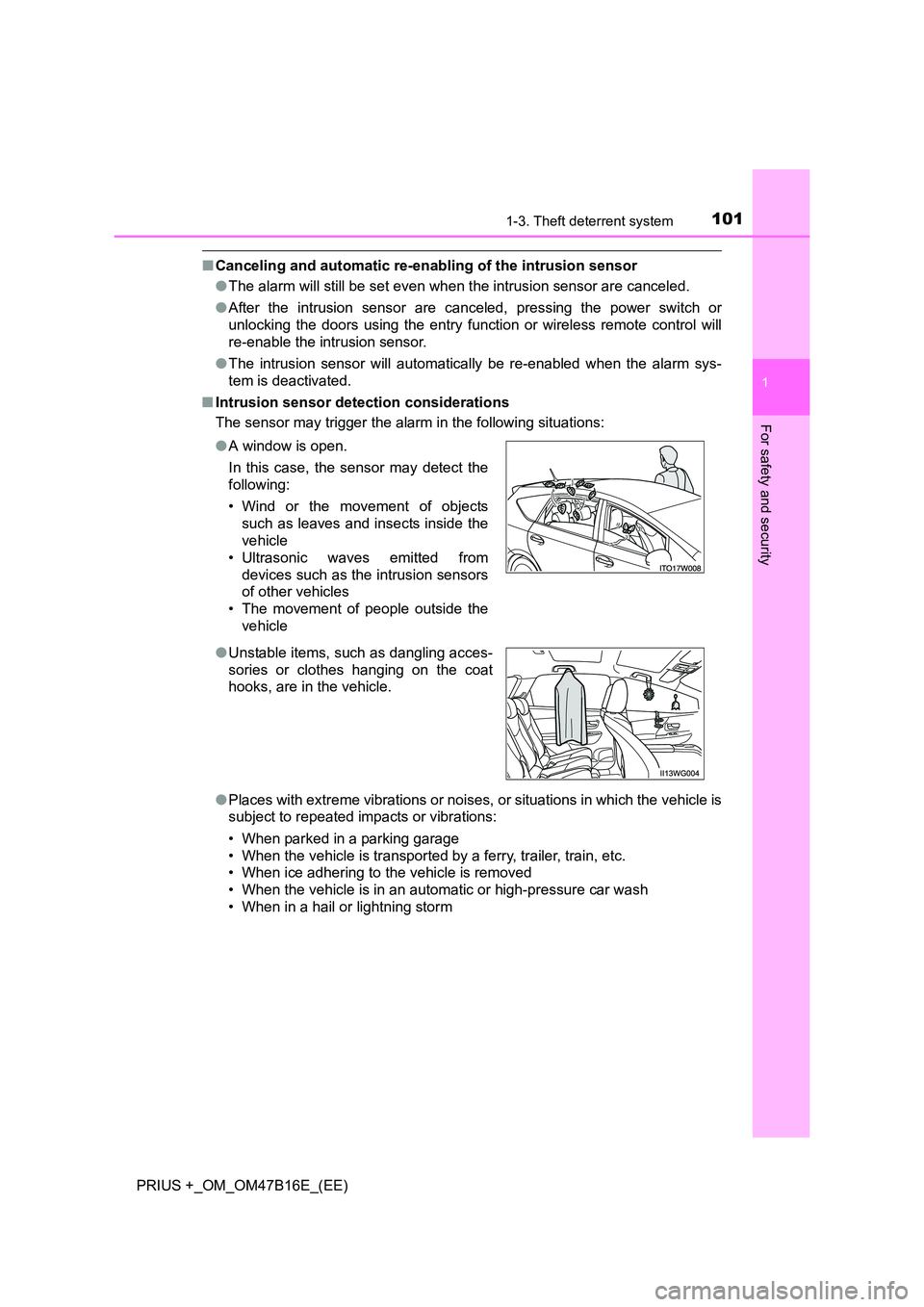

■Canceling and automatic re-enabling of the intrusion sensor
●The alarm will still be set even when the intrusion sensor are canceled.
● After the intrusion sensor are canc eled, pressing the power switch or
unlocking the doors using the entry function or wireless remote control will
re-enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
■ Intrusion sensor detection considerations
The sensor may trigger the alar m in the following situations:
● Places with extreme vibrations or noises, or situations in which the vehicle is
subject to repeated impacts or vibrations:
• When parked in a parking garage
• When the vehicle is transported by a ferry, trailer, train, etc.
• When ice adhering to the vehicle is removed
• When the vehicle is in an automatic or high-pressure car wash
• When in a hail or lightning storm
●
A window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from devices such as the intrusion sensors
of other vehicles
• The movement of people outside the vehicle
● Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.

1021-3. Theft deterrent system
PRIUS +_OM_OM47B16E_(EE)NOTICE
■

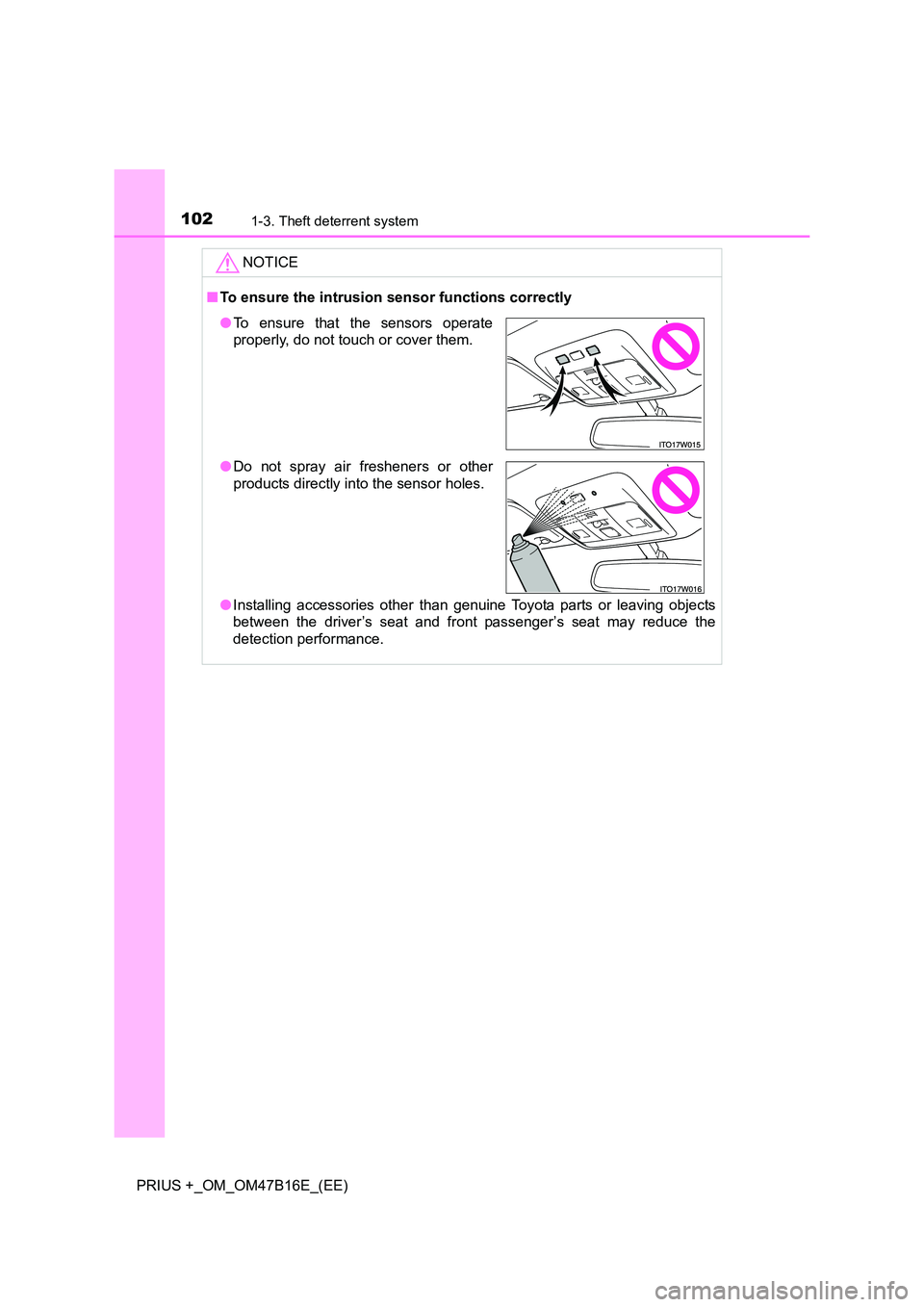

To ensure the intrusion sensor functions correctly
● Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
●To ensure that the sensors operate
properly, do not touch or cover them.
● Do not spray air fresheners or other
products directly into the sensor holes.

103

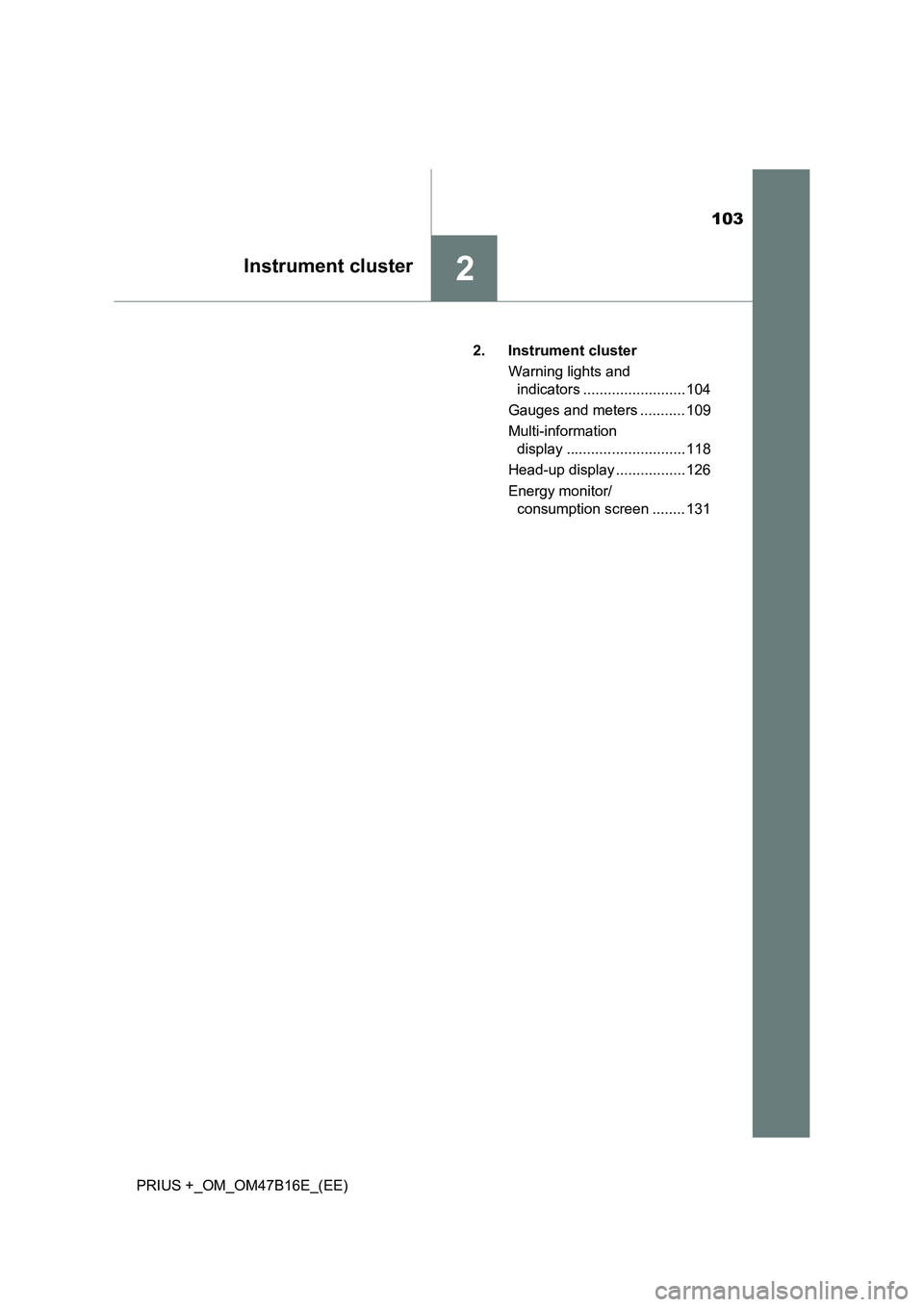

2Instrument cluster
PRIUS +_OM_OM47B16E_(EE)2. Instrument cluster
Warning lights and indicators ......................... 104
Gauges and meters ........... 109
Multi-information display ............................. 118
Head-up display .................126
Energy monitor/ consumption screen ........ 131

1042. Instrument cluster
PRIUS +_OM_OM47B16E_(EE)

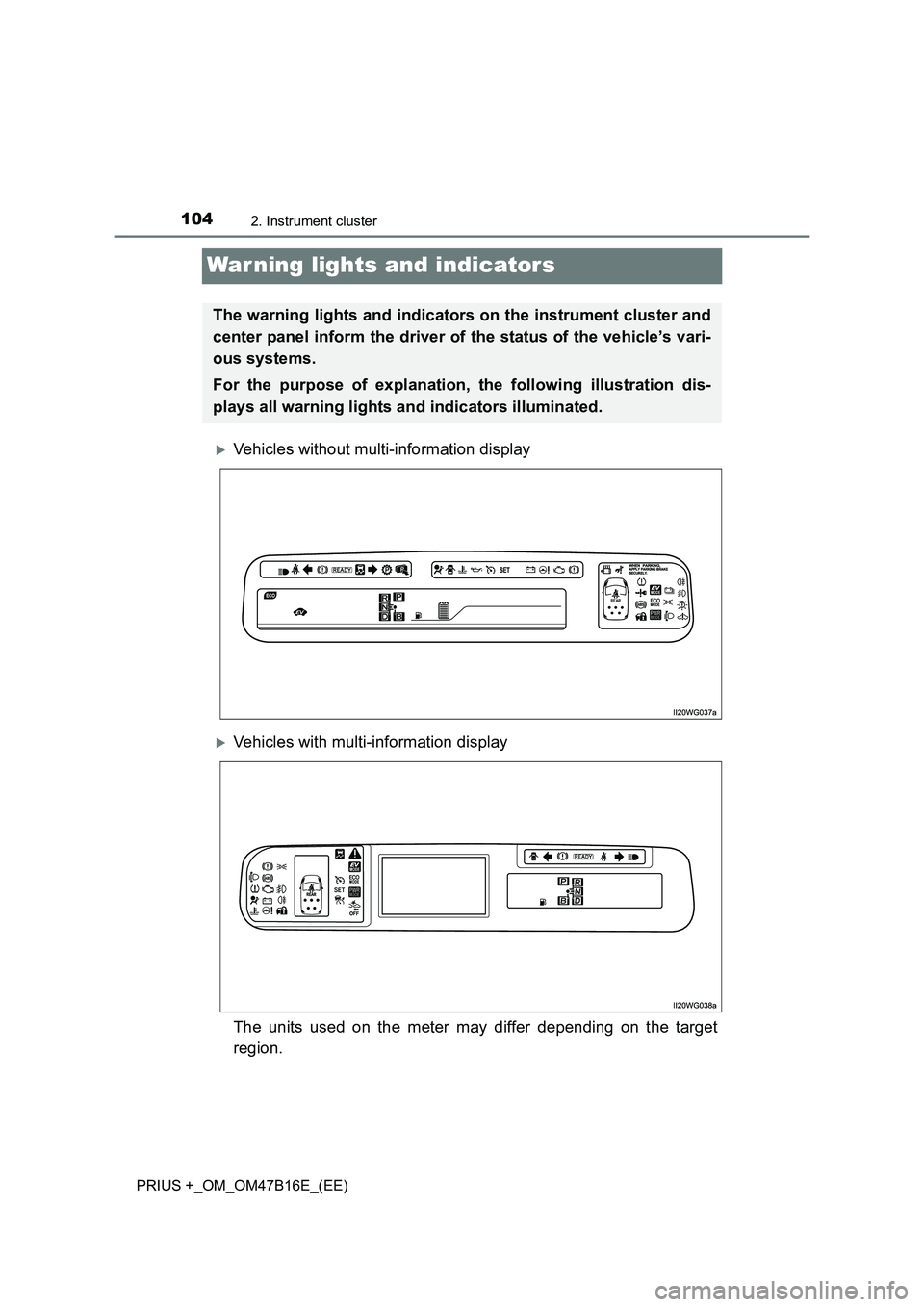

War ning lights and indicators
XVehicles without multi-information display
XVehicles with multi-information display
The units used on the meter may differ depending on the target
region.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

1052. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47B16E_(EE)

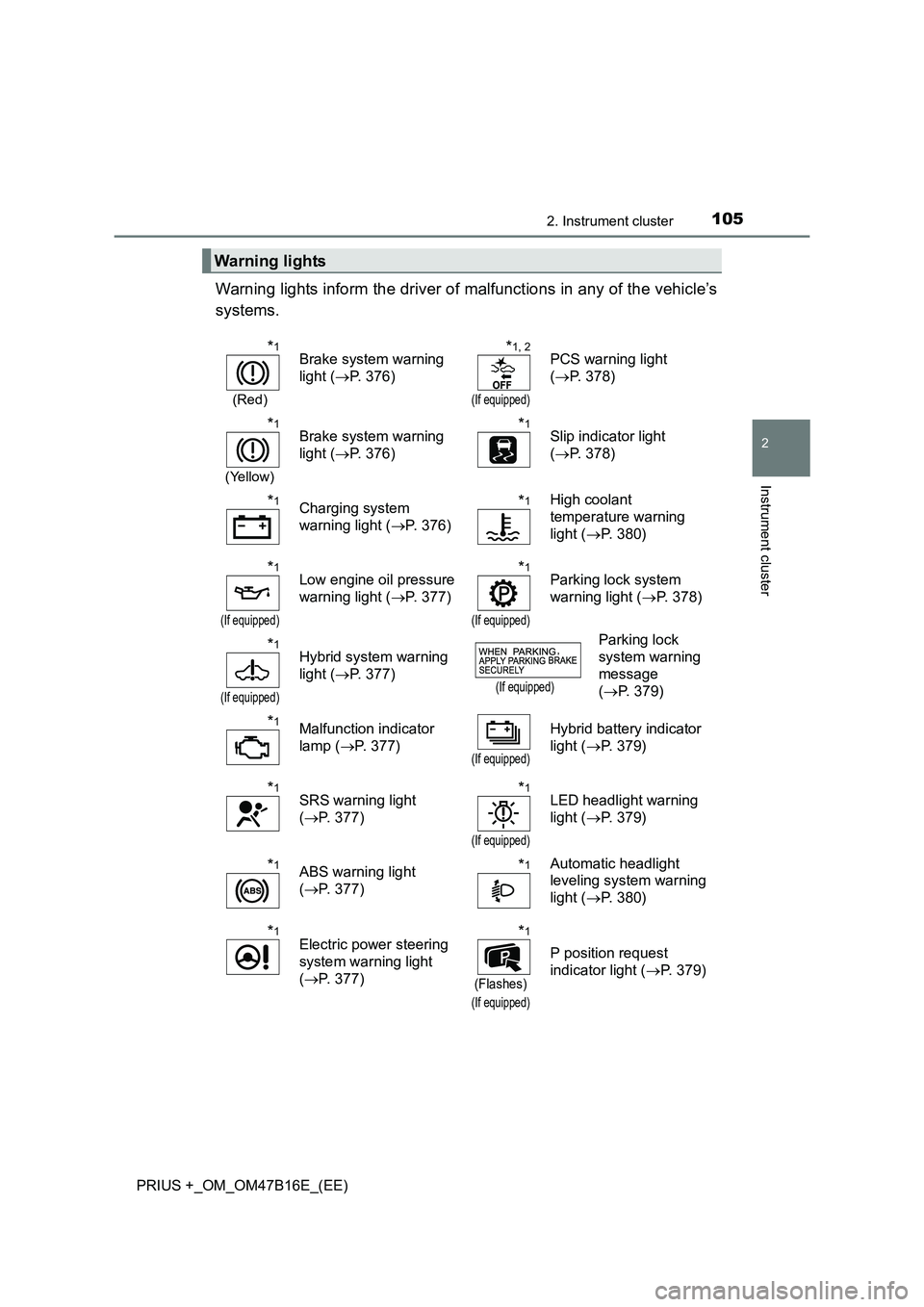

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
*1
(Red)
Brake system warning
light (→P. 376)*1, 2
(If equipped)
PCS warning light
(→ P. 378)
*1
(Yellow)
Brake system warning
light ( →P. 376)*1Slip indicator light
(→ P. 378)
*1Charging system
warning light ( →P. 376)*1High coolant
temperature warning
light ( →P. 380)
*1
(If equipped)
Low engine oil pressure
warning light ( →P. 377)*1
(If equipped)
Parking lock system
warning light ( →P. 378)
*1
(If equipped)
Hybrid system warning
light ( →P. 377)
(If equipped)
Parking lock
system warning
message
(→ P. 379)
*1Malfunction indicator
lamp ( →P. 377)
(If equipped)
Hybrid battery indicator
light ( →P. 379)
*1SRS warning light
(→ P. 377)*1
(If equipped)
LED headlight warning
light ( →P. 379)
*1ABS warning light
(→ P. 377)*1Automatic headlight
leveling system warning
light ( →P. 380)
*1Electric power steering
system warning light
(→ P. 377)*1
(Flashes)
(If equipped)
P position request
indicator light ( →P. 379)

1062. Instrument cluster
PRIUS +_OM_OM47B16E_(EE)

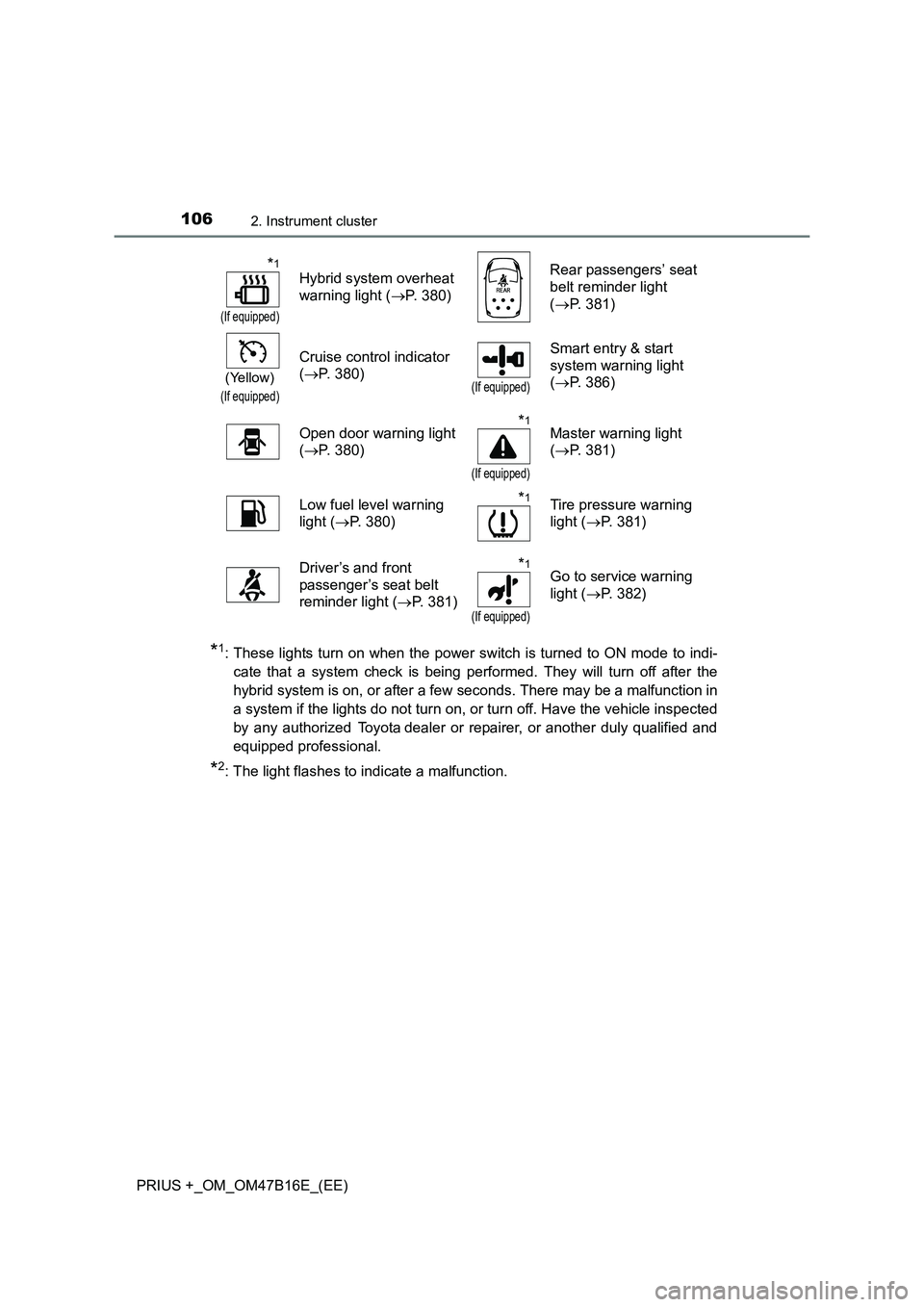

*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if the lights do not turn on, or turn off. Have the vehicle inspected
by any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*2: The light flashes to indicate a malfunction.
*1
(If equipped)
Hybrid system overheat
warning light ( →P. 380) Rear passengers’ seat
belt reminder light
(
→ P. 381)
(Yellow)
(If equipped)
Cruise control indicator
(→ P. 380)
(If equipped)
Smart entry & start
system warning light
(→ P. 386)
Open door warning light
( → P. 380)
*1
(If equipped)
Master warning light
(→ P. 381)
Low fuel level warning
light ( →P. 380)
*1Tire pressure warning
light ( →P. 381)
Driver’s and front
passenger’s seat belt
reminder light ( →P. 381)
*1
(If equipped)
Go to service warning
light ( →P. 382)

1072. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47B16E_(EE)

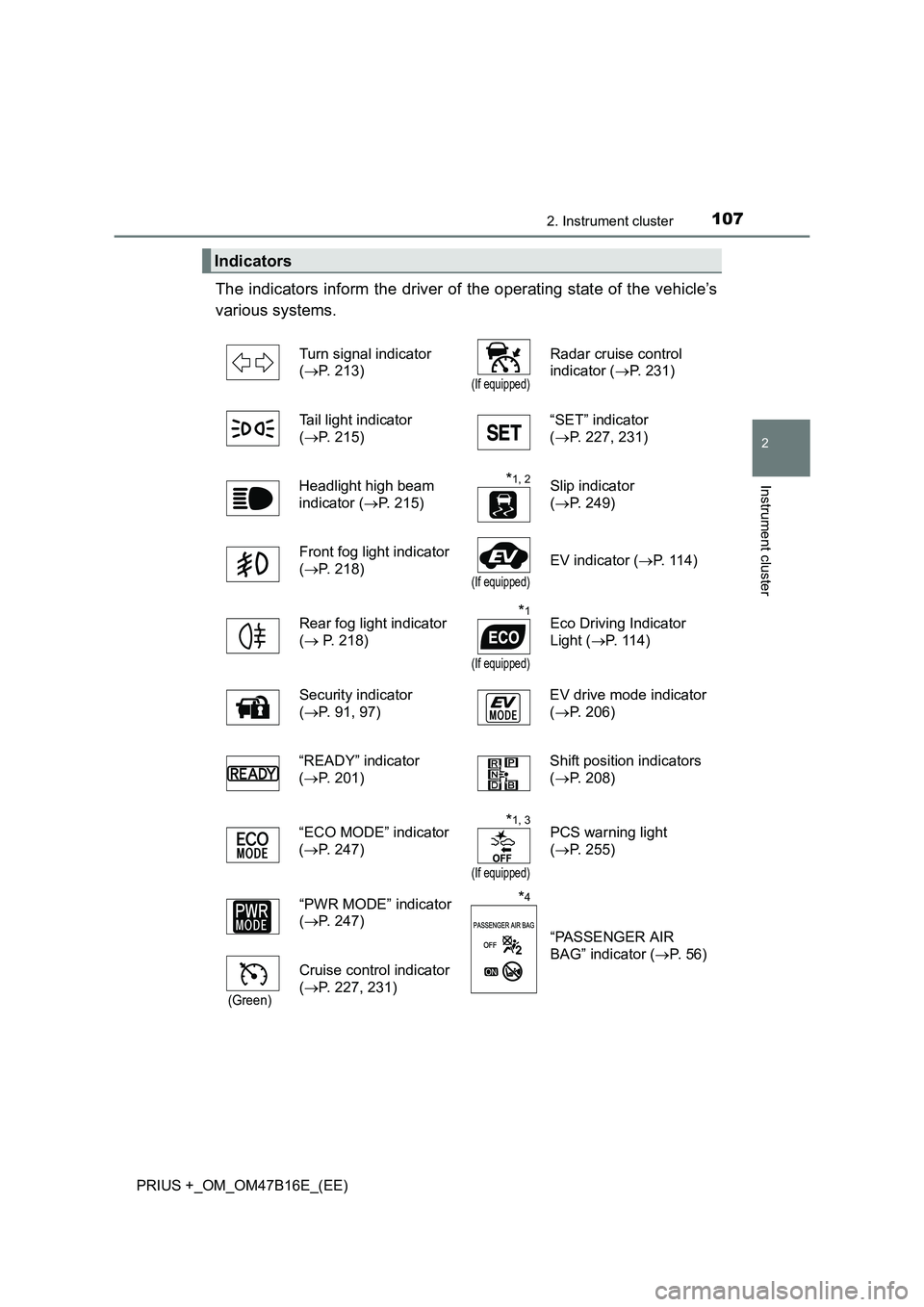

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(→ P. 213)
(If equipped)
Radar cruise control
indicator ( →P. 231)
Tail light indicator
( → P. 215) “SET” indicator
(
→ P. 227, 231)
Headlight high beam
indicator ( →P. 215)
*1, 2Slip indicator
(→ P. 249)
Front fog light indicator
( → P. 218)
(If equipped)
EV indicator ( →P. 114)
Rear fog light indicator
( → P. 218)
*1
(If equipped)
Eco Driving Indicator
Light ( →P. 114)
Security indicator
( → P. 91, 97) EV drive mode indicator
(
→ P. 206)
“READY” indicator
( → P. 201) Shift position indicators
(
→ P. 208)
“ECO MODE” indicator
( → P. 247)
*1, 3
(If equipped)
PCS warning light
(→ P. 255)
“PWR MODE” indicator
( → P. 247)
*4
“PASSENGER AIR
BAG” indicator ( →P. 5 6 )
(Green)
Cruise control indicator
(→ P. 227, 231)

1082. Instrument cluster
PRIUS +_OM_OM47B16E_(EE)

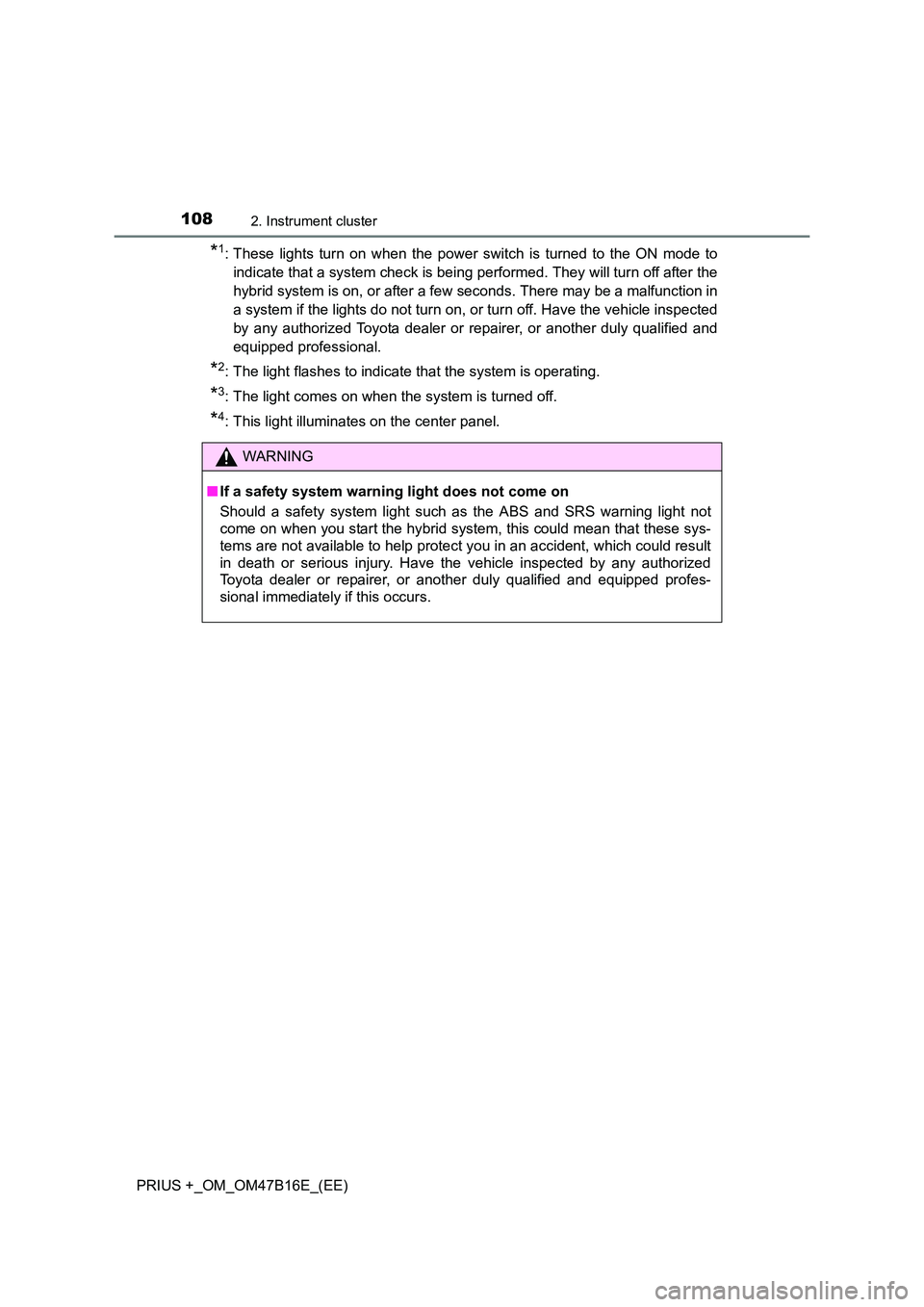

*1: These lights turn on when the power switch is turned to the ON mode toindicate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if the lights do not turn on, or turn off. Have the vehicle inspected
by any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.
*4: This light illuminates on the center panel.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately if this occurs.

109
2
2. Instrument cluster
Instrument cluster
PRIUS +_OM_OM47B16E_(EE)
Gauges and meters

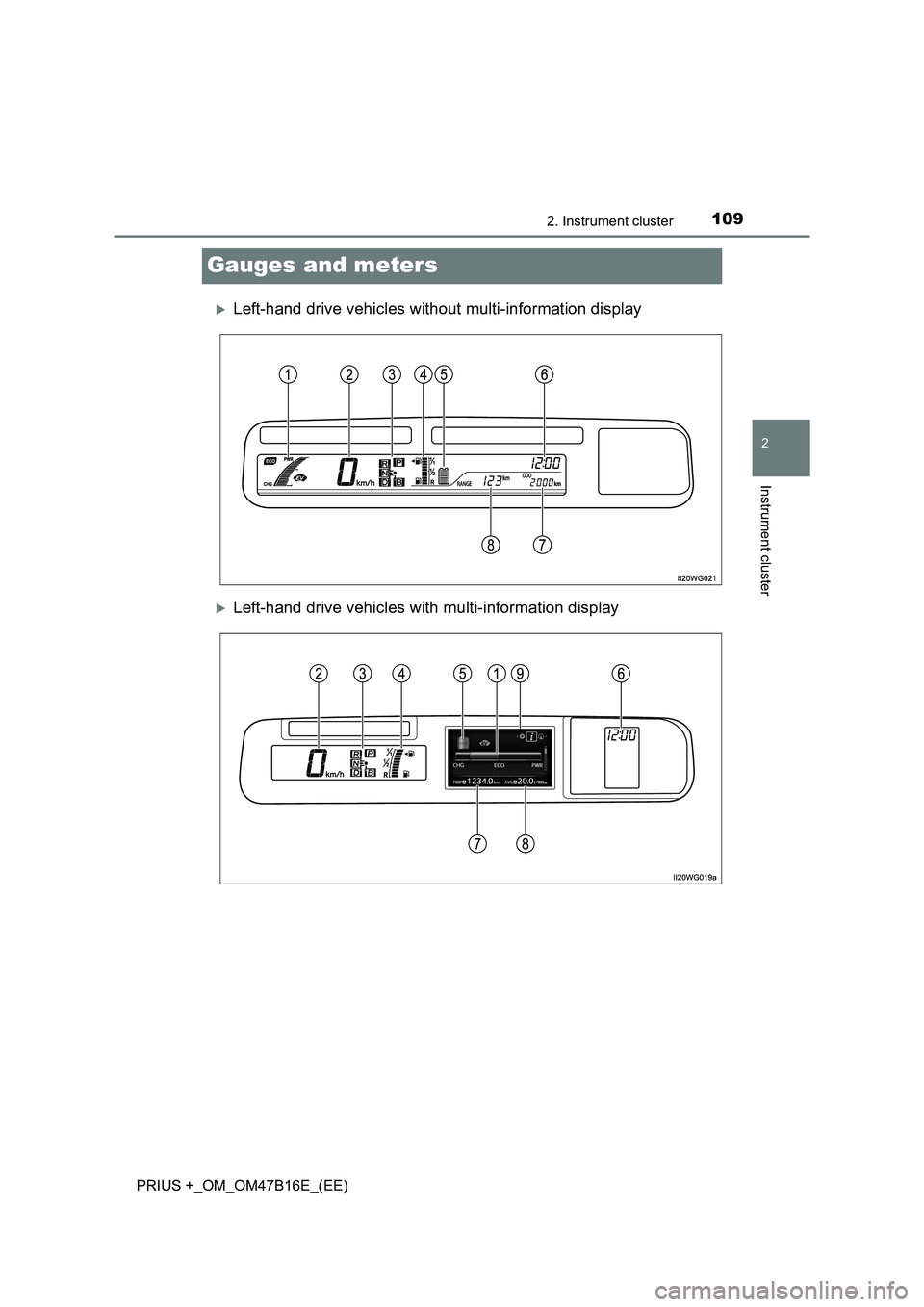

XLeft-hand drive vehicles without multi-information display
XLeft-hand drive vehicles with multi-information display

1102. Instrument cluster
PRIUS +_OM_OM47B16E_(EE)

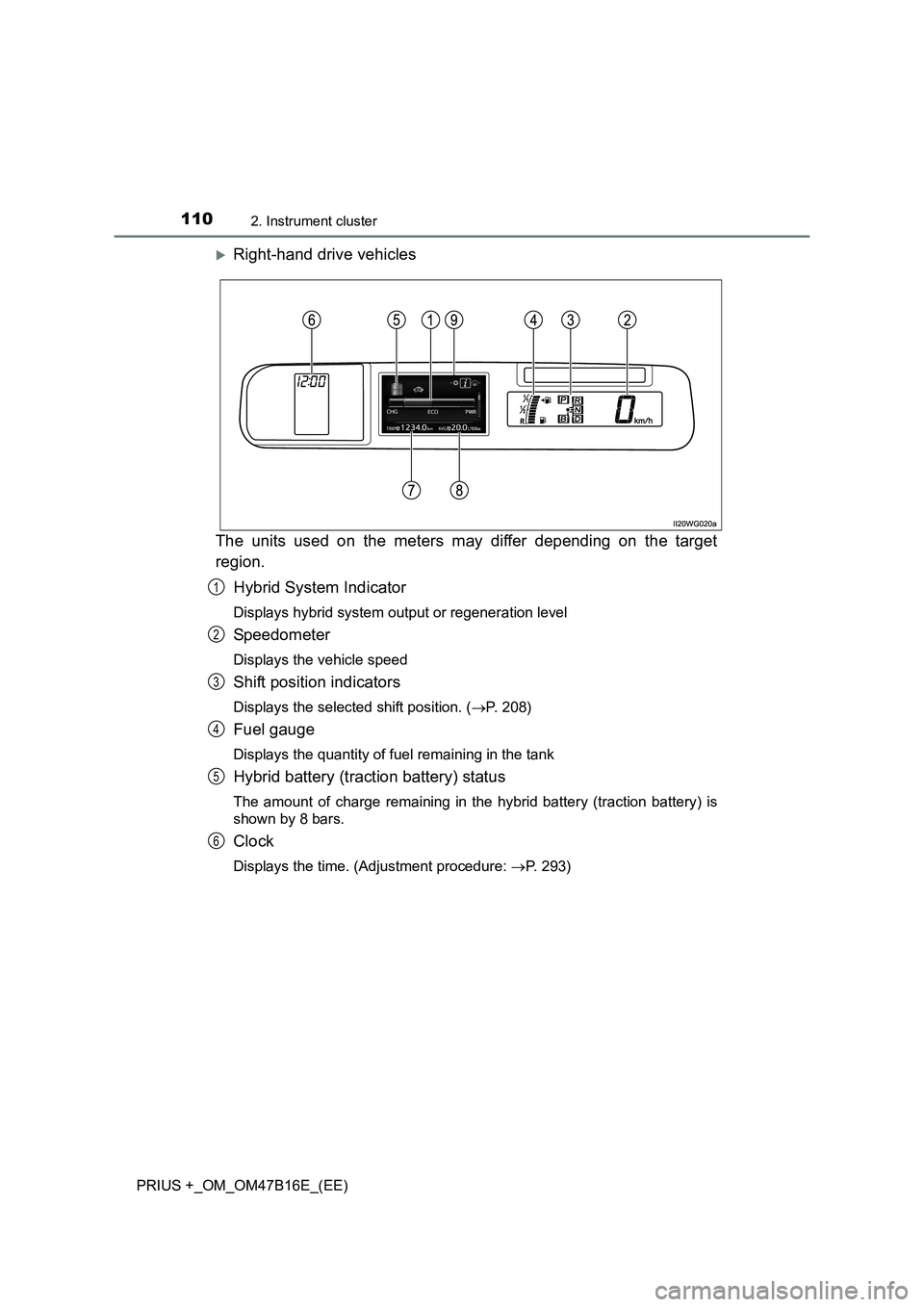

XRight-hand drive vehicles
The units used on the meters may differ depending on the target
region. Hybrid System Indicator
Displays hybrid system output or regeneration level
Speedometer
Displays the vehicle speed
Shift position indicators
Displays the selected shift position. ( →P. 208)
Fuel gauge
Displays the quantity of fuel remaining in the tank
Hybrid battery (traction battery) status
The amount of charge remaining in the hybrid battery (traction battery) is
shown by 8 bars.
Clock
Displays the time. (Adjustment procedure: →P. 293)
1
2
3
4
5
6
