TOYOTA PRIUS PLUS 2015 Owners Manual

131
2
2. Instrument cluster
Instrument cluster
PRIUS +_OM_OM47B16E_(EE)
Energy monitor/consumption screen
Audio systemPress the “CAR”.
Select “Energy monitor” on the
“CAR” screen.
You can view the status of your hybrid system on the audio sys-
tem screen.
Energy monitor
1
2

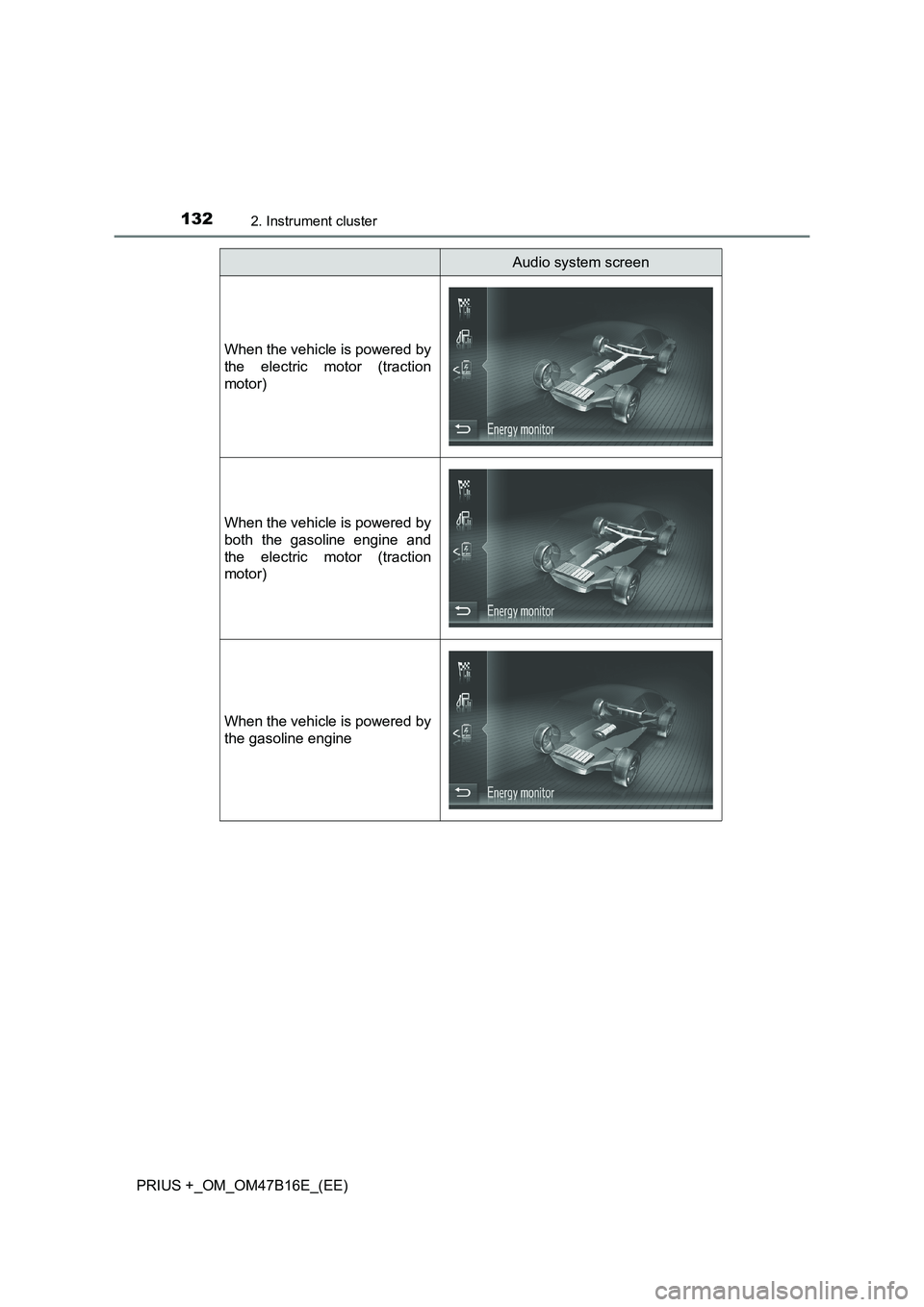

1322. Instrument cluster
PRIUS +_OM_OM47B16E_(EE)
Audio system screen
When the vehicle is powered by
the electric motor (traction
motor)
When the vehicle is powered by
both the gasoline engine and
the electric motor (traction
motor)
When the vehicle is powered by
the gasoline engine

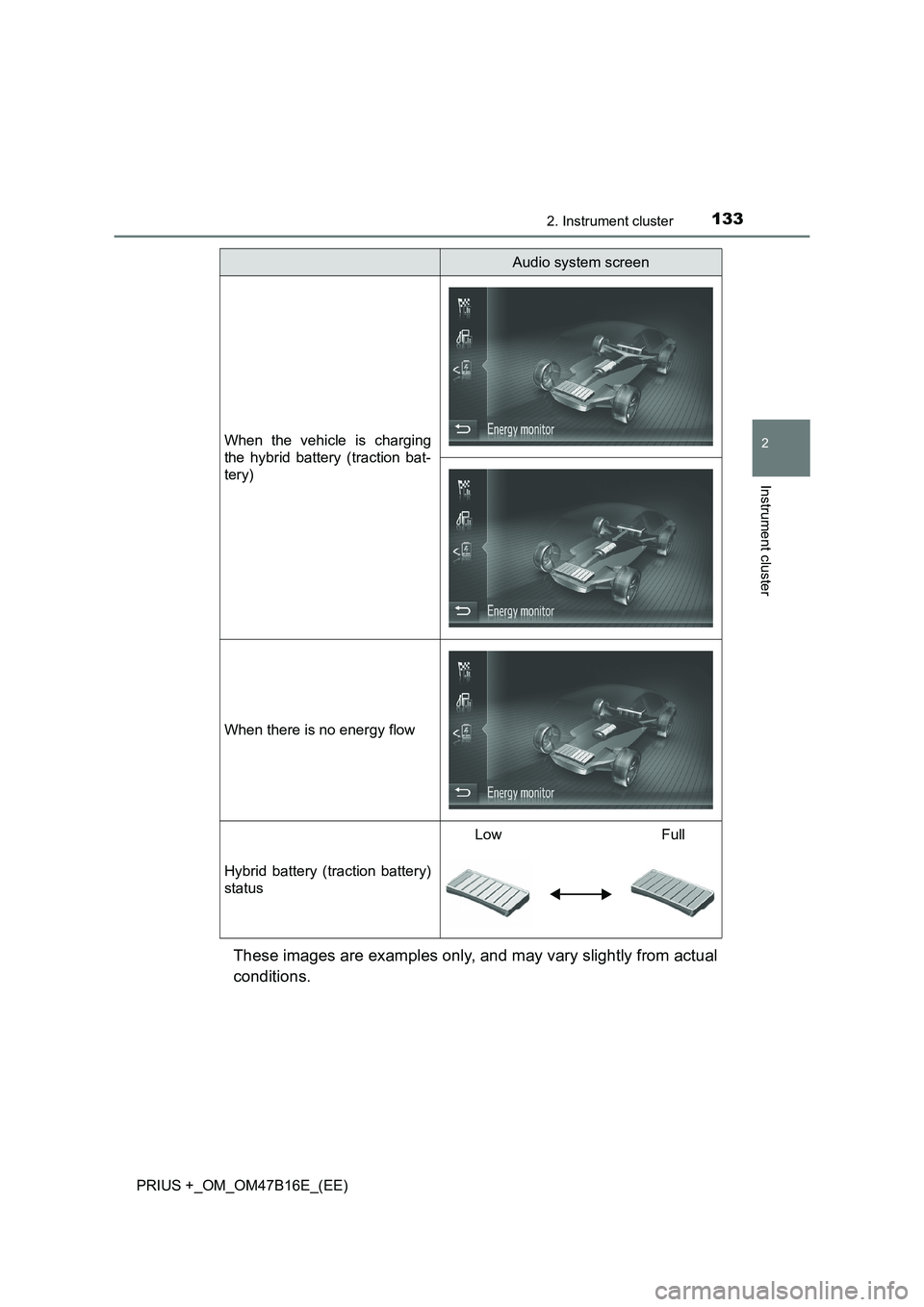

1332. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47B16E_(EE)
These images are examples only, and may vary slightly from actual
conditions.
When the vehicle is charging
the hybrid battery (traction bat-
tery)
When there is no energy flow
Hybrid battery (traction battery)
status
LowFull
Audio system screen

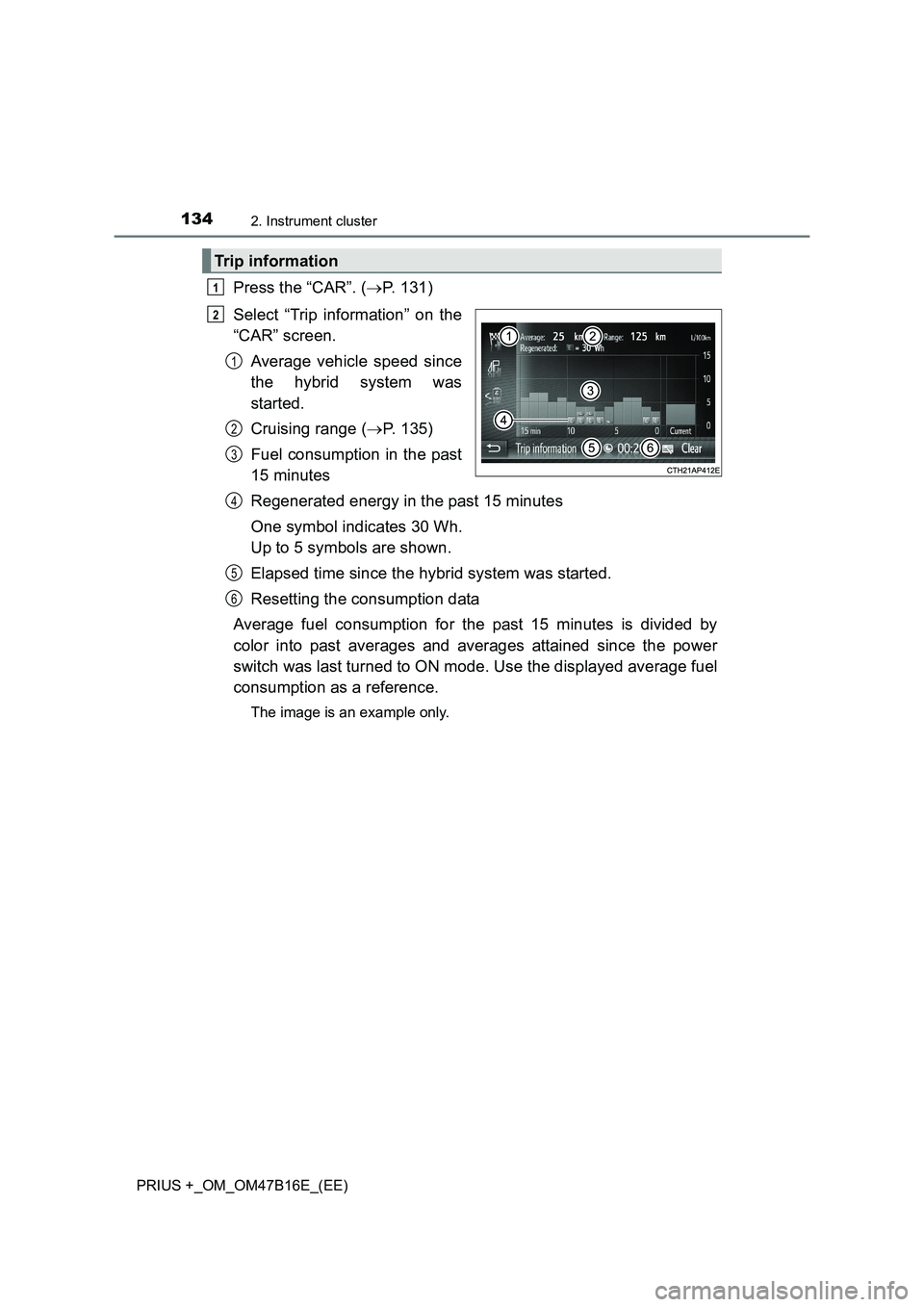

1342. Instrument cluster
PRIUS +_OM_OM47B16E_(EE)
Press the “CAR”. (→P. 131)
Select “Trip information” on the
“CAR” screen. Average vehicle speed since
the hybrid system was
started.
Cruising range ( →P. 135)
Fuel consumption in the past
15 minutes
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Elapsed time since the hybrid system was started.
Resetting the consumption data
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
The image is an example only.
Trip information
1
2
1
2
3
4
5
6

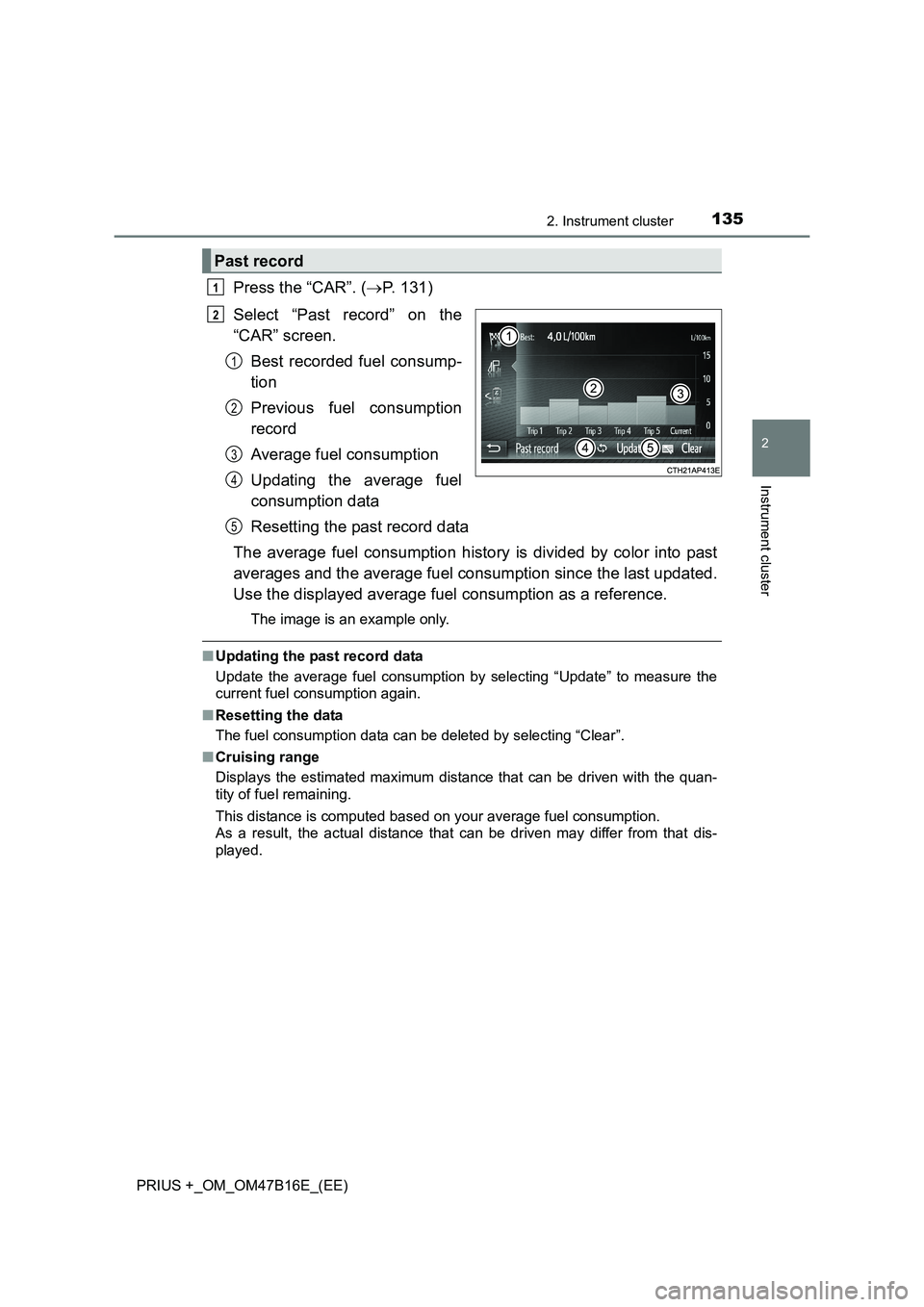

1352. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47B16E_(EE)
Press the “CAR”. (→P. 131)
Select “Past record” on the
“CAR” screen. Best recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only.
■ Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
Past record
1
2
1
2
3
4
5

1362. Instrument cluster
PRIUS +_OM_OM47B16E_(EE)

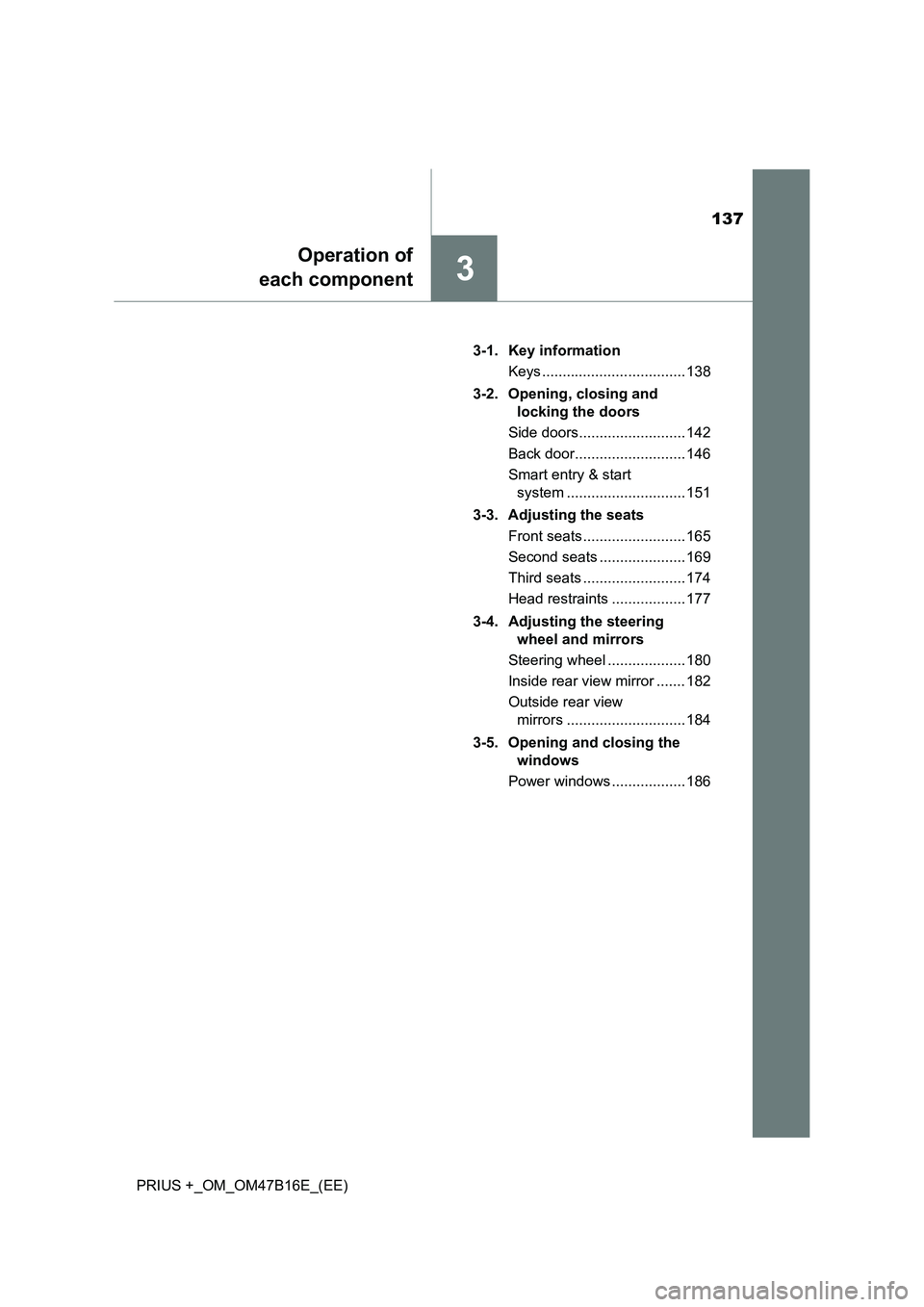

137
3
Operation of
each component
PRIUS +_OM_OM47B16E_(EE) 3-1. Key information
Keys ................................... 138
3-2. Opening, closing and locking the doors
Side doors.......................... 142
Back door...........................146
Smart entry & start system ............................. 151
3-3. Adjusting the seats Front seats ......................... 165
Second seats .....................169
Third seats ......................... 174
Head restraints .................. 177
3-4. Adjusting the steering wheel and mirrors
Steering wheel ................... 180
Inside rear view mirror ....... 182
Outside rear view mirrors ............................. 184
3-5. Opening and closing the windows
Power windows .................. 186

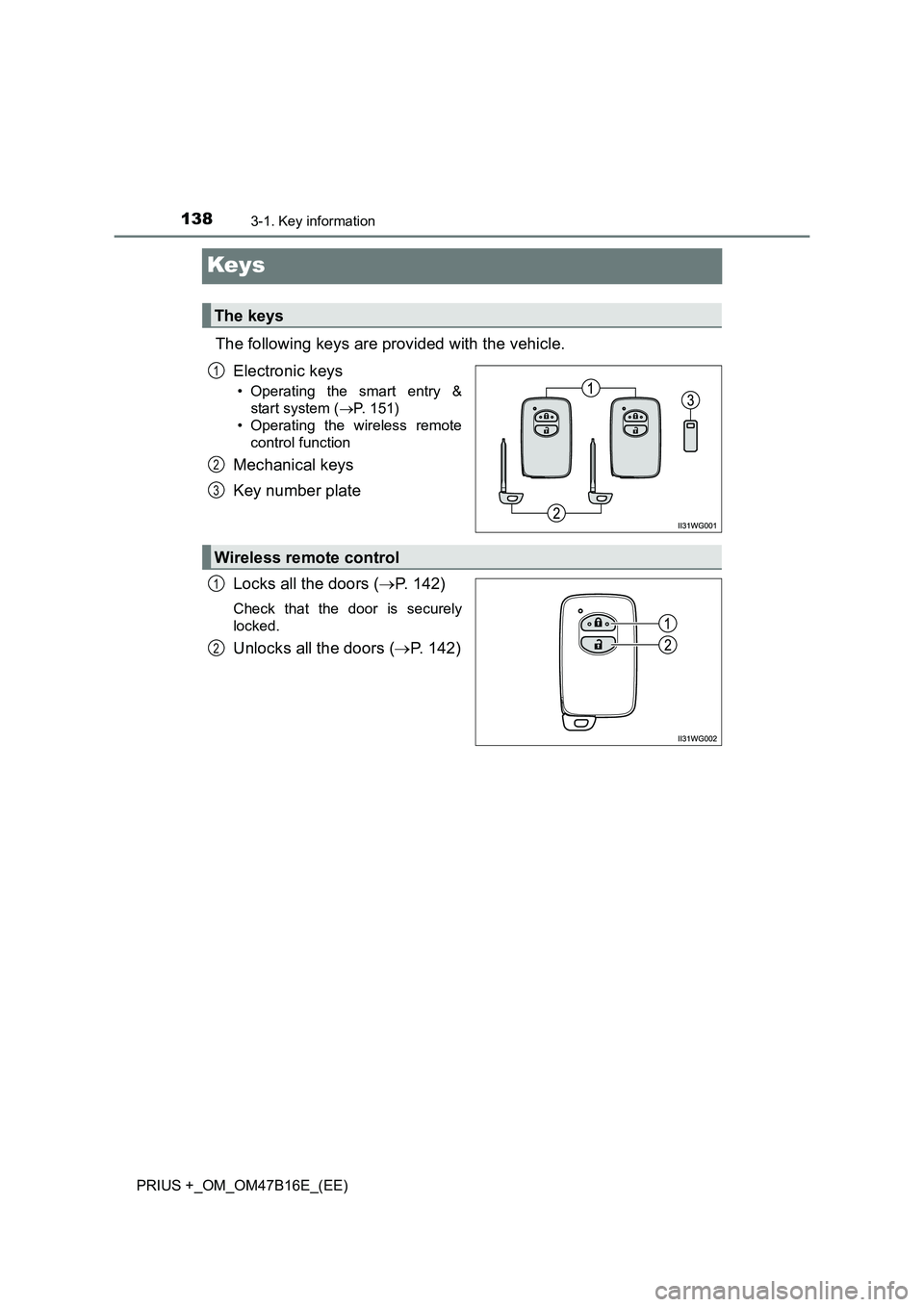

1383-1. Key information
PRIUS +_OM_OM47B16E_(EE)
Keys
The following keys are provided with the vehicle.Electronic keys
• Operating the smart entry &start system ( →P. 151)
• Operating the wireless remote
control function
Mechanical keys
Key number plate
Locks all the doors ( →P. 142)
Check that the door is securely
locked.
Unlocks all the doors ( →P. 142)
The keys
1
2
3
Wireless remote control
1
2

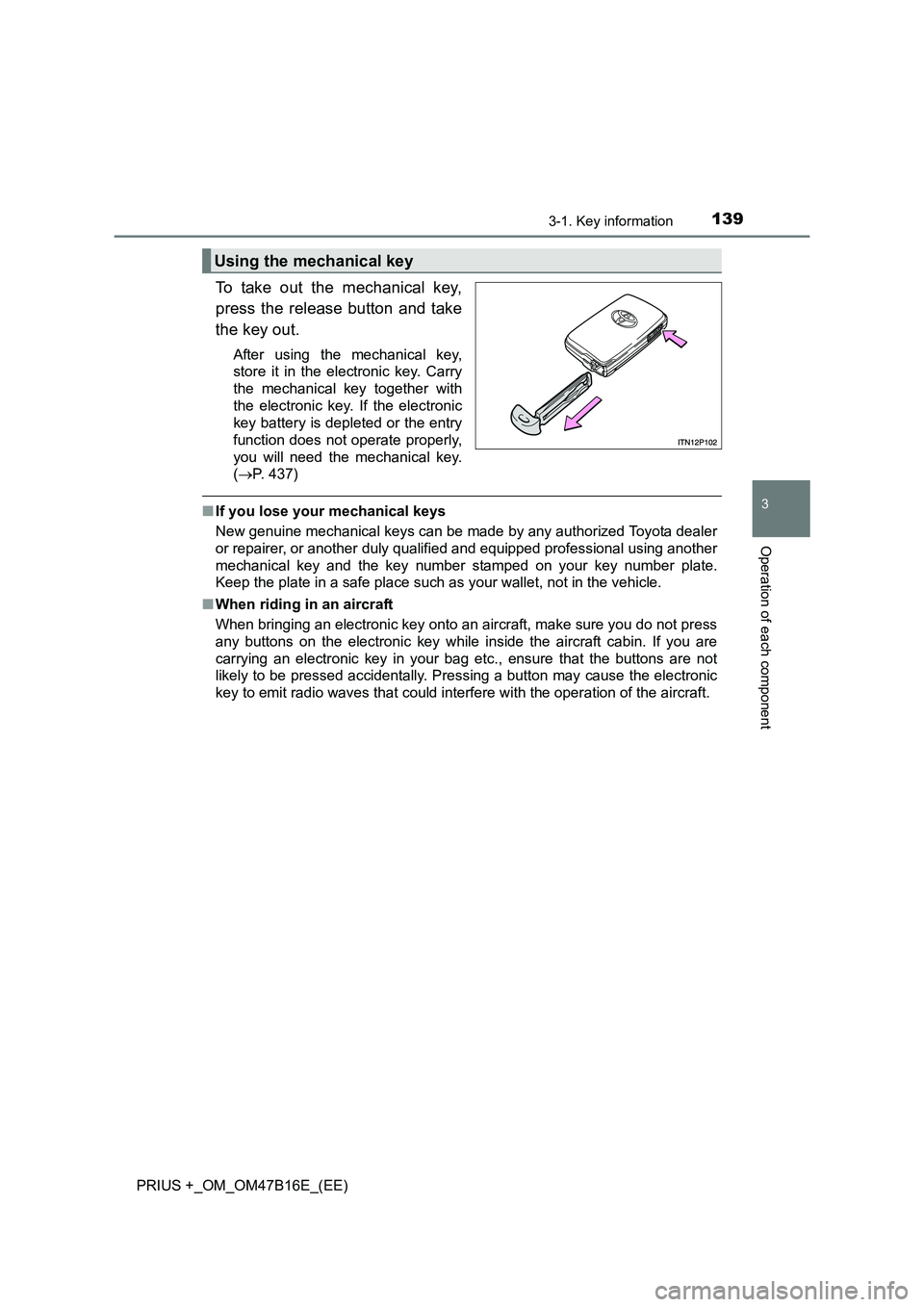

1393-1. Key information
3
Operation of each component
PRIUS +_OM_OM47B16E_(EE)
To take out the mechanical key,
press the release button and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(→ P. 437)
■If you lose your mechanical keys
New genuine mechanical keys can be made by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional using another
mechanical key and the key number stamped on your key number plate.
Keep the plate in a safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press
any buttons on the electronic key while inside the aircraft cabin. If you are
carrying an electronic key in your bag etc., ensure that the buttons are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the aircraft.
Using the mechanical key

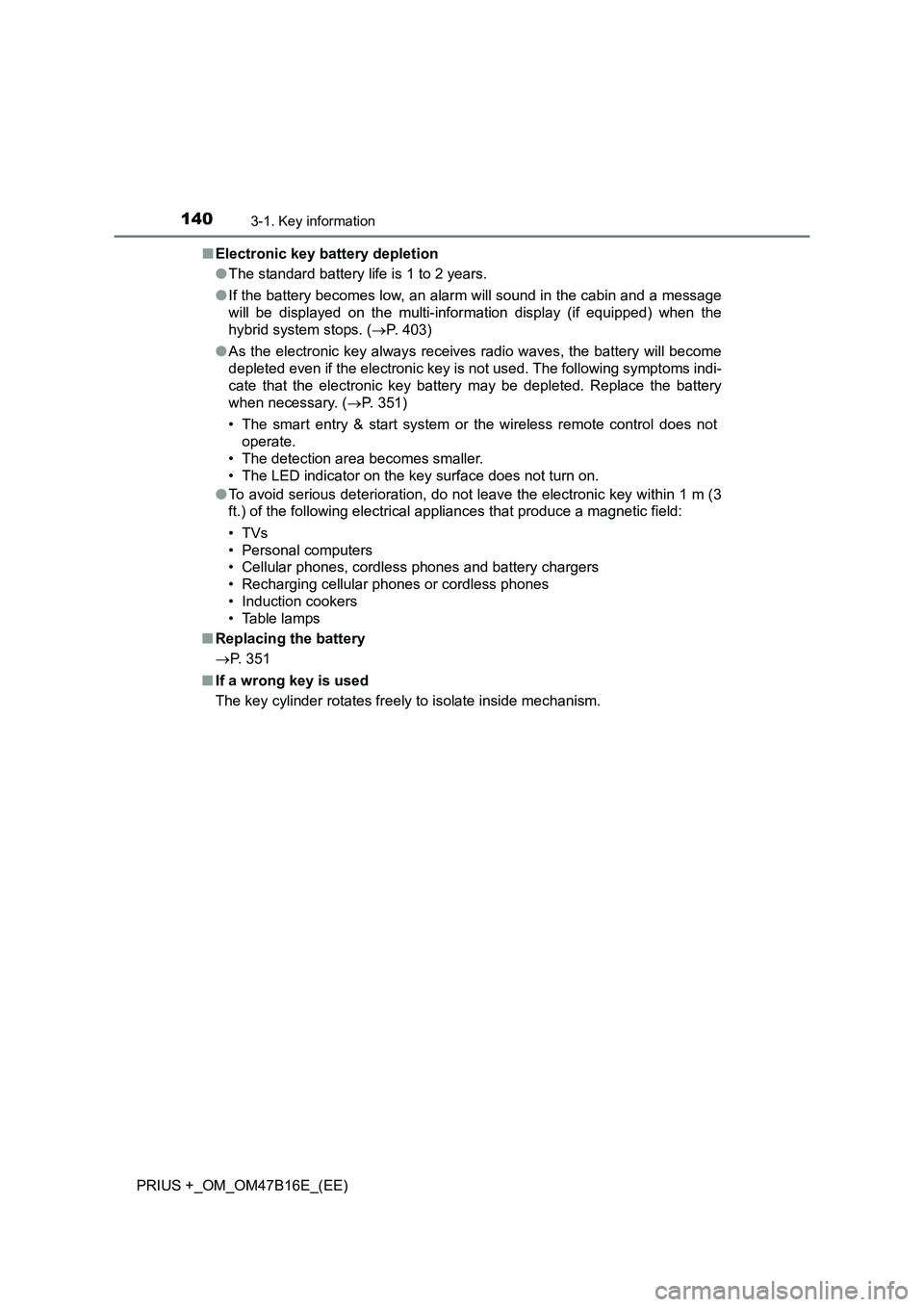

1403-1. Key information
PRIUS +_OM_OM47B16E_(EE)■
Electronic key battery depletion
●The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin and a message
will be displayed on the multi-information display (if equipped) when the
hybrid system stops. ( →P. 403)
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( →P. 351)
• The smart entry & start system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appl iances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Induction cookers
• Table lamps
■ Replacing the battery
→ P. 351
■ If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
