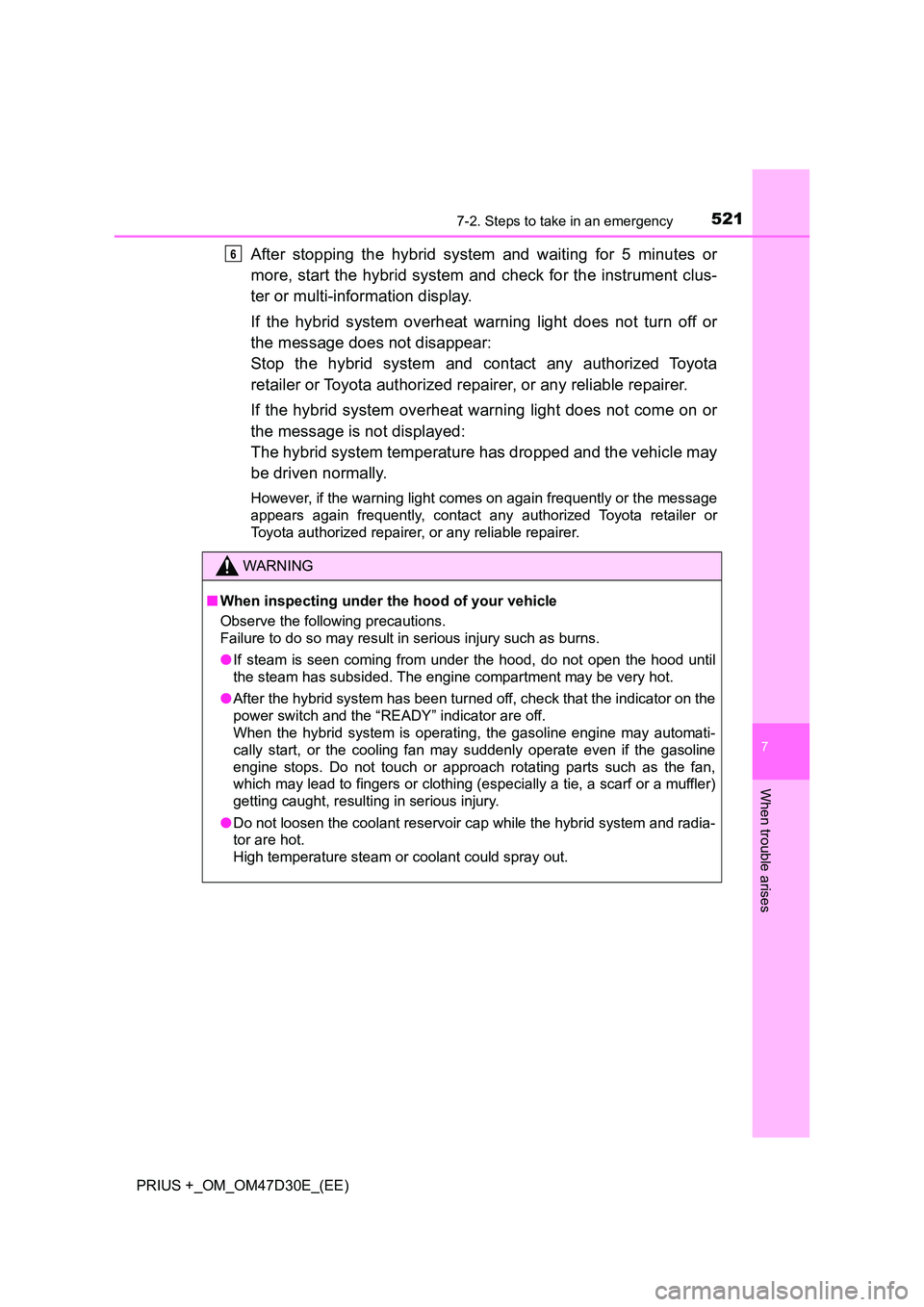

After stopping the hybrid system and waiting for 5 minutes or
more, start the hybrid system and check for the instrument clus-
ter or multi-information display.
If the hybrid system overheat warning light does not turn off or
the message does not disappear:
Stop the hybrid system and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
If the hybrid system overheat warning light does not come on or
the message is not displayed:
The hybrid system temperature has dropped and the vehicle may
be driven normally.
However, if the warning light comes on again frequently or the message
appears again frequently, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
WARNING
■ When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fan may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
● Do not loosen the coolant reservoir cap while the hybrid system and radia-
tor are hot.
High temperature steam or coolant could spray out.
6

5227-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently.
Adding cool coolant to a hot hybrid system too quickly can cause damage to
the hybrid system.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.

5237-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)
7
When trouble arises

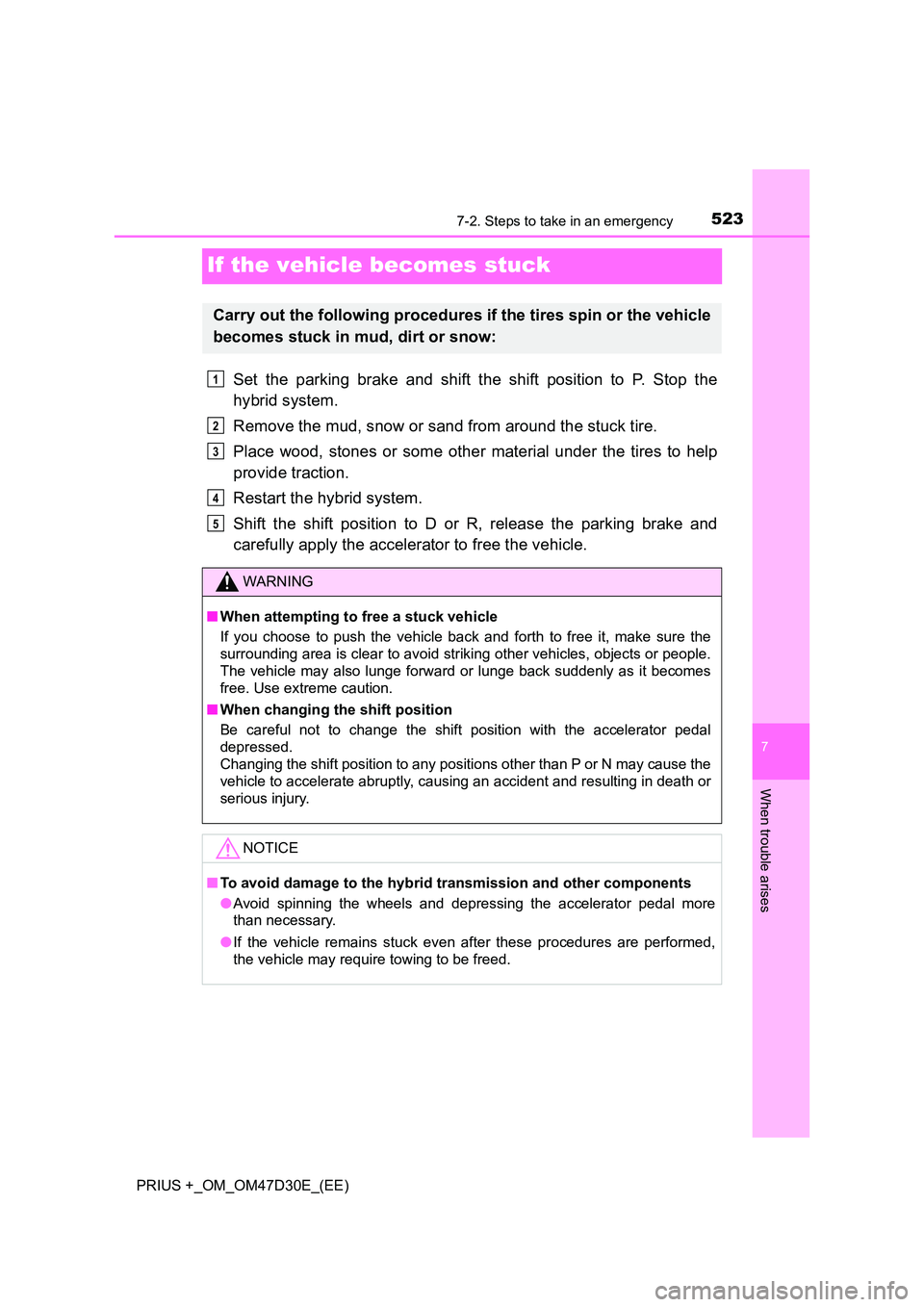

If the vehicle becomes stuck
Set the parking brake and shift the shift position to P. Stop the
hybrid system.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help
provide traction.
Restart the hybrid system.
Shift the shift position to D or R, release the parking brake and
carefully apply the accelerator to free the vehicle.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
WARNING
■ When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When changing the shift position
Be careful not to change the shift position with the accelerator pedal
depressed.
Changing the shift position to any positions other than P or N may cause the
vehicle to accelerate abruptly, causing an accident and resulting in death or
serious injury.
NOTICE
■ To avoid damage to the hybrid transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
1
2
3
4
5

5247-2. Steps to take in an emergency
PRIUS +_OM_OM47D30E_(EE)

525

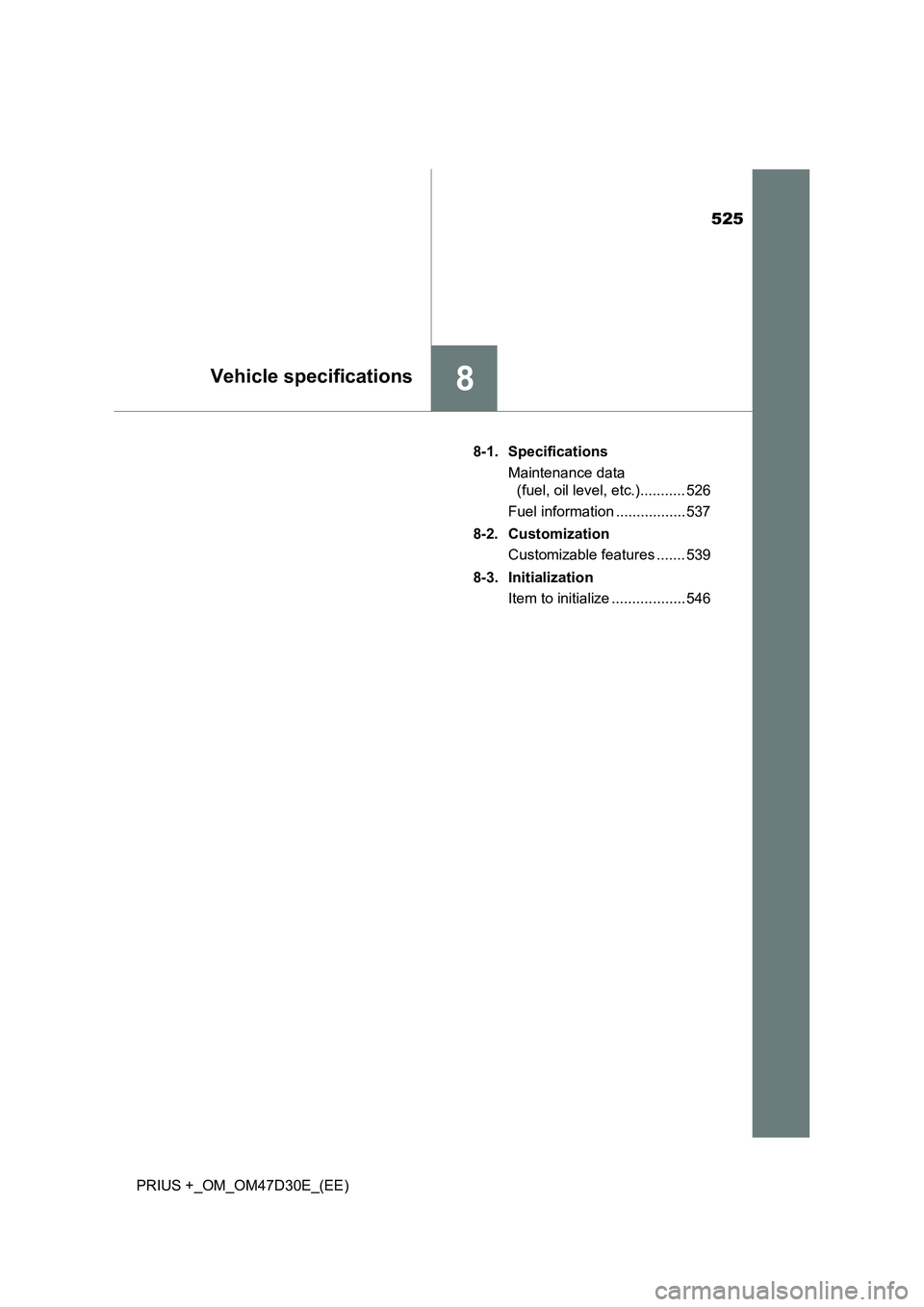

8Vehicle specifications
PRIUS +_OM_OM47D30E_(EE)8-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 526
Fuel information ................. 537
8-2. Customization
Customizable features ....... 539
8-3. Initialization
Item to initialize .................. 546

5268-1. Specifications
PRIUS +_OM_OM47D30E_(EE)

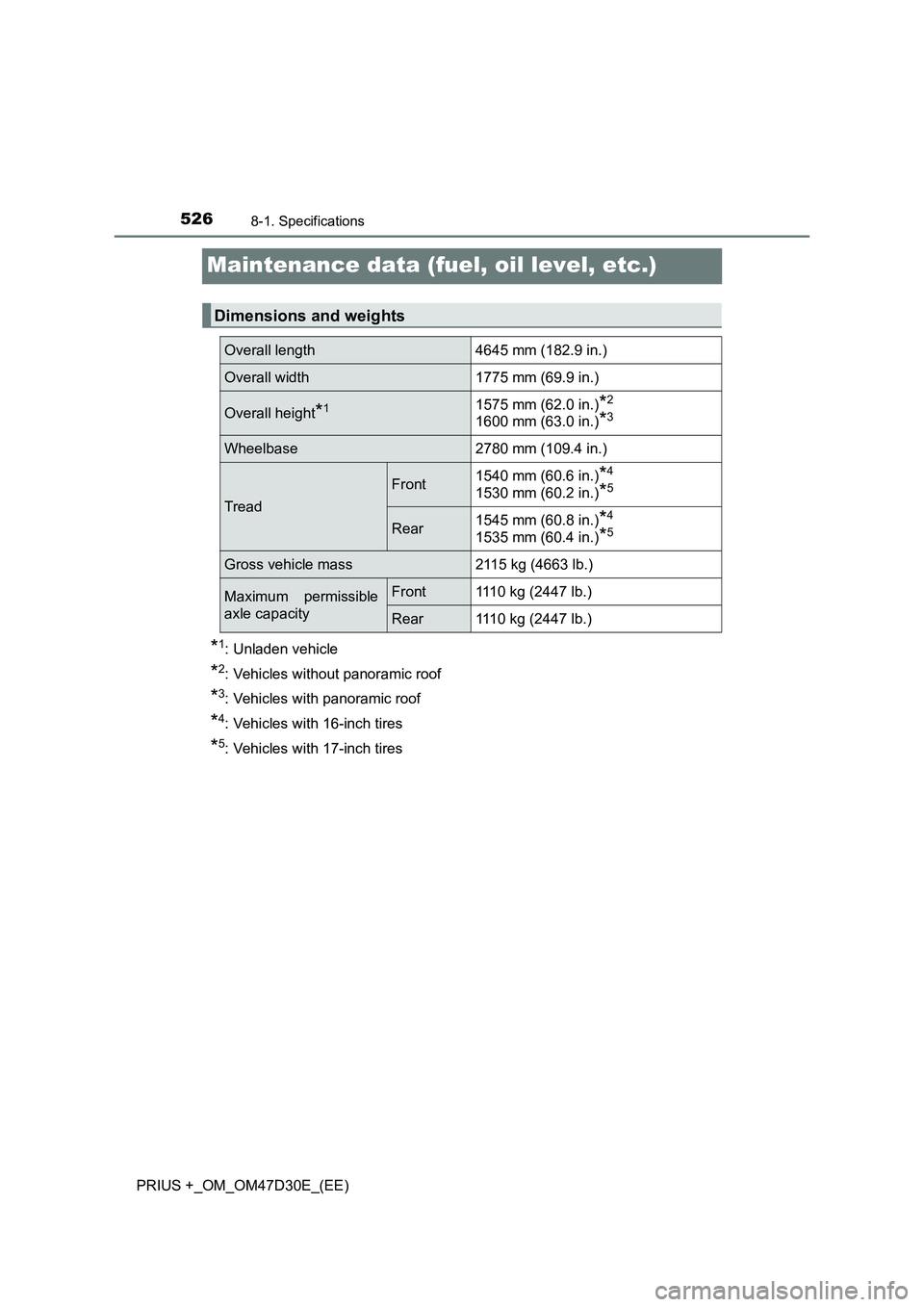

Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles without panoramic roof
*3: Vehicles with panoramic roof
*4: Vehicles with 16-inch tires
*5: Vehicles with 17-inch tires
Dimensions and weights
Overall length4645 mm (182.9 in.)
Overall width1775 mm (69.9 in.)
Overall height*11575 mm (62.0 in.)*2
1600 mm (63.0 in.)*3
Wheelbase2780 mm (109.4 in.)
Tread
Front1540 mm (60.6 in.)*4
1530 mm (60.2 in.)*5
Rear1545 mm (60.8 in.)*4
1535 mm (60.4 in.)*5
Gross vehicle mass2115 kg (4663 lb.)
Maximum permissible
axle capacityFront1110 kg (2447 lb.)
Rear1110 kg (2447 lb.)

5278-1. Specifications
PRIUS +_OM_OM47D30E_(EE)
8
Vehicle specifications

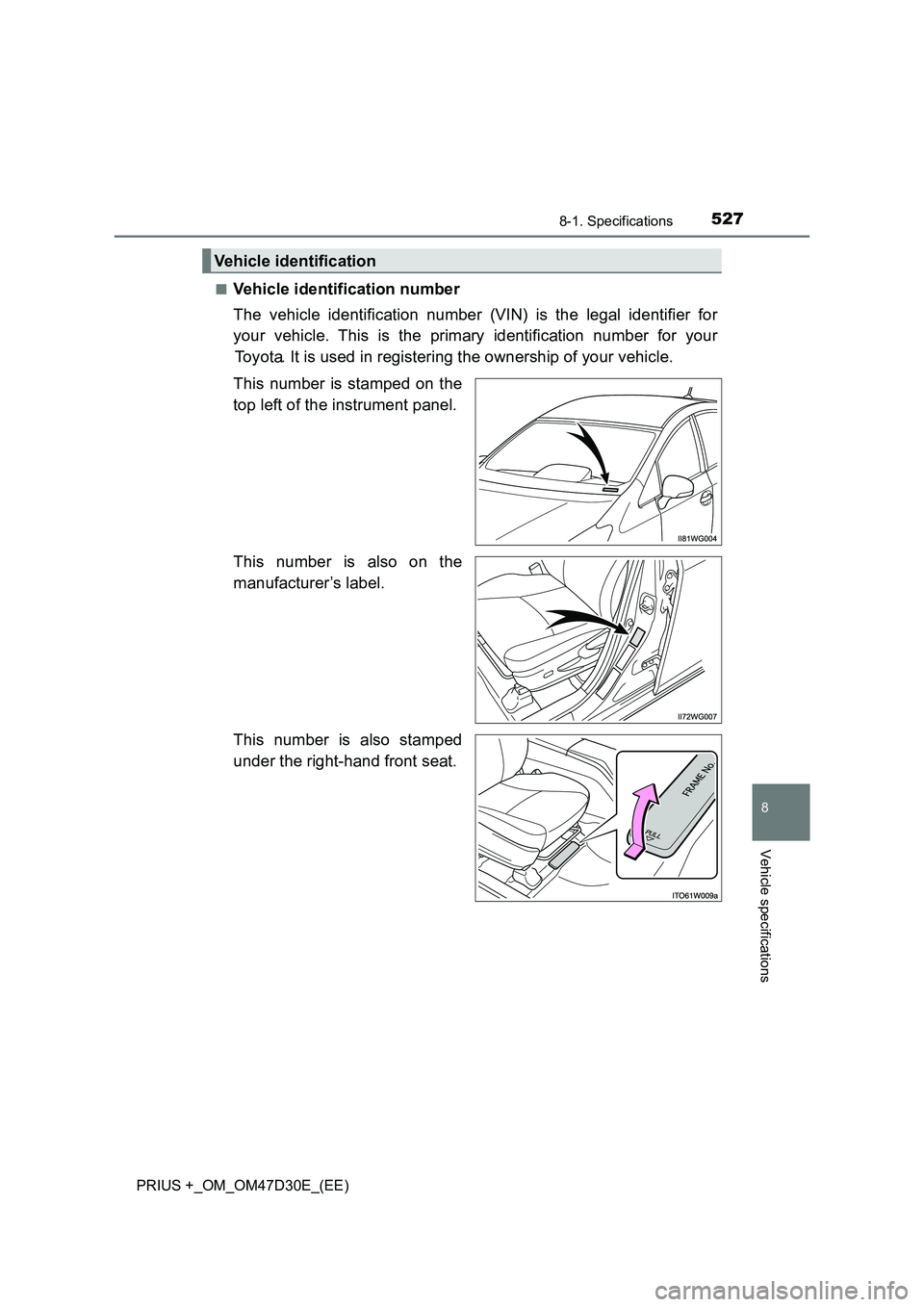

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the
manufacturer’s label.
This number is also stamped
under the right-hand front seat.
Vehicle identification

5288-1. Specifications
PRIUS +_OM_OM47D30E_(EE)■

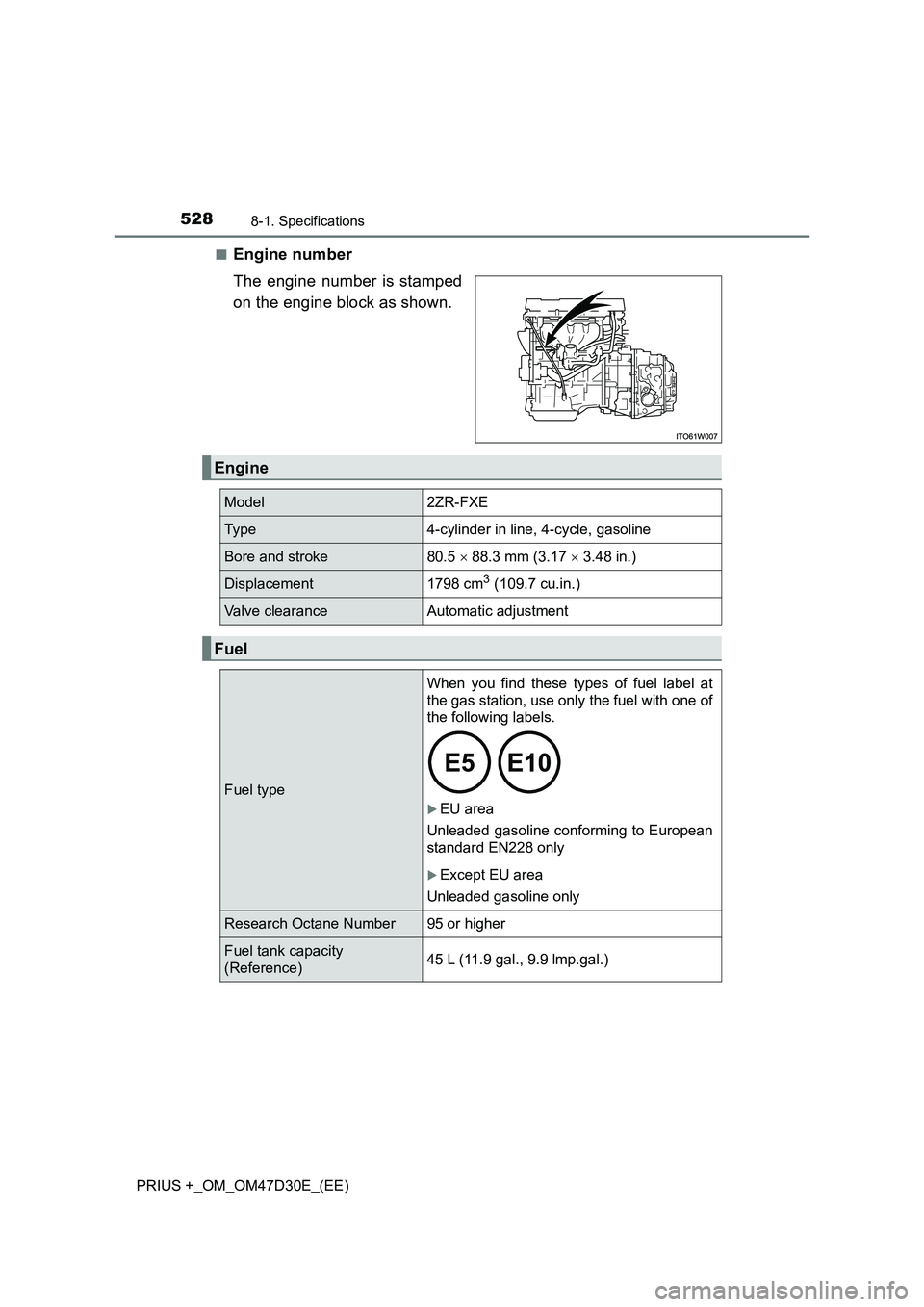

Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model2ZR-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke80.5  88.3 mm (3.17  3.48 in.)
Displacement1798 cm3 (109.7 cu.in.)
Valve clearanceAutomatic adjustment
Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one of
the following labels.

EU area
Unleaded gasoline conforming to European
standard EN228 only
Except EU area
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)45 L (11.9 gal., 9.9 lmp.gal.)

5298-1. Specifications
PRIUS +_OM_OM47D30E_(EE)
8
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.

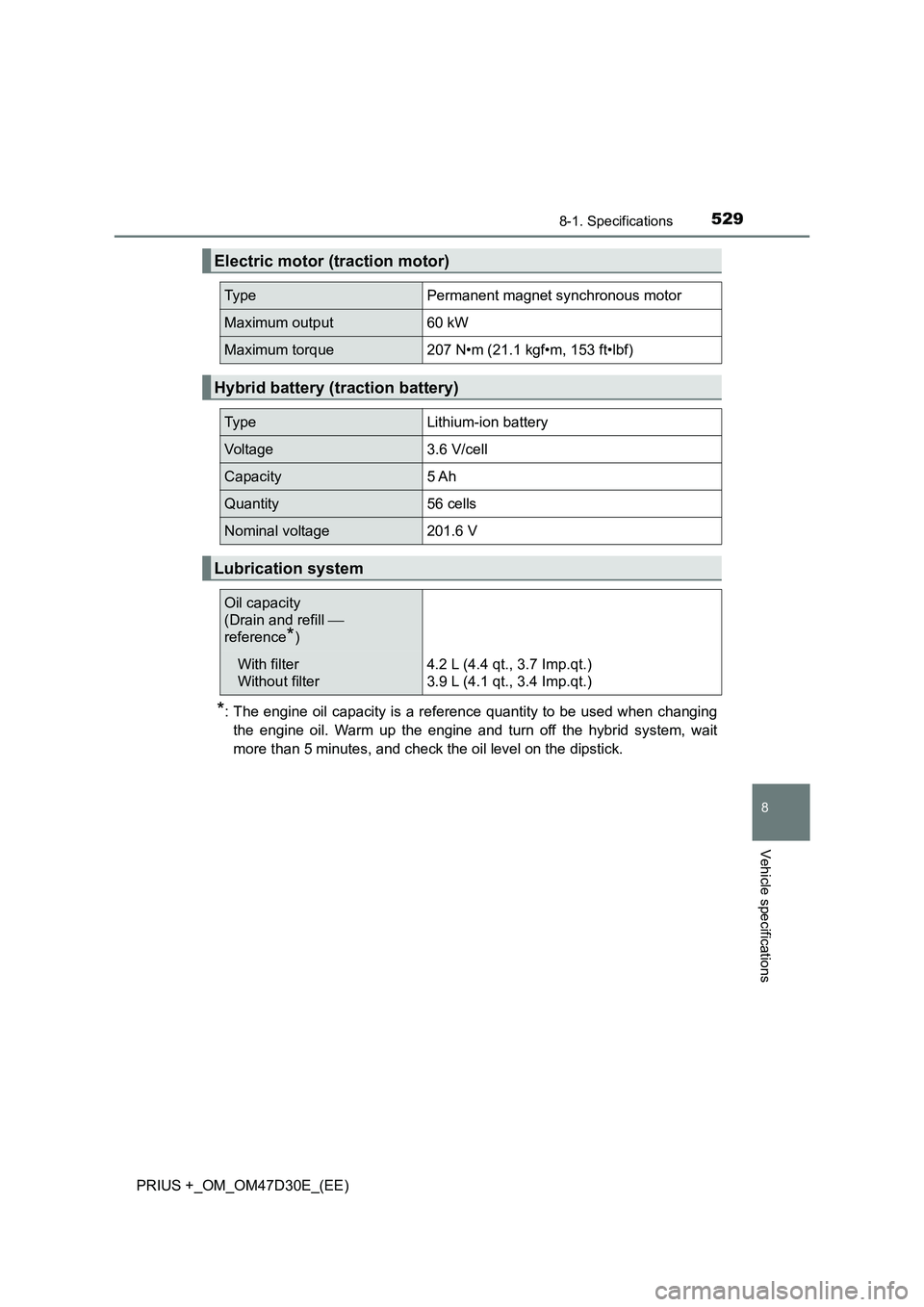

Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output60 kW
Maximum torque207 N•m (21.1 kgf•m, 153 ft•lbf)
Hybrid battery (traction battery)
Ty p eLithium-ion battery
Voltage3.6 V/cell
Capacity5 Ah
Quantity56 cells
Nominal voltage201.6 V
Lubrication system
Oil capacity
(Drain and refill 
reference
*)
With filter
Without filter4.2 L (4.4 qt., 3.7 Imp.qt.)
3.9 L (4.1 qt., 3.4 Imp.qt.)

5308-1. Specifications
PRIUS +_OM_OM47D30E_(EE)■

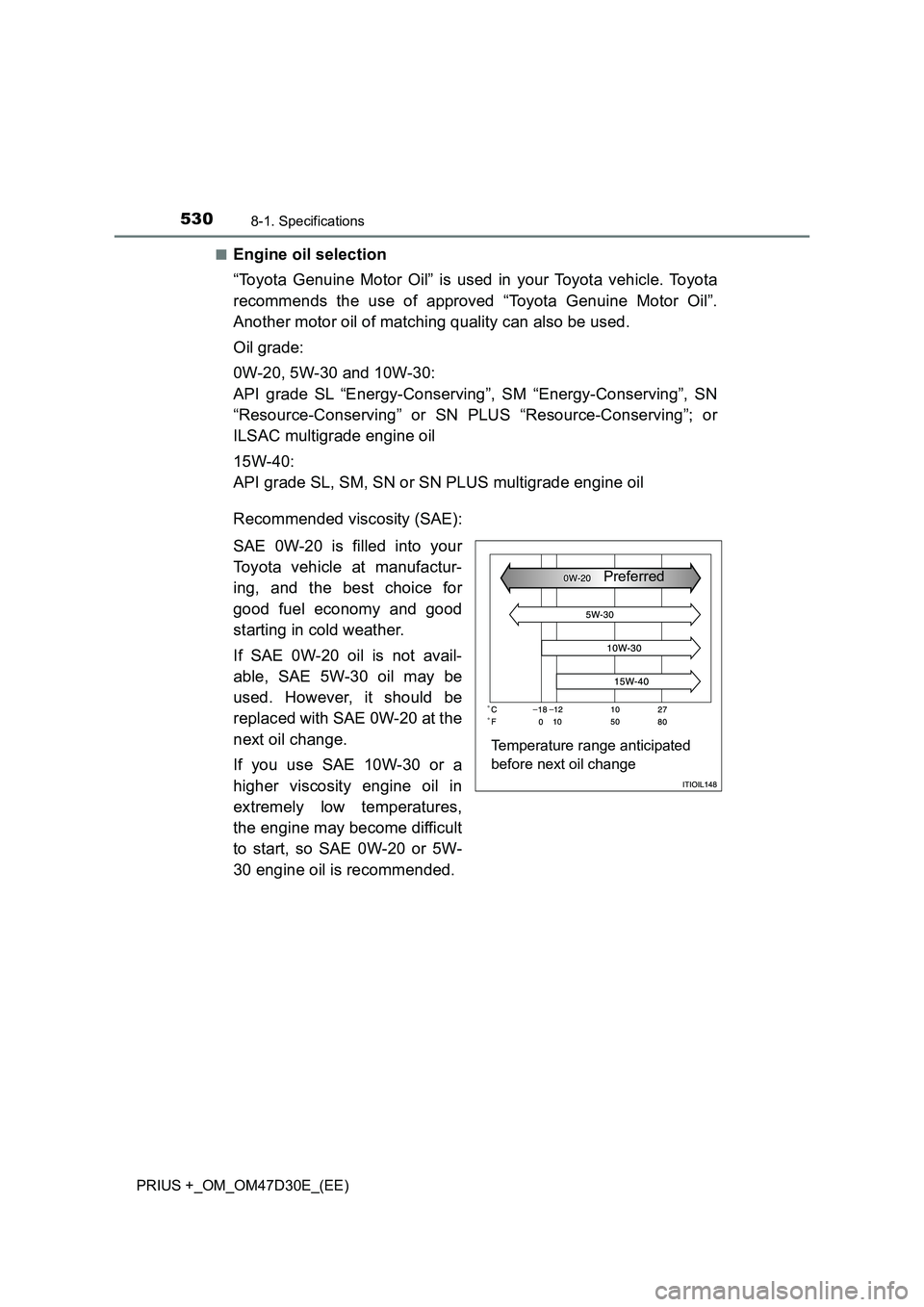

Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or SN PLUS “Resource-Conserving”; or
ILSAC multigrade engine oil
15W-40:
API grade SL, SM, SN or SN PLUS multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Temperature range anticipated
before next oil changePreferred
