TOYOTA PRIUS PLUS 2019 Owners Manual

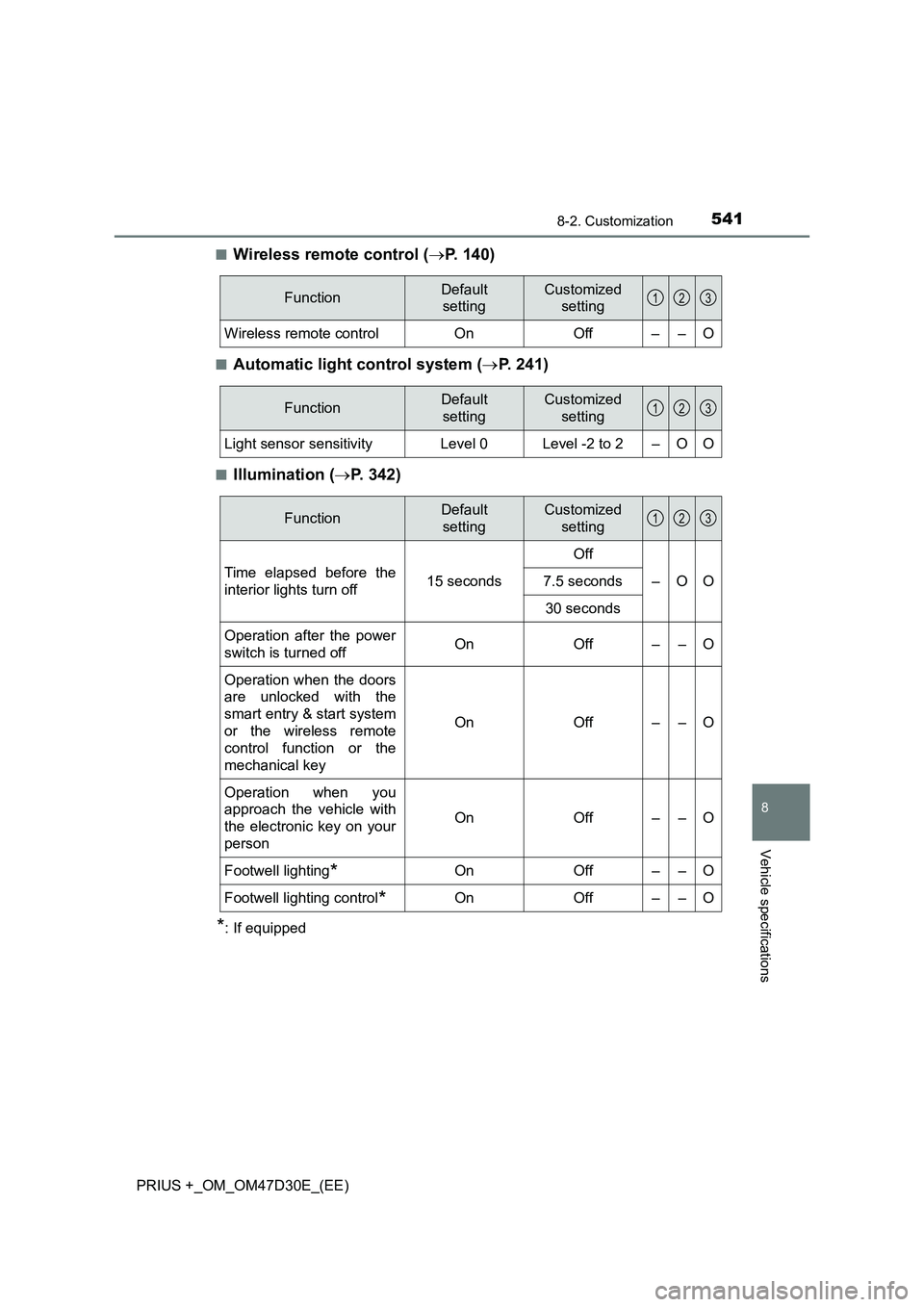

5418-2. Customization
PRIUS +_OM_OM47D30E_(EE)
8
Vehicle specifications
■Wireless remote control (P. 140)
■Automatic light control system (P. 241)
■Illumination (P. 342)
*: If equipped
FunctionDefault
settingCustomized
setting
Wireless remote control On Off – – O
123
FunctionDefault
settingCustomized
setting
Light sensor sensitivityLevel 0Level -2 to 2–OO
123
FunctionDefault
settingCustomized
setting
Time elapsed before the
interior lights turn off15 secondsOff
–OO 7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff––O
Operation when the doors
are unlocked with the
smart entry & start system
or the wireless remote
control function or the
mechanical key
OnOff––O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff––O
Footwell lighting
*On Off – – O
Footwell lighting control
*On Off – – O
123

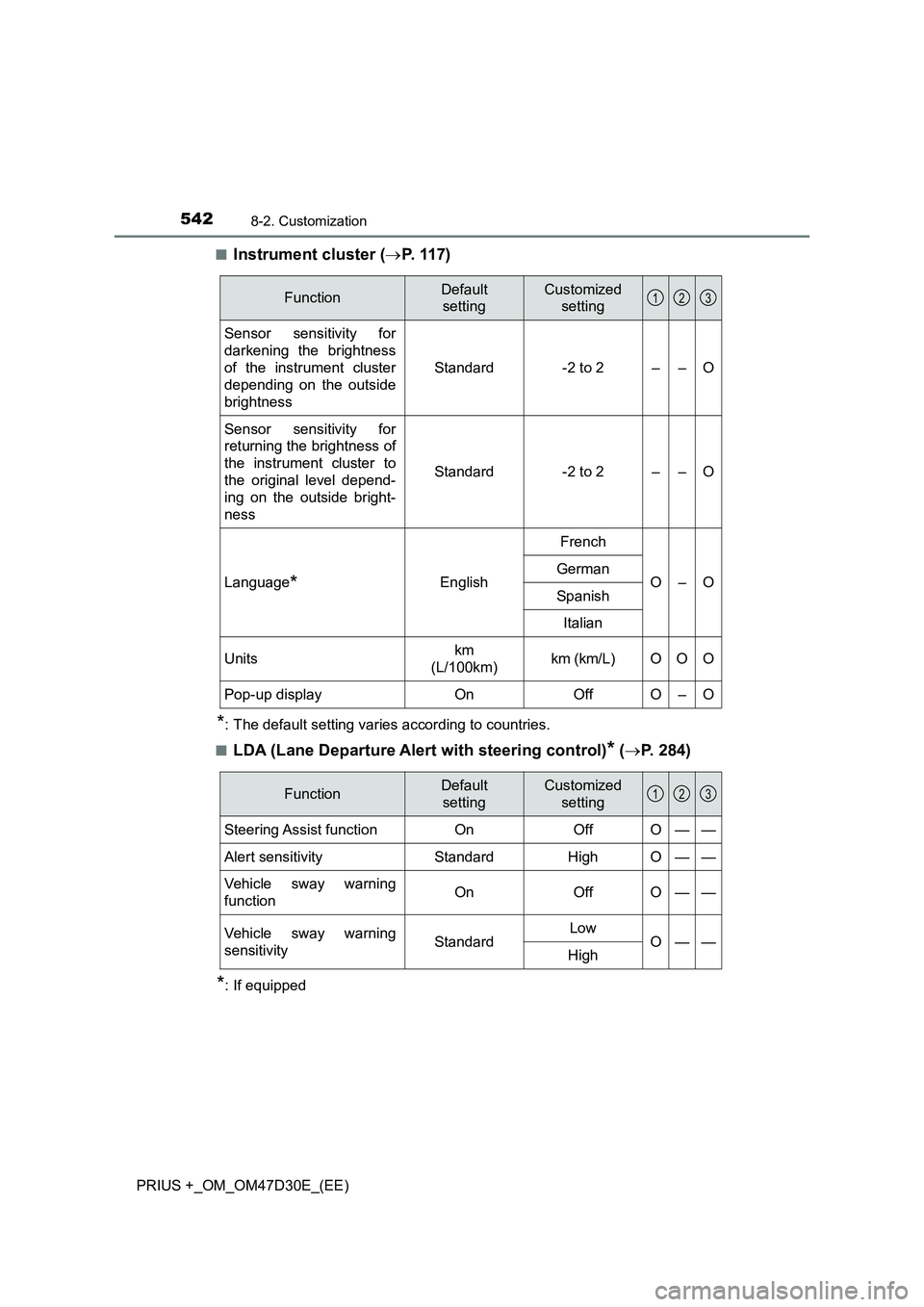

5428-2. Customization
PRIUS +_OM_OM47D30E_(EE)■
Instrument cluster (P. 1 1 7 )
*: The default setting varies according to countries.
■
LDA (Lane Departure Alert with steering control)* (P. 284)
*: If equipped
FunctionDefault
settingCustomized
setting
Sensor sensitivity for
darkening the brightness
of the instrument cluster
depending on the outside
brightness
Standard-2 to 2––O
Sensor sensitivity for
returning the brightness of
the instrument cluster to
the original level depend-
ing on the outside bright-
ness
Standard-2 to 2––O
Language*English
French
O–OGerman
Spanish
Italian
Unitskm
(L/100km)km (km/L)OOO
Pop-up displayOnOffO–O
123
FunctionDefault
settingCustomized
setting
Steering Assist functionOnOffO——
Alert sensitivityStandardHighO——
Vehicle sway warning
functionOnOffO——
Vehicle sway warning
sensitivityStandardLowO——High
123

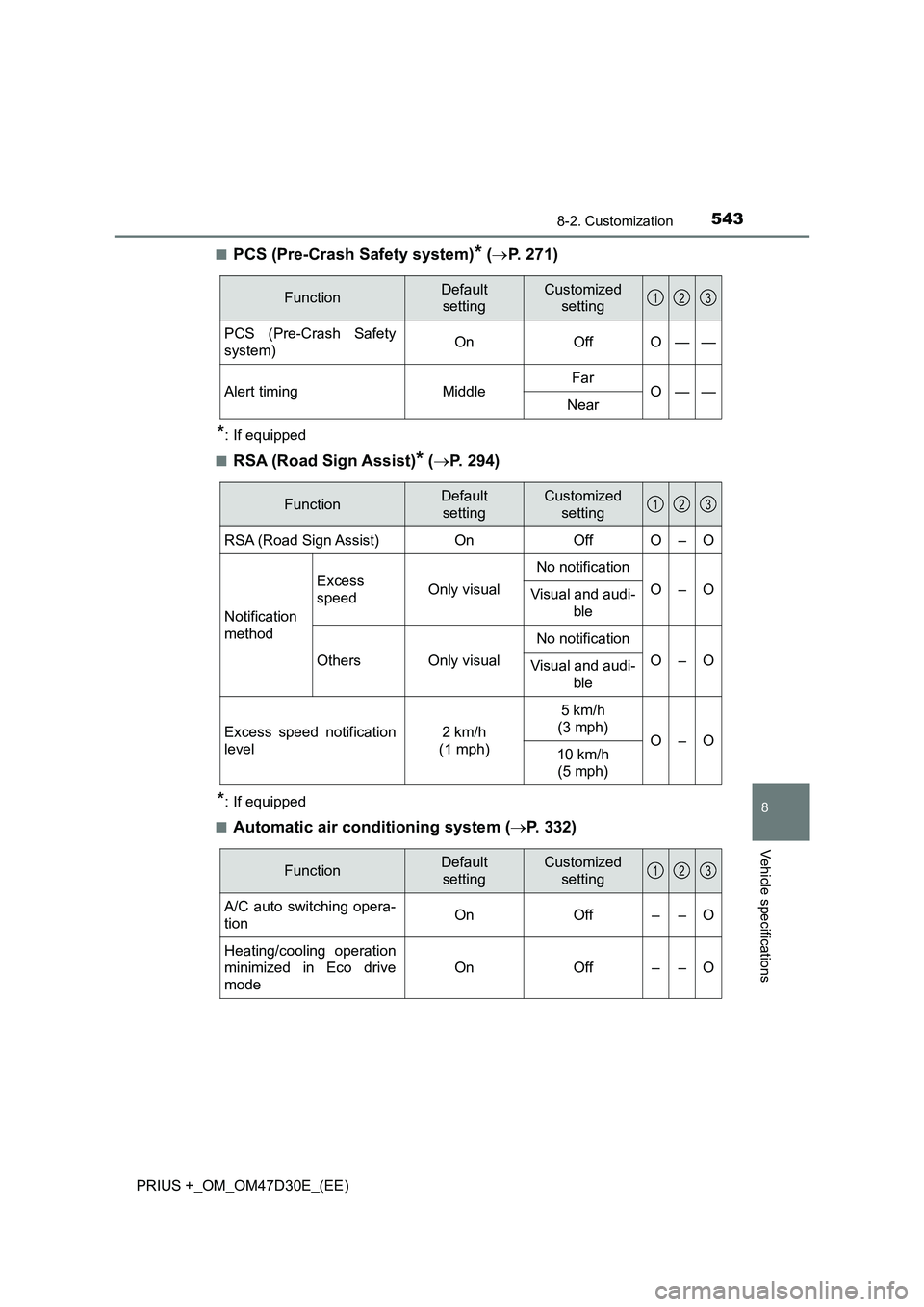

5438-2. Customization
PRIUS +_OM_OM47D30E_(EE)
8
Vehicle specifications
■PCS (Pre-Crash Safety system)* (P. 271)
*: If equipped
■
RSA (Road Sign Assist)* (P. 294)
*: If equipped
■
Automatic air conditioning system (P. 332)
FunctionDefault
settingCustomized
setting
PCS (Pre-Crash Safety
system)OnOffO——
Alert timingMiddleFarO——Near
123
FunctionDefault
settingCustomized
setting
RSA (Road Sign Assist)OnOffO–O
Notification
method
Excess
speedOnly visual
No notification
O–OVisual and audi-
ble
OthersOnly visual
No notification
O–OVisual and audi-
ble
Excess speed notification
level2 km/h
(1 mph)
5 km/h
(3 mph)
O–O10 km/h
(5 mph)
123
FunctionDefault
settingCustomized
setting
A/C auto switching opera-
tionOnOff––O
Heating/cooling operation
minimized in Eco drive
mode
OnOff––O
123

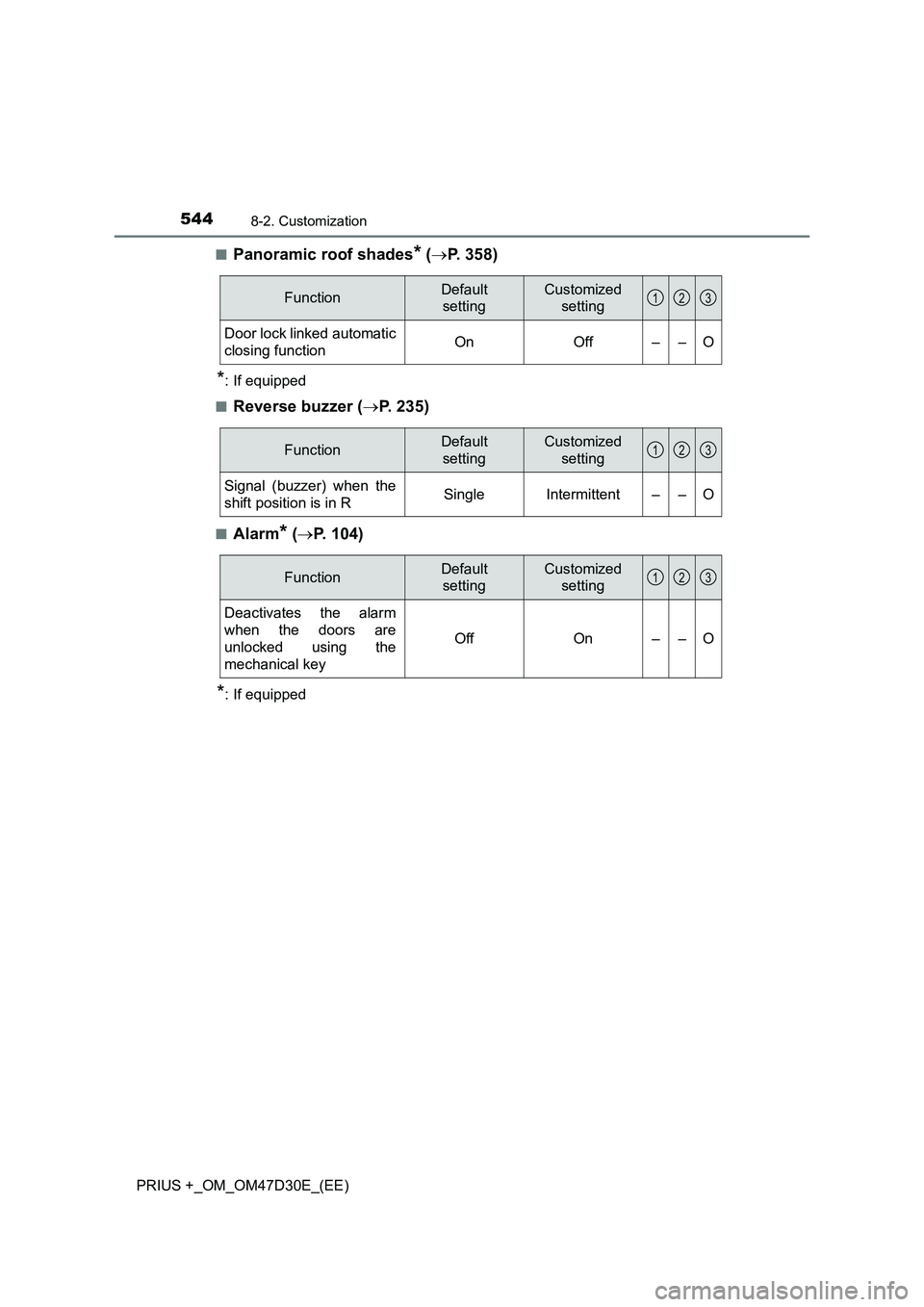

5448-2. Customization
PRIUS +_OM_OM47D30E_(EE)■
Panoramic roof shades* (P. 358)
*: If equipped
■
Reverse buzzer (P. 235)
■Alarm* (P. 104)
*: If equipped
FunctionDefault
settingCustomized
setting
Door lock linked automatic
closing functionOnOff––O
123
FunctionDefault
settingCustomized
setting
Signal (buzzer) when the
shift position is in RSingleIntermittent––O
123
FunctionDefault
settingCustomized
setting
Deactivates the alarm
when the doors are
unlocked using the
mechanical key
OffOn––O
123

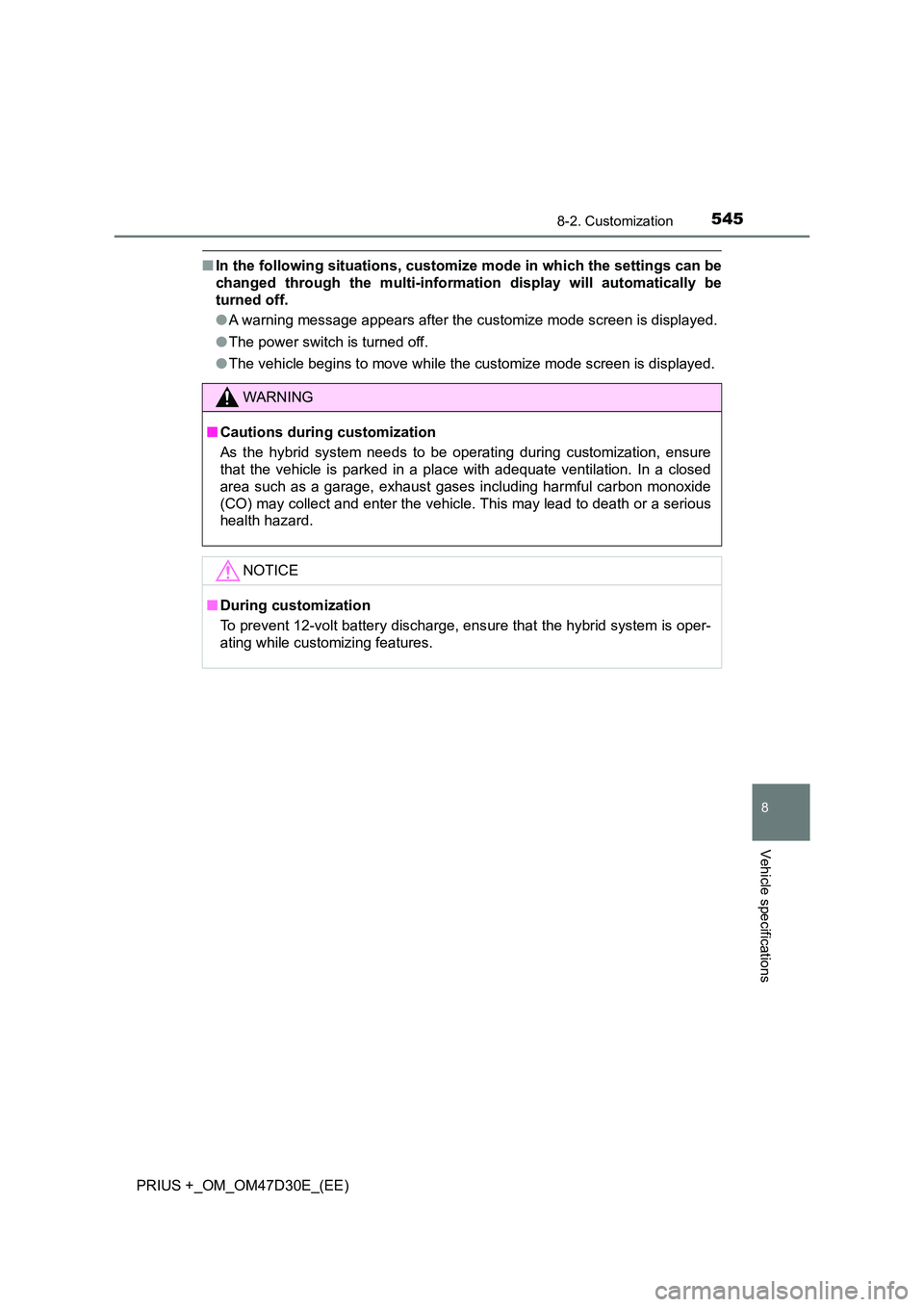

5458-2. Customization
PRIUS +_OM_OM47D30E_(EE)
8
Vehicle specifications
■In the following situations, customize mode in which the settings can be
changed through the multi-information display will automatically be
turned off.
● A warning message appears after the customize mode screen is displayed.
● The power switch is turned off.
● The vehicle begins to move while the customize mode screen is displayed.
WARNING
■Cautions during customization
As the hybrid system needs to be operating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ens ure that the hybrid system is oper-
ating while customizing features.

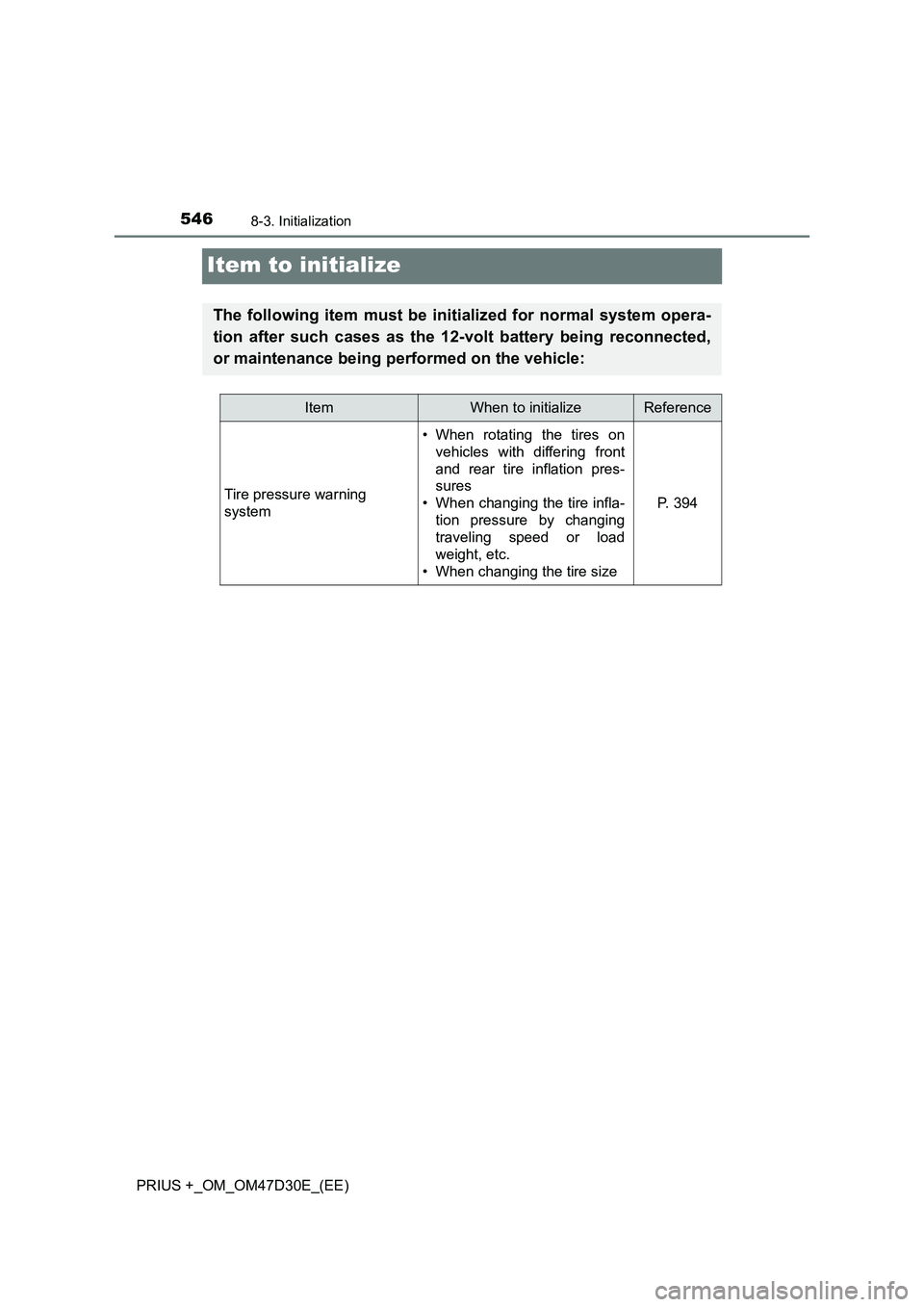

5468-3. Initialization
PRIUS +_OM_OM47D30E_(EE)
Item to initialize
The following item must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:
ItemWhen to initializeReference
Tire pressure warning
system
• When rotating the tires on
vehicles with differing front
and rear tire inflation pres-
sures
• When changing the tire infla-
tion pressure by changing
traveling speed or load
weight, etc.
• When changing the tire size
P. 394

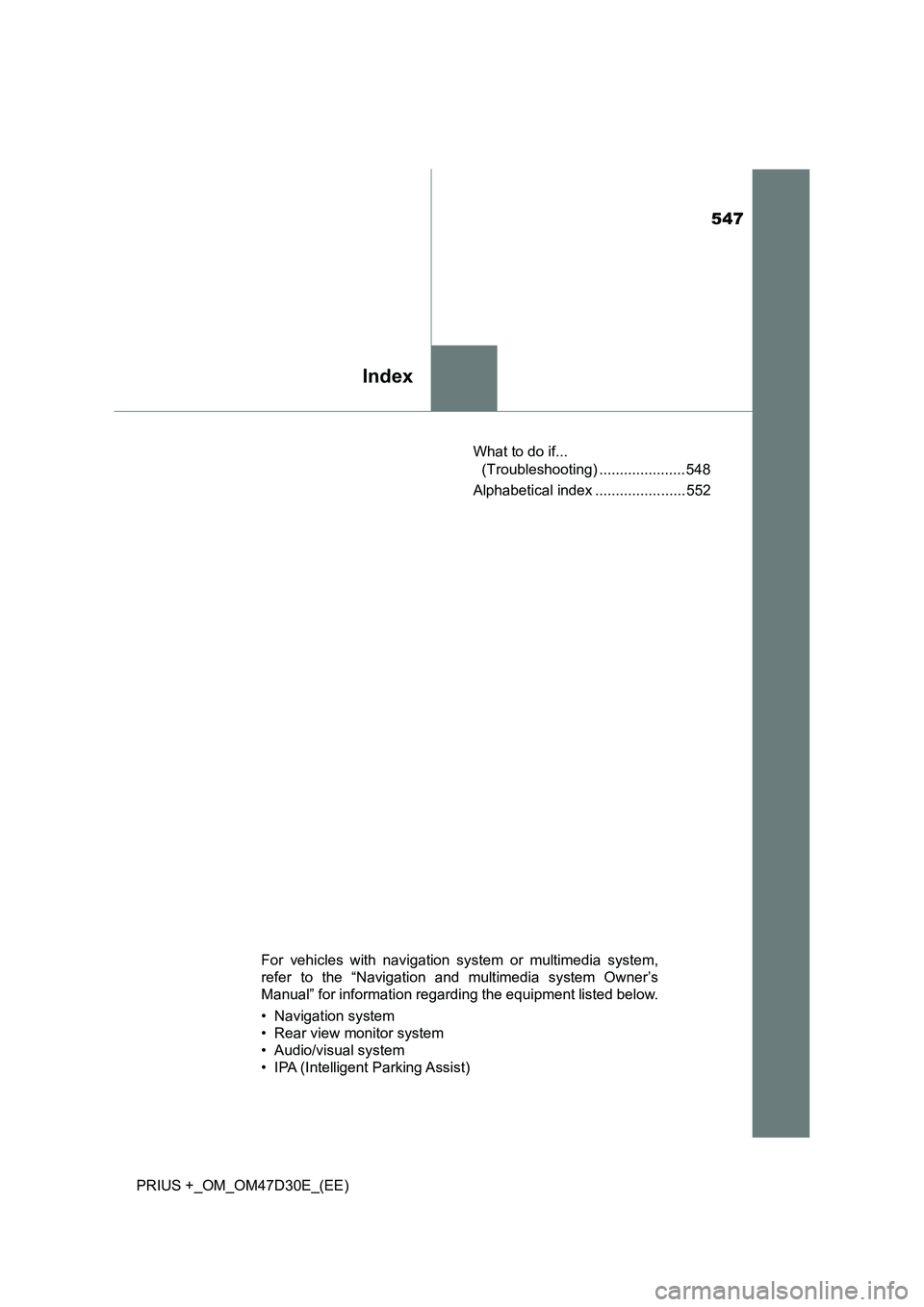

547
Index
PRIUS +_OM_OM47D30E_(EE)What to do if...
(Troubleshooting) ..................... 548
Alphabetical index ...................... 552
For vehicles with navigation system or multimedia system,
refer to the “Navigation and multimedia system Owner’s
Manual” for information regarding the equipment listed below.
• Navigation system
• Rear view monitor system
• Audio/visual system
• IPA (Intelligent Parking Assist)

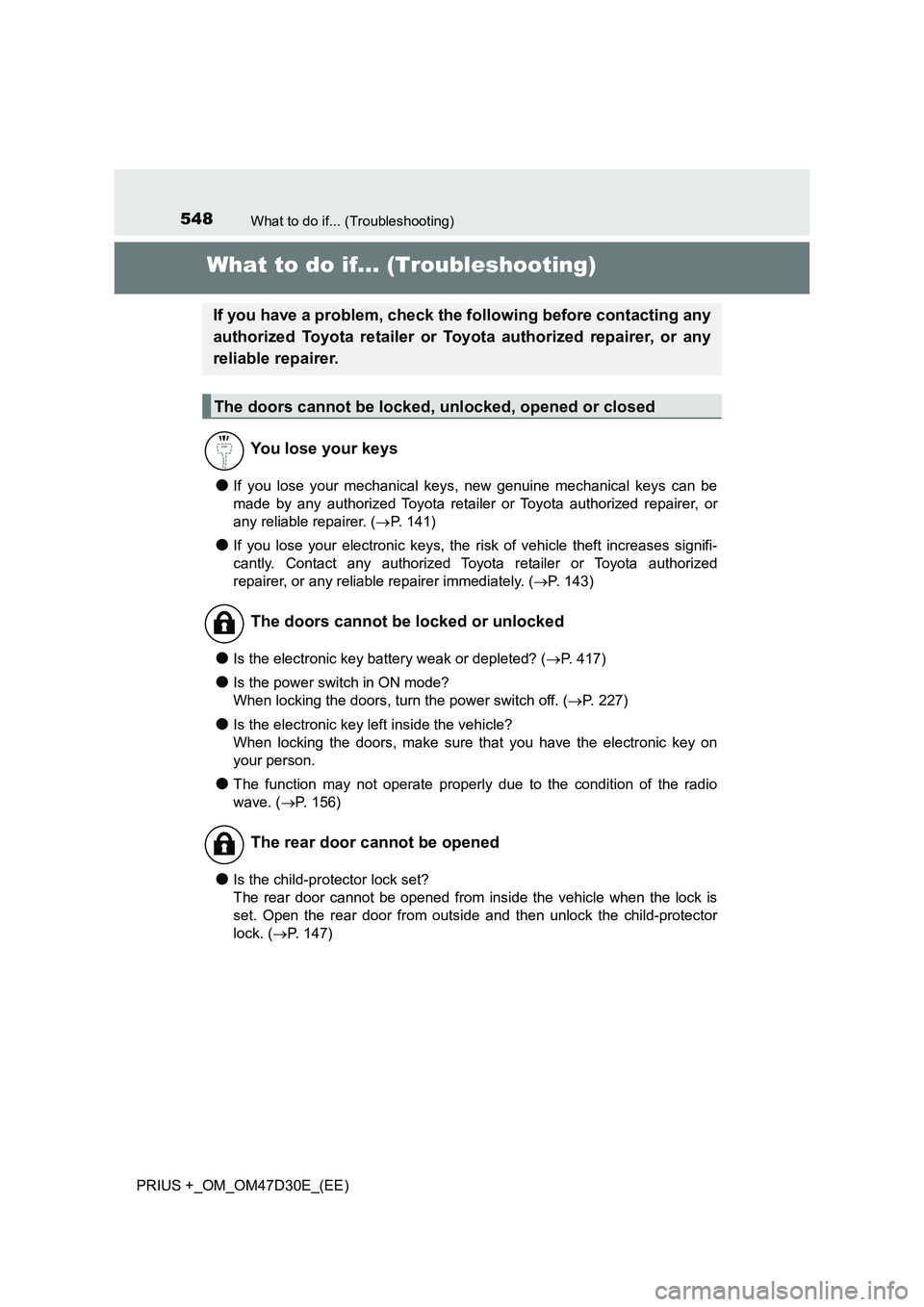

548What to do if... (Troubleshooting)
PRIUS +_OM_OM47D30E_(EE)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be
made by any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer. (P. 141)
●If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately. (P. 143)
●Is the electronic key battery weak or depleted? (P. 417)
●Is the power switch in ON mode?
When locking the doors, turn the power switch off. (P. 227)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. (P. 156)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. (P. 147)
If you have a problem, check the following before contacting any
authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

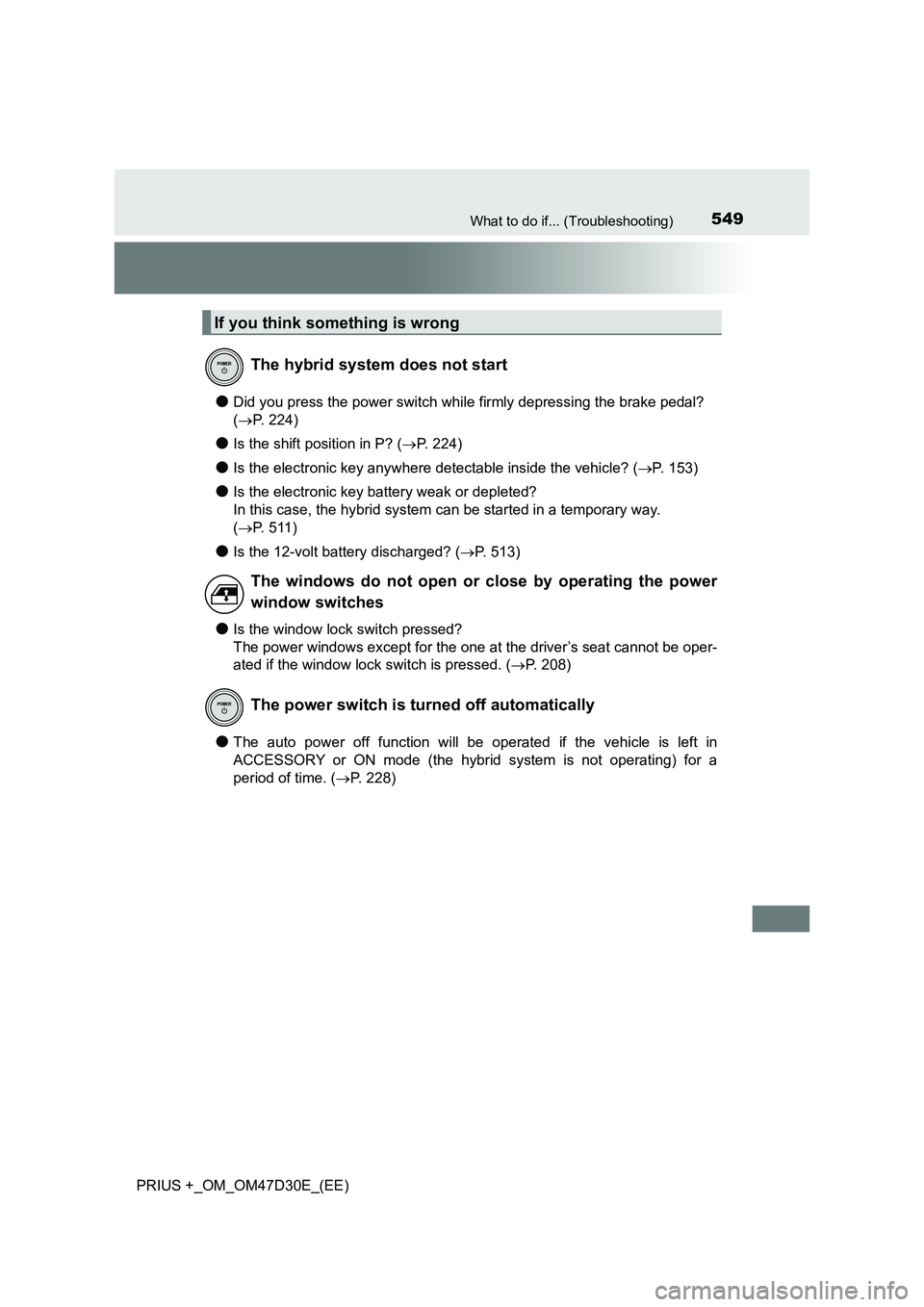

549What to do if... (Troubleshooting)
PRIUS +_OM_OM47D30E_(EE)
●Did you press the power switch while firmly depressing the brake pedal?
( P. 224)
●Is the shift position in P? (P. 224)
●Is the electronic key anywhere detectable inside the vehicle? (P. 153)
●Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way.
( P. 5 1 1 )
●Is the 12-volt battery discharged? (P. 513)
●Is the window lock switch pressed?
The power windows except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( P. 208)
●The auto power off function will be operated if the vehicle is left in
ACCESSORY or ON mode (the hybrid system is not operating) for a
period of time. ( P. 2 2 8 )
If you think something is wrong
The hybrid system does not start
The windows do not open or close by operating the power
window switches
The power switch is turned off automatically

550What to do if... (Troubleshooting)
PRIUS +_OM_OM47D30E_(EE)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (P. 450)
●The parking brake indicator is on
Is the parking brake released? (P. 240)
Depending on the situation, other types of warning buzzer may also sound.
(P. 444, 458)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (P. 104)
To stop the alarm, turn the power switch to ON mode or start the hybrid sys-
tem.
●Is the electronic key left inside the vehicle?
Vehicles without multi-information display: P. 154
Vehicles with multi-information display: P. 475
●When a warning light turns on or a warning message is displayed, refer to
P. 444, 458.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds (vehicles with
alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed
