711-1. For safe use
1
PRIUS +_OM_OM47D30E_(EE)
For safety and security

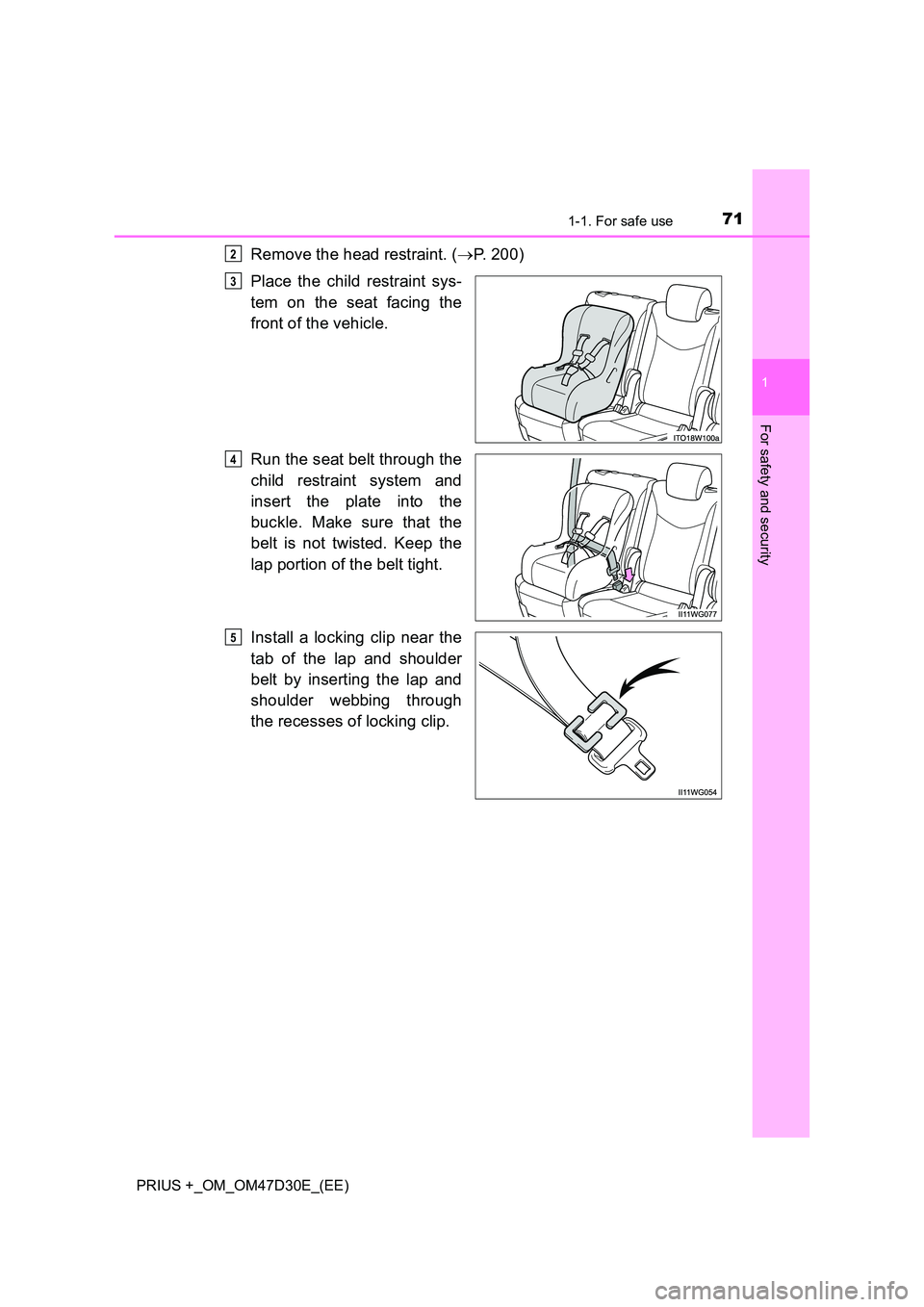

Remove the head restraint. (P. 200)
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted. Keep the
lap portion of the belt tight.
Install a locking clip near the
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of locking clip.
2
3
4
5

721-1. For safe use
PRIUS +_OM_OM47D30E_(EE)

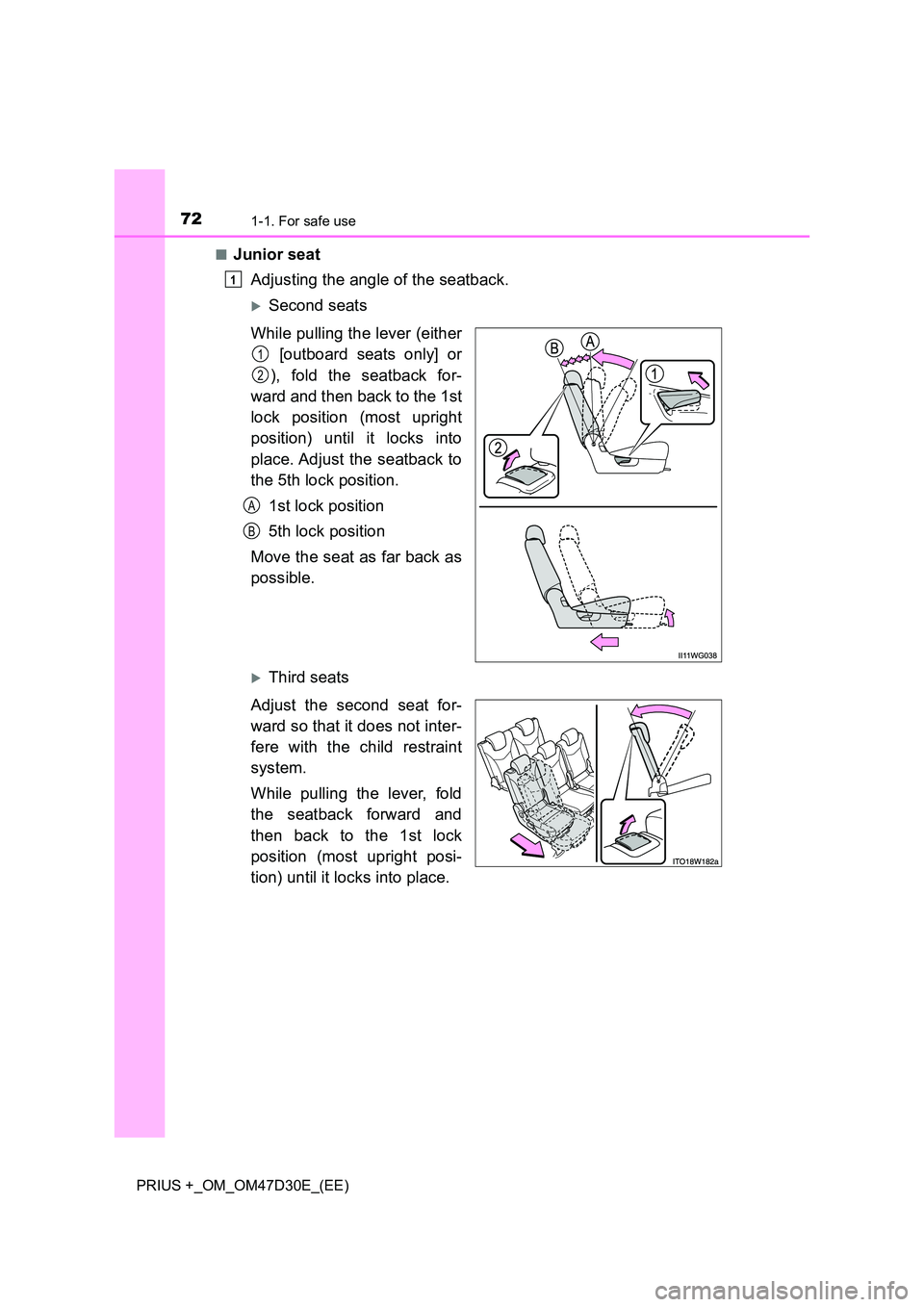

■Junior seat
Adjusting the angle of the seatback.
Second seats
While pulling the lever (either
[outboard seats only] or
), fold the seatback for-
ward and then back to the 1st
lock position (most upright
position) until it locks into
place. Adjust the seatback to
the 5th lock position.
1st lock position
5th lock position
Move the seat as far back as
possible.
Third seats
Adjust the second seat for-
ward so that it does not inter-
fere with the child restraint
system.
While pulling the lever, fold
the seatback forward and
then back to the 1st lock
position (most upright posi-
tion) until it locks into place.
1
1
2
A
B

731-1. For safe use
1
PRIUS +_OM_OM47D30E_(EE)
For safety and security

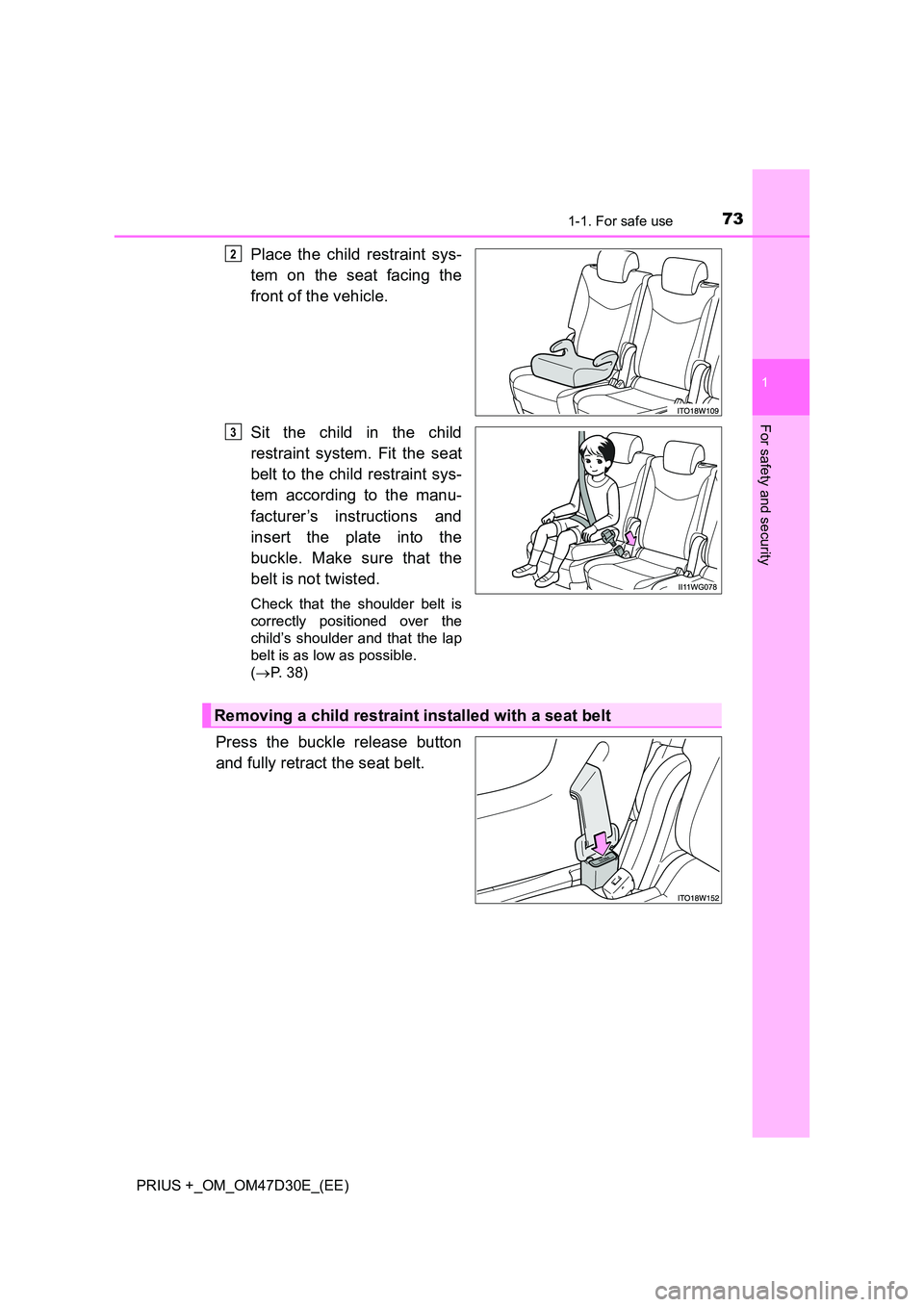

Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder and that the lap
belt is as low as possible.
( P. 3 8 )
Press the buckle release button
and fully retract the seat belt.
2
3
Removing a child restraint installed with a seat belt

741-1. For safe use
PRIUS +_OM_OM47D30E_(EE)

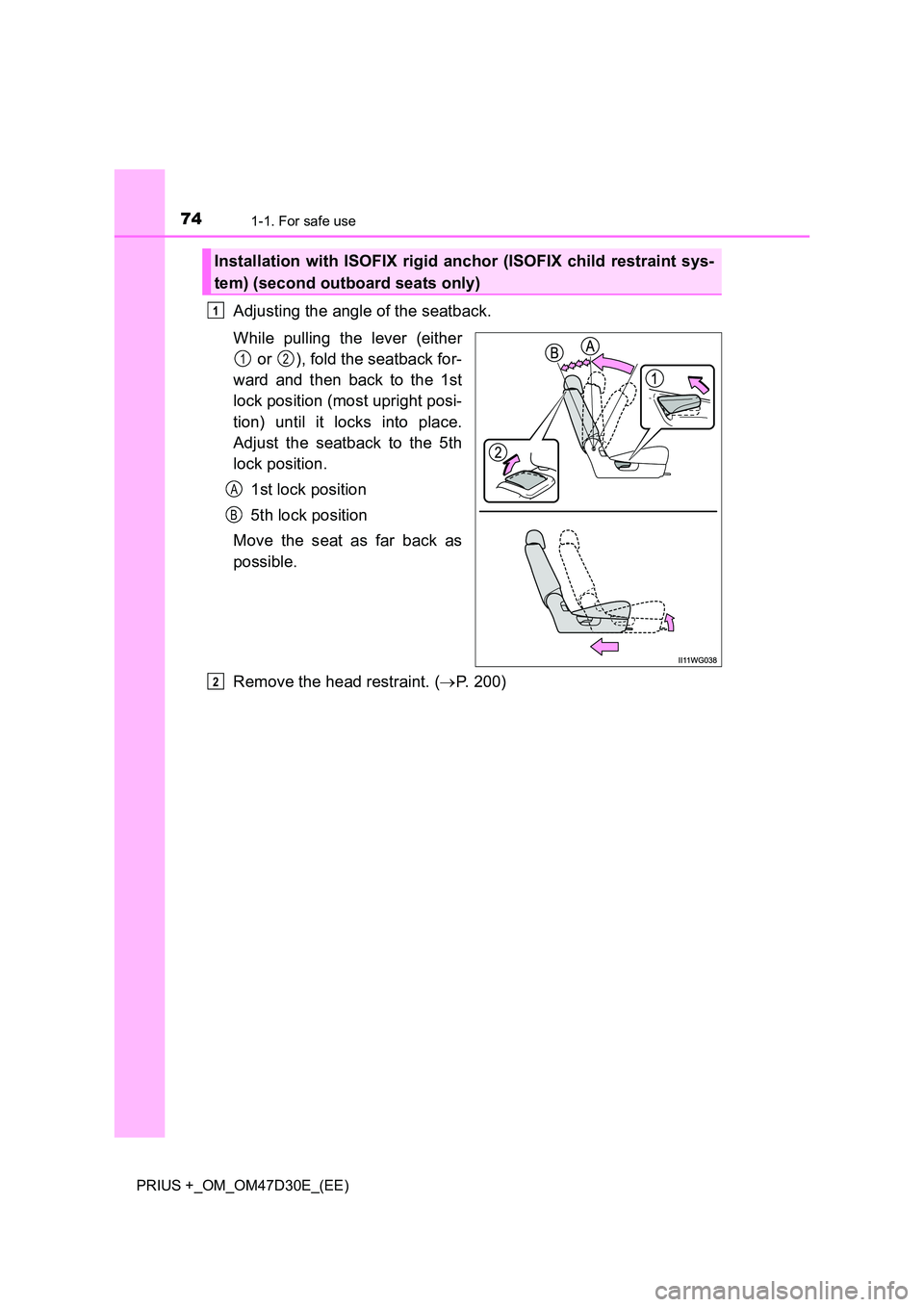

Adjusting the angle of the seatback.
While pulling the lever (either
or ), fold the seatback for-
ward and then back to the 1st
lock position (most upright posi-
tion) until it locks into place.
Adjust the seatback to the 5th
lock position.
1st lock position
5th lock position
Move the seat as far back as
possible.
Remove the head restraint. ( P. 200)
Installation with ISOFIX rigid anchor (ISOFIX child restraint sys-
tem) (second outboard seats only)
1
12
A
B
2

751-1. For safe use
1
PRIUS +_OM_OM47D30E_(EE)
For safety and security
Open the covers.
Install the child restraint system
to the seat.
If the child restraint has a top strap,
the top strap should be latched
onto the anchors.
3
4

761-1. For safe use
PRIUS +_OM_OM47D30E_(EE)

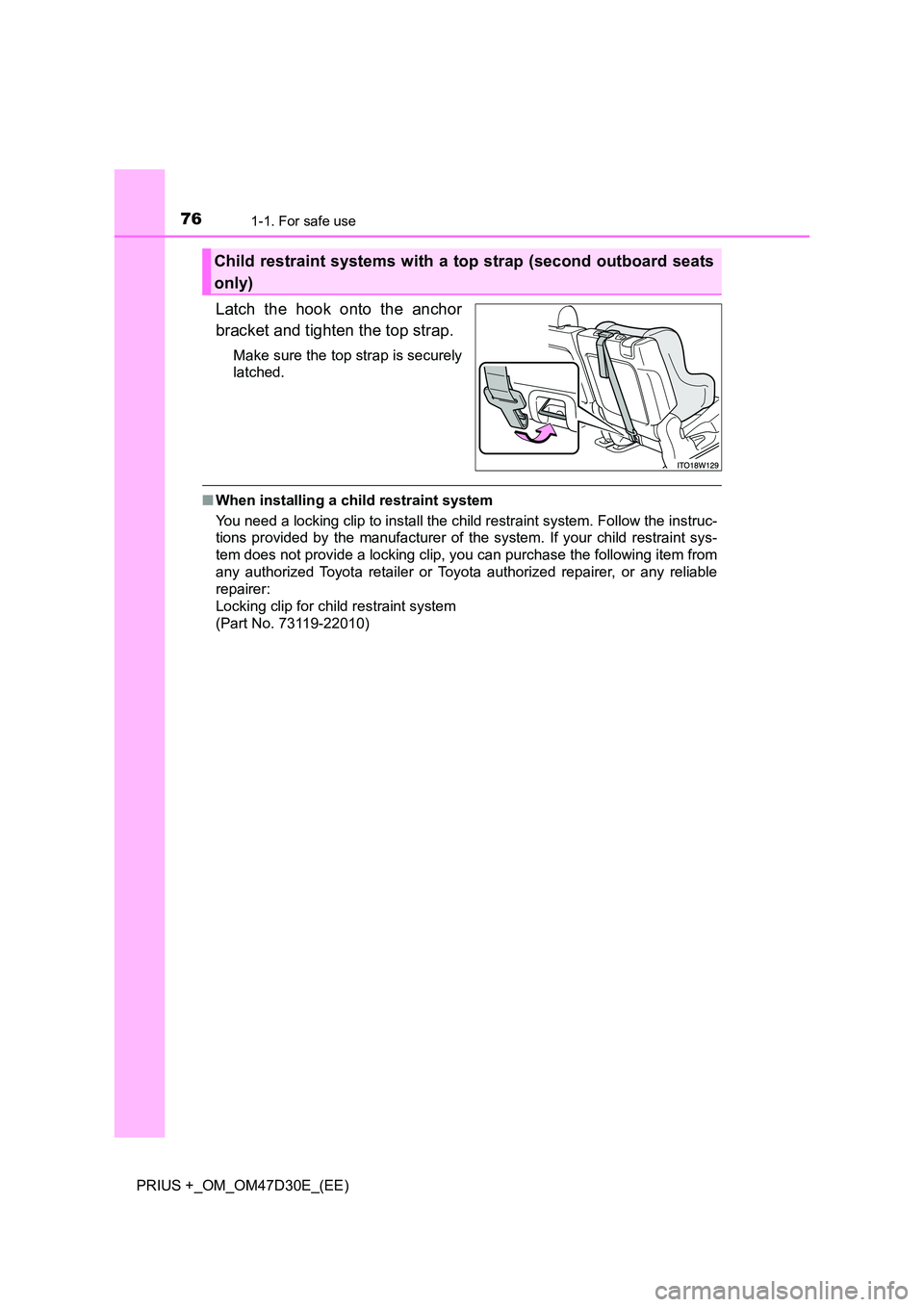

Latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is securely
latched.
■ When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the instruc-
tions provided by the manufacturer of the system. If your child restraint sys-
tem does not provide a locking clip, you can purchase the following item from
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer:
Locking clip for child restraint system
(Part No. 73119-22010)
Child restraint systems with a top strap (second outboard seats
only)

771-1. For safe use
1
PRIUS +_OM_OM47D30E_(EE)
For safety and security

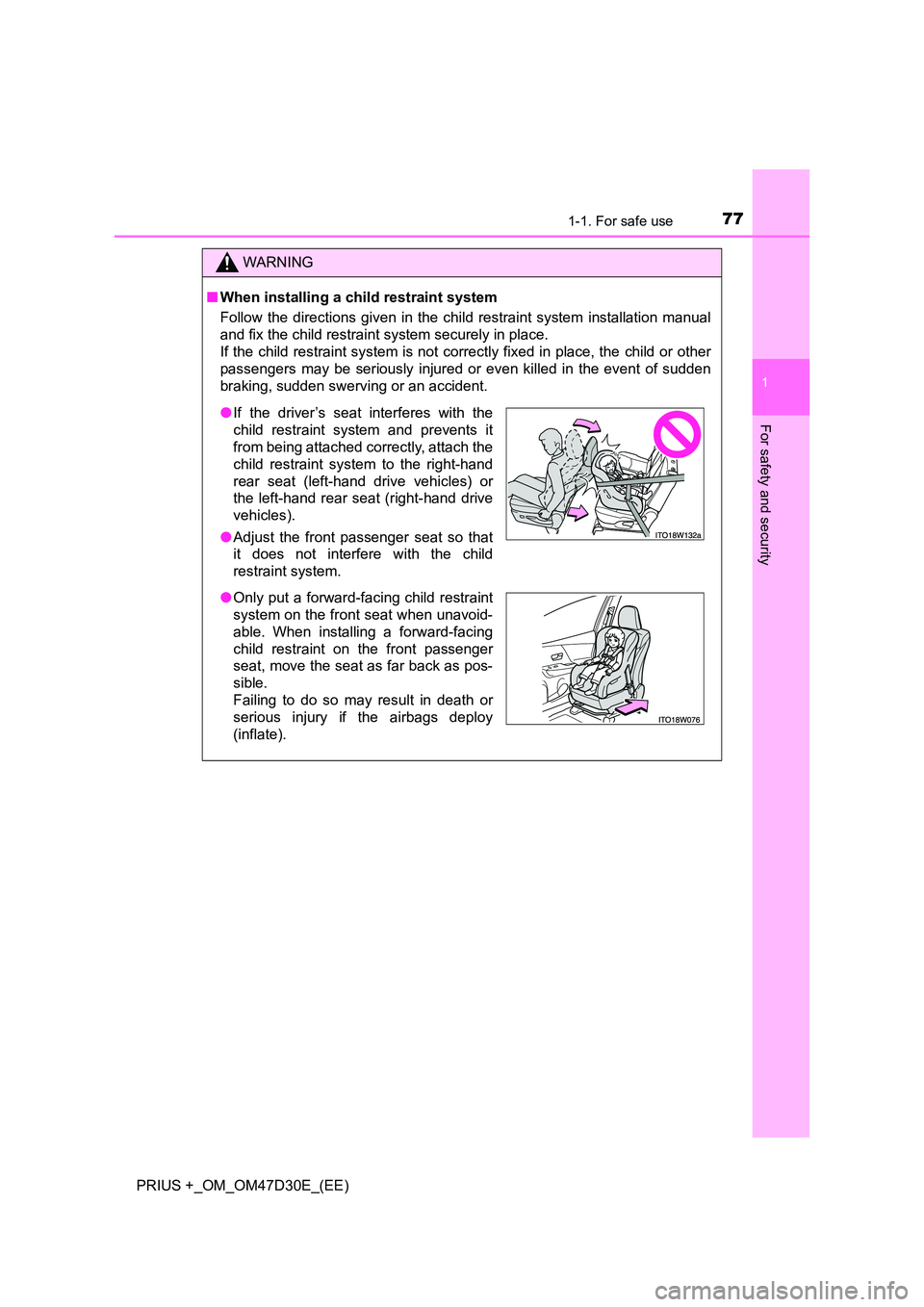

WARNING
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat (left-hand drive vehicles) or
the left-hand rear seat (right-hand drive
vehicles).
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible.
Failing to do so may result in death or
serious injury if the airbags deploy
(inflate).

781-1. For safe use
PRIUS +_OM_OM47D30E_(EE)

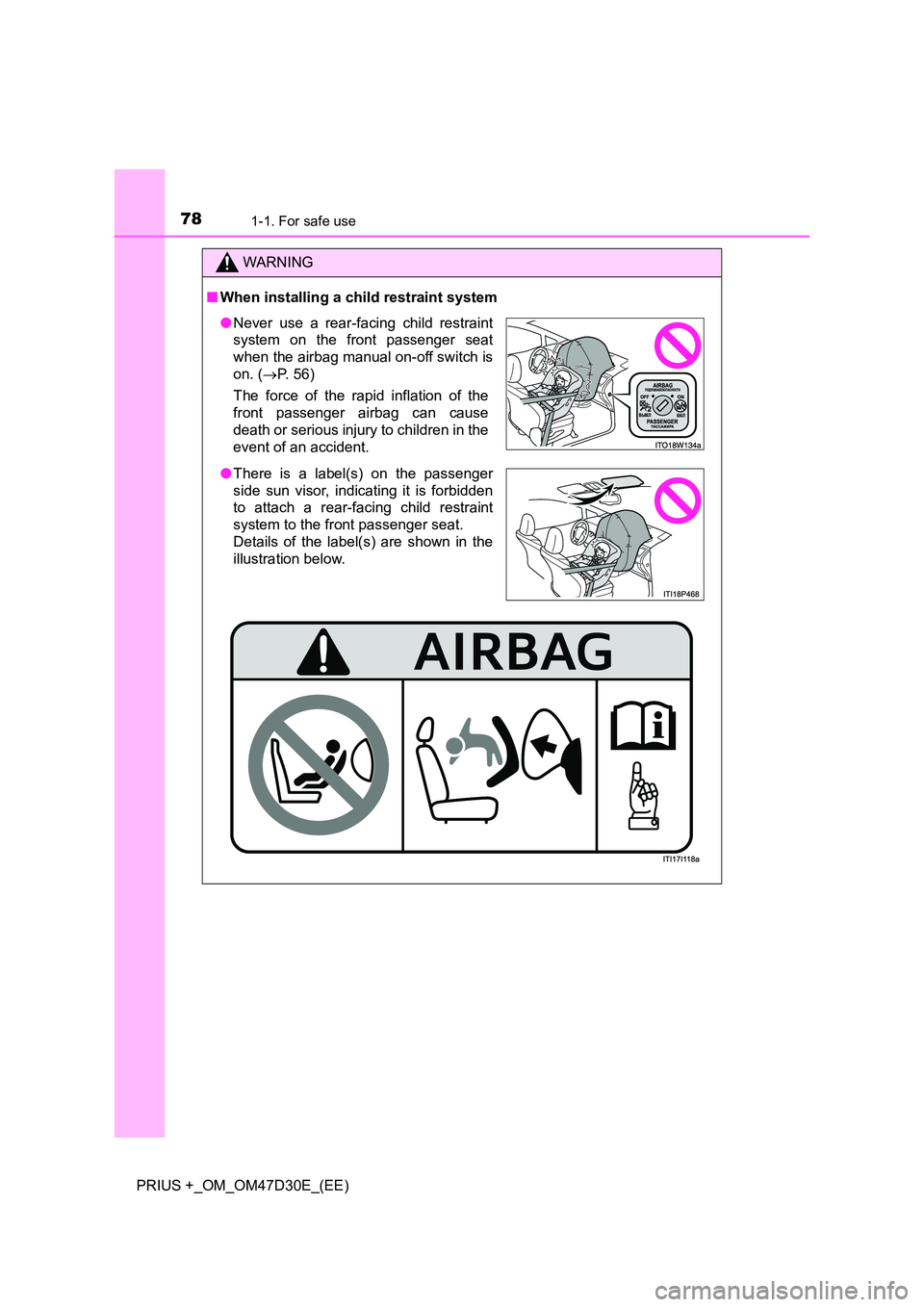

WARNING
■When installing a child restraint system
●Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. ( P. 56)
The force of the rapid inflation of the
front passenger airbag can cause
death or serious injury to children in the
event of an accident.
● There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.

791-1. For safe use
1
PRIUS +_OM_OM47D30E_(EE)
For safety and security

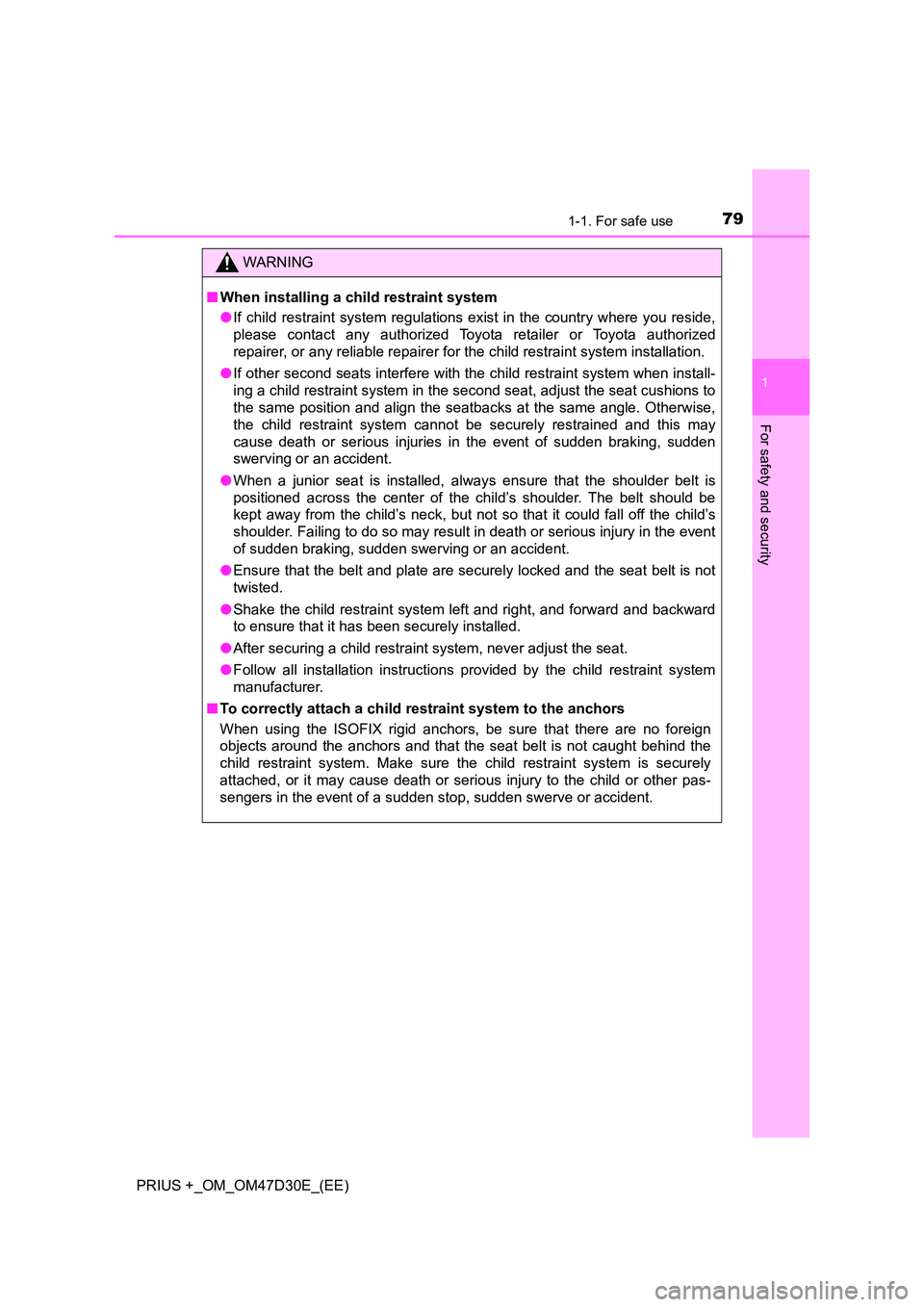

WARNING
■When installing a child restraint system
● If child restraint system regulations exist in the country where you reside,
please contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for the child restraint system installation.
● If other second seats interfere with the child restraint system when install-
ing a child restraint system in the second seat, adjust the seat cushions to
the same position and align the seatbacks at the same angle. Otherwise,
the child restraint system cannot be securely restrained and this may
cause death or serious injuries in the event of sudden braking, sudden
swerving or an accident.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
■ To correctly attach a child restraint system to the anchors
When using the ISOFIX rigid anchors, be sure that there are no foreign
objects around the anchors and that the seat belt is not caught behind the
child restraint system. Make sure the child restraint system is securely
attached, or it may cause death or serious injury to the child or other pas-
sengers in the event of a sudden stop, sudden swerve or accident.

801-1. For safe use
PRIUS +_OM_OM47D30E_(EE)
Exhaust gas precautions
Harmful substance to the human body is included in exhaust
gases if inhaled.
WARNING
Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.
■ Important points while driving
● Keep the back door closed.
● If you smell exhaust gases in the vehicle even when the back door is
closed, open the windows and have the vehicle inspected at any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer
as soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the hybrid system.
● Do not leave the vehicle with the hybrid system on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
● Do not leave the hybrid system operating in an area with snow build-up, or
where it is snowing. If snowbanks build up around the vehicle while the
hybrid system is operating, exhaust gases may collect and enter the vehi-
cle.
■ Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
