TOYOTA PRIUS PLUS 2019 Owners Manual

111

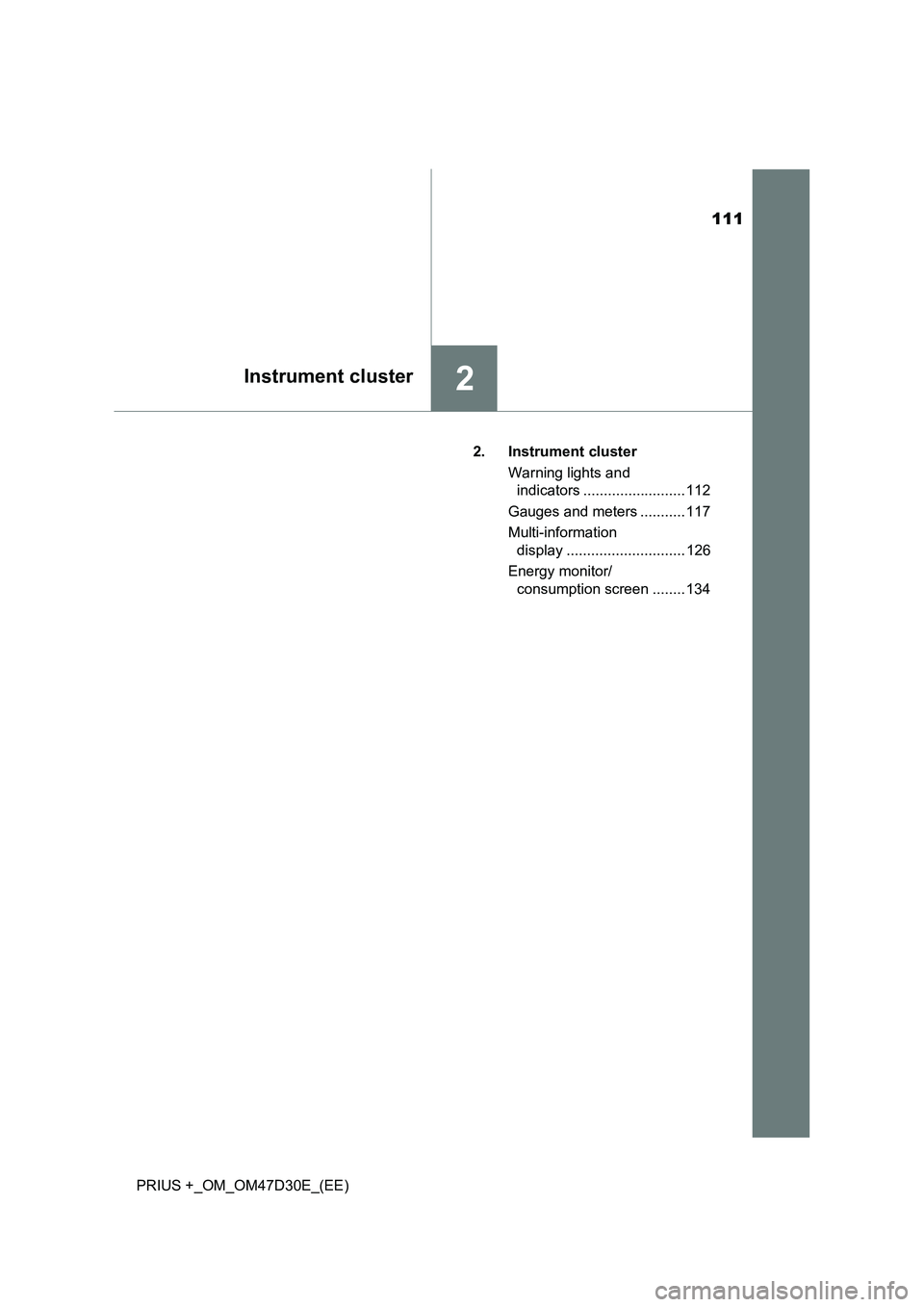

2Instrument cluster
PRIUS +_OM_OM47D30E_(EE)2. Instrument cluster
Warning lights and
indicators ......................... 112
Gauges and meters ........... 117
Multi-information
display ............................. 126
Energy monitor/
consumption screen ........ 134

1122. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)

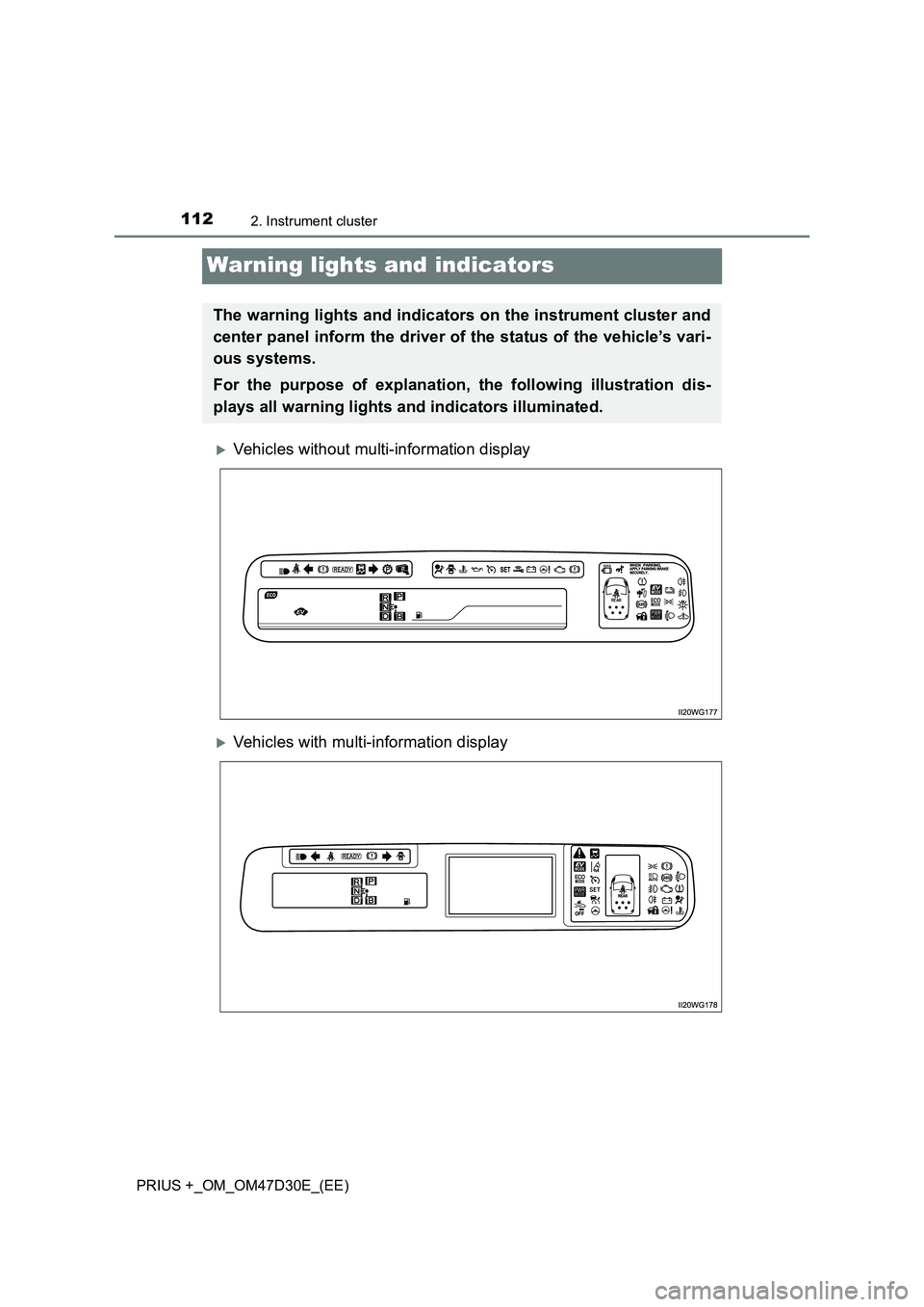

Warning lights and indicators
Vehicles without multi-information display
Vehicles with multi-information display
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

1132. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)

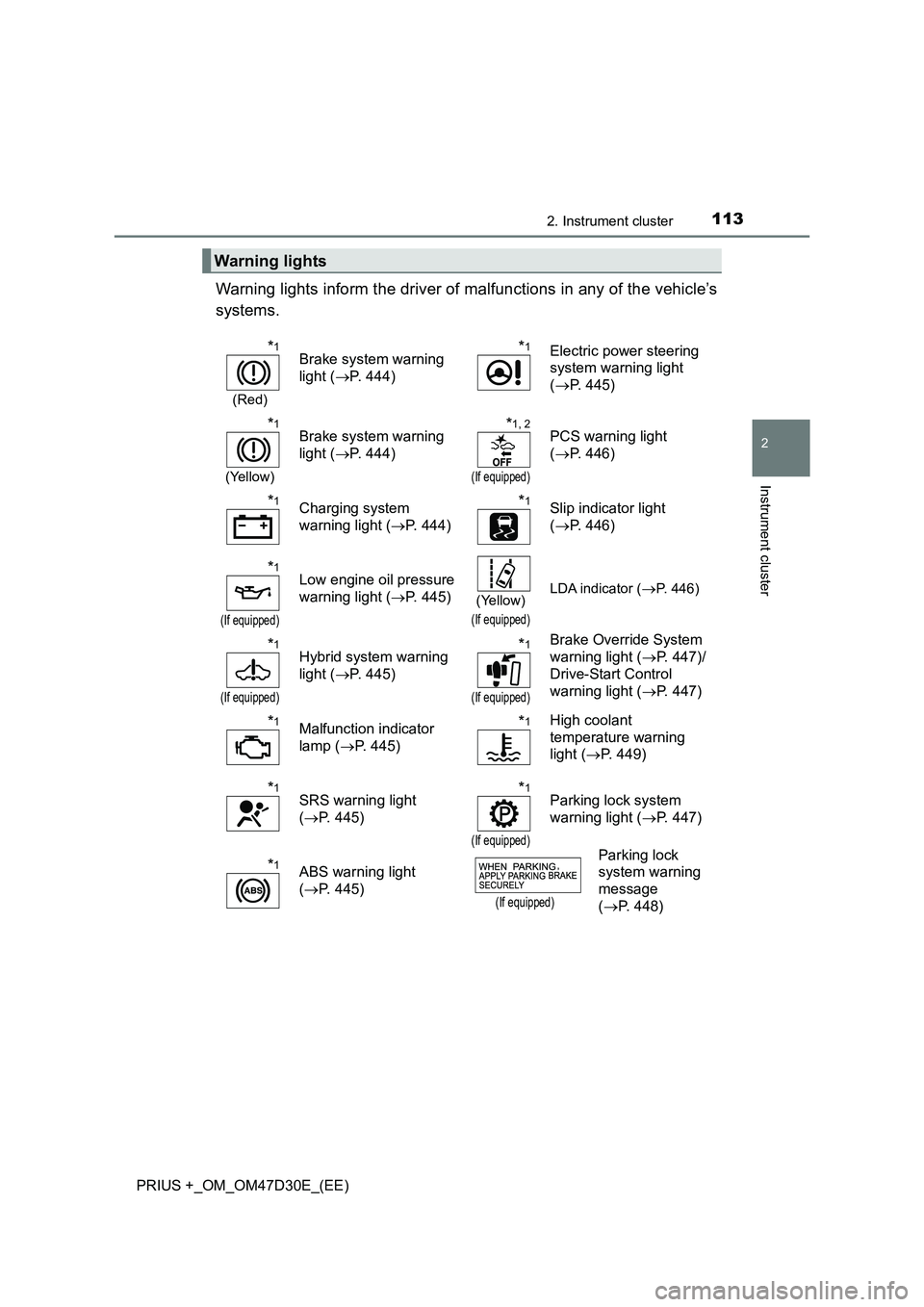

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
*1
(Red)
Brake system warning
light ( P. 444)
*1Electric power steering
system warning light
( P. 445)
*1
(Yellow)
Brake system warning
light ( P. 444)
*1, 2
(If equipped)
PCS warning light
( P. 446)
*1Charging system
warning light ( P. 444)
*1Slip indicator light
( P. 446)
*1
(If equipped)
Low engine oil pressure
warning light ( P. 445)(Yellow)
(If equipped)
LDA indicator (P. 446)
*1
(If equipped)
Hybrid system warning
light ( P. 445)
*1
(If equipped)
Brake Override System
warning light ( P. 447)/
Drive-Start Control
warning light ( P. 447)
*1Malfunction indicator
lamp ( P. 445)
*1High coolant
temperature warning
light ( P. 449)
*1SRS warning light
( P. 445)
*1
(If equipped)
Parking lock system
warning light ( P. 447)
*1ABS warning light
( P. 445)(If equipped)
Parking lock
system warning
message
( P. 448)

1142. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)

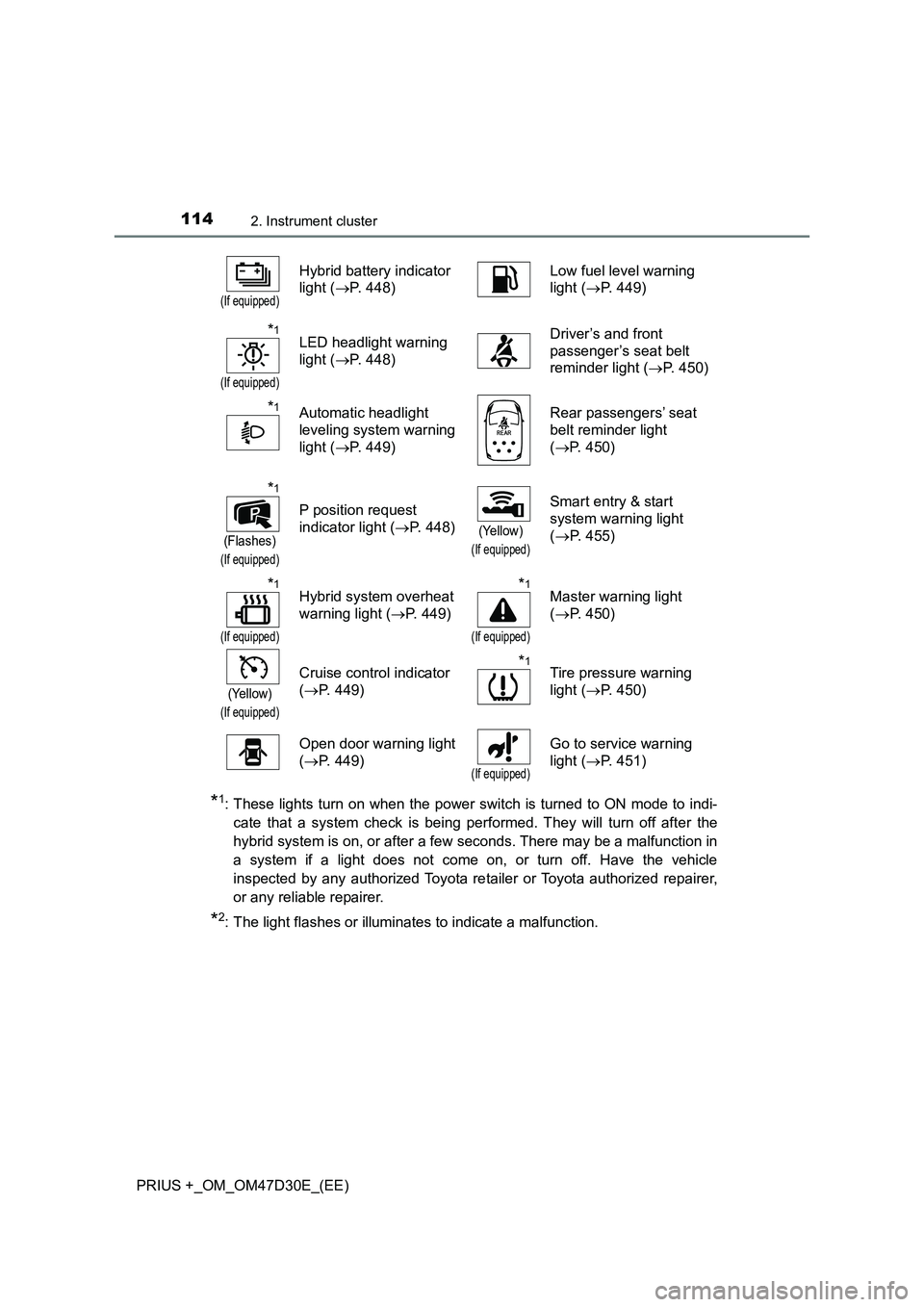

*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the vehicle
inspected by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
*2: The light flashes or illuminates to indicate a malfunction.
(If equipped)
Hybrid battery indicator
light (P. 448)Low fuel level warning
light (P. 449)
*1
(If equipped)
LED headlight warning
light (P. 448)Driver’s and front
passenger’s seat belt
reminder light (P. 450)
*1Automatic headlight
leveling system warning
light (P. 449)Rear passengers’ seat
belt reminder light
(P. 450)
*1
(Flashes)
(If equipped)
P position request
indicator light (P. 448)
(Yellow)
(If equipped)
Smart entry & start
system warning light
(P. 455)
*1
(If equipped)
Hybrid system overheat
warning light (P. 449)*1
(If equipped)
Master warning light
(P. 450)
(Yellow)
(If equipped)
Cruise control indicator
(P. 449)*1Tire pressure warning
light (P. 450)
Open door warning light
(P. 449)
(If equipped)
Go to service warning
light (P. 451)

1152. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 239)
Cruise control “SET”
indicator ( P. 313, 299)
Tail light indicator
( P. 241)
*1, 2Slip indicator
( P. 319)
Headlight high beam
indicator ( P. 242)(If equipped)
EV indicator (P. 122)
Front fog light indicator
( P. 250)
*1
(If equipped)
Eco Driving Indicator
Light ( P. 122)
Rear fog light indicator
(  P. 250)
EV drive mode indicator
( P. 231)
Security indicator
( P. 91, 104)
Shift position indicators
( P. 233)
“READY” indicator
( P. 224)
*1, 3
(If equipped)
PCS warning light
( P. 275)
“ECO MODE” indicator
( P. 317)
*4
“PASSENGER AIR
BAG” indicator ( P. 5 6 )
(If equipped)
Dynamic radar cruise
control indicator
( P. 299)

1162. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)

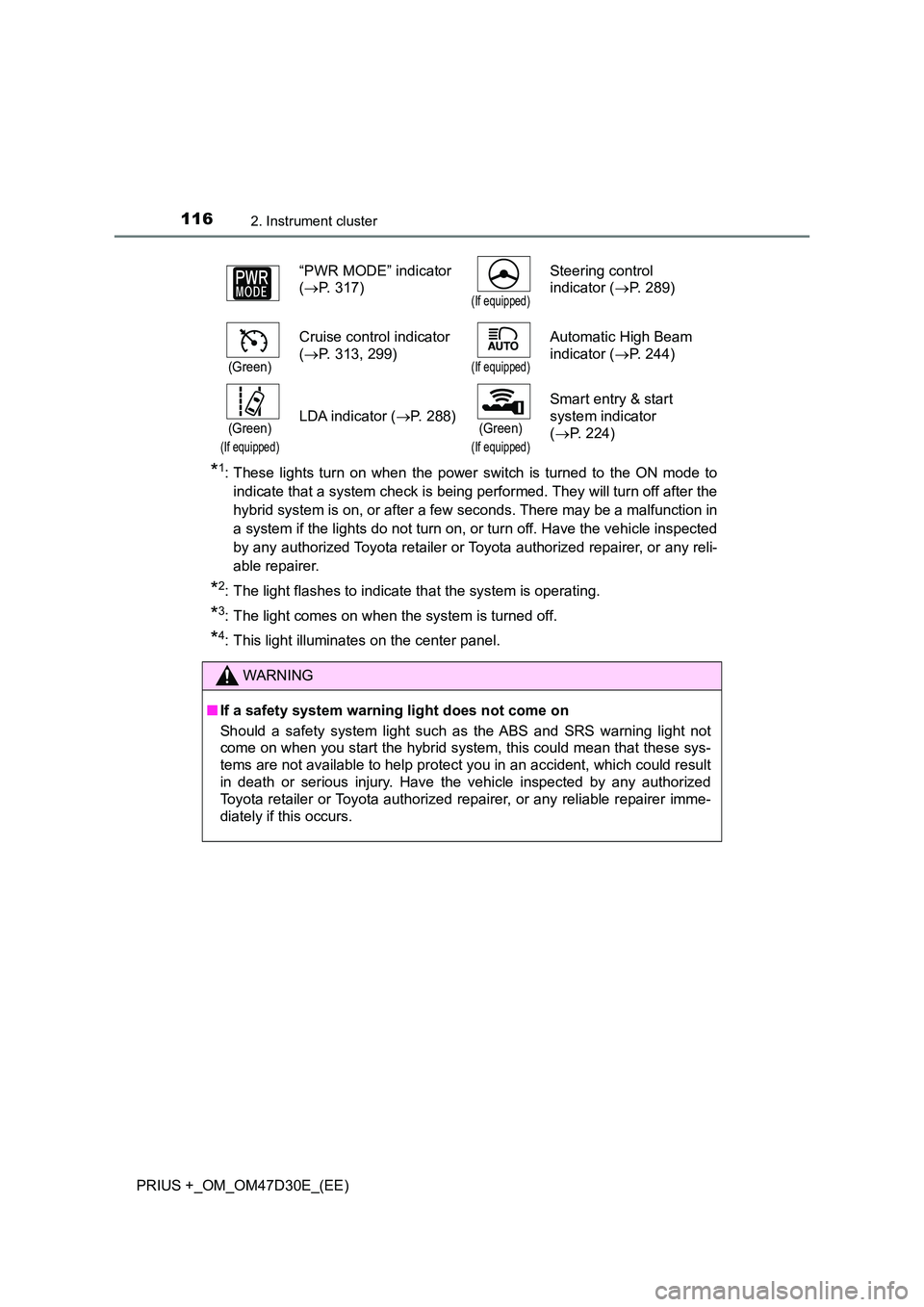

*1: These lights turn on when the power switch is turned to the ON mode to
indicate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if the lights do not turn on, or turn off. Have the vehicle inspected
by any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.
*4: This light illuminates on the center panel.
“PWR MODE” indicator
( P. 317)(If equipped)
Steering control
indicator ( P. 289)
(Green)
Cruise control indicator
( P. 313, 299)(If equipped)
Automatic High Beam
indicator ( P. 244)
(Green)
(If equipped)
LDA indicator (P. 288)(Green)
(If equipped)
Smart entry & start
system indicator
( P. 224)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer imme-
diately if this occurs.

117
2
2. Instrument cluster
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)

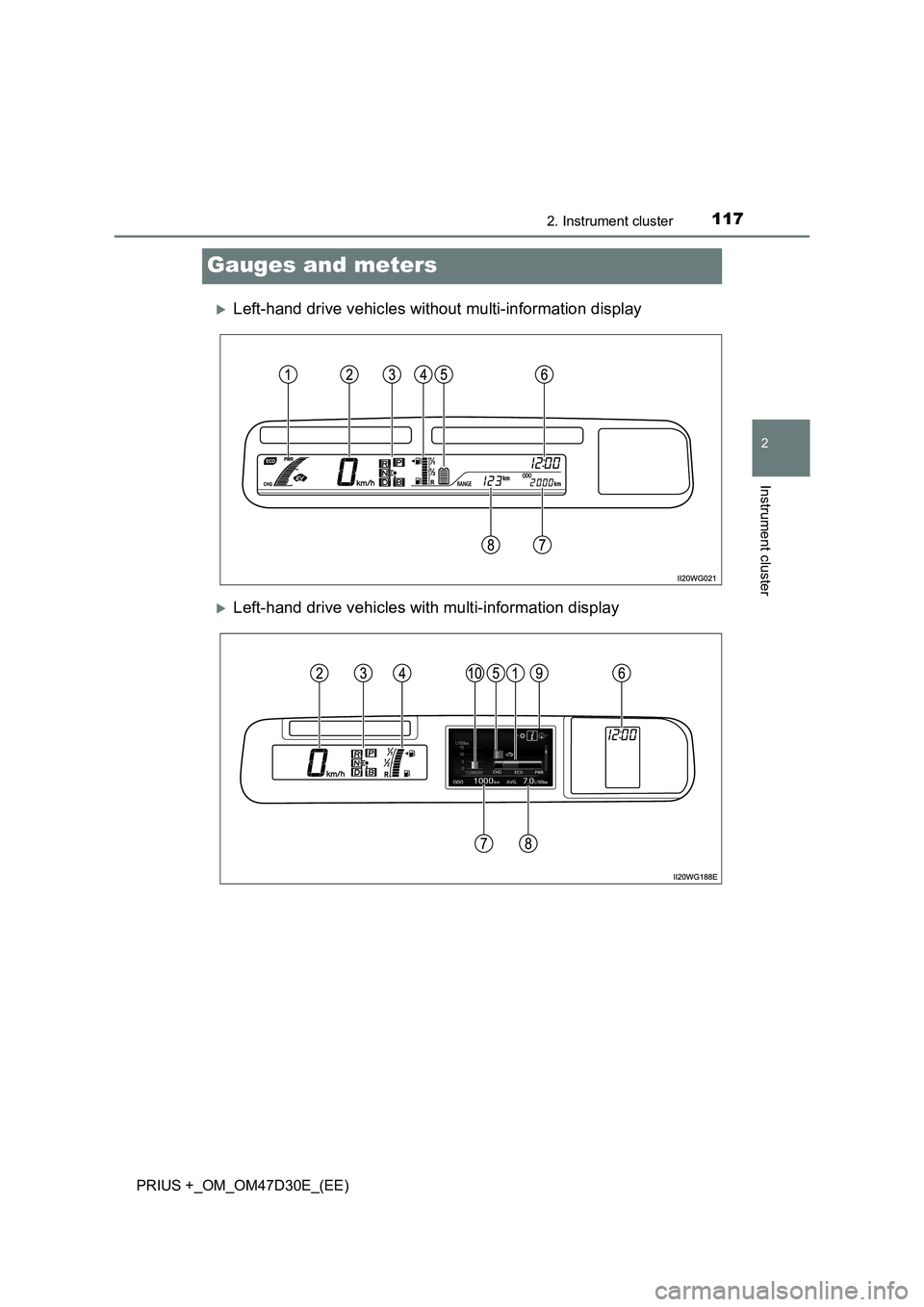

Gauges and meters
Left-hand drive vehicles without multi-information display
Left-hand drive vehicles with multi-information display

1182. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)

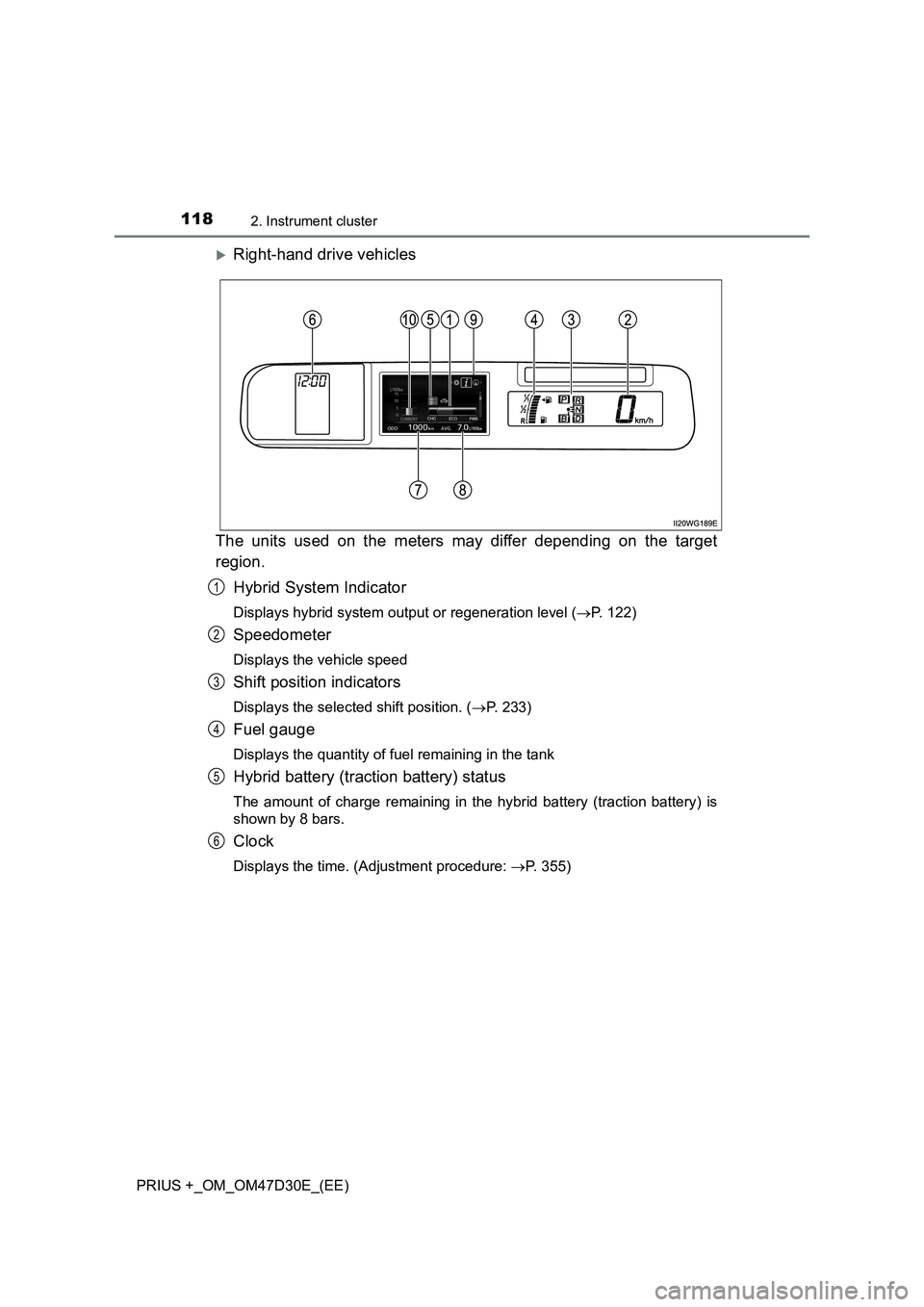

Right-hand drive vehicles
The units used on the meters may differ depending on the target
region.
Hybrid System Indicator
Displays hybrid system output or regeneration level (P. 122)
Speedometer
Displays the vehicle speed
Shift position indicators
Displays the selected shift position. (P. 233)
Fuel gauge
Displays the quantity of fuel remaining in the tank
Hybrid battery (traction battery) status
The amount of charge remaining in the hybrid battery (traction battery) is
shown by 8 bars.
Clock
Displays the time. (Adjustment procedure: P. 355)
1
2
3
4
5
6

1192. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47D30E_(EE)

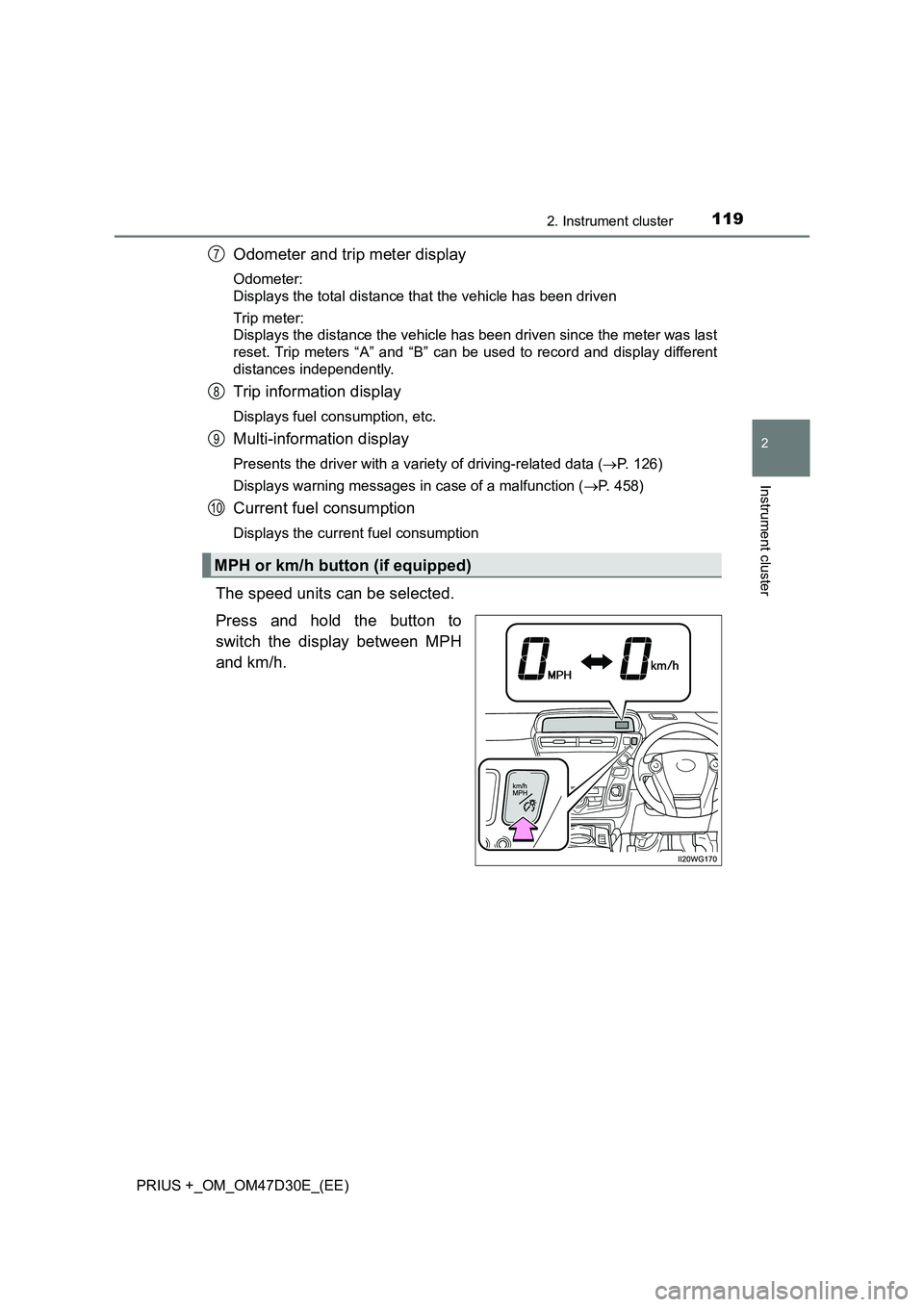

Odometer and trip meter display
Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.
Trip information display
Displays fuel consumption, etc.
Multi-information display
Presents the driver with a variety of driving-related data (P. 126)
Displays warning messages in case of a malfunction (P. 458)
Current fuel consumption
Displays the current fuel consumption
The speed units can be selected.
Press and hold the button to
switch the display between MPH
and km/h.
MPH or km/h button (if equipped)
7
8
9
10

1202. Instrument cluster
PRIUS +_OM_OM47D30E_(EE)

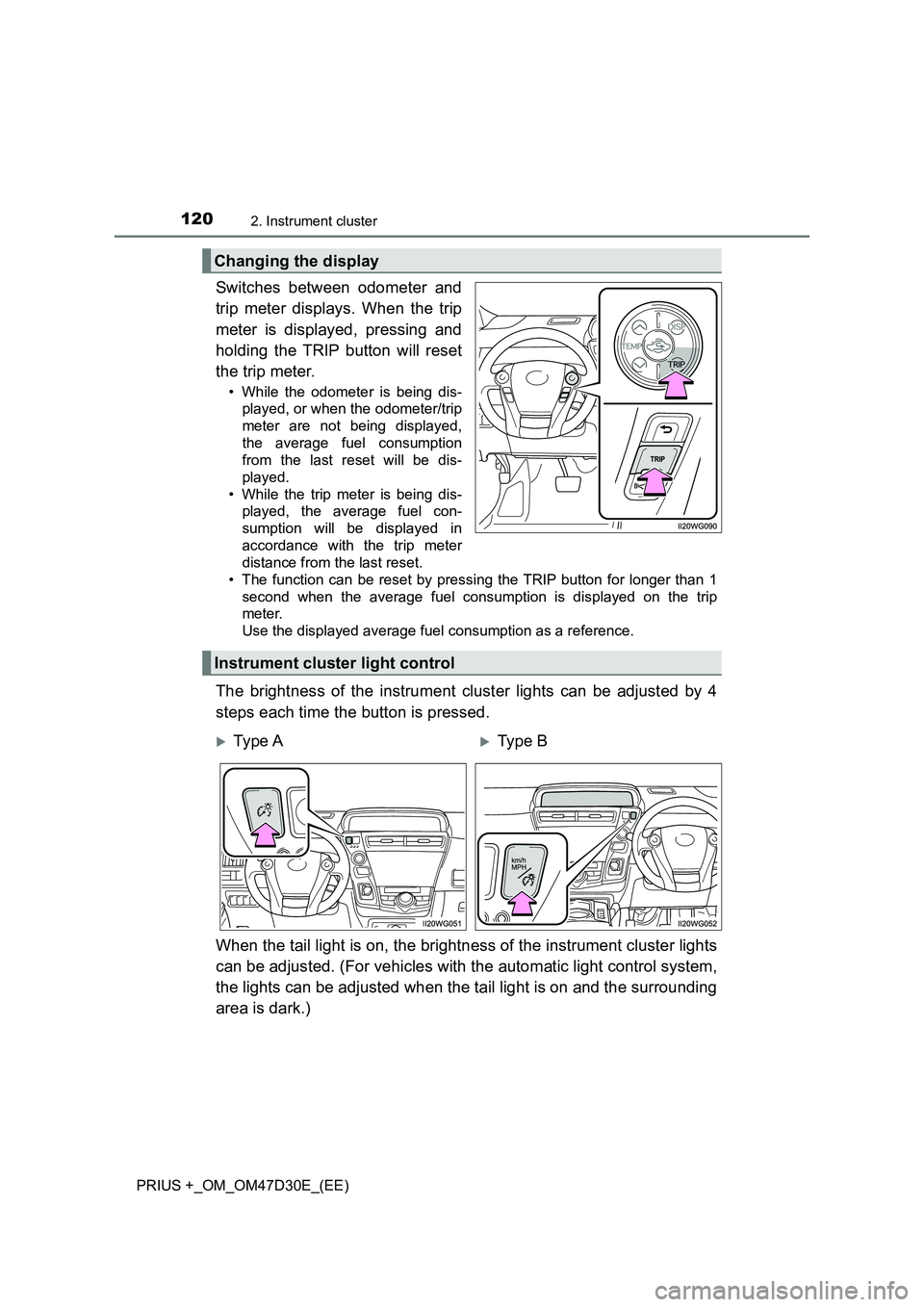

Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the TRIP button will reset
the trip meter.
• While the odometer is being dis-
played, or when the odometer/trip
meter are not being displayed,
the average fuel consumption
from the last reset will be dis-
played.
• While the trip meter is being dis-
played, the average fuel con-
sumption will be displayed in
accordance with the trip meter
distance from the last reset.
• The function can be reset by pressing the TRIP button for longer than 1
second when the average fuel consumption is displayed on the trip
meter.
Use the displayed average fuel consumption as a reference.
The brightness of the instrument cluster lights can be adjusted by 4
steps each time the button is pressed.
When the tail light is on, the brightness of the instrument cluster lights
can be adjusted. (For vehicles with the automatic light control system,
the lights can be adjusted when the tail light is on and the surrounding
area is dark.)
Changing the display
Instrument cluster light control
Ty pe AType B
