TOYOTA PRIUS PRIME 2020 Accessories, Audio & Navigation (in English)

PRIUS PRIME_MM_OM47C84U_(U)
1
2
3
4
5
6
7
8
Quick guide• Basic system overview
Basic function
• Information to be read before operation
• Setting initial settings before operation
• Connecting the Bluetooth
® device
Audio/visual
system• Listening to the radio
• Enjoying music and video
Voice command
system• Operating the voice command system
Peripheral
monitoring
system
• Checking the situation around the vehicle
Phone• Operating the phone
(Hands-free system for cellular phones)
Toyota Entune• Operating the Toyota Entune
Index• Search alphabetically

2TABLE OF CONTENTS
Introduction ................................4
Reading this manual .................. 5
1-1. Basic function Buttons overview................ 8
“Menu” screen .................. 10
Status icon ....................... 11
“Setup” screen ................. 13
“Information” screen ......... 14
2-1. Basic information before operation
Initial screen ..................... 16
Touch screen.................... 17
Home screen.................... 19
Entering letters and num- bers/list screen operation 20
Screen adjustment ........... 23
Linking multi-information dis- play and the system ....... 24
2-2. Connectivity settings Registering/Connecting a Bluetooth
® device .......... 25
Setting Bluetooth
® details 29
Wi-Fi
® Hotspot ................. 36
Apple CarPlay .................. 41
2-3. Other settings General settings ............... 45
Voice settings ................... 48
Vehicle settings ................ 493-1. Basic operation
Quick reference ................ 52
Some basics ..................... 53
3-2. Radio operation AM/FM/SiriusXM (SXM) radio....................................... 58
Internet radio .................... 66
3-3. Media operation CD .................................... 67
USB memory .................... 69
iPod/iPhone ...................... 71
Bluetooth
® audio .............. 74
AUX .................................. 77
3-4. Audio/visual remote con- trols
Steering switches ............. 79
3-5. Setup Audio settings ................... 81
3-6. Tips for operating the audio/visual system
Operating information ....... 83
4-1. Voice command system operation
Voice command system ... 96
Command list ................... 99
4-2. Mobile Assistant operation Mobile Assistant ............ 103
1Quick guide
2Basic function
3Audio/visual system
4Voice command system

3TABLE OF CONTENTS
1
2
3
4
5
6
7
5-1. Rear view monitor systemRear view monitor system.................................... 106
Rear view monitor system precautions.................. 108
Things you should know 113
6-1. Phone operation (Hands- free system for cellular
phones)
Quick reference............. 116
Some basics ................. 117
Placing a call using the Blue- tooth
® hands-free system
.................................... 121
Receiving a ca ll using the
Bluetooth
®hands-free sys-
tem .............................. 124
Talking on the Bluetooth
®
hands-free system....... 125
Bluetooth
® phone message
function........................ 127
6-2. Setup Phone settings .............. 132
6-3. What to do if... Troubleshooting ............ 142
7-1. Toyota Entune overview Functional overview ...... 148Type A: Function achieved by
using a smartphone or DCM.................................... 149
Type B: Function achieved by using DCM and the system.................................... 152
Type C: Function achieved by using DCM................... 153
7-2. Toyota Entune operation Toyota Entune App Suite Connect ....................... 155
7-3. Setup Toyota Entune App Suite Connect settings.......... 159
Alphabetical Index ........ 162
5Peripheral monitoring
system
6Phone
7Toyota Entune
Index

4
This manual explains the opera-
tion of the system. Please read
this manual carefully to ensure
proper use. Keep this manual in
your vehicle at all times.
The screens shown in this man-
ual may differ from the actual
screen of the system depending
on availability of functions, and
Toyota Entune subscription sta-
tus.
The screens in this manual will
also differ if the screen theme
settings have been changed.
(Theme setting: P. 4 5 )
In some situations when chang-
ing between screens, it may
take longer than normal for the
screen to change, the screen
may be blank momentarily or
noise may be displayed.
Please be aware that the con-
tent of this manual may be dif-
ferent from the system in some
cases, such as when the sys-
tem’s software is updated.
The company names and prod-
uct names appearing on this
manual are the trademarks and
registered trademarks of their
respective companies.
TOYOTA MOTOR CORPORA-
TION
Introduction
Multimedia system own-
er’s manual

5
To use this system in the safest
possible manner, follow all the
safety tips shown below.
Do not use any feature of this
system to the extent it becomes
a distraction and prevents safe
driving. The first priority while
driving should always be the
safe operation of the vehicle.
While driving, be sure to
observe all traffic regulations.
Prior to the actual use of this
system, learn how to use it and

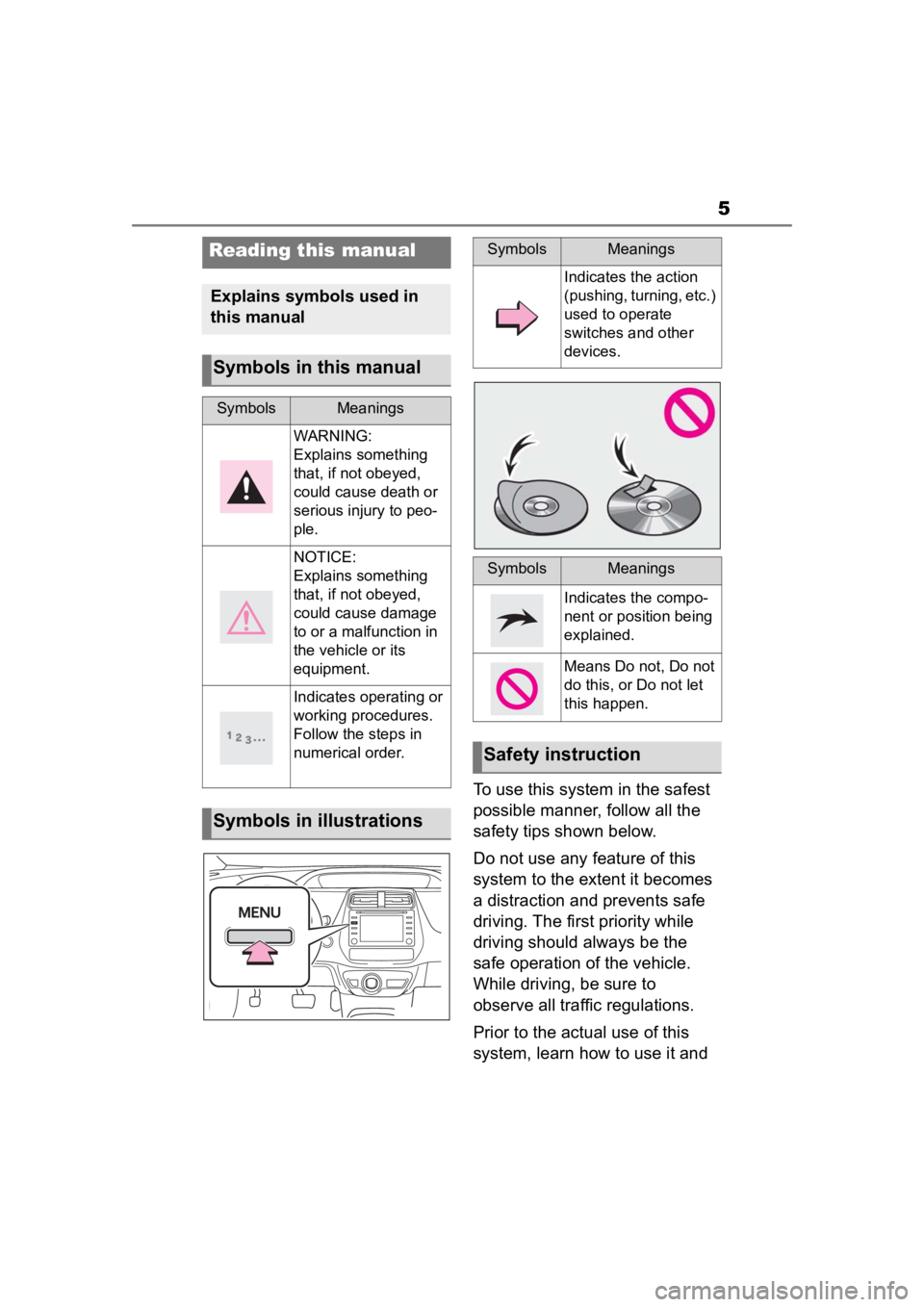

Reading this manual
Explains symbols used in
this manual
Symbols in this manual
SymbolsMeanings
WARNING:
Explains something
that, if not obeyed,
could cause death or
serious injury to peo-
ple.
NOTICE:
Explains something
that, if not obeyed,
could cause damage
to or a malfunction in
the vehicle or its
equipment.
Indicates operating or
working procedures.
Follow the steps in
numerical order.
Symbols in illustrations
SymbolsMeanings
Indicates the action
(pushing, turning, etc.)
used to operate
switches and other
devices.
SymbolsMeanings
Indicates the compo-
nent or position being
explained.
Means Do not, Do not
do this, or Do not let
this happen.
Safety instruction

6
become thoroughly familiar with
it. Read the entire manual to
make sure you understand the
system. Do not allow other peo-
ple to use this system until they
have read and understood the
instructions in this manual.
For your safety, some functions
may become inoperable when
driving. Unavailable screen but-
tons are dimmed.
WARNING
●For safety, the driver should not
operate the system while
he/she is driving. Insufficient
attention to the road and traffic
may cause an accident.

7
11
Quick guide
Quick guide
1-1. Basic functionButtons overview.............. 8
“Menu” screen ................ 10
Status icon ..................... 11
“Setup” screen ............... 13
“Information” screen ....... 14

81-1. Basic function
1-1.Basic function
Press to eject a disc. (P.54)
By touching the screen with y our finger, you can control the
selected functions. ( P.17)
Insert a disc into this slot. The CD player turns on immediatel y.
( P. 5 4 )
Press to play/pause. Press to turn mute on/off.
Press to seek up or down for a radio station or to access a
desired track/file. ( P.58, 67, 69, 71, 74)
Press to access the Bluetooth
® hands-free system. ( P.116)
When an Apple CarPlay connection is established, press to dis-
play the phone app screen.
*1, 2
Press to display the Toyota Entune App Suite Connect screen.*2,
3
(  P.155)
Turn to change the radio station or skip to the next or previou s
track/file. ( P.58, 67, 69, 71, 74)
Buttons over view
Operations of each part
A
B
C
D
E
F
G
H

91-1. Basic function
1
Quick guide
Press to turn the audio/visual system on and off, and turn it to
adjust the volume. Press and hold to restart the system. ( P.16,
53)
If a turn-by-turn navigation application has been downloaded to a
connected smartphone, the application will be displayed and can
be used.
*4
When an Apple CarPlay connection is established, press to dis-
play the Maps app screen.
*1, 2
Press to display the audio/visual system screen. ( P.52, 53)
Press to display the “Menu” screen. ( P. 1 0 )
Press to display the home screen. ( P. 1 9 )
*1: For details about Apple CarPlay: P. 4 1
*2: This function is not made available in some countries or areas .
*3: The Toyota Entune App Suite Connect screen may not be displaye d
when an Apple CarPlay connection is established.
*4: For details about a turn-by-turn navigation application, refer to
http://www.toyot a.com/Entune/
in the United States,
http://www.toy ota.ca/entune
in Canada.
I
J
K
L
M

101-1. Basic function
Press the “MENU” button to display the “Menu” screen.
Select to display the audio control screen. ( P.52)
Select to display the hands-free operation screen. ( P.116)
When an Apple CarPlay connection is established, select to dis-
play the phone app screen.
*2 (  P.41)
Select to display the application screen.
*2 (  P.155)
When an Apple CarPlay connection is established and this button
displays “Apple CarPlay”, select to display the home screen of
Apple CarPlay.
*2 (  P. 4 1 )
Select to display the information screen ( P.14) or fuel consump-
tion/energy monitor screen.
*3
Select to display the “Setup” screen. ( P.13)
Select to adjust the contrast, brightness, etc. of the display.
( P. 2 3 )
*1: The clock is not displayed on the screen for this vehicle. The clock is dis-
played on the combination meter.
*2: This function is not made available in some countries or areas .
*3: Refer to the “OWNER’S MANUAL”
“Menu” screen
“Menu” screen operation
A
B
C
D
E
F
G
