TOYOTA PRIUS PRIME 2020 Accessories, Audio & Navigation (in English)

1517-1. Toyota Entune overview
7
Toyota Entune
nect and the applications, refer to
http://www.toyota.com/Entune/
in the United States, and
http://www.toyota.ca/entune
in Canada.
●These functions are not made
available in some countries or
areas. Availability of functions of
the Toyota Entune App Suite Con-
nect service is dependent on net-
work reception level.
■Initializing personal data
The personal data used in appli-
cations can be reset. ( P.47)
 The following personal data
can be deleted and returned
to their default settings:
• Downloaded contents
• Radio stations that were listened
to
●Once initialized, the data and set-
tings will be erased. Pay much
attention when initializing the data.
■Settings required to use
Toyota Entune App Suite
Connect
Perform the settings in the fol-
lowing order.
1 Download the Toyota Entune
3.0 App Suite Connect appli-
cation to your smartphone or
the system.
2 Register the smartphone with
the system.
In order to use To yota Entune 3.0 App Suite Connect, the following
must first be performed:

Register a Bluetooth® phone
with the hands-free system.
( P.25)
●Applications can only be used
when the Toyota Entune 3.0 App
Suite Connect application has
been downloaded to your smart-
phone or the system, and the
application is running.
●Toyota Entune 3.0 App Suite Con-
nect operational procedures can
also be confirmed by visiting
http://www.toyota.com/Entune/
in the United States, and
http://www.toyota.ca/entune
in Canada.
●If a Toyota Entune 3.0 App Suite
Connect applicatio n is used while
iPod audio/video is being played
back, system operation may
become unstable.
Preparation before using
Toyota Entune App Suite
Connect

1527-1. Toyota Entune overview
■Subscription
 After you have signed the Telemati cs Subscription Service Agree-
ment and are enrolled, you can begin receiving services. A vari ety
of subscription terms are available. Contact your Toyota dealer , or
call 1-800-331-4331 in the United States, and 1-888-869-6828 in
Canada, for further subscription details. ( P.150)
■Availability of function
 Wi-Fi
® Hotspot is available in the contiguous United States, Wash-
ington D.C., Alaska and Hawaii.
 Wi-Fi
® Hotspot is not available in Canada.
Type B: Function achiev ed by using DCM and the
system
The functionality of Wi-Fi® Hotspot is made possible through
the shared work of the DCM and the system.
This service is available by subscription on select, telematics
hardware-equipped vehicles and supported by the Toyota
Entune center, which operates 24 hours a day, 7 days a week.
For details about:
 Wi-Fi
® Hotspot: P. 3 6
Before using the function

1537-1. Toyota Entune overview
7
Toyota Entune
●Free/Open Source Software Infor-
mation
This product contains Free/Open
Source Software (FOSS).
The license information and/or the
source code of such FOSS can be
found at the following URL.
https://www.
toyota.com/opensource/dcm
●Exposure to radio frequency sig-
nals:
The connected service system
installed in your vehicle includes a
low power radio transmitter and
receiver. The system receives and
also sends out radio frequency
(RF) signals.
●In August 1996, the Federal Com-
munications Commission (FCC)
adopted RF exposure guidelines
with safety levels for mobile wire-
less phones. Those guidelines are
consistent with the safety stan-
dards previously set by both U.S.
and international standards bod-
ies.
• ANSI (American National Stan- dards Institute) C95.1 [1992]
• NCRP (National Council on Radi-
ation Protection and Measure-
ment) Report 86 [1986]
• ICNIRP (Intern ational Commis-
sion on Non-Ionizing Radiation
Protection) [1996]
●These standards are based on
comprehensive and periodic eval-
uations of the relevant scientific lit-
erature. Over 1 20 scientists, engineers, and physicians from
universities, government health
agencies, and industry reviewed
the available body of research to
develop the ANSI Standard
(C95.1).
●The design of Toyota Entune sys-
tem complies with the FCC guide-
lines in addition to those
standards.
●Contact with the Toyota Entune
center is dependent upon the
telematics device being in opera-
tive condition, cellular connection
availability, and GPS satellite sig-
nal reception, whi
ch can limit the
ability to reach the Toyota Entune
center or receive support. Enroll-
ment and Telematics Subscription
Service Agreement required. A
variety of subscription terms are
available; charges vary by sub-
scription term selected.
●The Toyota Entune center offers
support in multiple languages.
●Select Safety Connect-sub-
scribed vehicles are capable of
communicating vehicle informa-
tion. Please see the terms and
conditions for additional details.
Owners who do not wish to have
their vehicle transmit this informa-
tion can opt out at the time of
enrollment or b y calling 1-800-
331-4331 in the United States,
and 1-888-869-6828 in Canada,
and following t he prompts for
Safety Connect.
●For further details about the ser-
vice, contact your Toyota dealer.
●Toyota Entune functions are not
subject to section 255 of the Tele-
communications Act and the sys-
tem is not TTY compatible.
Type C: Function
achieved by using
DCM
The functionality of Safety
Connect is made possible
by the use of a DCM.
For details, refer to
“OWNER’S MANUAL”.

1547-1. Toyota Entune overview

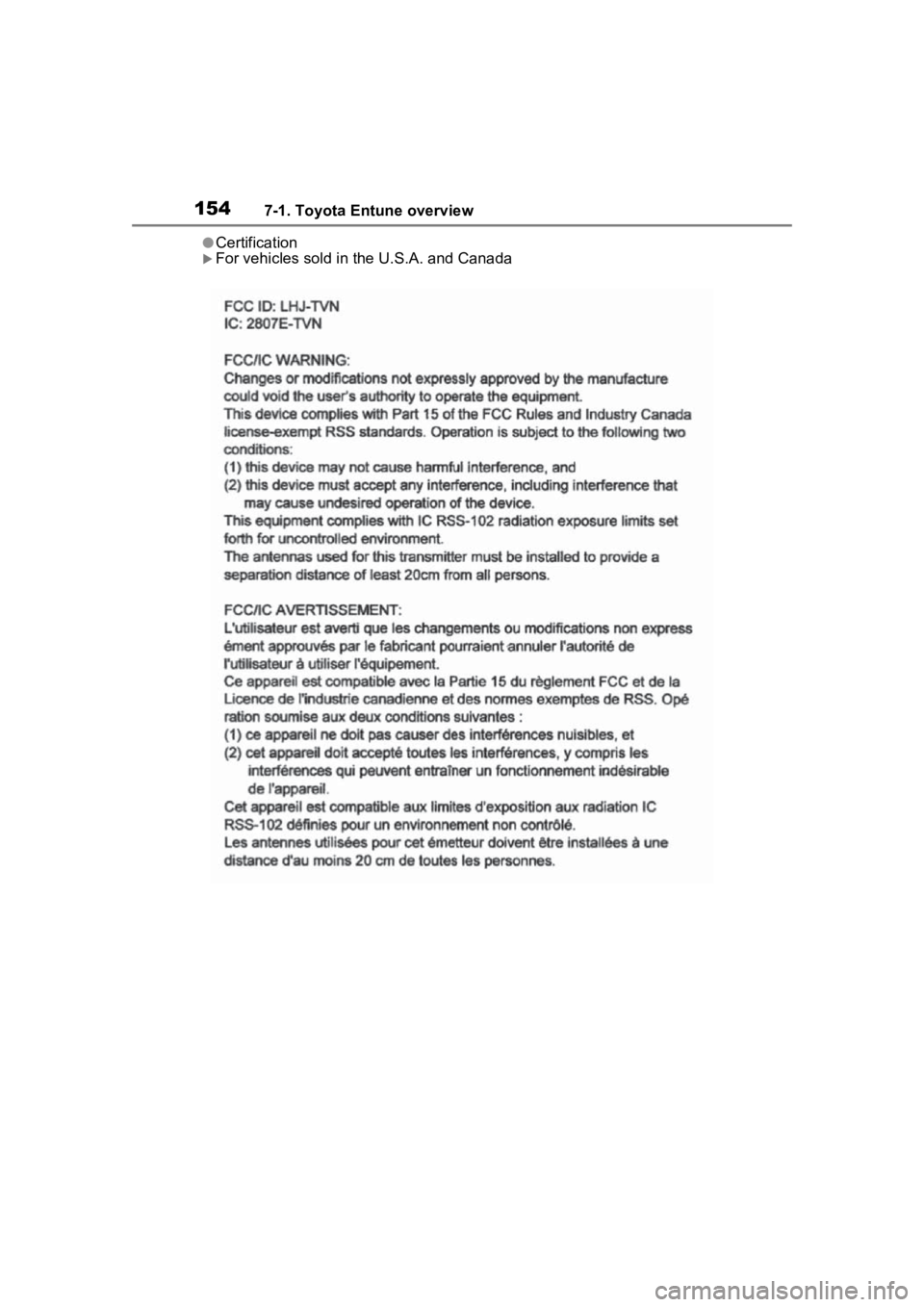

●Certification
For vehicles sold in the U.S.A. and Canada

1557-2. Toyota Entune operation
7
Toyota Entune
7-2.Toyota Entune operation
From the “MENU” button
1 Press the “MENU” button.
2 Select “Apps”. 3
Follow the steps in “From the
“APPS” button” from step 3.
( P.155)
From the “APPS” button
1 Press the “APPS” button.
2 Select “Apps”.
 If a specific application screen
is displayed, select “Apps”
again.
3 Select the desired application
screen button.
: Select to activate an applica-
tion.
“Update”: Select to update the
applications. ( P.155)
“App Catalog”: Select to change the
order of the applications. ( P.156)
: Displays the number of new
notifications for the application
When the App Suite is activated,
an application may need to be
updated. To update an applica-
tion, it is necessary to download
update data and install it.
■Downloading update
If an update is available,
“Update” can be selected.
Toyota Entune App
Suite Connect
App Suite is a function that
enables certain apps
installed on a smartphone
or the system to be dis-
played on and operated
from the system screen.
Before the Toyota Entune
App Suite Connect can be
used, some setup needs to
be performed. ( P.151)
For details about the func-
tions and services provided
by each application, refer to
http://www.
toyota.com/Entune/
in the United States, and
http://www.toyota.ca/entune
in Canada.
Using Toyota Entune App
Suite Connect
Updating an application

1567-2. Toyota Entune operation
1Select “Update” on the appli-
cation screen. ( P.155)
2 Check that downloading
starts.
“Download in Background”: Select
to operate other functions while
downloading.
“Cancel”: Select to cancel updating.
3Check that downloading is
complete.
“Later”: Select to install later. When
this screen button is selected, the
screen will re turn to the last dis-
played screen. To install the update
data: ( P.156)
“See Detail”: Select to display
detailed information on the update
data.
“Install”: Select to install the update
data. Follow the steps “Installing
the update data” from step 2.
(  P.156)
■Installing the update data
After the downloading is com-
plete, “Update” will be changed
to “Install”.
1 Select “Install” on the appli-
cation screen. ( P.155)
2 Select “Continue”.
“Later”: Select to postpone the
installation of the update data and
go back to the previous screen.
3Check that installing is
started.
“Install in Background”: Select to
operate other functions while
installing.
4Select “OK” after the install-
ing is complete.
●The Toyota Entune App Suite
Connect function cannot be oper- ated while installing.
Order of the applications can be
changed.
1
Display the application
screen. ( P.155)
2 Select “App Catalog”.
3 Select the desired application
to be moved.
4 Select “<<” or “>>” to move
the application, and then
select the done button.
When problems occur with start-
ing the application player, a
message will appear on the
screen. Referring to the follow-
ing items, identify the problem
and take the suggested correc-
tive action.
 “When it is safe and legal to
do so, please ensure your
Entune App Suite application
is running and logged in on
your phone.”
The Toyota Entune App Suite Con-
nect application cannot be con-
nected to Bluetooth
® SPP.
Refer to
http://www.toyota.com/Entune/
in the United States, and
http://www.toyota.ca/entune
in Canada, to confirm if the phone
Reordering the applica-
tions
If a message appears on
the screen

1577-2. Toyota Entune operation
7
Toyota Entune
is Bluetooth® SPP compatible or
not, and then activate the Toyota
Entune App Suite Connect applica-
tion.
 “Installation failed, please try
again”
Installation can be attempted again
by changing to the application
screen and pressing the “Install”
switch.
“Application download error.
Please try again later.”
Downloading can be attempted
again by checking the communica-
tion status, chang ing to the applica-
tion screen and pressing the
“Download” switch again.
 “Download error, some
Entune App Suite functions
may not work as expected.
Please reinitiate the download
process.”
The Toyota Entune App Suite Con-
nect application cannot be con-
nected to Bluetooth
® SPP.
Refer to
http://www.toyota.com/Entune/
in the United States, and
http://www.toyota.ca/entune
in Canada, to confirm if the phone
is Bluetooth® SPP compatible or
not, and then activate the Toyota
Entune App Suite Connect applica-
tion.
Please ensure your Toyota Entune
App Suite Connect application is
running and logged in on your
phone while vehicle is not moving.
 “To use the services, Entune
APP Suite Connect applica- tion needs to be running on
your phone. For more infor-
mation, please visit
toyota.com or call 1-800-331-
4331 in the United States, and
1-888-869-6828 in Canada”
The Toyota Entune App Suite Con-
nect application cannot be con-
nected to Bluetooth
® SPP.
Refer to
http://www.toyota.com/Entune/
in the United States, and
http://www.toyota.ca/entune
in Canada, to confirm if the phone
is Bluetooth® SPP compatible or
not, and then activate the Toyota
Entune App Suite Connect applica-
tion.
 “Communication unsuccess-
ful. Please try again.”
Communication was disconnected.
After a few moments, retry the
operation.
A keyword can be entered to an
application by the software key-
board or voice recognition func-
tion. For details about the
functions and services provided
by each application, refer to
http://www.toyota.com/Entune/
in the United States, and
http://www.toyota.ca/entune
in Canada.
The keyboard layout can be
changed. ( P.45)
Entering keyword opera-
tion

1587-2. Toyota Entune operation
1Display the application
screen. ( P.155)
2 Select the desired application
screen button.
3 Select the character entering
space.
4 Enter a search term, and
then select “OK”.
5 Entering characters will be
reflected on the character
entering space.
 For details on operating the
keyboard:  P. 2 0
1 Display the application
screen. ( P.155)
2 Select the desired application
screen button.
3 Press the talk switch.
( P. 9 6 )
4 Say the desired keyword.
 Completion of the keyword
will be detected automatically.
5 Search results will be dis-
played on the screen.Entering a keyword using
the software keyboard
Entering a keyword using
the voice recognition func-
tion

1597-3. Setup
7
Toyota Entune
7-3.Setup
1Press the “MENU” button.
2 Select “Setup”.
3 Select “Entune App Suite”.
4 Select the desired items to
be set.
Select to set the pop up
reminder for smartphone data usage. (
P.159)
Select to detect if an iPhone
app is automatically turned
on/off.
Select to turn on/off the
enhanced USB connection
mode
• When an iPhone is connected while this setting is set to “On”,
communication with devices con-
nected to other USB ports may
not be possible. Also, depending
on the device, charging may not
be possible.
Select to configure the Apps
menu layout (e.g. app order,
which applications are acti-
vated, etc.). This updates a
setting file stored on the Toy-
ota Entune center, this set-
tings file can also be updated
from the system, smartphone
app and by web portal.
Select to install the Apps via
a USB memory device. For
details, contact your Toyota
dealer.
Select to reset all setup items
to default setting.
The data usage notification pop-
up, which indicates that the sys-
tem will use an internet connec-
tion, can be enabled/disabled.
Toyota Entune App
Suite Connect settings
The settings of Toyota
Entune App Suite Connect
can be changed.
Displaying the Toyota
Entune App Suite Con-
nect settings screen
Toyota Entune App Suite
Connect settings screen
A
'DWDXVDJHQRWLILFDWLRQ
SRSXSVHWWLQJV
B
C
D
E
F

1607-3. Setup
1Display the Toyota Entune
App Suite Connect settings
screen. ( P.159)
2 Select “Data Usage Mes-
sage”.
3 Change the setting as
desired.
