Page 6 of 808
TABLE OF CONTENTS6
PRIUS PRIME_OM_OM47D71U_(U)8-1. Essential information
Emergency flashers .......... 664
If your vehicle has to
be stopped in an
emergency ...................... 665
If the vehicle is trapped
in rising water .................. 666
8-2. Steps to take in an
emergency
If your vehicle needs to
be towed ......................... 667
If you think something is
wrong .............................. 673
If a warning light turns on
or a warning buzzer
sounds ............................ 674
If a warning message is
displayed ......................... 684
If you have a flat tire .......... 692
If the hybrid system will
not start ........................... 709
If the electronic key does
not operate properly ........ 711
If the 12-volt battery is
discharged ...................... 715
If your vehicle overheats ... 721
If the vehicle becomes
stuck................................ 7269-1. Specifications
Maintenance data
(fuel, oil level, etc.) .......... 730
Fuel information ................. 739
Tire information.................. 742
9-2. Customization
Customizable features ....... 753
9-3. Initialization
Items to initialize ................ 765
Reporting safety defects
for U.S. owners ........................ 768
Seat belt instructions
for Canadian owners
(in French)................................ 769
SRS airbag instructions
for Canadian owners
(in French)................................ 771
Headlight aim instructions
for Canadian owners
(in French)................................ 780
8When trouble arises9Vehicle specifications
10For owners

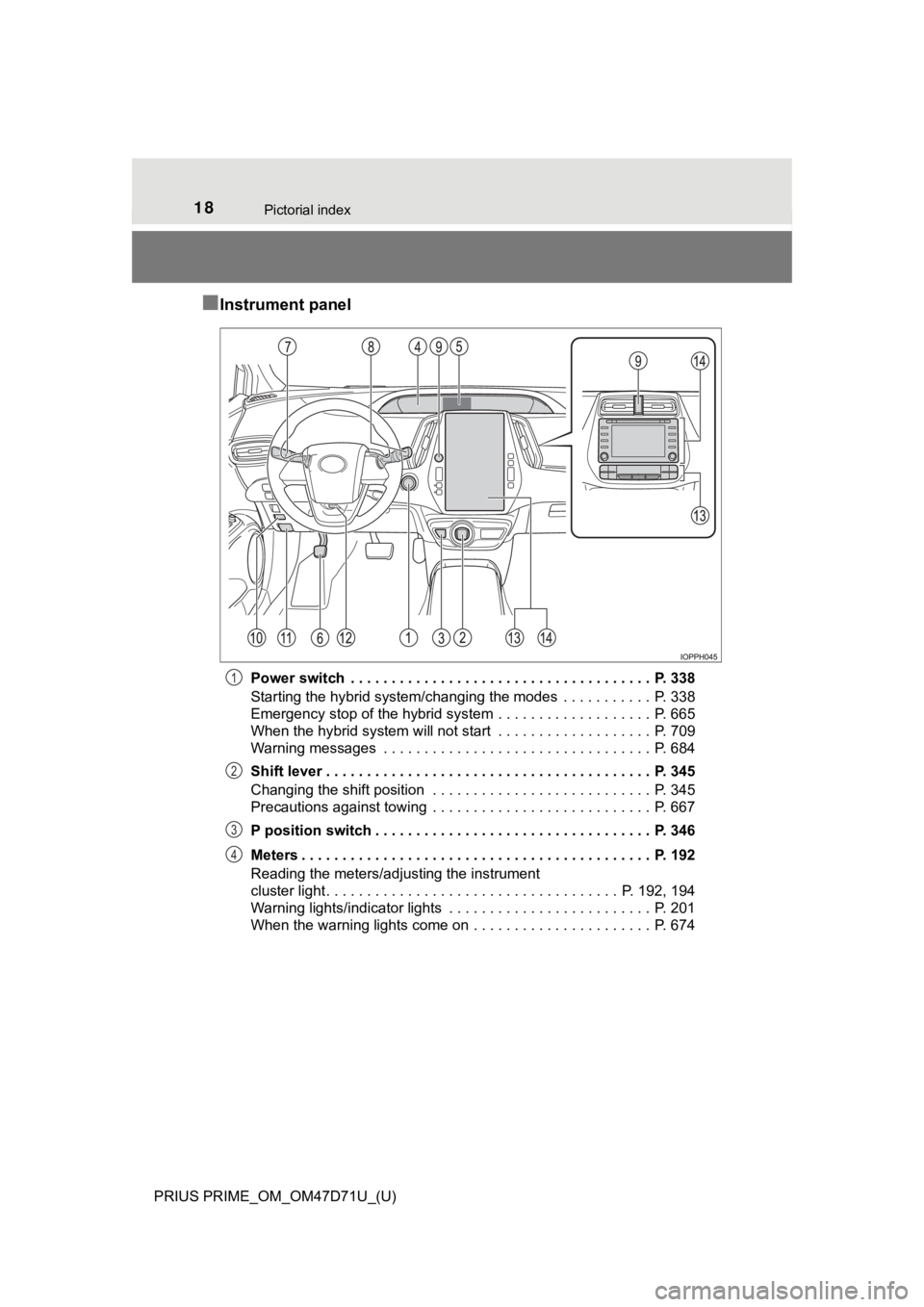

Page 18 of 808
18Pictorial index
PRIUS PRIME_OM_OM47D71U_(U)
■Instrument panel
Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Starting the hybrid system/changing the modes . . . . . . . . . . . P. 338
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . P. 665
When the hybrid system will not start . . . . . . . . . . . . . . . . . . . P. 709
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 684
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 345
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 345
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 667
P position switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 346
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Reading the meters/adjusting the instrument
cluster light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192, 194
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 201
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 6741
2
3
4
Page 29 of 808
291-1. For safe use
PRIUS PRIME_OM_OM47D71U_(U)
1
For safety and security
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●<002700520003005100520057000300440047004d00580056005700030057004b00480003005300520056004c0057004c0052005100030052004900030057004b0048000300470055004c00590048005500b60056000300560048004400570003005a004b00
4c004f0048000300470055004c0059004c0051004a0011[
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
●Always observe the legal speed limit when driving on public roads.
●When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
Page 83 of 808
831-4. Theft deterrent system
PRIUS PRIME_OM_OM47D71U_(U)
1
For safety and security
Immobilizer system
The indicator light flashes after
the power switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the power switch has been
turned to ACCESSORY or ON
mode to indicate that the system
has been canceled.
■System maintenance
The vehicle has a maintenance-free type immobilizer system.
■Conditions that may cause the system to malfunction
●<002c004900030057004b00480003004a0055004c005300030053005200550057004c0052005100030052004900030057004b00480003004e0048005c0003004c00560003004c0051000300460052005100570044004600570003005a004c0057004b000300
4400030050004800570044004f004f004c0046000300520045[ject
●If the key is in close proximity to or touching a key registered to the security
system (key with a built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previously
registered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.
Page 91 of 808
PRIUS PRIME_OM_OM47D71U_(U)
912-1. Plug-in hybrid system
2
Plug-in hybrid system
■Switching to the hybrid battery (traction battery) charge mode
Press and hold the switch.
Take your hand off the switch
once the hybrid battery charge
mode indicator starts to blink.
The hybrid battery charge mode
indicator illuminates when the
switch to hybrid battery (traction
battery) charge mode is com-
plete.
When the hybrid battery (traction battery) is fully charged
*, the hybrid
battery (traction battery) charge mode is automatically canceled and the
operation mode will be switched to HV mode.
The hybrid battery (traction battery) charge mode will be canceled by
pressing EV/HV mode selection switch or EV auto mode switch.
*: The maximum charge amount in the hybrid battery (traction battery)
charge mode is approximately 80% of the fully charged capacity for the
charging from an external power source.
■If the plug-in hybrid system operation mode cannot be changed
In the following situations, the plug-in hybrid system operation mode cannot
be changed even if the EV/HV mode selection switch or EV auto mode switch
is pressed. (In this case, the warning message is displayed on the multi-infor-
mation display when the switch is pressed.)
●When electricity needed for EV driving is not remaining (when in EV/EV
auto mode)
●When the traction battery is almost completely charged (hybrid battery [trac-
tion battery] charge mode)
■When switching from EV mode to another mode using the switch
When the power switch is turned off, operation mode switching is canceled
and the system returns to EV mode the next time the vehicle is started.
■Hybrid battery (traction battery) charge mode
●The following may occur to protect the system, etc.
• Cannot switch to hybrid battery (traction battery) charge mode or cannot
cancel it
• Gasoline engine does not start or stops even after switching to hybrid bat-
tery (traction battery) charge mode
●If a load to the system is large, such as when the power consumption of the
air conditioning system is large or when the temperature of the engine cool-
ant is high, it may take longer time than usual to charge using the hybrid bat-
tery (traction battery) charge mode, or charging to the hybrid battery
(traction battery) may not be performed.
Page 92 of 808
92
PRIUS PRIME_OM_OM47D71U_(U)
2-1. Plug-in hybrid system
■When in EV/EV auto mode
In EV/EV auto mode, EV driving (driving using only the electric
motor)
* is possible. However, depending on the situation, EV driv-
ing may be canceled and both gasoline engine and electric motor
are used (P. 95). Also, if a little electricity is remaining in the
hybrid battery (traction battery), HV mode is automatically selected.
To drive in EV/EV auto mode long, observe the followings.
●Avoid sudden acceleration and sudden deceleration, and be sure
to drive smoothly.
If you repeatedly accelerate, the hybrid battery (traction battery)
charge will deplete quickly. Also, EV driving may be canceled by
rapid acceleration or vehicle speed.
●Restrain your speed as much as possible. The distance that can
be driven in EV/EV auto mode will reduce considerably at high
speeds.
*: The EV driving range can be checked using the multi-information dis-
play etc. (P. 214, 230, 237, 254)
■
When in HV mode
The vehicle can be used in the same way as a standard hybrid
vehicle.
In HV mode, controls are primarily carried out as follows in accor-
dance with the driving conditions.
●The gasoline engine stops
* when the vehicle is stopped.
●During start off, the electric motor (traction motor) drives the vehi-
cle.
●During normal driving, the gasoline engine and electric motor
(traction motor) are controlled effectively, and the vehicle is
driven with optimum fuel efficiency. Also, when necessary, the
electric motor (traction motor) operates as an electrical generator
to charge the hybrid battery (traction battery).
●When the accelerator pedal is depressed heavily, drive force
from both the gasoline engine and the electric motor (traction
motor) is used to accelerate.
*: When the hybrid battery (traction battery) requires charging or the
engine is warming up, etc., the gasoline engine will not automatically
stop. (P. 95)
Control when driving in each mode
Page 95 of 808
PRIUS PRIME_OM_OM47D71U_(U)
952-1. Plug-in hybrid system
2
Plug-in hybrid system
■Gasoline engine operation in EV/EV auto mode
Even if there is a sufficient amount of electricity remaining in the hybrid bat-
tery (traction battery) and EV driving range (P. 214, 230, 237, 254) is being
displayed on the multi-information display etc., EV driving (driving using only
the electric motor) may be canceled and both gasoline engine and electric
motor are used depending on the situation (EV driving will be returned to
automatically after EV driving becomes possible again).
EV driving may be canceled automatically in the following circumstances:
●When vehicle speed is more than approximately 84 mph (135 km/h).
●When power is needed temporarily, for example when the accelerator pedal
is depressed firmly or when accelerating suddenly.
*
●When the temperature of the hybrid system is high.
The vehicle has been left in the sun, driven on a hill, driven at high speeds,
etc.
●When the temperature of the hybrid system is low.
●When the heater is switched on when the outside temperature is below
about 14°F (-10°C).
●When the windshield defogger switch is pressed. (P. 515, 527)
●<003a004b0048005100030057004b004800030056005c00560057004800500003004700480057004800550050004c00510048005600030057004b0044005700030057004b00480003004a004400560052004f004c00510048000300480051004a004c005100
48000300510048004800470056000300570052000300450048[ started.
The gasoline engine may also operate in circumstances other than those
listed above, depending on conditions.
*: When traveling in the EV auto mode only
■Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions
*:
●During gasoline engine warm-up
●During hybrid battery (traction battery) charging
●When the temperature of the hybrid battery (traction battery) is high or low
●When the windshield defogger switch is pressed. (P. 515, 527)
*: Depending on the circumstances, the gasoline engine may also not stop
automatically in situations other than those above.
Page 96 of 808
96
PRIUS PRIME_OM_OM47D71U_(U)
2-1. Plug-in hybrid system
■If the vehicle is not used for a long time
●The 12-volt battery may discharge. In this event, charge the 12-volt battery.
(P. 607)
In order to prevent the hybrid battery (traction battery) from becoming
extremely low in charge, charge the hybrid battery (traction battery) from
external power source or start the hybrid system at least once every 2 or 3
months, and turn the power switch off after the gasoline engine has
stopped automatically. (If the gasoline engine does not start up even after
approximately 10 seconds have passed since the “READY” indicator came
on, the power switch can be turned to off without any further action.)
●When the vehicle is left with the charging cable connected, the electricity
consumption amount of the 12-volt battery increases due to controls, such
as the system checking, operating. When the charging cable is not needed,
immediately remove it from the vehicle.
■Sounds and vibrations specific to a hybrid vehicle
There may be no engine sound or vibration even though the vehicle is able to
move with the “READY” indicator is illuminated. For safety, apply the parking
brake and make sure to shift the shift position to P when parked.
The following sounds or vibrations may occur when the hybrid system is
operating and are not a malfunction.
●Motor sounds may be heard from the engine compartment.
●Sounds may be heard from the hybrid battery (traction battery) when the
hybrid system starts or stops.
●Relay operating sounds such as a snap or soft clank will be emitted from the
hybrid battery (traction battery), behind the rear seats, when the hybrid sys-
tem is started or stopped.
●Sounds from the hybrid system may be heard when the back door is open.
●Sounds may be heard from the transmission when the gasoline engine
starts or stops, when driving at low speeds, or during idling.
●Engine sounds may be heard when accelerating sharply.
●Sounds may be heard due to regenerative braking when the brake pedal is
depressed or as the accelerator pedal is released.
●Vibration may be felt when the gasoline engine starts or stops.
●Cooling fan sounds may be heard from the air intake vents. (P. 99)
■Vehicle proximity notification system
In the following cases, the vehicle proximity notification system may be diffi-
cult for surrounding people to hear.
●In very noisy areas
●In the wind or the rain
Also, as the vehicle proximity notification system is installed on the front of
the vehicle, it may be more difficult to hear from the rear of the vehicle com-
pared to the front.
Page 99 of 808
PRIUS PRIME_OM_OM47D71U_(U)
992-1. Plug-in hybrid system
2
Plug-in hybrid system

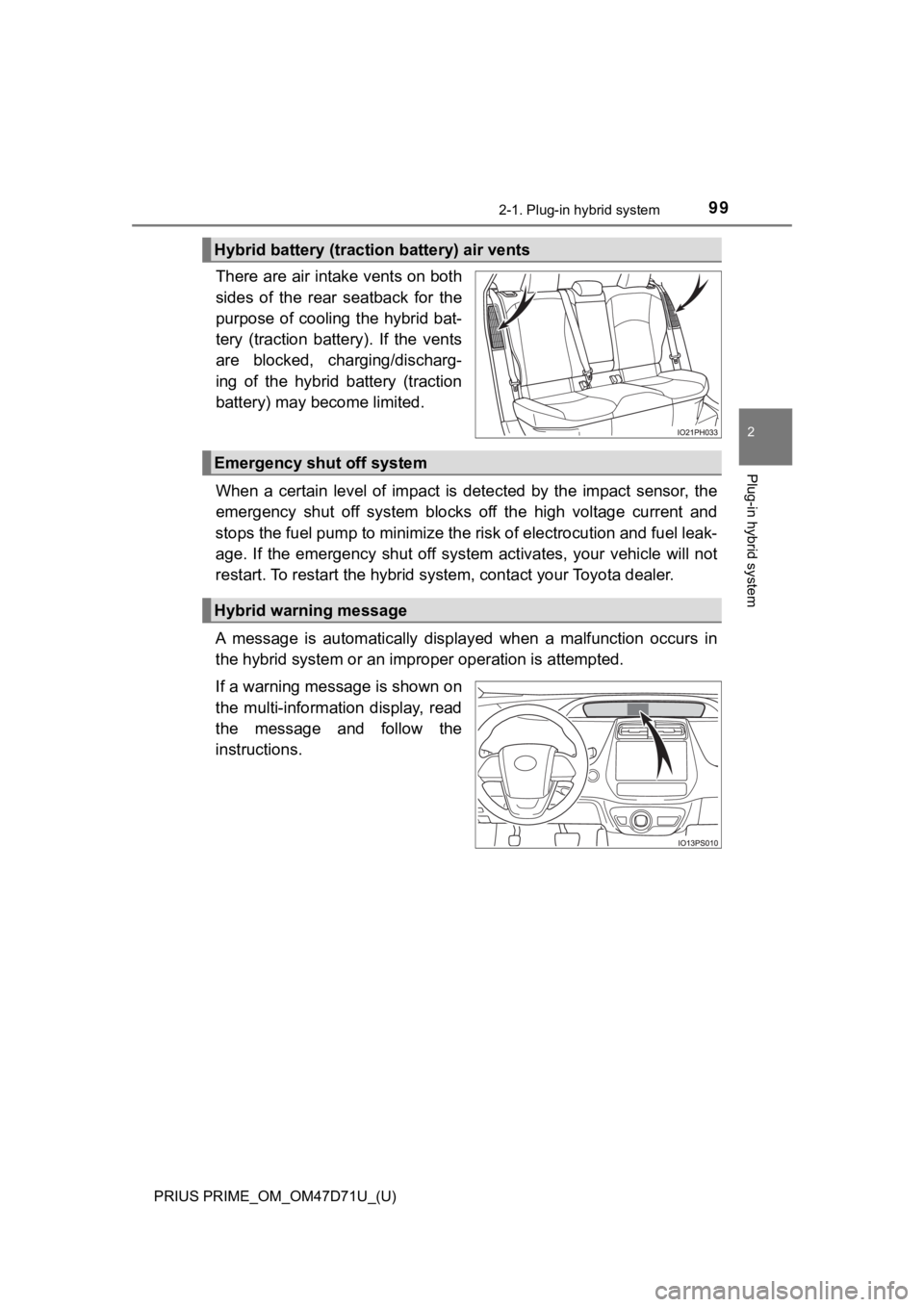

There are air intake vents on both
sides of the rear seatback for the
purpose of cooling the hybrid bat-
tery (traction battery). If the vents
are blocked, charging/discharg-
ing of the hybrid battery (traction
battery) may become limited.
When a certain level of impact is detected by the impact sensor, the
emergency shut off system blocks off the high voltage current and
stops the fuel pump to minimize the risk of electrocution and fuel leak-
age. If the emergency shut off system activates, your vehicle will not
restart. To restart the hybrid system, contact your Toyota dealer.
A message is automatically displayed when a malfunction occurs in
the hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the
instructions.
Hybrid battery (traction battery) air vents
Emergency shut off system
Hybrid warning message
Page 136 of 808
136
PRIUS PRIME_OM_OM47D71U_(U)
2-2. Charging
■Hybrid battery (traction battery) warming control (Alaska and
Canada only)
This control operates after the charging cable remains connected to
the vehicle for 3 days and “Traction Battery Heater” automatically
stops. It automatically insulates the hybrid battery (traction battery)
in extremely low temperatures.
●This control stops 31 days after the charging cable is connected,
even if it is still connected to the vehicle.
●When this control operates, charging schedule settings are
ignored and charging starts.

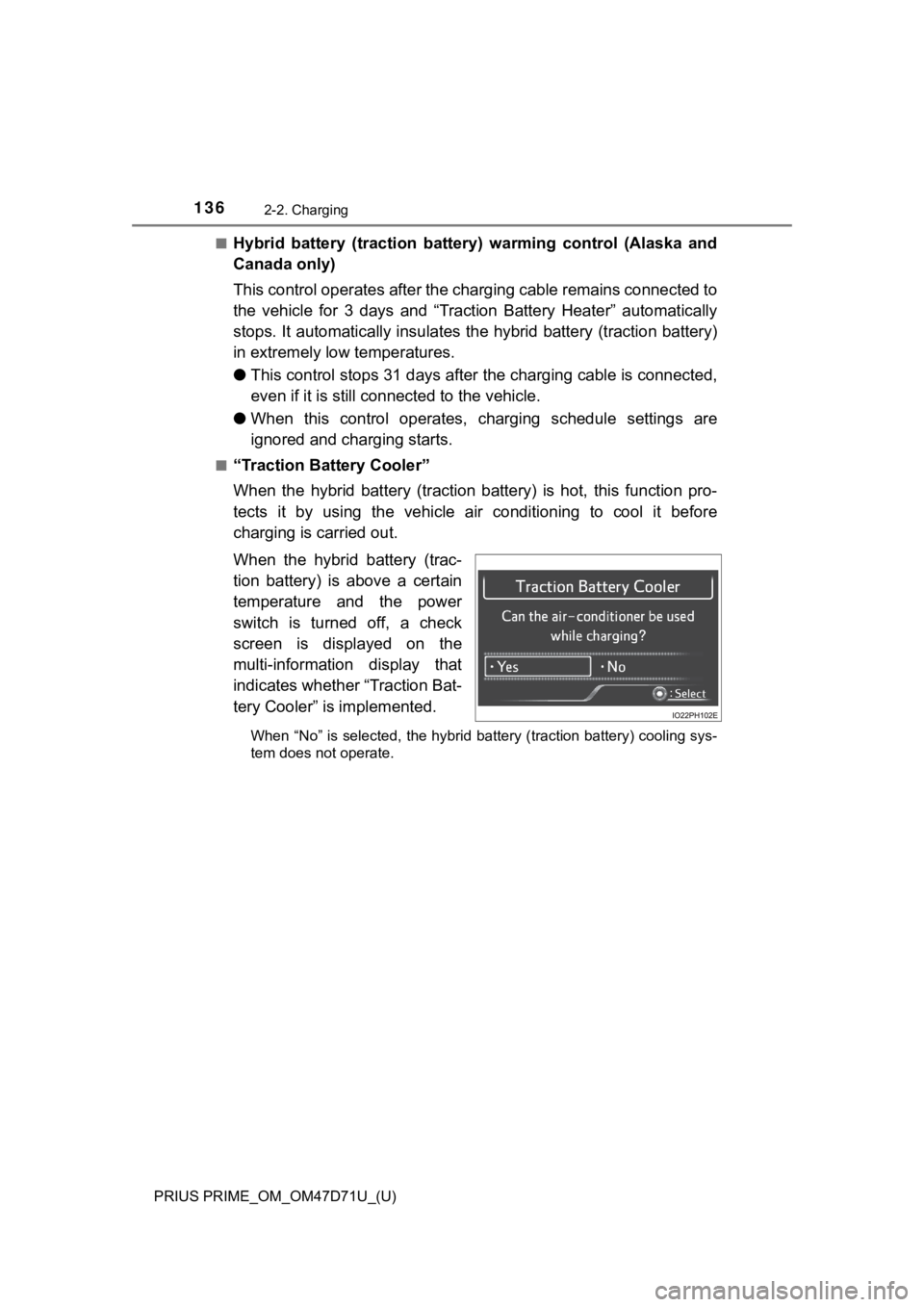

■“Traction Battery Cooler”
When the hybrid battery (traction battery) is hot, this function pro-
tects it by using the vehicle air conditioning to cool it before
charging is carried out.
When the hybrid battery (trac-
tion battery) is above a certain
temperature and the power
switch is turned off, a check
screen is displayed on the
multi-information display that
indicates whether “Traction Bat-
tery Cooler” is implemented.
When “No” is selected, the hybrid battery (traction battery) cooling sys-
tem does not operate.
