TOYOTA PRIUS PRIME 2023 Owner's Manual

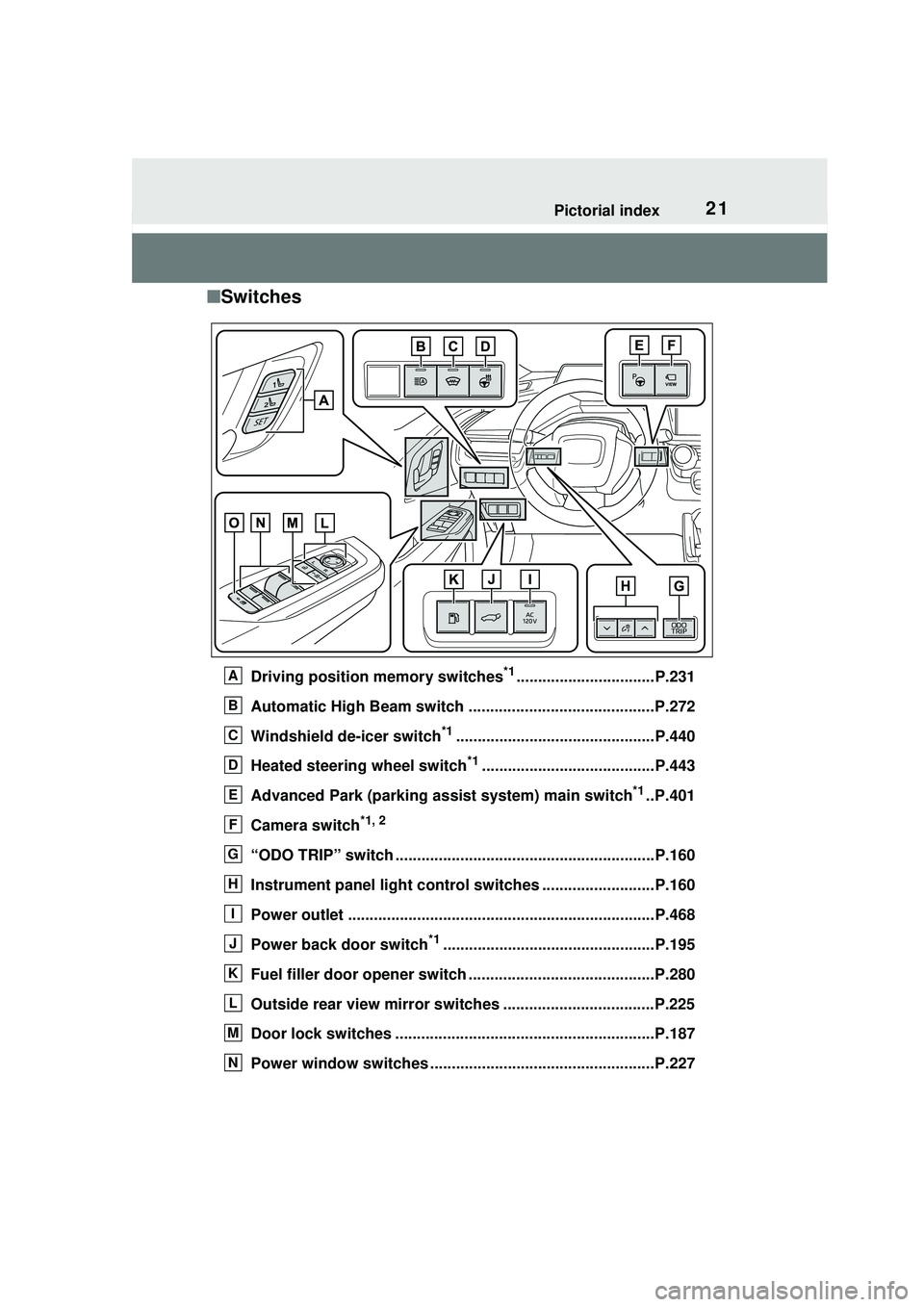

21Pictorial index
■Switches
Driving position memory switches*1................................P.231
Automatic High Beam switch ...........................................P.272
Windshield de-icer switch
*1..............................................P.440
Heated steering wheel switch
*1........................................P.443
Advanced Park (parking assist system) main switch
*1..P.401
Camera switch
*1, 2
“ODO TRIP” switch ............................................................P.160
Instrument panel light control switches ..........................P.160
Power outlet .......................................................................P.468
Power back door switch
*1.................................................P.195
Fuel filler door opener switch ...........................................P.280
Outside rear view mirror switches ...................................P.225
Door lock switches ............................................................P.187
Power window switches ................................. ...................P.227
A
B
C
D
E
F
G
H
I
J
K
L
M
N

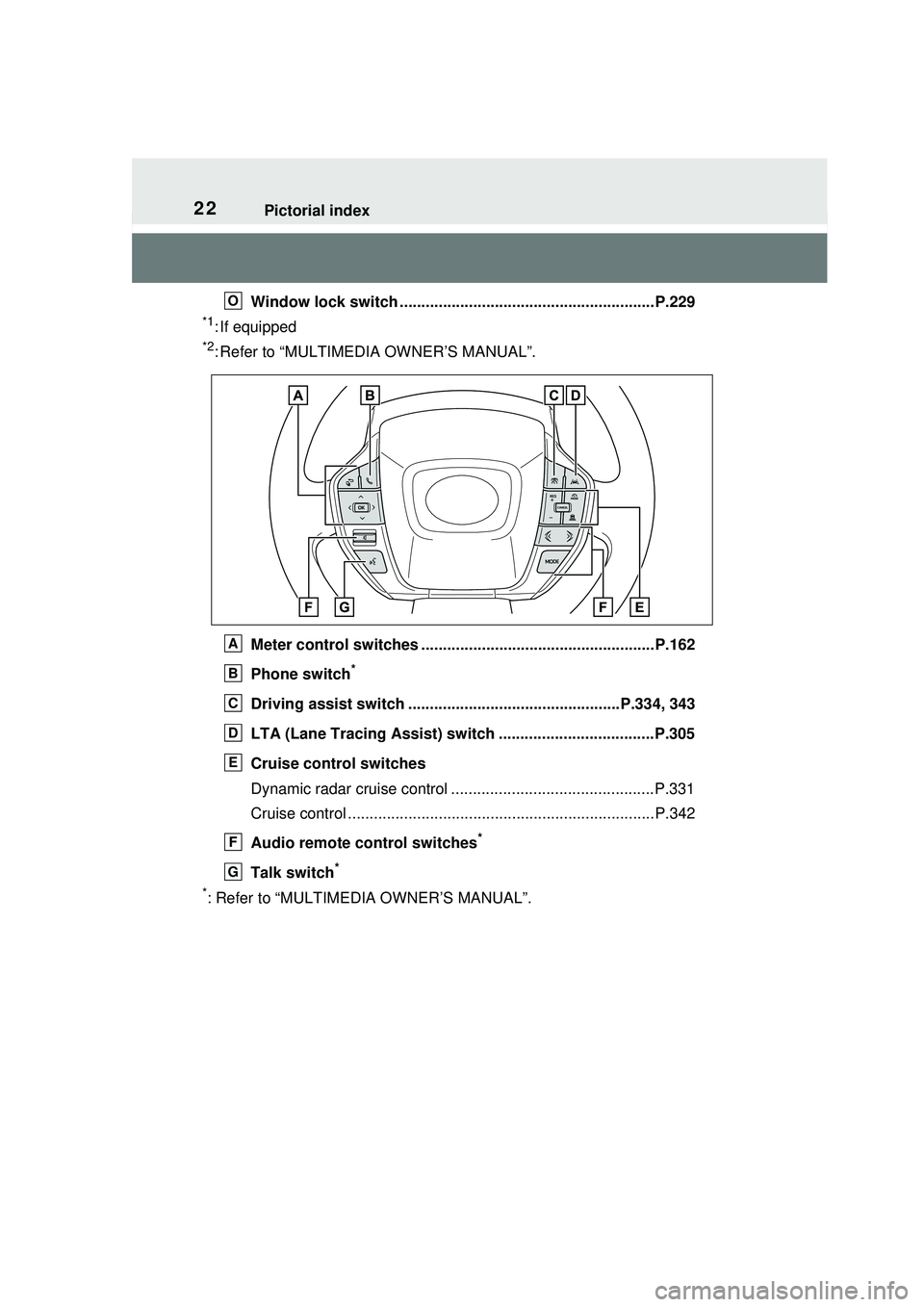

22Pictorial index
Window lock switch ...........................................................P.229
*1: If equipped
*2: Refer to “MULTIMEDIA OWNER’S MANUAL”.Meter control switches ............... .......................................P.162
Phone switch
*
Driving assist switch .................................................P.334, 343
LTA (Lane Tracing Assist) switch ....................................P.305
Cruise control switches
Dynamic radar cruise control ...............................................P.331
Cruise control .......................................................................P.342
Audio remote control switches
*
Talk switch*
*
: Refer to “MULTIMEDIA OWNER’S MANUAL”.
O
A
B
C
D
E
F
G

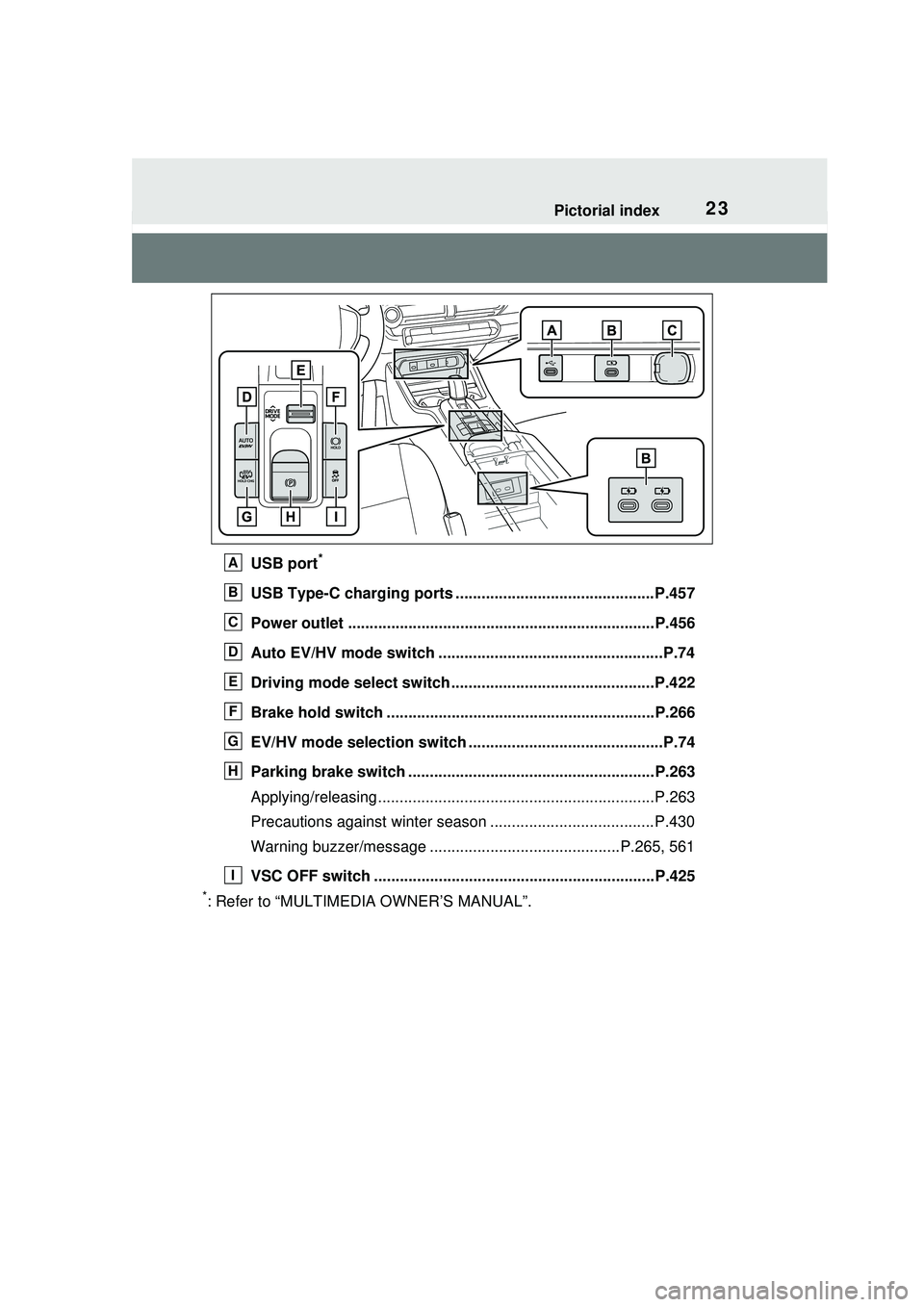

23Pictorial index
USB port*
USB Type-C charging ports ..............................................P.457
Power outlet .......................................................................P.456
Auto EV/HV mode switch ....................................................P.74
Driving mode select switch ...............................................P.422
Brake hold switch ..............................................................P.266
EV/HV mode selection switch .............................................P.74
Parking brake switch .........................................................P.263
Applying/releasing................................................................P.263
Precautions against winter season ......................................P.430
Warning buzzer/message ............................................P.265, 561
VSC OFF switch .................................................................P.425
*: Refer to “MULTIMEDIA OWNER’S MANUAL”.
A
B
C
D
E
F
G
H
I

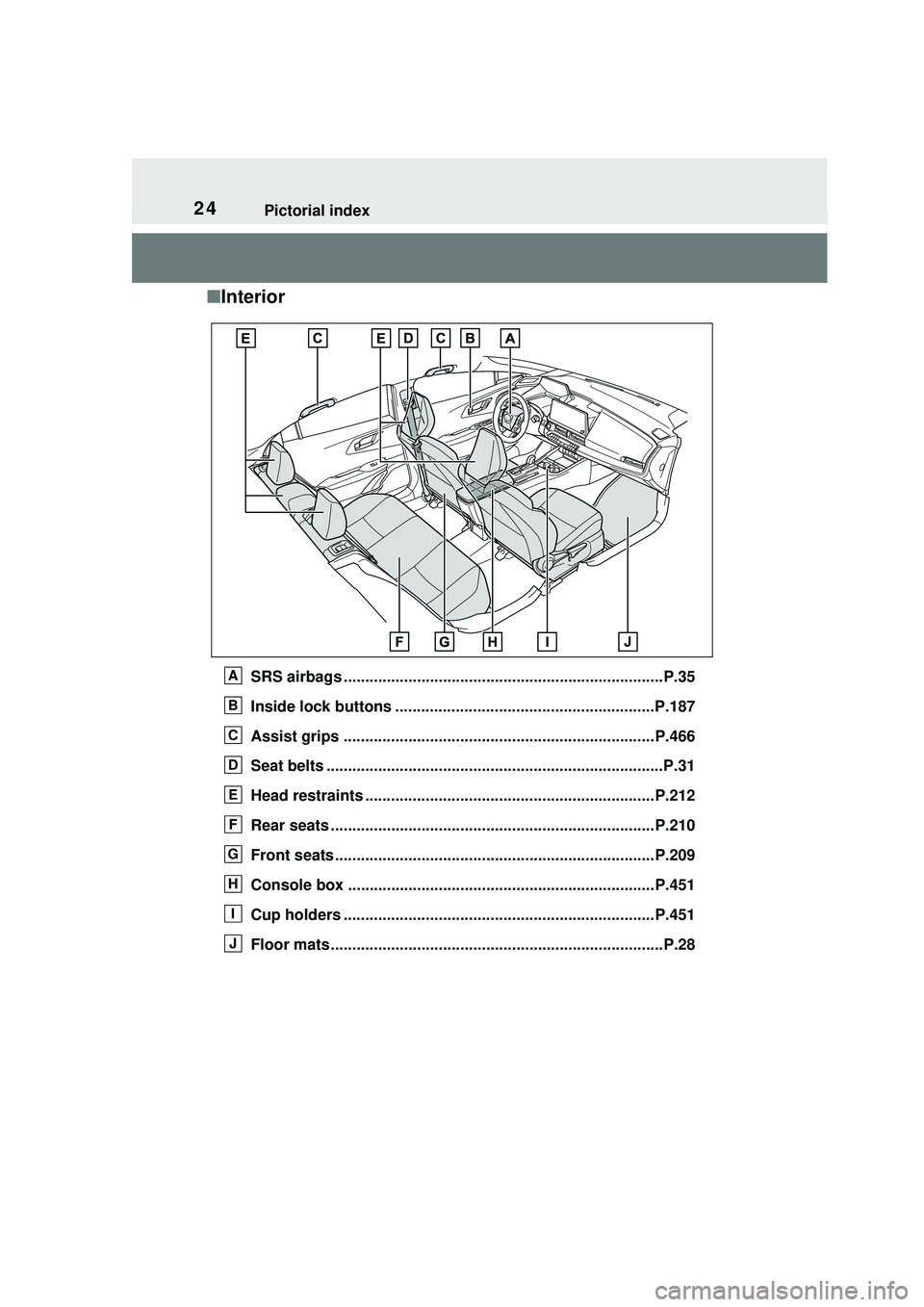

24Pictorial index
■Interior
SRS airbags ..........................................................................P.35
Inside lock buttons ............................................................P.187
Assist grips ........................................................................P.466
Seat belts ..............................................................................P.31
Head restraints ...................................................................P.212
Rear seats ...........................................................................P.210
Front seats ..........................................................................P.209
Console box .......................................................................P.451
Cup holders ........................................................................P.451
Floor mats.............................................................................P.28A
B
C
D
E
F
G
H
I
J

25Pictorial index
■Ceiling
Inside rear view mirror*1....................................................P.216
Digital Rear-view Mirror
*1..................................................P.217
Sun visors...........................................................................P.456
Vanity mirrors.....................................................................P.456
Personal lights ...................................................................P.447
Interior lights
*2...................................................................P.447
“SOS” button ........................................................................P.65
Garage door opener switches
*1........................................P.477
*1: If equipped
*2: The illustration shows the front, but th ey are also equipped in the rear.
A
B
C
D
E
F
G

26Pictorial index

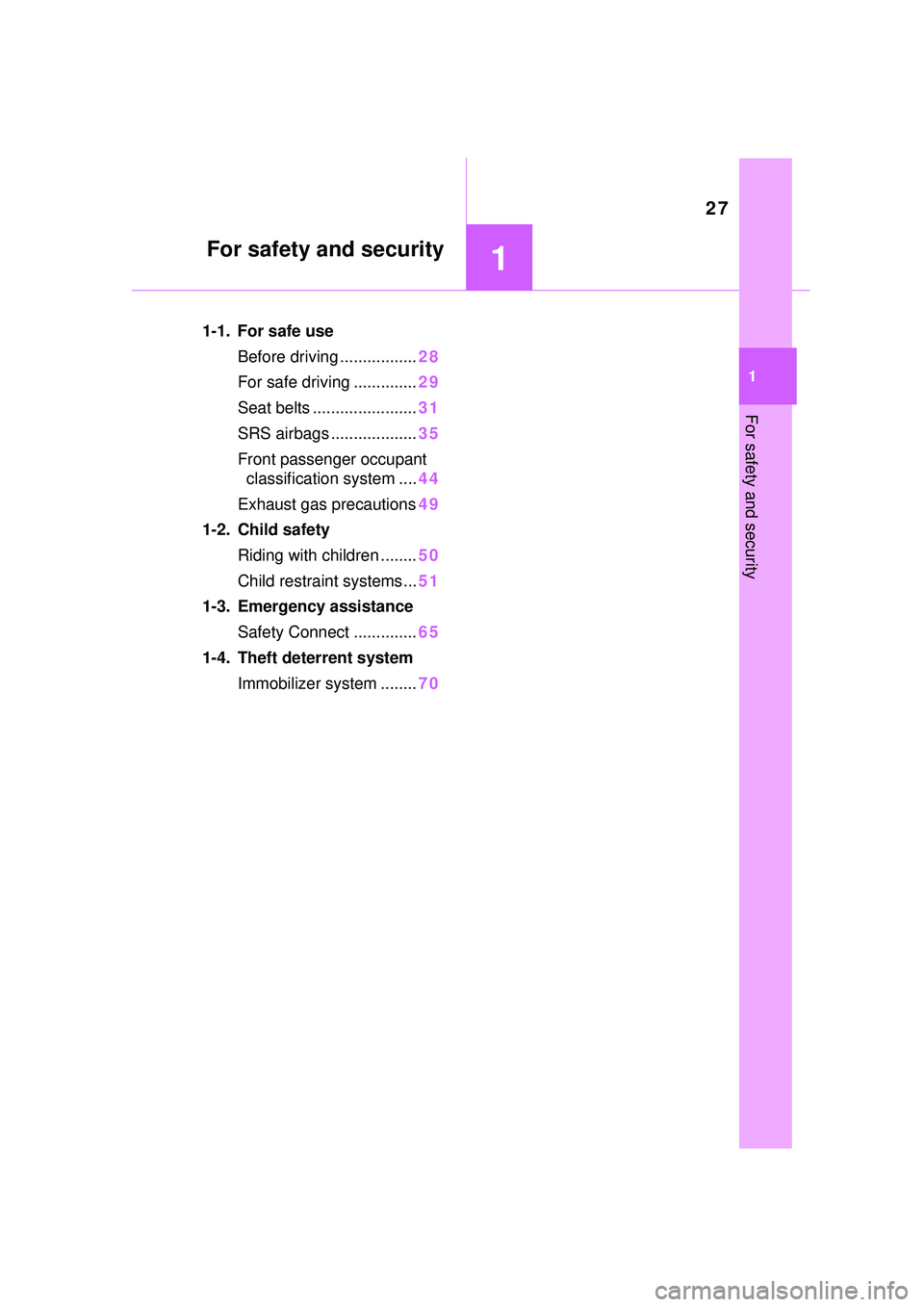

27
1
1
For safety and security
For safety and security
1-1. For safe useBefore driving ................. 28
For safe driving .............. 29
Seat belts ....................... 31
SRS airbags ................... 35
Front passenger occupant classification system .... 44
Exhaust gas precautions 49
1-2. Child safety Riding with children ........ 50
Child restraint systems... 51
1-3. Emergency assistance Safety Connect .............. 65
1-4. Theft deterrent system Immobilizer sy stem ........70

281-1. For safe use
1-1.For safe use
Use only floor mats designed
specifically for vehicles of the
same model and model year as
your vehicle. Fix them securely
in place onto the carpet.
1Insert the retaining hooks
(clips) into the floor mat eye-
lets.
2 Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
Always align the marks . The shape of the retaining hooks
(clips) may differ from that shown in
the illustration.
Before driving
Observe the following
before starting off in the
vehicle to ensure safety of
driving.
Installing floor mats
A
WARNING
Observe the following precau-
tions.
Failure to do so may cause the
driver’s floor mat to slip, possibly
interfering with the pedals while
driving. An unexpectedly high
speed may result or it may
become difficult to stop the vehi-
cle. This could lead to an acci-
dent, resulting in death or serious
injury.
■When installing the driver’s
floor mat
●Do not use floor mats designed
for other models or different
model year vehicles, even if
they are Toyota Genuine floor
mats.
●Only use floor mats designed
for the driver’s seat.
●Always install the floor mat
securely using the retaining
hooks (clips) provided.
●Do not use two or more floor
mats on top of each other.
●Do not place the floor mat bot-
tom-side up or upside-down.

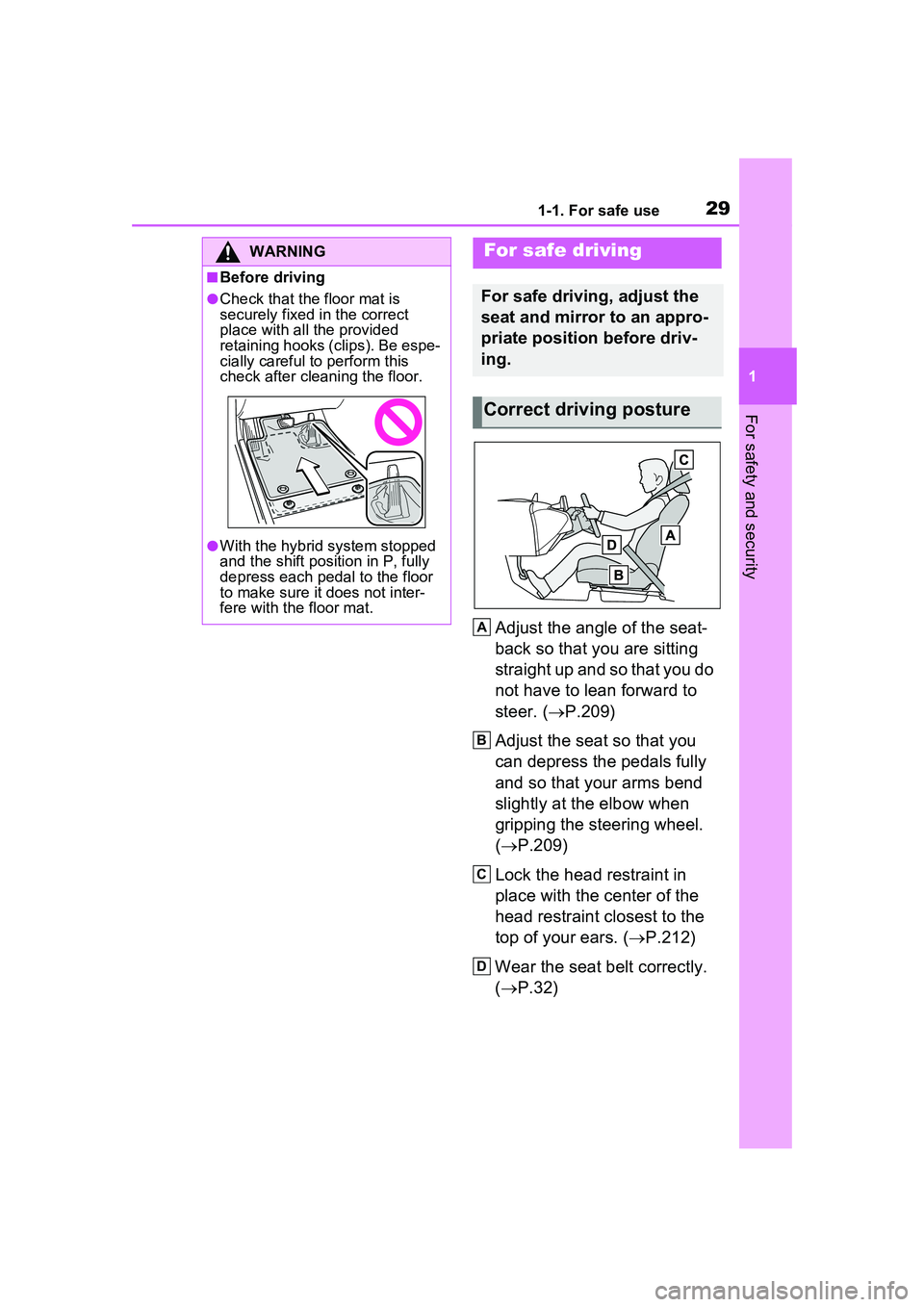

291-1. For safe use
1
For safety and security
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P.209)
Adjust the seat so that you
can depress the pedals fully
and so that your arms bend
slightly at the elbow when
gripping the steering wheel.
( P.209)
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. ( P.212)
Wear the seat belt correctly.
( P.32)
WARNING
■Before driving
●Check that the floor mat is
securely fixed in the correct
place with all the provided
retaining hooks (c lips). Be espe-
cially careful to perform this
check after cleaning the floor.
●With the hybrid system stopped
and the shift position in P, fully
depress each pedal to the floor
to make sure it does not inter-
fere with the floor mat.
For safe driving
For safe driving, adjust the
seat and mirror to an appro-
priate position before driv-
ing.
Correct driving posture
A
B
C
D

301-1. For safe use
Make sure that all occupants are
wearing their seat belts before
driving the vehicle. (P.32)
Use a child restraint system
appropriate for the child until the
child becomes large enough to properly wear the vehicle’s seat
belt. (
P.51)
Make sure that you can see
backward clearly by adjusting
the inside rear view mirror (if
equipped), Digital Rear-view
Mirror (if equipped) and outside
rear view mirrors properly.
( P.216, 217, 225)
WARNING
Observe the following precau-
tions.
Failure to do so may result in
death or serious injury.
●Do not adjust the position of the
driver’s seat while driving.
Doing so could cause the driver
to lose control of the vehicle.
●Do not place a cushion between
the driver or passenger and the
seatback. A cushion may pre-
vent correct posture from being
achieved, and reduce the effec-
tiveness of the seat belt and
head restraint.
●Do not place anything under the
front seats.
Objects placed under the front
seats may become jammed in
the seat tracks and stop the
seat from locking in place. This
may lead to an accident and the
adjustment mechanism may
also be damaged.
●Always observe the legal speed
limit when driving on public
roads.
●When driving over long dis-
tances, take regular breaks
before you start to feel tired.
Also, if you feel tired or sleepy
while driving, do not force your-
self to continue driving and take
a break immediately.
Correct use of the seat
belts
Adjusting the mirrors
