TOYOTA PRIUS V 2012 Owners Manual (in English)

321
3-5. Other interior features
PRIUS v_U (OM47674U)
3
Interior features
■
Jam protection function
● If an object is detected between a panoramic roof shade and the frame
while closing, travel is stopped and the panoramic roof shades open
slightly.
● When the jam protection function has operated, even if the “CLOSE” side
of the switch is pressed again, the shade will not move in the close direc-
tion until the reverse operation has stopped completely.
● Depending on the driving conditions and the surroundings, the pan-
oramic roof shades may collide with something and operate in reverse.
■ Door lock linked automatic close function
When the “POWER” switch is off, the panoramic roof shades will close auto-
matically if the vehicle is locked from the outside or from the inside using the
wireless remote control.
■ If the panoramic roof shades do not close normally
Perform the following operations.
Stop the vehicle in a safe place.
With the panoramic roof shades stopped, push and hold the
“CLOSE” side of the switch for 10 seconds or more (until the pan-
oramic roof shades have closed completely).
If the panoramic roof shades continue to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected
by your Toyota dealer.
■ Customization
The door lock linked automatic close function can be disabled.
(Customizable features P. 528)
STEP 1
STEP 2

322 3-5. Other interior features
PRIUS v_U (OM47674U)
CAUTION
■When closing the panoramic roof shades
Observe the following precautions.
Failing to do so may result in death or serious injury.
■ Jam protection function
● Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the panoramic roof shades fully close.
■ To prevent burns or injuries
Do not touch the gaps between the underside of the roof and the panoramic
roof shades.
Your hand may get caught and you could injure yourself. Also, if the vehicle
is left in direct sunlight for a long time, the underside of the roof could
become very hot and could cause burns.
● Check to make sure that all passengers
do not have any part of their bodies in a
position where they could be caught
when the panoramic roof shades are
being operated.
● Do not allow children to operate the
panoramic roof shades.
Closing the panoramic roof shades on
someone can cause death or serious
injury.

323
3-5. Other interior features
PRIUS v_U (OM47674U)
3
Interior features
NOTICE
■
Panoramic roof
The panoramic roof is made of resin. Follow these precautions to prevent
damage to the roof.
● When cleaning the roof, use a mild soap and a soft cloth or sponge to
remove dirt, then wash clean with plenty of water. ( P. 349)
● When loading luggage onto the roof, make sure to use a roof rack
designed for this vehicle. ( P. 269)

324
3-5. Other interior features
PRIUS v_U (OM47674U)

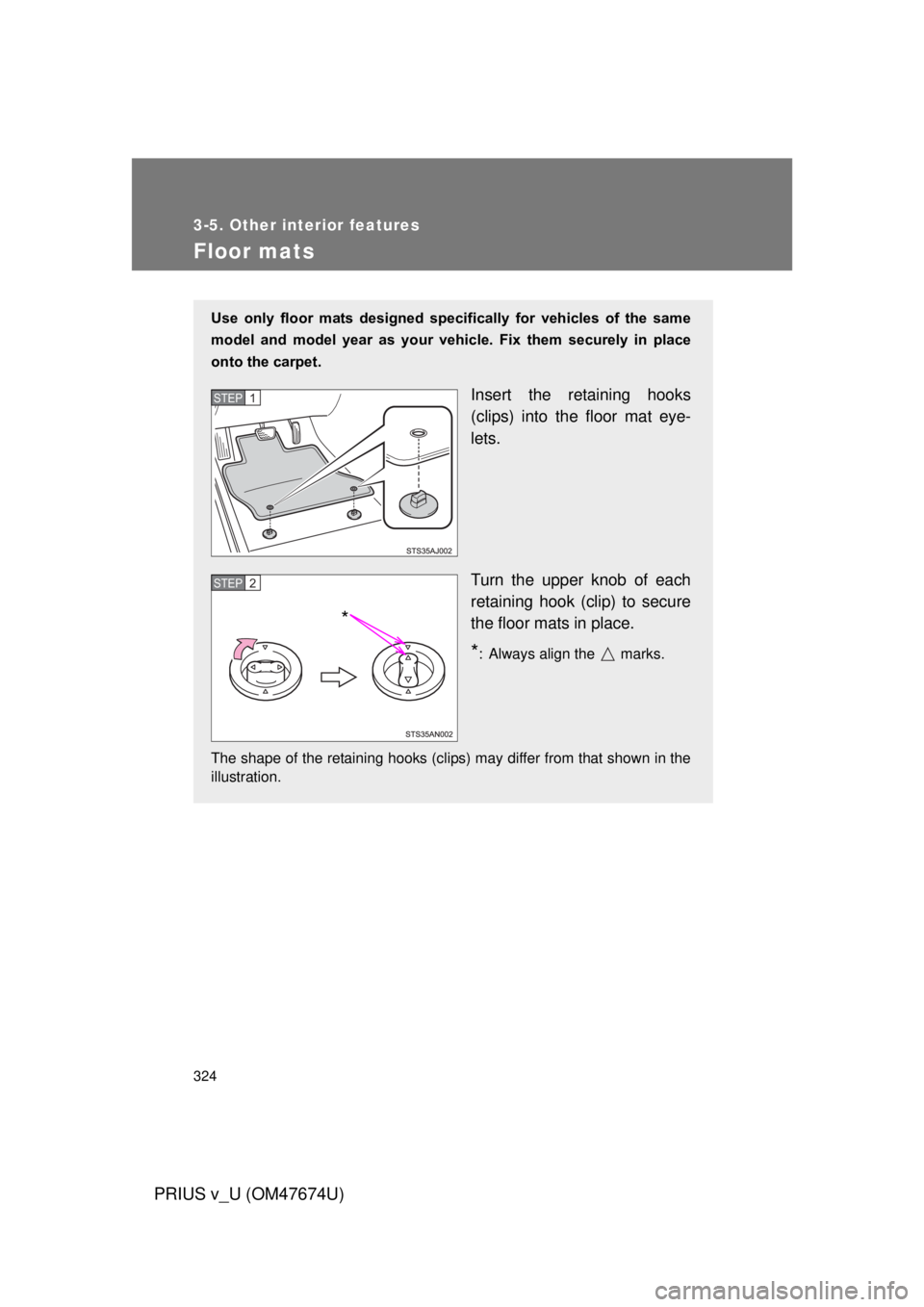

Floor mats
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
STEP 1
STEP 2
*

325
3-5. Other interior features
PRIUS v_U (OM47674U)
3
Interior features
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■
When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the hybrid system stopped and the
shift position in P, fully depress each
pedal to the floor to make sure it does
not interfere with the floor mat.

326
3-5. Other interior features
PRIUS v_U (OM47674U)

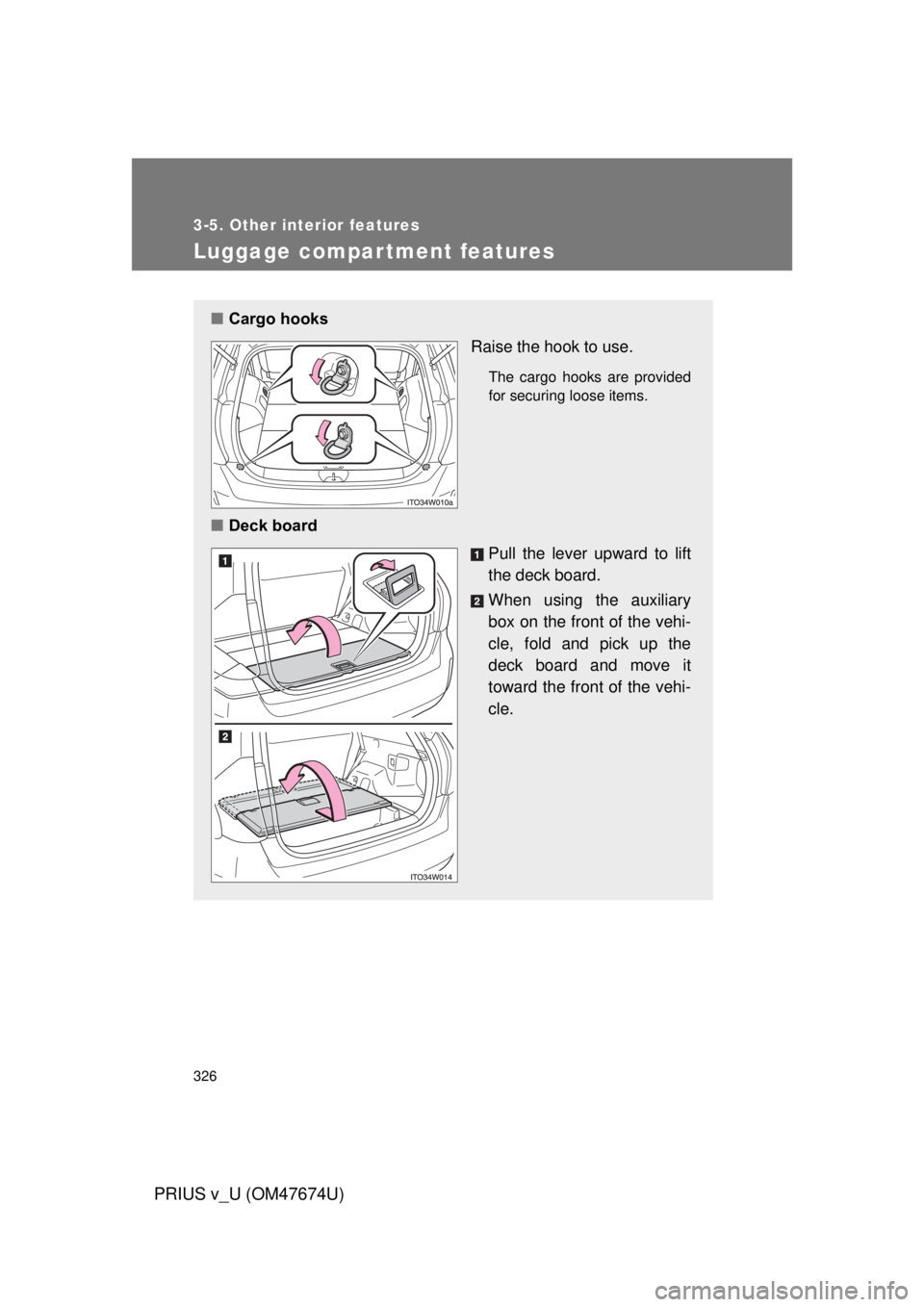

Luggage compartment features
■Cargo hooks
Raise the hook to use.
The cargo hooks are provided
for securing loose items.
■Deck board
Pull the lever upward to lift
the deck board.
When using the auxiliary
box on the front of the vehi-
cle, fold and pick up the
deck board and move it
toward the front of the vehi-
cle.

327
3-5. Other interior features
PRIUS v_U (OM47674U)
3
Interior features
■
Auxiliary boxes
Center Lift the center deck board.
Side Lift the center deck board and
then lift the side deck boards.
Lift the side deck board from
the front side of the vehicle to
prevent hitting the cargo hook.
Behind the rear seatsUmbrellas (less than 30 in.
[77 cm] long) can be stored.

328 3-5. Other interior features
PRIUS v_U (OM47674U)
Installing the luggage coverSet the holder of one side into
the installation position, then
install both holders from below
with the cover in its contracted
state.
Reverse the procedure to
remove.
■Luggage cover (if equipped)
Pull out the luggage cover and
secure it to the hook brackets.
Attach the head restraint to
the hooks.

329
3-5. Other interior features
PRIUS v_U (OM47674U)
3
Interior features
Stowing the luggage cover
Lift the center deck board and
remove the side deck boards.
Fold inwards together with the
head restraint installation hooks
and secure. Then, stow in the
auxiliary boxes.
STEP 1
STEP 2
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
■ Caution while driving
Keep the lid of each storage spaces closed while driving. In the event of sud-
den braking or sudden swerving, an accident may occur due to an occupant
being struck by an open auxiliary box or the items stored inside.
■ Caution for the luggage cover
Do not allow children to climb on the luggage cover. Climbing on the luggage
cover could result in damage to the luggage cover, possibly causing death or
serious injury to the child.

330
3-5. Other interior features
PRIUS v_U (OM47674U)
Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manufac-
tured under license from HomeLink®.
Programming the HomeLink® (for U.S.A. owners)
The HomeLink
® compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Buttons
Indicator light
: If equipped
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, hom e lighting systems, secu-
rity systems, and other devices.
