291
3-1. Using the air conditioning system and defogger
PRIUS v_U (OM47674U)
3
Interior features
Using the steering wheel climate remote control switches
Adjusting the temperature settingPress “ ” on to increase the temperature and “ ” to decrease
the temperature.
Changing the outside air or recirculated air modes
Press .
The mode switches between outside air mode and recirculated air mode
each time the switch is pressed.
Some air conditioning features can be controlled using the switches
on the steering wheel.
Temperature control
Outside air or recirculated
air mode

292 3-1. Using the air conditioning system and defogger
PRIUS v_U (OM47674U)
■When changing the temperature set ting using the steering switches
The temperature will change, however the position of the selection frame on
the air conditioning display will remain the same.
CAUTION
■ To reduce the risk of an accident
Exercise care when operating the air conditioning switches on the steering
wheel.

293
3-1. Using the air conditioning system and defogger
PRIUS v_U (OM47674U)
3
Interior features
Rear window and outside rear view mirror defogger switch
■Operating conditions
The “POWER” switch is in ON mode.
■ The outside rear view mirror defoggers
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.
NOTICE
■To prevent 12-volt battery discharge
Do not leave the rear window defogger on longer than necessary when the
hybrid system is off.
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Turns the rear window and
outside rear view mirror defog-
gers on/off
The defoggers will automati-
cally turn off after approxi-
mately 15 minutes.

294
PRIUS v_U (OM47674U)
3-2. Using the audio system

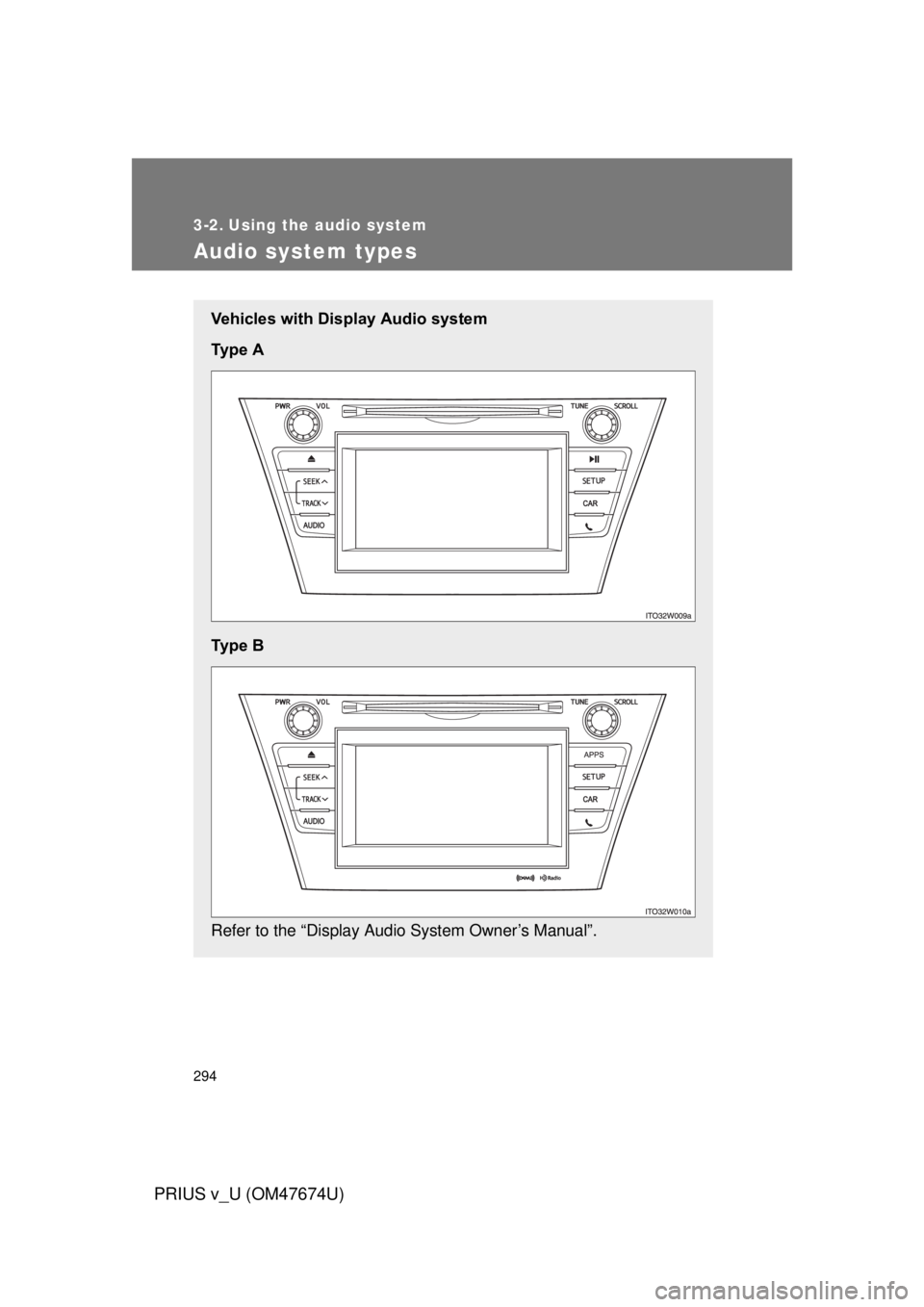

Audio system types
Vehicles with Display Audio system
Ty p e A
Ty p e B
Refer to the “Display Audio System Owner’s Manual”.

295
3-2. Using the audio system
PRIUS v_U (OM47674U)
3
Interior features

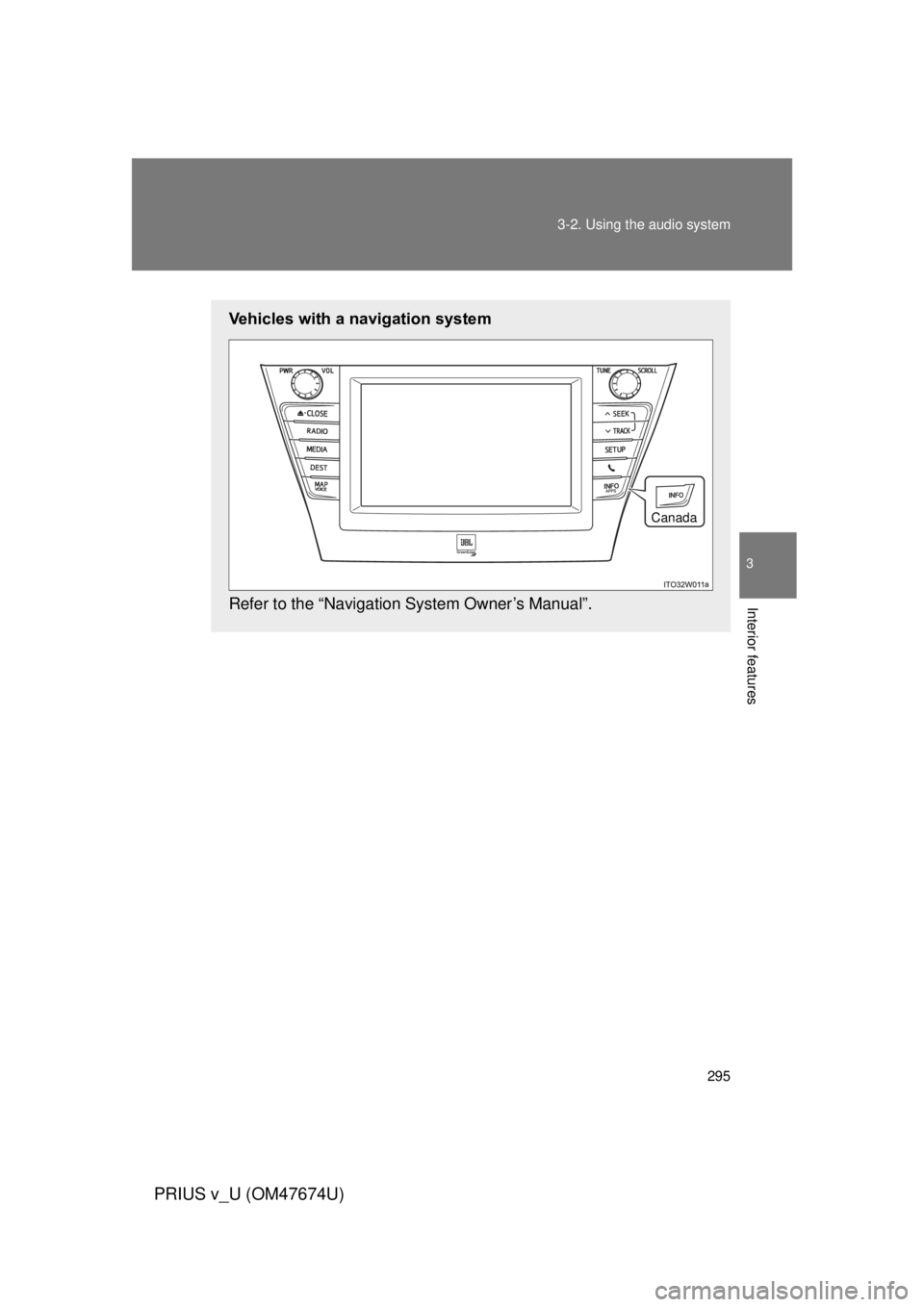

Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Canada

296 3-2. Using the audio system
PRIUS v_U (OM47674U)
■About Bluetooth® (vehicles with Display Audio system)
CAUTION
■Certification for the Display Audio system
● Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the
user’s authority to operate this device.
● Laser products
• Do not take this unit apart or attempt to make any changes by yourself.
This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs. The laser is carefully shielded so
that its rays remain inside the cabinet. Therefore, never try to disas-
semble the player or alter any of its parts since you may be exposed to
laser rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation expo-
sure.
Bluetooth is a registered trade mark of
Bluetooth SIG. Inc.
The Bluetooth wordmark and logo are
owned by Bluetooth SIG. and permission
has been granted to use the trademark of
the licensee Panasonic Corporation.
Other trademarks and trade names are
owned by various different owners.

297
3-2. Using the audio system
PRIUS v_U (OM47674U)
3
Interior features
CAUTION
Properly shielded a grounded cables and connectors must be used for con-
nection to host computer and / or peripherals in order to meet FCC emission
limits.
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
This device complies with Part 15 of FCC Rules and Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undes-
ired operation of this device.
Le présent appareil est conforme aux la
partie 15 des règles de la FCC et
CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes : (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil
doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
This equipment complies with FCC/IC radiation exposure limits set forth for
an uncontrolled environment and meets the FCC radio frequency (RF) Expo-
sure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio fre-
quency (RF) Exposure rules. This equipment has very low levels of RF
energy that it deemed to comply without maximum permissive exposure
evaluation (MPE).
But it is desirable that it should be installed and operated keeping the radia-
tor at least 20 cm or more away from person’s body (excluding extremities:
hands, wrists, feet and ankles).
Cet équipement est conforme aux limites d’exposition aux rayonnements
énoncées pour un environnement non contrôlé et respecte les règles les
radioélectriques (RF) de la FCC lignes directices d’exposition dans le Sup-
plément C à OET65 et d’exposition aux fréquences radioélectriques (RF)
CNR-102 de l’IC. Cet équipement émet une énergie RF très \
faible qui est
considérée conforme sans évaluation de l’exposition maximale autorisée.
Cependant, cet équipement doit être installé et utilisé en gardant une dis-
tance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception
des extrémités : mains, poignets, pieds et chivilles).

298 3-2. Using the audio system
PRIUS v_U (OM47674U)
CAUTION
Under Industry Canada regulations, this radio transmitter may only operate
using an antenna of a type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential radio interference to
other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more than that neces-
sary for successful communication.
Conformément à la réglementation d’Industrie Canada, le présent émetteur
radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou
inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de
réduire les risques de brouillage radioélectrique à l’intention des autres utili-
sateurs, il faut choisir le type d’antenne et son gain de sorte que la puis-
sance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité
nécessaire à l’établissement d’une communication satisfaisante.

299
PRIUS v_U (OM47674U)
3
Interior features
3-3. Using the interior lights

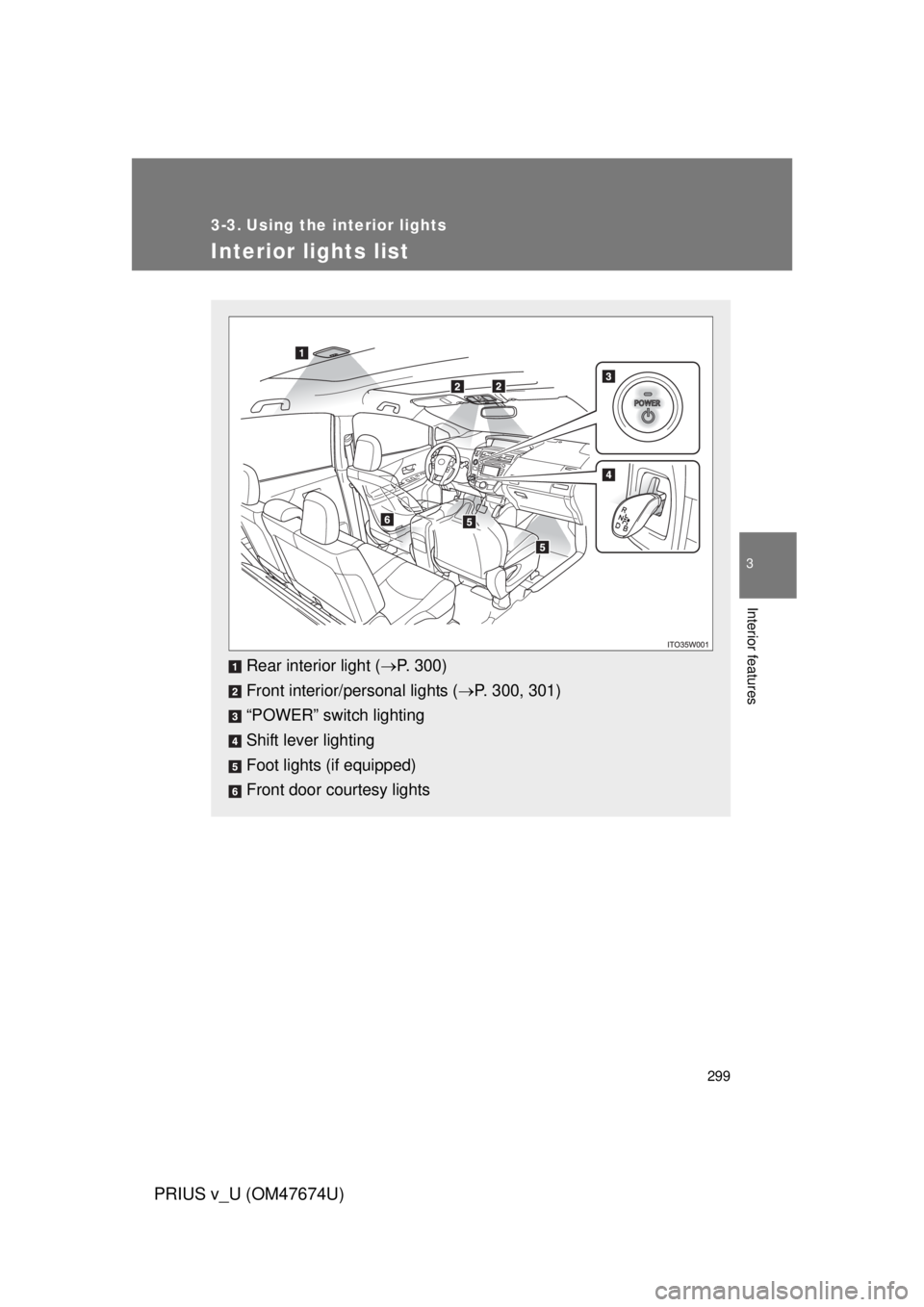

Interior lights list
Rear interior light (P. 300)
Front interior/personal lights ( P. 300, 301)
“POWER” switch lighting
Shift lever lighting
Foot lights (if equipped)
Front door courtesy lights

300 3-3. Using the interior lights
PRIUS v_U (OM47674U)
Interior lightsFront (vehicles without panoramic roof) Turns the lights off
Turns the door position on
Turns the lights on
Front (vehicles with panoramic roof) Turns the lights off
Turns the door position on
Turns the lights on
Rear The light will turn on/off in con-
junction with the front interior
light
Turns the light on
Interior lights
