TOYOTA PRIUS V 2014 ZVW40 / 1.G Owners Manual

421
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47840U_(U)
4
Maintenance and care
■
Rear bulb locations
Rear turn signal light
Back-up light License plate lights

422 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47840U_(U)

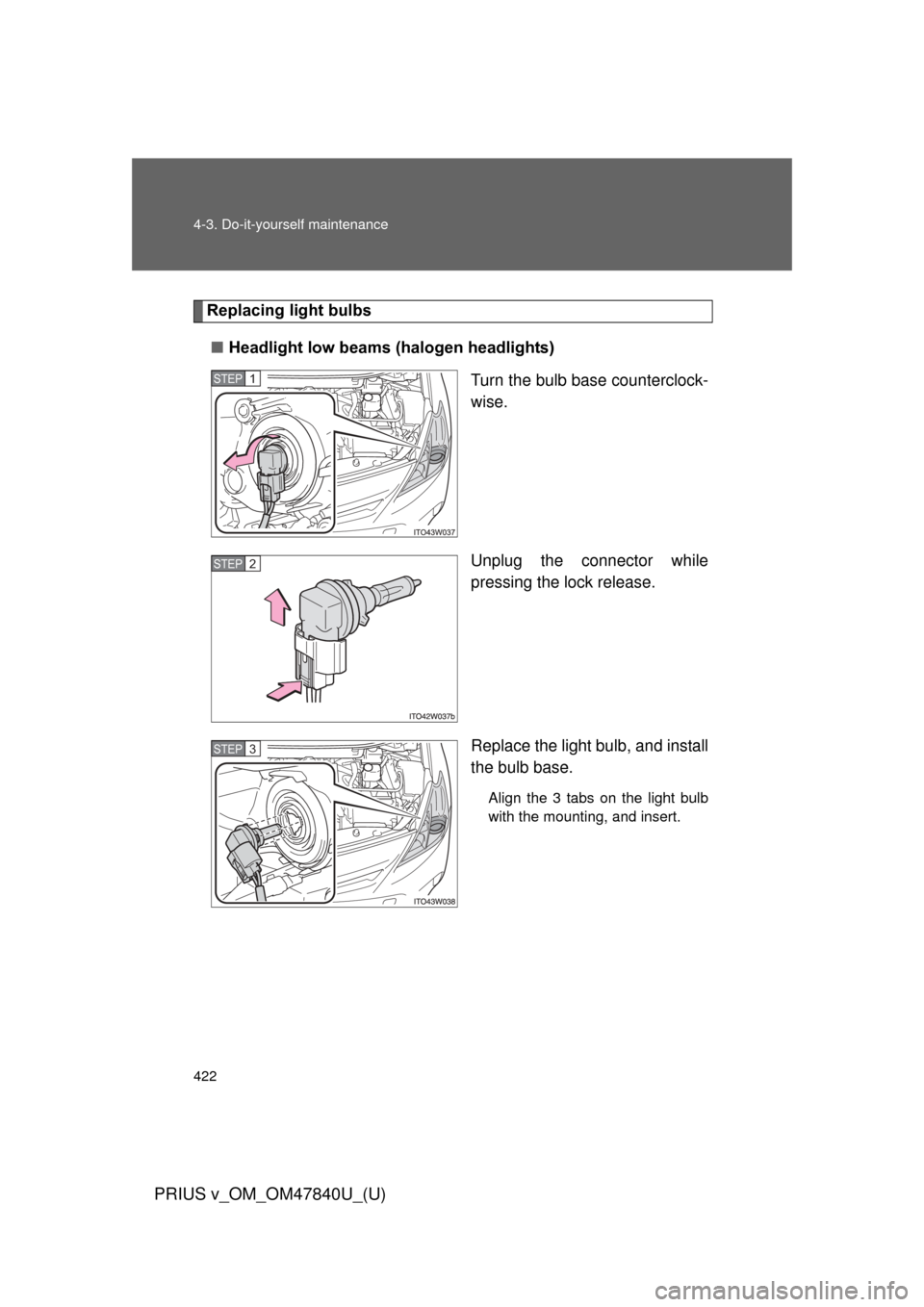

Replacing light bulbs■ Headlight low beams (halogen headlights)
Turn the bulb base counterclock-
wise.
Unplug the connector while
pressing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
STEP 1
STEP 2
STEP 3

423
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47840U_(U)
4
Maintenance and care

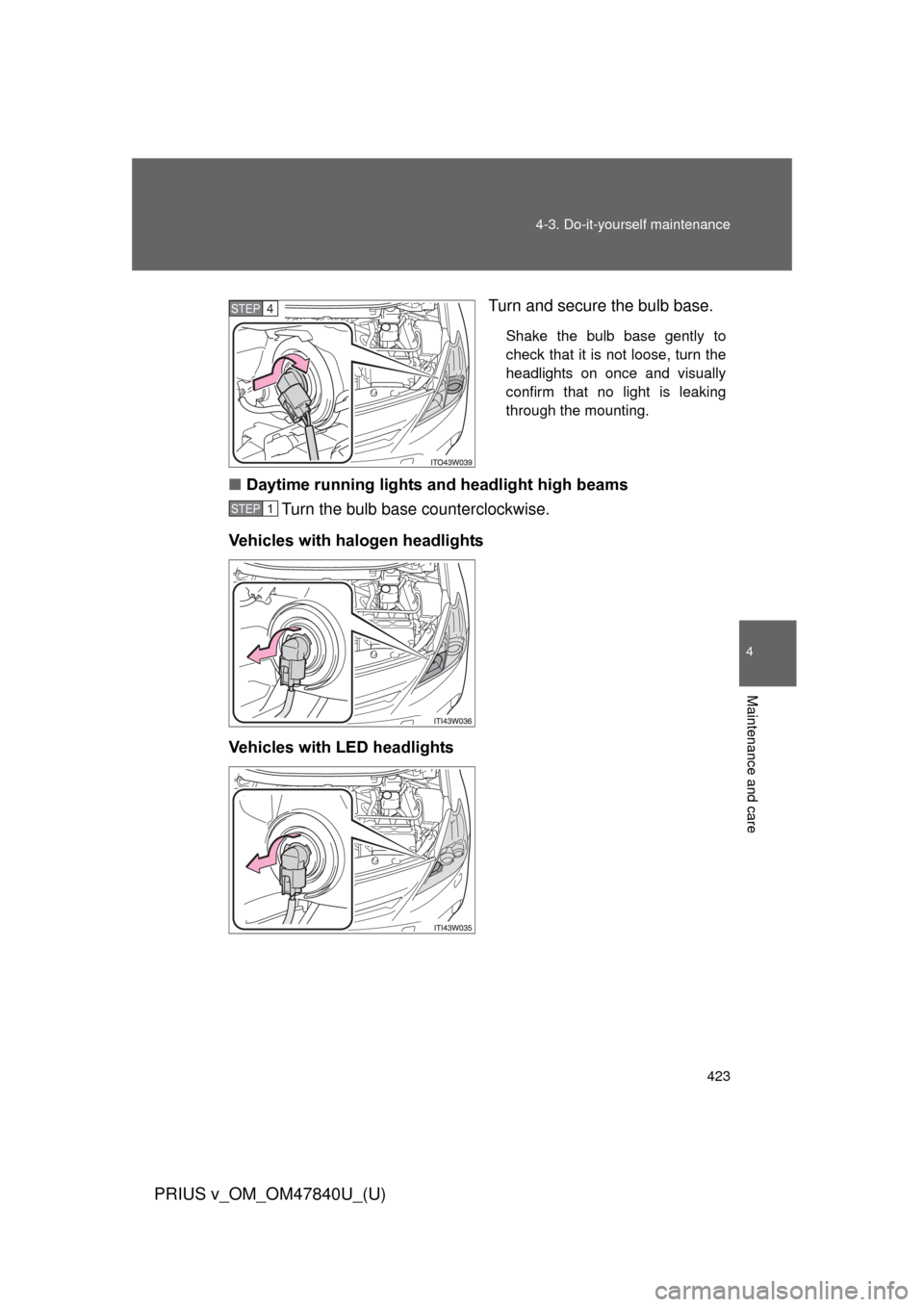

Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
■
Daytime running lights and headlight high beams
Turn the bulb base counterclockwise.
Vehicles with halogen headlights
Vehicles with LED headlights
STEP 4
STEP 1

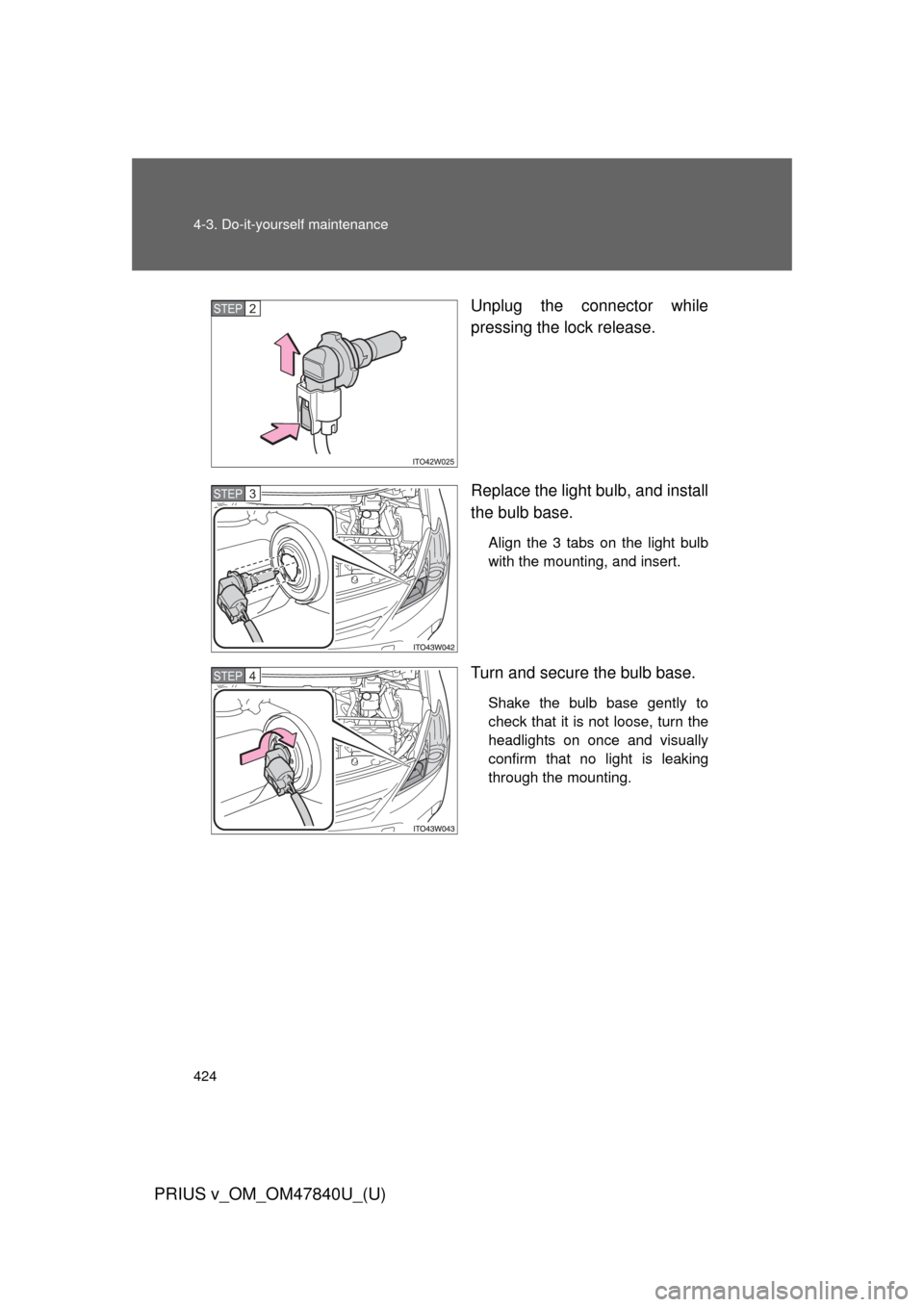

424 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47840U_(U)
Unplug the connector while
pressing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
STEP 2
STEP 3
STEP 4

425
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47840U_(U)
4
Maintenance and care
■

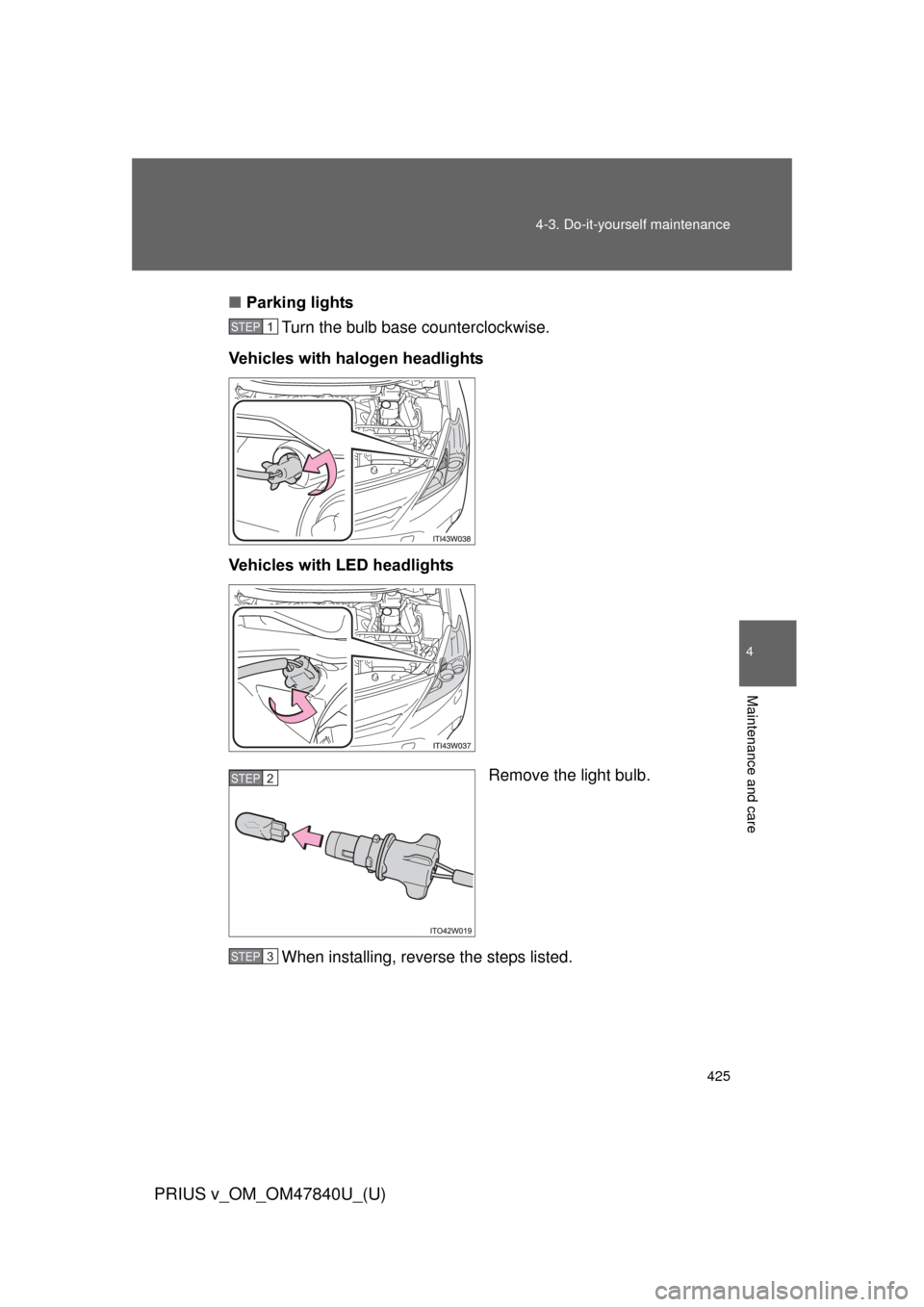

Parking lights
Turn the bulb base counterclockwise.
Vehicles with halogen headlights
Vehicles with LED headlights
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3

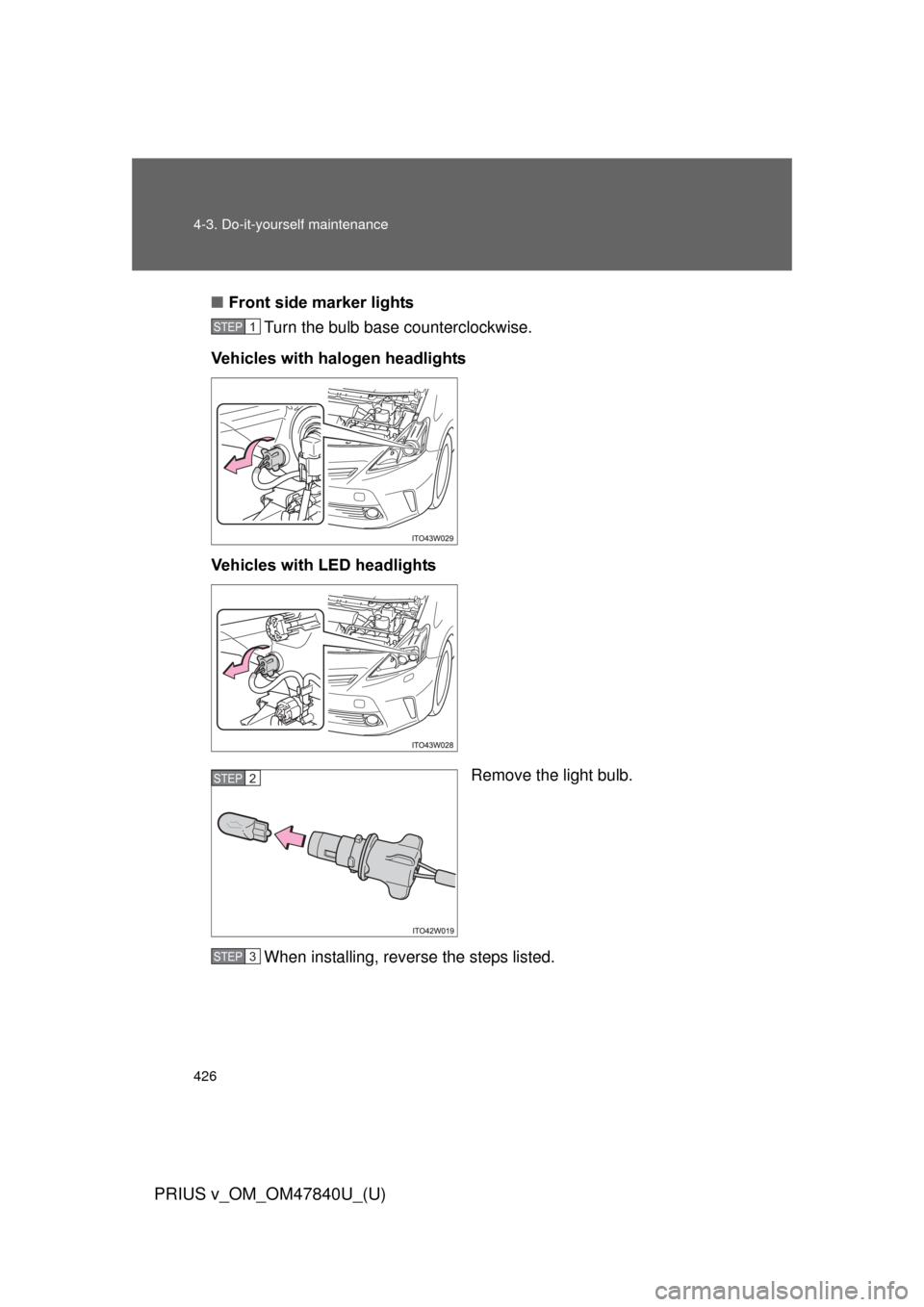

426 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47840U_(U)
■Front side marker lights
Turn the bulb base counterclockwise.
Vehicles with halogen headlights
Vehicles with LED headlights
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3

427
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47840U_(U)
4
Maintenance and care
■

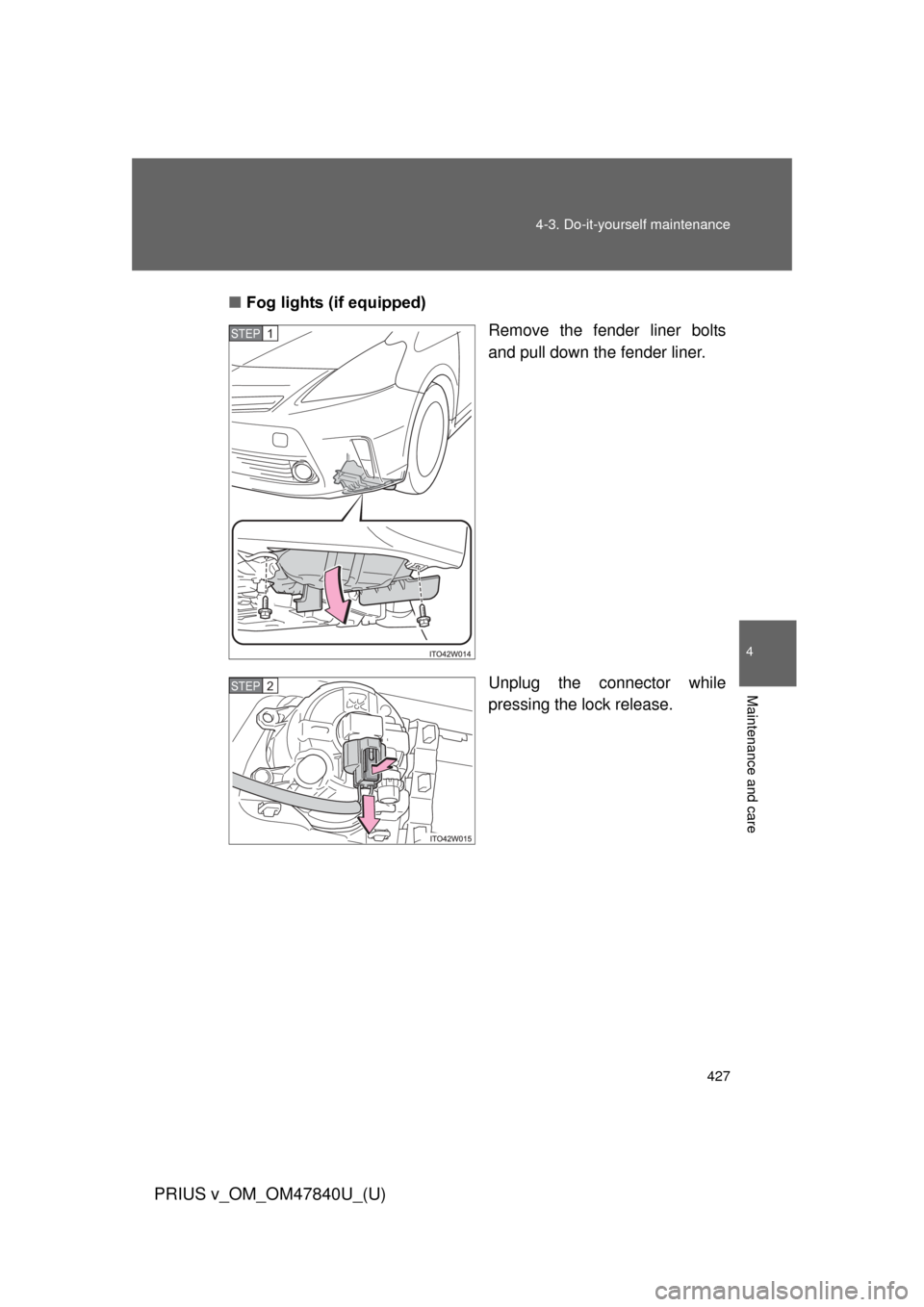

Fog lights (if equipped)
Remove the fender liner bolts
and pull down the fender liner.
Unplug the connector while
pressing the lock release.
STEP 1
STEP 2

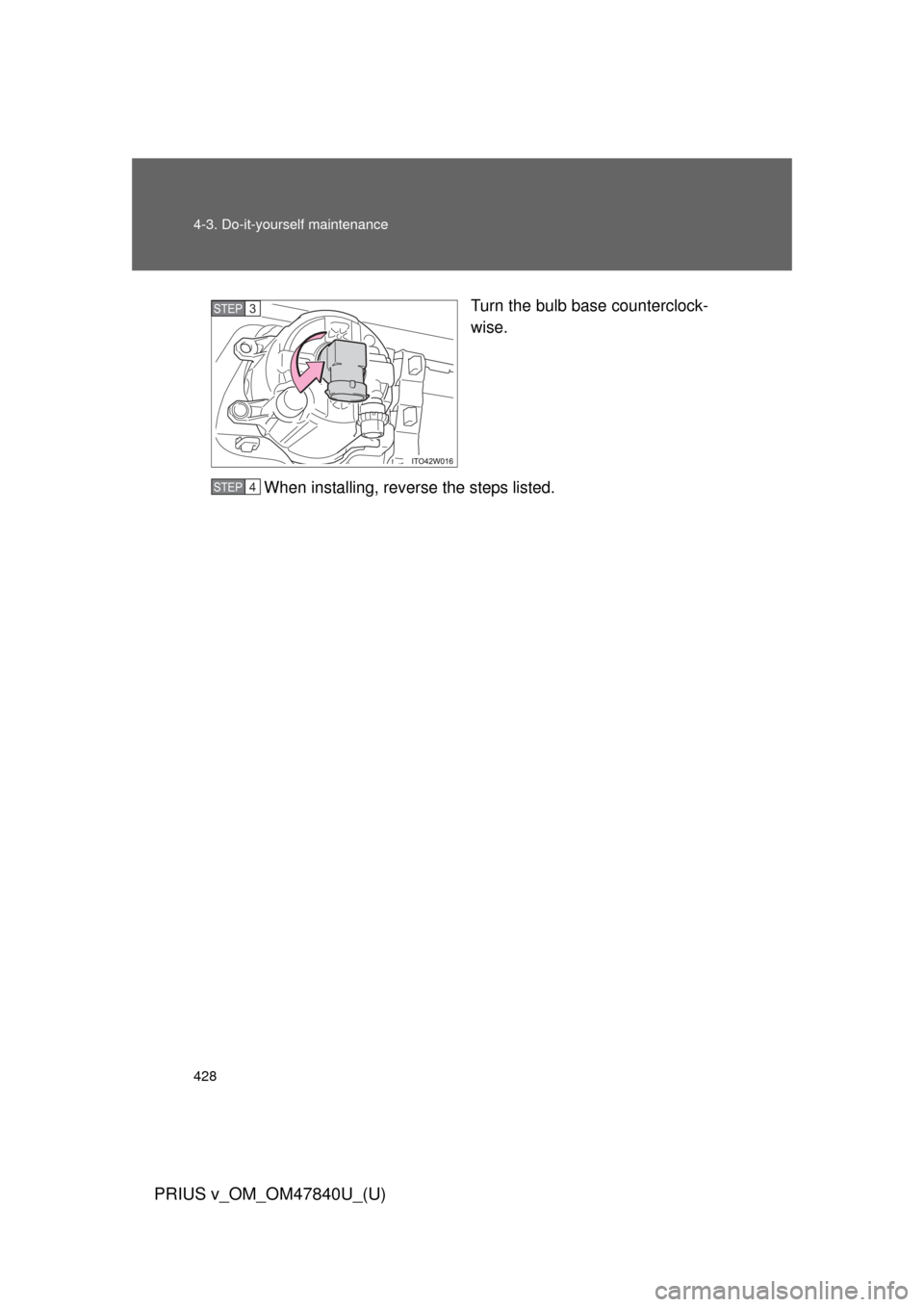

428 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47840U_(U)
Turn the bulb base counterclock-
wise.
When installing, reverse the steps listed.STEP 3
STEP 4

429
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47840U_(U)
4
Maintenance and care
■

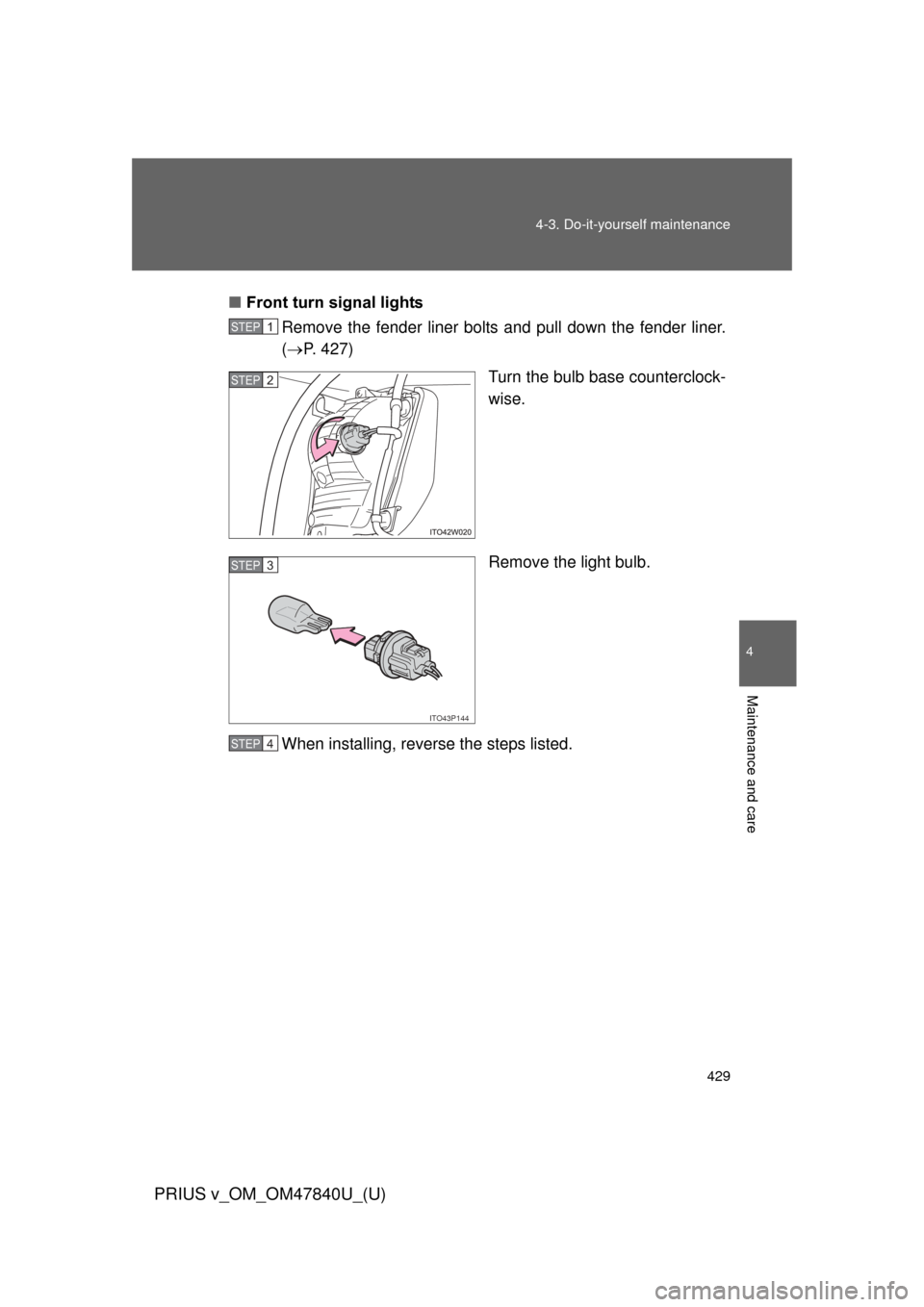

Front turn signal lights
Remove the fender liner bolts and pull down the fender liner.
( P. 427)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
ITO43P144
STEP 3
STEP 4

430 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47840U_(U)

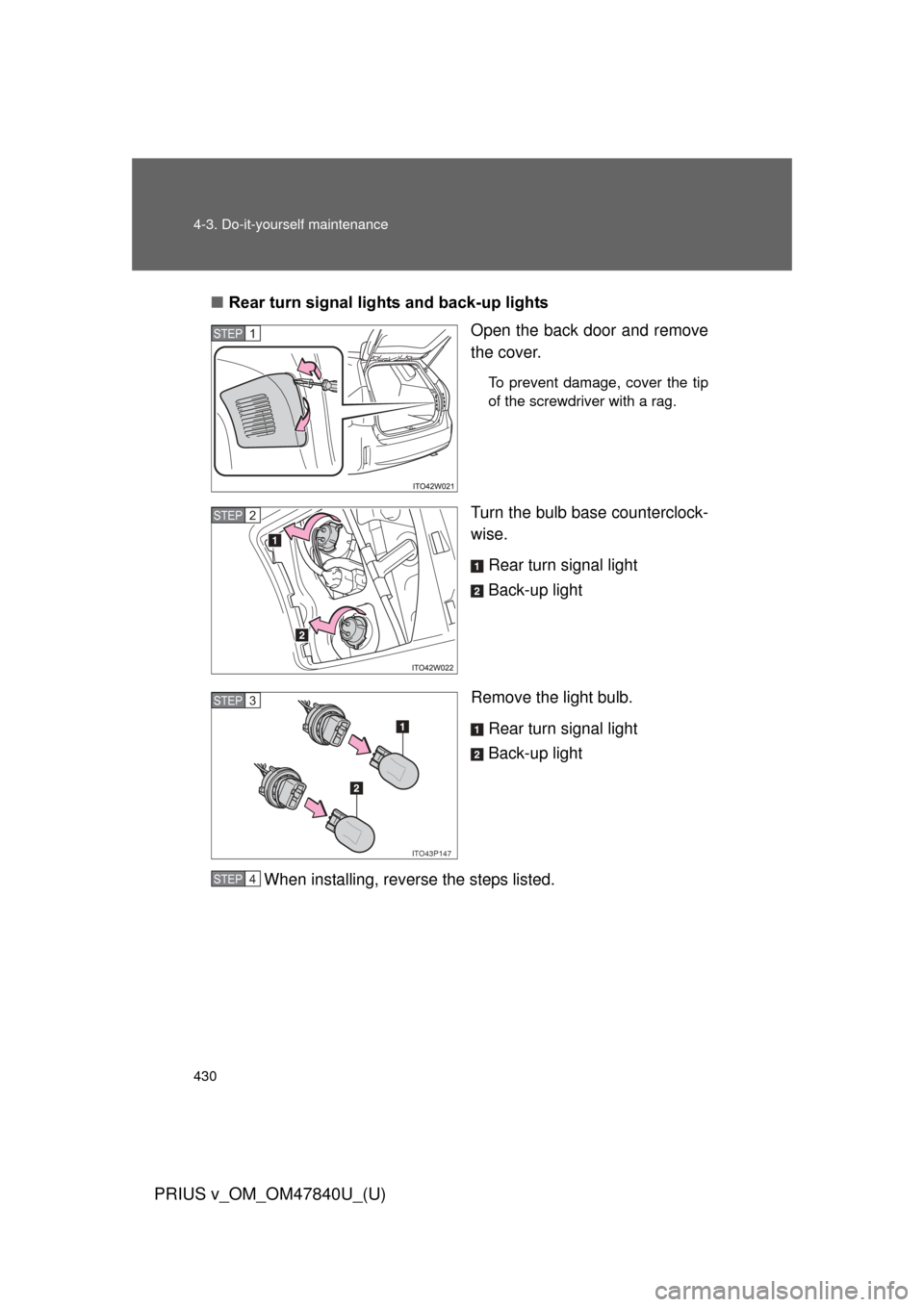

■Rear turn signal lights and back-up lights
Open the back door and remove
the cover.
To prevent damage, cover the tip
of the screwdriver with a rag.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Back-up light
Remove the light bulb. Rear turn signal light
Back-up light
When installing, reverse the steps listed.
STEP 1
STEP 2
ITO43P147
STEP 3
STEP 4
