immobilizer TOYOTA PRIUS V 2014 ZVW40 / 1.G Owners Manual

TABLE OF CONTENTSIndex
2
PRIUS v_OM_OM47840U_(U)
1-1. Hybrid systemHybrid system features ........ 30
Hybrid system precautions ... 36
Energy monitor/consumption screen ................................ 42
Hybrid vehicle driving tips .... 52
1-2. Key information Keys ..................................... 54
1-3. Opening, closing and locking the doors
Smart key system................. 57
Wireless remote control ....... 72
Side doors ............................ 74
Back door ............................. 79
1-4. Adjustable components (seats, mirrors, steering
wheel)
Front seats ........................... 84
Rear seats ............................ 88
Head restraints ..................... 93
Seat belts ............................. 95
Steering wheel ................... 107
Inside rear view mirror........ 108
Outside rear view mirrors ... 110 1-5. Opening and closing
the windows
Power windows................... 112
1-6. Refueling Opening the fuel tank cap .................................... 115
1-7. Theft deterrent system Immobilizer system ............. 119
1-8. Safety information Correct driving posture ....... 122
SRS airbags ....................... 124
Front passenger occupant classification system ......... 138
Child restraint systems ....... 144
Installing child restraints ..... 149

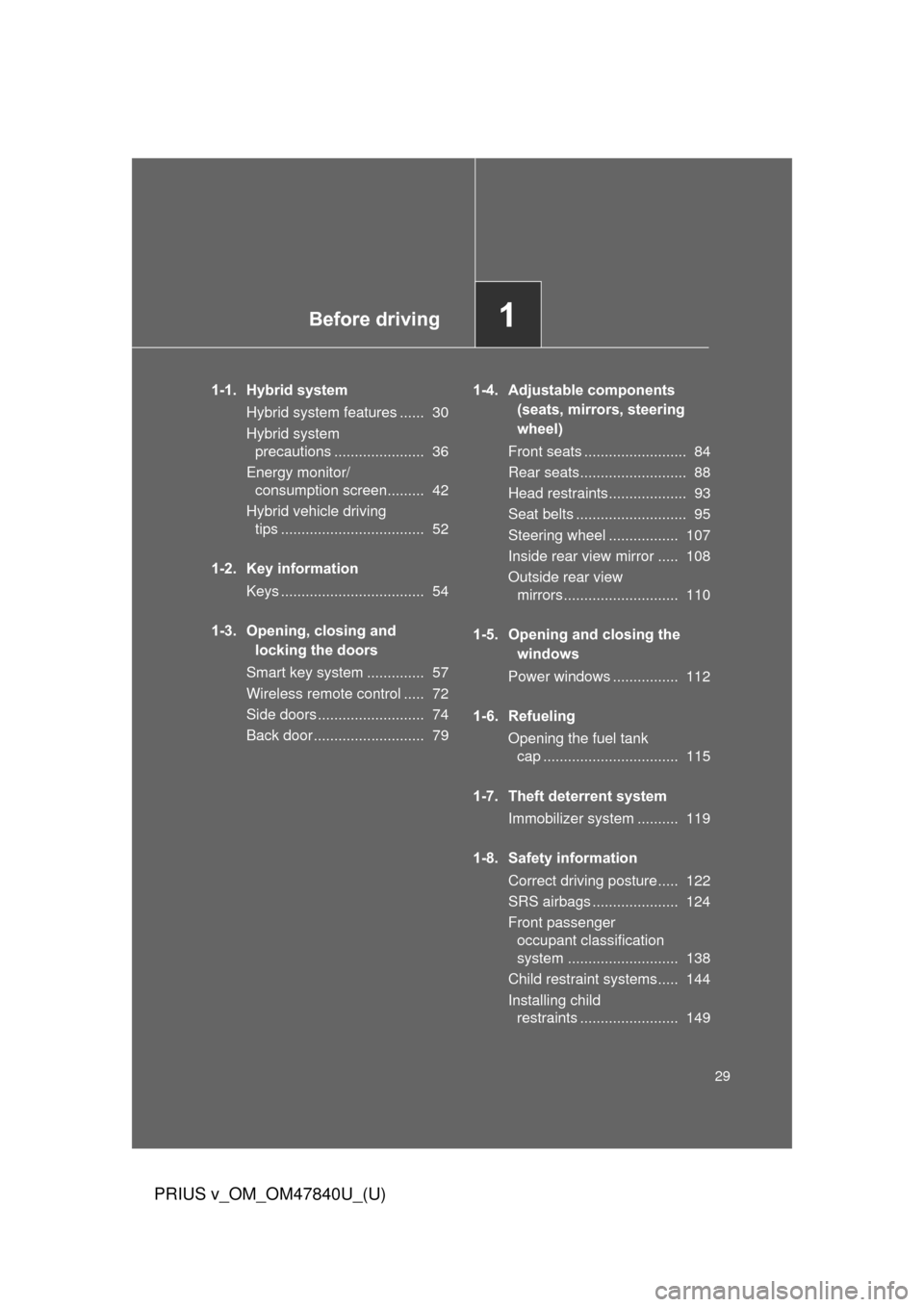

1Before driving

Before driving1
29
PRIUS v_OM_OM47840U_(U)
1-1. Hybrid systemHybrid system features ...... 30
Hybrid system precautions ...................... 36
Energy monitor/ consumption screen......... 42
Hybrid vehicle driving tips ................................... 52
1-2. Key information Keys ................................... 54
1-3. Opening, closing and locking the doors
Smart key system .............. 57
Wireless remote control ..... 72
Side doors .......................... 74
Back door ........................... 79 1-4. Adjustable components
(seats, mirrors, steering
wheel)
Front seats ......................... 84
Rear seats.......................... 88
Head restraints................... 93
Seat belts ........................... 95
Steering wheel ................. 107
Inside rear view mirror ..... 108
Outside rear view mirrors ............................ 110
1-5. Opening and closing the windows
Power windows ................ 112
1-6. Refueling Opening the fuel tank cap ................................. 115
1-7. Theft deterrent system Immobilizer system .......... 119
1-8. Safety information Correct driving posture..... 122
SRS airbags ..................... 124
Front passenger occupant classification
system ........................... 138
Child restraint systems..... 144
Installing child restraints ........................ 149

65
1-3. Opening, closing and locking the doors
1
Before driving
PRIUS v_OM_OM47840U_(U)
■
Conditions aff ecting operation
The smart key system, wireless remote control and immobilizer system use
weak radio waves. In the following situations, the communication between
the electronic key and the vehicle may be affected, preventing the smart key
system, wireless remote control and immobilizer system from operating
properly. (Ways of coping: P. 479)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
● When carrying a portable radio, ce llular phone, cordless phone or other
wireless communication devices
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless key (that emit radio waves) is being used nearby
● When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio
waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to
the rear window

119
1
Before driving
PRIUS v_OM_OM47840U_(U)
1-7. Theft deterrent system
Immobilizer system
■System maintenance
The vehicle has a maintenance-free type immobilizer system.
■ Conditions aff ecting operation
Depending on the surrounding environment and conditions, the immobilizer
system may not operate properly. This may prevent the hybrid system from
starting. ( P. 65)
The vehicle’s keys have built-in tr ansponder chips that prevent the
hybrid system from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the “POWER” switch has been
turned off to indicate that the
system is operating.
The indicator light stops flash-
ing after the “POWER” switch
has been turned to ACCES-
SORY or ON mode to indicate
that the system has been can-
celed.

120 1-7. Theft deterrent system
PRIUS v_OM_OM47840U_(U)
■Certifications for the immobilizer system
For vehicles sold in the U.S.A.
FCC ID: NI4TMIMB-1
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
This device complies with Industry Canada licence-exempt RSS stan-
dard(s). Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interfer-
ence, including interference that may cause undesired operation of the
device.

178 2-1. Driving procedures
PRIUS v_OM_OM47840U_(U)
■Auto power off function
If the vehicle is left in ACCESSORY mode for more than 20 minutes or ON
mode (the hybrid system is not operating) for more than an hour with the
shift position in P, the “POWER” switch will automatically turn off. However,
this function cannot entirely prevent the 12-volt battery from discharging. Do
not leave the vehicle with the “POWER” switch in ACCESSORY or ON mode
for long periods of time when the hybrid system is not operating.
■ Sounds and vibrations specific to a hybrid vehicle
P. 3 4
■ Electronic key battery depletion
P. 6 9
■ When the ambient temperature is lo w, such as during winter driving
conditions
The “READY” indicator may flash for a long time when the hybrid system is
starting. Driving will become possible once the “READY” indicator has illumi-
nated. Wait until the “READY” indicator has illuminated.
■ Conditions affecting operation
P. 6 5
■ Notes for the entry function
P. 6 6
■ If the hybrid system does not start
The immobilizer system may not have been deactivated. ( P. 119)

5
When trouble arises
437
5-1. Essential information
PRIUS v_OM_OM47840U_(U)
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your hybrid transmission.
Contact your Toyota dealer before towing.
● The hybrid system is operating but the vehicle will not move.
● The vehicle makes an abnormal sound.
If there is a malfunction in the P position control system, the smart
key system or the immobilizer system , or if the 12-volt battery is dis-
charged, the vehicle cannot be tow ed with the front wheels on the
ground, as the front wheels may be locked. In this case, transport the
vehicle with both front wheels or all four wheels lifted.
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commerci al towing service, using a lift-type
truck or flat bed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.

476

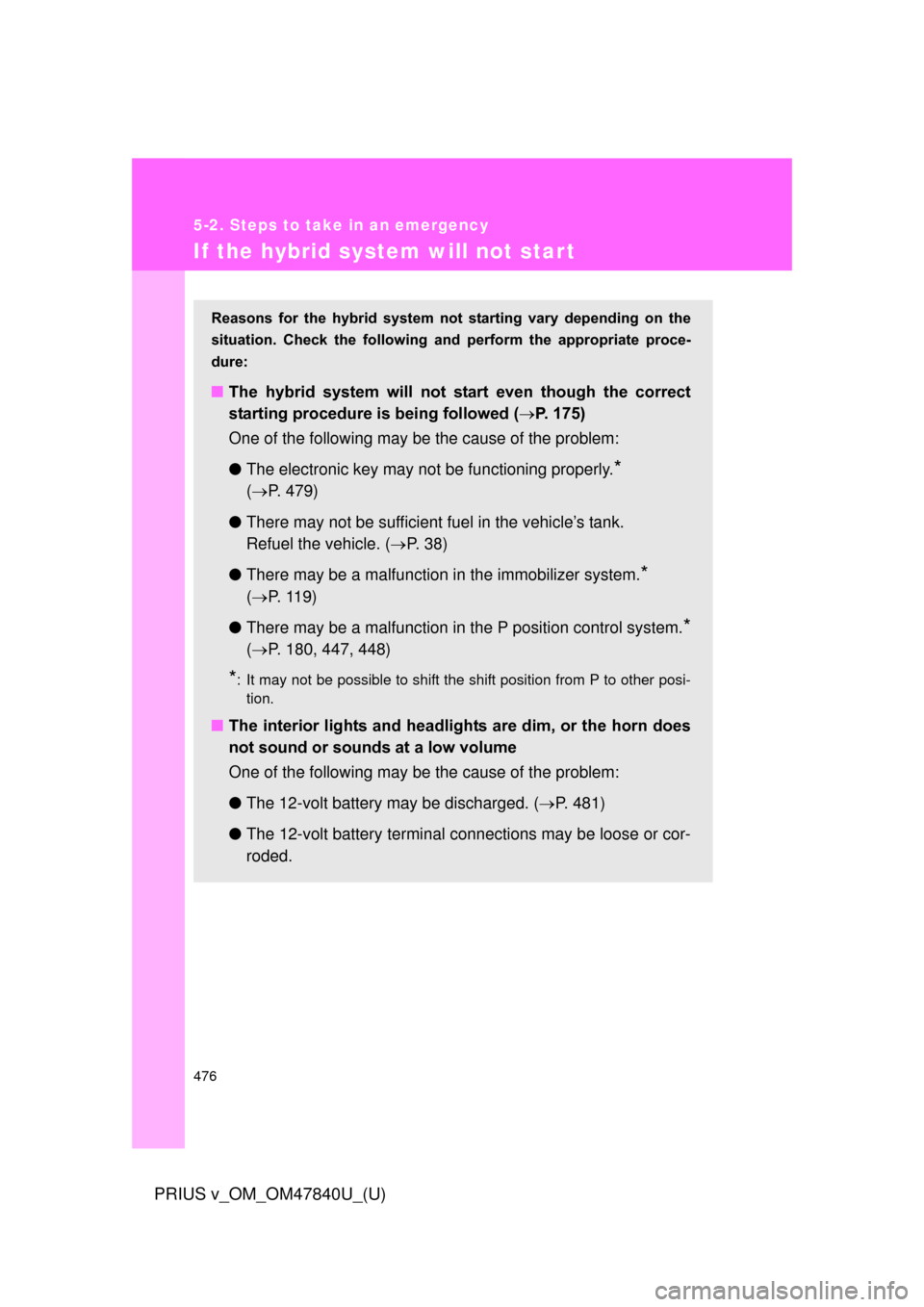

5-2. Steps to take in an emergency
PRIUS v_OM_OM47840U_(U)
If the hybrid system will not start
Reasons for the hybrid system not starting vary depending on the
situation. Check the following a nd perform the appropriate proce-
dure:
■ The hybrid system will not start even though the correct
starting procedure is being followed ( P. 175)
One of the following may be the cause of the problem:
● The electronic key may not be functioning properly.
*
(  P. 479)
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. ( P. 3 8 )
● There may be a malfunction in the immobilizer system.
*
(  P. 1 1 9 )
● There may be a malfunction in the P position control system.
*
( P. 180, 447, 448)
*: It may not be possible to shift the shift position from P to other posi-
tion.
■ The interior lights and headlights are dim, or the horn does
not sound or sounds at a low volume
One of the following may be the cause of the problem:
●The 12-volt battery may be discharged. ( P. 481)
● The 12-volt battery terminal c onnections may be loose or cor-
roded.

556 Alphabetical index
PRIUS v_OM_OM47840U_(U)
Garage door opener................. 331
Gauges ...................................... 197
Glove boxes.............................. 305
Hands-free system (for cellular phone)
*
Hazard lights Switch.................................... 436
Head restraints Adjustment .............................93
Headlight cleaner ..................... 228
Headlights
Cleaner.................................. 228
Replacing light bulbs ............. 420
Switch.................................... 213
Wattage ................................. 506
Heaters
Automatic air conditioning system ................................ 278
Seat heaters .......................... 317
Side mirrors ........................... 293
Hill-start assist control ............ 254
Hood .......................................... 366
Hooks Cargo .................................... 327
Horn........................................... 196
Hybrid system Emergency shut off system .....37
Energy monitor/consumption screen..............42
High voltage components........36
Hybrid System Indicator ........ 203
Ignition switch........................ 175
“POWER” switch ................... 175 I/M test ...................................... 362
Identification
Engine ................................... 498
Vehicle .................................. 497
Ignition switch.......................... 175
Illuminated entry system......... 299
Immobilizer system ................. 119
Indicator lights ......................... 208
Initialization Items to initialize ................... 531
Inside rear view mirror ............ 108
Instrument panel light control .................................... 199
Interior lights Interior lights ......................... 299
Switch ................................... 300
Wattage................................. 506
Jack Positioning a floor jack .......... 369
Vehicle-equipped jack ........... 462
Jack handle .............................. 462
Keyless entry ............................. 72
Keys Electronic key.......................... 54
If the electronic key does
not operate properly ........... 479
If you lose your keys ............. 478
Key number............................. 54
Keyless entry .......................... 72
Keys ........................................ 54
Mechanical key ....................... 54
“POWER” switch ................... 175
Wireless remote
control key ............................ 72
Knee airbag .............................. 124
G
H
I
J
K

560 Alphabetical index
PRIUS v_OM_OM47840U_(U)
Tail lightsSwitch.................................... 213
Talk switch
*
Telephone switch*
Theft deterrent system Immobilizer system ............... 119
Tire inflation pressure ............. 398
Tire information Glossary ................................ 517
Size ....................................... 513
Tire identification number ...... 512
Uniform Tire Quality
Grading ............................... 515
Tires Chains ................................... 272
Checking ............................... 389
Compact spare tire ................462
If you have a flat tire .............. 462
Inflation pressure................... 398
Inflation pressure sensor ....... 390
Information ............................ 510
Replacing .............................. 462
Rotating tires ......................... 389
Size ....................................... 504
Snow tires ............................. 271
Spare tire............................... 462
Tire pressure warning system ........................ 389, 449 Tonneau cover ......................... 329
Tools ......................................... 462
Total load capacity .................. 270
Towing
Dinghy towing ....................... 276
Emergency towing ................ 438
Trailer towing ........................ 275
TRAC ......................................... 250
Traction control ....................... 250
Trailer towing ........................... 275
Transmission Hybrid transmission .............. 185
P position switch ................... 188
Trip information ....................... 201
Trip meter ................................. 198
Turn signal lights Replacing light bulbs ............. 420
Switch ................................... 194
Wattage................................. 506
USB port
*
Vanity lights Vanity lights........................... 313
Wattage................................. 506
Vanity mirrors .......................... 313
Vehicle data recordings ............ 22
Vehicle identification number ................................... 497
Vehicle proximity notification system.................. 32
Vehicle stability control .......... 250
VSC ........................................... 250
T
U
V
