7-3. Do-it-yourself maintenance
■Use a CR1632 lithium battery
●Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to the local laws.
■ If the electronic key battery is depleted
The following symptoms may occur:
●The smart key system and wireless remote control will not function properly.
● The operational range will be reduced.
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

461
PRIUS v_OM_OM47887U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care

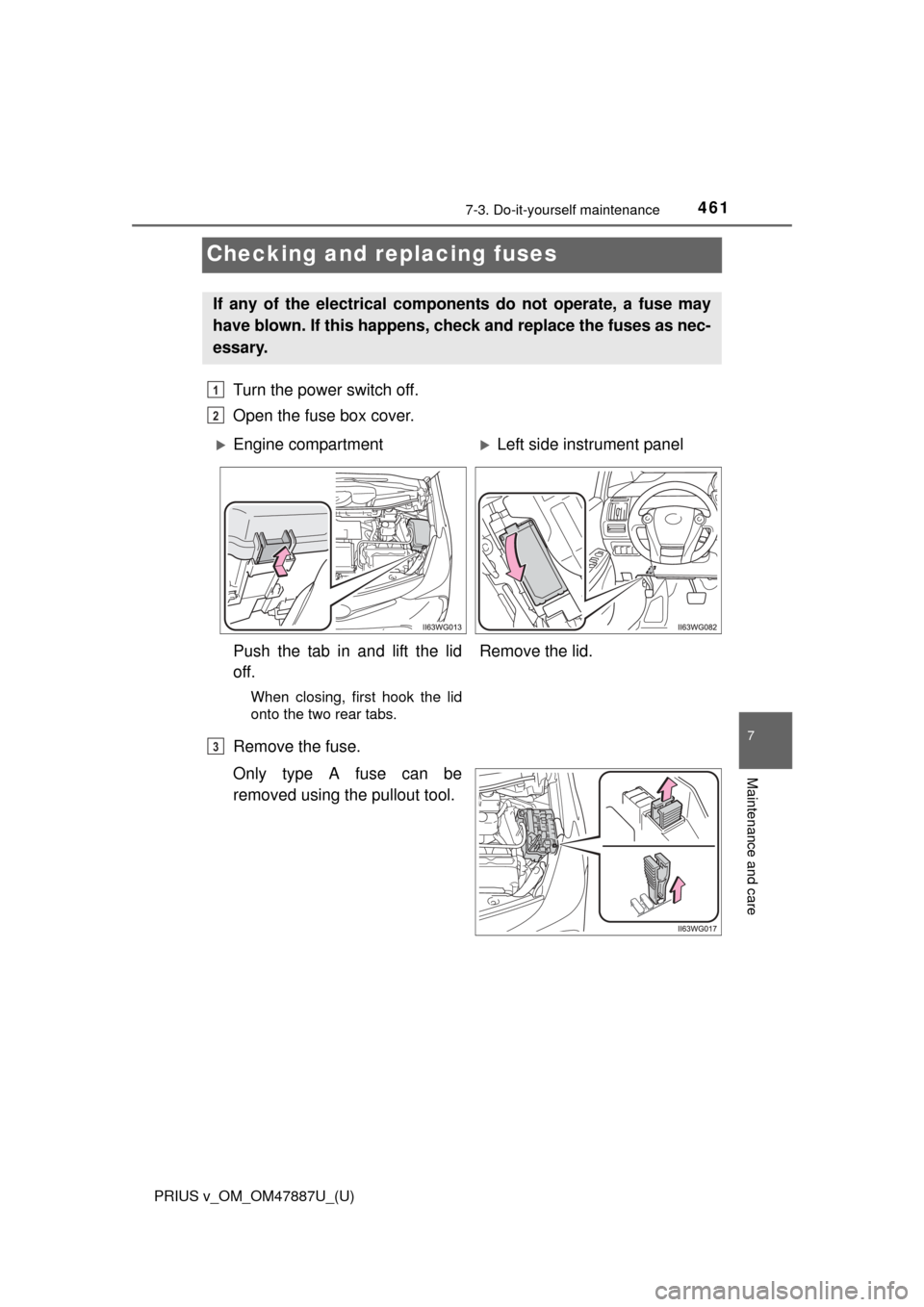

Checking and replacing fuses
Turn the power switch off.
Open the fuse box cover.
Remove the fuse.
Only type A fuse can be
removed using the pullout tool.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Engine compartmentLeft side instrument panel
Push the tab in and lift the lid
off.
When closing, first hook the lid
onto the two rear tabs.
Remove the lid.
3

462
PRIUS v_OM_OM47887U_(U)
7-3. Do-it-yourself maintenance

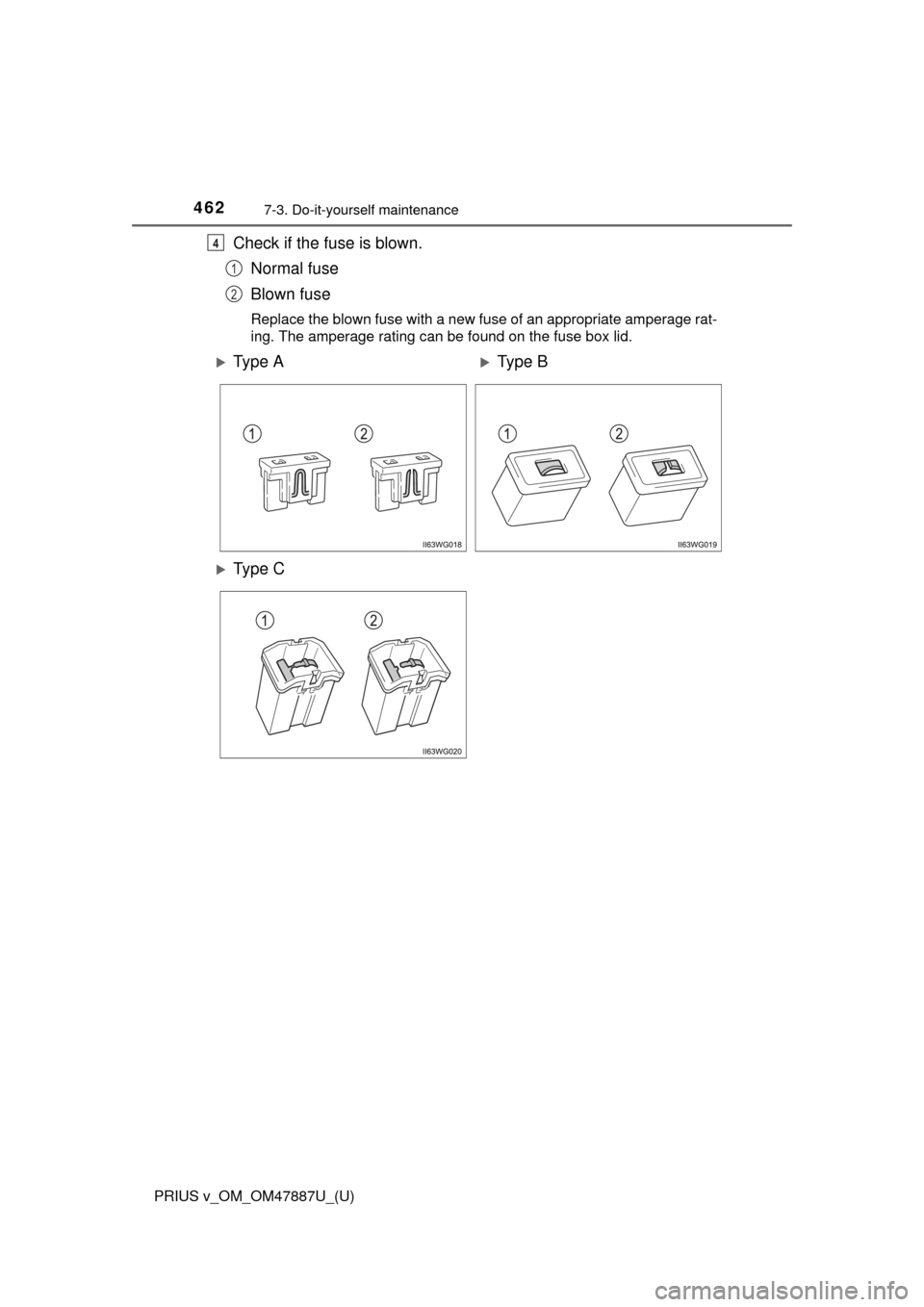

Check if the fuse is blown.Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
4
1
2
Ty p e AType B
Ty p e C

PRIUS v_OM_OM47887U_(U)
4637-3. Do-it-yourself maintenance
7
Maintenance and care
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 464)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle.
Because certain bulbs are connected to circuits designed to prevent over-
load, nongenuine parts or parts not designed for this vehicle may be unus-
able.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use\
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
■ Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

464
PRIUS v_OM_OM47887U_(U)
7-3. Do-it-yourself maintenance
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 558)
 P. 4 2 4
You may replace the following bulbs by yourself. The difficulty
level of replacement varies de pending on the bulb. If necessary
bulb replacement seems difficul t to perform, contact your
Toyota dealer.
For more information about repl acing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Removing the engine compartment cover

PRIUS v_OM_OM47887U_(U)
4657-3. Do-it-yourself maintenance
7
Maintenance and care
■Front
■RearLicense plate lights
Back-up light
Rear turn signal light

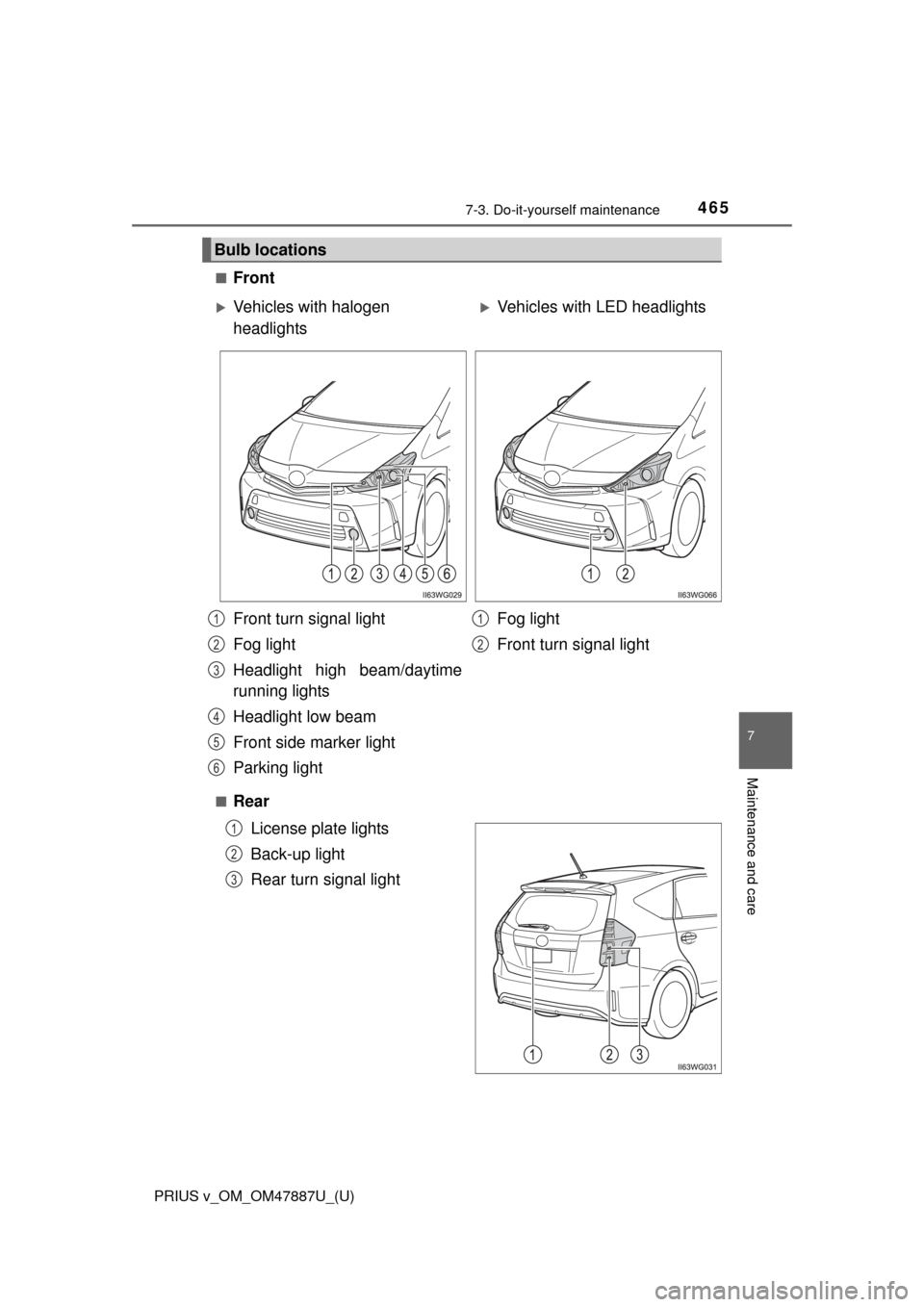

Bulb locations
Vehicles with halogen
headlightsVehicles with LED headlights
Front turn signal light
Fog light
Headlight high beam/daytime
running lights
Headlight low beam
Front side marker light
Parking light Fog light
Front turn signal light
1
2
3
4
5
6
1
2
1
2
3

466
PRIUS v_OM_OM47887U_(U)
7-3. Do-it-yourself maintenance

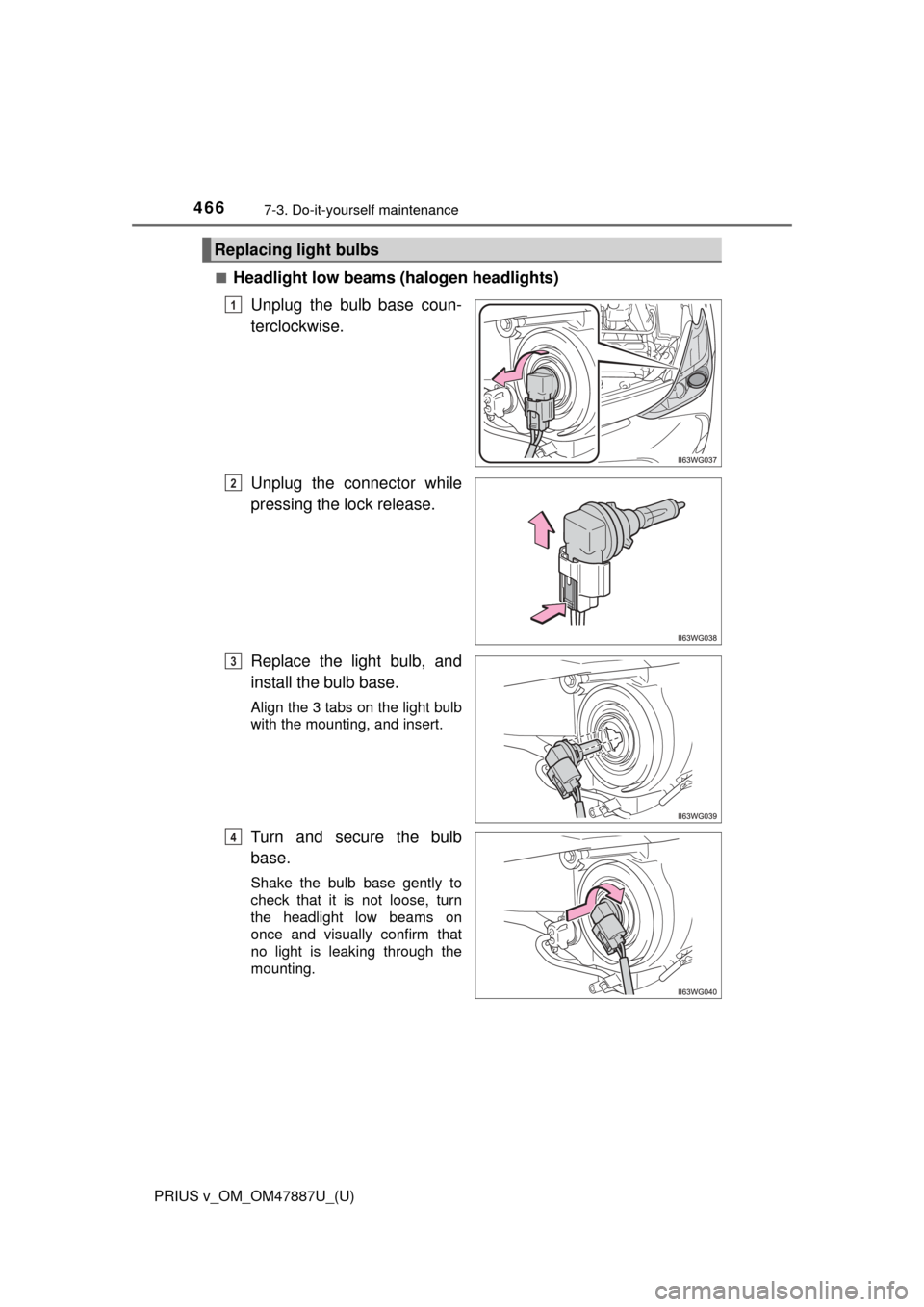

■Headlight low beams (halogen headlights)Unplug the bulb base coun-
terclockwise.
Unplug the connector while
pressing the lock release.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlight low beams on
once and visually confirm that
no light is leaking through the
mounting.
Replacing light bulbs
1
2
3
4

PRIUS v_OM_OM47887U_(U)
4677-3. Do-it-yourself maintenance
7
Maintenance and care

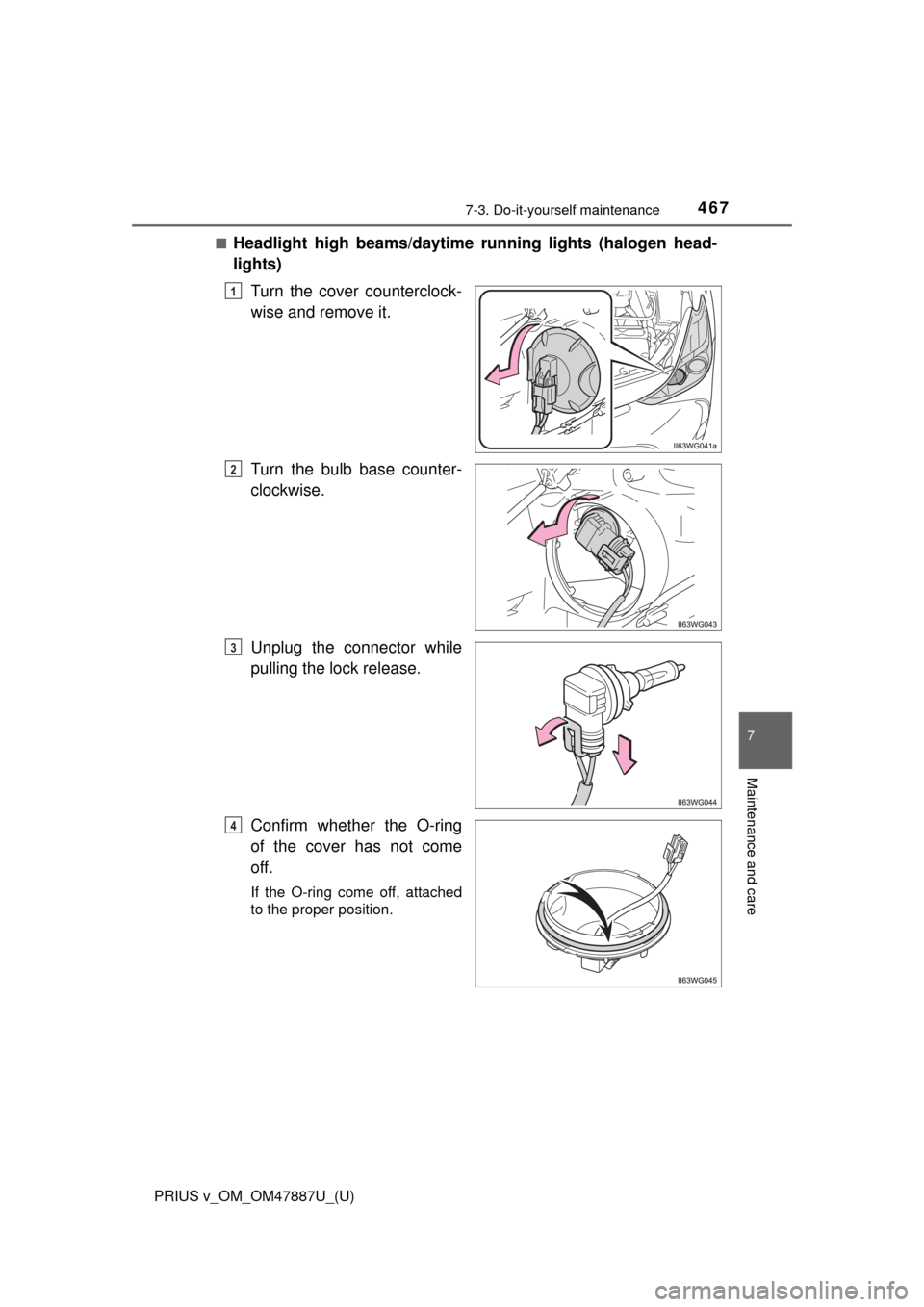

■Headlight high beams/daytime running lights (halogen head-
lights)
Turn the cover counterclock-
wise and remove it.
Turn the bulb base counter-
clockwise.
Unplug the connector while
pulling the lock release.
Confirm whether the O-ring
of the cover has not come
off.
If the O-ring come off, attached
to the proper position.
1
2
3
4

468
PRIUS v_OM_OM47887U_(U)
7-3. Do-it-yourself maintenance
Replace the light bulb, and
set the connector.
Install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn the bulb base clockwise to
set.
Shake the bulb base gently to
check that it is not loose, turn
the headlight high beams on
once and visually confirm that
no light is leaking through the
mounting.
Install the cover and turn it
clockwise.
Align the of the cover to the
positioning mark of the light unit
and insert and turn it.
There is the positioning mark on
the outer side of the light unit.
5
6
7

PRIUS v_OM_OM47887U_(U)
4697-3. Do-it-yourself maintenance
7
Maintenance and care

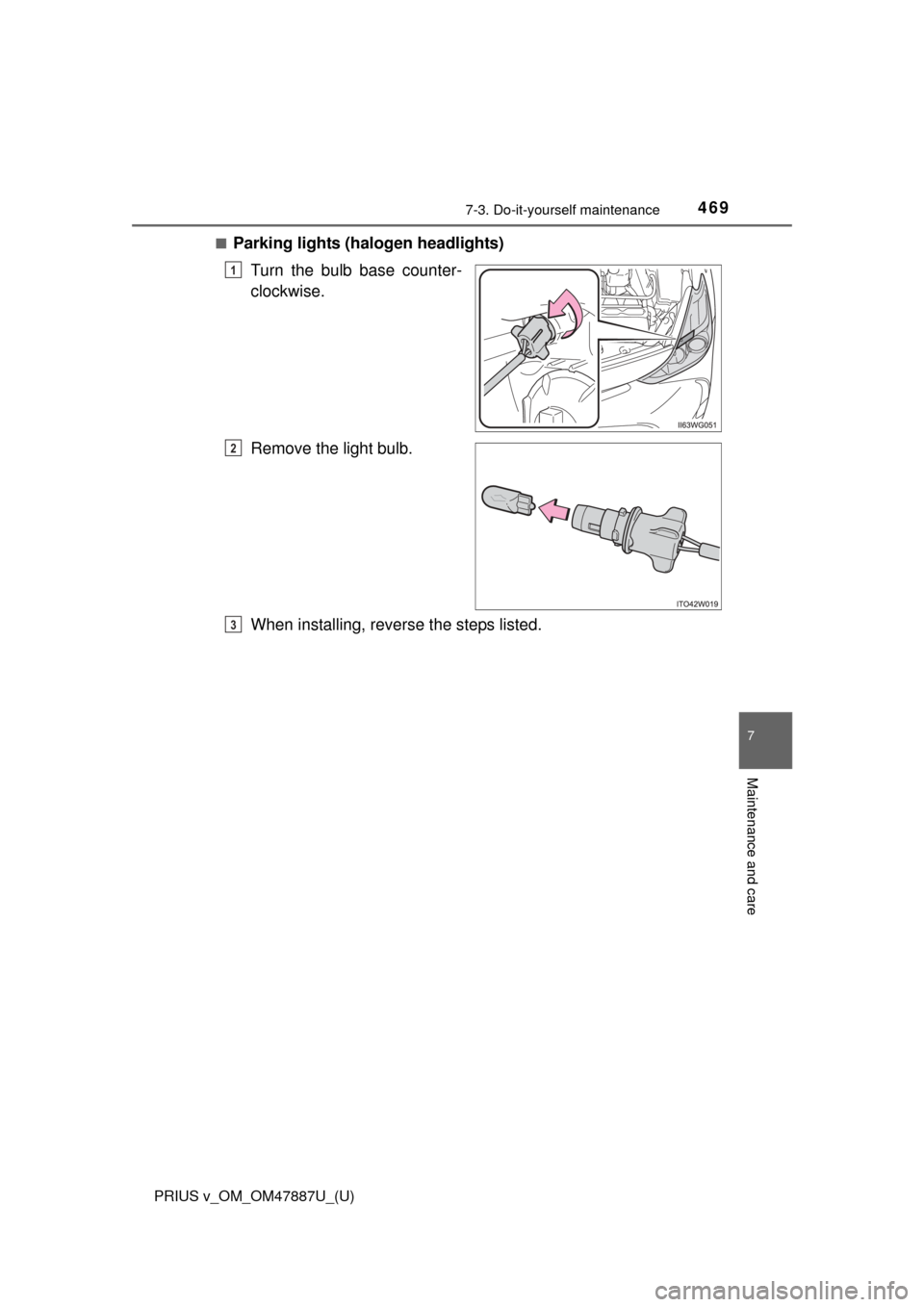

■Parking lights (halogen headlights)Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
