TOYOTA PRIUS V 2015 ZVW40 / 1.G Owners Manual

4908-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)

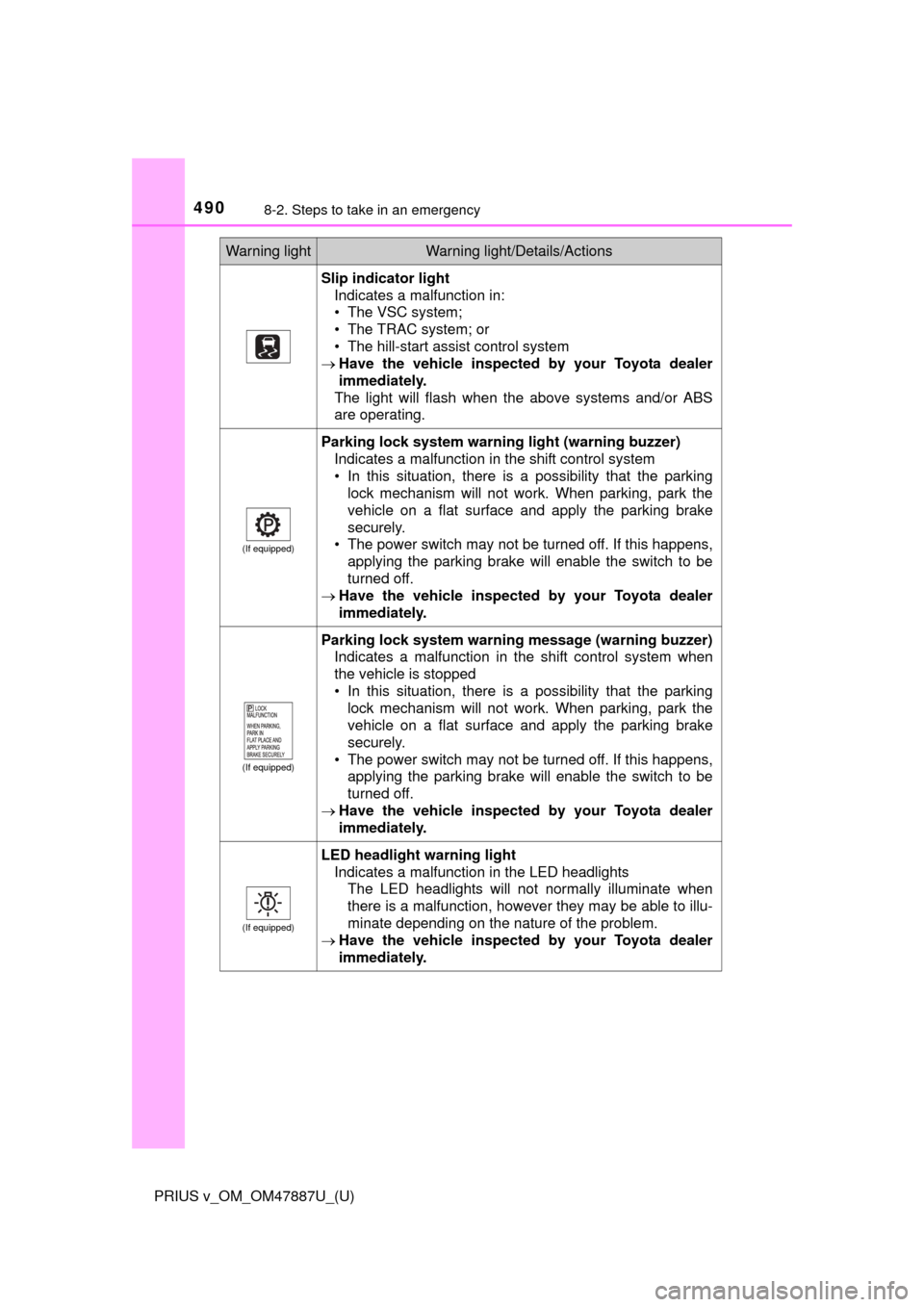

Slip indicator lightIndicates a malfunction in:
• The VSC system;
• The TRAC system; or
• The hill-start assist control system
 Have the vehicle inspected by your Toyota dealer
immediately.
The light will flash when the above systems and/or ABS
are operating.
(If equipped)
Parking lock system warnin g light (warning buzzer)
Indicates a malfunction in the shift control system
• In this situation, there is a possibility that the parking lock mechanism will not work. When parking, park the
vehicle on a flat surface and apply the parking brake
securely.
• The power switch may not be turned off. If this happens, applying the parking brake will enable the switch to be
turned off.
 Have the vehicle inspected by your Toyota dealer
immediately.
(If equipped)
Parking lock system warnin g message (warning buzzer)
Indicates a malfunction in the shift control system when
the vehicle is stopped
• In this situation, there is a possibility that the parking
lock mechanism will not work. When parking, park the
vehicle on a flat surface and apply the parking brake
securely.
• The power switch may not be turned off. If this happens, applying the parking brake will enable the switch to be
turned off.
 Have the vehicle inspected by your Toyota dealer
immediately.
(If equipped)
LED headlight warning light
Indicates a malfunction in the LED headlightsThe LED headlights will not normally illuminate when
there is a malfunction, however they may be able to illu-
minate depending on the nature of the problem.
 Have the vehicle inspected by your Toyota dealer
immediately.
Warning lightWarning light/Details/Actions

4918-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
8
When trouble arises
(Flashes)
(If equipped)

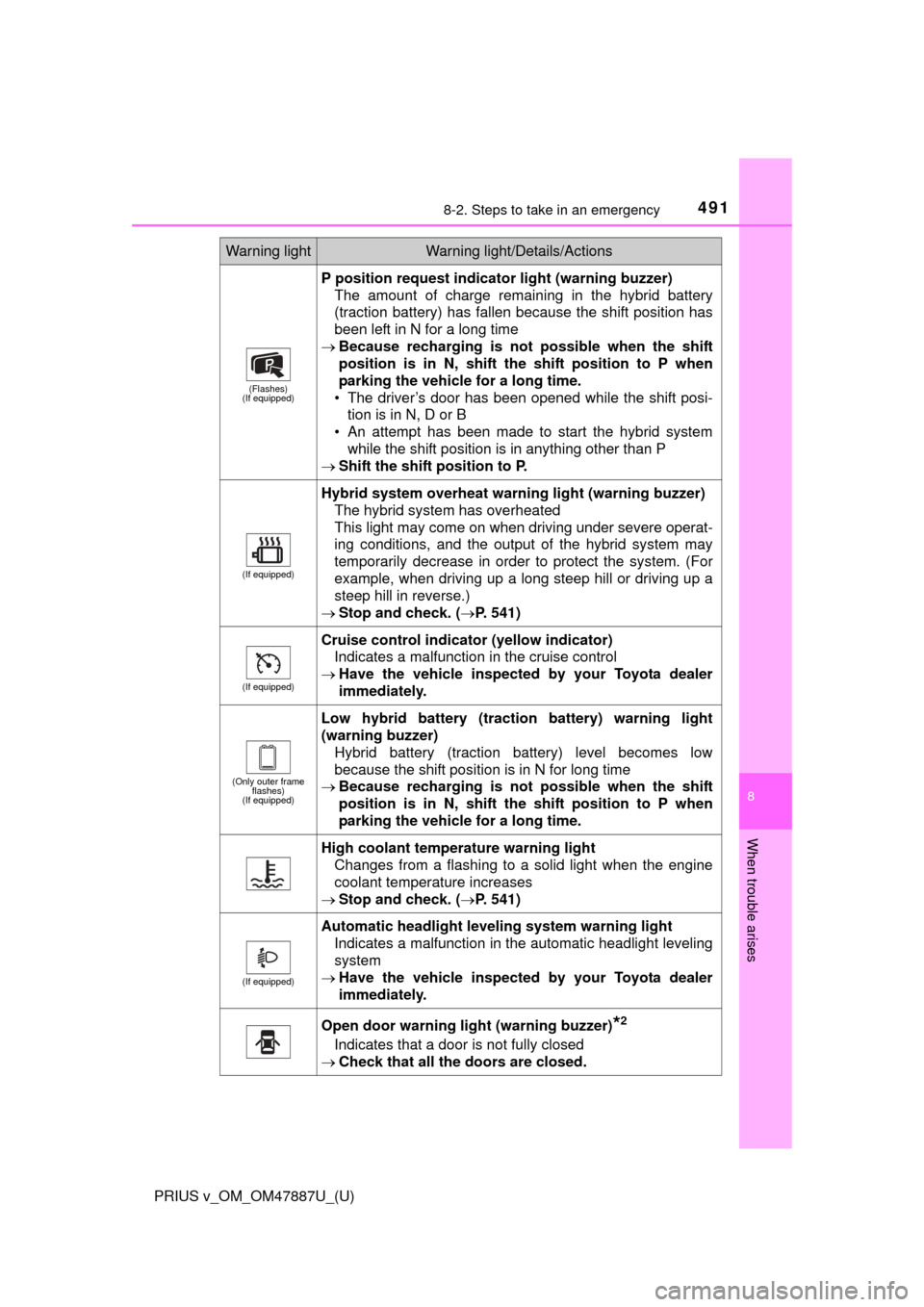

P position request indicator light (warning buzzer)
The amount of charge remaining in the hybrid battery
(traction battery) has fallen because the shift position has
been left in N for a long time
 Because recharging is not possible when the shift
position is in N, shift the shift position to P when
parking the vehicle for a long time.
• The driver’s door has been opened while the shift posi- tion is in N, D or B
• An attempt has been made to start the hybrid system while the shift position is in anything other than P
 Shift the shift position to P.
(If equipped)
Hybrid system overheat warn ing light (warning buzzer)
The hybrid system has overheated
This light may come on when driving under severe operat-
ing conditions, and the output of the hybrid system may
temporarily decrease in order to protect the system. (For
example, when driving up a long steep hill or driving up a
steep hill in reverse.)
 Stop and check. ( P. 541)
(If equipped)
Cruise control indicator (yellow indicator)
Indicates a malfunction in the cruise control
 Have the vehicle inspected by your Toyota dealer
immediately.
(Only outer frame
flashes)
(If equipped)
Low hybrid battery (tract ion battery) warning light
(warning buzzer)
Hybrid battery (traction battery) level becomes low
because the shift position is in N for long time
 Because recharging is not possible when the shift
position is in N, shift the shift position to P when
parking the vehicle for a long time.
High coolant temperat ure warning light
Changes from a flashing to a solid light when the engine
coolant temperature increases
 Stop and check. ( P. 541)
(If equipped)
Automatic headlight leveling system warning light
Indicates a malfunction in the automatic headlight leveling
system
 Have the vehicle inspected by your Toyota dealer
immediately.
Open door warning light (warning buzzer)*2
Indicates that a door is not fully closed
 Check that all the doors are closed.
Warning lightWarning light/Details/Actions

4928-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)

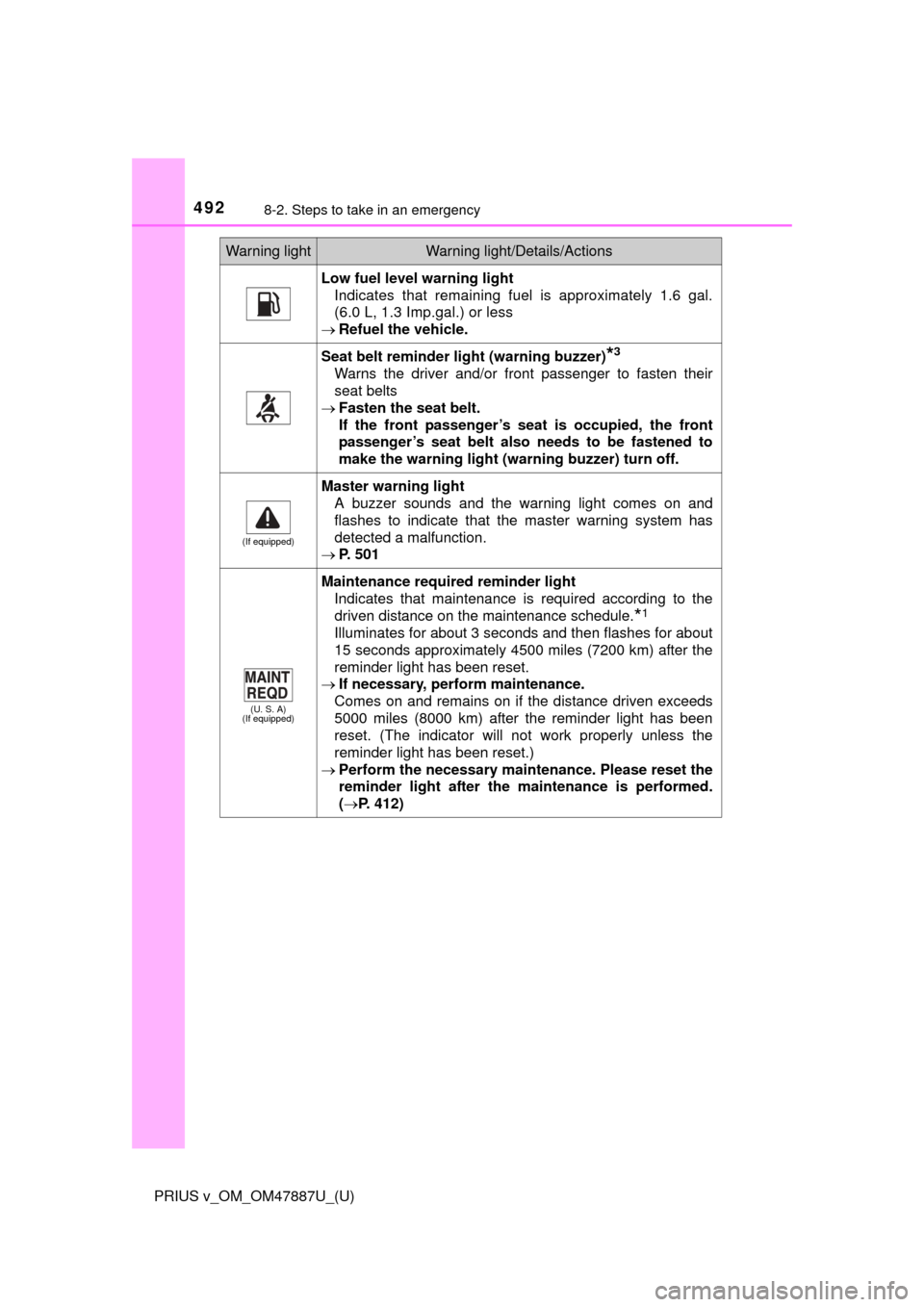

Low fuel level warning lightIndicates that remaining fuel is approximately 1.6 gal.
(6.0 L, 1.3 Imp.gal.) or less
 Refuel the vehicle.
Seat belt reminder light (warning buzzer)*3
Warns the driver and/or front passenger to fasten their
seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (war ning buzzer) turn off.
(If equipped)
Master warning light
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
 P. 501
(U. S. A)
(If equipped)
Maintenance required reminder light
Indicates that maintenance is required according to the
driven distance on the maintenance schedule.
*1
Illuminates for about 3 seconds and then flashes for about
15 seconds approximately 4500 miles (7200 km) after the
reminder light has been reset.
 If necessary, perform maintenance.
Comes on and remains on if the distance driven exceeds
5000 miles (8000 km) after the reminder light has been
reset. (The indicator will not work properly unless the
reminder light has been reset.)
 Perform the necessary maintenance. Please reset the
reminder light after the maintenance is performed.
(P. 412)
Warning lightWarning light/Details/Actions

4938-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
8
When trouble arises
*1: Brake system warning buzzer:When there is a possible problem that could affect braking performance,
the warning light will come on and a warning buzzer will sound.
Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approximately 3
mph (5 km/h) or more.
*2: Open door warning buzzer: The open door warning buzzer sounds to alert one or more of the doors is
not fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).
*3: Seat belt buzzer:
The seat belt warning buzzer sounds to alert the driver and/or front pas-
senger that their seat belts are not fastened. If the driver’s seat belt is not
fastened, the buzzer will sound for 6 seconds once the power switch is
turned to ON mode. If the vehicle reaches a speed of 12 mph (20 km/h),
the buzzer will sound once. If the seat belt is still unfastened after 30 sec-
onds, the buzzer will sound intermittently for 10 seconds. Then, if the seat
belt is still unfastened, the buzzer will sound in a different tone for 20 more
seconds.

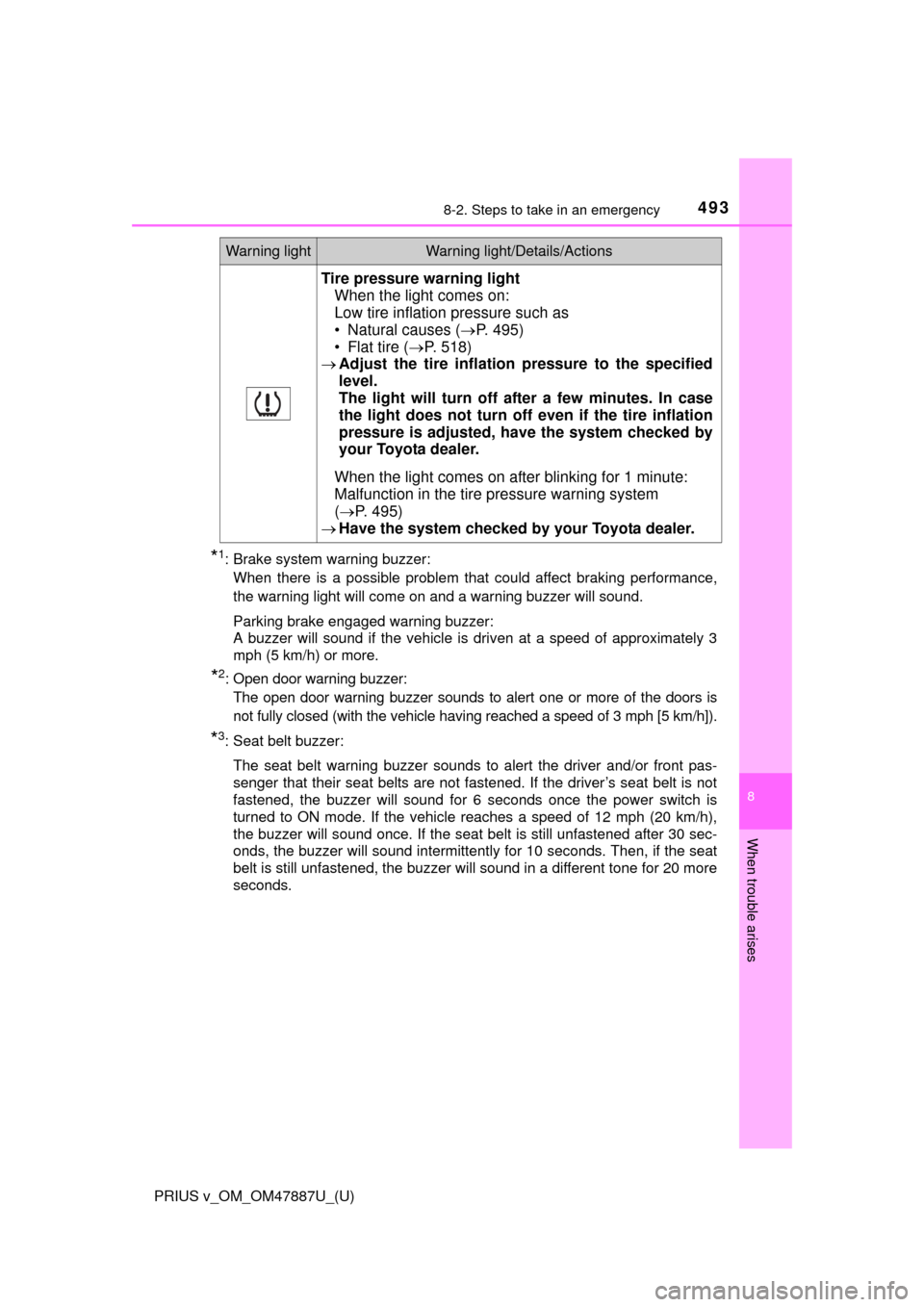

Tire pressure warning light When the light comes on:
Low tire inflation pressure such as
• Natural causes ( P. 495)
• Flat tire ( P. 518)
 Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case
the light does not turn off even if the tire inflation
pressure is adjusted, have the system checked by
your Toyota dealer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
(  P. 495)
 Have the system checked by your Toyota dealer.
Warning lightWarning light/Details/Actions

4948-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
Carrying out the corresponding action turns the warning light off.
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact
sensors, side impact sensors (front), side impact sensors (front door), side
impact sensors (rear), driver’s seat position sensor, driver’s seat belt buckle
switch, front passenger occupant cla ssification system (ECU and sensors),
“AIR BAG ON” indicator light, “AIR BA G OFF” indicator light, front passen-
ger’s seat belt buckle switch, seat belt pretensioner assemblies, airbags,
interconnecting wiring and power sources. ( P. 41)
■ Front passenger detection sensor, seat belt reminder and warning
buzzer
● If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient of the voltage tempo-
rarily drops, the electric power steering system warning light may come on
and the warning buzzer may sound.
■ If the malfunction indicator la mp comes on while driving
First check the following:
● Is the fuel tank empty?
If it is, fill the fuel tank immediately.
● Is the fuel tank cap loose?
If it is, tighten it securely.
The malfunction indicator lamp will go off after several driving trips.
If the malfunction indicator lamp does not go off even after several trips, con-
tact your Toyota dealer as soon as possible.
Other warning light
Warning lightWarning light/Details/Actions
(if equipped)
Go to service warning light Indicates that maintenance of the hybrid battery (traction
battery) cooling component is required
The filter may be clogged, the air intake vent may be
blocked or there may be a gap in the duct.
 Have maintenance performed on the hybrid battery
(traction battery) cooling component at your Toyota
dealer.

4958-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
8
When trouble arises
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Push-
ing the tire pressure warning reset switch will not turn off the tire pressure
warning light.
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such
as natural air leaks and tire inflation pressure changes caused by temper-
ature. In this case, adjusting the ti re inflation pressure will turn off the
warning light (after a few minutes).
■When a tire is replaced with a spare tire
The compact spare tire is not equipped with a tire pressure warning valve
and transmitter. If a tire goes flat, the tire pressure warning light will not
turn off even though the flat tire has been replaced with the spare tire.
Replace the spare tire with the repaired tire and adjust the tire inflation
pressure. The tire pressu re warning light will go off after a few minutes.
■If the tire pressure warning system is not functioning
P. 4 4 6
■If the tire pressure warning light frequently comes on after blinking
for 1 minute
If the tire pressure warning light frequently comes on after blinking for
1 minute when the power switch is tu rned to ON mode, have it checked
by your Toyota dealer.
■ Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location
or audio sound.

4968-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Toyota
dealer. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■ When the electric power steerin g system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavie r than usual when operating, hold
firmly and operate using more force than usual.
■
If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause a loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is probable that you have a flat tire. Check the tires.
If a tire is flat, change it with th e spare tire and have the flat tire
repaired by the nearest Toyota dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

4978-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
8
When trouble arises
WARNING
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a dif-
ferent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine
the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-ti re pressure warning system) that
illuminates a low tire pre ssure telltale (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressure telltale (tire pressure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel effi ciency and tire tread life, and may
affect the vehicle’s hand ling and stopping ability.
Please note that the TPMS (tire pres sure warning system) is not a sub-
stitute for proper ti re maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached
the level to trigger illumina tion of the TPMS low tire pressure telltale (tire
pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warn-
ing system) malfunction indicator to indicate when the system is not
operating properly. The TPMS (tire pressure warning system) malfunc-
tion indicator is combined with the lo w tire pressure telltale (tire pressure
warning light). When the system dete cts a malfunction, the telltale will
flash for approximately one minute and then remain continuously illumi-
nated. This sequence will continue up on subsequent vehicle start-ups
as long as the malfunction exists. When the malfunction indicator is illu-
minated, the system may not be able to detect or signal low tire pres-
sure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installati on of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.

4988-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire
pressure warning system may not operate properly.

4998-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
8
When trouble arises
After taking the specified steps to correct the suspected problem,
check that the warning light turn off.

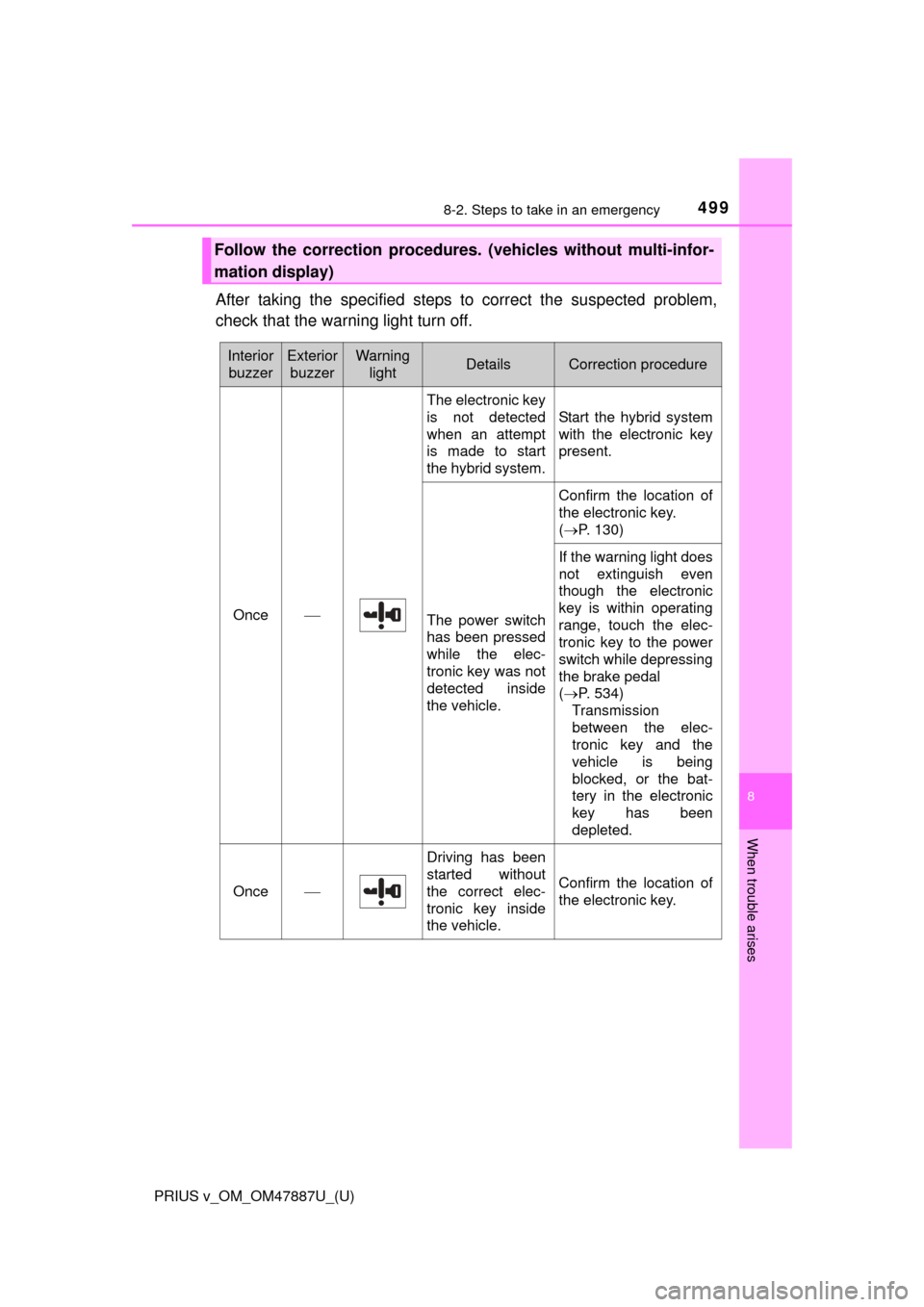

Follow the correction procedures. (vehicles without multi-infor-
mation display)
InteriorbuzzerExterior buzzerWarning lightDetailsCorrection procedure
Once
The electronic key
is not detected
when an attempt
is made to start
the hybrid system.
Start the hybrid system
with the electronic key
present.
The power switch
has been pressed
while the elec-
tronic key was not
detected inside
the vehicle.
Confirm the location of
the electronic key.
(P. 130)
If the warning light does
not extinguish even
though the electronic
key is within operating
range, touch the elec-
tronic key to the power
switch while depressing
the brake pedal
(P. 534)
Transmission
between the elec-
tronic key and the
vehicle is being
blocked, or the bat-
tery in the electronic
key has been
depleted.
Once
Driving has been
started without
the correct elec-
tronic key inside
the vehicle.
Confirm the location of
the electronic key.
