TOYOTA PRIUS V 2015 ZVW40 / 1.G Owners Manual

570
PRIUS v_OM_OM47887U_(U)
9-1. Specifications

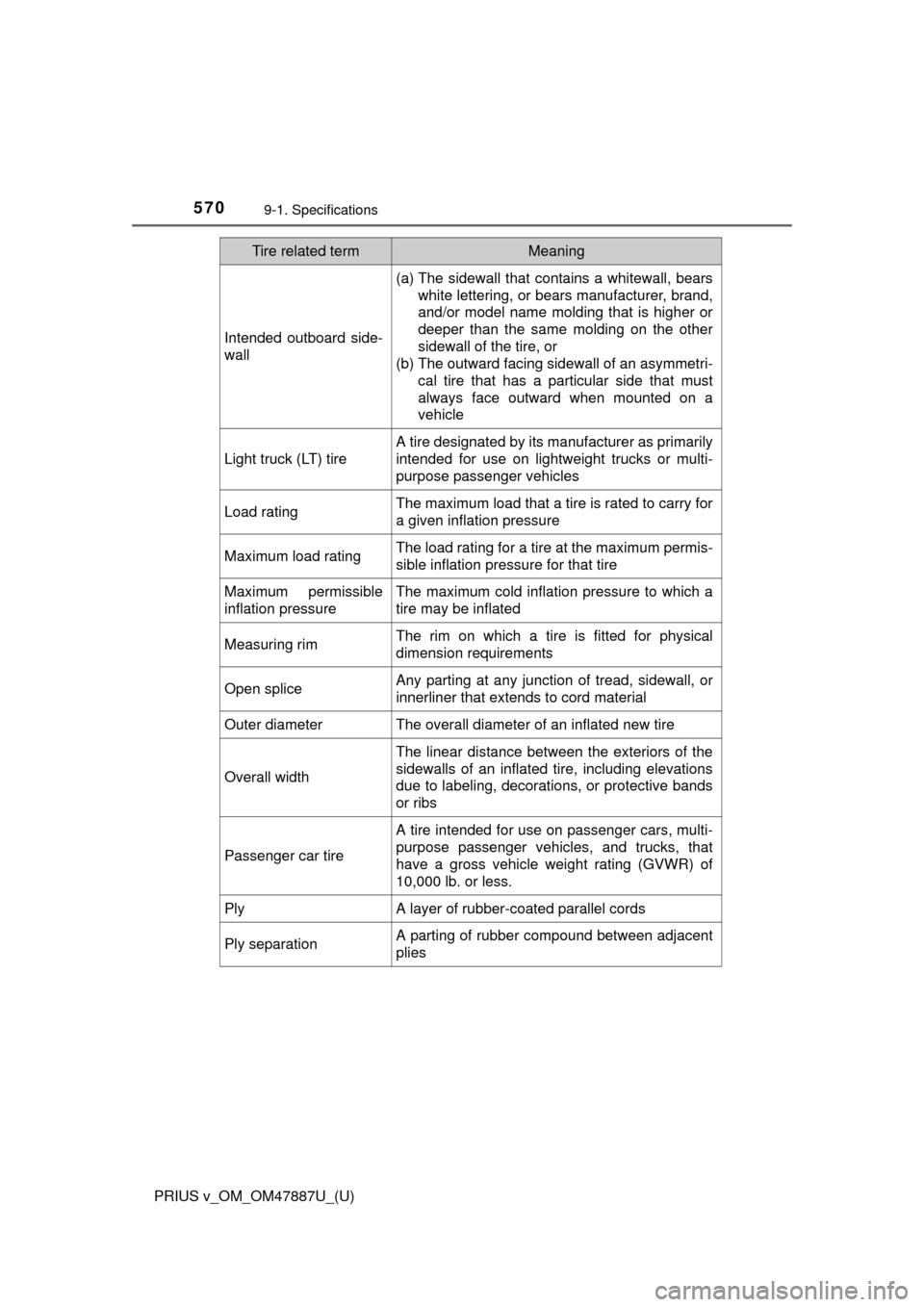

Intended outboard side-
wall
(a) The sidewall that contains a whitewall, bearswhite lettering, or bears manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other
sidewall of the tire, or
(b) The outward facing sidewall of an asymmetri-
cal tire that has a particular side that must
always face outward when mounted on a
vehicle
Light truck (LT) tire
A tire designated by its manufacturer as primarily
intended for use on lightweight trucks or multi-
purpose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry for
a given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum permis-
sible inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which a
tire may be inflated
Measuring rimThe rim on which a tire is fitted for physical
dimension requirements
Open spliceAny parting at any junction of tread, sidewall, or
innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of the
sidewalls of an inflated tire, including elevations
due to labeling, decorations, or protective bands
or ribs
Passenger car tire
A tire intended for use on passenger cars, multi-
purpose passenger vehicles, and trucks, that
have a gross vehicle weight rating (GVWR) of
10,000 lb. or less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adjacent
plies
Tire related termMeaning

PRIUS v_OM_OM47887U_(U)
5719-1. Specifications
9
Vehicle specifications

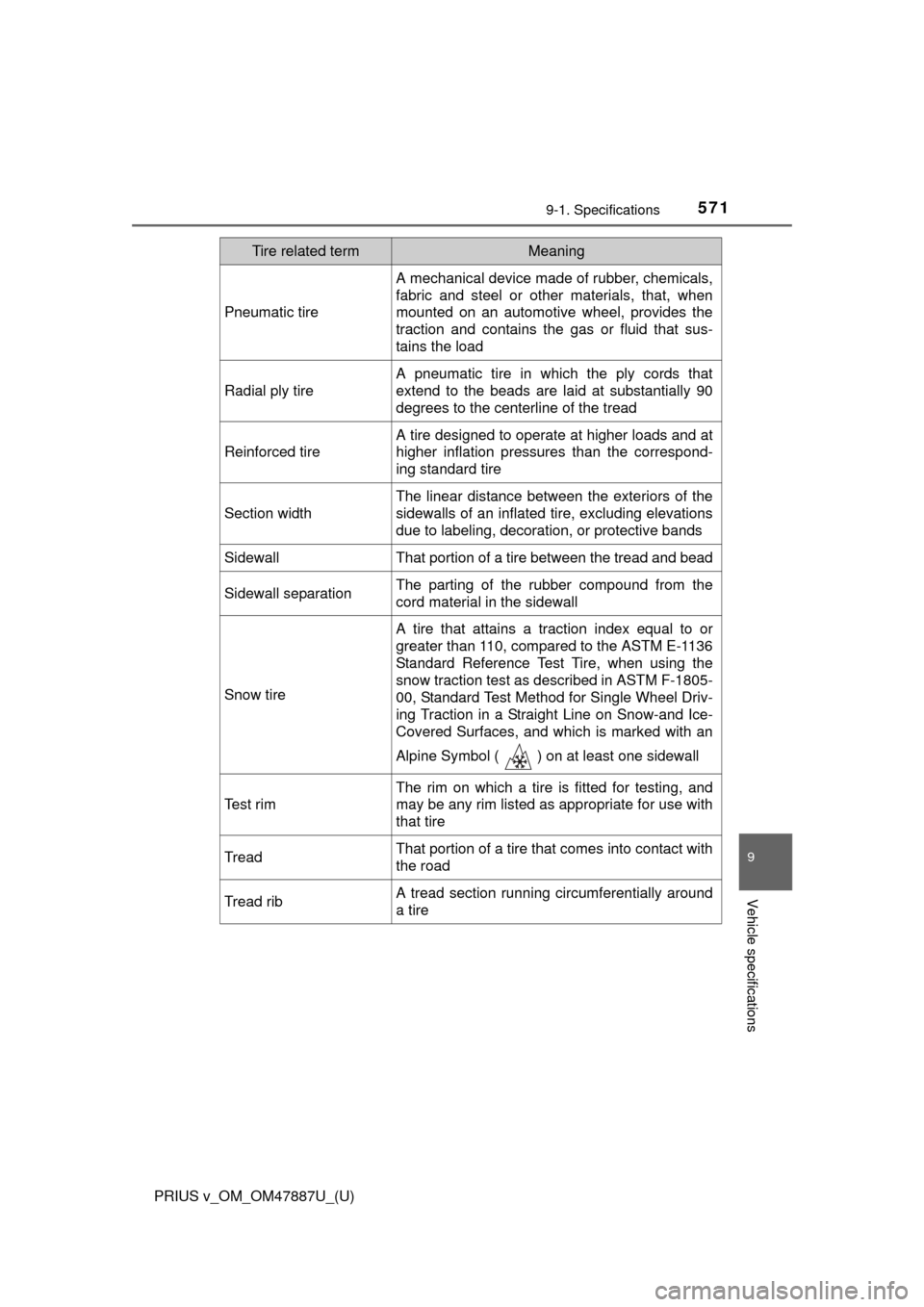

Pneumatic tire
A mechanical device made of rubber, chemicals,
fabric and steel or other materials, that, when
mounted on an automotive wheel, provides the
traction and contains the gas or fluid that sus-
tains the load
Radial ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and at
higher inflation pressures than the correspond-
ing standard tire
Section width
The linear distance between the exteriors of the
sidewalls of an inflated tire, excluding elevations
due to labeling, decoration, or protective bands
SidewallThat portion of a tire between the tread and bead
Sidewall separationThe parting of the rubber compound from the
cord material in the sidewall
Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-1136
Standard Reference Test Tire, when using the
snow traction test as described in ASTM F-1805-
00, Standard Test Method for Single Wheel Driv-
ing Traction in a Straight Line on Snow-and Ice-
Covered Surfaces, and which is marked with an
Alpine Symbol (
) on at least one sidewall
Test rim
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use with
that tire
TreadThat portion of a tire that comes into contact with
the road
Tread ribA tread section running circumferentially around
a tire
Tire related termMeaning

572
PRIUS v_OM_OM47887U_(U)
9-1. Specifications

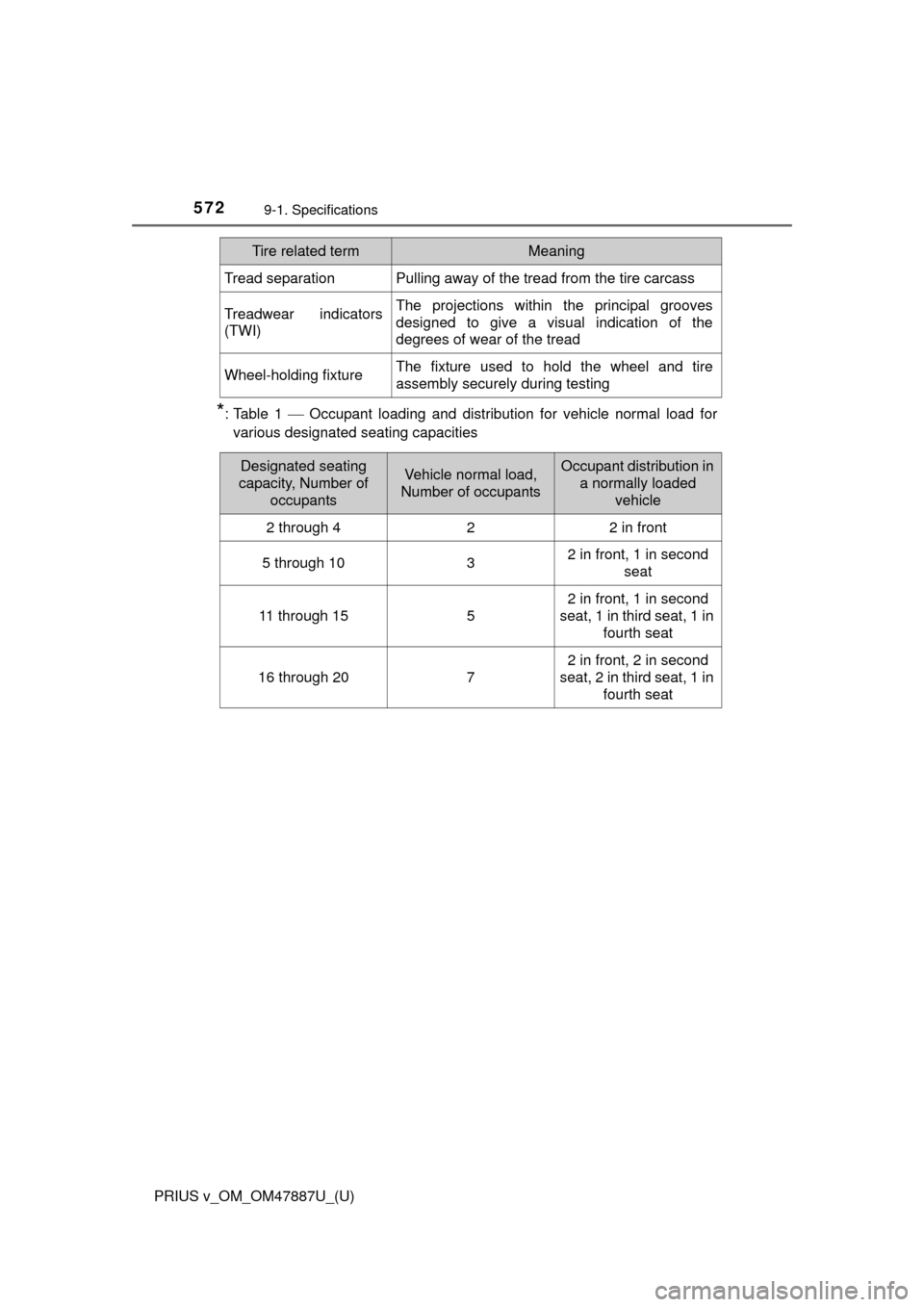

*: Table 1  Occupant loading and distribution for vehicle normal load forvarious designated seating capacities
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Tire related termMeaning
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in
a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second
seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in
fourth seat

573
PRIUS v_OM_OM47887U_(U)
9-2. Customization
9
Vehicle specifications
Customizable features
When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the parking brake set and the shift position in P.
■Changing using the multi-info rmation display (if equipped)
Press or of the meter control switches, select ,
and then press .
Press or of the meter control switches, select the item,
and then press .
Press or of the meter control switches, select the desired
setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
■Changing using the Eutune Audio Press the “SETUP” button.
Select “Vehicle” on the “Setup” screen and select “Vehicle Cus-
tomization”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
Your vehicle includes a variety of electronic features that can be
personalized to suit your prefer ences. The settings of these fea-
tures can be changed using th e multi-information display,
Eutune Audio or Eutune Premiu m Audio with Navigation, or at
your Toyota dealer.
Some function settings are change d simultaneously with other func-
tions being customized. Contact your Toyota dealer for further
details.
Customizing vehicle features
1
2
3
1
2

574
PRIUS v_OM_OM47887U_(U)
9-2. Customization
■Changing using the Eutune Premium Audio with NavigationPress the “APPS” button on the navigation system.
Select “Setup” on the “APPS” screen.
Select “Vehicle” on the “Setup” screen and select “Vehicle Cus-
tomization”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
Vehicles with a multi- information display: Settings that can be
changed using the multi-information display
Vehicles with a Eutune Audio or Eutune Premium Audio with Navi-
gation: Settings that can be ch anged using the Eutune Audio or
Eutune Premium Audio with Navigation
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, – =Not available
■Door lock ( P. 120, 534)
Customizable features
1
2
3
1
2
3
FunctionDefault
settingCustomized setting
Automatic door lockingShift position linkedSpeed linked–OO
Off–OO
Automatic door unlock-
ingShift position linkedDriver’s door linked–OO
Off–OO
123

PRIUS v_OM_OM47887U_(U)
5759-2. Customization
9
Vehicle specifications
■Smart key system and wireless remote control (P. 130, 116)
■Smart key system ( P. 130)
FunctionDefault
settingCustomized setting
Operation signal
(buzzer) 7Off
–OO
1 to 6
Operation signal (emer-
gency flashers) On Off – O O
Open door reminder
buzzer (when locking the
vehicle)
OnOff––O
Time elapsed before the
automatic door lock
function is activated if a
door is not opened after
being unlocked
60 seconds
Off
–OO30 seconds
120 seconds
123
FunctionDefault
settingCustomized setting
Smart door unlocking Driver’s door All the doors – O O
Smart key systemOnOff–OO
Number of consecutive
door lock operations2 timesAs many as desired––O
123

576
PRIUS v_OM_OM47887U_(U)
9-2. Customization
■Wireless remote control (P. 116)
■Automatic light control system ( P. 187)
*1: Eutune Premium Audio with Navigation only.
*2: This function cannot be customized for vehicles sold in Canada.
FunctionDefault
settingCustomized setting
Wireless remote control On Off – – O
Unlocking operation
Driver’s door
unlocked in first
step, all doors
unlocked in sec-
ond step
All doors
unlocked in first
step
–OO
Panic function OnOff––O
123
FunctionDefault
settingCustomized setting
Time elapsed before the
headlights turn off 30 secondsOff
–OO
60 seconds
90 seconds
Light sensor sensitivityLevel 0Level -2 to 2–OO
Daytime running lights*2OnOff–O*1O
123

PRIUS v_OM_OM47887U_(U)
5779-2. Customization
9
Vehicle specifications
■Illumination (P. 371)
FunctionDefault
settingCustomized setting
Time elapsed before the
interior lights turn off 15 secondsOff
–OO
7.5 seconds
30 seconds
Operation after the
power switch is turned
off
OnOff––O
Operation when the
doors are unlocked with
the smart key system or
the wireless remote con-
trol function or the
mechanical key
OnOff––O
Operation when you
approach the vehicle
with the electronic key
on your person
OnOff––O
Footwell lightingOnOff––O
Footwell lighting controlOnOff––O
123

578
PRIUS v_OM_OM47887U_(U)
9-2. Customization
■Instrument cluster (P. 91)
FunctionDefault
settingCustomized setting
Sensor sensitivity for
darkening the bright-
ness of the instrument
cluster depending on the
outside brightness
Standard-2 to 2––O
Sensor sensitivity for
returning the brightness
of the instrument cluster
to the original level
depending on the out-
side brightness
Standard-2 to 2––O
LanguageEnglishFrenchO–OSpanish
Units
(except for Canada)miles
(MPG USA)
km (km/L)
O–O
km
(L/100km)
miles
(MPG Imperial)
Pop-up displayOnOffO–O
123

PRIUS v_OM_OM47887U_(U)
5799-2. Customization
9
Vehicle specifications
■Automatic air conditioning system (P. 362)
■Panoramic roof shades* ( P. 387)
*: If equipped
■
Seat belt reminder ( P. 492)
■Reverse buzzer ( P. 181)
FunctionDefault
settingCustomized setting
A/C auto switching oper-
ationOffOn–OO
Heating/cooling opera-
tion minimized in Eco
drive mode
OnOff––O
Switching between out-
side air and recirculated
air mode linked to A/C
auto switch operation
OnOff––O
123
FunctionDefault
settingCustomized setting
Door lock linked auto-
matic closing functionOnOff––O
123
FunctionDefault settingCustomized setting
Vehicle speed linked
seat belt reminder
buzzer
OnOff––O
123
FunctionDefault settingCustomized setting
Signal (buzzer) when the
shift position is in RIntermittentSingle––O
123
