21Pictorial index

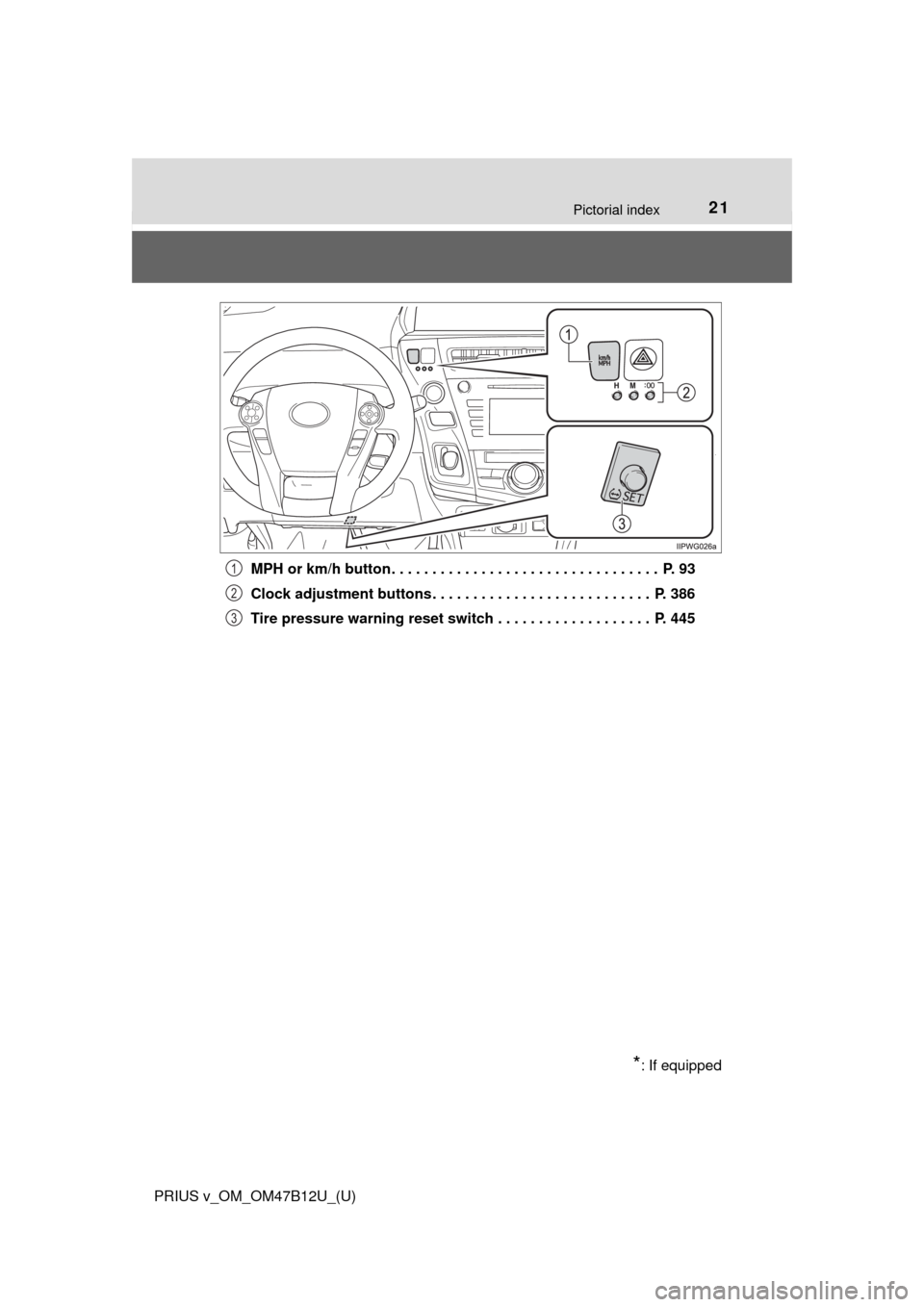

PRIUS v_OM_OM47B12U_(U)MPH or km/h button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 93
Clock adjustment buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 386
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 445
*: If equipped
1
2
3

22Pictorial index

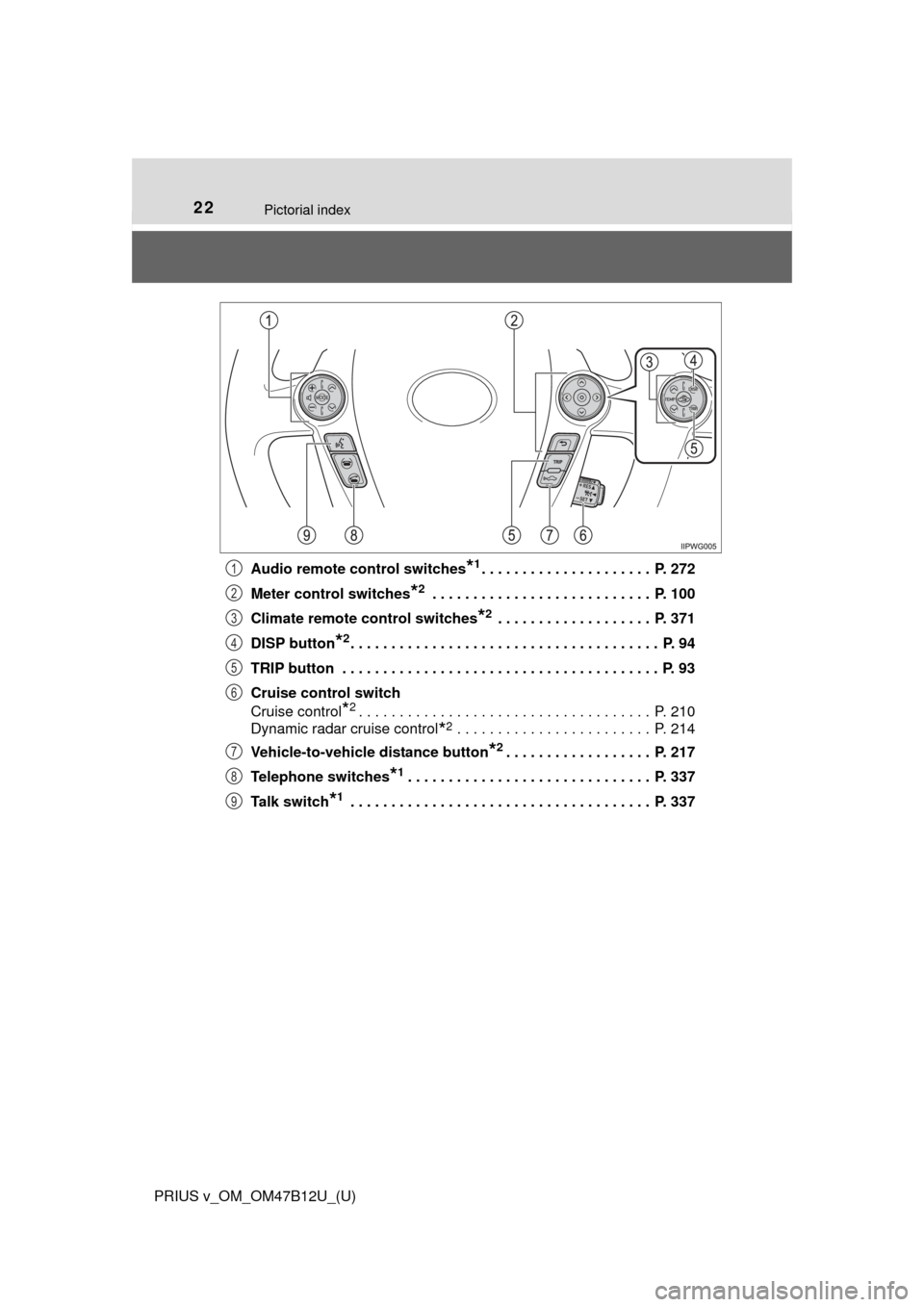

PRIUS v_OM_OM47B12U_(U)Audio remote control switches
*1. . . . . . . . . . . . . . . . . . . . . P. 272
Meter control switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 100
Climate remote control switches
*2 . . . . . . . . . . . . . . . . . . . P. 371
DISP button
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 94
TRIP button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 93
Cruise control switch
Cruise control
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
Dynamic radar cruise control
*2 . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Vehicle-to-vehicle distance button
*2. . . . . . . . . . . . . . . . . . P. 217
Telephone switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
Talk switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
1
2
3
4
5
6
7
8
9

23Pictorial index

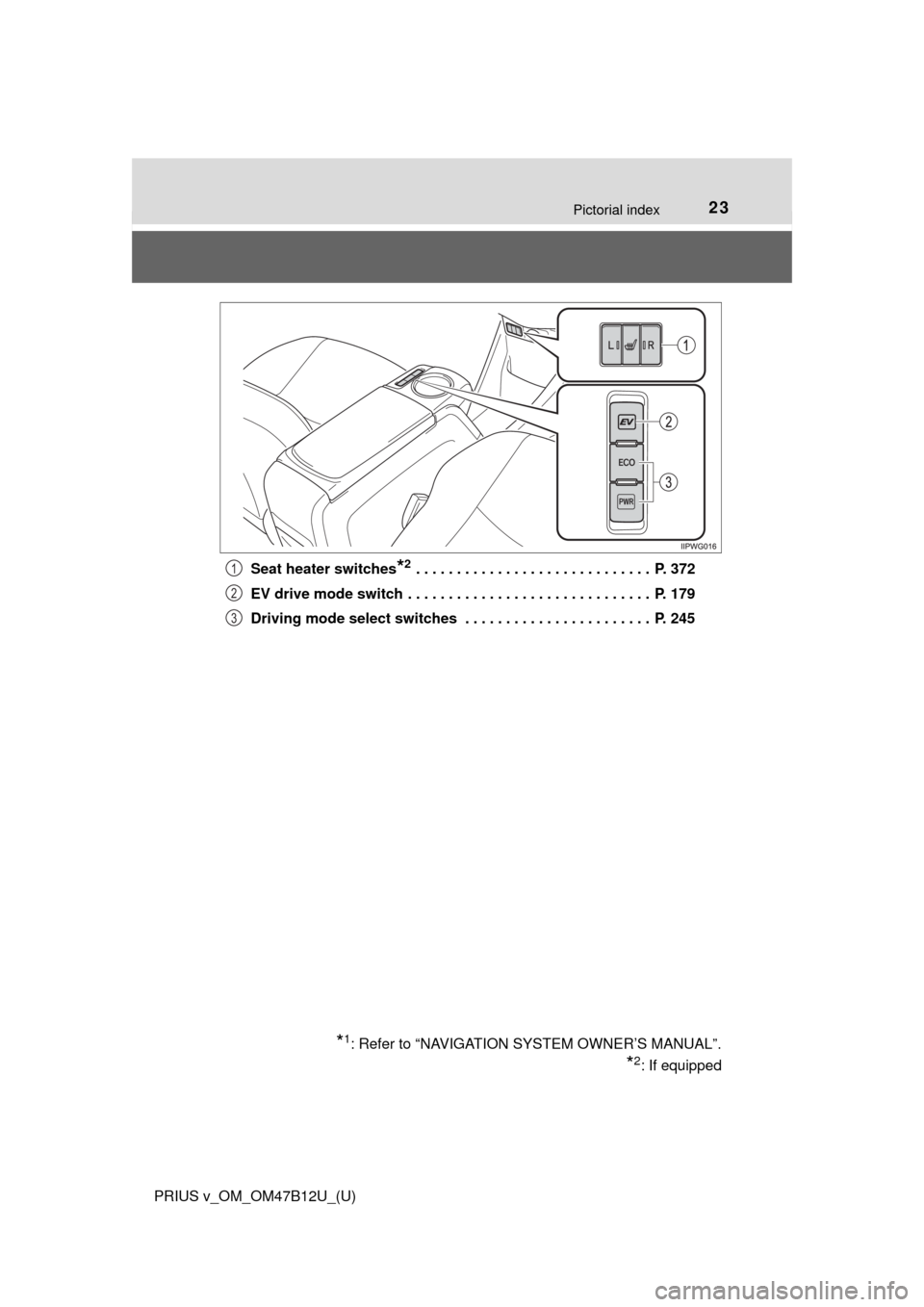

PRIUS v_OM_OM47B12U_(U)Seat heater switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 372
EV drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Driving mode select switches . . . . . . . . . . . . . . . . . . . . . . . P. 245
*1: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
*2: If equipped
1
2
3

24Pictorial index
PRIUS v_OM_OM47B12U_(U)

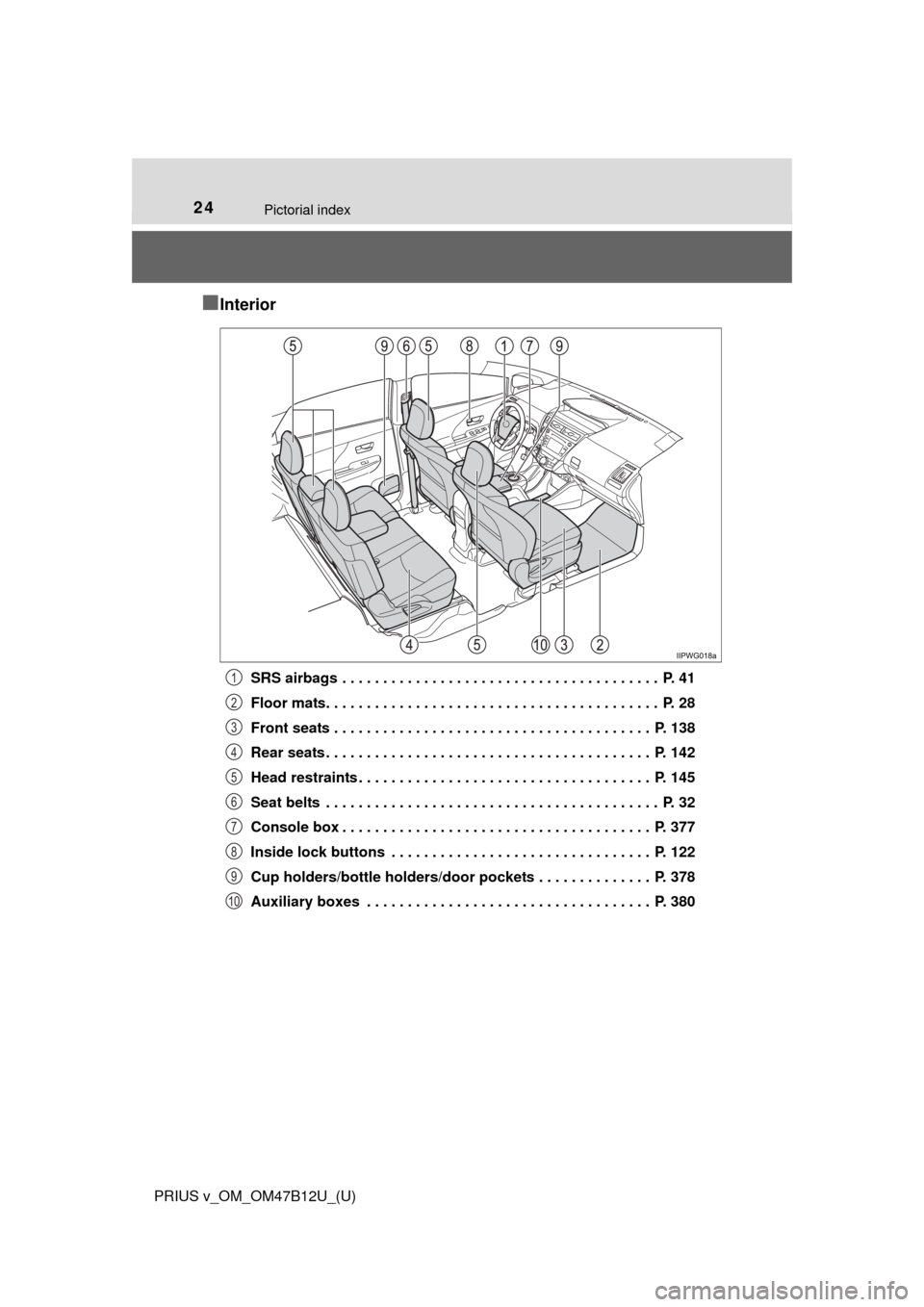

■Interior
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 41
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 138
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 142
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 145
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 32
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 377
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 122
Cup holders/bottle holders/door pockets . . . . . . . . . . . . . . P. 378
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 3801
2
3
4
5
6
7
8
9
10

25Pictorial index

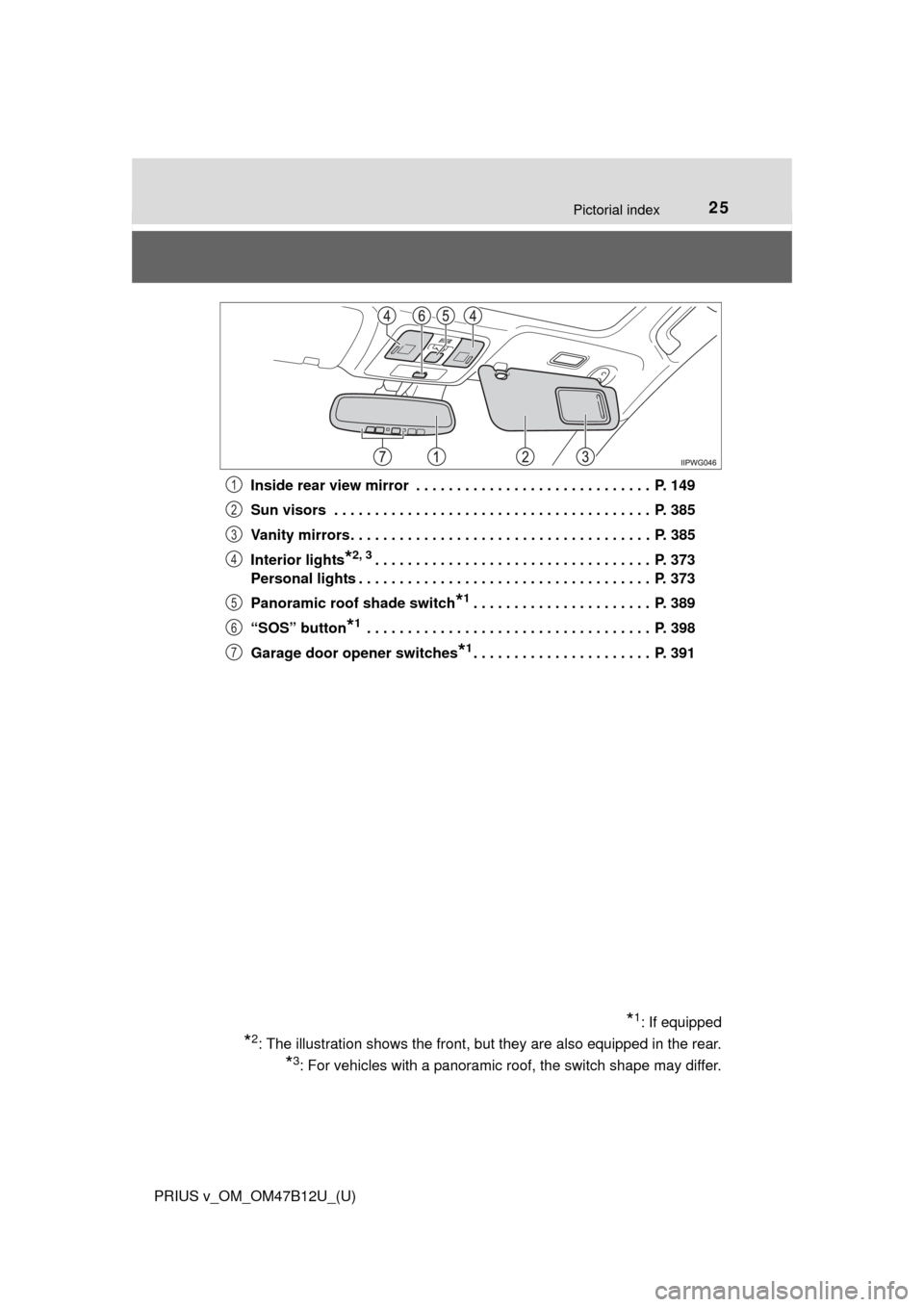

PRIUS v_OM_OM47B12U_(U)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 149
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 385
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 385
Interior lights
*2, 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 373
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 373
Panoramic roof shade switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 389
“SOS” button
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 398
Garage door opener switches
*1. . . . . . . . . . . . . . . . . . . . . . P. 391
*1: If equipped
*2: The illustration shows the front, but they are also equipped in the rear.
*3: For vehicles with a panoramic roof, the switch shape may differ.
1
2
3
4
5
6
7

26Pictorial index
PRIUS v_OM_OM47B12U_(U)

27
PRIUS v_OM_OM47B12U_(U)
For safety and security1
1-1. For safe use
Before driving ...................... 28
For safety drive ................... 30
Seat belts ............................ 32
SRS airbags ........................ 41
Front passenger occupant
classification system ......... 52
Safety information for
children ............................. 57
Child restraint systems........ 58
Installing child restraints...... 62
Exhaust gas precautions..... 72
1-2. Hybrid system
Hybrid system features ....... 73
Hybrid system
precautions ....................... 77
1-3. Theft deterrent system
Immobilizer system ............. 82

281-1. For safe use
PRIUS v_OM_OM47B12U_(U)
Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.

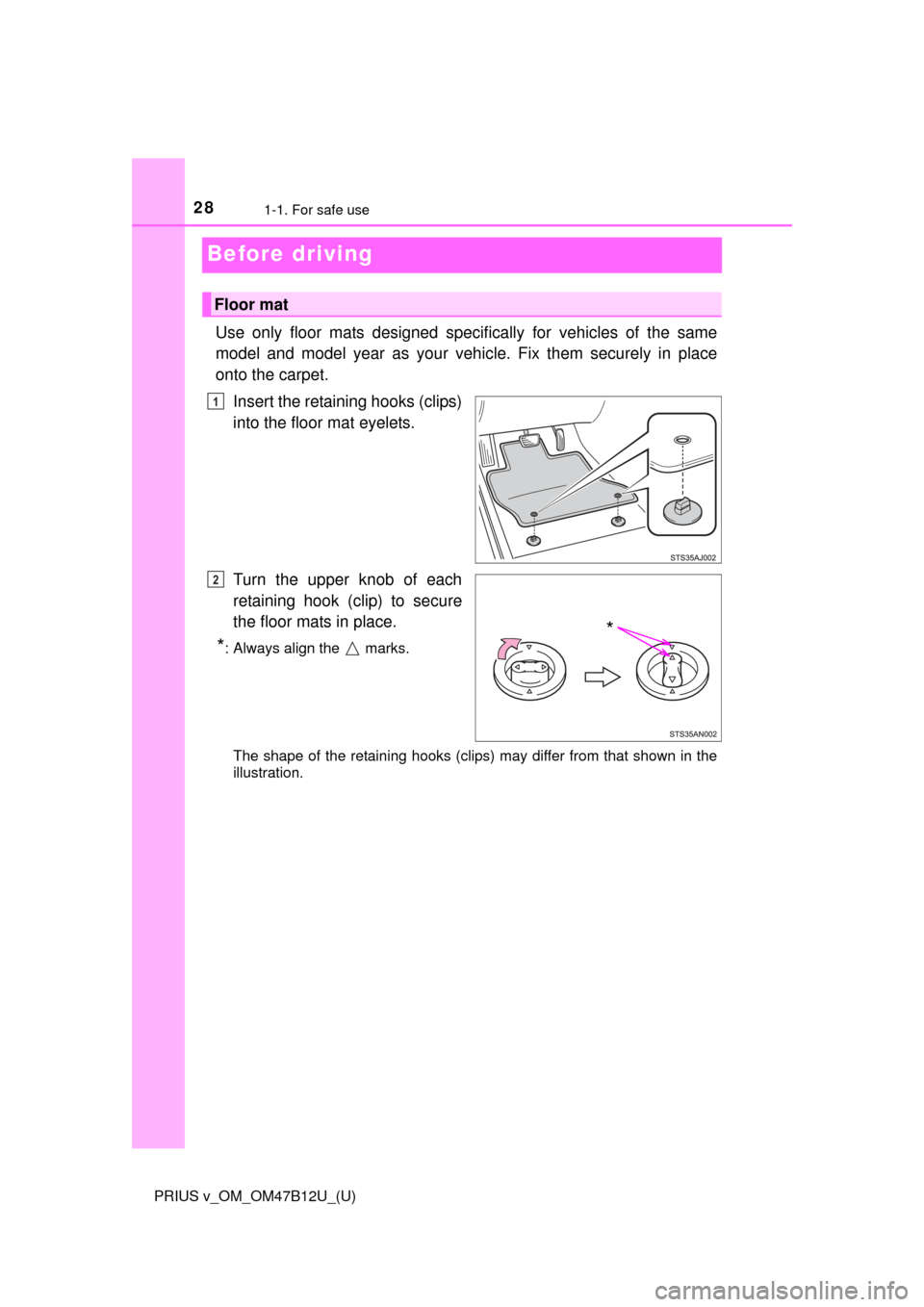

Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Floor mat
1
*
2

291-1. For safe use
PRIUS v_OM_OM47B12U_(U)
1
For safety and security
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
●With the hybrid system stopped and the
shift position in P, fully depress each
pedal to the floor to make sure it does
not interfere with the floor mat.

301-1. For safe use
PRIUS v_OM_OM47B12U_(U)
For safety drive
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 138)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. (P. 138)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. (P. 145)
Wear the seat belt correctly. (P. 3 2 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. (P. 3 2 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(P. 58)
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. (P. 149, 151)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4
