■Parking lights (halogen headlights)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3

472
PRIUS v_OM_OM47B12U_(U)
7-3. Do-it-yourself maintenance

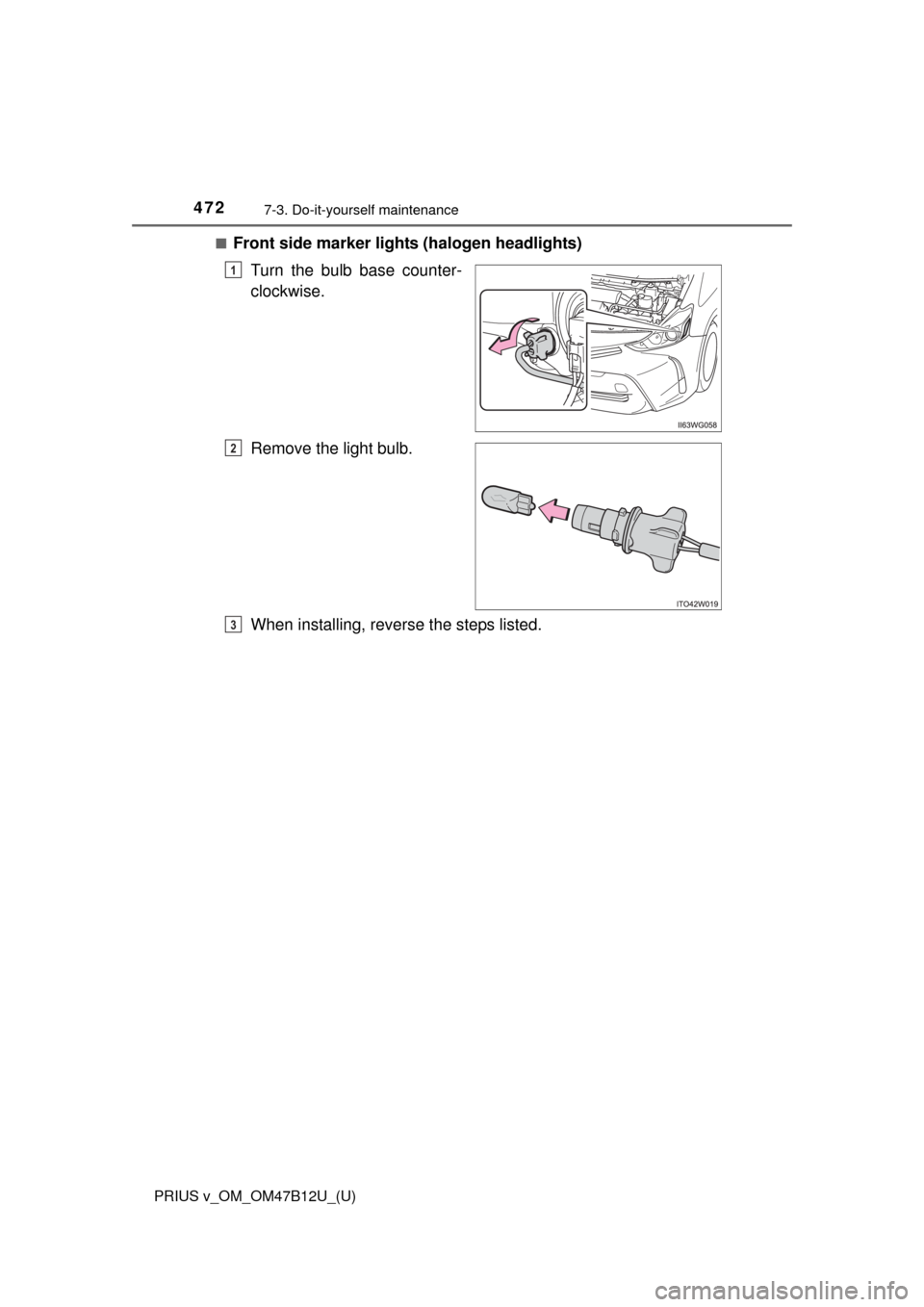

■Front side marker lights (halogen headlights)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3

PRIUS v_OM_OM47B12U_(U)
4737-3. Do-it-yourself maintenance
7
Maintenance and care
■Halogen fog light (if equipped)
Remove the fender liner bolts
and pull down the fender
liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
1
2
3

474
PRIUS v_OM_OM47B12U_(U)
7-3. Do-it-yourself maintenance
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert. Turn
it clockwise to set.
Set the connector.
After installing the connector,
shake the bulb base gently to
check that it is not loose, turn the
fog lights on once and visually con-
firm that no light is leaking through
the mounting.
Reinstall the fender liner bolts.
4
5
6

PRIUS v_OM_OM47B12U_(U)
4757-3. Do-it-yourself maintenance
7
Maintenance and care

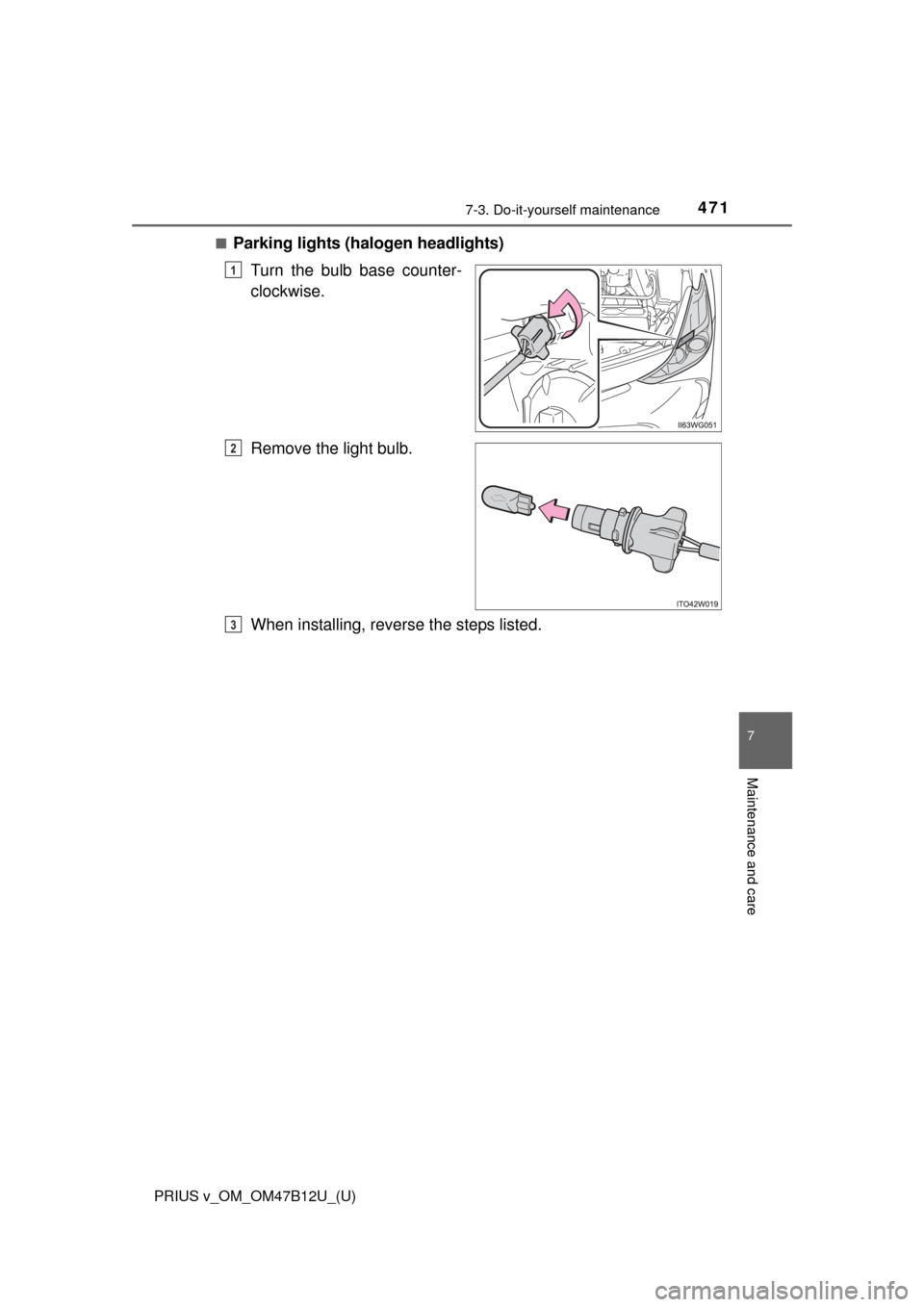

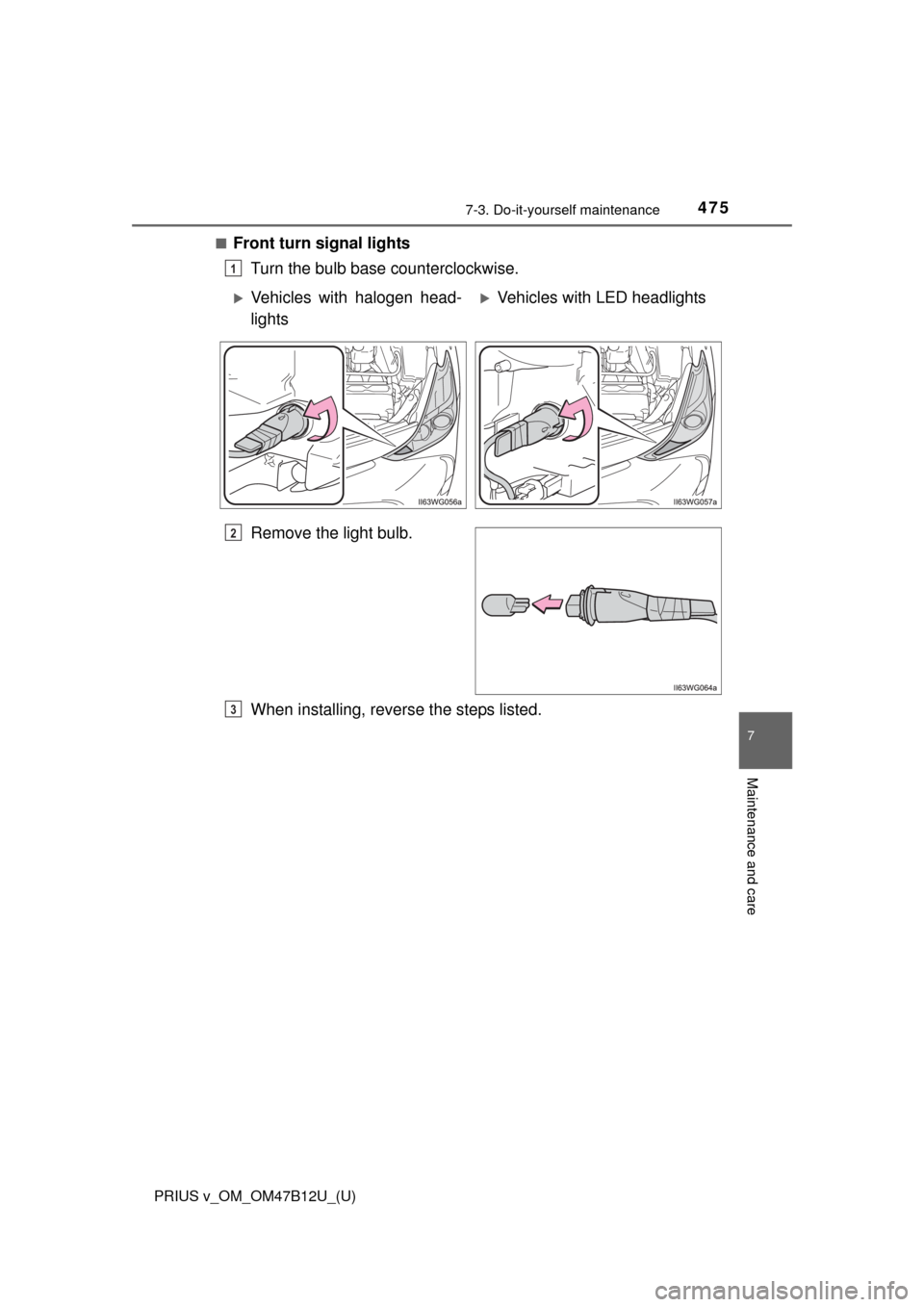

■Front turn signal lights
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
Vehicles with halogen head-
lightsVehicles with LED headlights
2
3

476
PRIUS v_OM_OM47B12U_(U)
7-3. Do-it-yourself maintenance

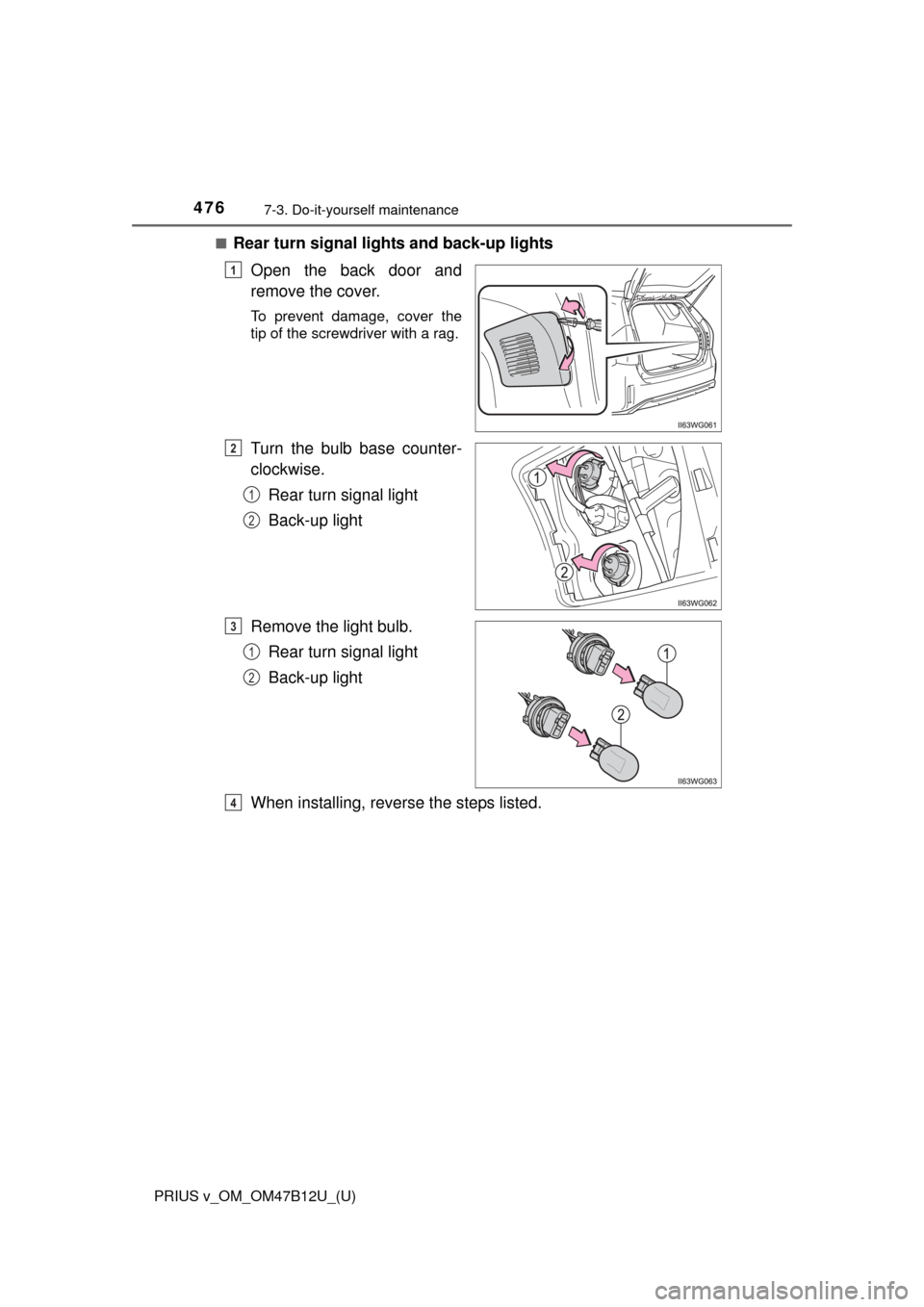

■Rear turn signal lights and back-up lights
Open the back door and
remove the cover.
To prevent damage, cover the
tip of the screwdriver with a rag.
Turn the bulb base counter-
clockwise.
Rear turn signal light
Back-up light
Remove the light bulb.
Rear turn signal light
Back-up light
When installing, reverse the steps listed.
1
2
1
2
3
1
2
4

PRIUS v_OM_OM47B12U_(U)
4777-3. Do-it-yourself maintenance
7
Maintenance and care

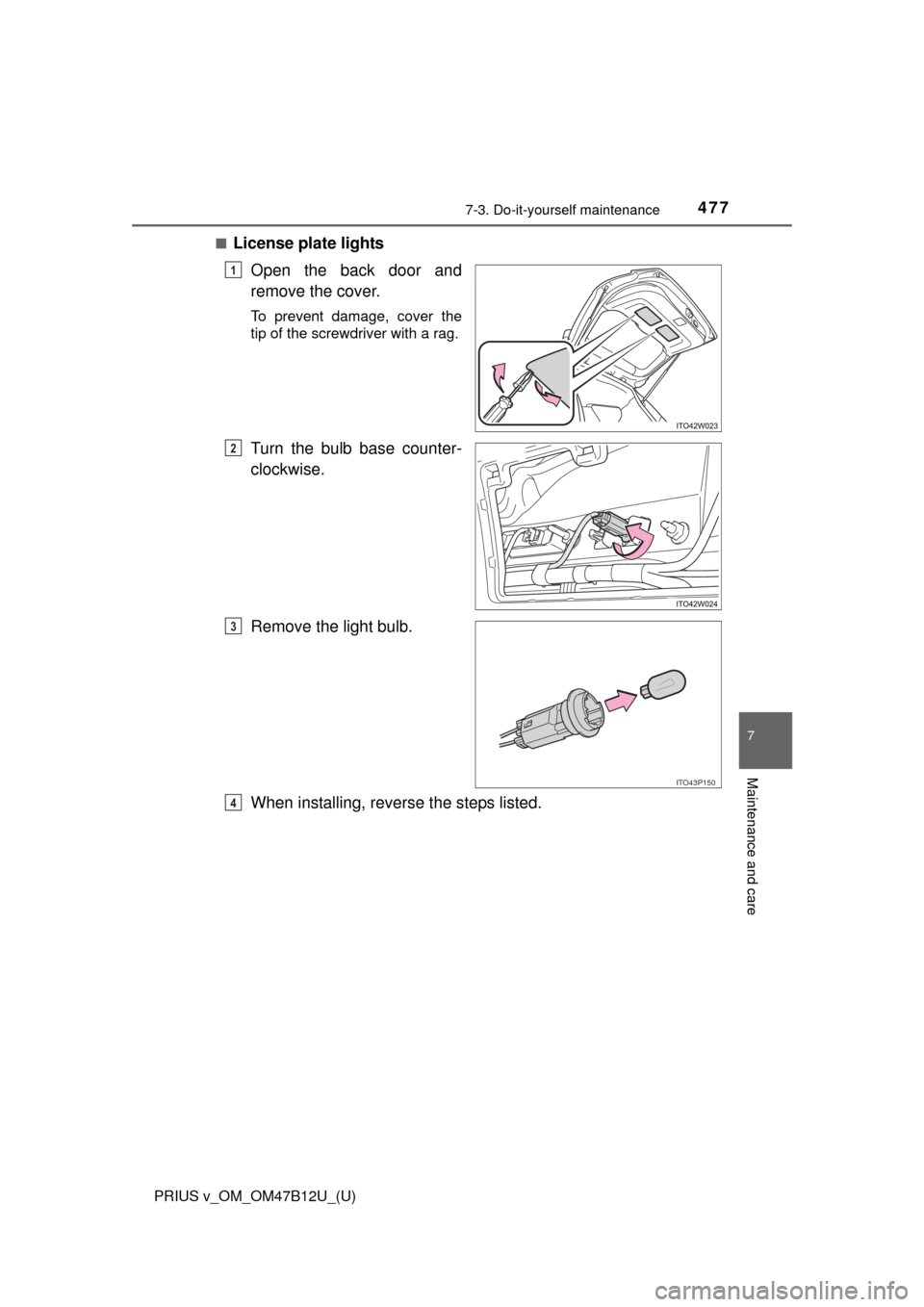

■License plate lights
Open the back door and
remove the cover.
To prevent damage, cover the
tip of the screwdriver with a rag.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
ITO43P150
3
4

478
PRIUS v_OM_OM47B12U_(U)
7-3. Do-it-yourself maintenance
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
●LED headlights
●Front side marker lights (LED headlights)
●Parking lights (LED headlights)
●Daytime running lights (LED headlights)
●Stop/tail lights
●Rear side marker lights
●High mounted stoplight
■LED lights
The LED headlights, front side marker lights, parking lights, daytime running
lights, stop lights, tail lights, rear side marker lights and high mounted stop-
light consist of a number of LEDs. If any of the LEDs burn out, take your vehi-
cle to your Toyota dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact your Toyota dealer for more information in the
following situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
P. 465

PRIUS v_OM_OM47B12U_(U)
4797-3. Do-it-yourself maintenance
7
Maintenance and care
WARNING
