TOYOTA PRIUS V 2016 ZVW40 / 1.G Owners Manual

PRIUS v_OM_OM47B12U_(U)
5819-2. Customization
9
Vehicle specifications
■Automatic air conditioning system (P. 364)
■Panoramic roof shades* (P. 389)
*: If equipped
■
Seat belt reminder (P. 494)
■Reverse buzzer (P. 183)
FunctionDefault
settingCustomized
setting
A/C auto switching oper-
ationOffOn–OO
Heating/cooling opera-
tion minimized in Eco
drive mode
OnOff––O
Switching between out-
side air and recirculated
air mode linked to A/C
auto switch operation
OnOff––O
123
FunctionDefault
settingCustomized
setting
Door lock linked auto-
matic closing functionOnOff––O
123
FunctionDefault
settingCustomized
setting
Vehicle speed linked
seat belt reminder
buzzer
OnOff––O
123
FunctionDefault
settingCustomized
setting
Signal (buzzer) when the
shift position is in RIntermittentSingle––O
123

582
PRIUS v_OM_OM47B12U_(U)
9-2. Customization
■Vehicle customization
●When the Speed linked door locking function and the Shift position linked
door locking function are both on, the door lock operates as follows.
• When shifting the shift position to any position other than P, all the doors
will be locked.
• If the vehicle is started with all the doors locked, the Speed linked door
locking function would not operate.
• If the vehicle is started with any door unlocked, the Speed linked door
locking function will operate.
●When the smart key system is off, Smart door unlocking cannot be custom-
ized.
●When the doors remain closed after unlocking the doors and the automatic
door lock function is activated, the signals will be generated in accordance
with the operation signal (buzzer) and the operation signal (emergency
flashers) settings.
■In the following situations, customize mode will automatically be turned
off.
●A warning message appears after the customize mode screen is displayed.
●The power switch is turned off.
●The vehicle begins to move while the customize mode screen is displayed.
WARNING
■Cautions during customization
As the hybrid system needs to be operating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.

583
PRIUS v_OM_OM47B12U_(U)
9-3. Initialization
9
Vehicle specifications

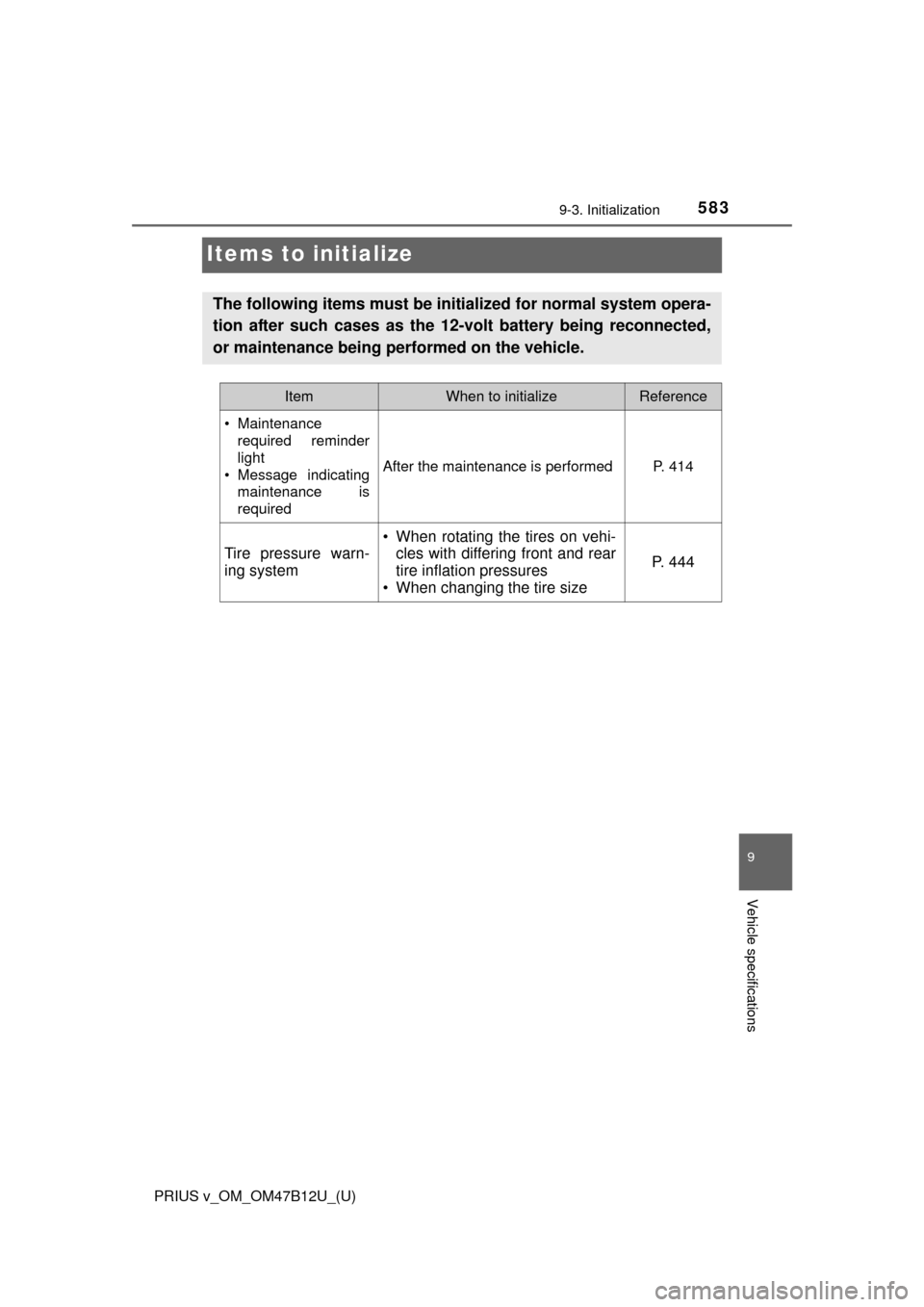

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle.
ItemWhen to initializeReference
• Maintenance
required reminder
light
• Message indicating
maintenance is
required
After the maintenance is performedP. 414
Tire pressure warn-
ing system
• When rotating the tires on vehi-
cles with differing front and rear
tire inflation pressures
• When changing the tire size
P. 4 4 4

584
PRIUS v_OM_OM47B12U_(U)
9-3. Initialization

585
PRIUS v_OM_OM47B12U_(U)
10For owners
Reporting safety defects
for U.S. owners........................ 586
Seat belt instructions
for Canadian owners
(in French) ............................... 587
SRS airbag instructions
for Canadian owners
(in French) ............................... 589

586
PRIUS v_OM_OM47B12U_(U)

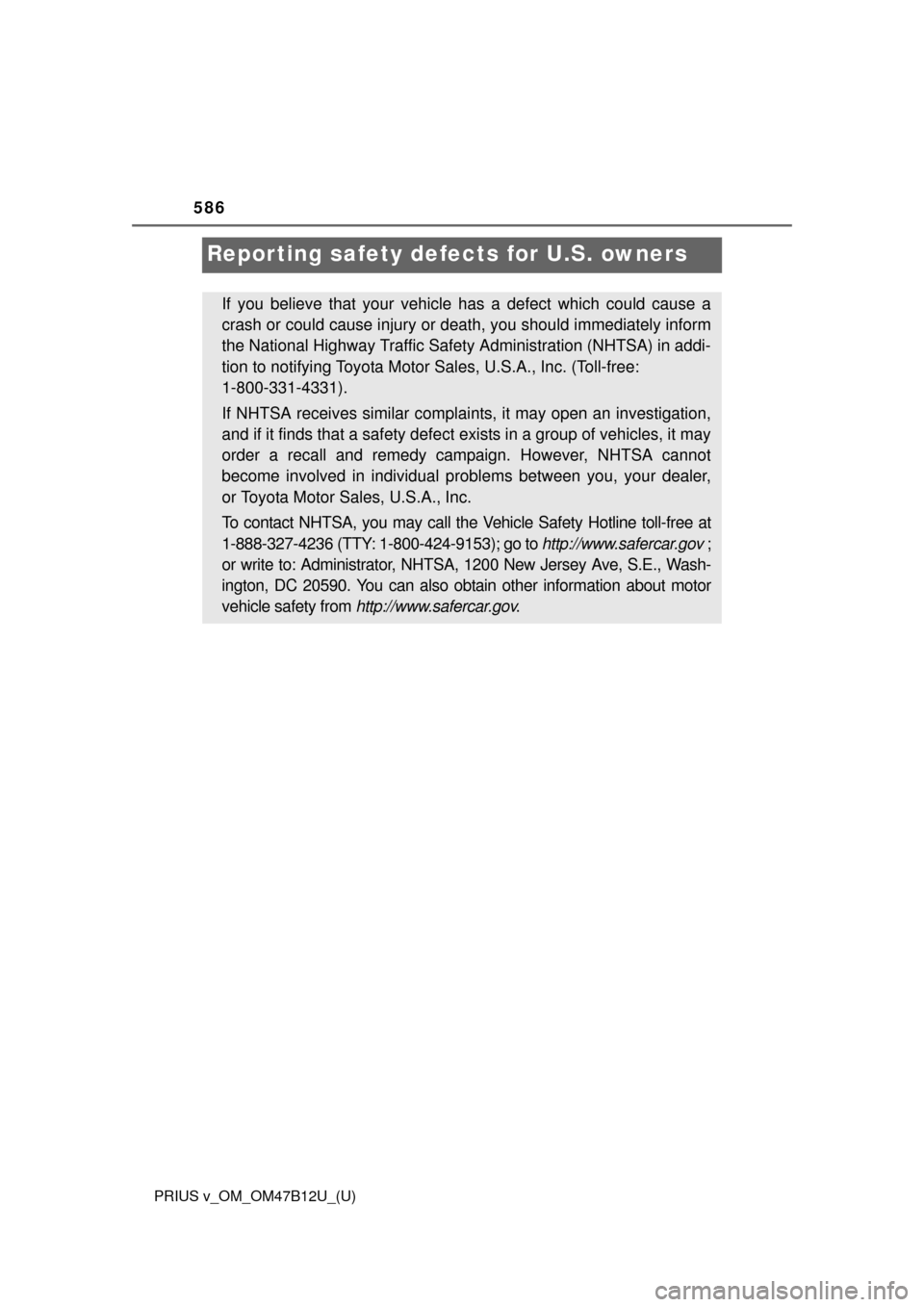

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free:
1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov ;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E., Wash-
ington, DC 20590. You can also obtain other information about motor
vehicle safety from http://www.safercar.gov.

587
PRIUS v_OM_OM47B12U_(U)
10
For owners
Seat belt instructions for Canadian owners
(in French)
●Tirez sur la ceinture épaulière
jusqu’à ce qu’elle recouvre
entièrement l’épaule; elle ne
doit cependant pas toucher le
cou ni glisser de l’épaule.
●Placez la ceinture abdominale
le plus bas possible sur les
hanches.
●Réglez la position du dossier. Tenez-vous assis bien au fond du
siège, le dos droit.
●Ne vrillez pas la ceinture de sécurité.
Si la ceinture épaulière est trop près du cou d’une personne, utilisez le
guide de ceinture de sécurité.
Retirez le guide de la poche du
dossier.
The following is a French explanation of seat belt instructions
extracted from the SRS airbag section in this manual.
See the seat belt section for more detailed SRS airbag instructions
in English.
Utilisation adéquate des ceintures de sécurité
Guide de ceinture de sécurité (siège central arrière)
1

588
PRIUS v_OM_OM47B12U_(U)
Faites glisser la ceinture au-
delà de la fente du guide.
L’élastique doit être placé derrière
la ceinture de sécurité.
Bouclez la ceinture de sécurité
et placez-la afin de ne pas res-
sentir d’inconfort.
■Ceintures de sécurité
Avec un chiffon ou une éponge, nettoyez à l’aide d’un savon doux
et de l’eau tiède. Vérifiez aussi les ceintures régulièrement pour
vous assurer qu’elles ne présentent pas d’usure excessive, d’effilo-
chage ou de coupures.
2
3
Entretien et nettoyage
AVERTISSEMENT
■Dommages et usure de la ceinture de sécurité
Vérifiez périodiquement le système de ceintures de sécurité. Vérifiez qu’il
n’y a pas de coupures, d’effilochures ni de pièces desserrées. N’utilisez pas
une ceinture de sécurité endommagée avant qu’elle ne soit remplacée. Les
ceintures de sécurité endommagées ne peuvent pas protéger les occu-
pants contre les blessures graves, voire mortelles.

589
PRIUS v_OM_OM47B12U_(U)
10
For owners
SRS airbag instructions for Canadian own-
ers (in French)
◆Coussins gonflables SRS avant
Coussin gonflable SRS du conducteur/coussin gonflable SRS du
passager avant
Peuvent aider à protéger la tête et la poitrine du conducteur et du
passager avant contre les impacts avec des composants intéri-
eurs
Coussin gonflable SRS de protection des genoux
Peut aider à protéger le conducteur
The following is a French explanation of SRS airbag instructions
extracted from the SRS airbag section in this manual.
See the SRS airbag section for more detailed SRS airbag instruc-
tions in English.
1
2

590
PRIUS v_OM_OM47B12U_(U)
◆Coussins gonflables SRS latéraux et en rideau
Coussins gonflables SRS latéraux
Peuvent aider à protéger le torse des occupants des sièges
avant
Coussins gonflables SRS en rideau
Peuvent aider à protéger principalement la tête des occupants
des sièges latéraux
3
4
