1012. Instrument cluster
2
Instrument cluster

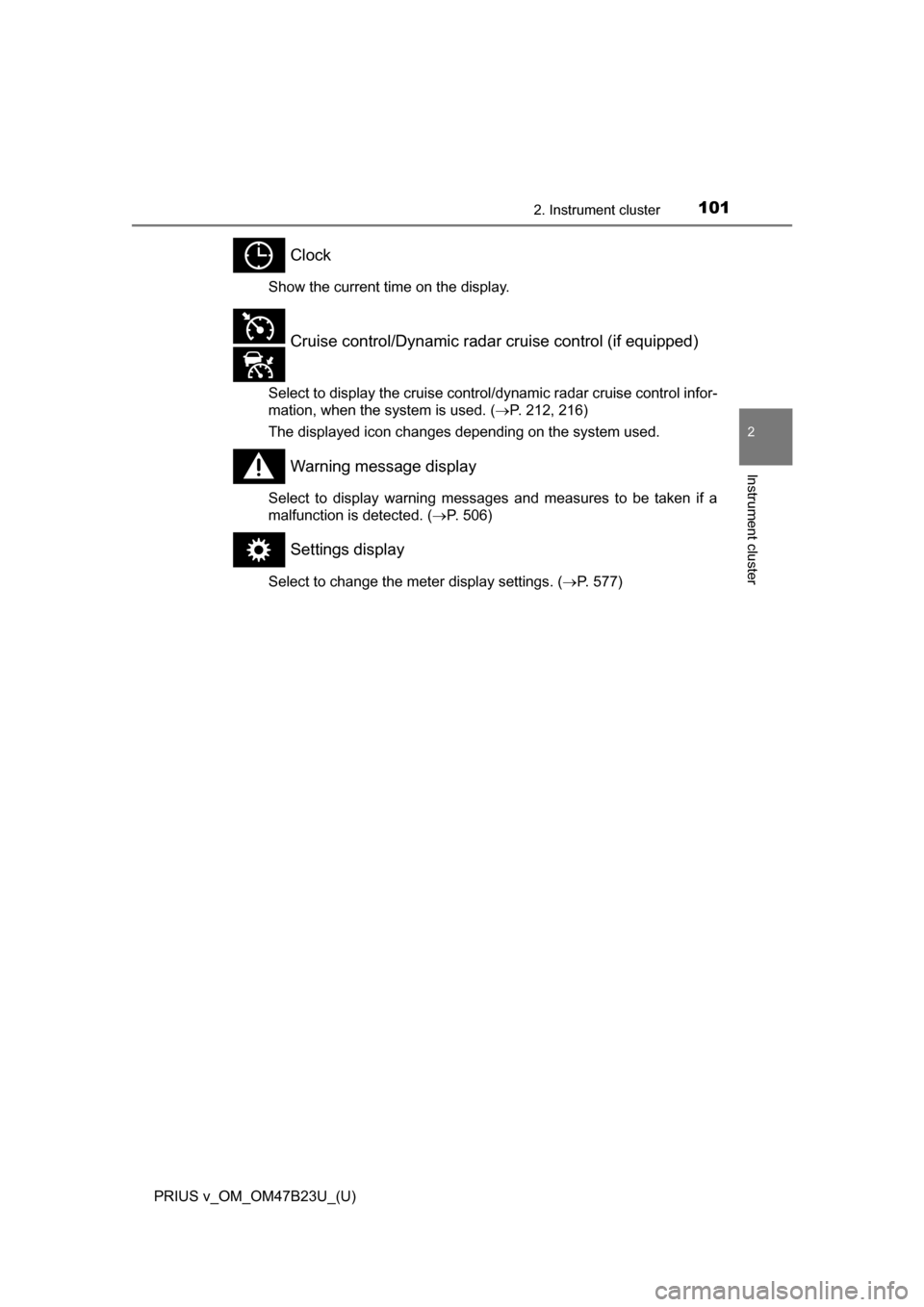

Clock
Show the current time on the display.
Select to display the cruise control/dynamic radar cruise control infor-
mation, when the system is used. (P. 212, 216)
The displayed icon changes depending on the system used.
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( P. 506)
Settings display
Select to change the meter display settings. ( P. 577)
Cruise control/Dynamic radar cruise control (if equipped)

102
PRIUS v_OM_OM47B23U_(U)
2. Instrument cluster

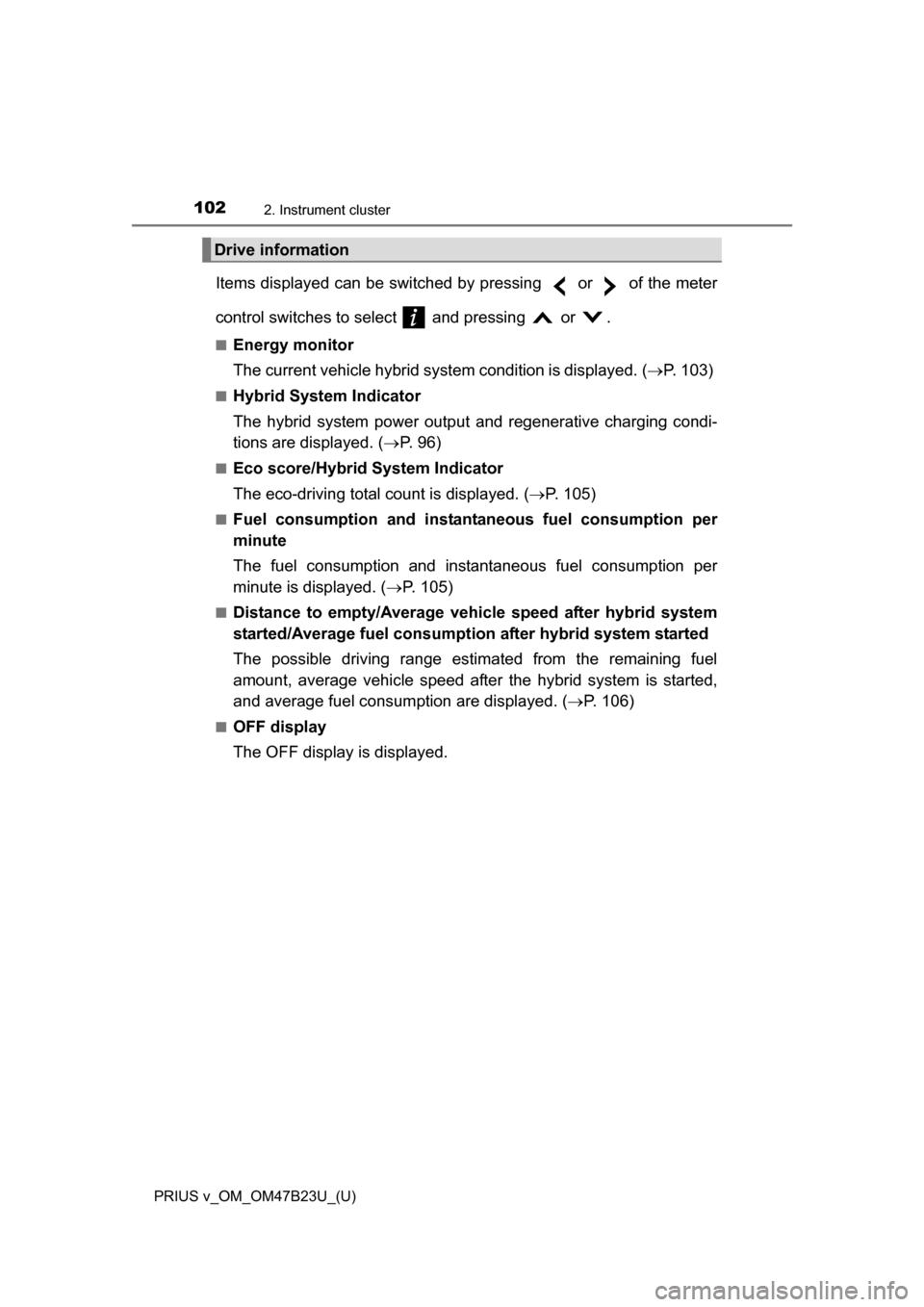

Items displayed can be switched by pressing or of the meter
control switches to select and pressing or .
■Energy monitor
The current vehicle hybrid system condition is displayed. (P. 103)
■Hybrid System Indicator
The hybrid system power outpu t and regenerative charging condi-
tions are displayed. ( P. 96)
■Eco score/Hybrid System Indicator
The eco-driving total count is displayed. ( P. 105)
■Fuel consumption and instanta neous fuel consumption per
minute
The fuel consumption and instantaneous fuel consumption per
minute is displayed. ( P. 105)
■Distance to empty/Average vehicle speed after hybrid system
started/Average fuel consumption after hybrid system started
The possible driving range esti mated from the remaining fuel
amount, average vehicle speed afte r the hybrid system is started,
and average fuel consum ption are displayed. (P. 106)
■OFF display
The OFF display is displayed.
Drive information

PRIUS v_OM_OM47B23U_(U)
1032. Instrument cluster
2
Instrument cluster

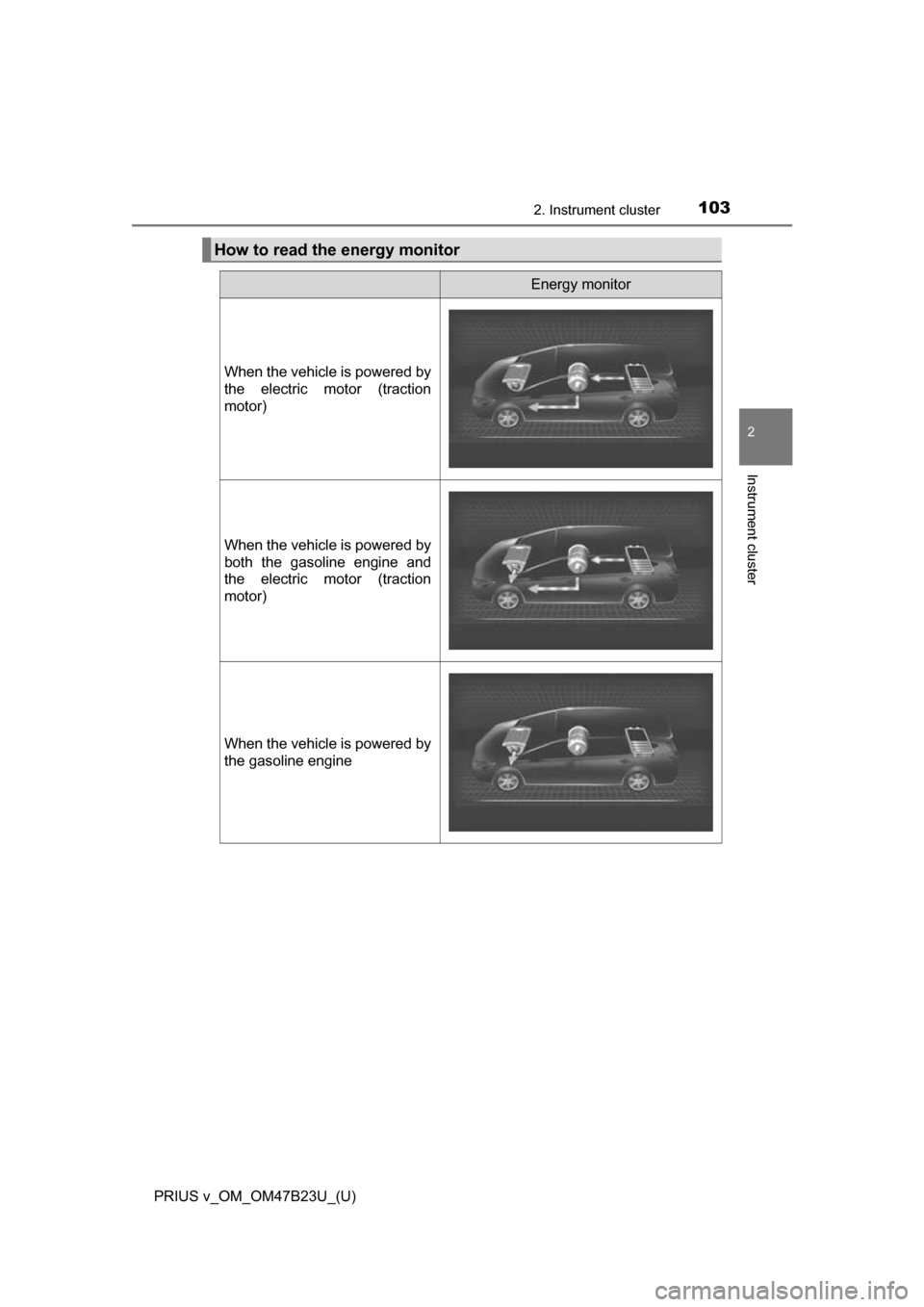

How to read the energy monitor
Energy monitor
When the vehicle is powered by
the electric motor (traction
motor)
When the vehicle is powered by
both the gasoline engine and
the electric motor (traction
motor)
When the vehicle is powered by
the gasoline engine

104
PRIUS v_OM_OM47B23U_(U)
2. Instrument cluster
These images are examples only, and may vary slightly from actual
conditions.

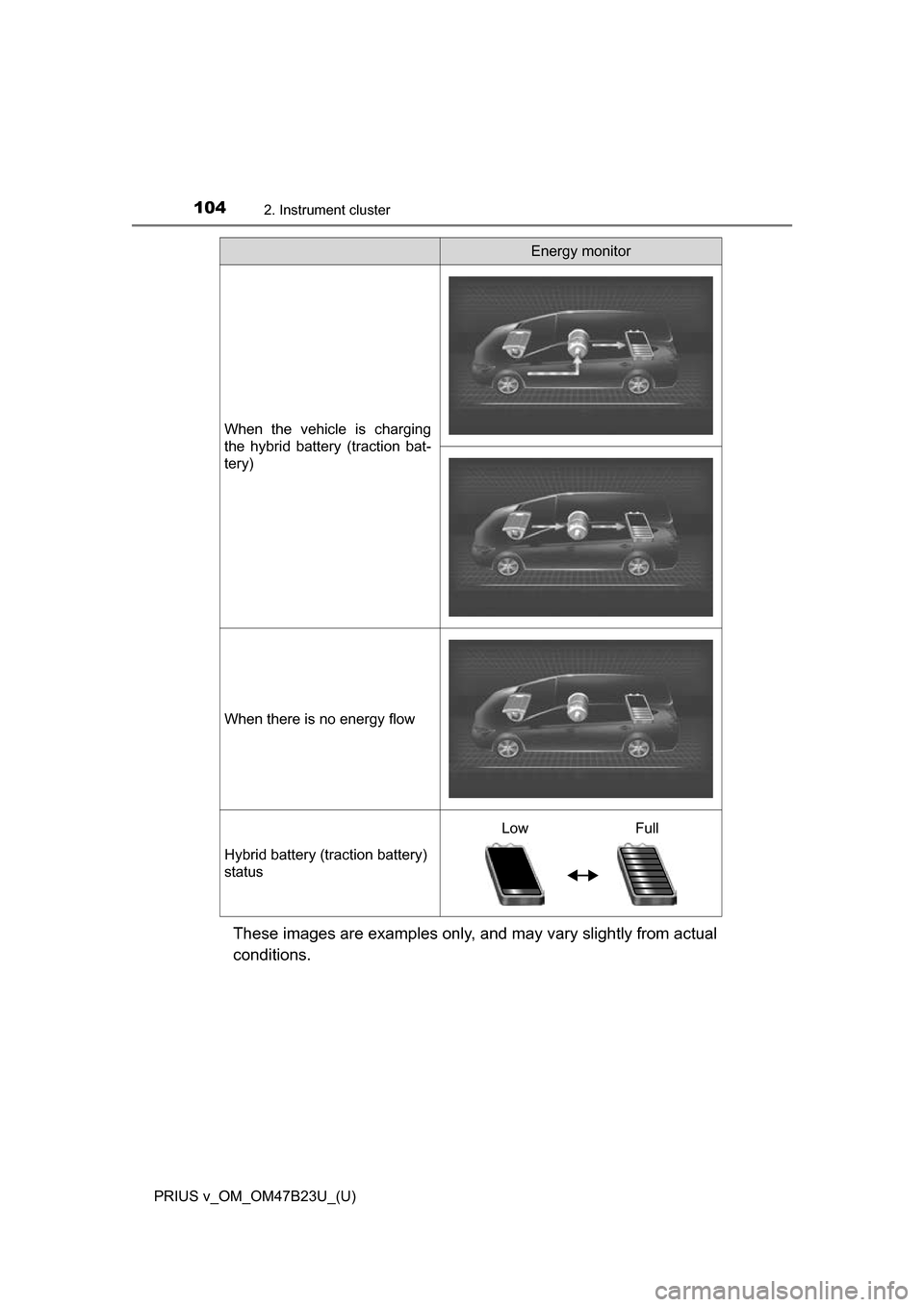

When the vehicle is charging
the hybrid battery (traction bat-
tery)
When there is no energy flow
Hybrid battery (traction battery)
status
Energy monitor
LowFull

PRIUS v_OM_OM47B23U_(U)
1052. Instrument cluster
2
Instrument cluster
Displays the eco-driving total count to help improve the customer’s
eco-driving techniques and the vehicle’s fuel economy.
Score
Totals the counts of Eco-Start, Eco-
Cruise and Eco-Stop and displays
the result.
Eco-Start
Eco-Cruise
Eco-Stop
Fuel consumption in the past 10
minutes
Current fuel consumption
Regenerated energy in the past
10 minutes
One symbol indicates 30 Wh.
Up to 10 symbols are shown.
How to read the Eco score
1
2
3
4
How to read the fuel consumption and instantaneous fuel con-
sumption per minute
1
2
3

106
PRIUS v_OM_OM47B23U_(U)
2. Instrument cluster
Distance to empty
• Since it is calculated based onthe average fuel consumption in
the past, it may not be the actual
distance that can be driven to be
displayed.
• When only a small amount of fuel is added to the tank, the dis-
play may not be updated. When
refueling, turn the power switch
off. If the vehicle is refueled
without turning the power switch
off, the display may not be
updated.
Average vehicle speed after hybrid system started
Average fuel consumption af ter hybrid system started
• Use the displayed average fuel consumption as a reference.
• These images are examples only, and may vary slightly from actual con-
ditions.

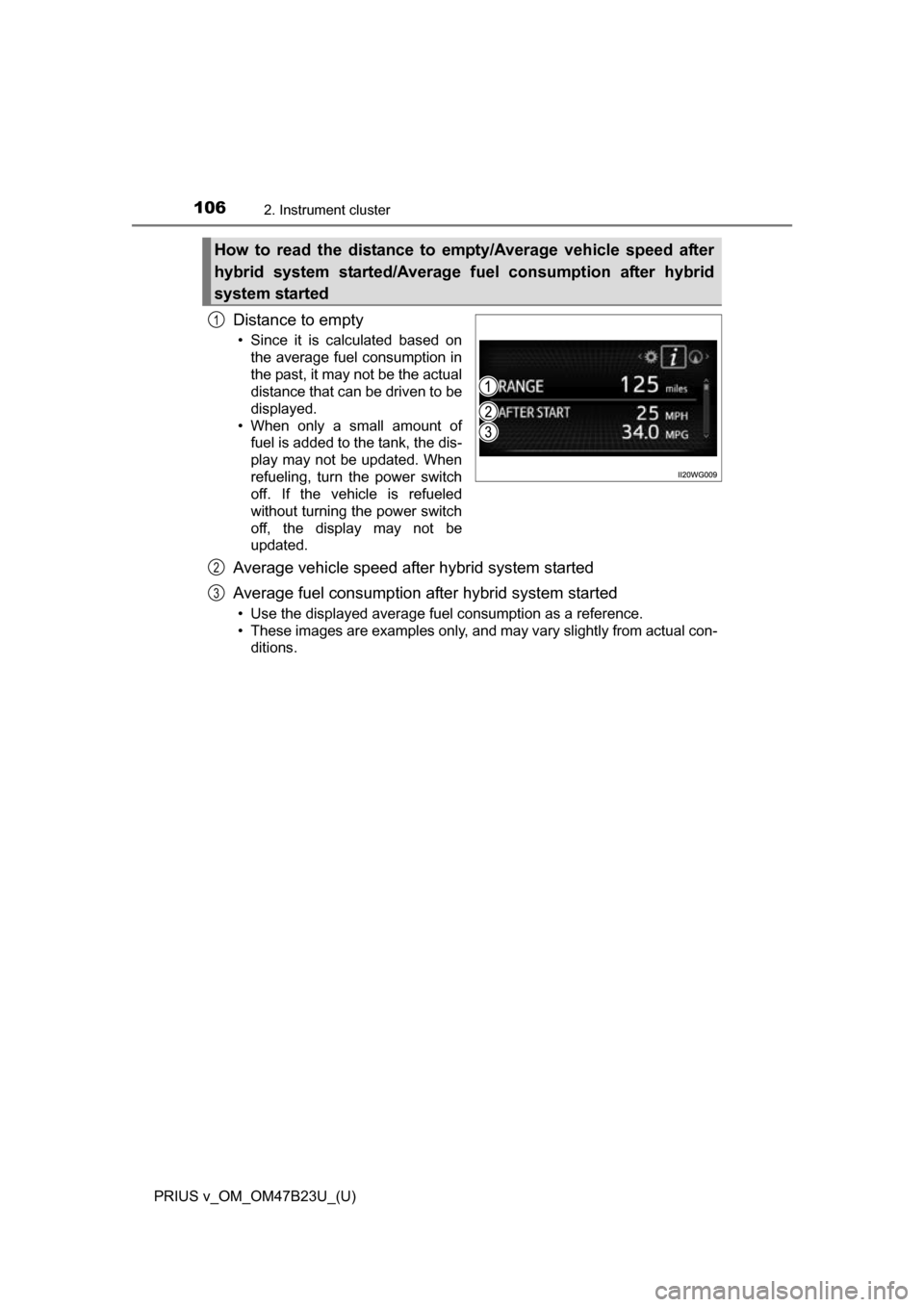

How to read the distance to empty/Average vehicle speed after
hybrid system started/Average fuel consumption after hybrid
system started
1
2
3

PRIUS v_OM_OM47B23U_(U)
1072. Instrument cluster
2
Instrument cluster

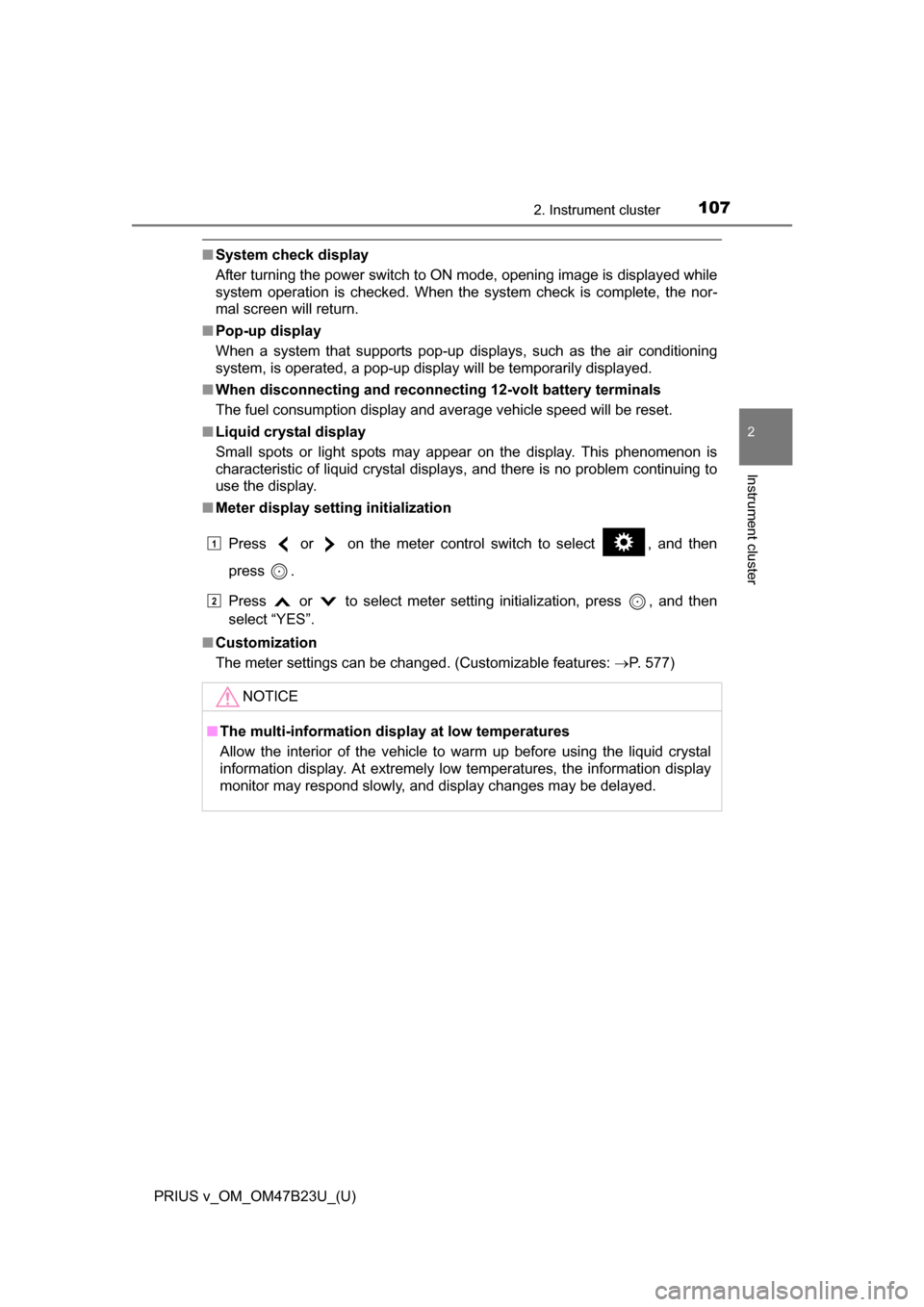

■System check display
After turning the power switch to ON mode, opening image is displayed while
system operation is checked. When the system check is complete, the nor-
mal screen will return.
■ Pop-up display
When a system that supports pop-up displays, such as the air conditioning
system, is operated, a pop-up display will be temporarily displayed.
■ When disconnecting and reconnect ing 12-volt battery terminals
The fuel consumption display and average vehicle speed will be reset.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ Meter display setting initialization
Press or on the meter control switch to select , and then
press .
Press or to select meter setting initialization, press , and then
select “YES”.
■ Customization
The meter settings can be changed. (Customizable features: P. 577)
NOTICE
■The multi-information disp lay at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
1
2

108
PRIUS v_OM_OM47B23U_(U)
2. Instrument cluster

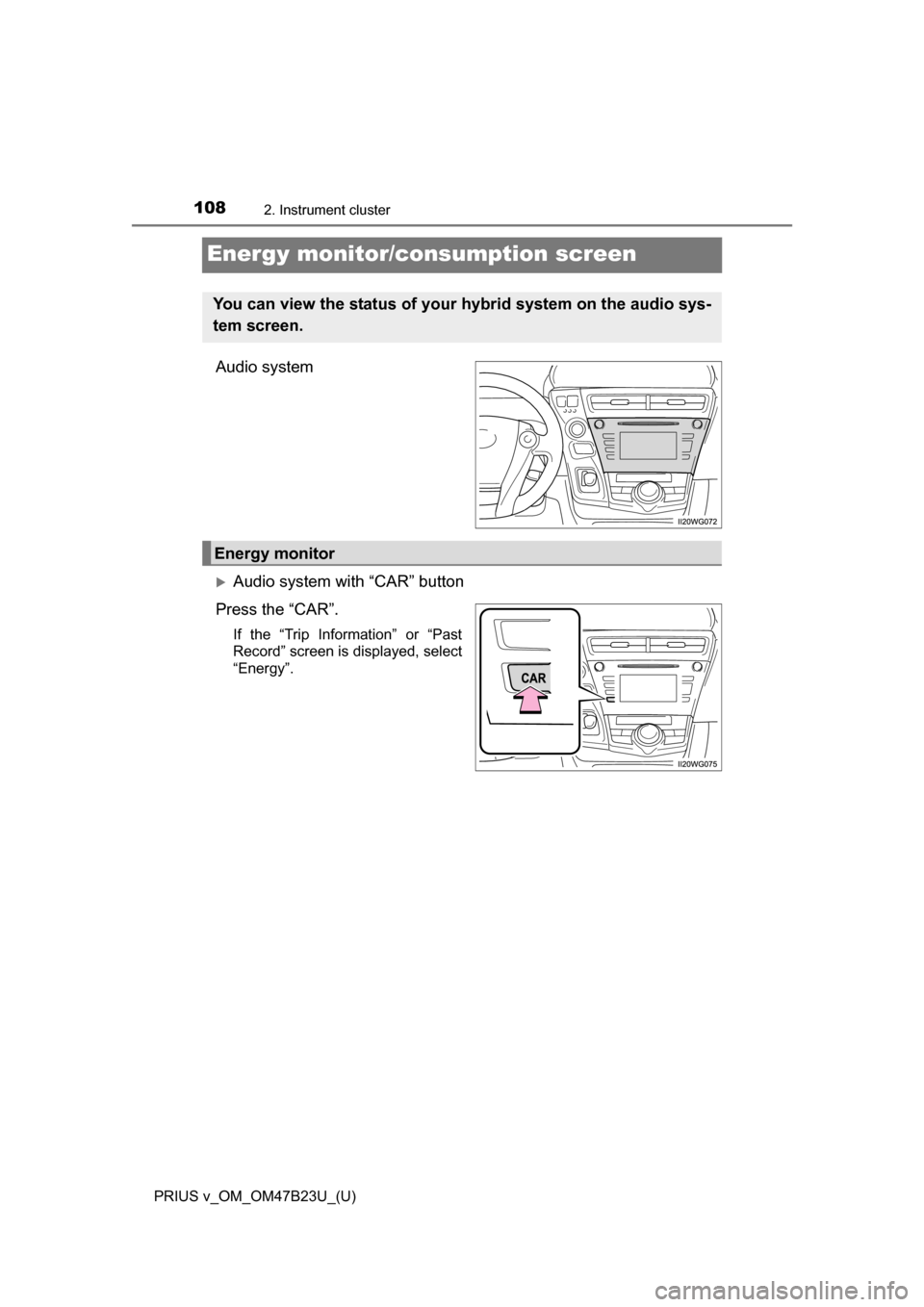

Energy monitor/consumption screen
Audio system
Audio system with “CAR” button
Press the “CAR”.
If the “Trip Information” or “Past
Record” screen is displayed, select
“Energy”.
You can view the status of your hybrid system on the audio sys-
tem screen.
Energy monitor

PRIUS v_OM_OM47B23U_(U)
1092. Instrument cluster
2
Instrument cluster

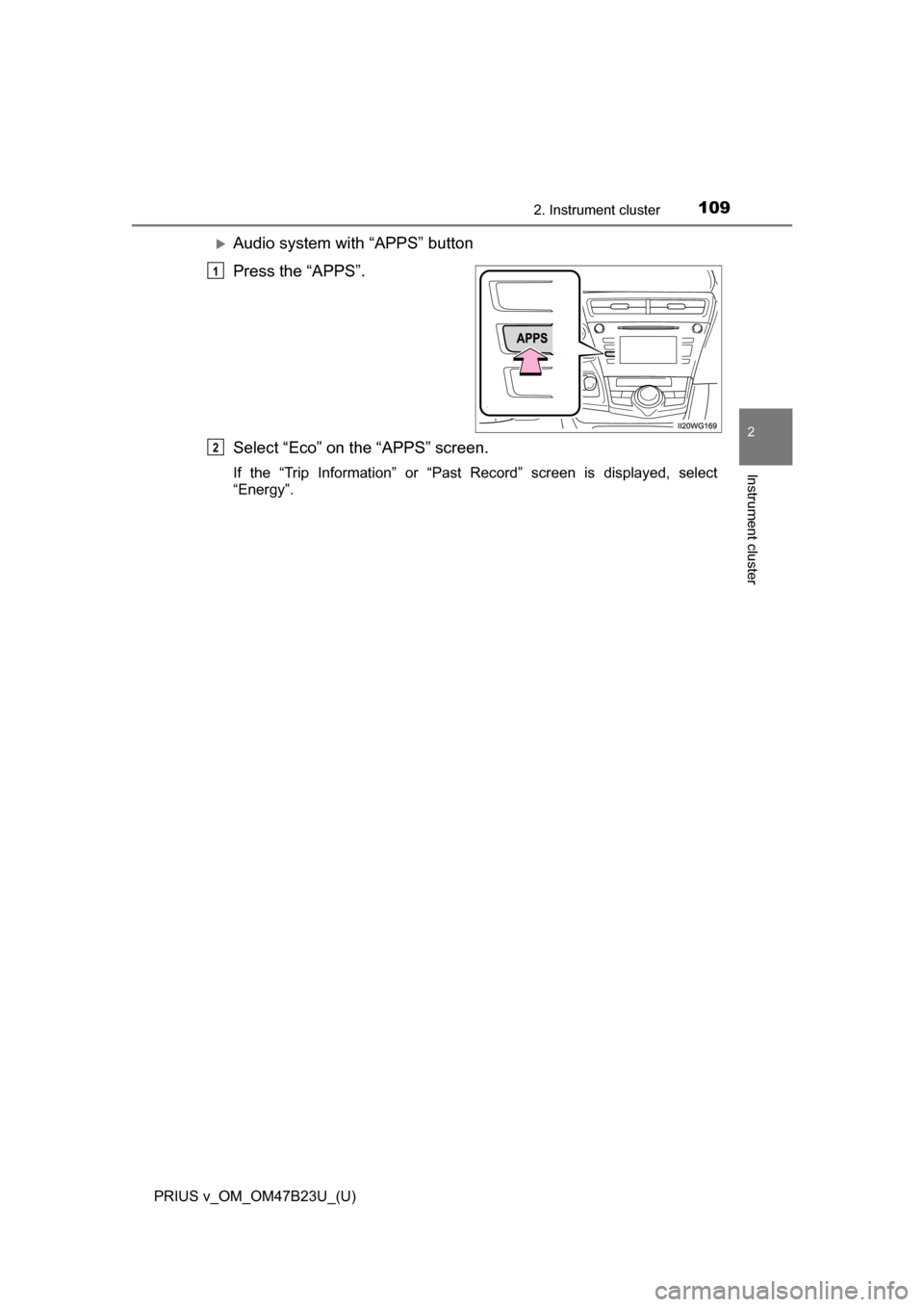

Audio system with “APPS” button
Press the “APPS”.
Select “Eco” on the “APPS” screen.
If the “Trip Information” or “Past Record” screen is displayed, select
“Energy”.
1
2

110
PRIUS v_OM_OM47B23U_(U)
2. Instrument cluster

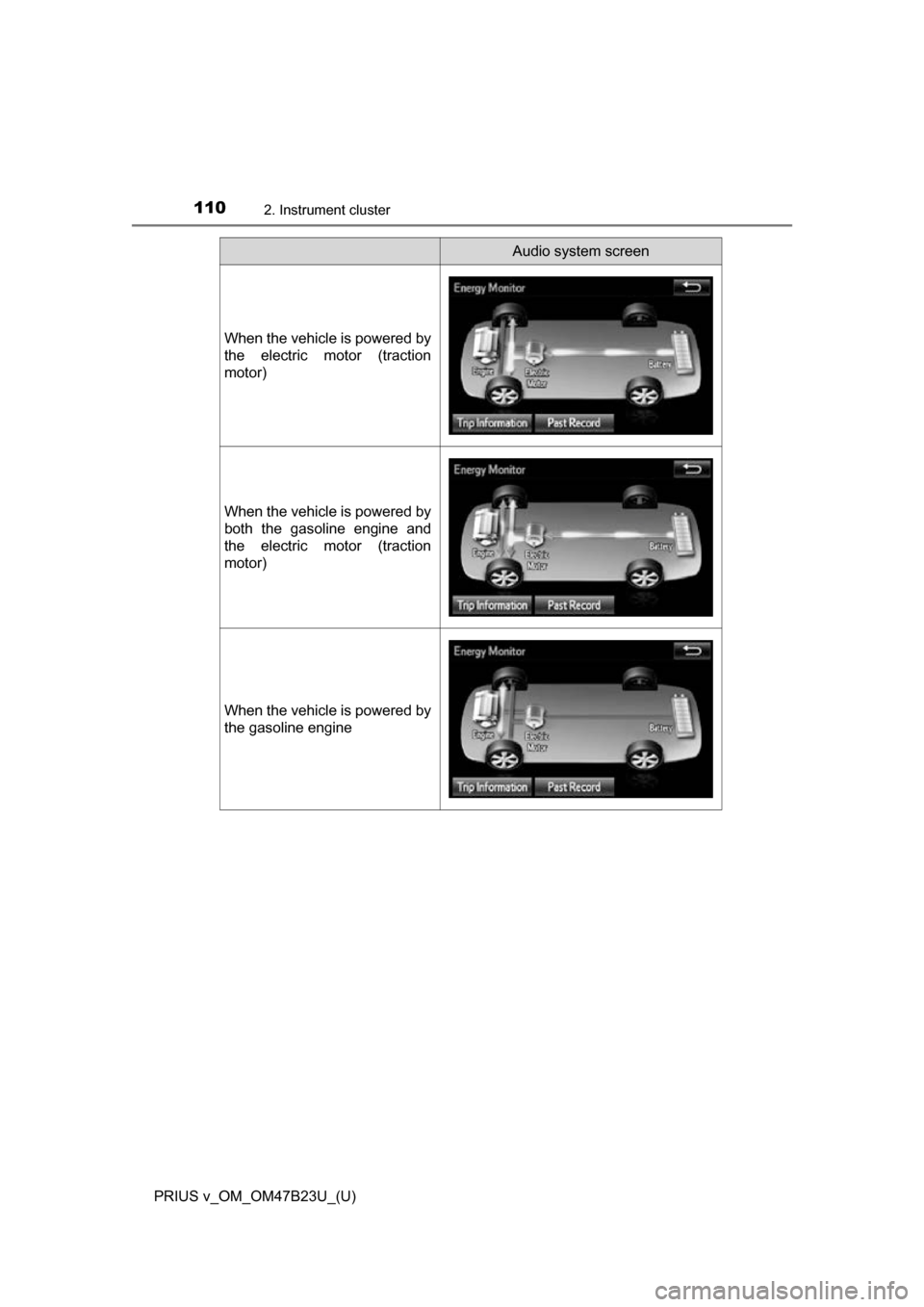

Audio system screen
When the vehicle is powered by
the electric motor (traction
motor)
When the vehicle is powered by
both the gasoline engine and
the electric motor (traction
motor)
When the vehicle is powered by
the gasoline engine
