TOYOTA PRIUS V 2017 ZVW40 / 1.G Owners Manual
Manufacturer: TOYOTA, Model Year: 2017, Model line: PRIUS V, Model: TOYOTA PRIUS V 2017 ZVW40 / 1.GPages: 624, PDF Size: 13.82 MB

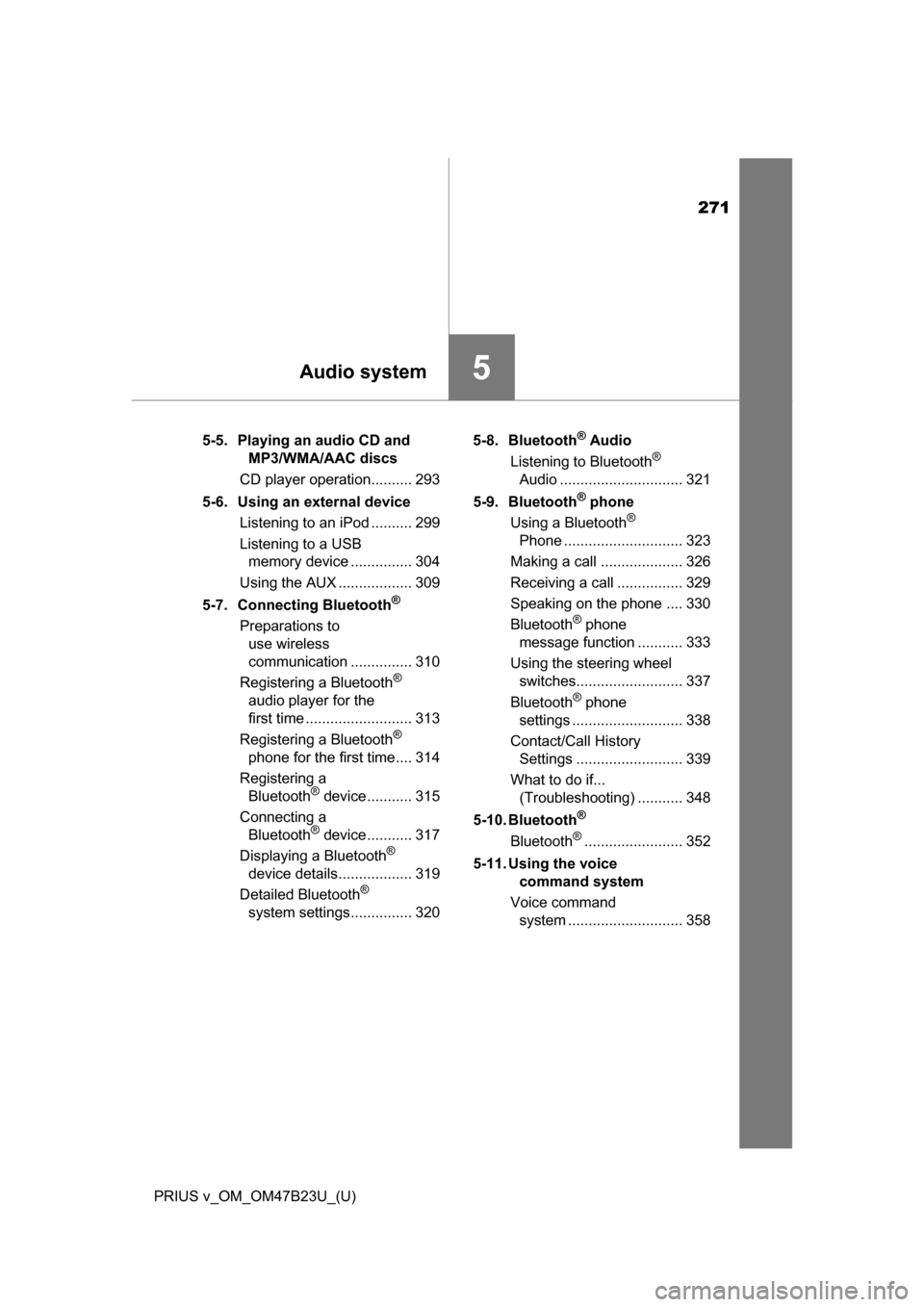

Page 271 of 624

271
PRIUS v_OM_OM47B23U_(U)
5Audio system
5-5. Playing an audio CD and MP3/WMA/AAC discs
CD player operation.......... 293
5-6. Using an external device Listening to an iPod .......... 299
Listening to a USB memory device ............... 304
Using the AUX .................. 309
5-7. Connecting Bluetooth
®
Preparations to use wireless
communication ............... 310
Registering a Bluetooth
®
audio player for the
first time .......................... 313
Registering a Bluetooth
®
phone for the first time.... 314
Registering a Bluetooth
® device ........... 315
Connecting a Bluetooth
® device ........... 317
Displaying a Bluetooth®
device details.................. 319
Detailed Bluetooth
®
system settings............... 320 5-8. Bluetooth
® Audio
Listening to Bluetooth®
Audio .............................. 321
5-9. Bluetooth
® phone
Using a Bluetooth®
Phone ............................. 323
Making a call .................... 326
Receiving a call ................ 329
Speaking on the phone .... 330
Bluetooth
® phone
message function ........... 333
Using the steering wheel switches.......................... 337
Bluetooth
® phone
settings ........................... 338
Contact/Call History Settings .......................... 339
What to do if... (Troubleshooting) ........... 348
5-10. Bluetooth
®
Bluetooth®........................ 352
5-11. Using the voice command system
Voice command system ............................ 358
Page 272 of 624

272
PRIUS v_OM_OM47B23U_(U)
5-1. Basic Operations

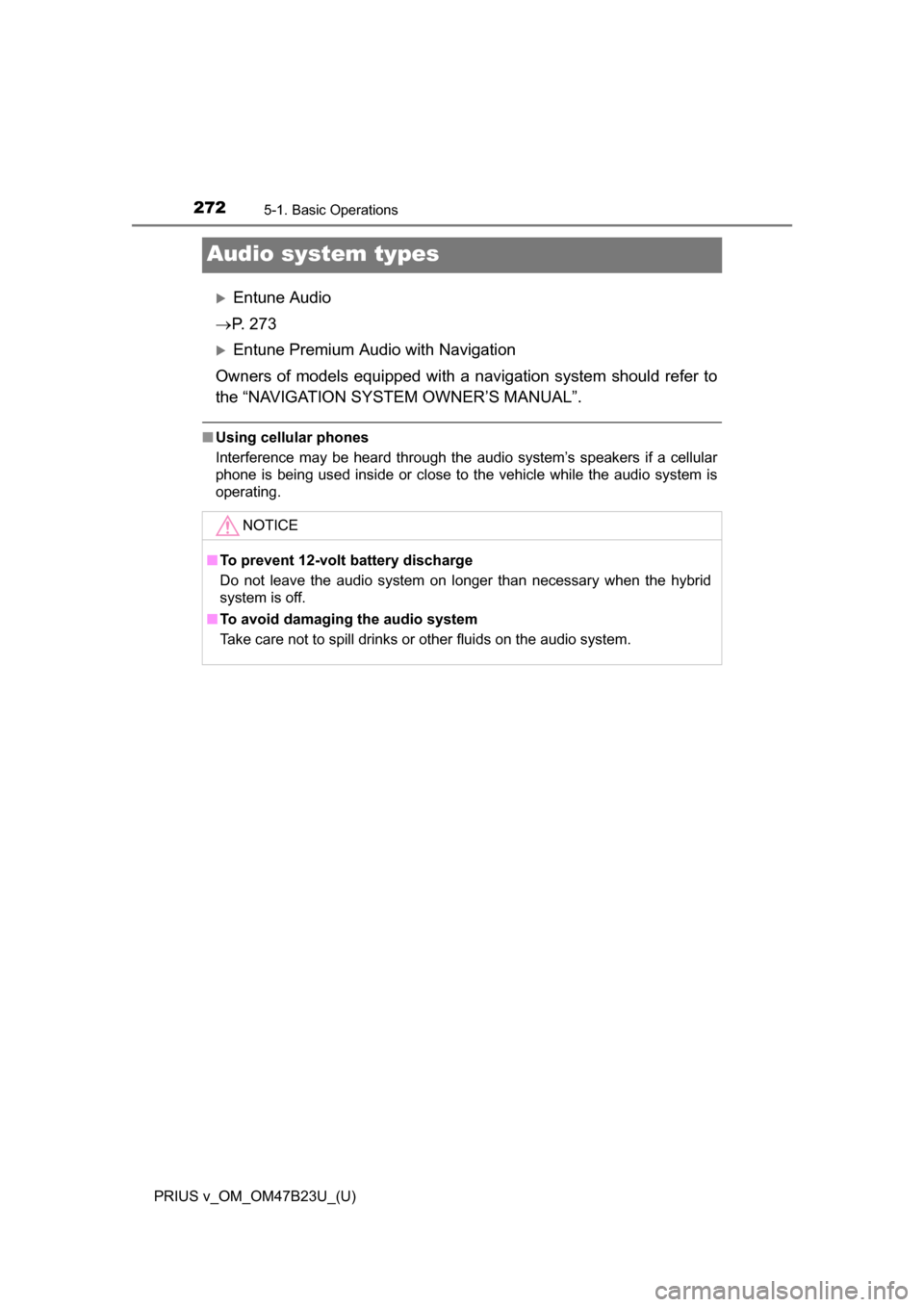

Audio system types
Entune Audio
P. 2 7 3
Entune Premium Audio with Navigation
Owners of models equipped with a navigation system should refer to
the “NAVIGATION SYSTEM OWNER’S MANUAL”.
■ Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
NOTICE
■To prevent 12-volt battery discharge
Do not leave the audio system on longer than necessary when the hybrid
system is off.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids on the audio system.
Page 273 of 624

273
PRIUS v_OM_OM47B23U_(U)
5-1. Basic Operations
5
Audio system

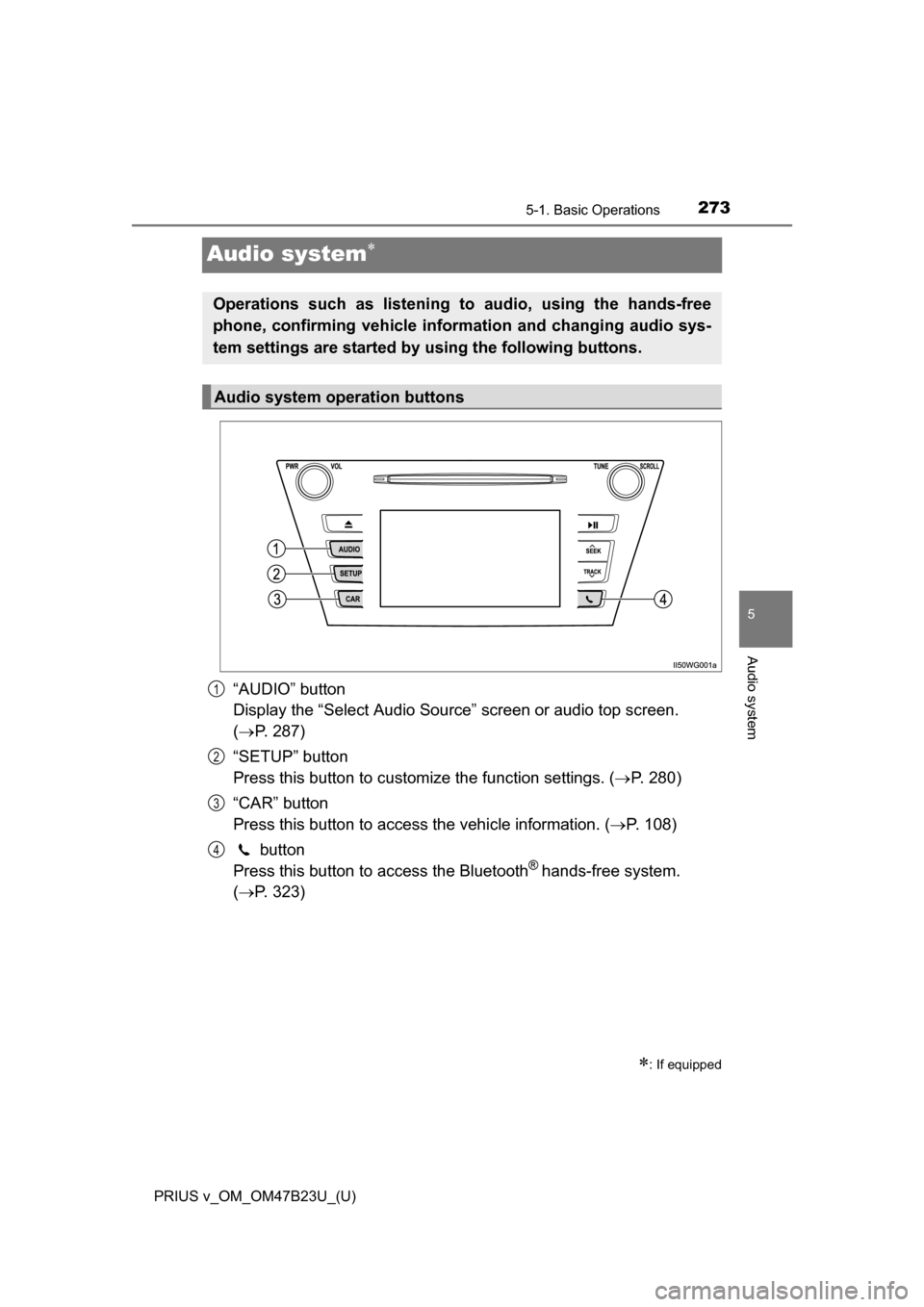

Audio system
“AUDIO” button
Display the “Select Audio Source” screen or audio top screen.
( P. 287)
“SETUP” button
Press this button to customize the function settings. ( P. 280)
“CAR” button
Press this button to access the vehicle information. ( P. 108)
button
Press this button to access the Bluetooth
® hands-free system.
( P. 323)
: If equipped
Operations such as listening to audio, using the hands-free
phone, confirming vehicle inform ation and changing audio sys-
tem settings are started by using the following buttons.
Audio system operation buttons
1
2
3
4
Page 274 of 624

2745-1. Basic Operations
PRIUS v_OM_OM47B23U_(U)

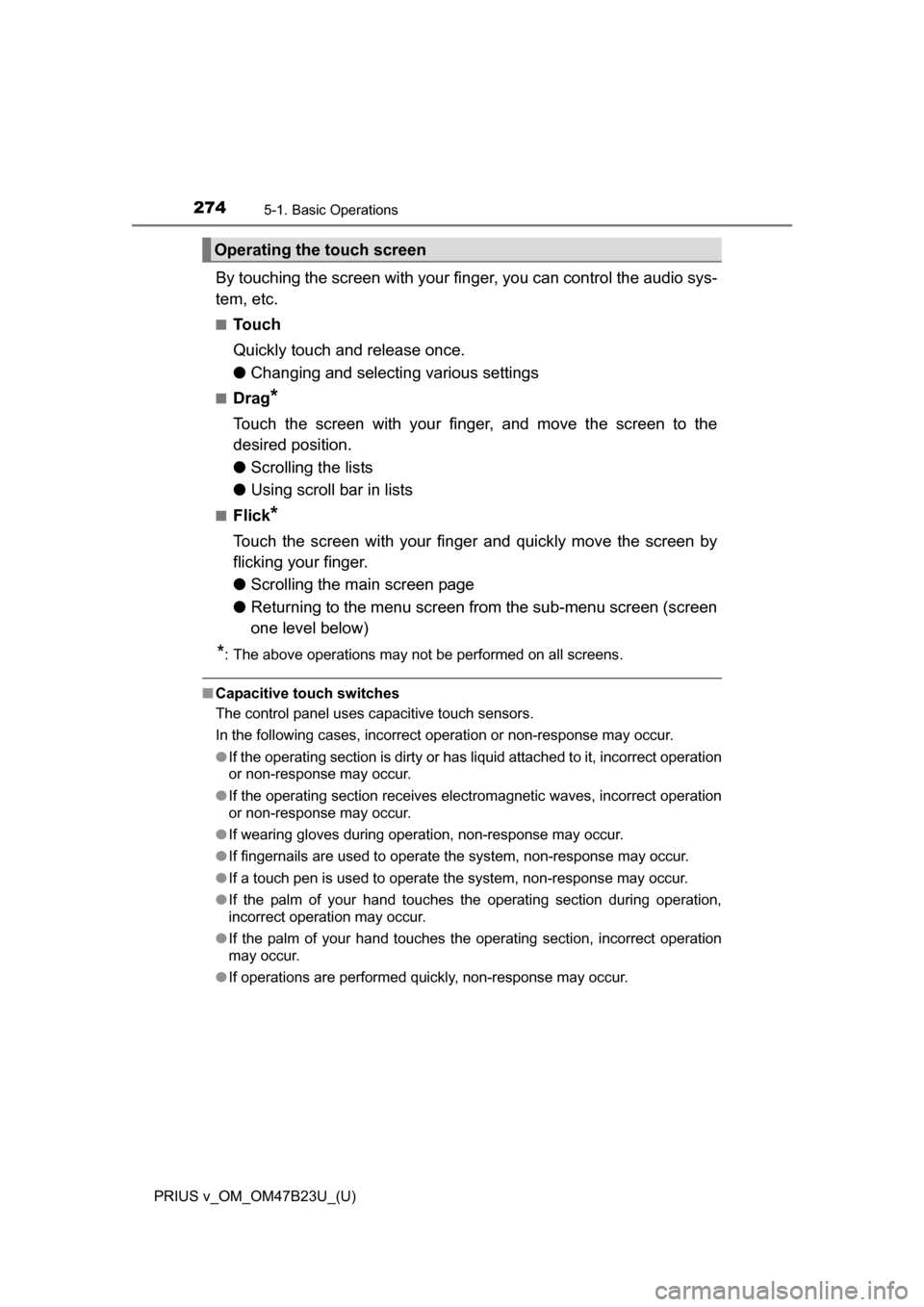

By touching the screen with your finger, you can control the audio sys-
tem, etc.
■Touch
Quickly touch and release once.
●Changing and selecting various settings
■Drag*
Touch the screen with your finger, and move the screen to the
desired position.
●Scrolling the lists
● Using scroll bar in lists
■Flick*
Touch the screen with your finger and quickly move the screen by
flicking your finger.
●Scrolling the main screen page
● Returning to the menu screen from the sub-menu screen (screen
one level below)
*: The above operations may not be performed on all screens.
■Capacitive touch switches
The control panel uses capacitive touch sensors.
In the following cases, incorrect operation or non-response may occur.
●If the operating section is dirty or has liquid attached to it, incorrect operation
or non-response may occur.
● If the operating section receives electromagnetic waves, incorrect operation
or non-response may occur.
● If wearing gloves during operation, non-response may occur.
● If fingernails are used to operate the system, non-response may occur.
● If a touch pen is used to operate the system, non-response may occur.
● If the palm of your hand touches the operating section during operation,
incorrect operation may occur.
● If the palm of your hand touches the operating section, incorrect operation
may occur.
● If operations are performed quickly, non-response may occur.
Operating the touch screen
Page 275 of 624

PRIUS v_OM_OM47B23U_(U)
2755-1. Basic Operations
5
Audio system

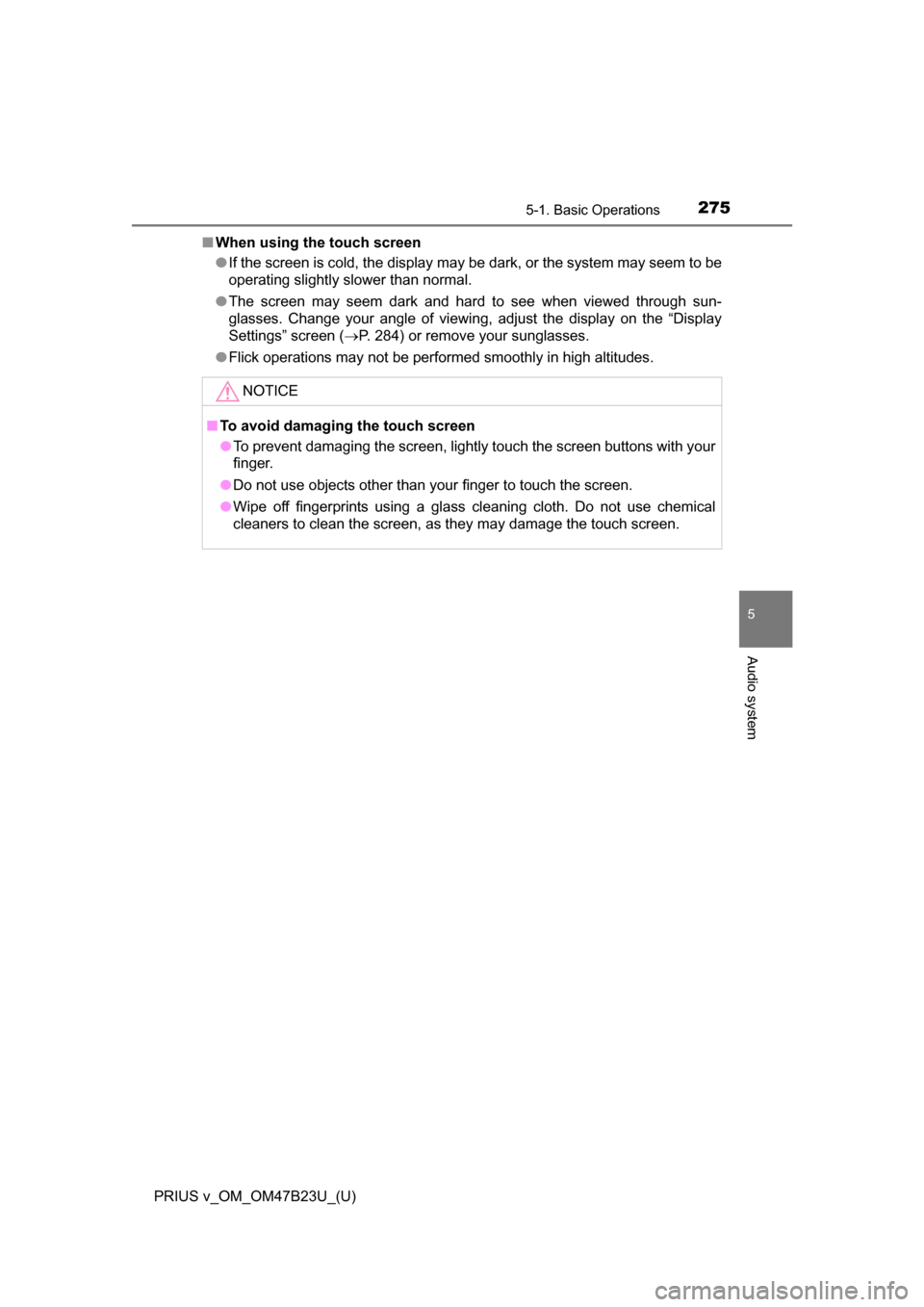

■When using the touch screen
●If the screen is cold, the display may be dark, or the system may seem to be
operating slightly slower than normal.
● The screen may seem dark and hard to see when viewed through sun-
glasses. Change your angle of viewing, adjust the display on the “Display
Settings” screen ( P. 284) or remove your sunglasses.
● Flick operations may not be performed smoothly in high altitudes.
NOTICE
■ To avoid damaging the touch screen
●To prevent damaging the screen, lightly touch the screen buttons with your
finger.
● Do not use objects other than your finger to touch the screen.
● Wipe off fingerprints using a glass cleaning cloth. Do not use chemical
cleaners to clean the screen, as they may damage the touch screen.
Page 276 of 624

276
PRIUS v_OM_OM47B23U_(U)
5-1. Basic Operations

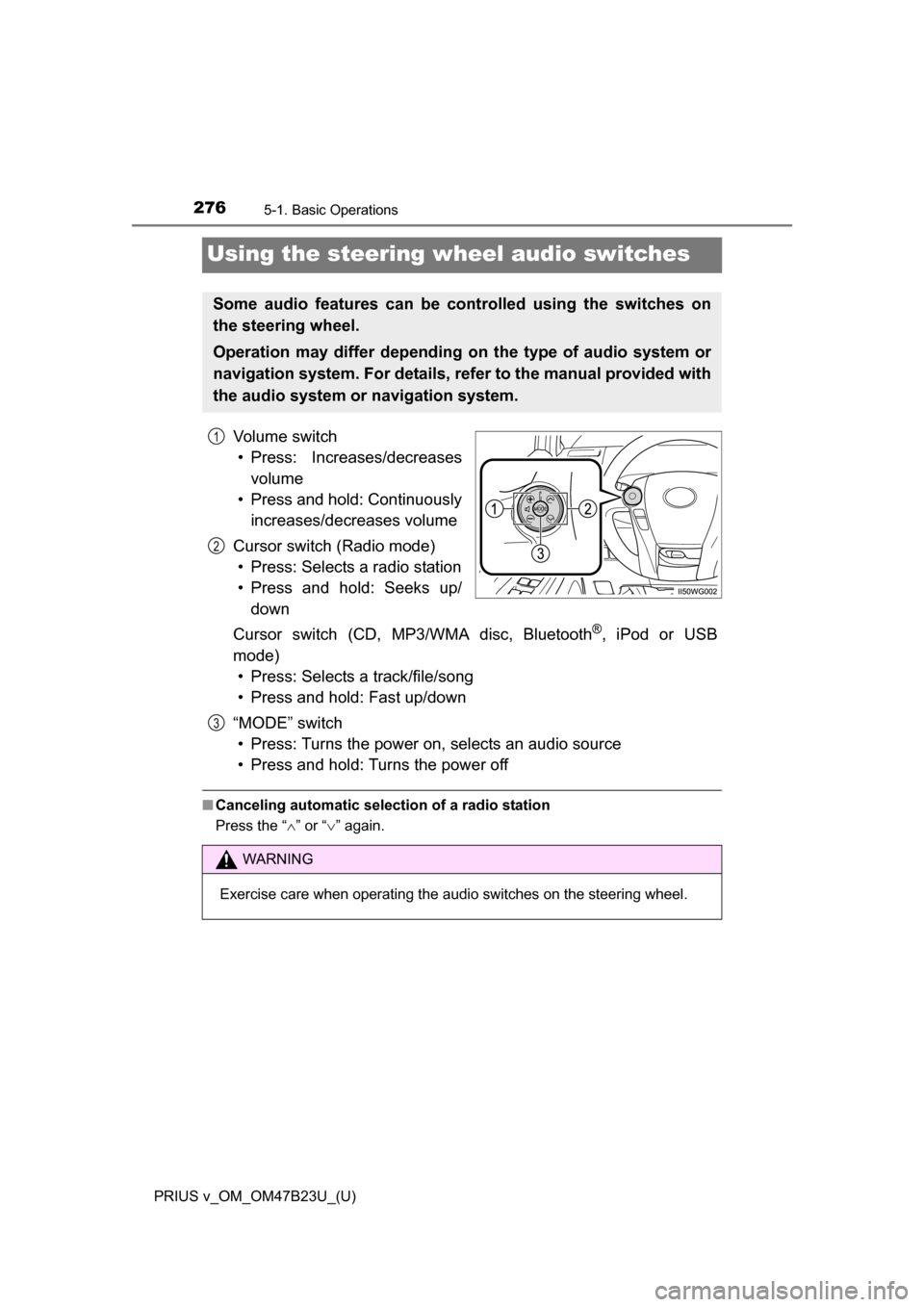

Using the steering wheel audio switches
Vo l u m e s w i t c h• Press: Increases/decreases volume
• Press and hold: Continuously increases/decreases volume
Cursor switch (Radio mode) • Press: Selects a radio station
• Press and hold: Seeks up/ down
Cursor switch (CD, MP3/WMA disc, Bluetooth
®, iPod or USB
mode) • Press: Selects a track/file/song
• Press and hold: Fast up/down
“MODE” switch • Press: Turns the power on, selects an audio source
• Press and hold: Turns the power off
■ Canceling automatic selection of a radio station
Press the “ ” or “ ” again.
Some audio features can be c ontrolled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
1
2
WARNING
Exercise care when operating the audio switches on the steering wheel.
3
Page 277 of 624

277
PRIUS v_OM_OM47B23U_(U)
5-1. Basic Operations
5
Audio system

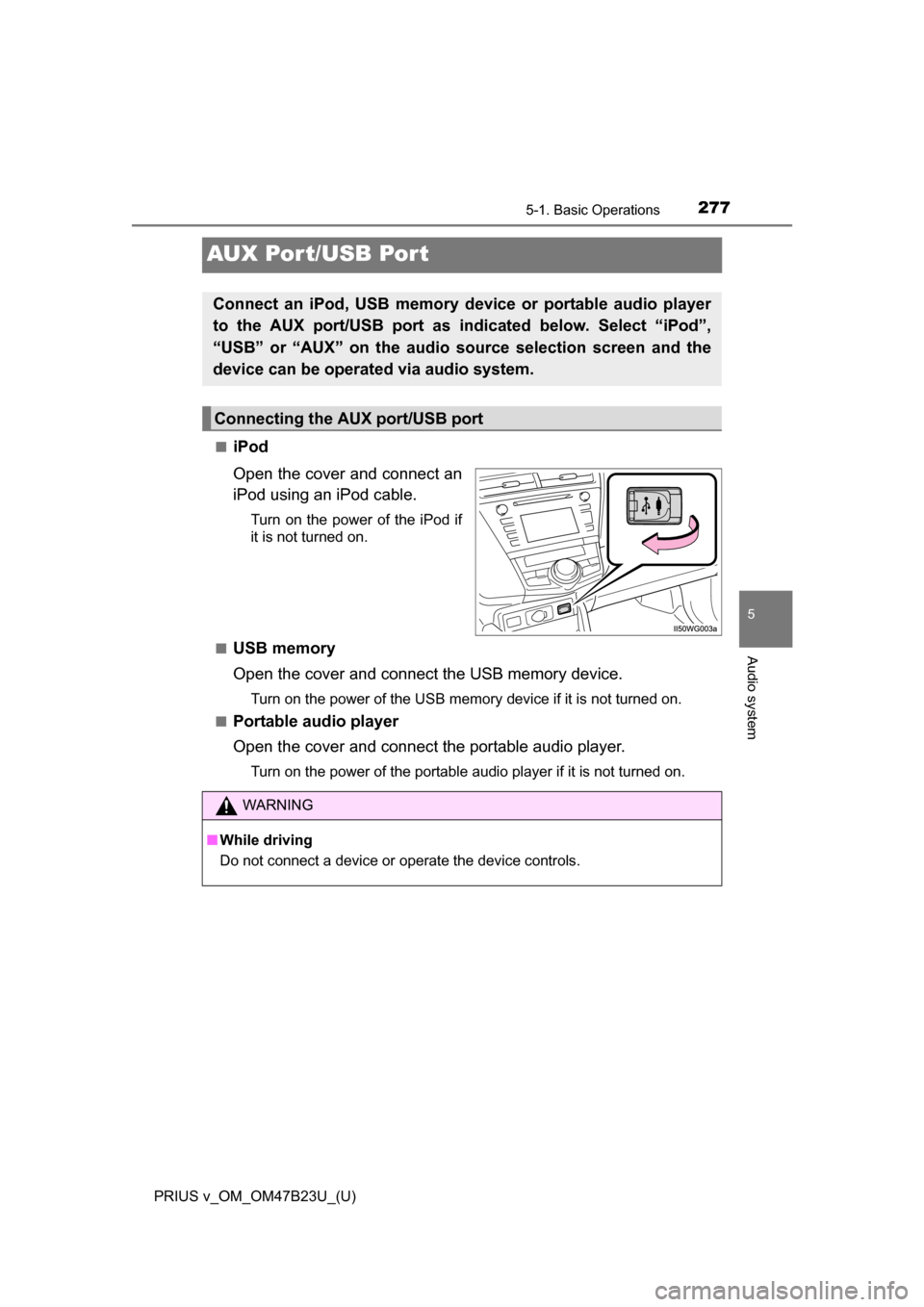

AUX Por t/USB Por t
■iPod
Open the cover and connect an
iPod using an iPod cable.
Turn on the power of the iPod if
it is not turned on.
■
USB memory
Open the cover and connect the USB memory device.
Turn on the power of the USB memory device if it is not turned on.
■
Portable audio player
Open the cover and connect the portable audio player.
Turn on the power of the portable audio player if it is not turned on.
Connect an iPod, USB memory device or portable audio player
to the AUX port/USB port as indi cated below. Select “iPod”,
“USB” or “AUX” on the audio source selection screen and the
device can be operated via audio system.
Connecting the AU X port/USB port
WARNING
■While driving
Do not connect a device or operate the device controls.
Page 278 of 624

278
PRIUS v_OM_OM47B23U_(U)
5-1. Basic Operations

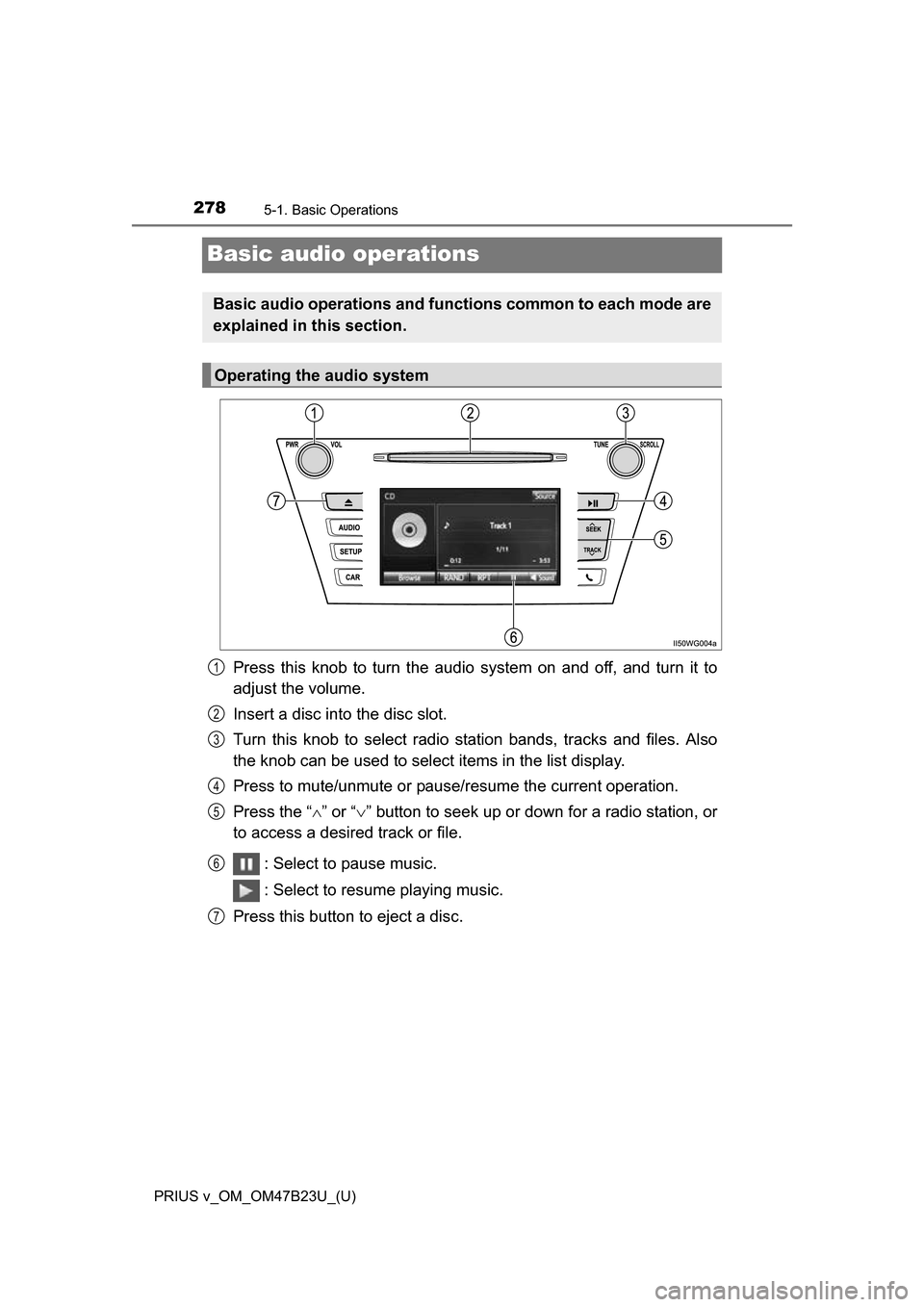

Basic audio operations
Press this knob to turn the audio system on and off, and turn it to
adjust the volume.
Insert a disc into the disc slot.
Turn this knob to select radio station bands, tracks and files. Also
the knob can be used to select items in the list display.
Press to mute/unmute or pause/resume the current operation.
Press the “ ” or “ ” button to seek up or down for a radio station, or
to access a desired track or file.
: Select to pause music.
: Select to resume playing music.
Press this button to eject a disc.
Basic audio operations and functi ons common to each mode are
explained in this section.
Operating the audio system
1
2
3
4
5
6
7
Page 279 of 624

PRIUS v_OM_OM47B23U_(U)
2795-1. Basic Operations
5
Audio system

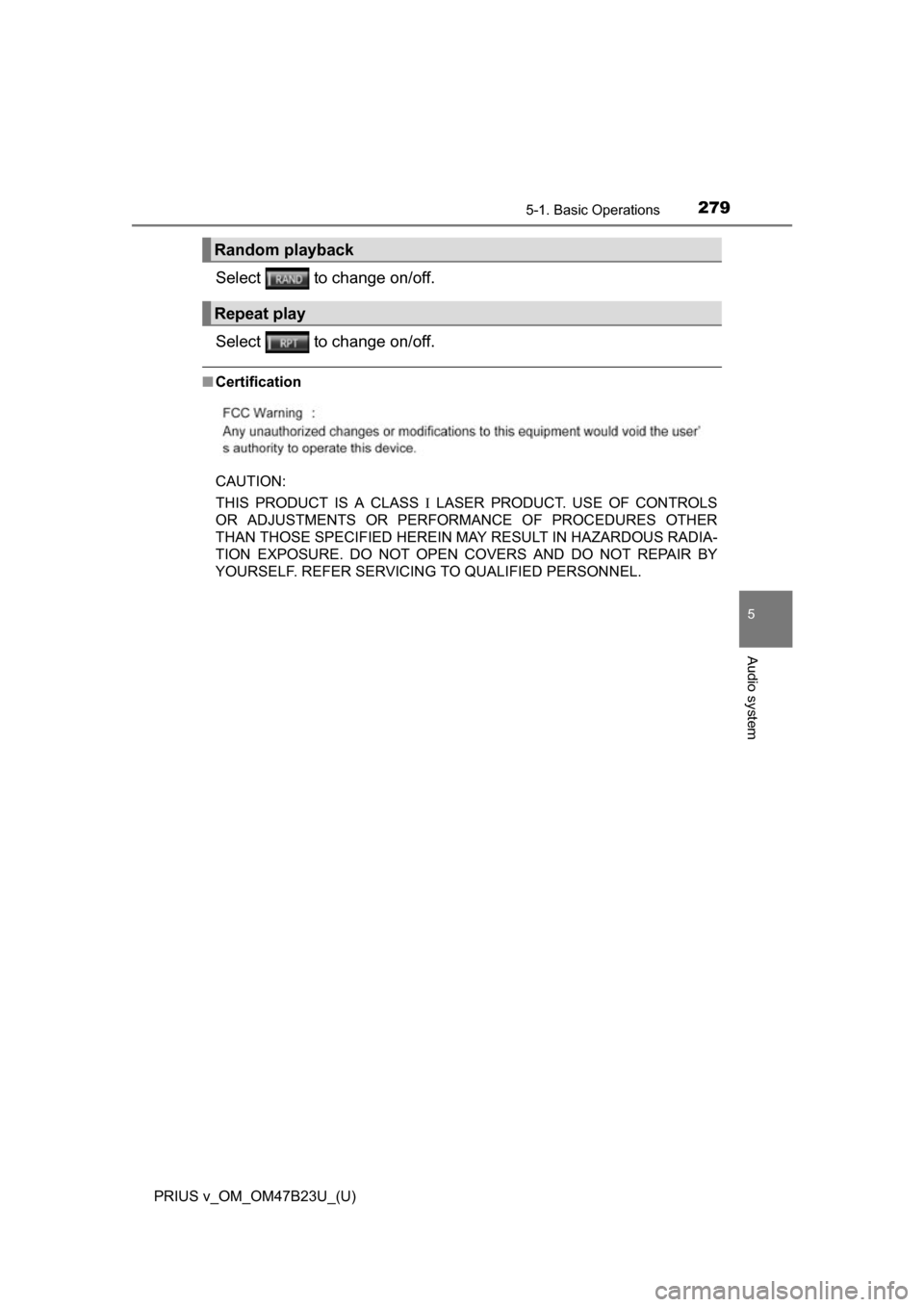

Select to change on/off.
Select to change on/off.
■Certification
CAUTION:
THIS PRODUCT IS A CLASS LASER PRODUCT. USE OF CONTROLS
OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MA Y RESULT IN HAZARDOUS RADIA-
TION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR BY
YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
Random playback
Repeat play
Page 280 of 624

280
PRIUS v_OM_OM47B23U_(U)
5-2. Setup

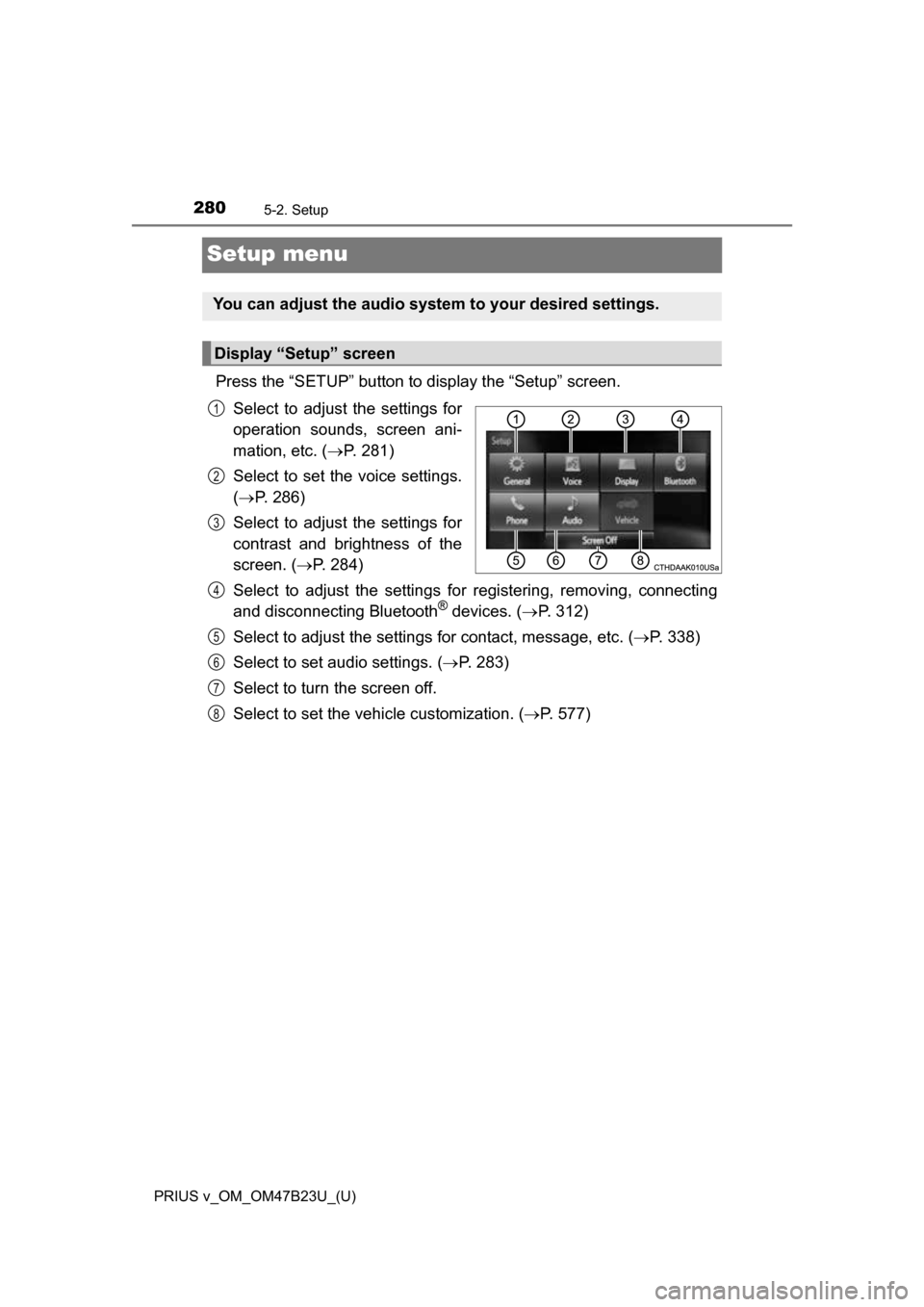

Setup menu
Press the “SETUP” button to display the “Setup” screen.Select to adjust the settings for
operation sounds, screen ani-
mation, etc. ( P. 281)
Select to set the voice settings.
( P. 286)
Select to adjust the settings for
contrast and brightness of the
screen. ( P. 284)
Select to adjust the settings for registering, removing, connecting
and disconnecting Bluetooth
® devices. ( P. 312)
Select to adjust the settings for contact, message, etc. (P. 338)
Select to set audio settings. ( P. 283)
Select to turn the screen off.
Select to set the vehicle customization. ( P. 577)
You can adjust the audio system to your desired settings.
Display “Setup” screen
1
2
3
4
5
6
7
8
