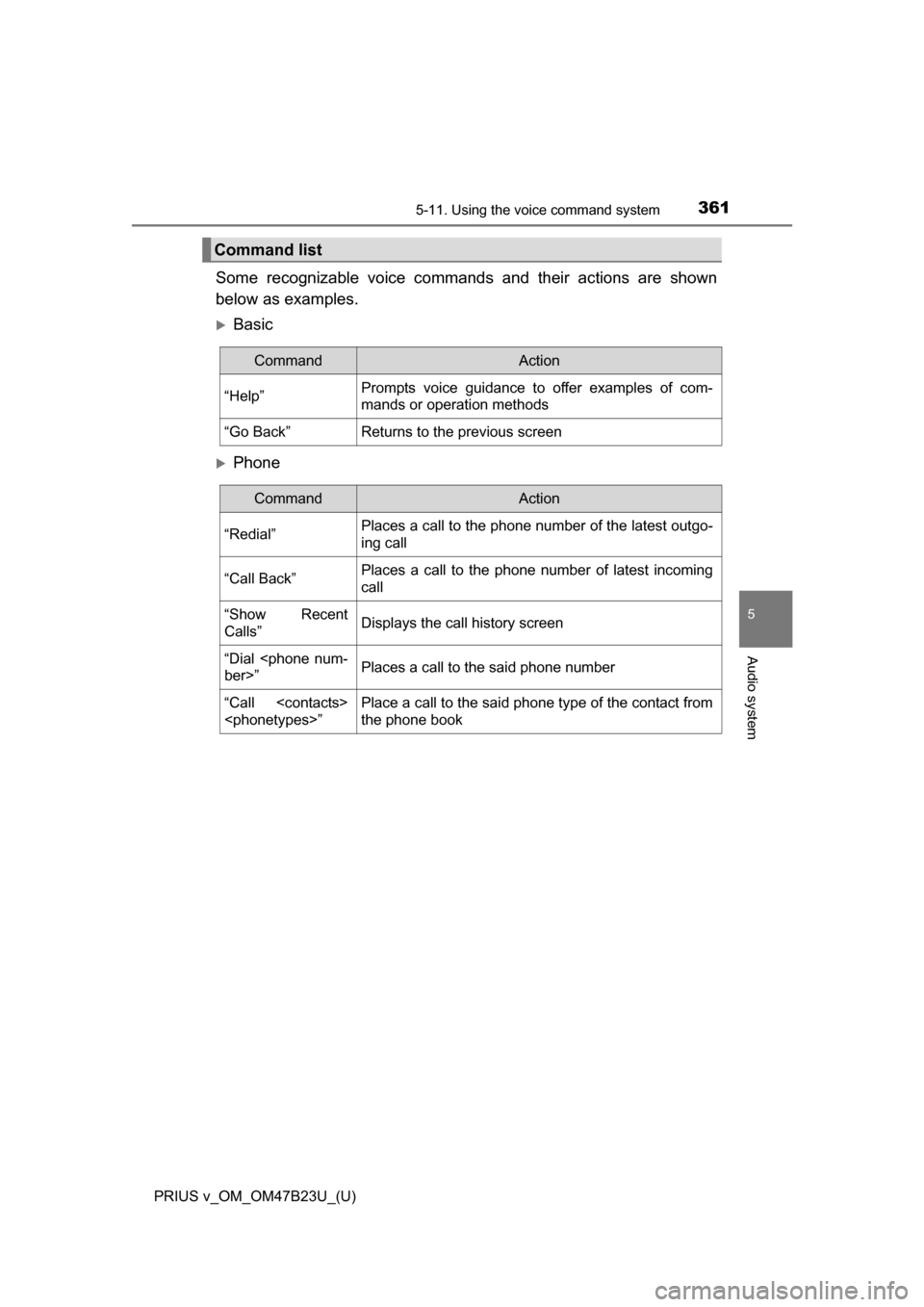

Page 361 of 624

PRIUS v_OM_OM47B23U_(U)
3615-11. Using the voice command system
5
Audio system
Some recognizable voice commands and their actions are shown
below as examples.
ïµBasic
ïµPhone
Command list
CommandAction
“Helpâ€Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Backâ€Returns to the previous screen
CommandAction
“Redialâ€Places a call to the phone number of the latest outgo-
ing call
“Call Backâ€Places a call to the phone number of latest incoming
call
“Show Recent
Callsâ€Displays the call history screen
“Dial
“Call
the phone book

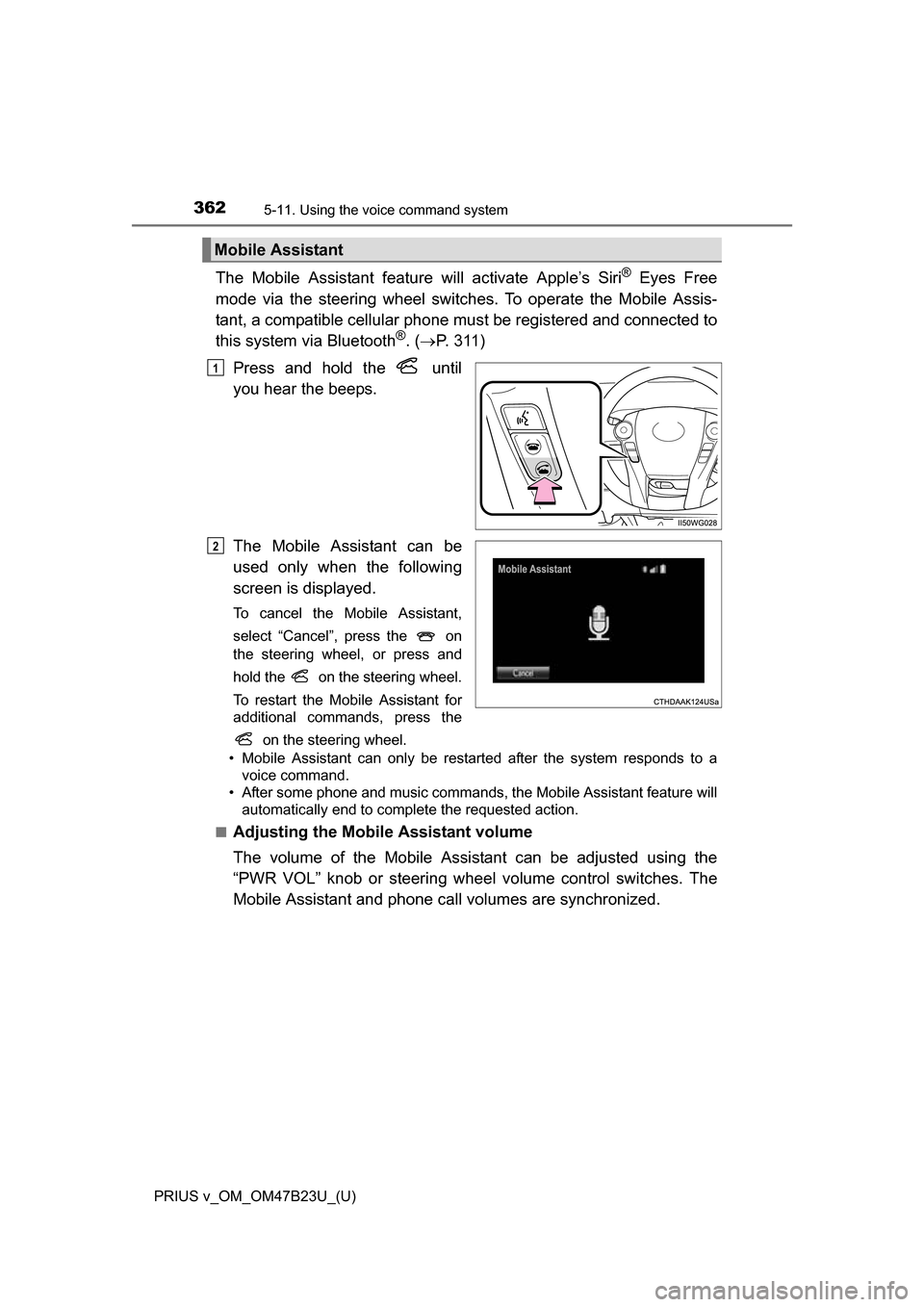

Page 362 of 624

3625-11. Using the voice command system
PRIUS v_OM_OM47B23U_(U)
The Mobile Assistant feature will activate Apple’s Siri® Eyes Free
mode via the steering wheel switches. To operate the Mobile Assis-
tant, a compatible cellular phone must be registered and connected to
this system via Bluetooth
®. (  P. 311)
Press and hold the until
you hear the beeps.
The Mobile Assistant can be
used only when the following
screen is displayed.
To cancel the Mobile Assistant,
select “Cancelâ€, press the on
the steering wheel, or press and
hold the on the steering wheel.
To restart the Mobile Assistant for
additional commands, press the on the steering wheel.
• Mobile Assistant can only be restarted after the system responds to a voice command.
• After some phone and music commands, the Mobile Assistant feature will
automatically end to complete the requested action.
â–
Adjusting the Mobile Assistant volume
The volume of the Mobile Assistant can be adjusted using the
“PWR VOL†knob or steering whee l volume control switches. The
Mobile Assistant and phone call volumes are synchronized.
Mobile Assistant
1
2

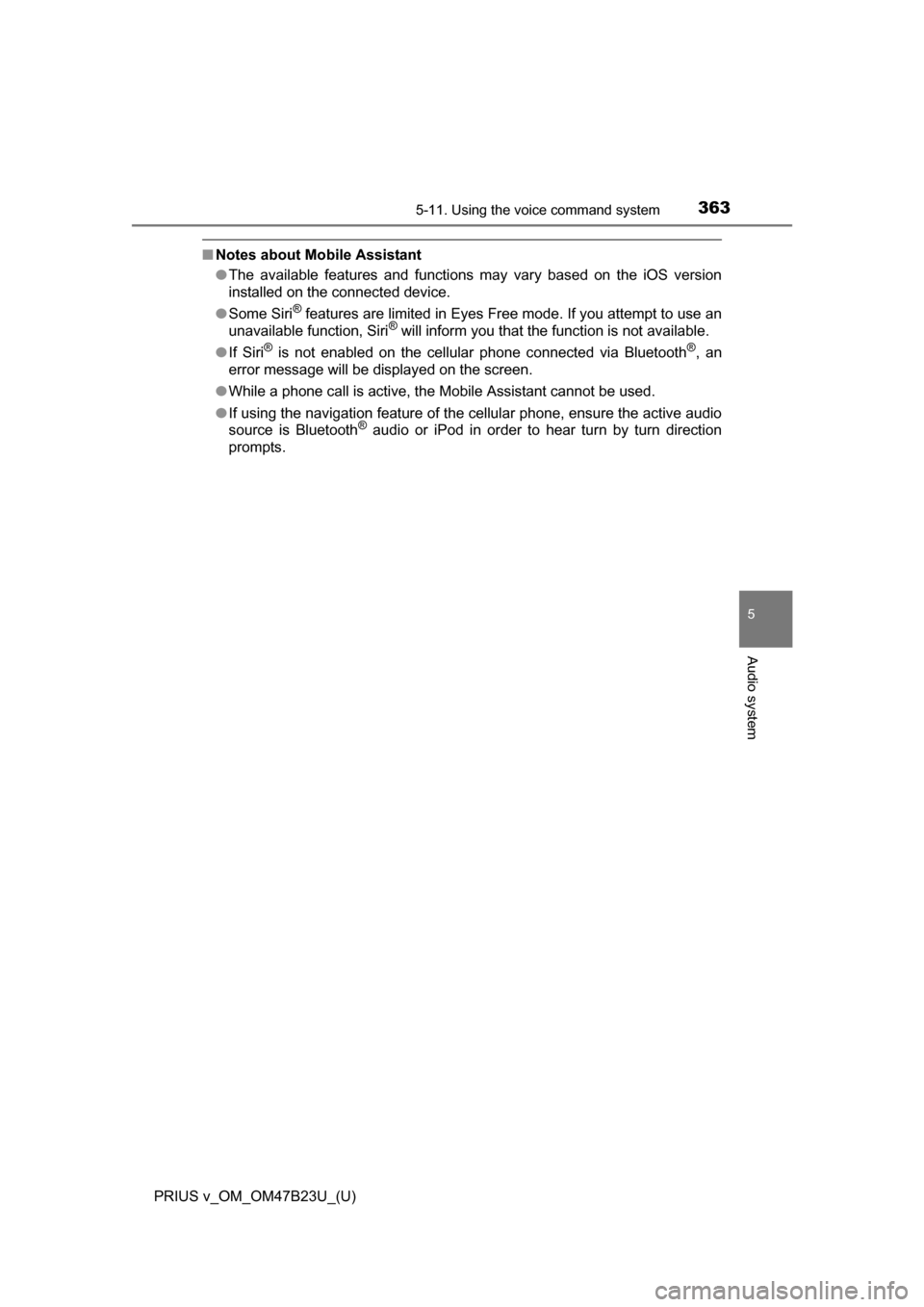

Page 363 of 624

PRIUS v_OM_OM47B23U_(U)
3635-11. Using the voice command system
5
Audio system
â– Notes about Mobile Assistant
â—The available features and functions may vary based on the iOS version
installed on the connected device.
â— Some Siri
® features are limited in Eyes Free mode. If you attempt to use an
unavailable function, Siri® will inform you that the function is not available.
â— If Siri
® is not enabled on the cellular phone connected via Bluetooth®, an
error message will be displayed on the screen.
â— While a phone call is active, the Mobile Assistant cannot be used.
â— If using the navigation feature of the cellular phone, ensure the active audio
source is Bluetooth
® audio or iPod in order to hear turn by turn direction
prompts.

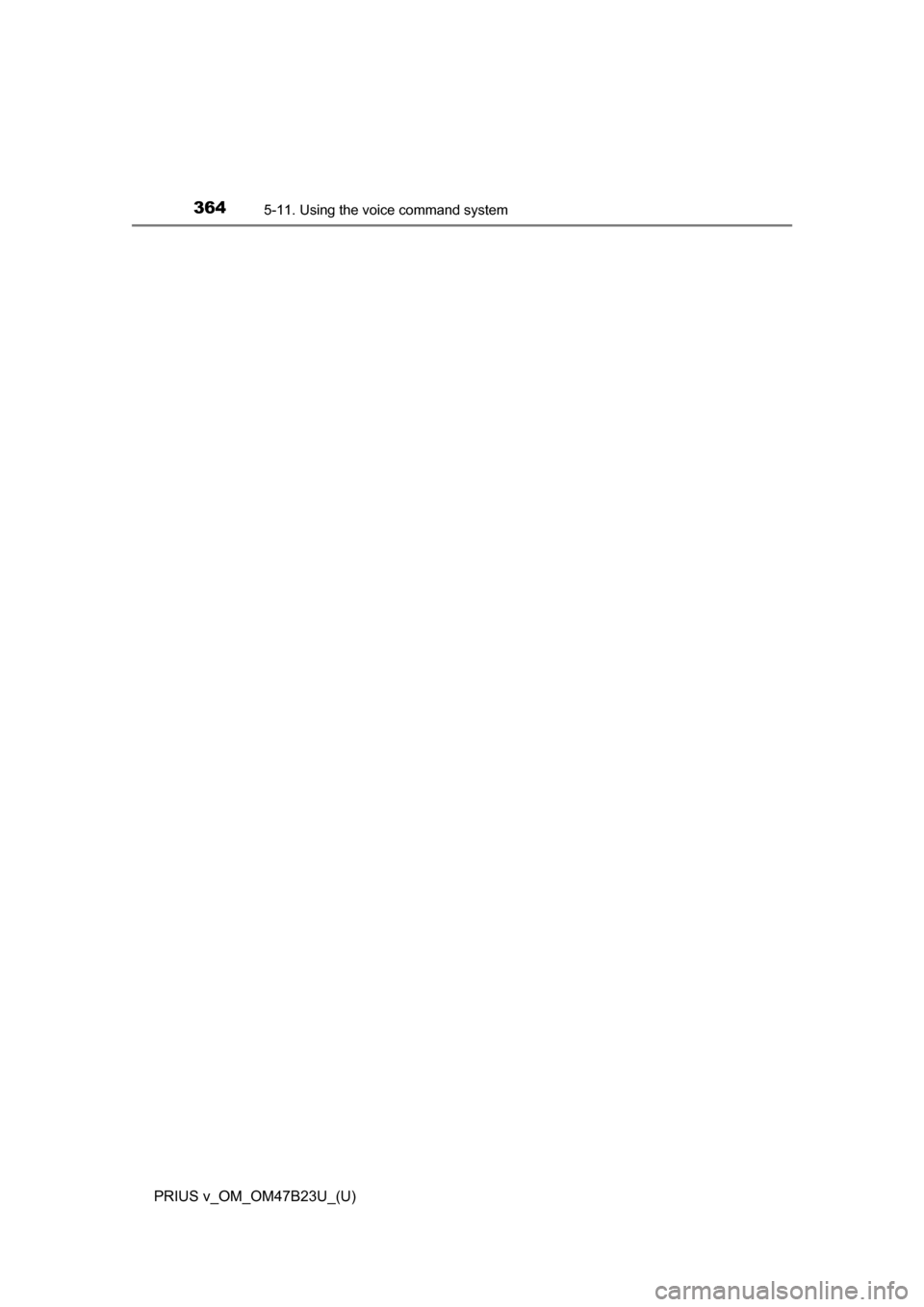

Page 364 of 624

3645-11. Using the voice command system
PRIUS v_OM_OM47B23U_(U)

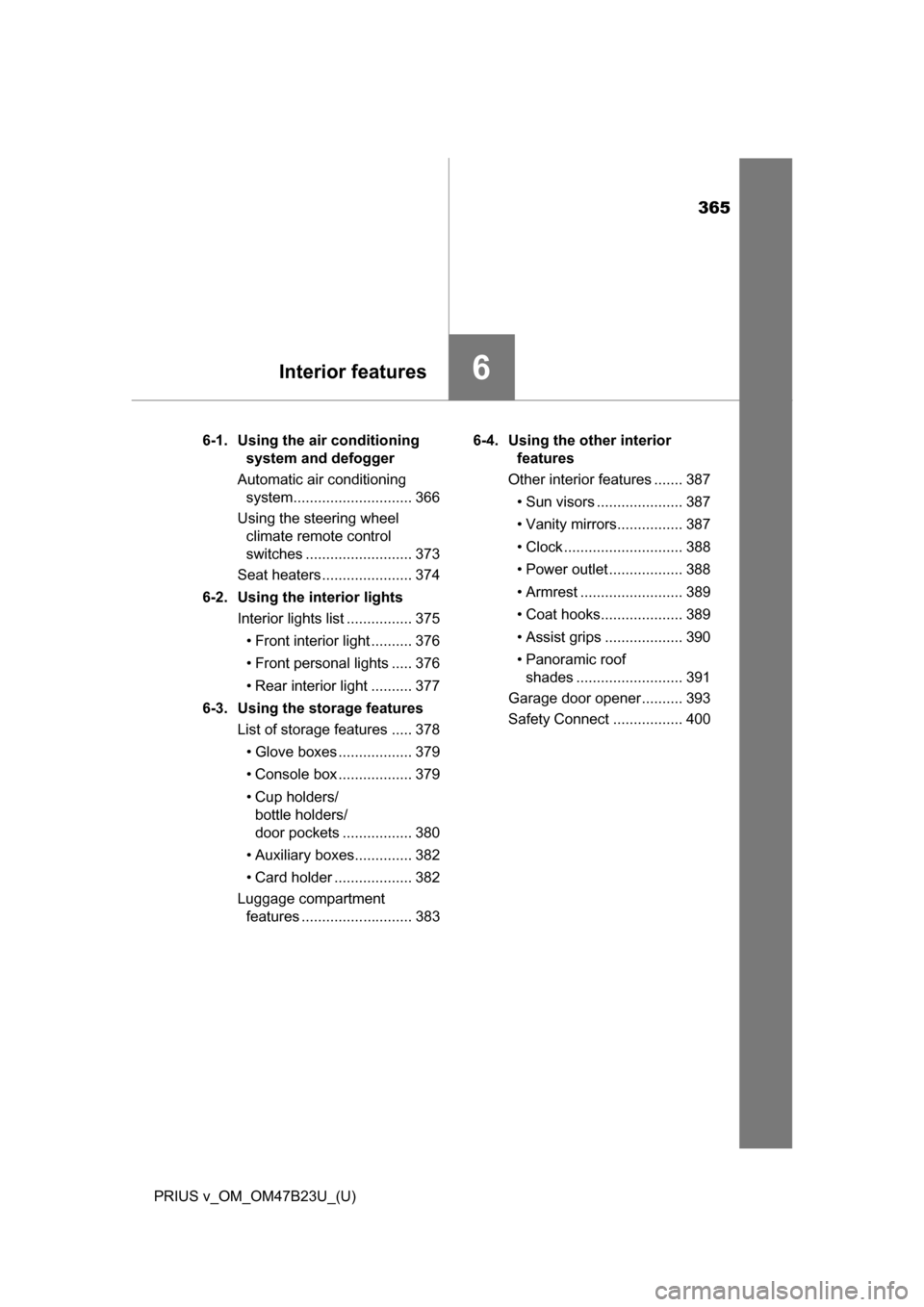

Page 365 of 624

365
PRIUS v_OM_OM47B23U_(U)
6Interior features
6-1. Using the air conditioning system and defogger
Automatic air conditioning system............................. 366
Using the steering wheel climate remote control
switches .......................... 373
Seat heaters...................... 374
6-2. Using the interior lights Interior lights list ................ 375
• Front interior light .......... 376
• Front personal lights ..... 376
• Rear interior light .......... 377
6-3. Using the storage features List of storage features ..... 378
• Glove boxes .................. 379
• Console box .................. 379
• Cup holders/ bottle holders/
door pockets ................. 380
• Auxiliary boxes.............. 382
• Card holder ................... 382
Luggage compartment features ........................... 383 6-4. Using the other interior
features
Other interior features ....... 387
• Sun visors ..................... 387
• Vanity mirrors................ 387
• Clock ............................. 388
• Power outlet .................. 388
• Armrest ......................... 389
• Coat hooks.................... 389
• Assist grips ................... 390
• Panoramic roof shades .......................... 391
Garage door opener.......... 393
Safety Connect ................. 400

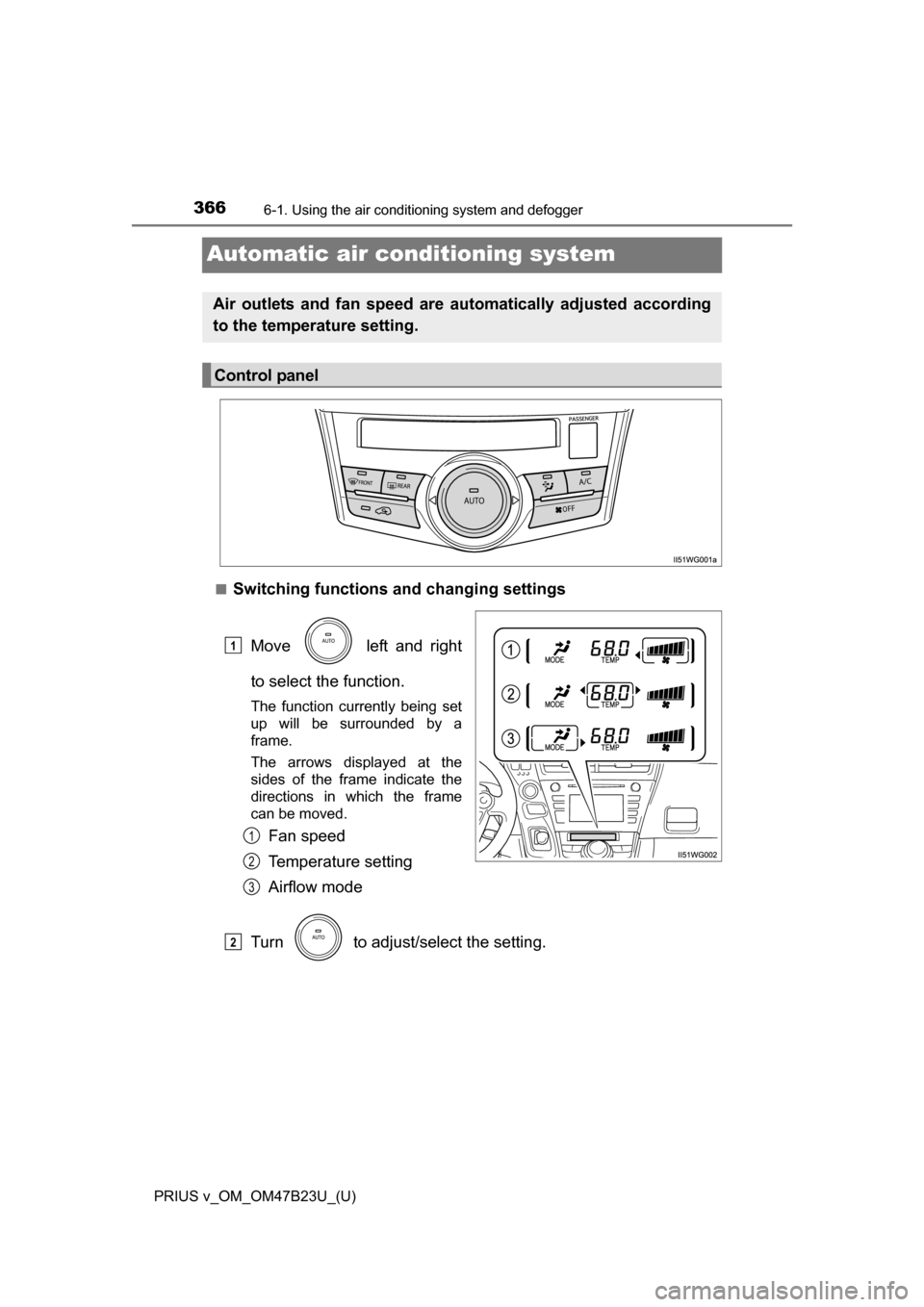

Page 366 of 624

366
PRIUS v_OM_OM47B23U_(U)
6-1. Using the air conditioning system and defogger
Automatic air conditioning system
â– Switching functions and changing settings
Move left and right
to select the function.
The function currently being set
up will be surrounded by a
frame.
The arrows displayed at the
sides of the frame indicate the
directions in which the frame
can be moved.
Fan speed
Temperature setting
Airflow mode
Turn to adjust/s elect the setting.
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Control panel
1
1
2
3
2

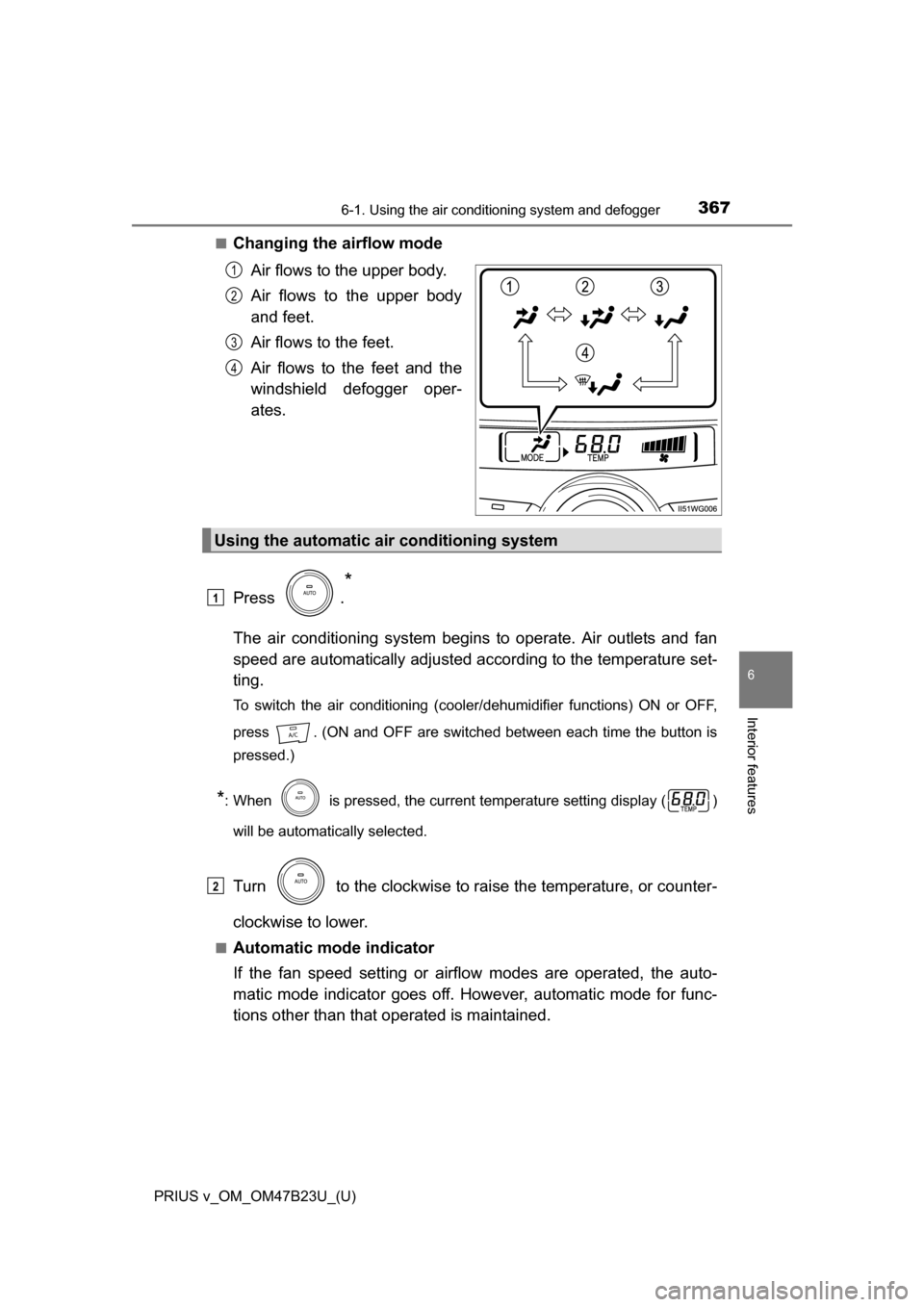

Page 367 of 624

PRIUS v_OM_OM47B23U_(U)
3676-1. Using the air conditioning system and defogger
6
Interior features
â– Changing the airflow mode
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger oper-
ates.
Press .
*
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
To switch the air conditioning (cooler/dehumidifier functions) ON or OFF,
press . (ON and OFF are switched between each time the button is
pressed.)
*: When is pressed, the current temperature setting display ( ) will be automatically selected.
Turn to the clockwise to raise the temperature, or counter-
clockwise to lower.
â– Automatic mode indicator
If the fan speed setting or airflow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
1
2
3
4
Using the automatic air conditioning system
1
2

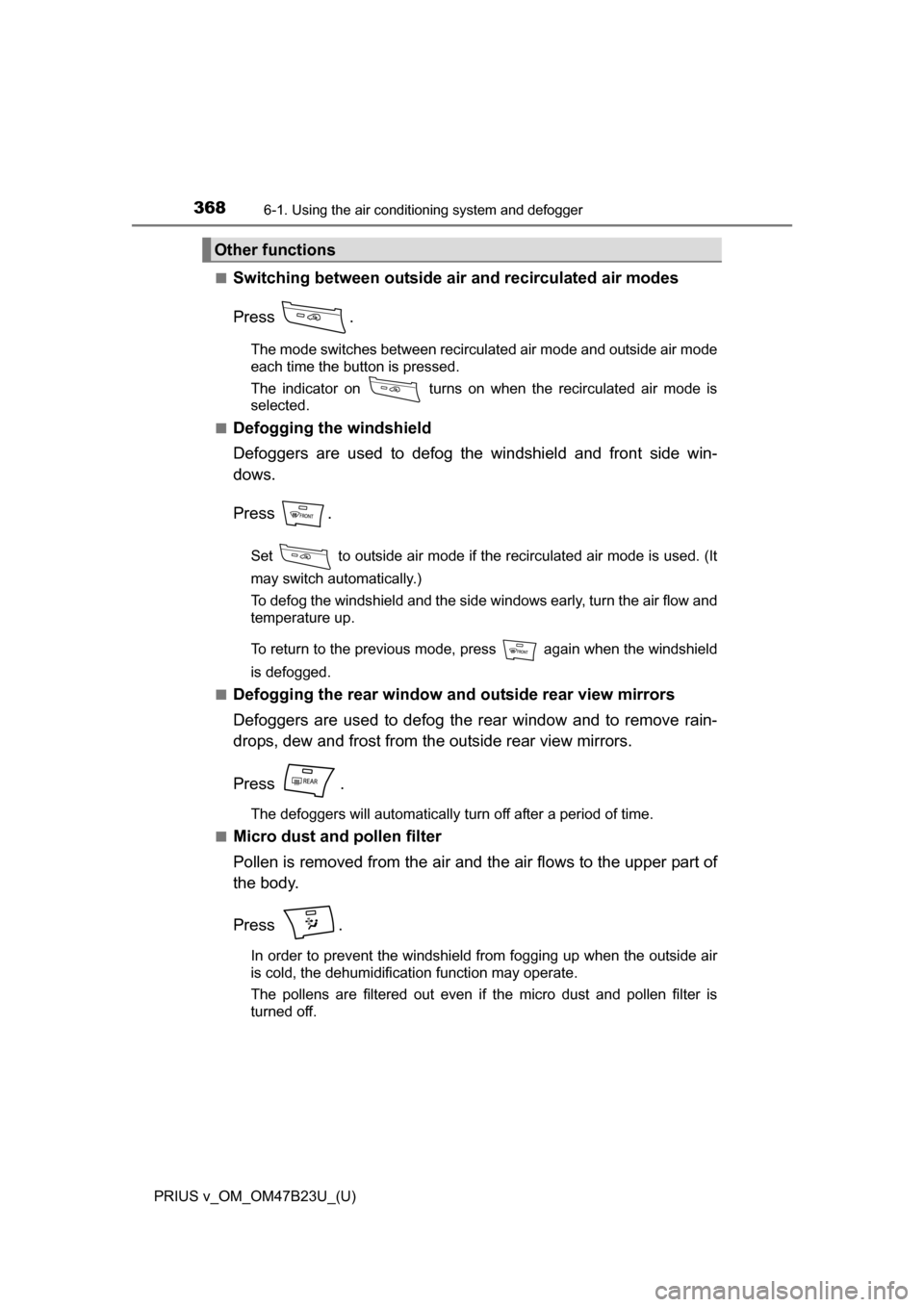

Page 368 of 624

3686-1. Using the air conditioning system and defogger
PRIUS v_OM_OM47B23U_(U)â–
Switching between outside air and recirculated air modes
Press .
The mode switches between recirculated air mode and outside air mode
each time the button is pressed.
The indicator on turns on when the recirculated air mode is
selected.
â–
Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
Set to outside air mode if the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the windshield
is defogged.
â–
Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
â–
Micro dust and pollen filter
Pollen is removed from the air and the air flows to the upper part of
the body.
Press .
In order to prevent the windshield from fogging up when the outside air
is cold, the dehumidification function may operate.
The pollens are filtered out even if the micro dust and pollen filter is\
turned off.
Other functions

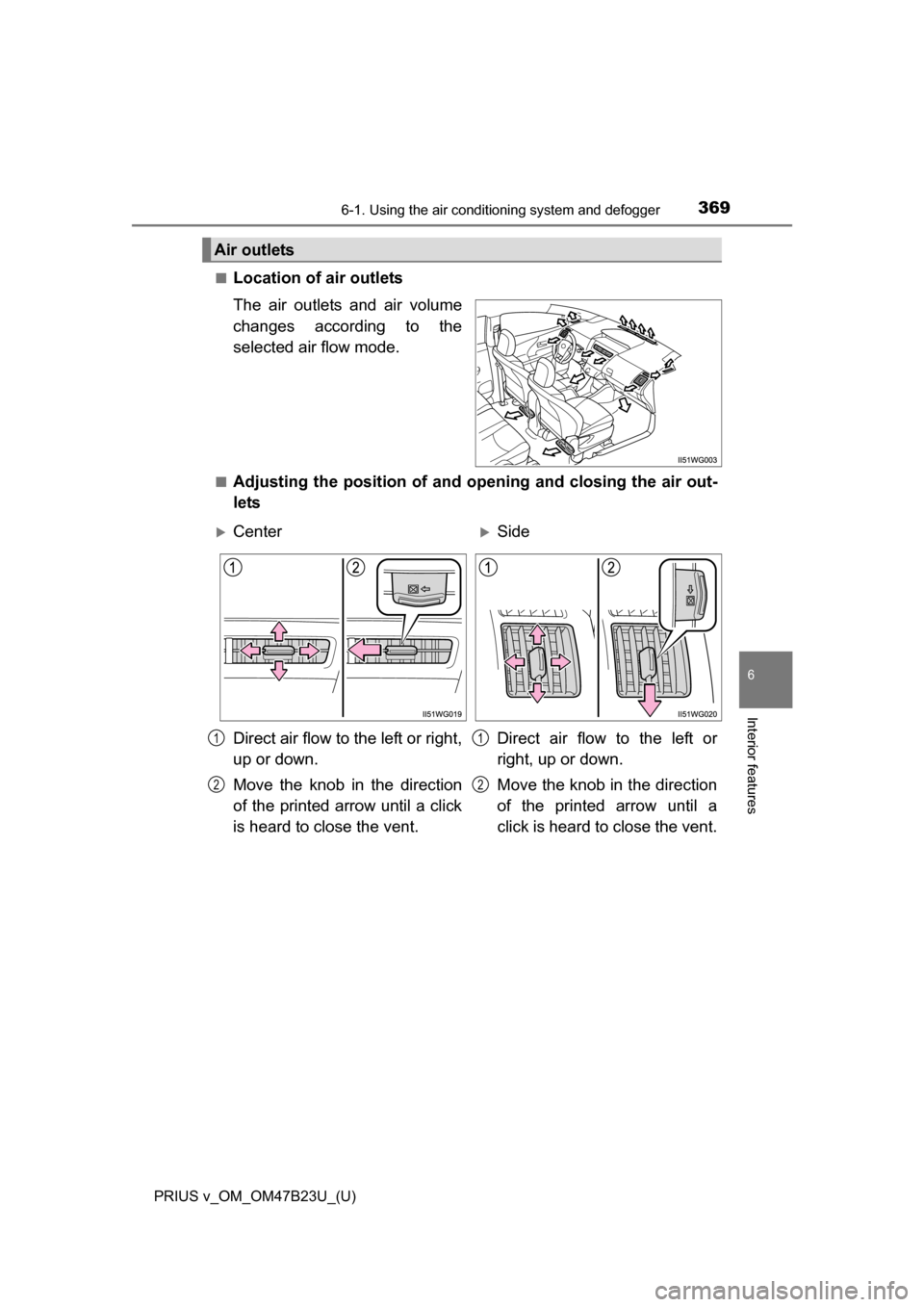

Page 369 of 624

PRIUS v_OM_OM47B23U_(U)
3696-1. Using the air conditioning system and defogger
6
Interior features
â– Location of air outlets
The air outlets and air volume
changes according to the
selected air flow mode.
â– Adjusting the position of and opening and closing the air out-
lets
Air outlets
ïµCenterïµSide
Direct air flow to the left or right,
up or down.
Move the knob in the direction
of the printed arrow until a click
is heard to close the vent. Direct air flow to the left or
right, up or down.
Move the knob in the direction
of the printed arrow until a
click is heard to close the vent.
1
2
1
2

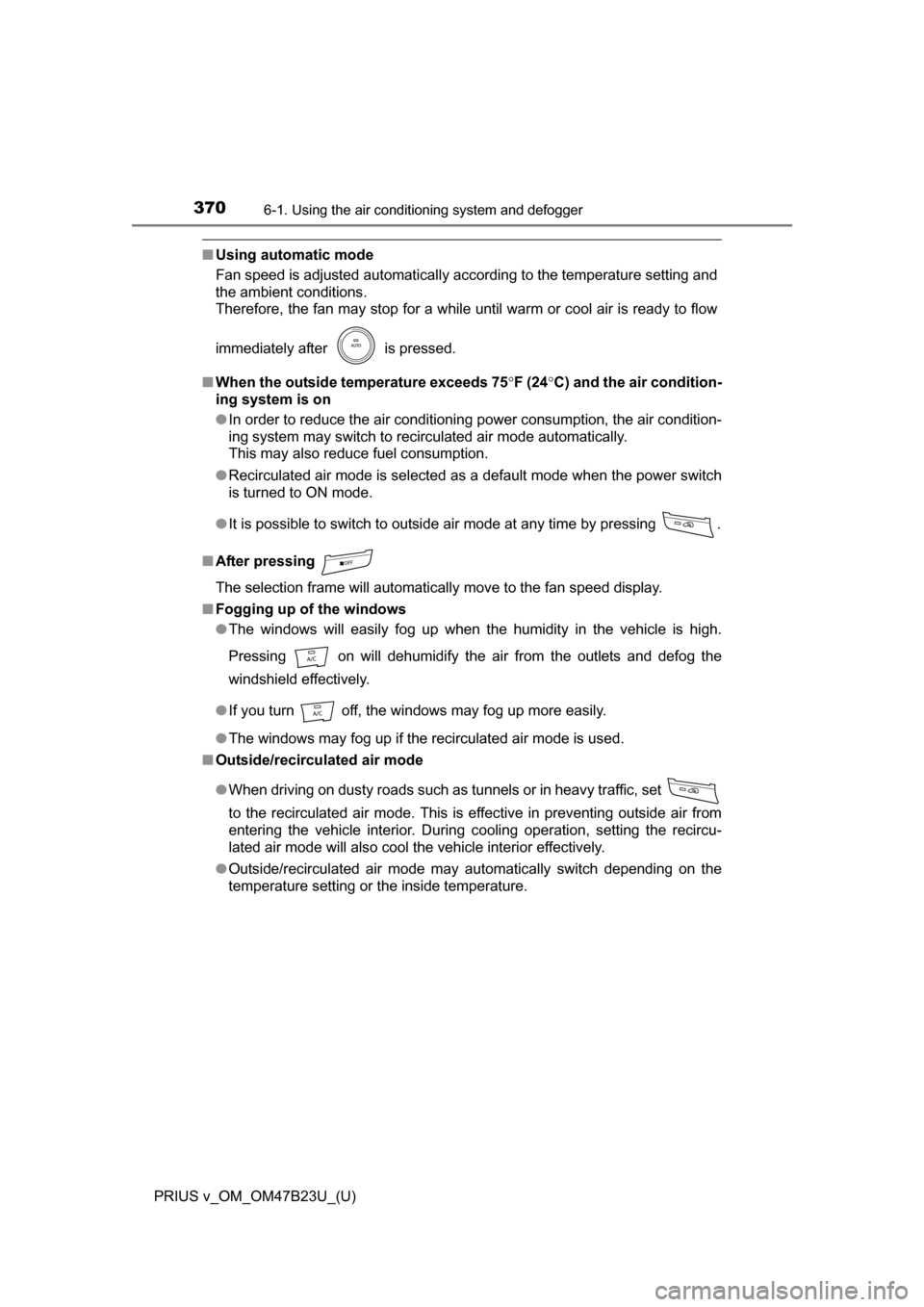

Page 370 of 624

3706-1. Using the air conditioning system and defogger
PRIUS v_OM_OM47B23U_(U)
â– Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
â– When the outside temperature exceeds 75ï‚° F (24ï‚°C) and the air condition-
ing system is on
â— In order to reduce the air conditioning power consumption, the air condition-
ing system may switch to recirculated air mode automatically.
This may also reduce fuel consumption.
â— Recirculated air mode is selected as a default mode when the power switch
is turned to ON mode.
â— It is possible to switch to outside air mode at any time by pressing .
â– After pressing
The selection frame will automatically move to the fan speed display.
â– Fogging up of the windows
â—The windows will easily fog up when the humidity in the vehicle is high.
Pressing on will dehumidify the air from the outlets and defog the
windshield effectively.
â— If you turn off, the windows may fog up more easily.
â— The windows may fog up if the recirculated air mode is used.
â– Outside/recirculated air mode
â—When driving on dusty roads such as tunnels or in heavy traffic, set
to the recirculated air mode. This is effective in preventing outside air from
entering the vehicle interior. During cooling operation, setting the recircu-
lated air mode will also cool the vehicle interior effectively.
â— Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
