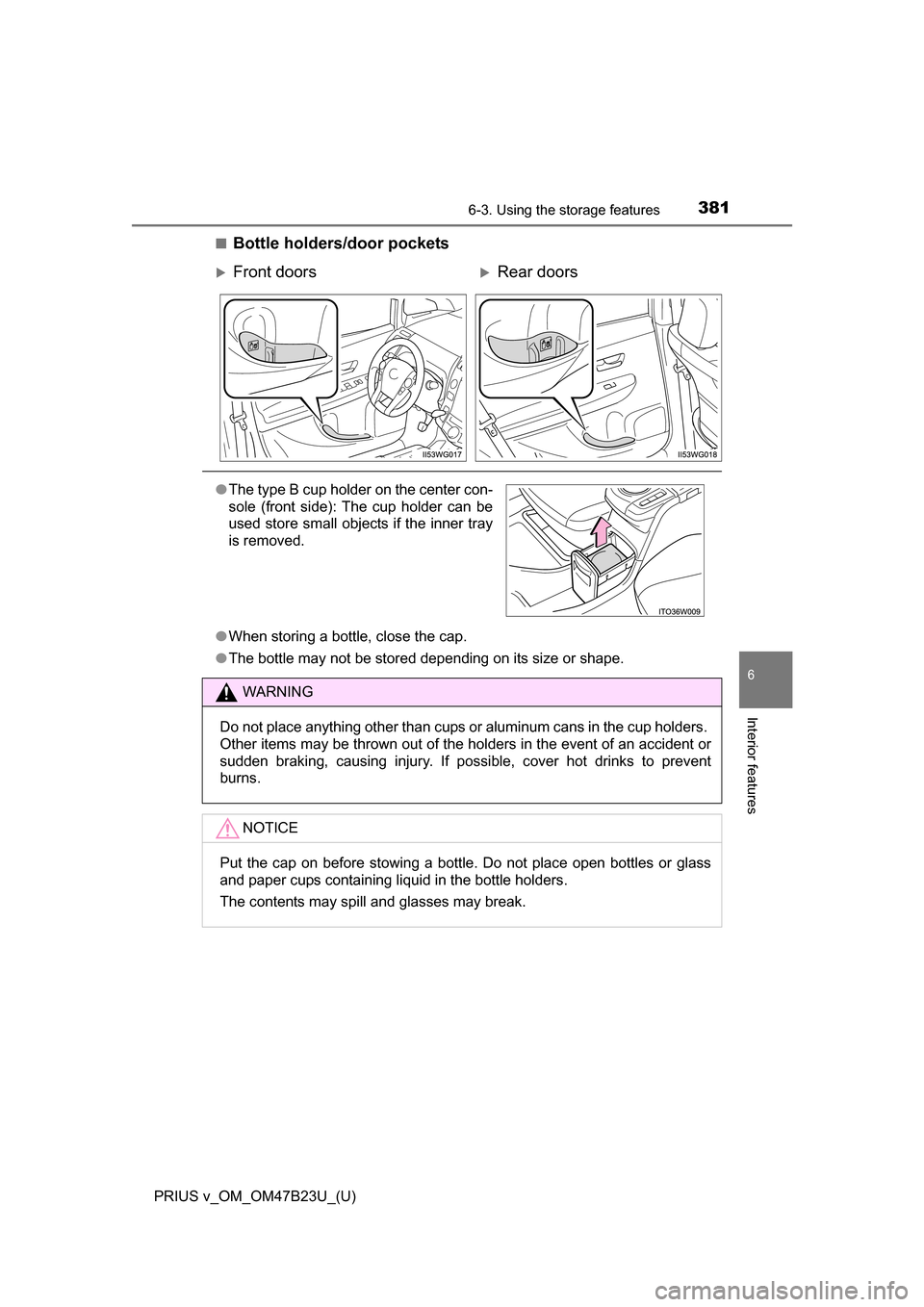

Page 381 of 624
PRIUS v_OM_OM47B23U_(U)
3816-3. Using the storage features
6
Interior features
■Bottle holders/door pockets
●When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
Front doorsRear doors
●The type B cup holder on the center con-
sole (front side): The cup holder can be
used store small objects if the inner tray
is removed.
WARNING
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.
NOTICE
Put the cap on before stowing a bottle. Do not place open bottles or glass
and paper cups containing liquid in the bottle holders.
The contents may spill and glasses may break.

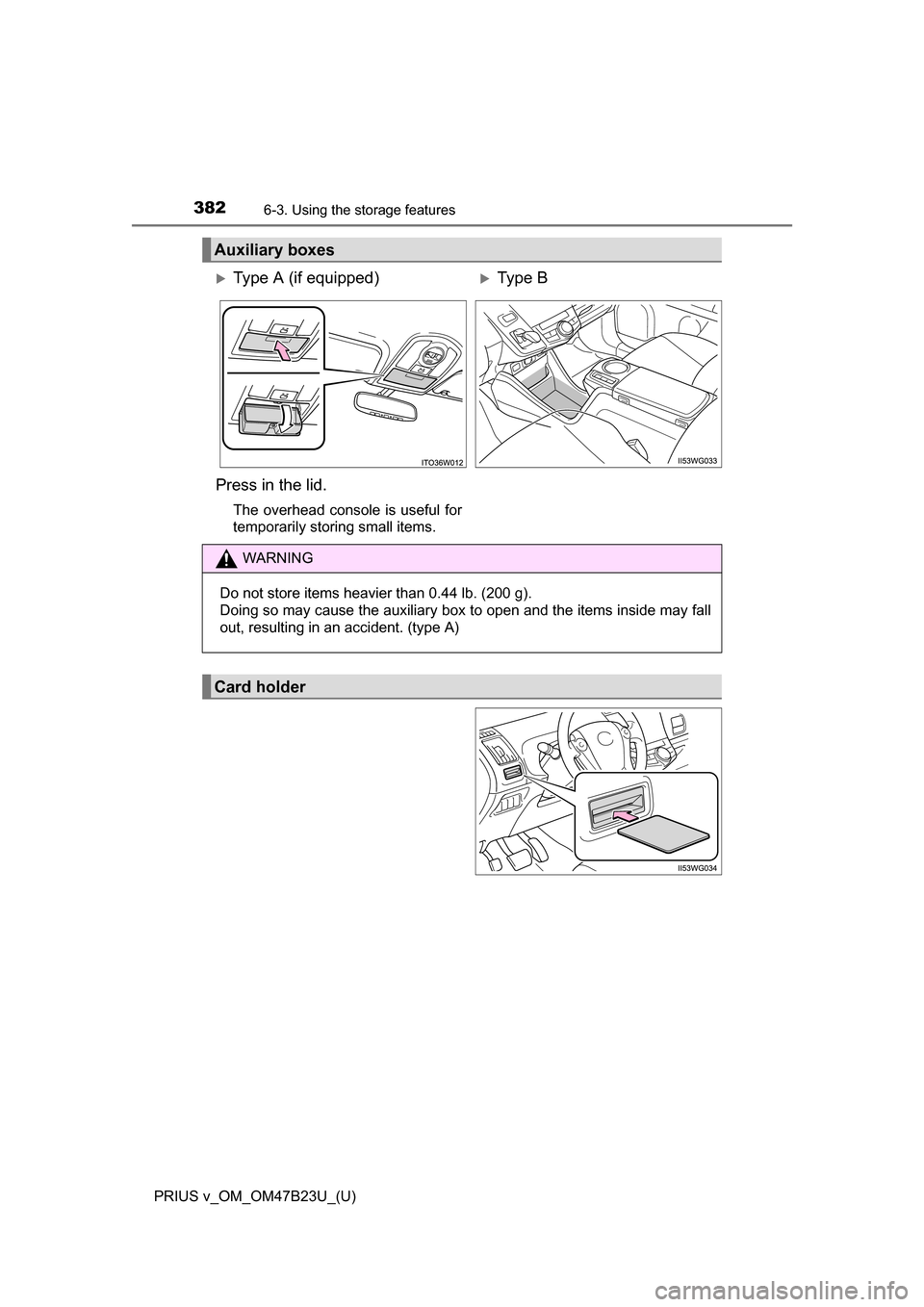

Page 382 of 624
382
PRIUS v_OM_OM47B23U_(U)
6-3. Using the storage features
Auxiliary boxes
Type A (if equipped)Type B
Press in the lid.
The overhead console is useful for
temporarily storing small items.
WARNING
Do not store items heavier than 0.44 lb. (200 g).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident. (type A)
Card holder

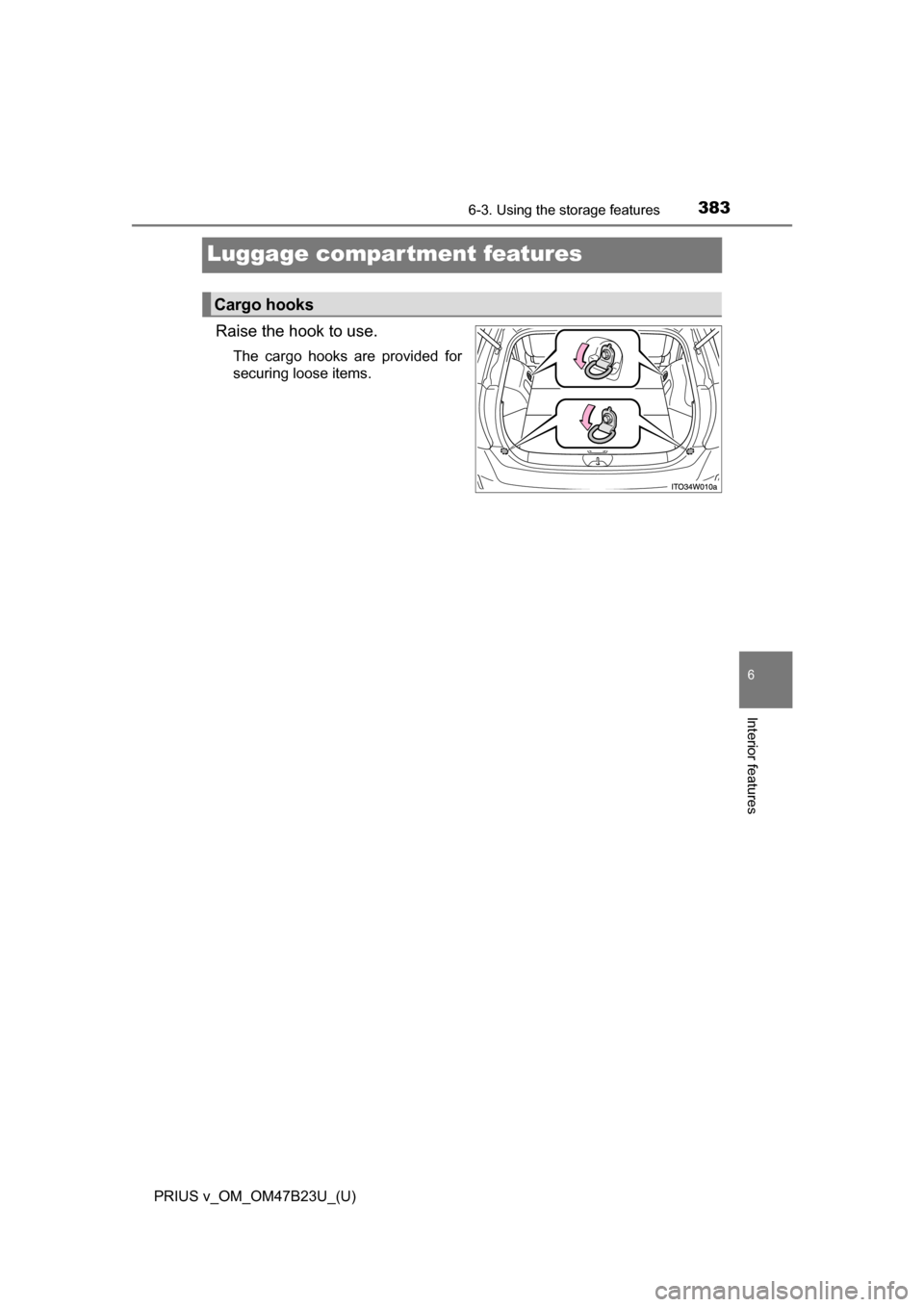

Page 383 of 624
383
PRIUS v_OM_OM47B23U_(U)
6-3. Using the storage features
6
Interior features
Luggage compartment features
Raise the hook to use.
The cargo hooks are provided for
securing loose items.
Cargo hooks

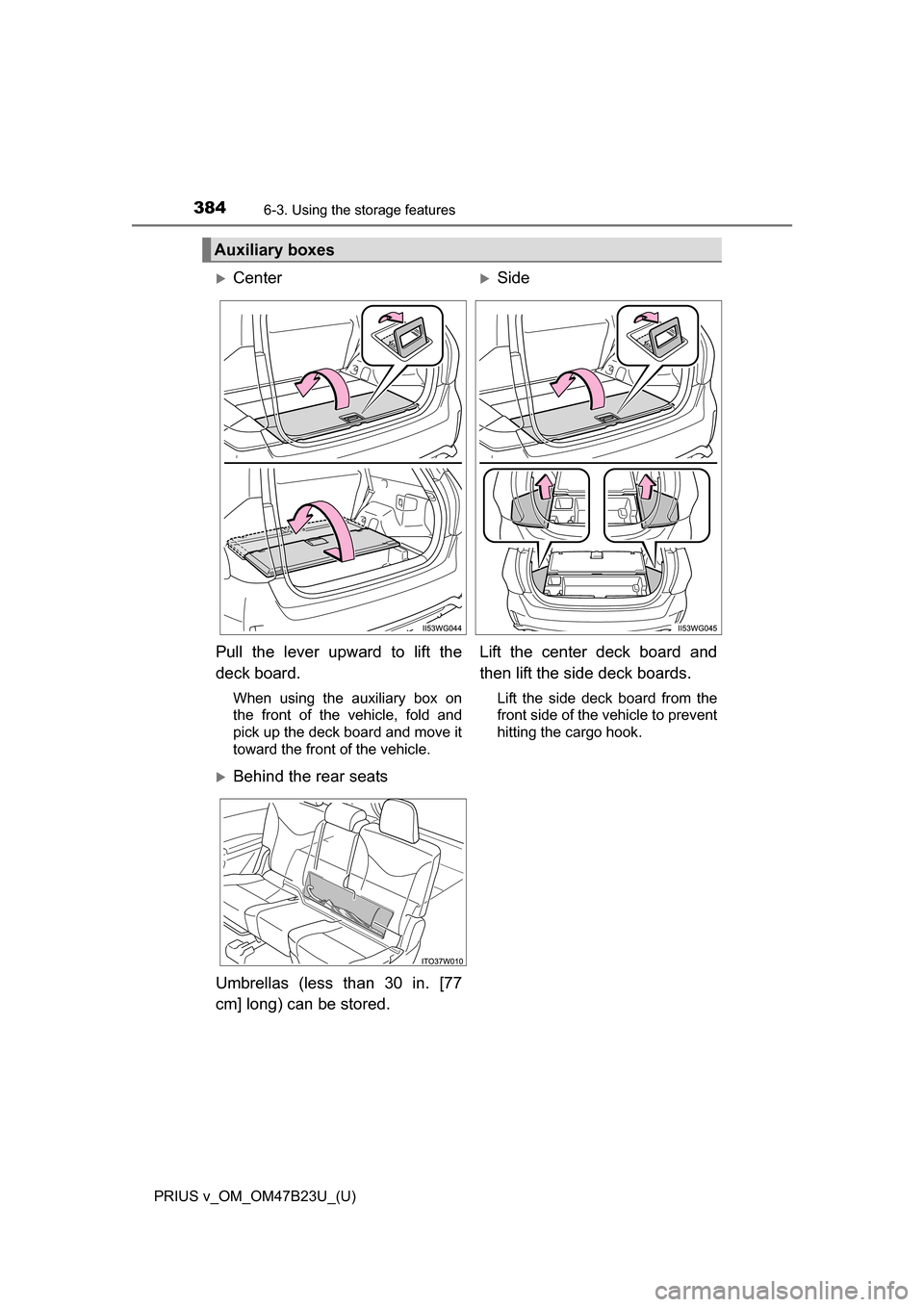

Page 384 of 624
384
PRIUS v_OM_OM47B23U_(U)
6-3. Using the storage features
Auxiliary boxes
Center Side
Pull the lever upward to lift the
deck board.
When using the auxiliary box on
the front of the vehicle, fold and
pick up the deck board and move it
toward the front of the vehicle.
Lift the center deck board and
then lift the side deck boards.
Lift the side deck board from the
front side of the vehicle to prevent
hitting the cargo hook.
Behind the rear seats
Umbrellas (less than 30 in. [77
cm] long) can be stored.

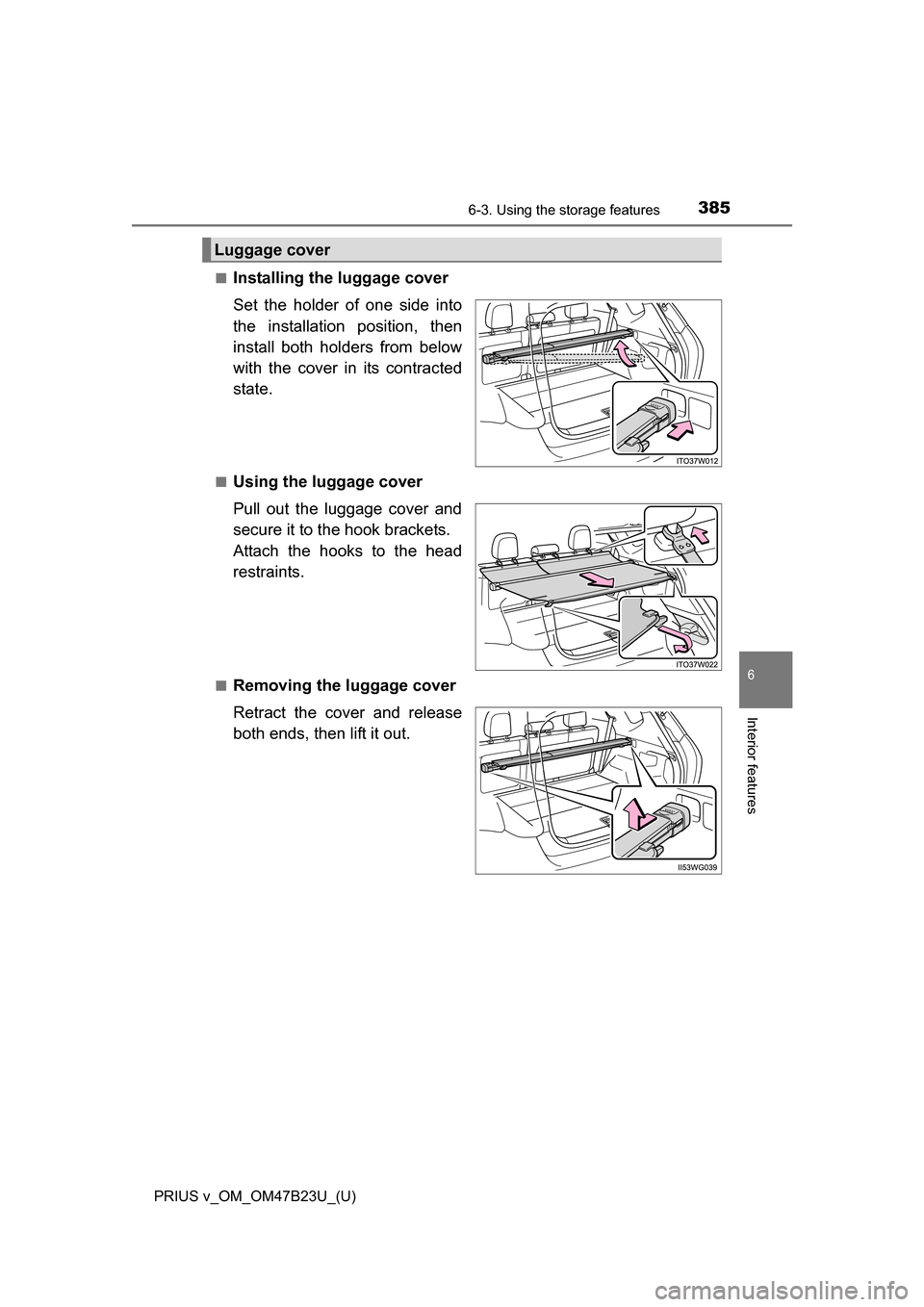

Page 385 of 624
PRIUS v_OM_OM47B23U_(U)
3856-3. Using the storage features
6
Interior features
■Installing the luggage cover
Set the holder of one side into
the installation position, then
install both holders from below
with the cover in its contracted
state.
■Using the luggage cover
Pull out the luggage cover and
secure it to the hook brackets.
Attach the hooks to the head
restraints.
■Removing the luggage cover
Retract the cover and release
both ends, then lift it out.
Luggage cover

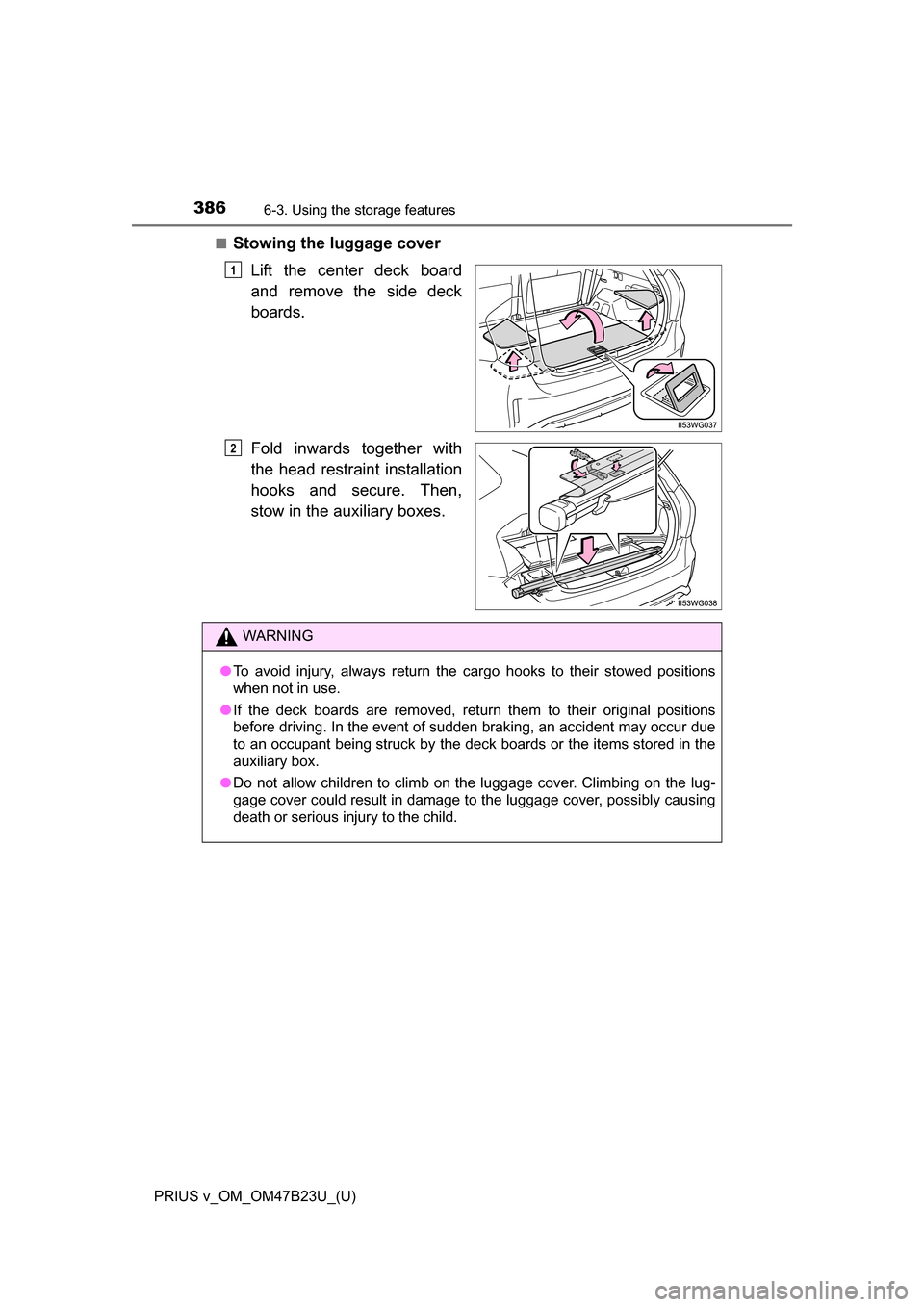

Page 386 of 624
386
PRIUS v_OM_OM47B23U_(U)
6-3. Using the storage features
■Stowing the luggage cover
Lift the center deck board
and remove the side deck
boards.
Fold inwards together with
the head restraint installation
hooks and secure. Then,
stow in the auxiliary boxes.
1
2
WARNING
●To avoid injury, always return the cargo hooks to their stowed positions
when not in use.
● If the deck boards are removed, return them to their original positions
before driving. In the event of sudden braking, an accident may occur due
to an occupant being struck by the deck boards or the items stored in the
auxiliary box.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.

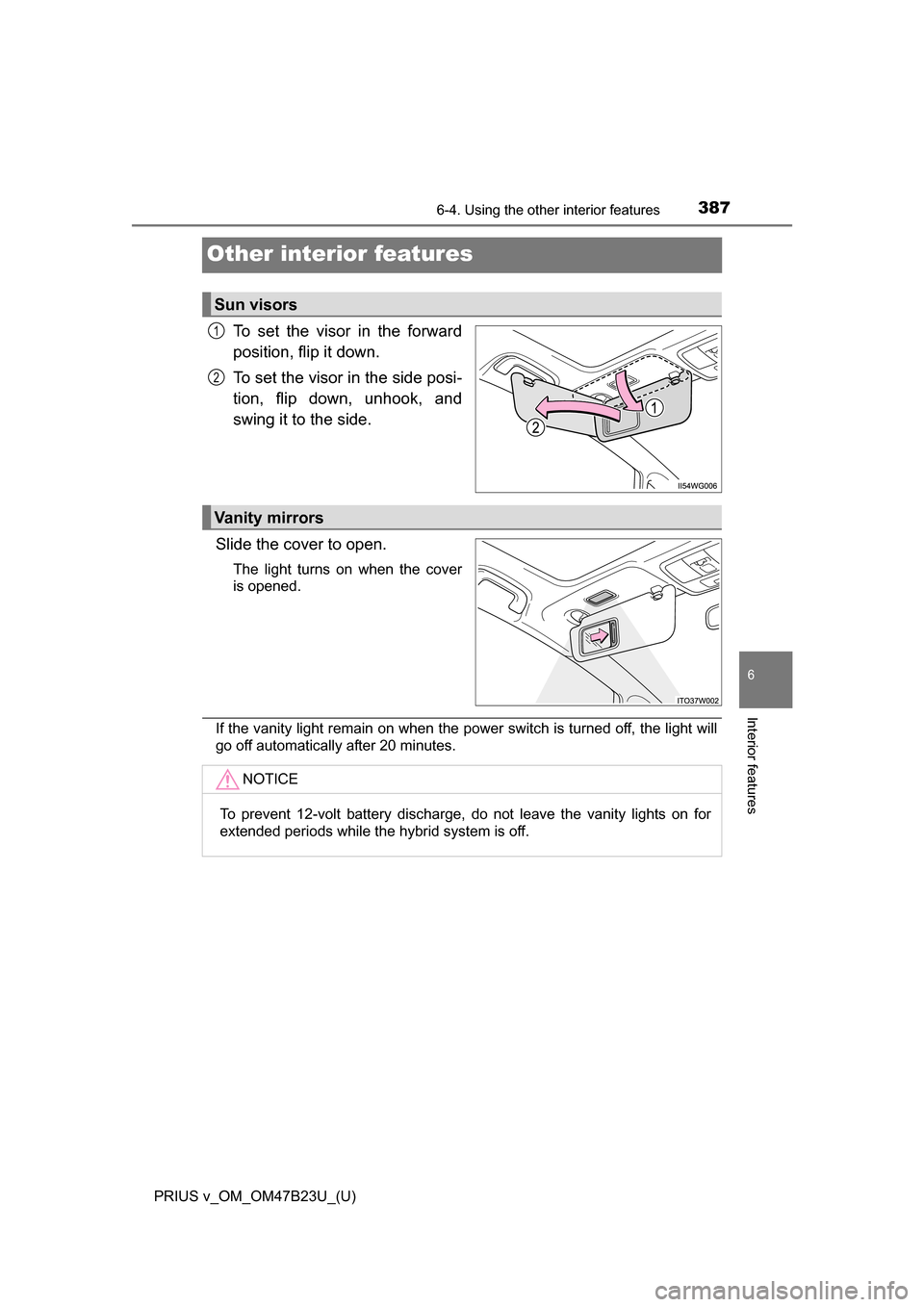

Page 387 of 624
387
PRIUS v_OM_OM47B23U_(U)
6-4. Using the other interior features
6
Interior features
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The light turns on when the cover
is opened.
If the vanity light remain on when the power switch is turned off, the light will
go off automatically after 20 minutes.
Sun visors
1
2
Vanity mirrors
NOTICE
To prevent 12-volt battery discharge, do not leave the vanity lights on for
extended periods while the hybrid system is off.

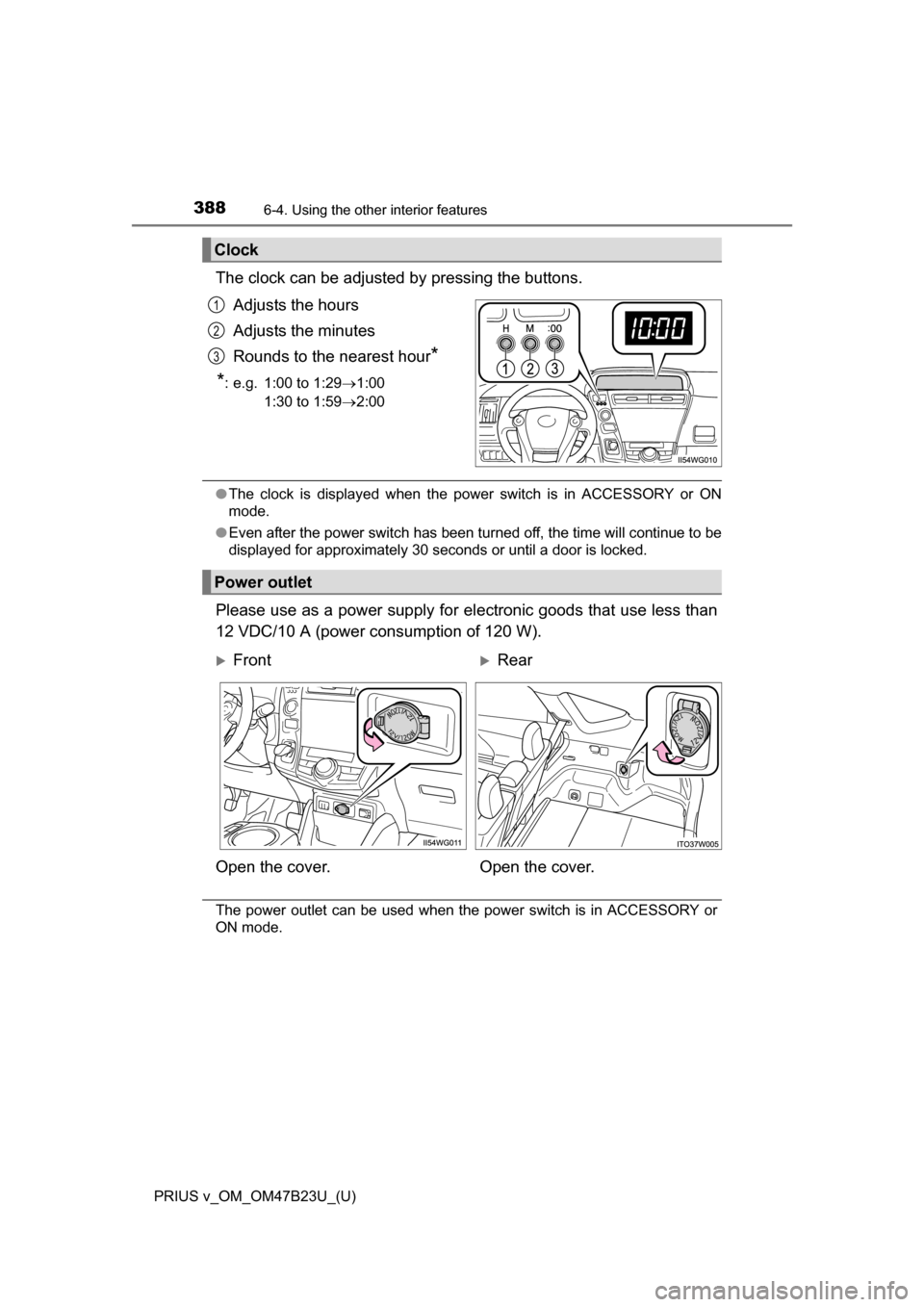

Page 388 of 624
388
PRIUS v_OM_OM47B23U_(U)
6-4. Using the other interior features
The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour
*
*
: e.g. 1:00 to 1:29 1:00
1:30 to 1:592:00
● The clock is displayed when the power switch is in ACCESSORY or ON
mode.
● Even after the power switch has been turned off, the time will continue to be
displayed for approximately 30 seconds or until a door is locked.
Please use as a power supply for el ectronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
The power outlet can be used when the power switch is in ACCESSORY or
ON mode.
Clock
1
2
3
Power outlet
FrontRear
Open the cover. Open the cover.

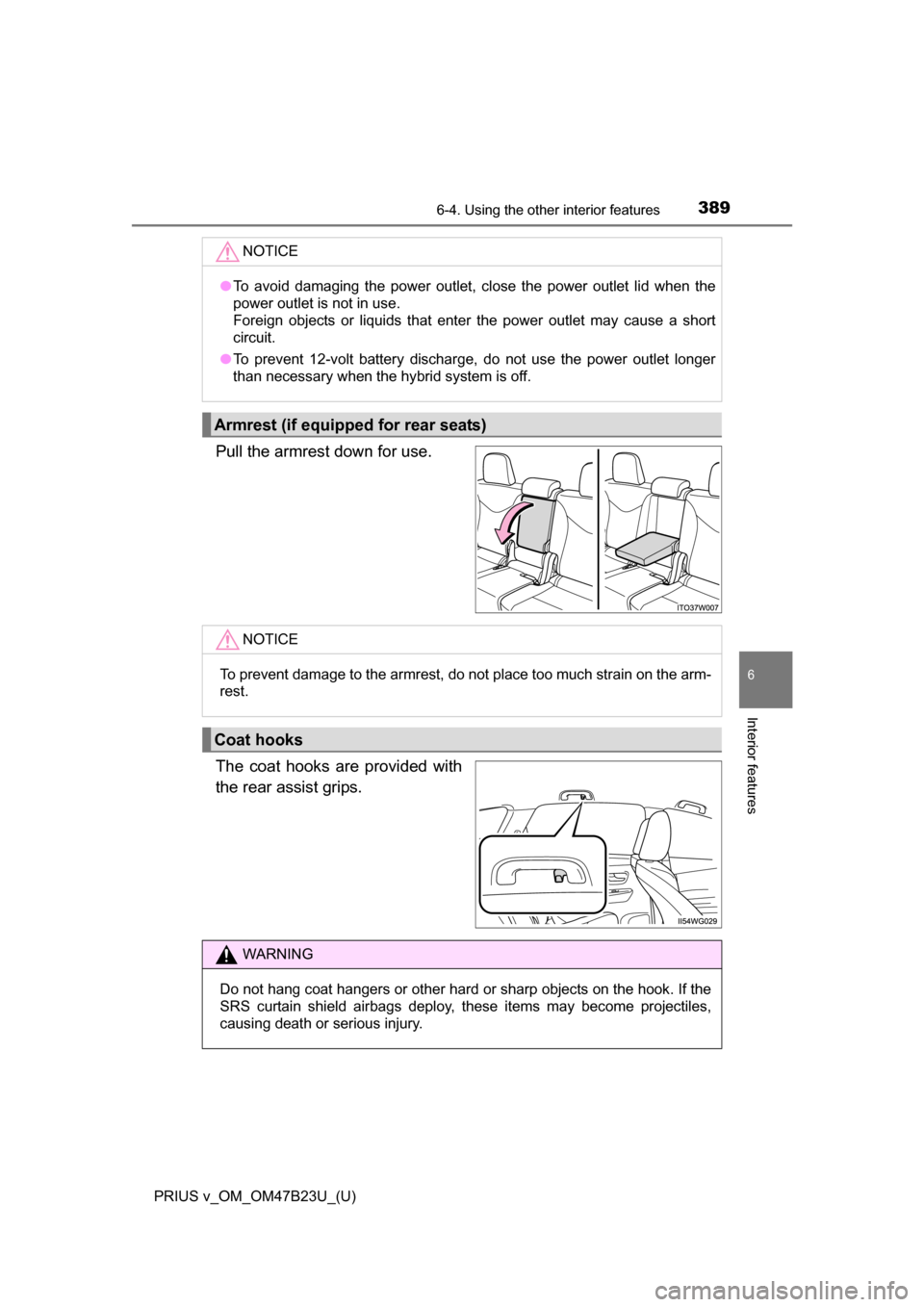

Page 389 of 624
PRIUS v_OM_OM47B23U_(U)
3896-4. Using the other interior features
6
Interior features
Pull the armrest down for use.
The coat hooks are provided with
the rear assist grips.
NOTICE
●To avoid damaging the power outlet, close the power outlet lid when the
power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short
circuit.
● To prevent 12-volt battery discharge, do not use the power outlet longer
than necessary when the hybrid system is off.
Armrest (if equipped for rear seats)
NOTICE
To prevent damage to the armrest, do not place too much strain on the arm-
rest.
Coat hooks
WARNING
Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become projectiles,
causing death or serious injury.

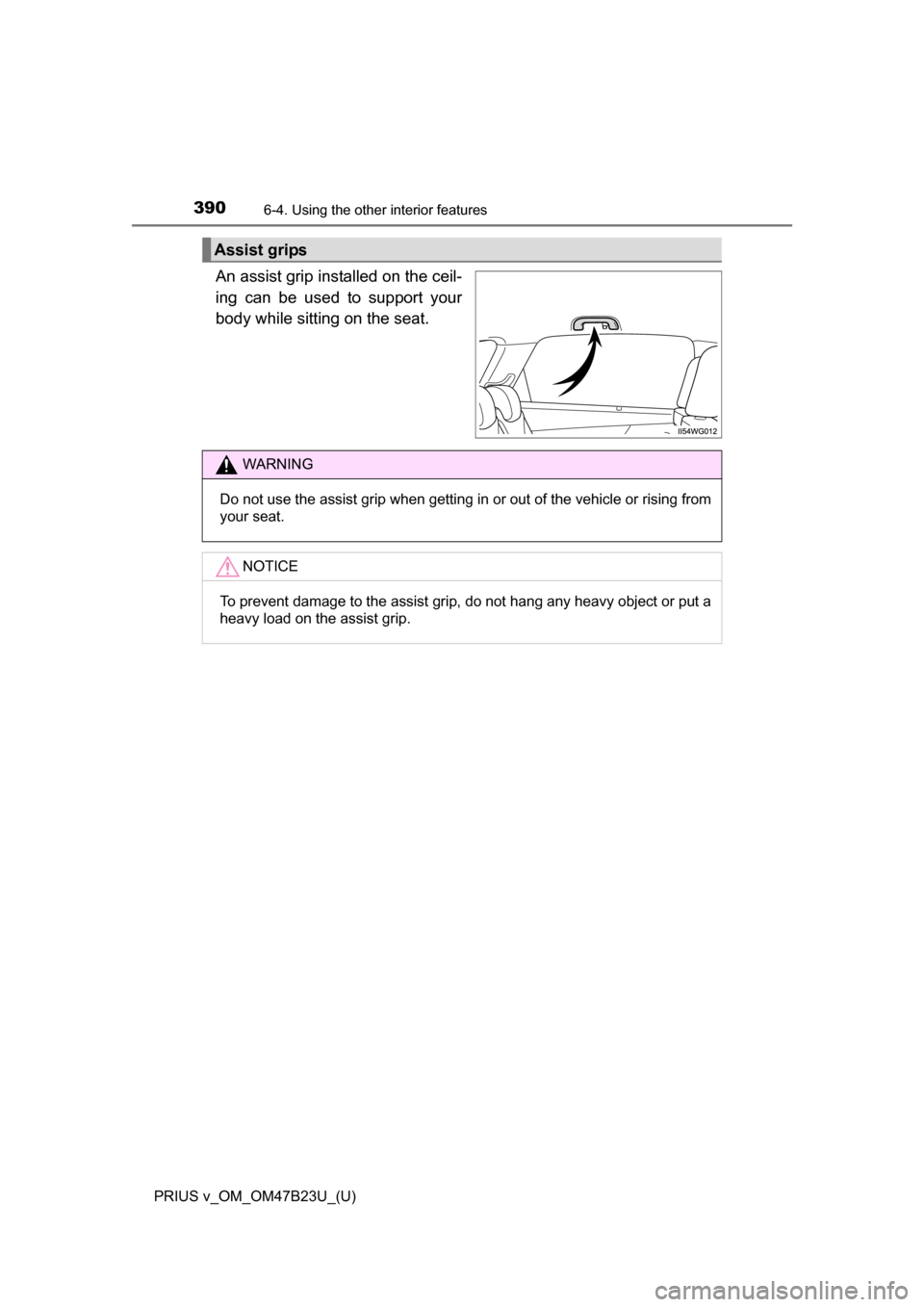

Page 390 of 624
390
PRIUS v_OM_OM47B23U_(U)
6-4. Using the other interior features
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip, do not hang any heavy object or put a
heavy load on the assist grip.
