PRIUS v_OM_OM47B23U_(U)
4617-3. Do-it-yourself maintenance
7
Maintenance and care

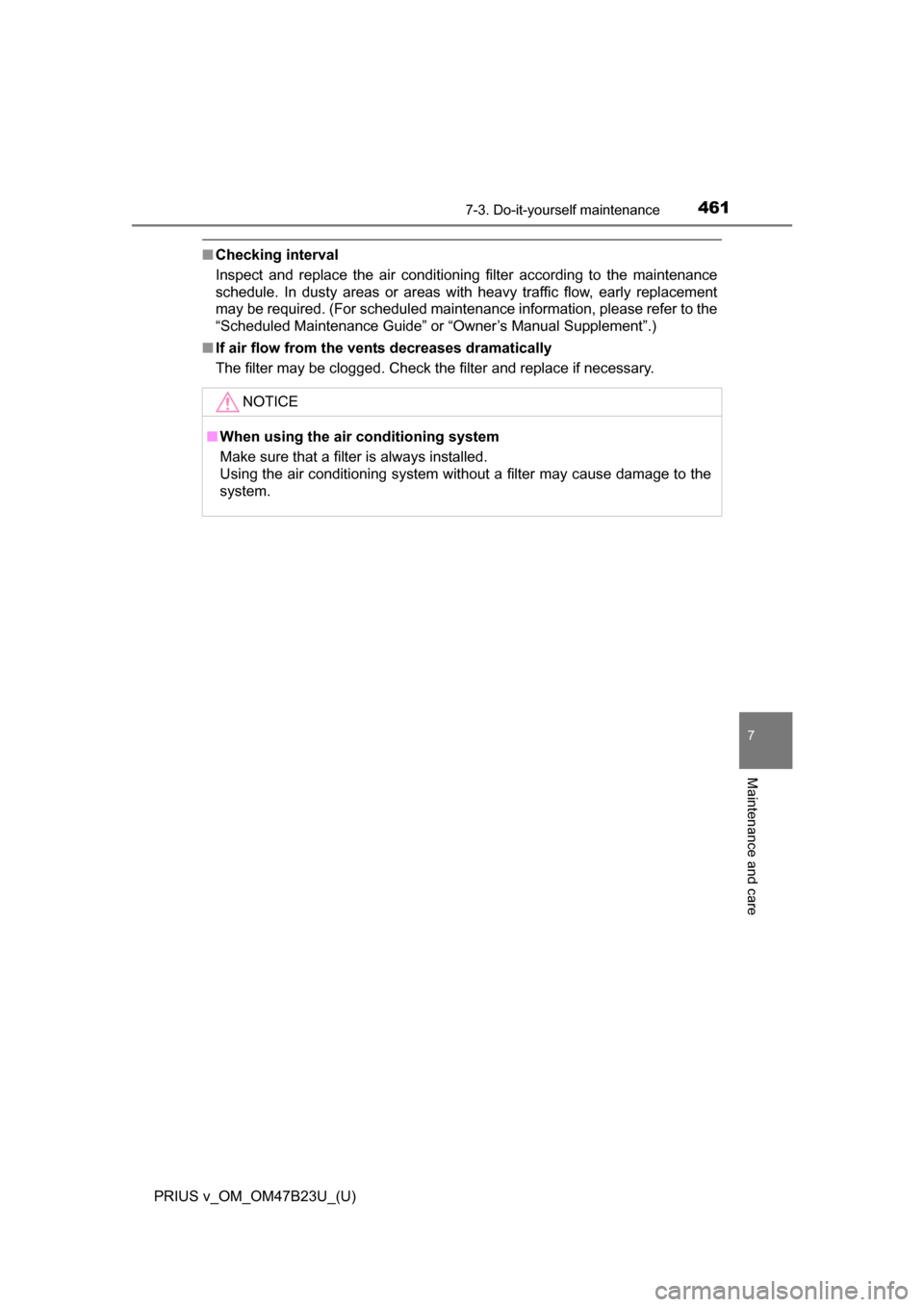

■Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■When using the ai r conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.
Page 462 of 624
462
PRIUS v_OM_OM47B23U_(U)
7-3. Do-it-yourself maintenance

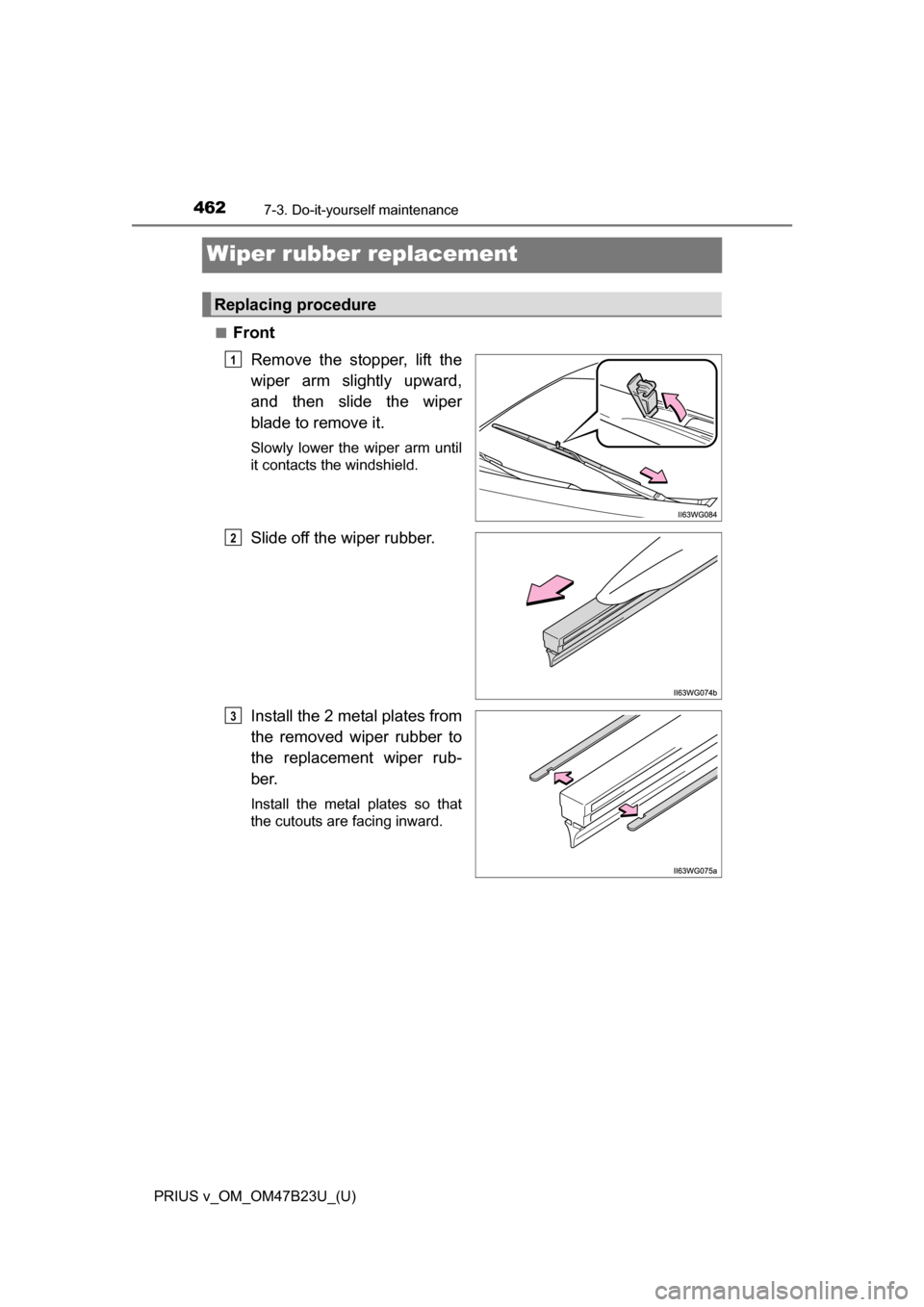

Wiper rubber replacement
■FrontRemove the stopper, lift the
wiper arm slightly upward,
and then slide the wiper
blade to remove it.
Slowly lower the wiper arm until
it contacts the windshield.
Slide off the wiper rubber.
Install the 2 metal plates from
the removed wiper rubber to
the replacement wiper rub-
ber.
Install the metal plates so that
the cutouts are facing inward.
Replacing procedure
1
2
3
Page 463 of 624
PRIUS v_OM_OM47B23U_(U)
4637-3. Do-it-yourself maintenance
7
Maintenance and care

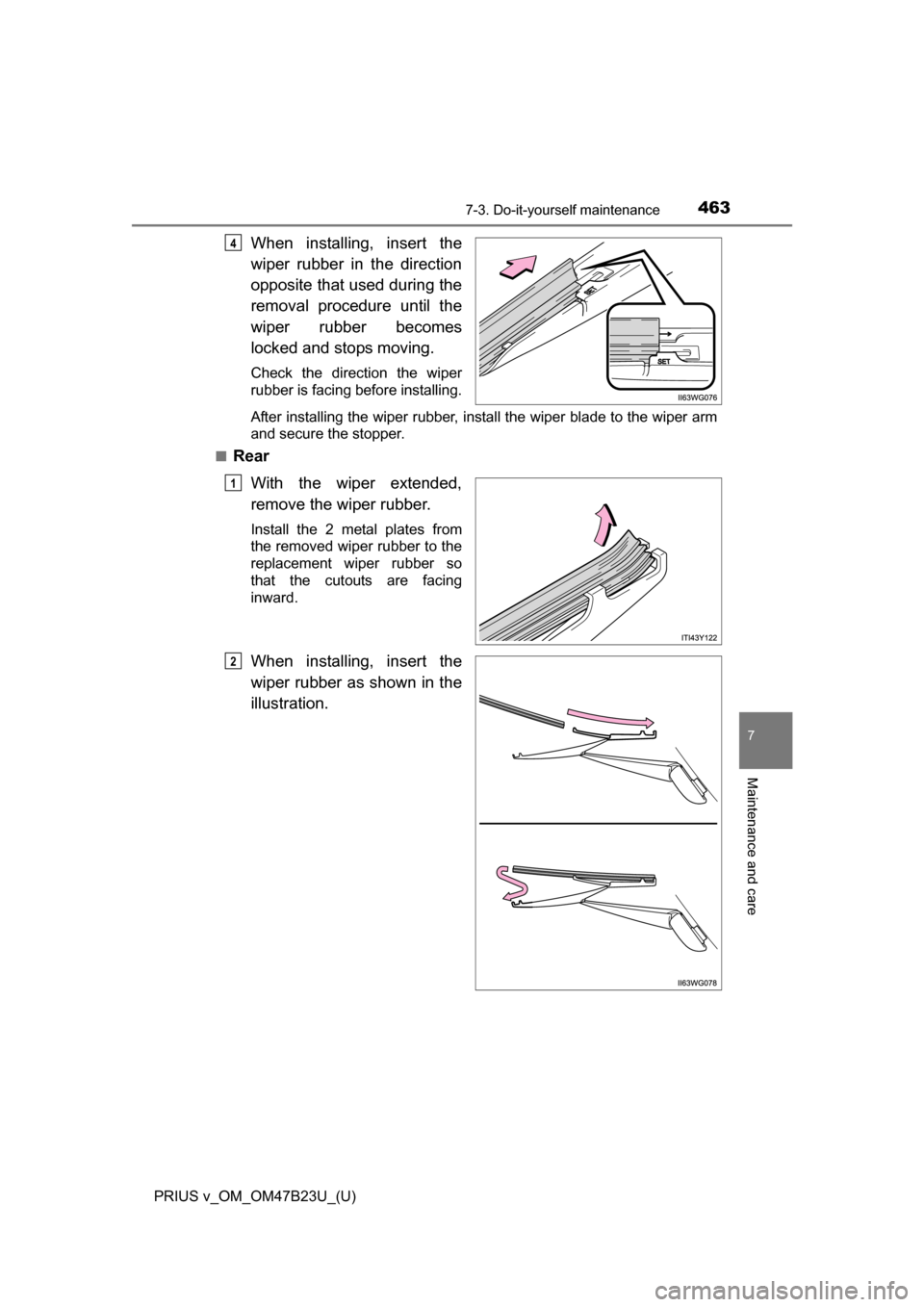

When installing, insert the
wiper rubber in the direction
opposite that used during the
removal procedure until the
wiper rubber becomes
locked and stops moving.
Check the direction the wiper
rubber is facing before installing.
After installing the wiper rubber, install the wiper blade to the wiper arm
and secure the stopper.
■
Rear
With the wiper extended,
remove the wiper rubber.
Install the 2 metal plates from
the removed wiper rubber to the
replacement wiper rubber so
that the cutouts are facing
inward.
When installing, insert the
wiper rubber as shown in the
illustration.
4
1
2
Page 464 of 624
464
PRIUS v_OM_OM47B23U_(U)
7-3. Do-it-yourself maintenance
Electronic key batter y
●Flathead screwdriver
● Lithium battery CR2032
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the depleted battery.
When removing the cover, if the
battery cannot be seen due to the
electronic key module attaching to
the upper cover, remove the elec-
tronic key module from the cover
so that the battery is visible as
shown in the illustration.
Insert a new battery with the “+”
terminal facing up.
When installing, reverse the steps listed.
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
3
4
Page 465 of 624

PRIUS v_OM_OM47B23U_(U)
4657-3. Do-it-yourself maintenance
7
Maintenance and care

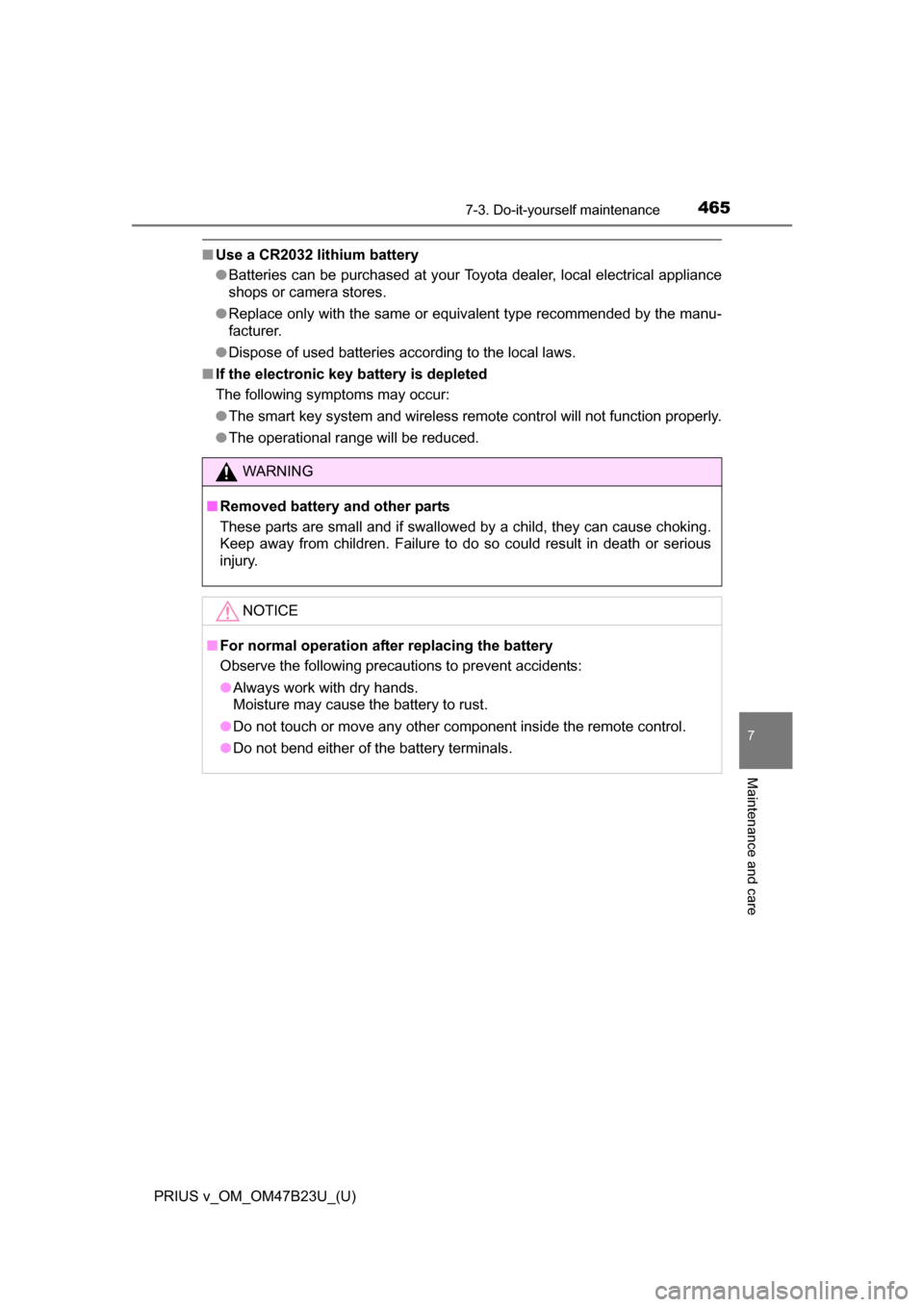

■Use a CR2032 lithium battery
●Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to the local laws.
■ If the electronic key battery is depleted
The following symptoms may occur:
●The smart key system and wireless remote control will not function properly.
● The operational range will be reduced.
WARNING
■ Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.
Page 466 of 624
466
PRIUS v_OM_OM47B23U_(U)
7-3. Do-it-yourself maintenance
Checking and replacing fuses
Turn the power switch off.
Open the fuse box cover.
Remove the fuse.
Only type A fuse can be
removed using the pullout tool.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Engine compartmentLeft side instrument panel
Push the tab in and lift the lid
off.
When closing, first hook the lid
onto the two rear tabs.
Remove the lid.
3
Page 467 of 624
PRIUS v_OM_OM47B23U_(U)
4677-3. Do-it-yourself maintenance
7
Maintenance and care

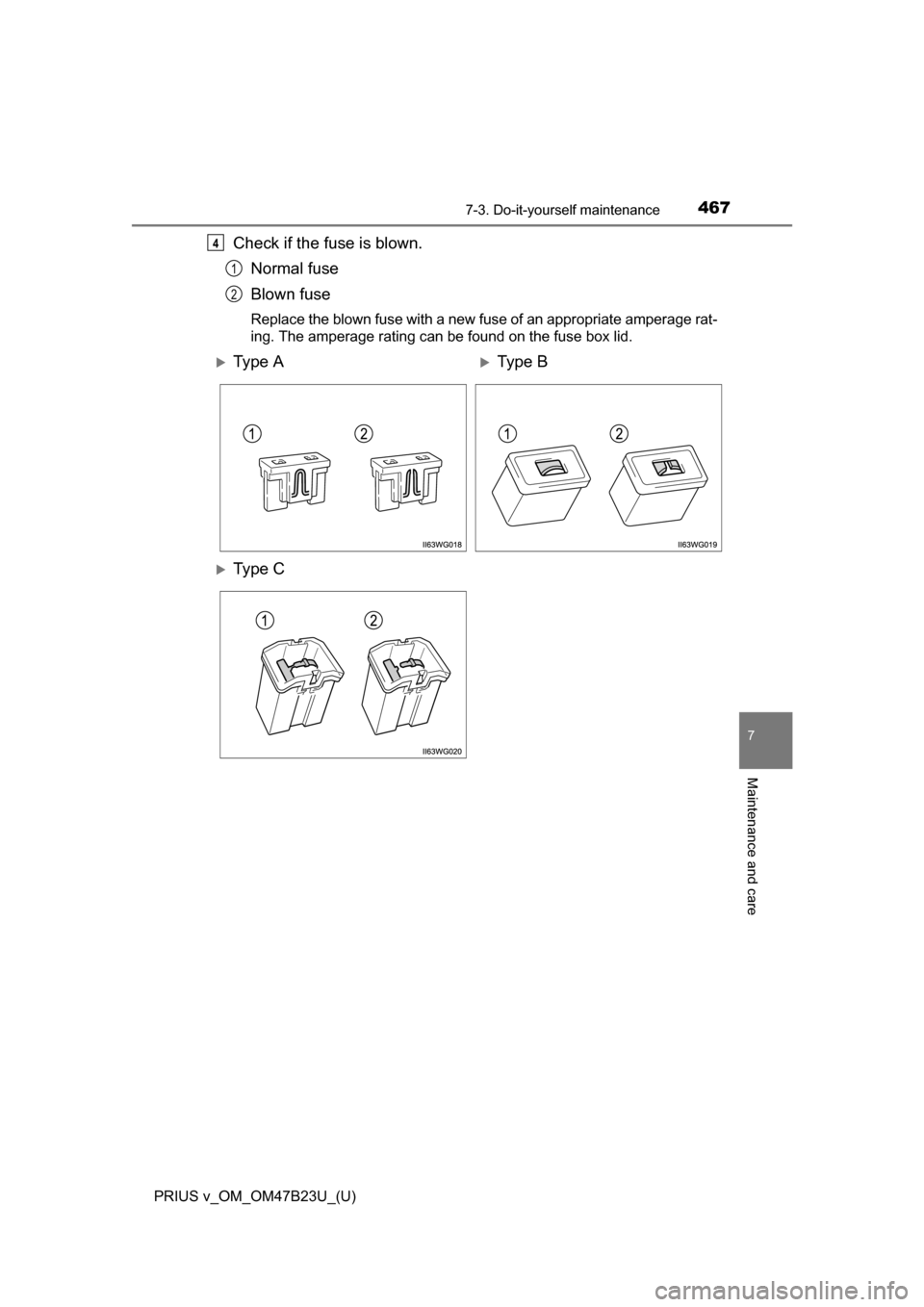

Check if the fuse is blown.Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
4
1
2
Ty p e AType B
Ty p e C
Page 468 of 624

468
PRIUS v_OM_OM47B23U_(U)
7-3. Do-it-yourself maintenance

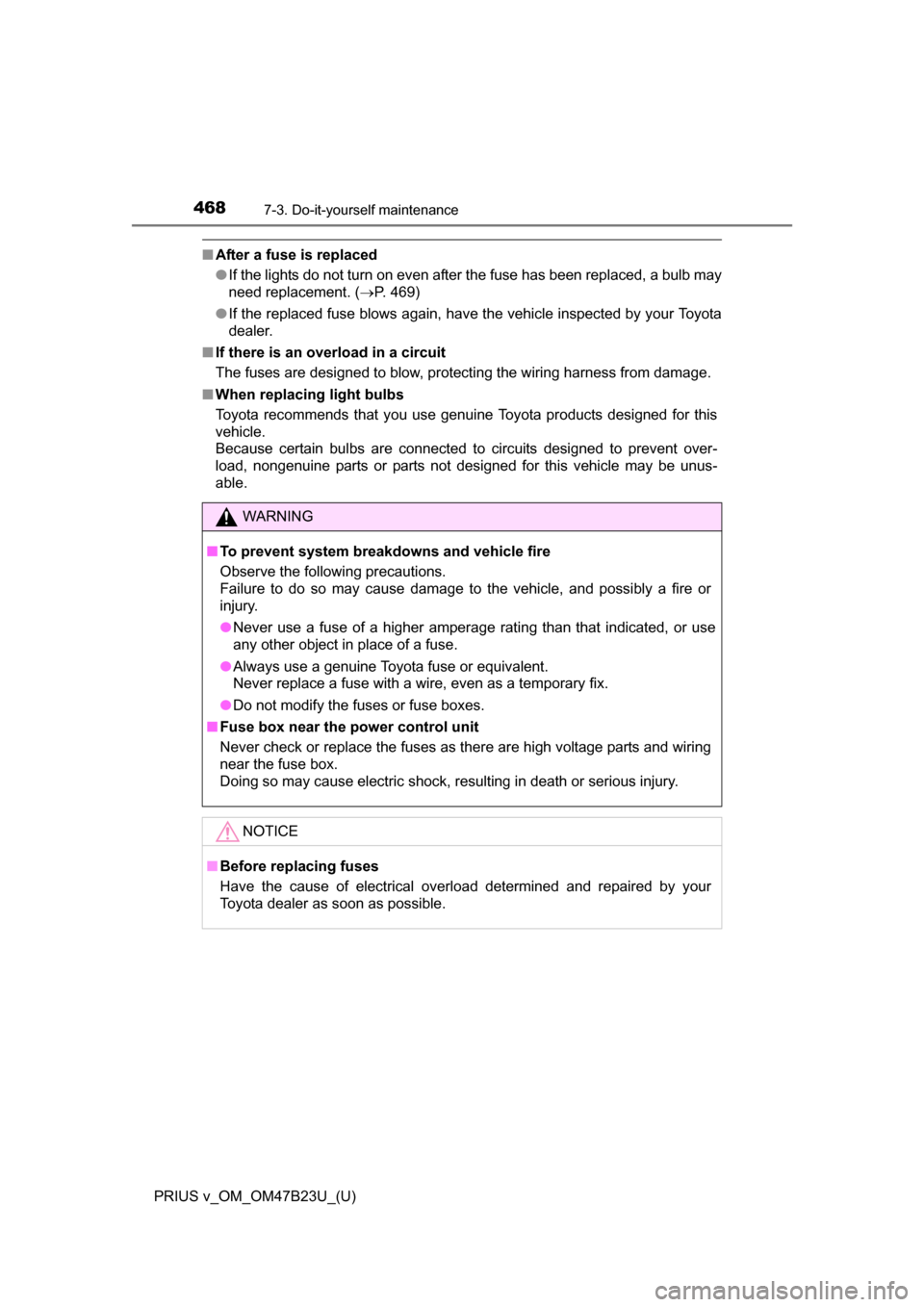

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 469)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle.
Because certain bulbs are connected to circuits designed to prevent over-
load, nongenuine parts or parts not designed for this vehicle may be unus-
able.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than that indicated, or use\
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
■ Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
Page 469 of 624
469
PRIUS v_OM_OM47B23U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care

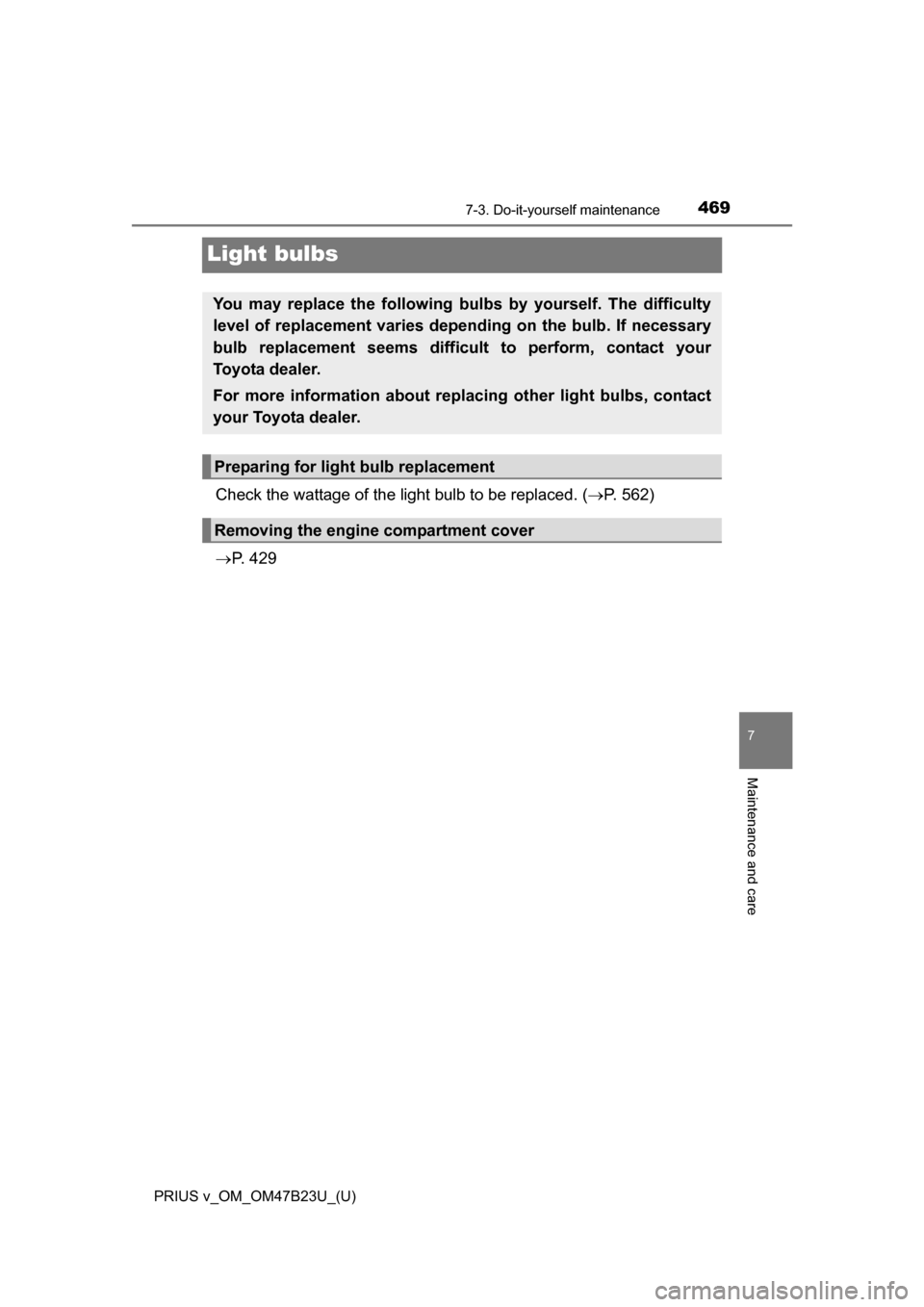

Light bulbs
Check the wattage of the light bulb to be replaced. (P. 562)
P. 4 2 9
You may replace the following bulbs by yourself. The difficulty
level of replacement varies de pending on the bulb. If necessary
bulb replacement seems difficul t to perform, contact your
Toyota dealer.
For more information about repl acing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Removing the engine compartment cover
Page 470 of 624
470
PRIUS v_OM_OM47B23U_(U)
7-3. Do-it-yourself maintenance
■Front
■RearLicense plate lights
Back-up light
Rear turn signal light

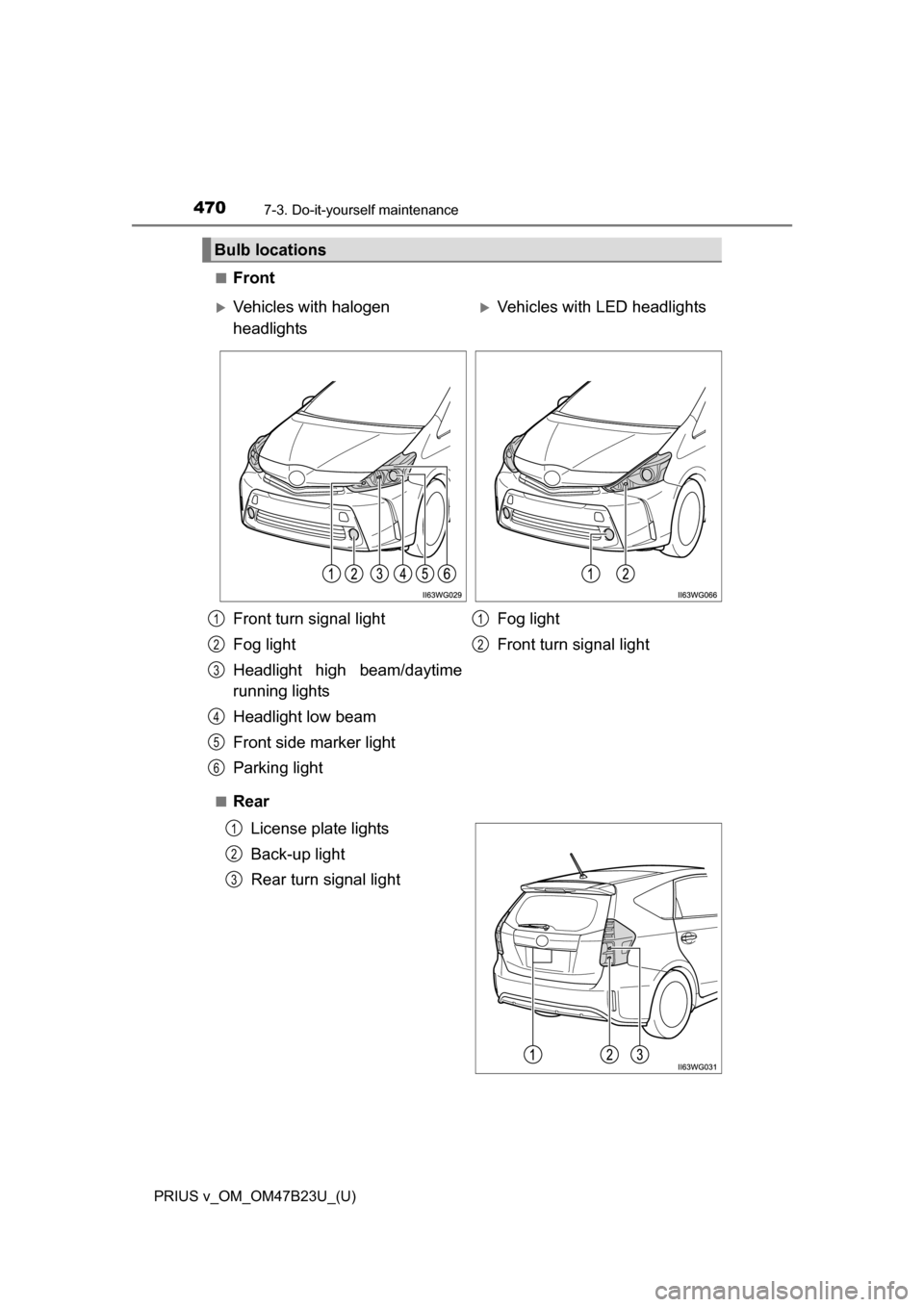

Bulb locations
Vehicles with halogen
headlightsVehicles with LED headlights
Front turn signal light
Fog light
Headlight high beam/daytime
running lights
Headlight low beam
Front side marker light
Parking light Fog light
Front turn signal light
1
2
3
4
5
6
1
2
1
2
3
