791-2. Hybrid system
PRIUS v_OM_OM47B78U_(U)
1
For safety and security
There is an air intake vent under
the rear seat for the purpose of
cooling the hybrid battery (traction
battery). If the vent becomes
blocked, the hybrid battery (trac-
tion battery) may overheat, lead-
ing to a reduction in hybrid battery
(traction battery) output.
When a certain level of impact is detected by the impact sensor, the
emergency shut off system blocks the high voltage current and stops
the fuel pump to minimize the risk of electrocution and fuel leakage. If
the emergency shut off system activates, your vehicle will not restart.
To restart the hybrid system, contact your Toyota dealer.
A message is automatically displayed when a malfunction occurs in
the hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the
instructions. (P. 487)
Hybrid battery (traction battery) air intake vent
Emergency shut off system
Hybrid warning message

801-2. Hybrid system
PRIUS v_OM_OM47B78U_(U)

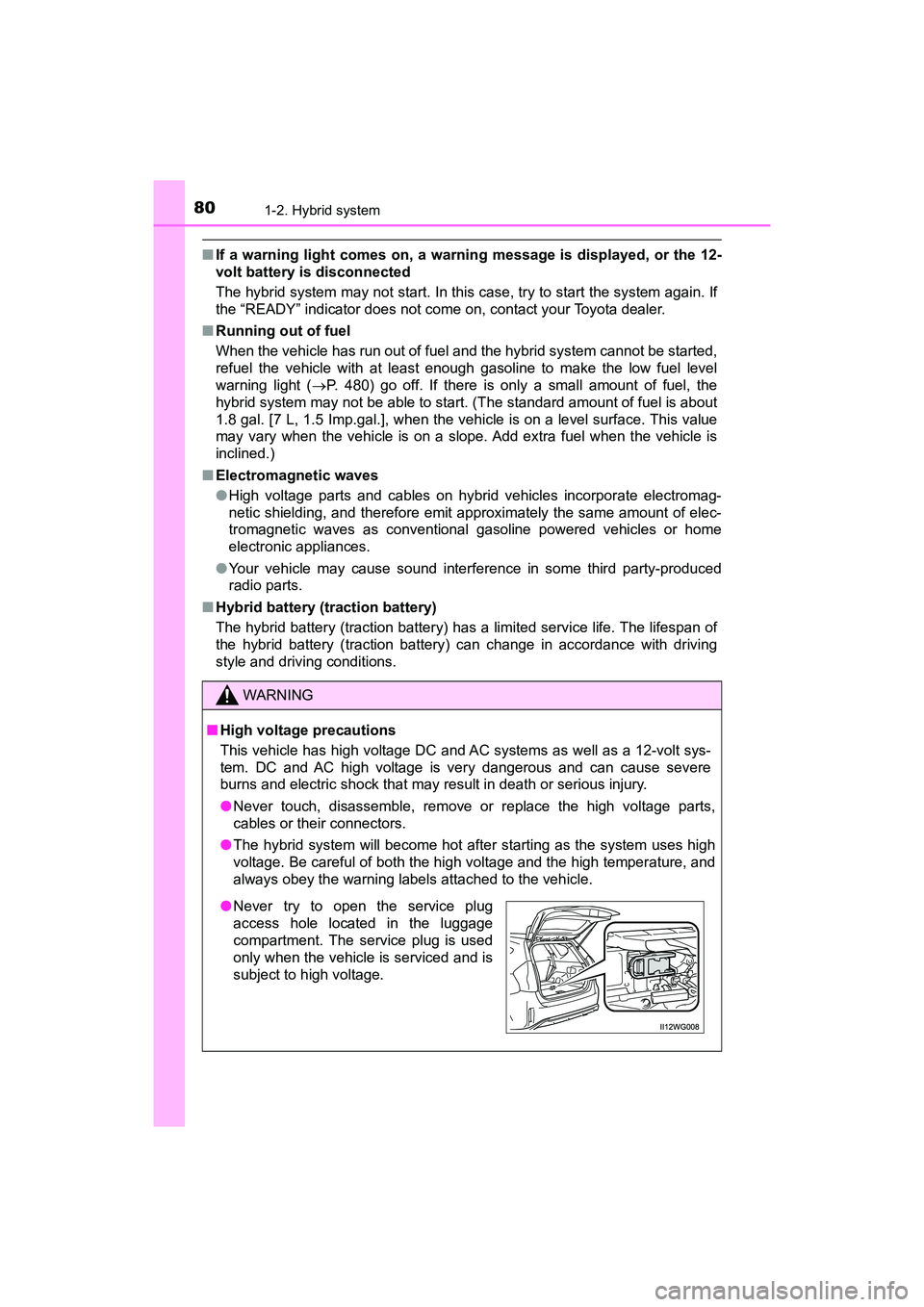

■If a warning light comes on, a warning message is displayed, or the 12-
volt battery is disconnected
The hybrid system may not start. In this case, try to start the system again. If
the “READY” indicator does not come on, contact your Toyota dealer.
■ Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started,
refuel the vehicle with at least enough gasoline to make the low fuel level
warning light ( P. 480) go off. If there is only a small amount of fuel, the
hybrid system may not be able to start. (The standard amount of fuel is about
1.8 gal. [7 L, 1.5 Imp.gal.], when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is
inclined.)
■ Electromagnetic waves
●High voltage parts and cables on hybrid vehicles incorporate electromag-
netic shielding, and therefore emit approximately the same amount of elec-
tromagnetic waves as conventional gasoline powered vehicles or home
electronic appliances.
● Your vehicle may cause sound interference in some third party-produced
radio parts.
■ Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of
the hybrid battery (traction battery) can change in accordance with driving
style and driving conditions.
WARNING
■High voltage precautions
This vehicle has high voltage DC and AC systems as well as a 12-volt sys-
tem. DC and AC high voltage is very dangerous and can cause severe
burns and electric shock that may result in death or serious injury.
●Never touch, disassemble, remove or replace the high voltage parts,
cables or their connectors.
● The hybrid system will become hot after starting as the system uses high
voltage. Be careful of both the high voltage and the high temperature, and
always obey the warning labels attached to the vehicle.
●Never try to open the service plug
access hole located in the luggage
compartment. The service plug is used
only when the vehicle is serviced and is
subject to high voltage.

811-2. Hybrid system
PRIUS v_OM_OM47B78U_(U)
1
For safety and security
WARNING

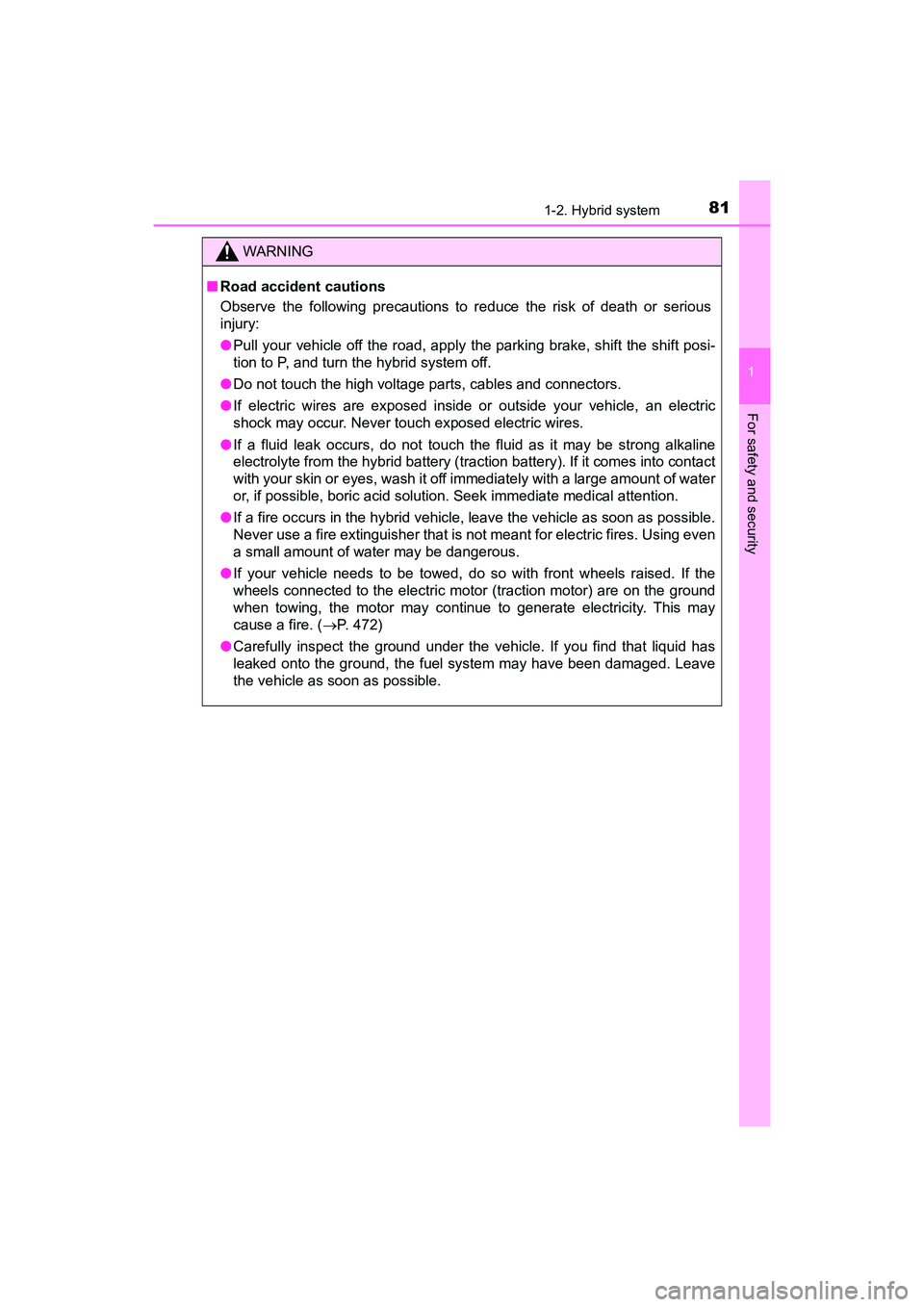

■Road accident cautions
Observe the following precautions to reduce the risk of death or serious
injury:
●Pull your vehicle off the road, apply the parking brake, shift the shift posi-
tion to P, and turn the hybrid system off.
● Do not touch the high voltage parts, cables and connectors.
● If electric wires are exposed inside or outside your vehicle, an electric
shock may occur. Never touch exposed electric wires.
● If a fluid leak occurs, do not touch the fluid as it may be strong alkaline
electrolyte from the hybrid battery (traction battery). If it comes into contact
with your skin or eyes, wash it off immediately with a large amount of water
or, if possible, boric acid solution. Seek immediate medical attention.
● If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible.
Never use a fire extinguisher that is not meant for electric fires. Using even
a small amount of water may be dangerous.
● If your vehicle needs to be towed, do so with front wheels raised. If the
wheels connected to the electric motor (traction motor) are on the ground
when towing, the motor may continue to generate electricity. This may
cause a fire. ( P. 472)
● Carefully inspect the ground under the vehicle. If you find that liquid has
leaked onto the ground, the fuel system may have been damaged. Leave
the vehicle as soon as possible.

821-2. Hybrid system
PRIUS v_OM_OM47B78U_(U)
WARNING

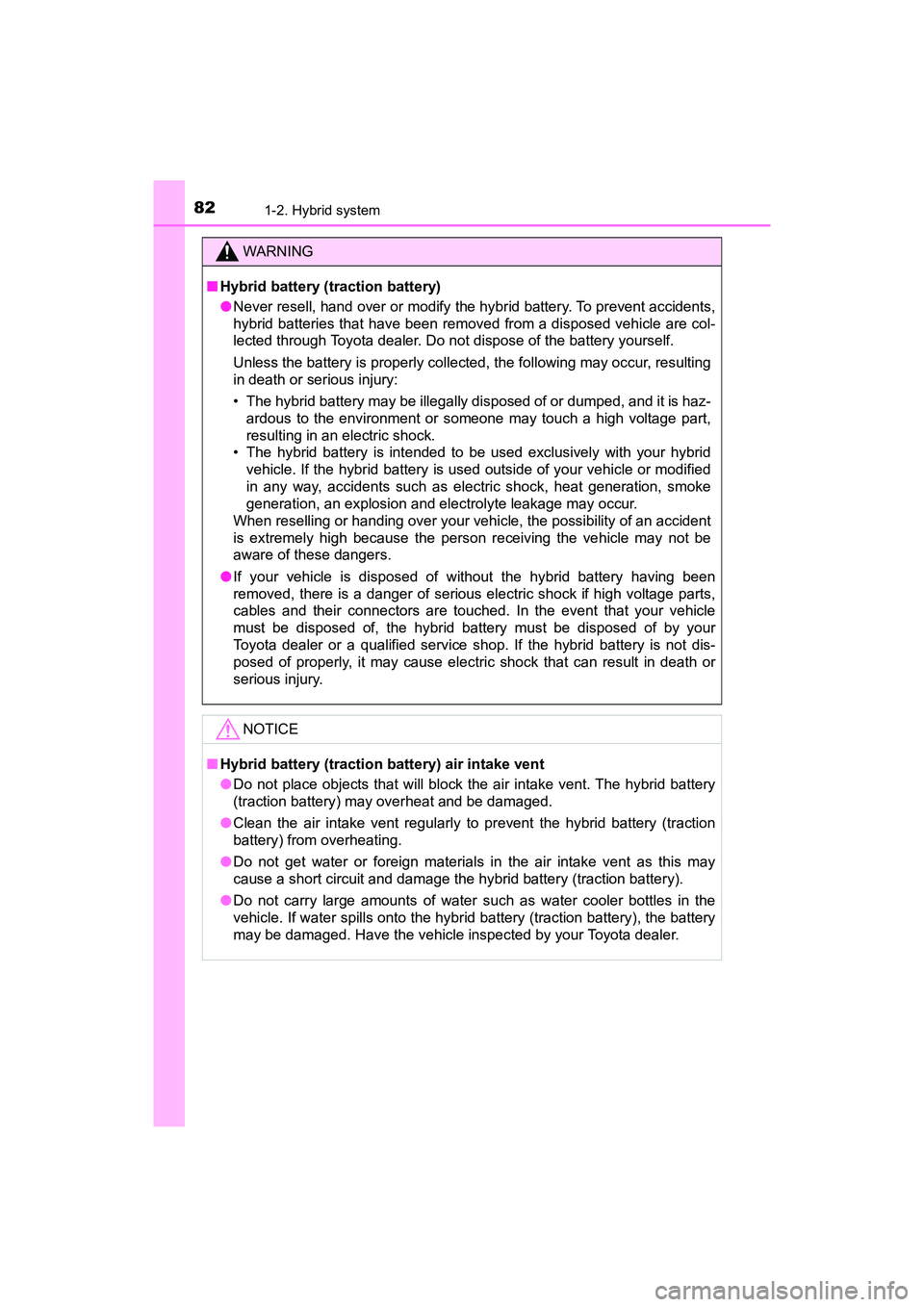

■Hybrid battery (traction battery)
●Never resell, hand over or modify the hybrid battery. To prevent accidents,
hybrid batteries that have been removed from a disposed vehicle are col-
lected through Toyota dealer. Do not dispose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting
in death or serious injury:
• The hybrid battery may be illegally disposed of or dumped, and it is haz-
ardous to the environment or someone may touch a high voltage part,
resulting in an electric shock.
• The hybrid battery is intended to be used exclusively with your hybrid
vehicle. If the hybrid battery is used outside of your vehicle or modified
in any way, accidents such as electric shock, heat generation, smoke
generation, an explosion and electrolyte leakage may occur.
When reselling or handing over your vehicle, the possibility of an accident
is extremely high because the person receiving the vehicle may not be
aware of these dangers.
● If your vehicle is disposed of without the hybrid battery having been
removed, there is a danger of serious electric shock if high voltage parts,
cables and their connectors are touched. In the event that your vehicle
must be disposed of, the hybrid battery must be disposed of by your
Toyota dealer or a qualified service shop. If the hybrid battery is not dis-
posed of properly, it may cause electric shock that can result in death or
serious injury.
NOTICE
■Hybrid battery (traction battery) air intake vent
●Do not place objects that will block the air intake vent. The hybrid battery
(traction battery) may overheat and be damaged.
● Clean the air intake vent regularly to prevent the hybrid battery (traction
battery) from overheating.
● Do not get water or foreign materials in the air intake vent as this may
cause a short circuit and damage the hybrid battery (traction battery).
● Do not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the hybrid battery (traction battery), the battery
may be damaged. Have the vehicle inspected by your Toyota dealer.

831-3. Theft deterrent system
PRIUS v_OM_OM47B78U_(U)
1
For safety and security

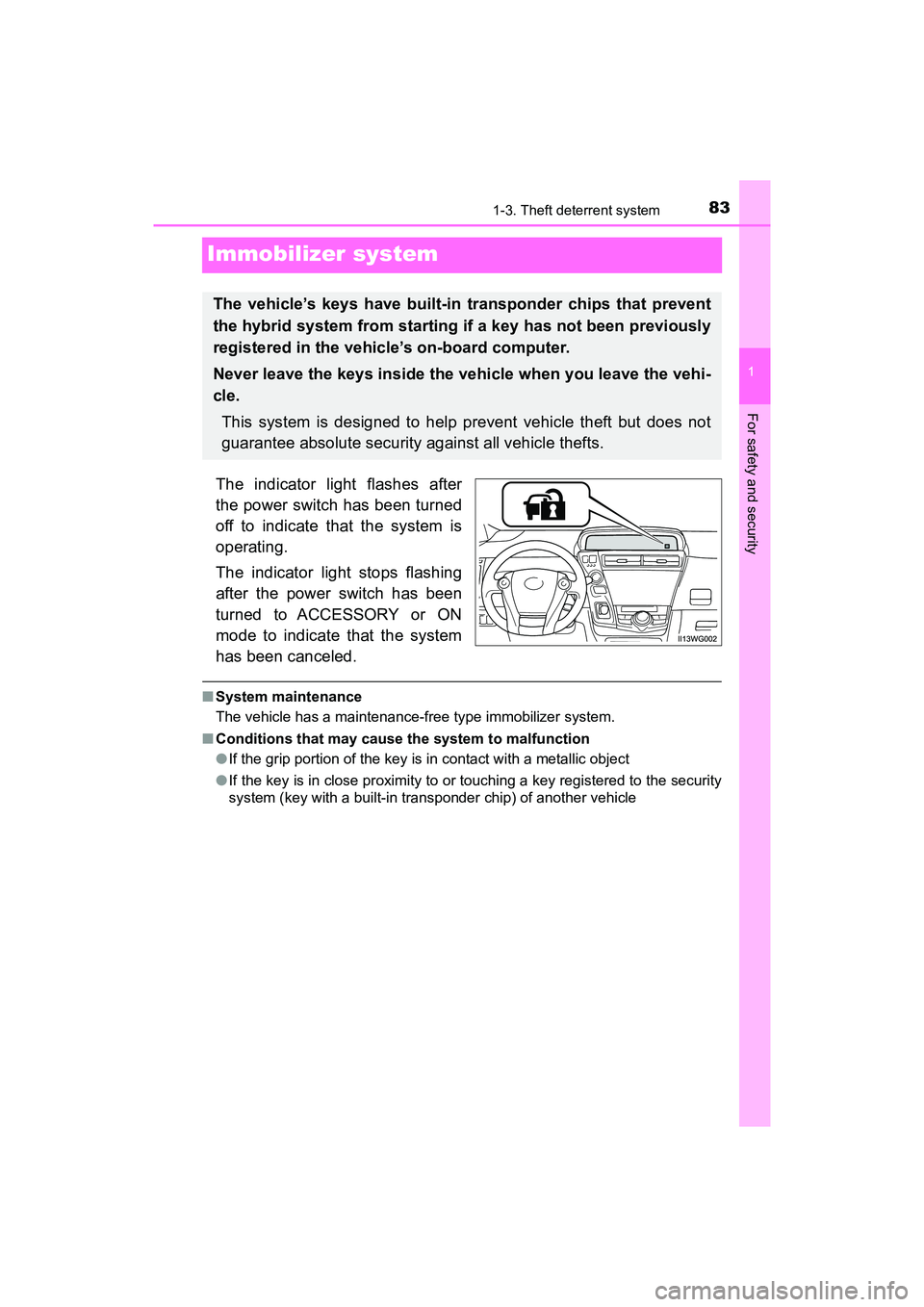

Immobilizer system
The indicator light flashes after
the power switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the power switch has been
turned to ACCESSORY or ON
mode to indicate that the system
has been canceled.
■System maintenance
The vehicle has a maintenance-free type immobilizer system.
■ Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key registered to the security
system (key with a built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previously
registered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.

841-3. Theft deterrent system
PRIUS v_OM_OM47B78U_(U)■

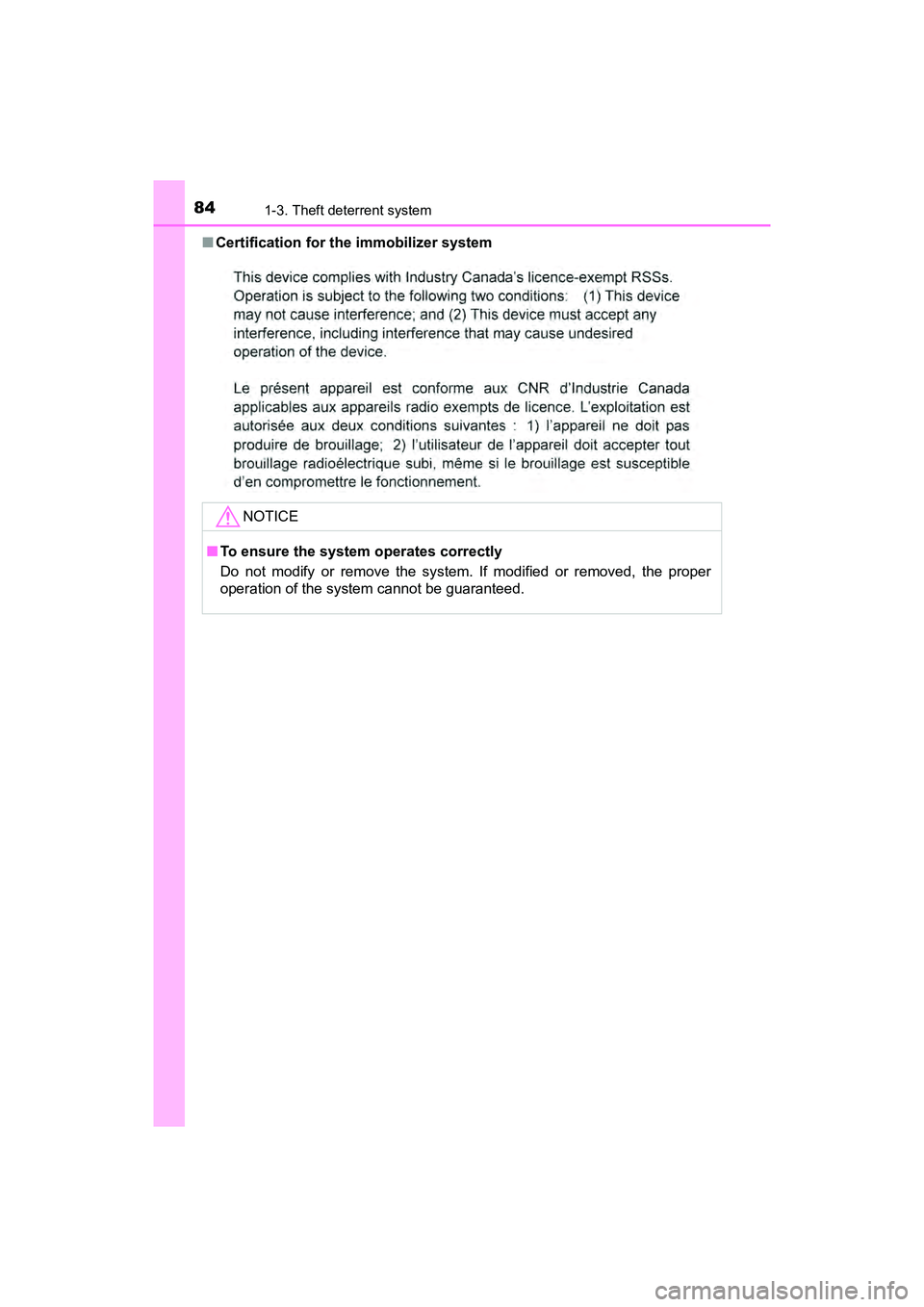

Certification for the immobilizer system
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

85
PRIUS v_OM_OM47B78U_(U)

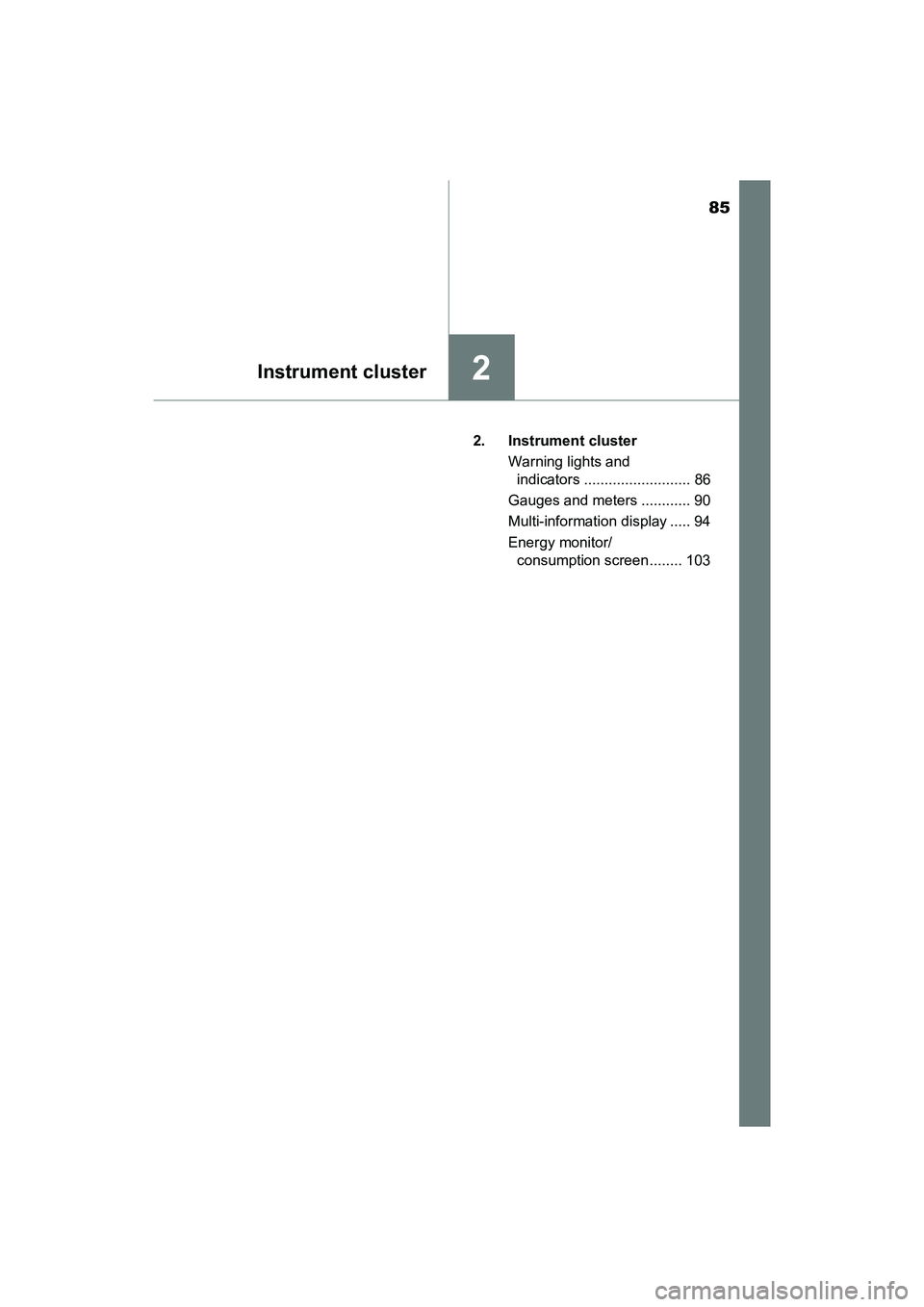

Instrument cluster2
2. Instrument clusterWarning lights and indicators .......................... 86
Gauges and meters ............ 90
Multi-information display ..... 94
Energy monitor/ consumption screen ........ 103

86
PRIUS v_OM_OM47B78U_(U)
2. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

PRIUS v_OM_OM47B78U_(U)
872. Instrument cluster
2
Instrument cluster

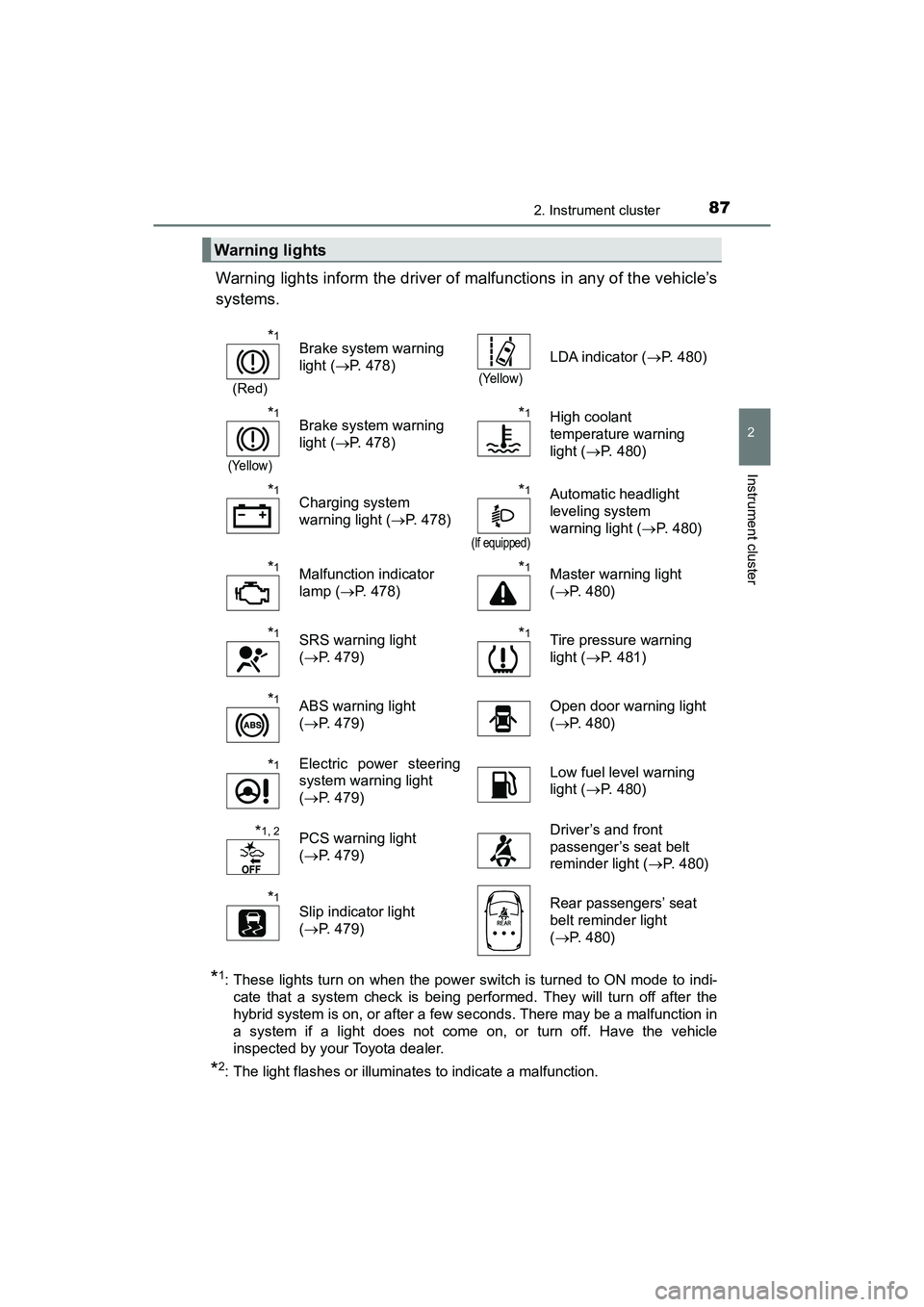

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the vehicle
inspected by your Toyota dealer.
*2: The light flashes or illuminates to indicate a malfunction.
Warning lights
*1
(Red)
Brake system warning
light ( P. 478)
(Yellow)
LDA indicator ( P. 480)
*1
(Yellow)
Brake system warning
light (P. 478)*1High coolant
temperature warning
light ( P. 480)
*1Charging system
warning light ( P. 478)*1
(If equipped)
Automatic headlight
leveling system
warning light ( P. 480)
*1Malfunction indicator
lamp (P. 478)*1Master warning light
(P. 480)
*1SRS warning light
(P. 479)*1Tire pressure warning
light ( P. 481)
*1ABS warning light
(P. 479) Open door warning light
(
P. 480)
*1Electric power steering
system warning light
(P. 479) Low fuel level warning
light (
P. 480)
*1, 2PCS warning light
(P. 479) Driver’s and front
passenger’s seat belt
reminder light (
P. 480)
*1Slip indicator light
(P. 479) Rear passengers’ seat
belt reminder light
(
P. 480)

88
PRIUS v_OM_OM47B78U_(U)
2. Instrument cluster

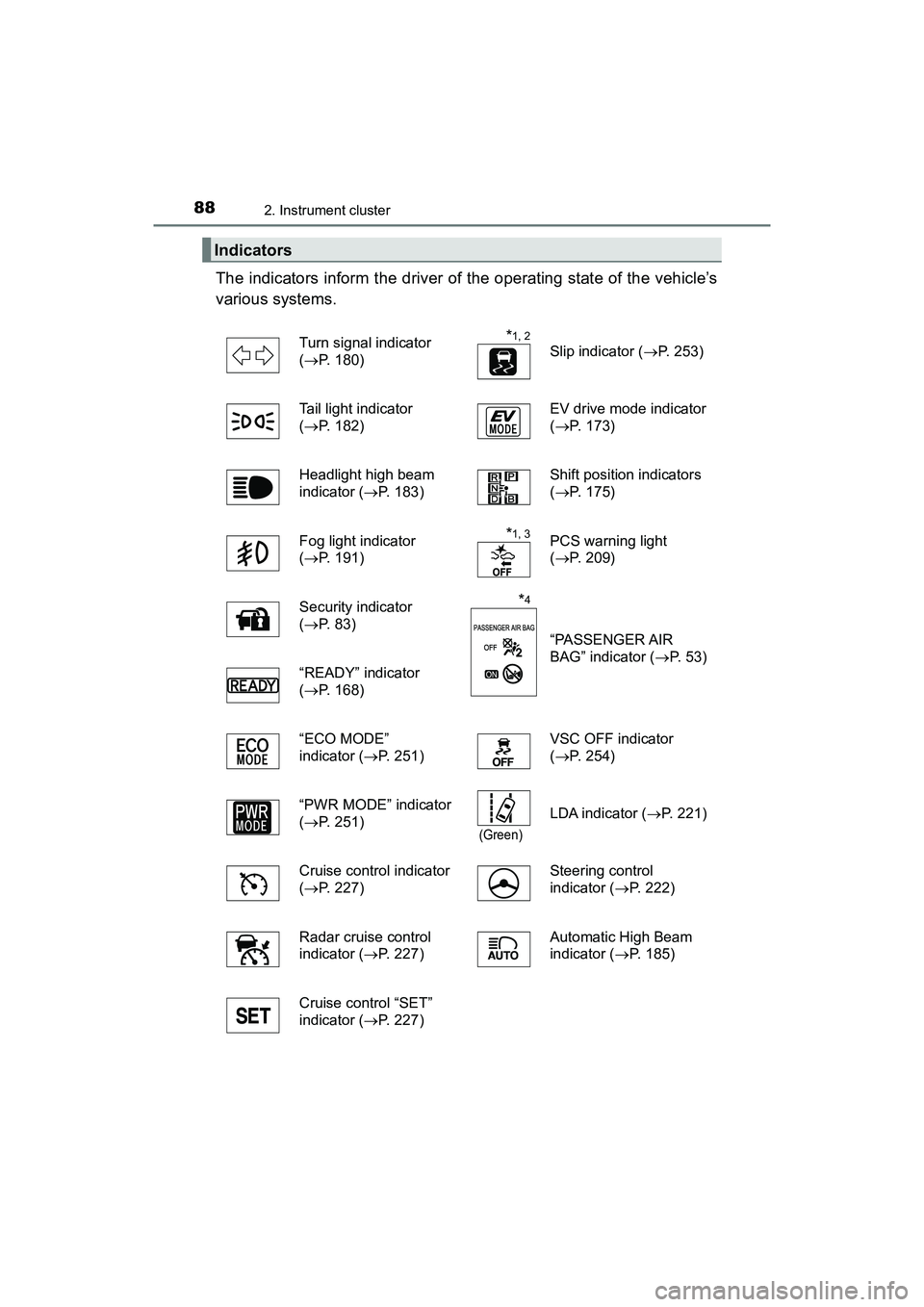

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(P. 180)*1, 2
Slip indicator ( P. 253)
Tail light indicator
( P. 182) EV drive mode indicator
(
P. 173)
Headlight high beam
indicator (P. 183) Shift position indicators
(
P. 175)
Fog light indicator
( P. 191)
*1, 3PCS warning light
( P. 209)
Security indicator
( P. 8 3 )
*4
“PASSENGER AIR
BAG” indicator ( P. 53)
“READY” indicator
( P. 168)
“ECO MODE”
indicator (P. 251) VSC OFF indicator
(
P. 254)
“PWR MODE” indicator
( P. 251)
(Green)
LDA indicator ( P. 221)
Cruise control indicator
( P. 227) Steering control
indicator (
P. 222)
Radar cruise control
indicator (P. 227) Automatic High Beam
indicator (
P. 185)
Cruise control “SET”
indicator (P. 227)
