TOYOTA PRIUS V 2018 Owners Manual

PRIUS v_OM_OM47B78U_(U)
892. Instrument cluster
2
Instrument cluster

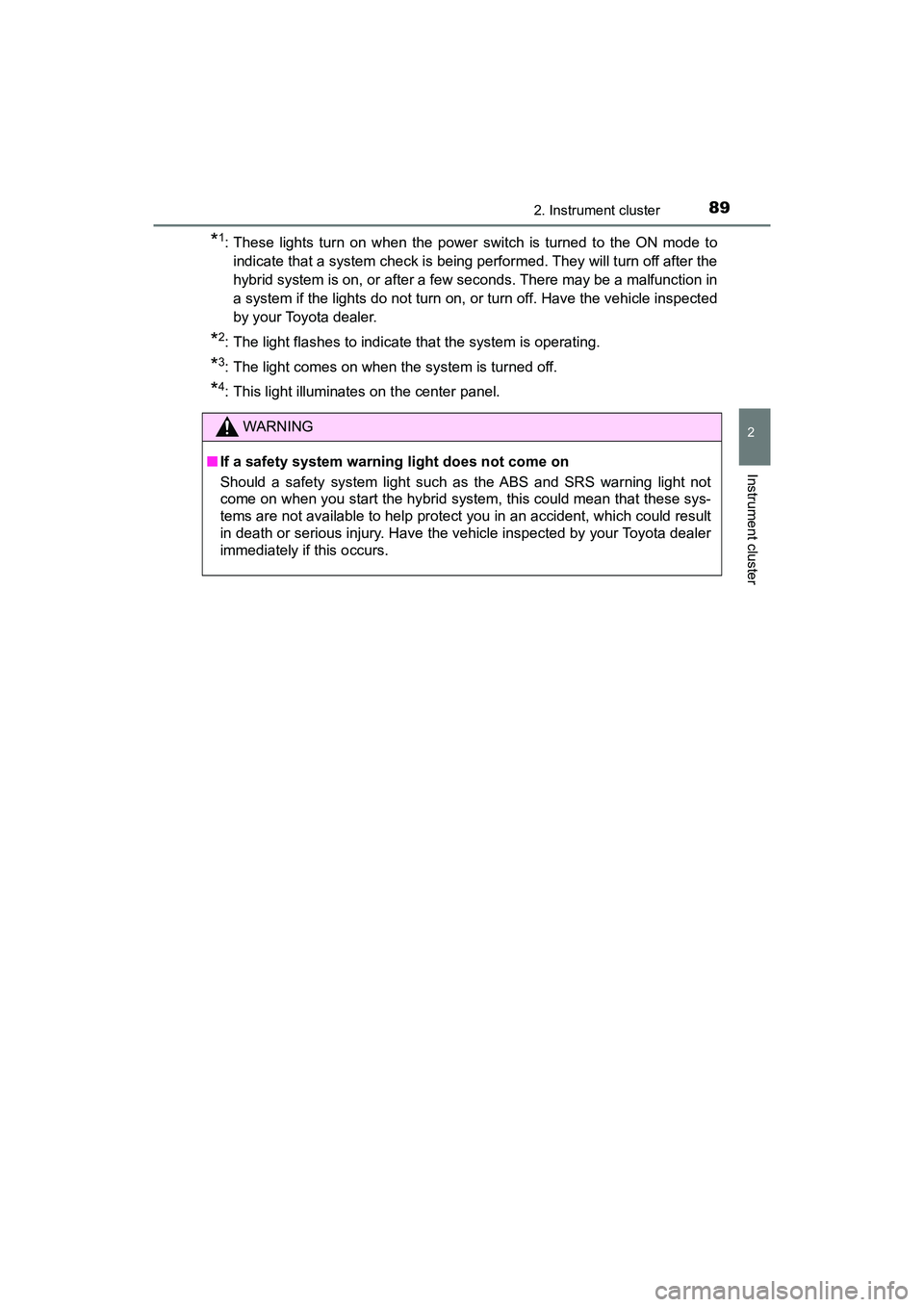

*1: These lights turn on when the power switch is turned to the ON mode toindicate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if the lights do not turn on, or turn off. Have the vehicle inspected
by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.
*4: This light illuminates on the center panel.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

90
PRIUS v_OM_OM47B78U_(U)
2. Instrument cluster

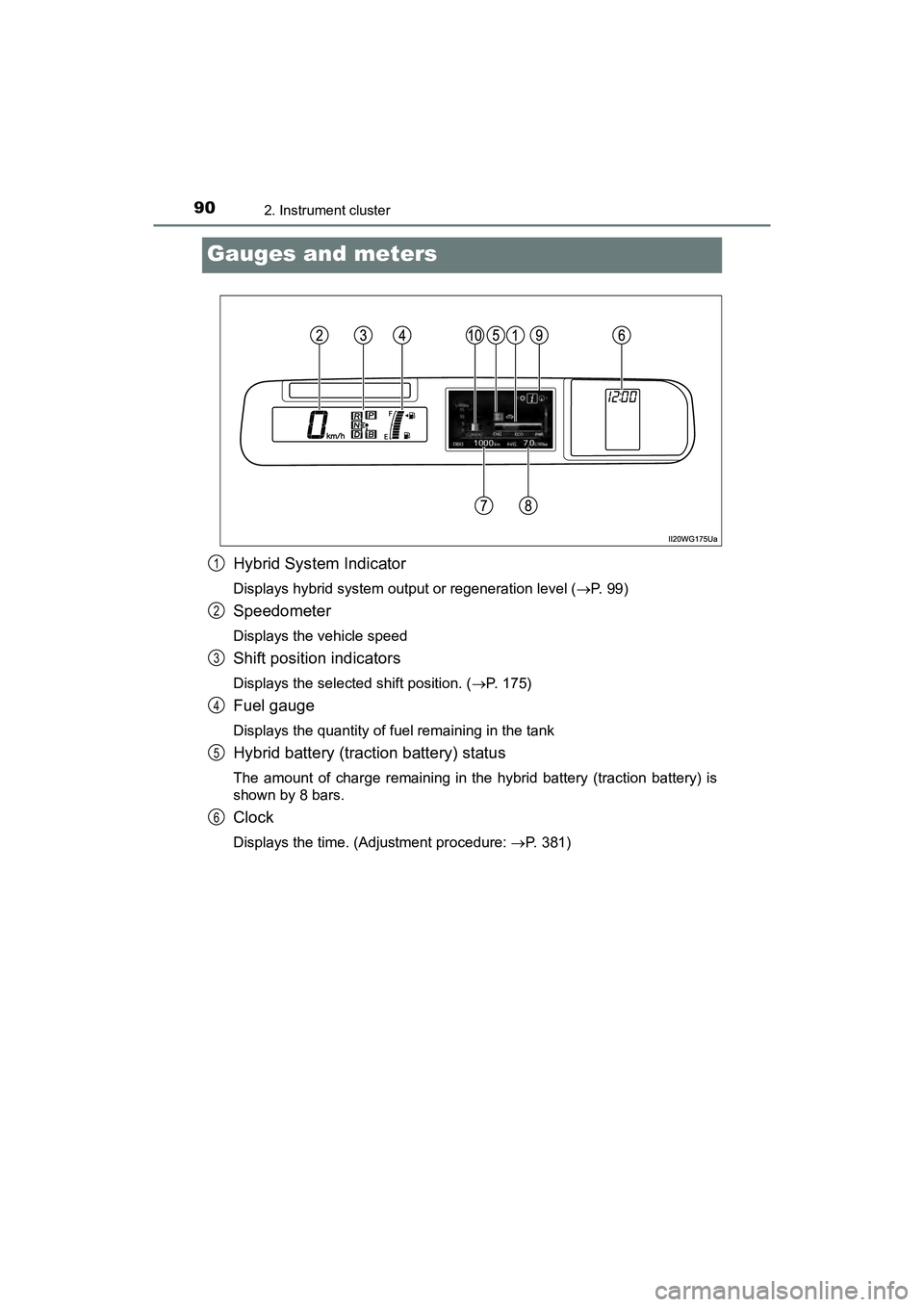

Gauges and meters
Hybrid System Indicator
Displays hybrid system output or regeneration level (P. 9 9 )
Speedometer
Displays the vehicle speed
Shift position indicators
Displays the selected shift position. (P. 175)
Fuel gauge
Displays the quantity of fuel remaining in the tank
Hybrid battery (traction battery) status
The amount of charge remaining in the hybrid battery (traction battery) is
shown by 8 bars.
Clock
Displays the time. (Adjustment procedure: P. 381)
1
2
3
4
5
6

PRIUS v_OM_OM47B78U_(U)
912. Instrument cluster
2
Instrument cluster

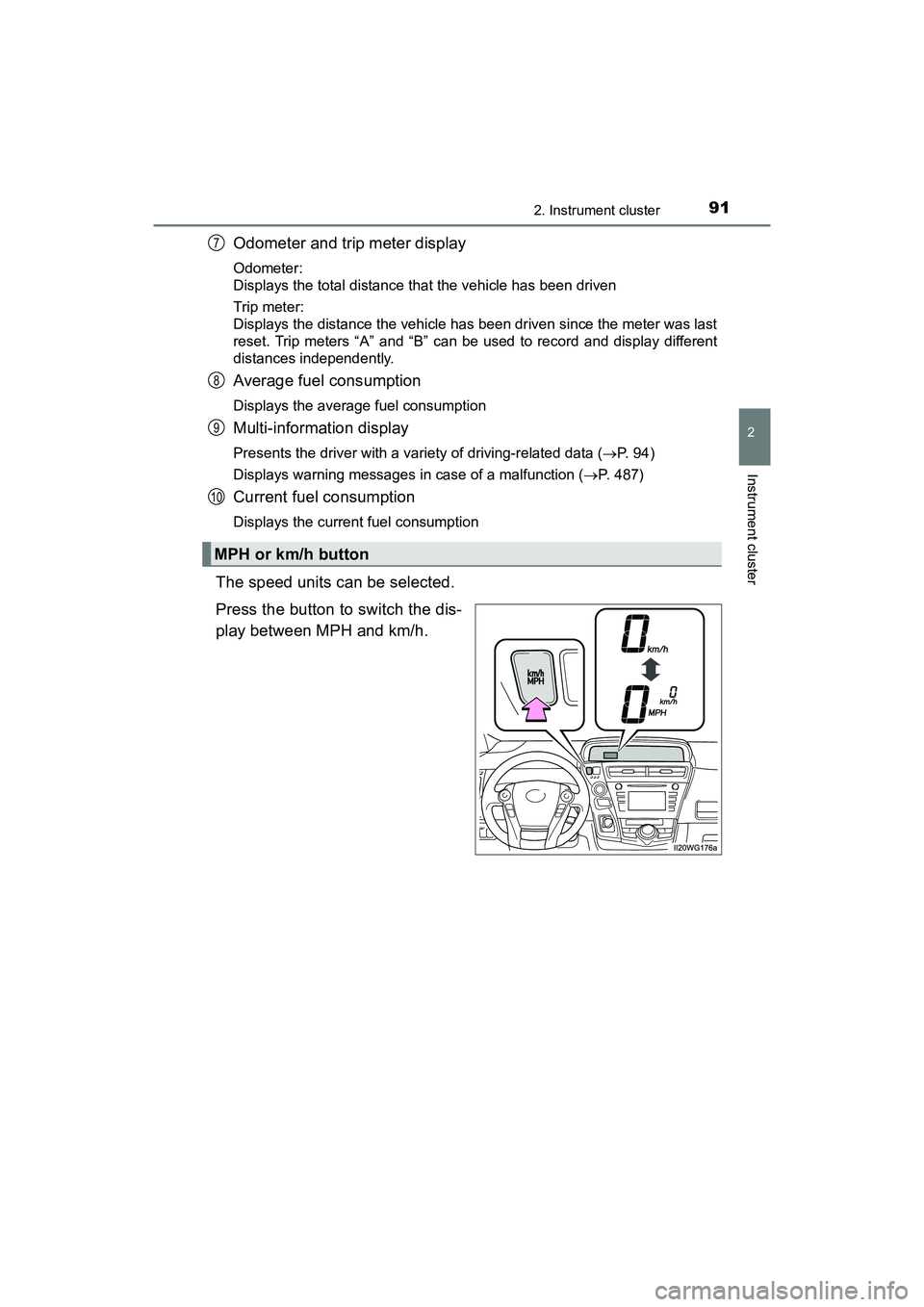

Odometer and trip meter display
Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.
Average fuel consumption
Displays the average fuel consumption
Multi-information display
Presents the driver with a variety of driving-related data (P. 9 4 )
Displays warning messages in case of a malfunction ( P. 487)
Current fuel consumption
Displays the current fuel consumption
The speed units can be selected.
Press the button to switch the dis-
play between MPH and km/h.
MPH or km/h button
7
8
9
10

92
PRIUS v_OM_OM47B78U_(U)
2. Instrument cluster

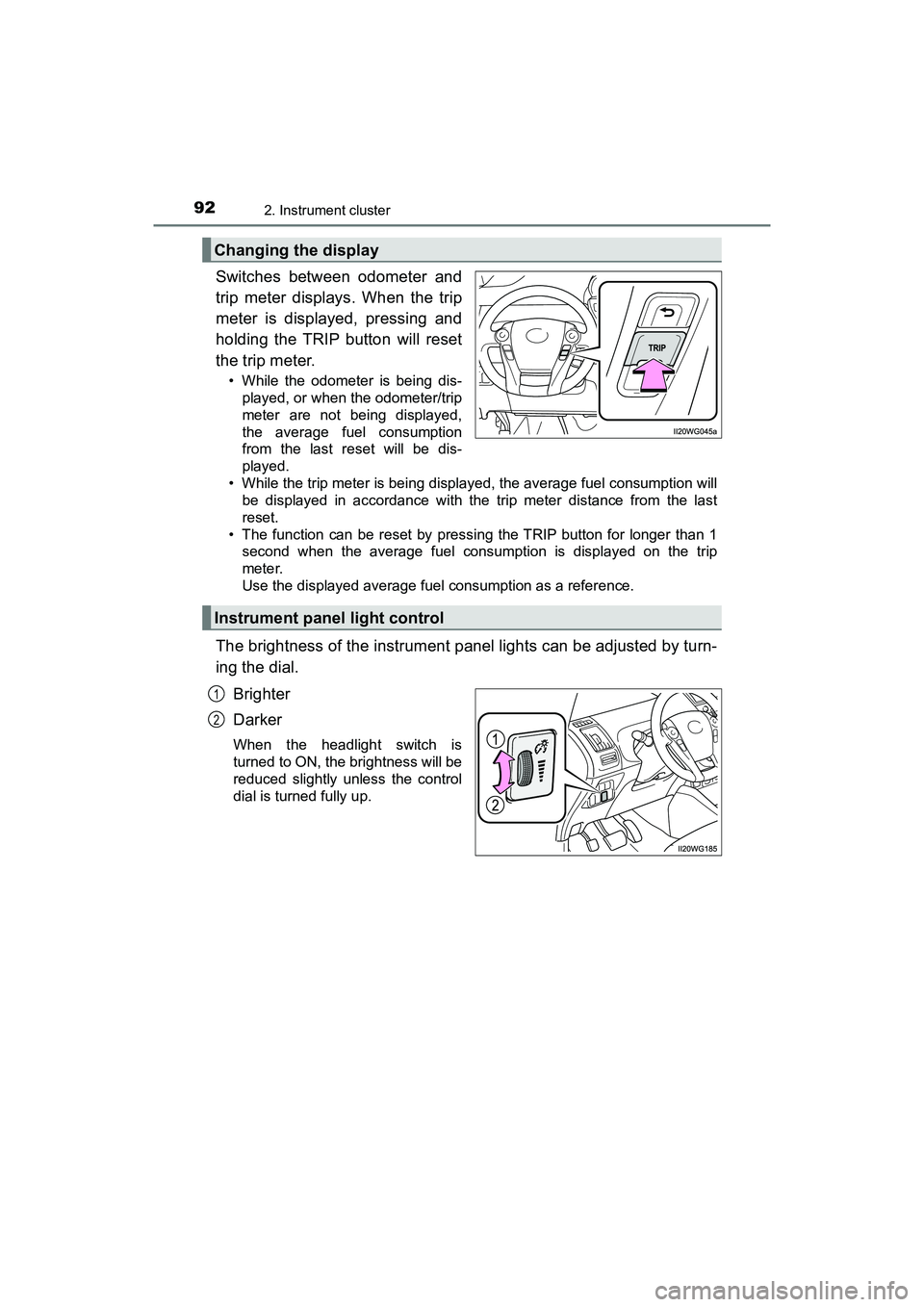

Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the TRIP button will reset
the trip meter.
• While the odometer is being dis-played, or when the odometer/trip
meter are not being displayed,
the average fuel consumption
from the last reset will be dis-
played.
• While the trip meter is being displayed, the average fuel consumption will be displayed in accordance with the trip meter distance from the last
reset.
• The function can be reset by pressing the TRIP button for longer than 1 second when the average fuel consumption is displayed on the trip
meter.
Use the displayed average fuel consumption as a reference.
The brightness of the instrument panel lights can be adjusted by turn-
ing the dial.
Brighter
Darker
When the headlight switch is
turned to ON, the brightness will be
reduced slightly unless the control
dial is turned fully up.
Changing the display
Instrument panel light control
1
2

PRIUS v_OM_OM47B78U_(U)
932. Instrument cluster
2
Instrument cluster

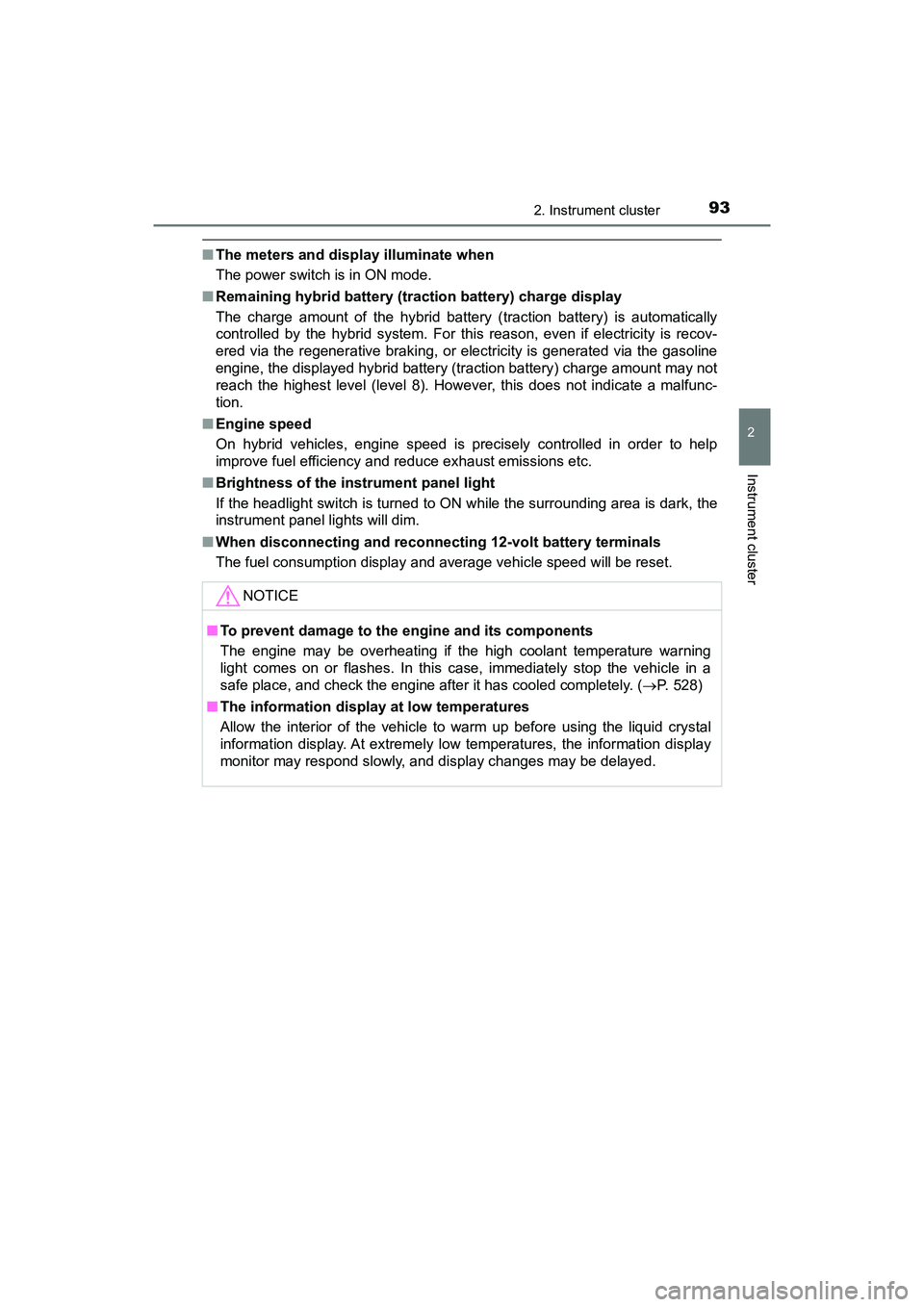

■The meters and display illuminate when
The power switch is in ON mode.
■ Remaining hybrid battery (tract ion battery) charge display
The charge amount of the hybrid battery (traction battery) is automatically
controlled by the hybrid system. For this reason, even if electricity is recov-
ered via the regenerative braking, or electricity is generated via the gasoline
engine, the displayed hybrid battery (traction battery) charge amount may not
reach the highest level (level 8). However, this does not indicate a malfunc-
tion.
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
■ Brightness of the instrument panel light
If the headlight switch is turned to ON while the surrounding area is dark, the
instrument panel lights will dim.
■ When disconnecting and reconnect ing 12-volt battery terminals
The fuel consumption display and average vehicle speed will be reset.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning
light comes on or flashes. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. ( P. 528)
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

94
PRIUS v_OM_OM47B78U_(U)
2. Instrument cluster

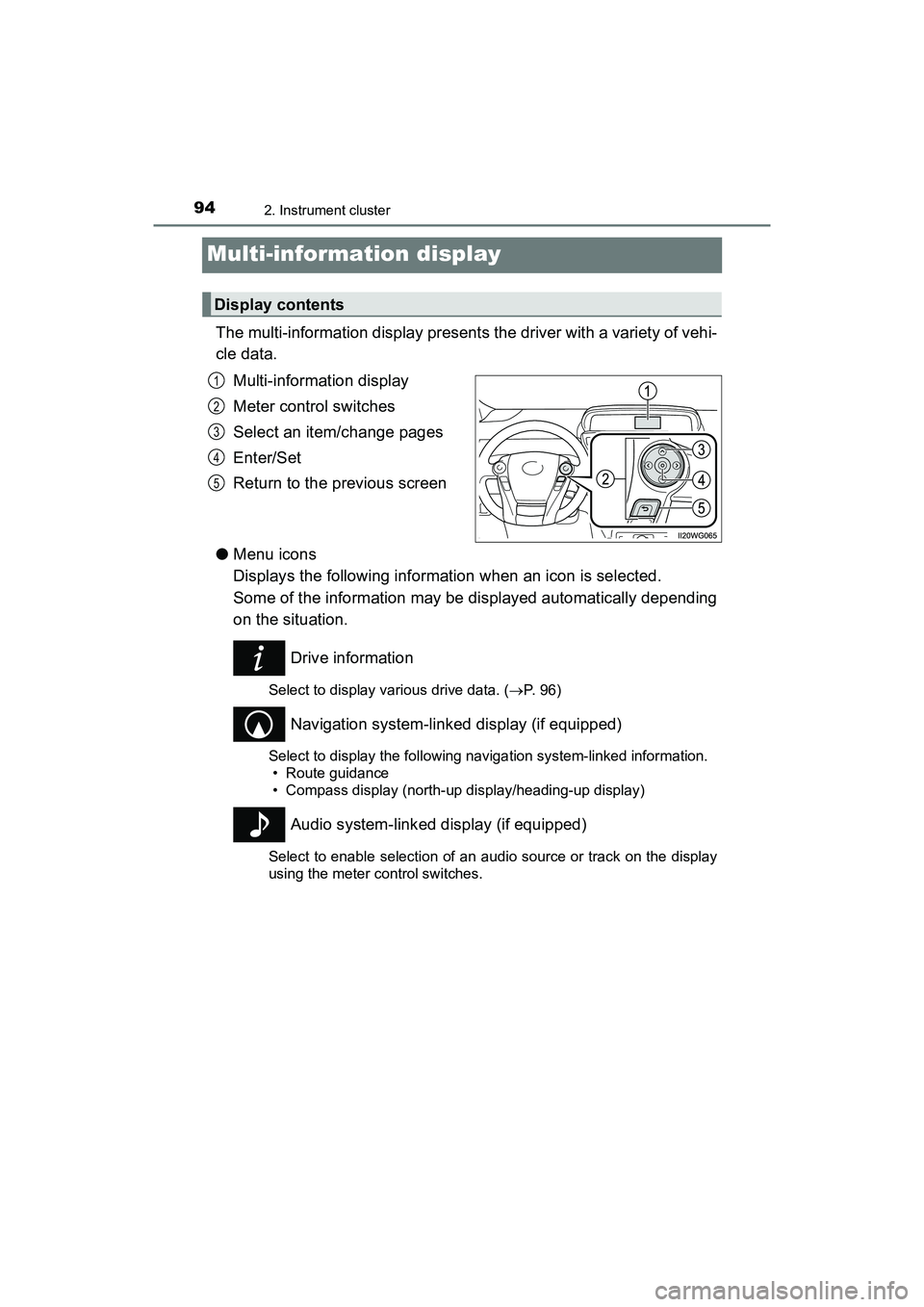

Multi-information display
The multi-information display presents the driver with a variety of vehi-
cle data. Multi-information display
Meter control switches
Select an item/change pages
Enter/Set
Return to the previous screen
● Menu icons
Displays the following information when an icon is selected.
Some of the information may be displayed automatically depending
on the situation.
Drive information
Select to display various drive data. ( P. 96)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the display
using the meter control switches.
Display contents
1
2
3
4
5

PRIUS v_OM_OM47B78U_(U)
952. Instrument cluster
2
Instrument cluster

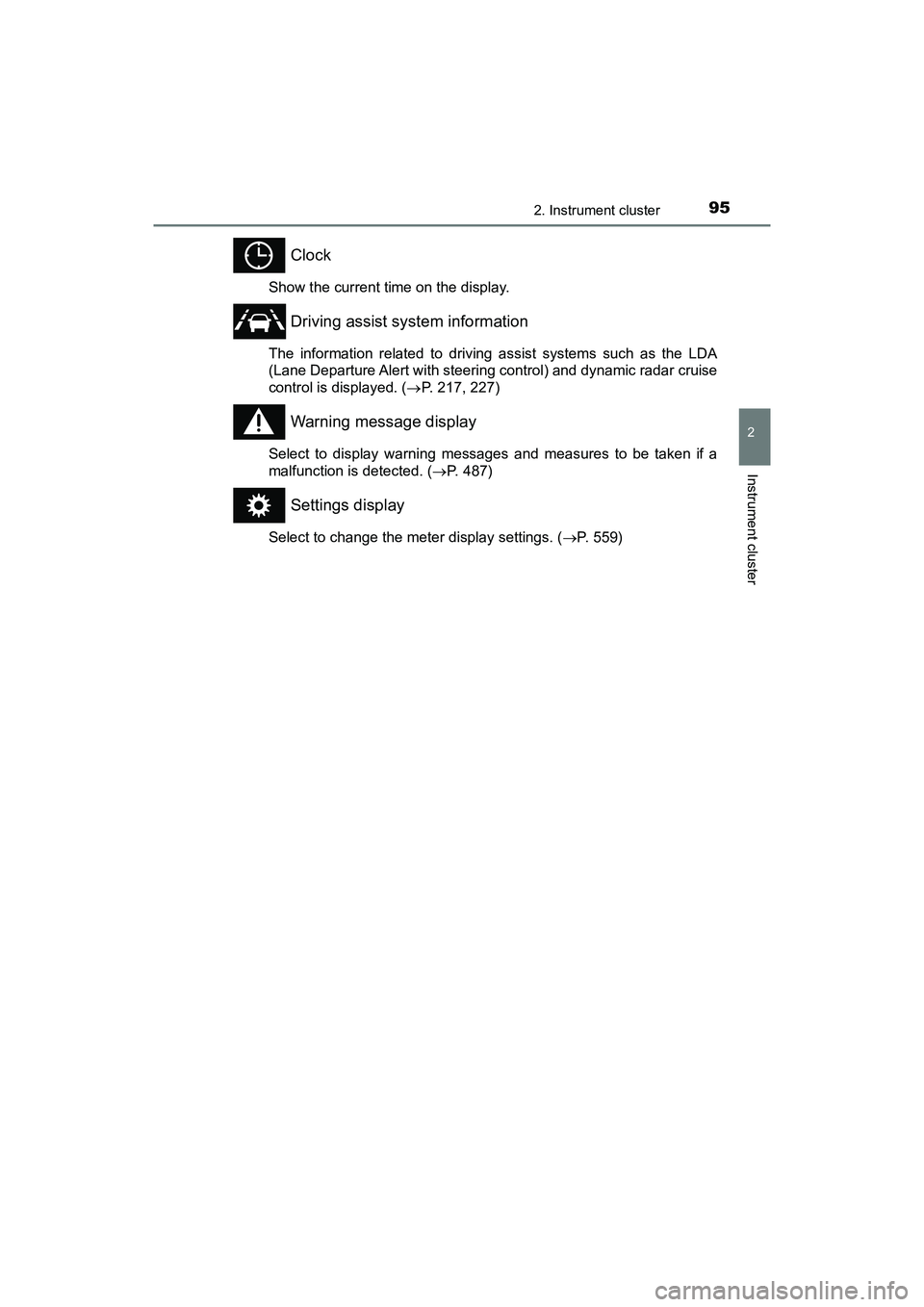

Clock
Show the current time on the display.
Driving assist system information
The information related to driving assist systems such as the LDA
(Lane Departure Alert with steering control) and dynamic radar cruise
control is displayed. (P. 217, 227)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( P. 487)
Settings display
Select to change the meter display settings. ( P. 559)

96
PRIUS v_OM_OM47B78U_(U)
2. Instrument cluster

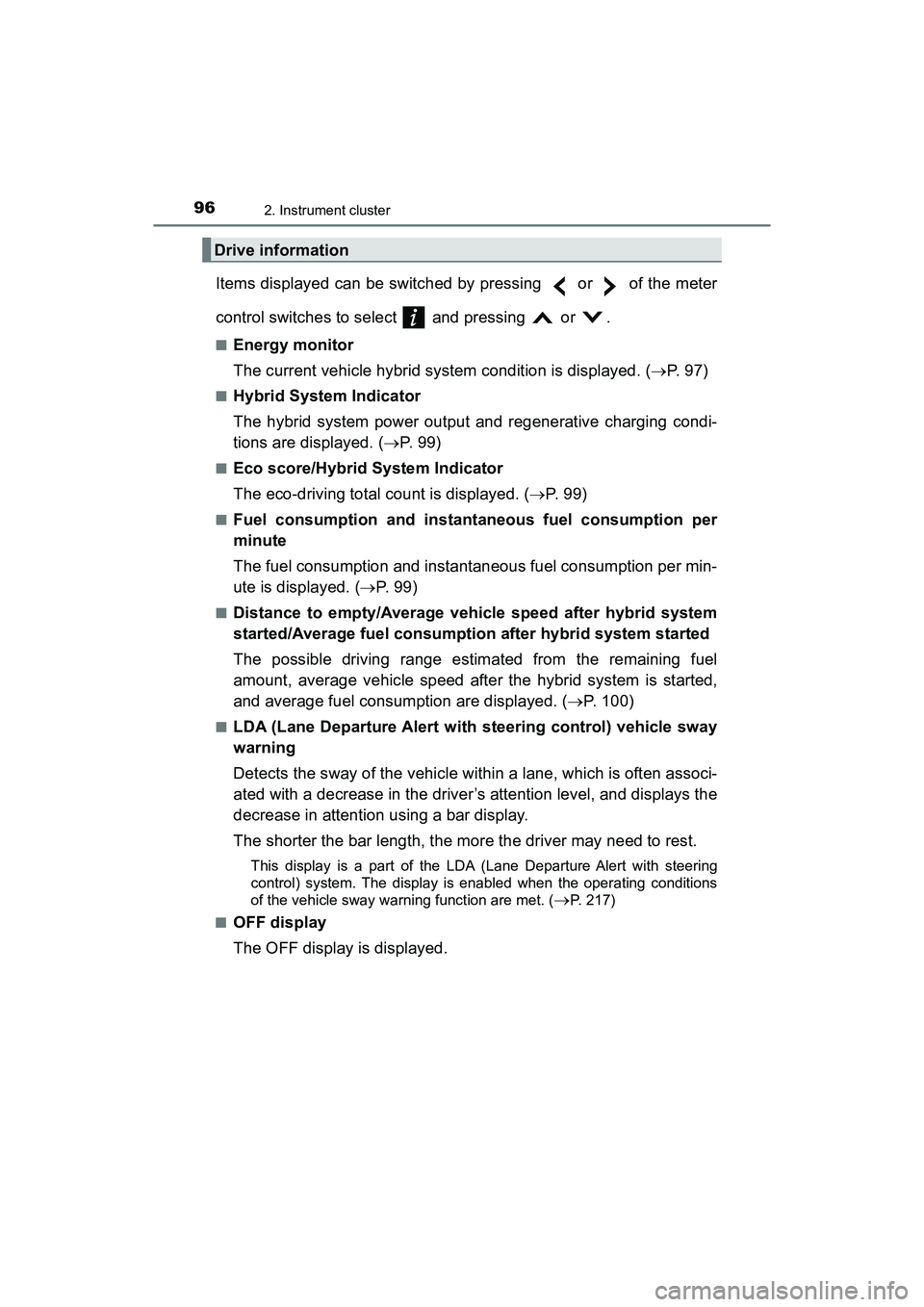

Items displayed can be switched by pressing or of the meter
control switches to select and pressing or .
■Energy monitor
The current vehicle hybrid system condition is displayed. (P. 97)
■Hybrid System Indicator
The hybrid system power output and regenerative charging condi-
tions are displayed. ( P. 9 9 )
■Eco score/Hybrid System Indicator
The eco-driving total count is displayed. ( P. 9 9 )
■Fuel consumption and instantaneous fuel consumption per
minute
The fuel consumption and instantaneous fuel consumption per min-
ute is displayed. ( P. 9 9 )
■Distance to empty/Average vehicle speed after hybrid system
started/Average fuel consumption after hybrid system started
The possible driving range estimated from the remaining fuel
amount, average vehicle speed after the hybrid system is started,
and average fuel consumption are displayed. ( P. 100)
■LDA (Lane Departure Alert with steering control) vehicle sway
warning
Detects the sway of the vehicle within a lane, which is often associ-
ated with a decrease in the driver’s attention level, and displays the
decrease in attention using a bar display.
The shorter the bar length, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert with steering
control) system. The display is enabled when the operating conditions
of the vehicle sway warning function are met. (
P. 217)
■
OFF display
The OFF display is displayed.
Drive information

PRIUS v_OM_OM47B78U_(U)
972. Instrument cluster
2
Instrument cluster

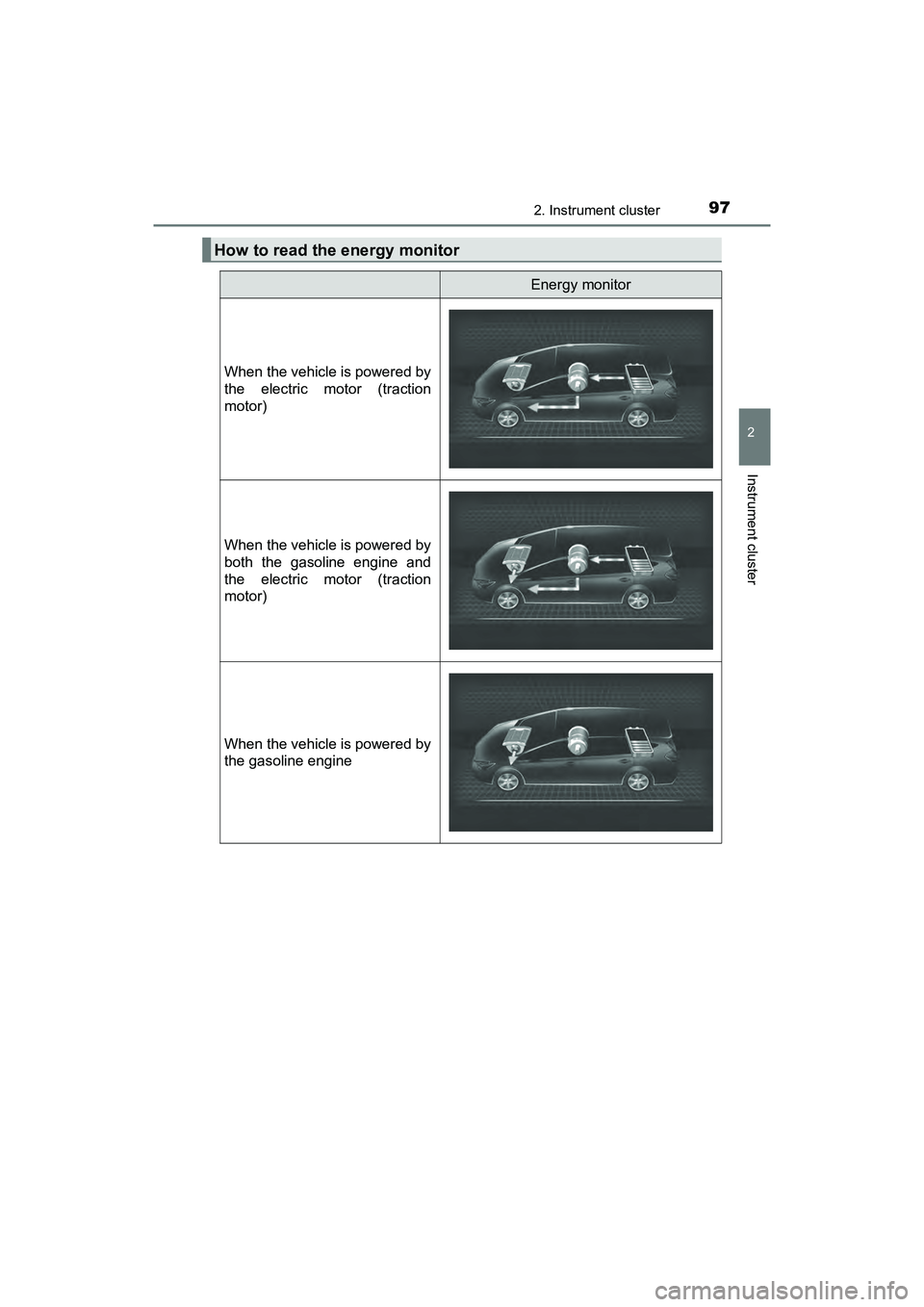

How to read the energy monitor
Energy monitor
When the vehicle is powered by
the electric motor (traction
motor)
When the vehicle is powered by
both the gasoline engine and
the electric motor (traction
motor)
When the vehicle is powered by
the gasoline engine

98
PRIUS v_OM_OM47B78U_(U)
2. Instrument cluster

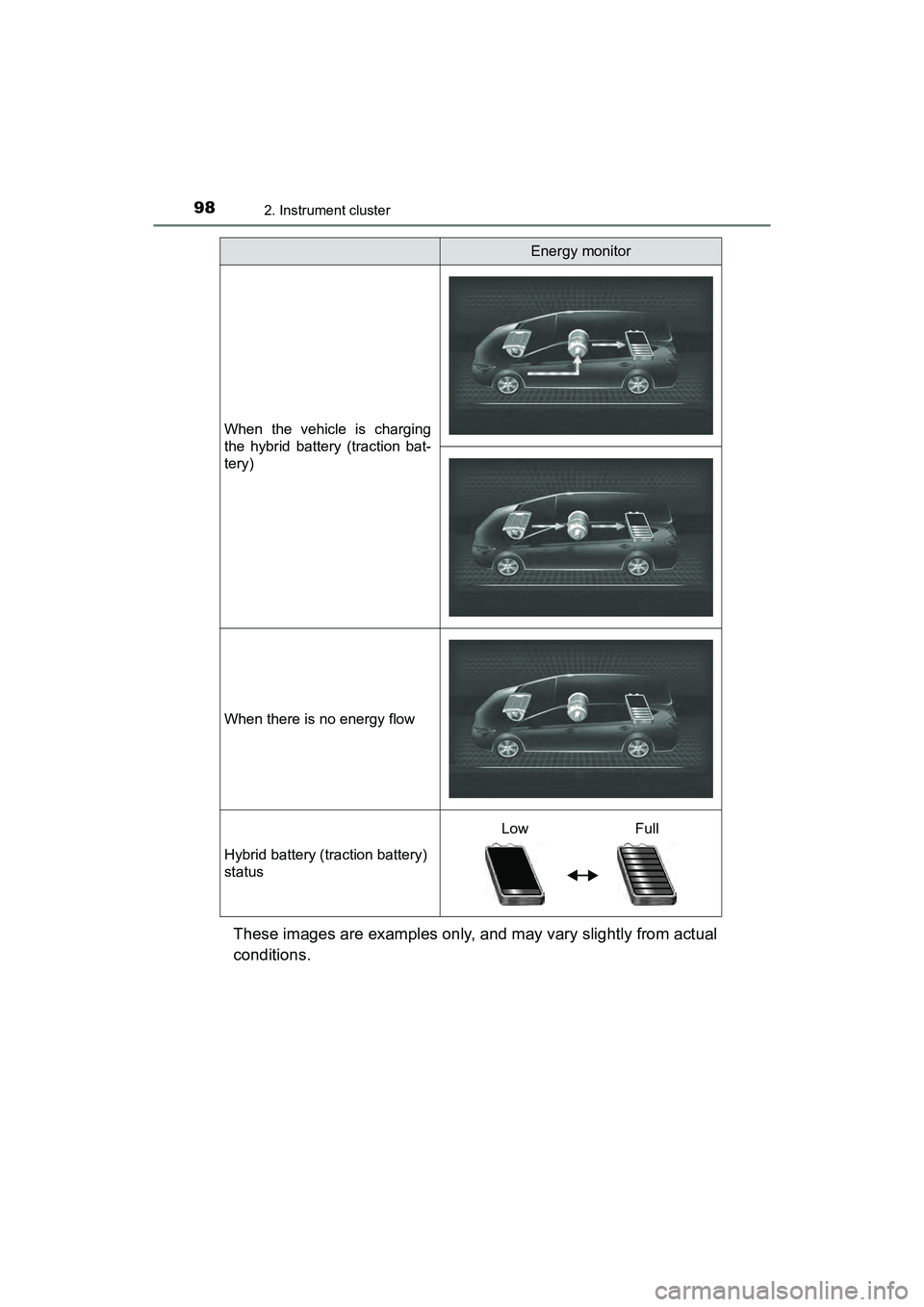

These images are examples only, and may vary slightly from actual
conditions.
When the vehicle is charging
the hybrid battery (traction bat-
tery)
When there is no energy flow
Hybrid battery (traction battery)
status
Energy monitor
LowFull
