ECU TOYOTA PRIUS V 2018 Owners Manual

PRIUS v_OM_OM47B78U_(U)
Pictorial indexSearch by illustration
1For safety
and securityMake sure to read through them
2Instrument
clusterHow to read the gauges and meters, the variety of
warning lights and indicators, etc.
3Operation of
each componentOpening and closing the doors and windows,
adjustment before driving, etc.
4DrivingOperations and advice which are necessary for
driving
5Audio systemOperating the audio system
6Interior featuresUsage of the interior features, etc.
7Maintenance
and careCaring for your vehicle and maintenance
procedures
8When trouble
arisesWhat to do in case of malfunction or emergency
9Vehicle
specificationsVehicle specifications, customizable features, etc.
10For ownersSeat belt and SRS airbag instructions
IndexSearch by symptom
Search alphabetically

TABLE OF CONTENTS2
PRIUS v_OM_OM47B78U_(U)For your information....................... 8
Reading this manual .................... 14
How to search .............................. 15
Pictorial index .............................. 16
1-1. For safe use
Before driving ...................... 28
For safe driving ................... 30
Seat belts ............................ 32
SRS airbags ........................ 41
Front passenger occupant classification system ......... 53
Safety information for children ............................. 58
Child restraint systems ........ 59
Installing child restraints ...... 63
Exhaust gas precautions ..... 73
1-2. Hybrid system Hybrid system features ....... 74
Hybrid system precautions ....................... 78
1-3. Theft deterrent system Immobilizer system ............. 83 2. Instrument cluster
Warning lights and indicators ........................... 86
Gauges and meters ............. 90
Multi-information display ...... 94
Energy monitor/ consumption screen ........ 103
3-1. Key information Keys................................... 110
3-2. Opening, closing and locking the doors
Side doors ......................... 114
Back door .......................... 119
Smart key system .............. 124
3-3. Adjusting the seats Front seats......................... 131
Rear seats ......................... 135
Head restraints .................. 138
1For safety and security
2Instrument cluster
3Operation of each
component

27
PRIUS v_OM_OM47B78U_(U)
For safety and security1
1-1. For safe useBefore driving ...................... 28
For safe driving ................... 30
Seat belts ............................ 32
SRS airbags ........................ 41
Front passenger occupant classification system ......... 53
Safety information for children ............................. 58
Child restraint systems........ 59
Installing child restraints...... 63
Exhaust gas precautions..... 73
1-2. Hybrid system Hybrid system features ....... 74
Hybrid system precautions ....................... 78
1-3. Theft deterrent system Immobilizer system ............. 83

281-1. For safe use
PRIUS v_OM_OM47B78U_(U)
Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Floor mat
1
*
2

291-1. For safe use
PRIUS v_OM_OM47B78U_(U)
1
For safety and security

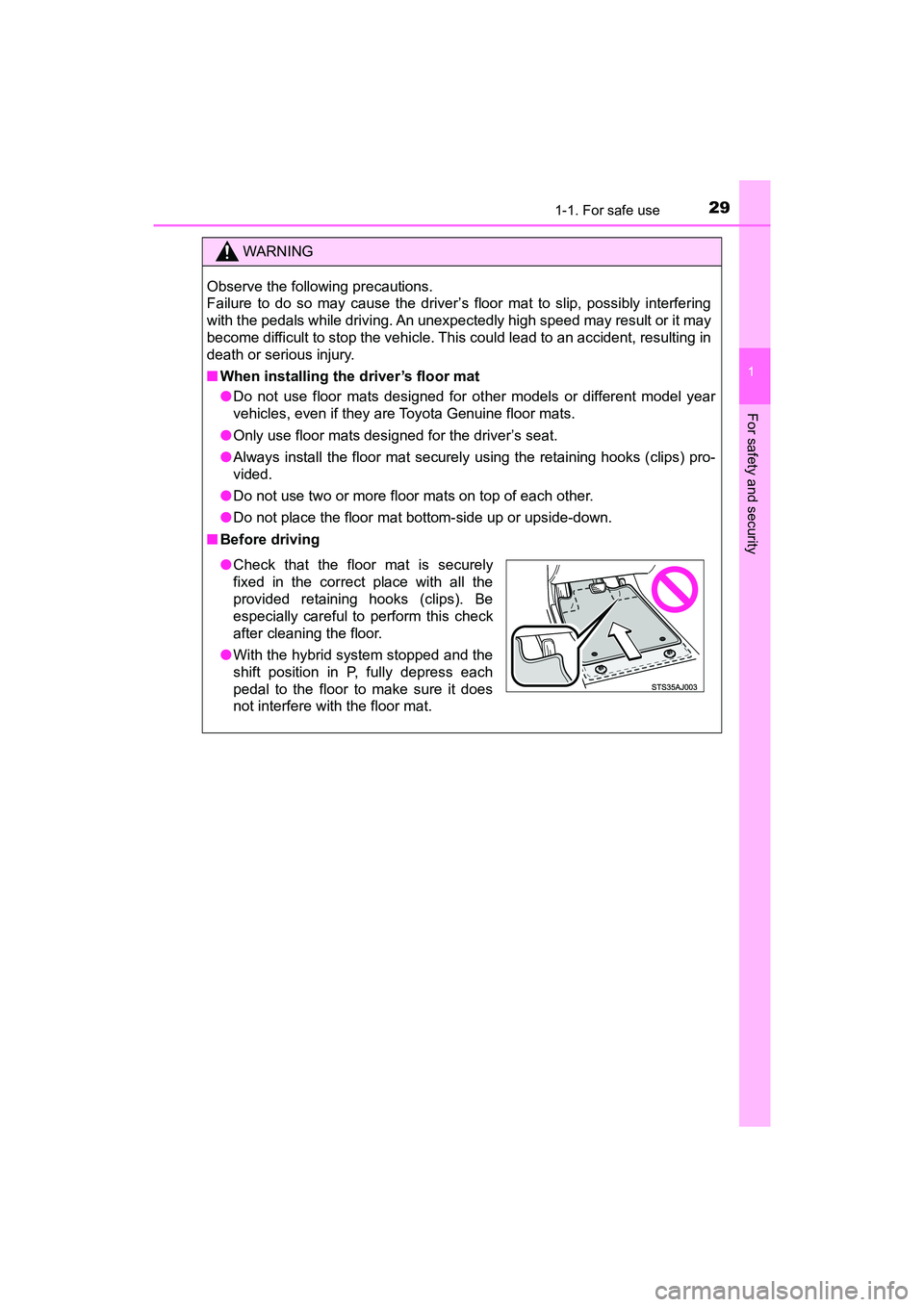

WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for ot her models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the hybrid system stopped and the
shift position in P, fully depress each
pedal to the floor to make sure it does
not interfere with the floor mat.

311-1. For safe use
PRIUS v_OM_OM47B78U_(U)
1
For safety and security

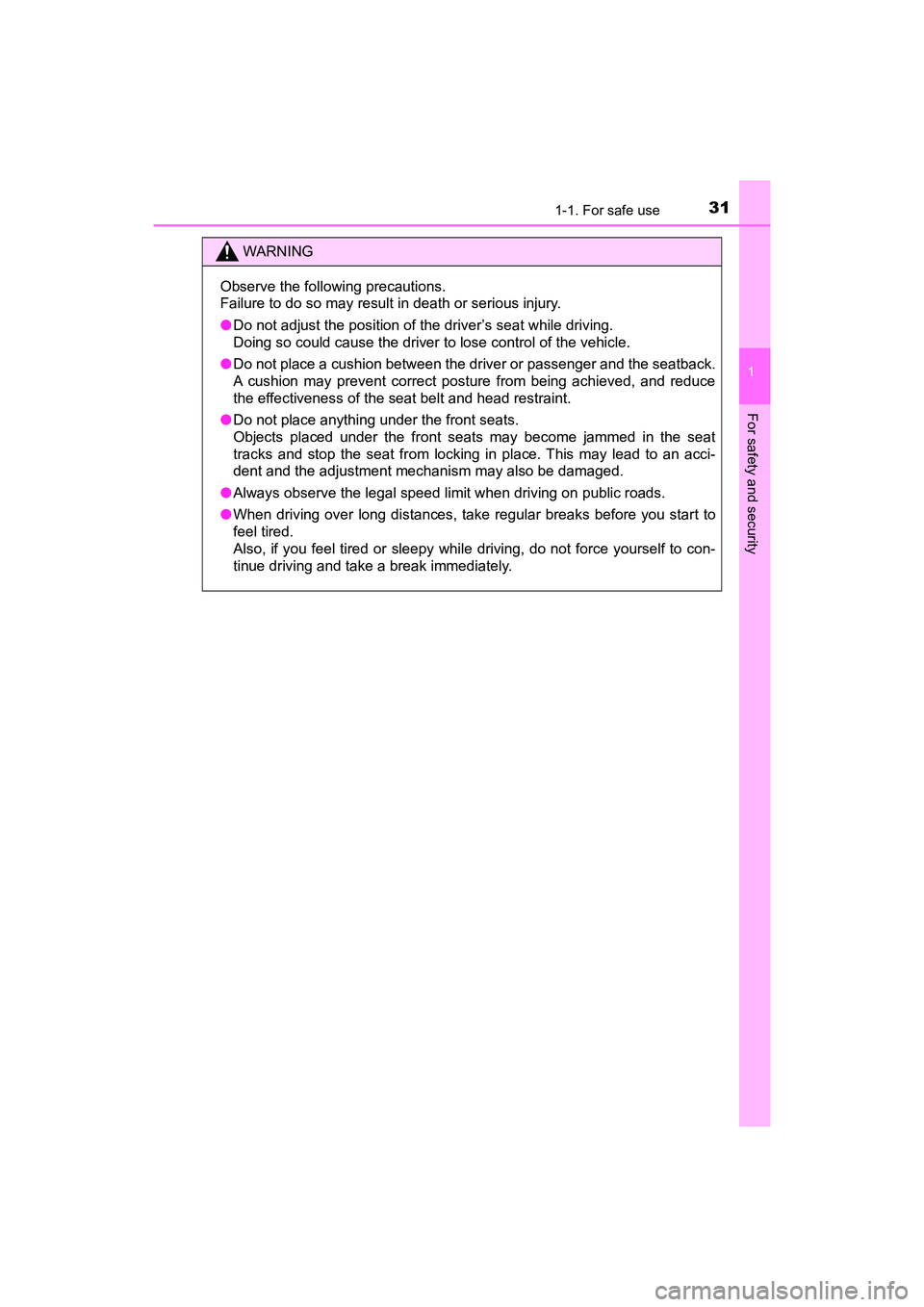

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.

331-1. For safe use
PRIUS v_OM_OM47B78U_(U)
1
For safety and security

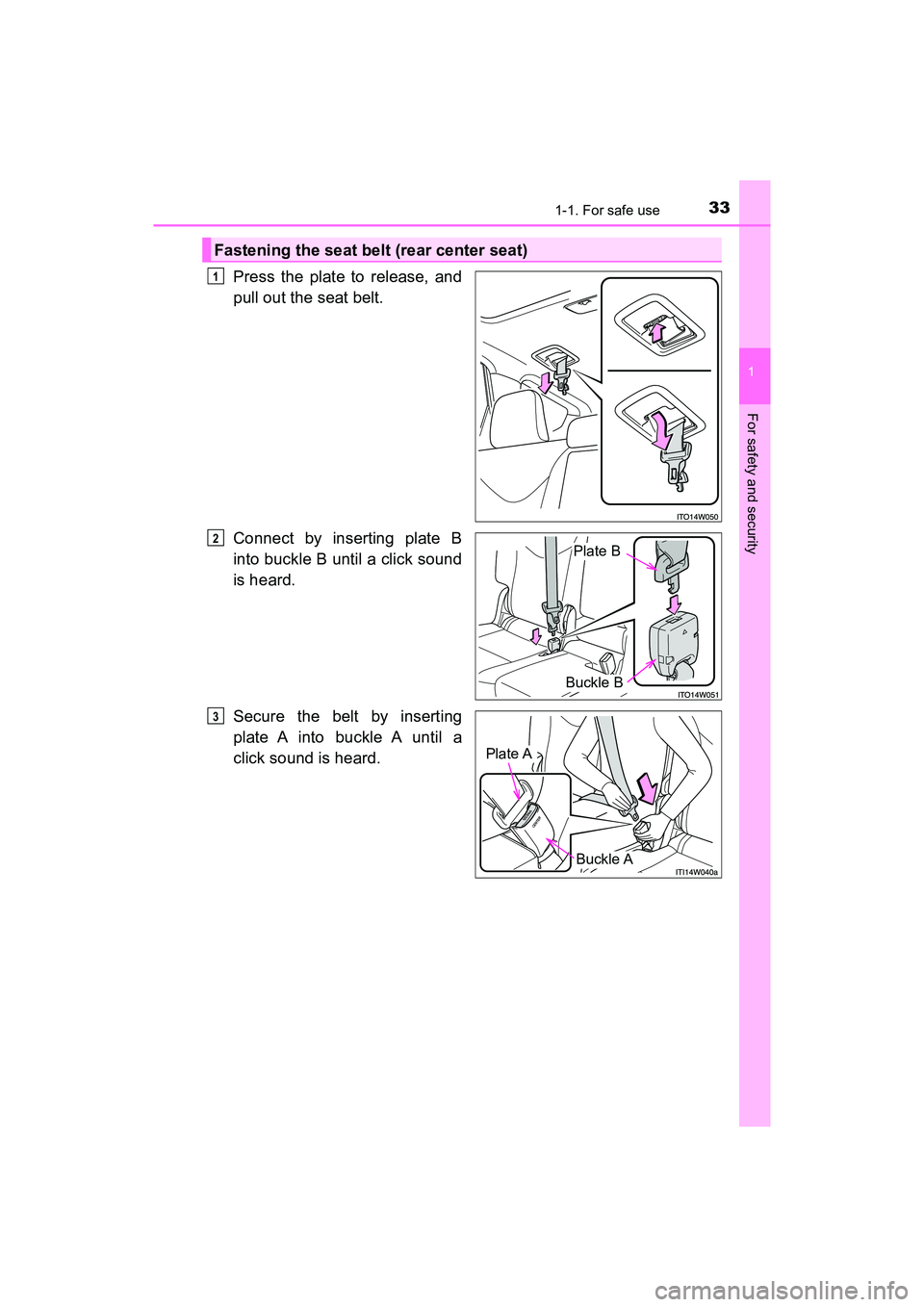

Press the plate to release, and
pull out the seat belt.
Connect by inserting plate B
into buckle B until a click sound
is heard.
Secure the belt by inserting
plate A into buckle A until a
click sound is heard.
Fastening the seat belt (rear center seat)
1
Plate B
Buckle B
2
Plate A
Buckle A
3

351-1. For safe use
PRIUS v_OM_OM47B78U_(U)
1
For safety and security

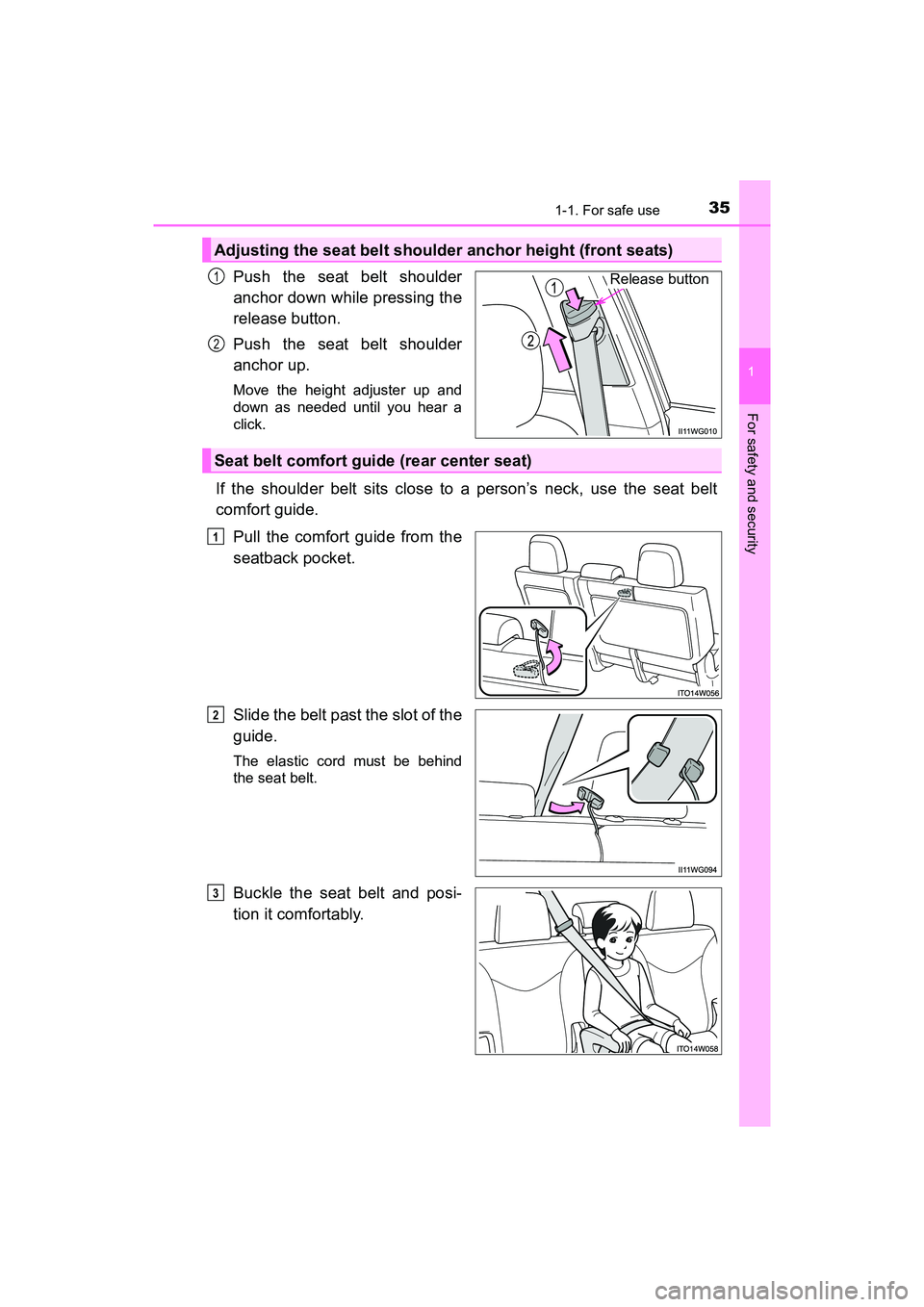

Push the seat belt shoulder
anchor down while pressing the
release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up and
down as needed until you hear a
click.
If the shoulder belt sits close to a person’s neck, use the seat belt
comfort guide.Pull the comfort guide from the
seatback pocket.
Slide the belt past the slot of the
guide.
The elastic cord must be behind
the seat belt.
Buckle the seat belt and posi-
tion it comfortably.
Adjusting the seat belt shoulder anchor height (front seats)
Release button1
2
Seat belt comfort guide (rear center seat)
1
2
3

371-1. For safe use
PRIUS v_OM_OM47B78U_(U)
1
For safety and security

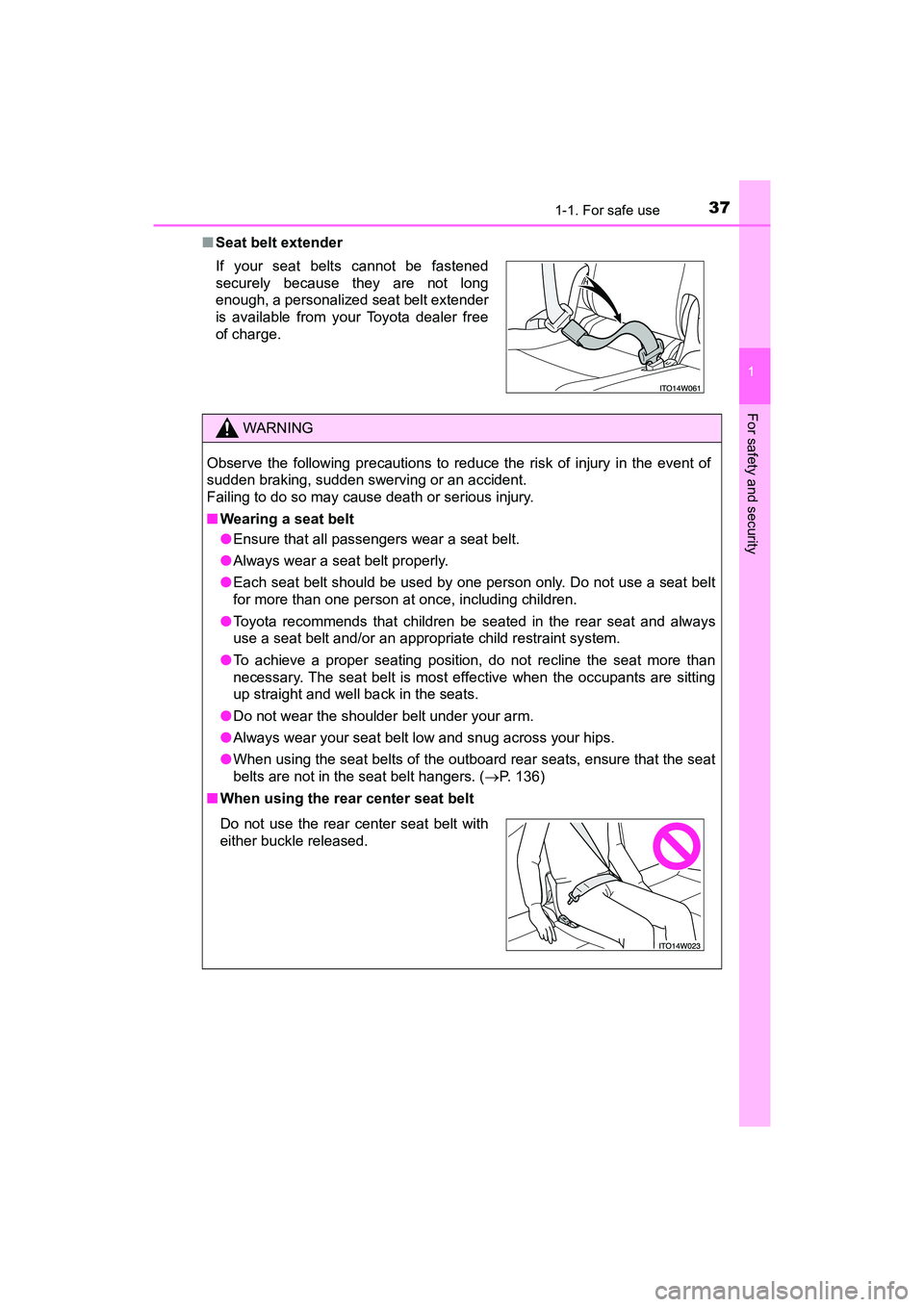

■Seat belt extender
If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt extender
is available from your Toyota dealer free
of charge.
WARNING
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failing to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
● Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
● When using the seat belts of the outboard rear seats, ensure that the seat
belts are not in the seat belt hangers. ( P. 136)
■ When using the rear center seat belt
Do not use the rear center seat belt with
either buckle released.

391-1. For safe use
PRIUS v_OM_OM47B78U_(U)
1
For safety and security

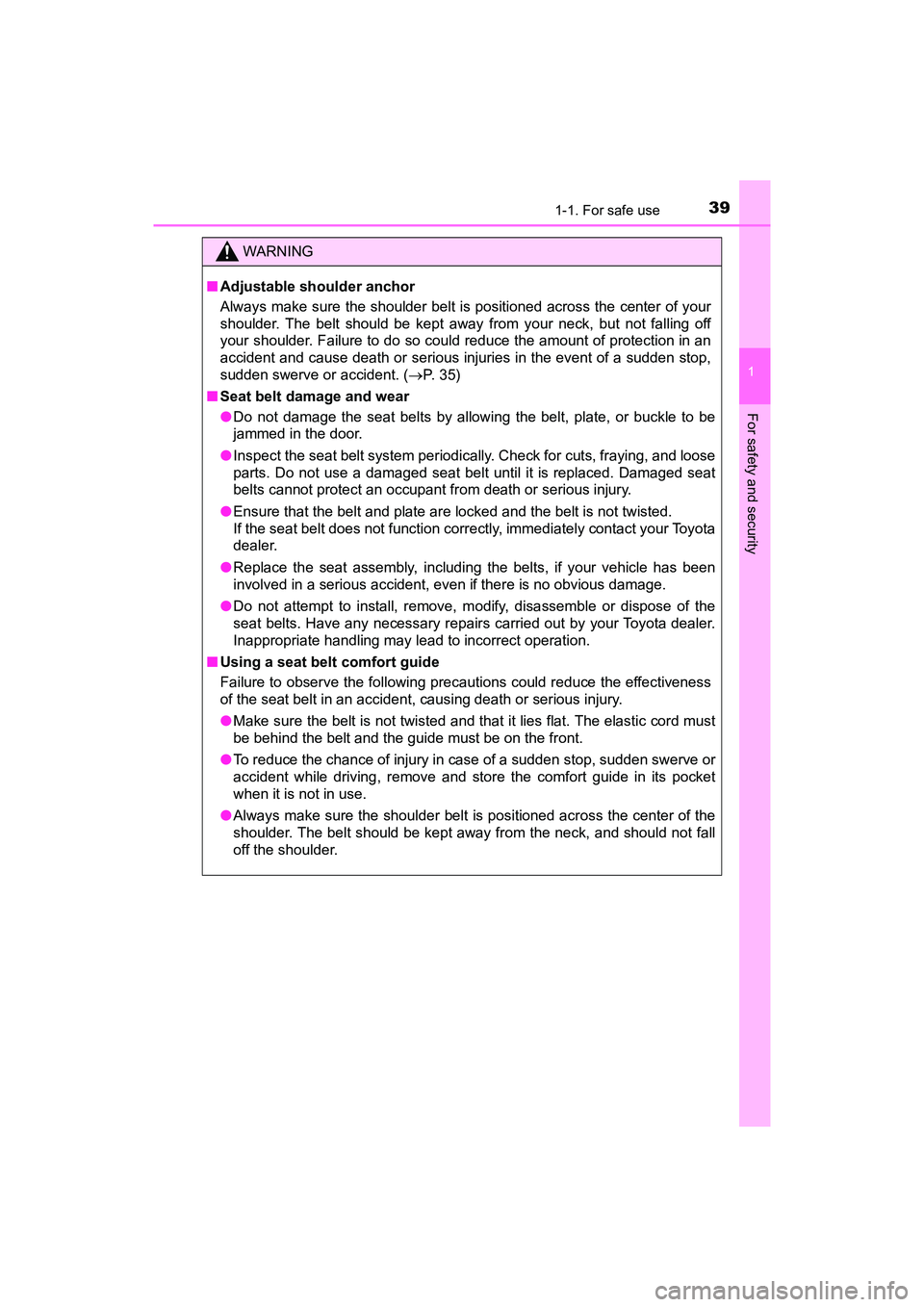

WARNING
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. ( P. 3 5 )
■ Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota
dealer.
● Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
● Do not attempt to install, remove, m odify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling may lead to incorrect operation.
■ Using a seat belt comfort guide
Failure to observe the following precautions could reduce the effectiveness
of the seat belt in an accident, causing death or serious injury.
●Make sure the belt is not twisted and that it lies flat. The elastic cord must
be behind the belt and the guide must be on the front.
● To reduce the chance of injury in case of a sudden stop, sudden swerve or
accident while driving, remove and store the comfort guide in its pocket
when it is not in use.
● Always make sure the shoulder belt is positioned across the center of the
shoulder. The belt should be kept away from the neck, and should not fall
off the shoulder.
