fuel pump TOYOTA PROACE 2017 Owners Manual

10
Maintenance - Technical data
Dimensions 328-331Identification markings 337
Running out of fuel (priming pump) 327Checking levels 278 -280- oil- brake fluid- power steering fluid- coolant- screenwash, headlamp wash fluid- additive (Diesel with particle filter)
Checking components 281-282- battery- air / passenger compartment filter- oil filter- particle filter- brake pads / discs
Changing bulbs 303-315- front- rear
Platform cab
Changing rear lamp bulbs 315Dimension 331
12V battery 321-325
Opening the bonnet 276Under the bonnet 277Engines 332-336AdBlue® 283-286
Weights 332-336
Load reduction, economy mode 270
Engine compartment fuses 316 - 317, 320
Over view

265

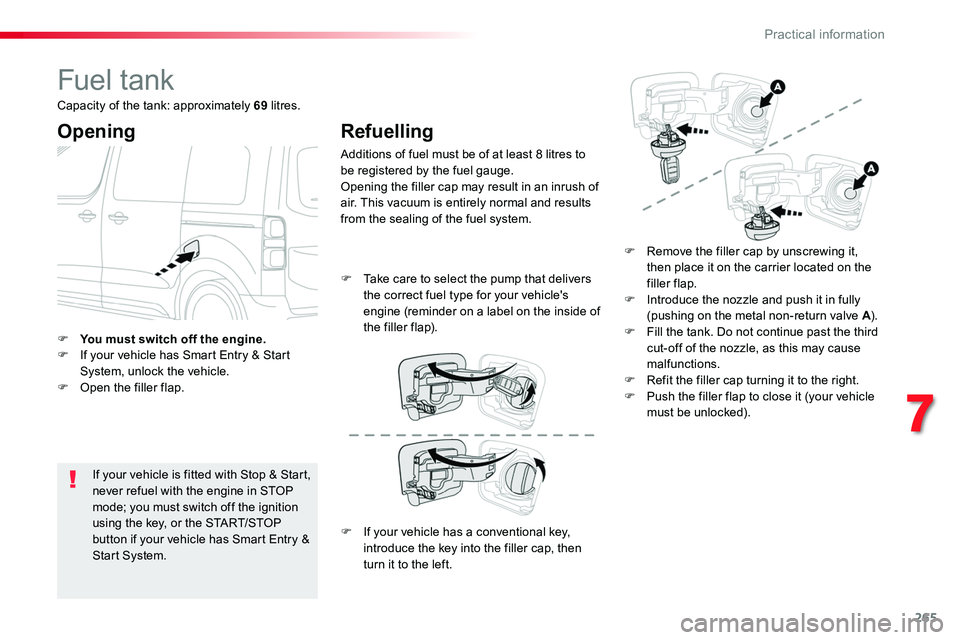

Fuel tank
Opening
If your vehicle is fitted with Stop & Start, never refuel with the engine in STOP mode; you must switch off the ignition using the key, or the START/STOP
button if your vehicle has Smart Entry & Start System.
F You must switch off the engine.F If your vehicle has Smart Entry & Start System, unlock the vehicle.F Open the filler flap.
Refuelling
Additions of fuel must be of at least 8 litres to be registered by the fuel gauge.Opening the filler cap may result in an inrush of air. This vacuum is entirely normal and results from the sealing of the fuel system.
F Remove the filler cap by unscrewing it, then place it on the carrier located on the filler flap.F Introduce the nozzle and push it in fully (pushing on the metal non-return valve A).F Fill the tank. Do not continue past the third cut-off of the nozzle, as this may cause malfunctions.F Refit the filler cap turning it to the right.F Push the filler flap to close it (your vehicle must be unlocked).
F Take care to select the pump that delivers the correct fuel type for your vehicle's engine (reminder on a label on the inside of the filler flap).
Capacity of the tank: approximately 69 litres.
F If your vehicle has a conventional key, introduce the key into the filler cap, then turn it to the left.
7
Practical information

267

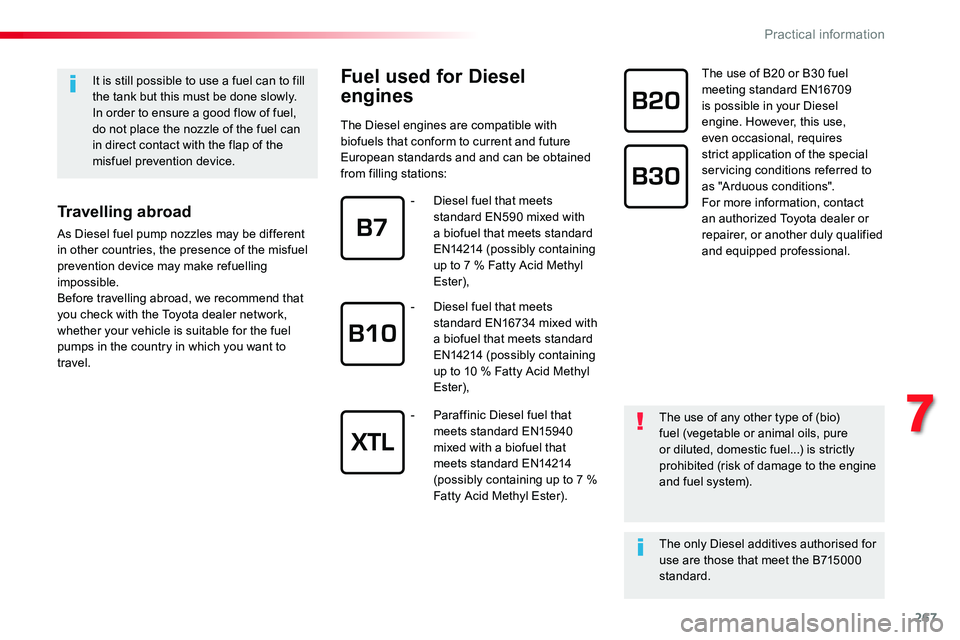

Fuel used for Diesel
engines
The Diesel engines are compatible with biofuels that conform to current and future European standards and and can be obtained from filling stations:
The use of B20 or B30 fuel meeting standard EN16709 is possible in your Diesel engine. However, this use, even occasional, requires strict application of the special servicing conditions referred to as "Arduous conditions".For more information, contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
It is still possible to use a fuel can to fill the tank but this must be done slowly.In order to ensure a good flow of fuel, do not place the nozzle of the fuel can in direct contact with the flap of the misfuel prevention device.
Travelling abroad
As Diesel fuel pump nozzles may be different in other countries, the presence of the misfuel prevention device may make refuelling impossible.Before travelling abroad, we recommend that
you check with the Toyota dealer network, whether your vehicle is suitable for the fuel pumps in the country in which you want to travel.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of damage to the engine and fuel system).
The only Diesel additives authorised for use are those that meet the B715000 standard.
- Diesel fuel that meets standard EN590 mixed with a biofuel that meets standard EN14214 (possibly containing up to 7 % Fatty Acid Methyl Ester),
- Diesel fuel that meets standard EN16734 mixed with a biofuel that meets standard EN14214 (possibly containing up to 10 % Fatty Acid Methyl Ester),
- Paraffinic Diesel fuel that meets standard EN15940 mixed with a biofuel that meets standard EN14214 (possibly containing up to 7 % Fatty Acid Methyl Ester).
7
Practical information

277
* According to engine.

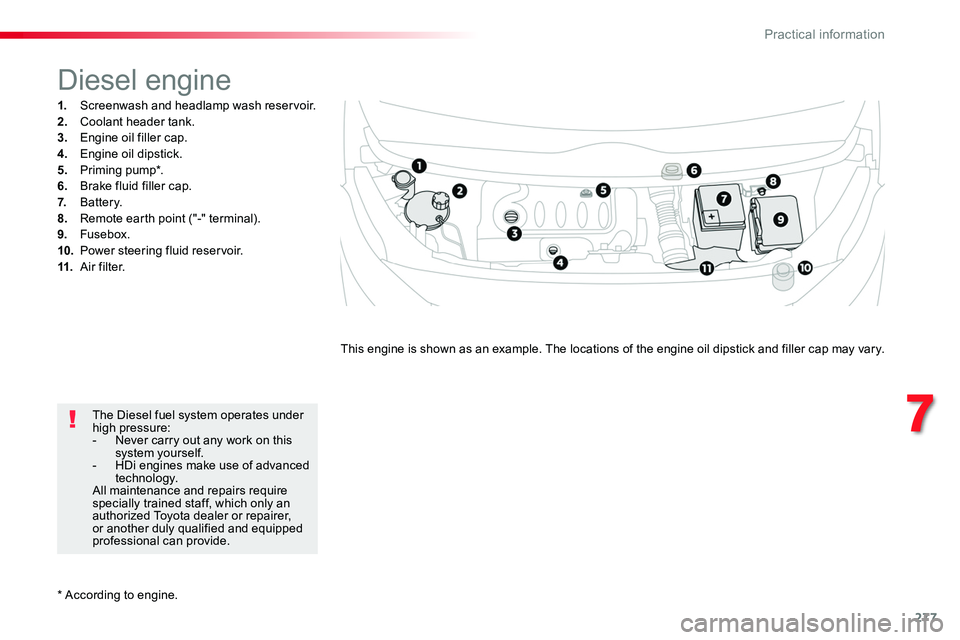

Diesel engine
1. Screenwash and headlamp wash reservoir.2. Coolant header tank.3. Engine oil filler cap.4. Engine oil dipstick.5. Priming pump*.6. Brake fluid filler cap.7. Battery.8. Remote earth point ("-" terminal).
9. Fusebox.10. Power steering fluid reservoir.11. A i r f i l t e r.
This engine is shown as an example. The locations of the engine oil dipstick and filler cap may vary.
The Diesel fuel system operates under high pressure:- Never carry out any work on this system yourself.- HDi engines make use of advanced technology.All maintenance and repairs require specially trained staff, which only an authorized Toyota dealer or repairer, or another duly qualified and equipped professional can provide.
7
Practical information

327
On vehicles fitted with Diesel engines, the fuel system must be primed if you run out of fuel.For all versions other than with AdBlue, refer to the corresponding engine compartment view.

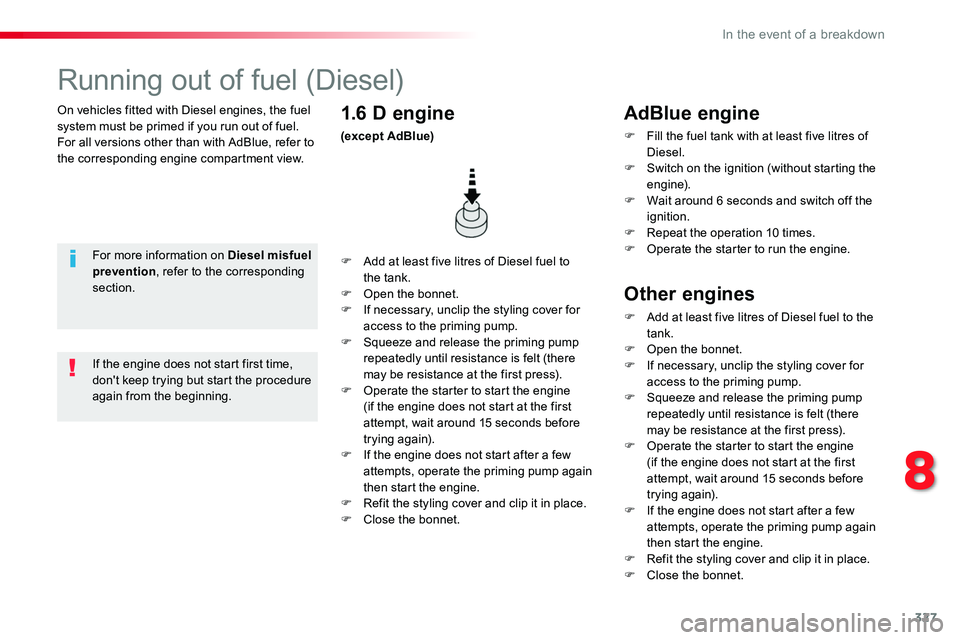

Running out of fuel (Diesel)
For more information on Diesel misfuel prevention, refer to the corresponding section.
F Add at least five litres of Diesel fuel to the tank.F Open the bonnet.F If necessary, unclip the styling cover for access to the priming pump.F Squeeze and release the priming pump repeatedly until resistance is felt (there may be resistance at the first press).F Operate the starter to start the engine (if the engine does not start at the first attempt, wait around 15 seconds before trying again).F If the engine does not start after a few attempts, operate the priming pump again then start the engine.F Refit the styling cover and clip it in place.F Close the bonnet.
1.6 D engine
(except AdBlue)
If the engine does not start first time, don't keep trying but start the procedure again from the beginning.
AdBlue engine
F Fill the fuel tank with at least five litres of Diesel.F Switch on the ignition (without starting the engine).F Wait around 6 seconds and switch off the ignition.F Repeat the operation 10 times.F Operate the starter to run the engine.
Other engines
F Add at least five litres of Diesel fuel to the tank.F Open the bonnet.F If necessary, unclip the styling cover for access to the priming pump.F Squeeze and release the priming pump repeatedly until resistance is felt (there
may be resistance at the first press).F Operate the starter to start the engine (if the engine does not start at the first attempt, wait around 15 seconds before trying again).F If the engine does not start after a few attempts, operate the priming pump again then start the engine.F Refit the styling cover and clip it in place.F Close the bonnet.
8
In the event of a breakdown

509

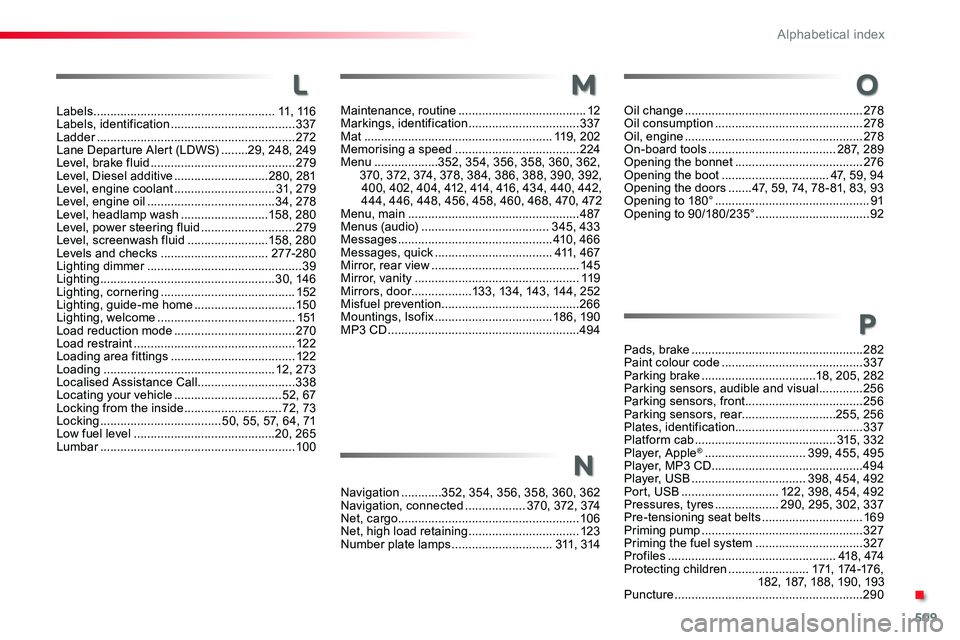

Maintenance, routine ......................................12Markings, identification .................................337Mat ........................................................11 9 , 2 0 2Memorising a speed .....................................224Menu ...................352, 354, 356, 358, 360, 362, 370, 372, 374, 378, 384, 386, 388, 390, 392, 400, 402, 404, 412, 414, 416, 434, 440, 442, 444, 446, 448, 456, 458, 460, 468, 470, 472Menu, main ...................................................487Menus (audio) ......................................345, 433Messages ..............................................410 , 4 6 6Messages, quick ...................................411, 4 6 7Mirror, rear view ............................................145Mirror, vanity .................................................11 9Mirrors, door..................133, 134, 143, 144, 252Misfuel prevention .........................................266Mountings, Isofix ...................................18 6, 19 0MP3 CD .........................................................494
Labels ......................................................11, 11 6Labels, identification .....................................337Ladder ...........................................................272Lane Departure Alert (LDWS) ........29, 248, 249Level, brake fluid ...........................................279Level, Diesel additive ............................280, 281Level, engine coolant ..............................31, 279Level, engine oil ......................................34, 278Level, headlamp wash ..........................15 8, 28 0Level, power steering fluid ............................279Level, screenwash fluid ........................15 8, 28 0Levels and checks ................................27 7-2 8 0Lighting dimmer ..............................................39Lighting ....................................................3 0, 146Lighting, cornering ........................................152Lighting, guide-me home ..............................150Lighting, welcome .........................................151Load reduction mode ....................................270Load restraint ................................................12 2Loading area fittings .....................................12 2Loading ...................................................12, 273Localised Assistance Call .............................338Locating your vehicle ................................52, 67Locking from the inside .............................72, 73Locking ....................................50, 55, 57, 64, 71Low fuel level ..........................................20, 265Lumbar ..........................................................10 0
LM
Navigation ............352, 354, 356, 358, 360, 362Navigation, connected ..................370, 372, 374Net, cargo......................................................10 6Net, high load retaining .................................123Number plate lamps ..............................311, 314
N
Oil change .....................................................278Oil consumption ............................................278Oil, engine .....................................................278On-board tools ......................................287, 289Opening the bonnet ......................................276Opening the boot ................................47, 59, 94Opening the doors .......47, 59, 74, 78 - 81, 83, 93Opening to 180° ..............................................91Opening to 90/180/235° ..................................92
Pads, brake ...................................................282Paint colour code ..........................................337Parking brake ..................................18, 205, 282Parking sensors, audible and visual .............256Parking sensors, front ...................................256Parking sensors, rear............................255, 256Plates, identification......................................337Platform cab ..........................................315, 332Player, Apple® ..............................399, 455, 495Player, MP3 CD .............................................494Player, USB ..................................398, 454, 492Port, USB .............................122, 398, 454, 492Pressures, tyres ...................290, 295, 302, 337Pre-tensioning seat belts ..............................169Priming pump ................................................327Priming the fuel system ................................327Profiles ..................................................418 , 474Protecting children ........................171, 174 -176 , 182, 187, 188, 190, 193Puncture ........................................................290
O
P
.
