41

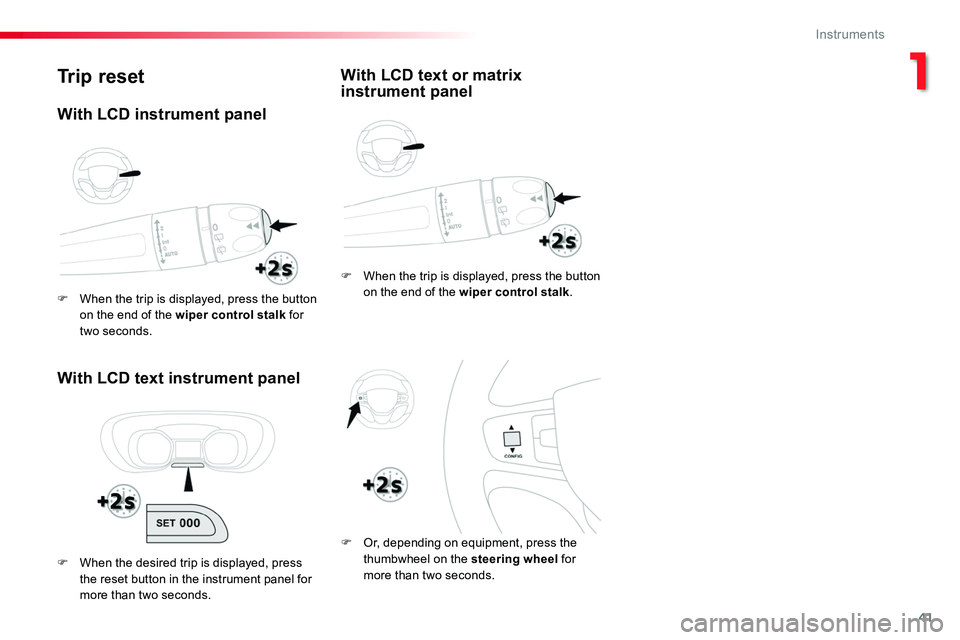

Trip reset
With LCD text instrument panel
F When the trip is displayed, press the button on the end of the wiper control stalk.
F Or, depending on equipment, press the thumbwheel on the steering wheel for more than two seconds.F When the desired trip is displayed, press the reset button in the instrument panel for more than two seconds.
With LCD text or matrix instrument panel
With LCD instrument panel
F When the trip is displayed, press the button on the end of the wiper control stalk for two seconds.
1
Instruments

42

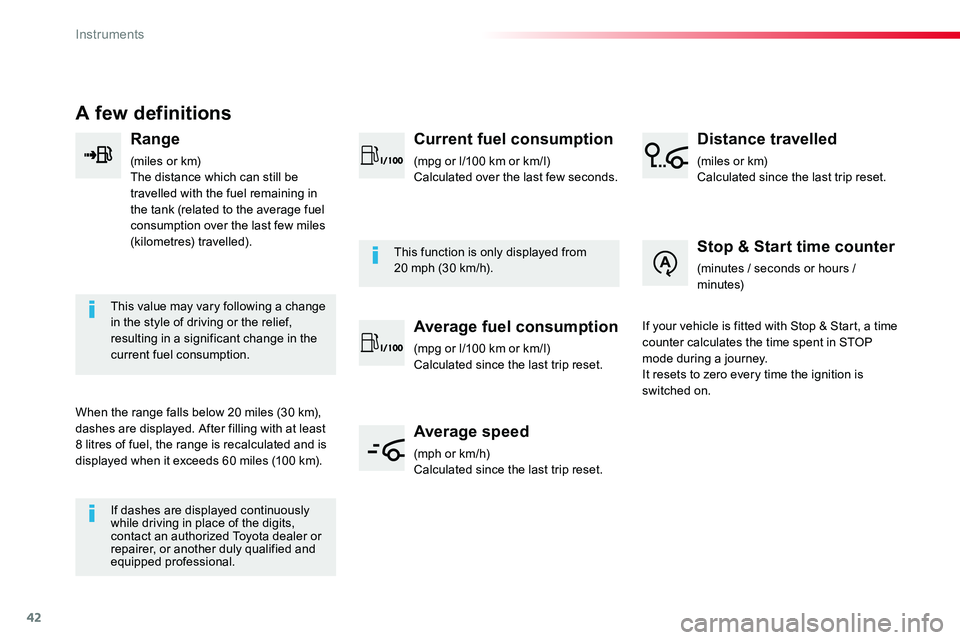

A few definitions
Range
(miles or km)The distance which can still be travelled with the fuel remaining in the tank (related to the average fuel consumption over the last few miles (kilometres) travelled).
This value may vary following a change in the style of driving or the relief, resulting in a significant change in the current fuel consumption.
When the range falls below 20 miles (30 km), dashes are displayed. After filling with at least 8 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).
If dashes are displayed continuously while driving in place of the digits, contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
This function is only displayed from 20 mph (30 km/h).
Current fuel consumption
(mpg or l/100 km or km/l)Calculated over the last few seconds.
Average fuel consumption
(mpg or l/100 km or km/l)Calculated since the last trip reset.
Average speed
(mph or km/h)Calculated since the last trip reset.
Distance travelled
(miles or km)Calculated since the last trip reset.
Stop & Start time counter
(minutes / seconds or hours / minutes)
If your vehicle is fitted with Stop & Start, a time counter calculates the time spent in STOP mode during a journey.It resets to zero every time the ignition is switched on.
Instruments

43

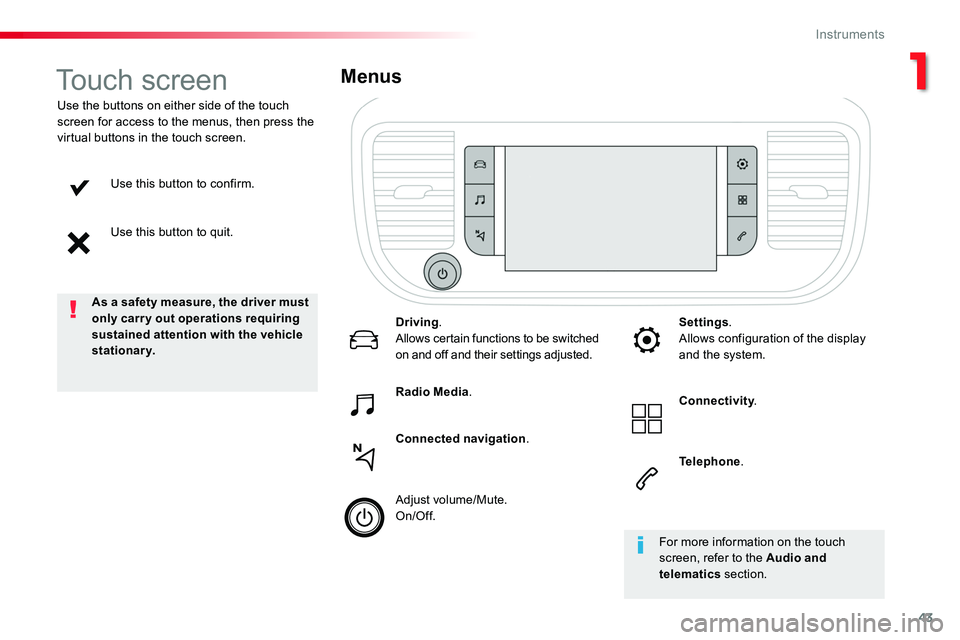

Use this button to confirm.
Use this button to quit.
Use the buttons on either side of the touch screen for access to the menus, then press the virtual buttons in the touch screen.
Menus
Driving.Allows certain functions to be switched on and off and their settings adjusted.
Connectivity.Radio Media.
Connected navigation.
Adjust volume/Mute.On/Off.
Settings.Allows configuration of the display and the system.
Telephone.
Touch screen
As a safety measure, the driver must only carry out operations requiring sustained attention with the vehicle stationary.
For more information on the touch screen, refer to the Audio and telematics section.
1
Instruments

44

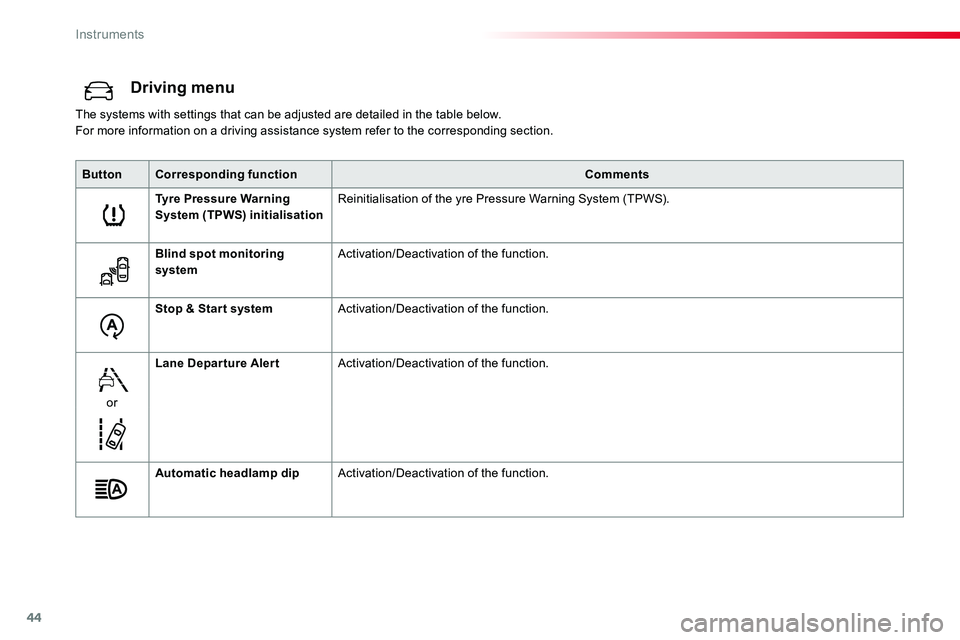

Driving menu
The systems with settings that can be adjusted are detailed in the table below.For more information on a driving assistance system refer to the corresponding section.
ButtonCorresponding functionComments
Tyre Pressure Warning System (TPWS) initialisationReinitialisation of the yre Pressure Warning System (TPWS).
Blind spot monitoring systemActivation/Deactivation of the function.
Stop & Star t systemActivation/Deactivation of the function.
or
Lane Departure AlertActivation/Deactivation of the function.
Automatic headlamp dipActivation/Deactivation of the function.
Instruments

45

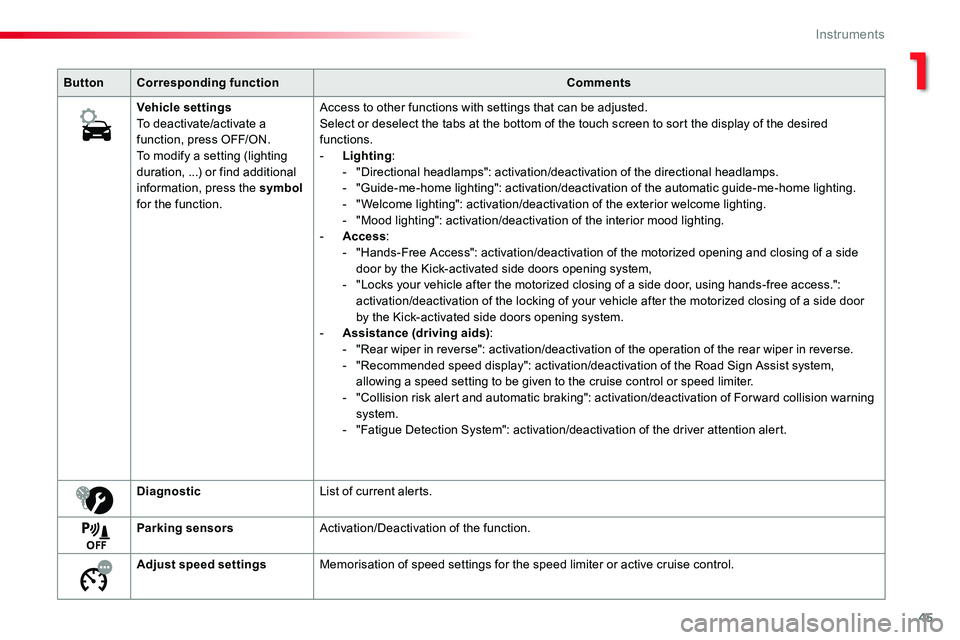

ButtonCorresponding functionComments
Vehicle settingsTo deactivate/activate a function, press OFF/ON.To modify a setting (lighting duration, ...) or find additional information, press the symbol for the function.
Access to other functions with settings that can be adjusted.Select or deselect the tabs at the bottom of the touch screen to sort the display of the desired functions.- Lighting:- "Directional headlamps": activation/deactivation of the directional headlamps.- "Guide-me-home lighting": activation/deactivation of the automatic guide-me-home lighting.- "Welcome lighting": activation/deactivation of the exterior welcome lighting.- "Mood lighting": activation/deactivation of the interior mood lighting.- Access:- "Hands-Free Access": activation/deactivation of the motorized opening and closing of a side door by the Kick-activated side doors opening system,- "Locks your vehicle after the motorized closing of a side door, using hands-free access.": activation/deactivation of the locking of your vehicle after the motorized closing of a side door by the Kick-activated side doors opening system.- Assistance (driving aids):- "Rear wiper in reverse": activation/deactivation of the operation of the rear wiper in reverse.- "Recommended speed display": activation/deactivation of the Road Sign Assist system, allowing a speed setting to be given to the cruise control or speed limiter.- "Collision risk alert and automatic braking": activation/deactivation of For ward collision warning system.- "Fatigue Detection System": activation/deactivation of the driver attention alert.
DiagnosticList of current alerts.
Parking sensorsActivation/Deactivation of the function.
Adjust speed settingsMemorisation of speed settings for the speed limiter or active cruise control.
1
Instruments

46

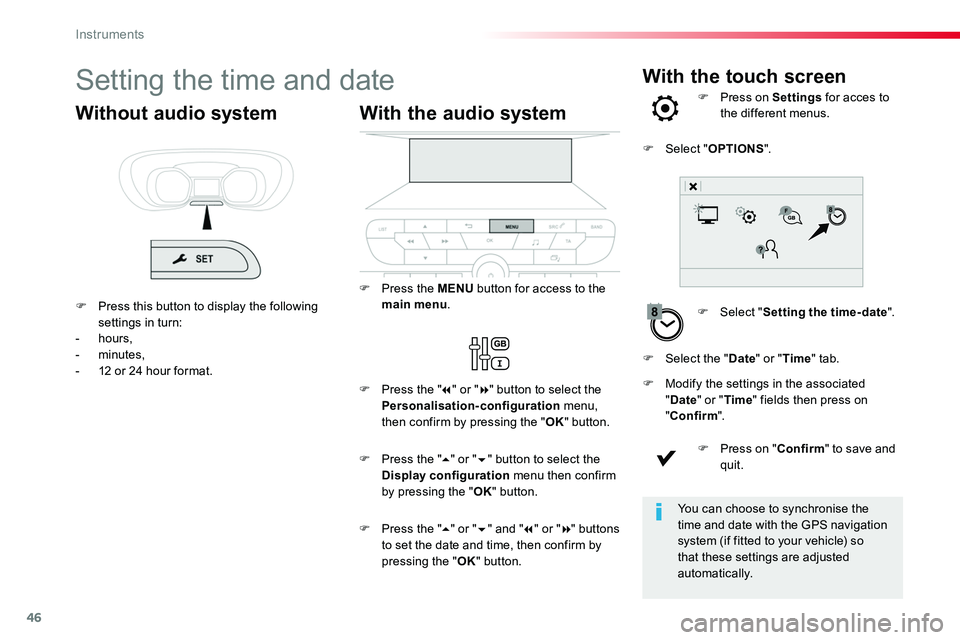

With the touch screenSetting the time and date
F Select "Setting the time- date".
F Press on Settings for acces to the different menus.
F Modify the settings in the associated "Date" or "Time" fields then press on "Confirm".
F Press on "Confirm" to save and quit.
F Select "OPTIONS".
F Select the "Date" or "Time" tab.
You can choose to synchronise the time and date with the GPS navigation system (if fitted to your vehicle) so that these settings are adjusted automatically.
With the audio system
F Press the MENU button for access to the main menu.
F Press the "7" or "8" button to select the Personalisation-configuration menu, then confirm by pressing the "OK" button.
F Press the "5" or "6" and "7" or "8" buttons to set the date and time, then confirm by pressing the "OK" button.
F Press the "5" or "6" button to select the Display configuration menu then confirm by pressing the "OK" button.
Without audio system
F Press this button to display the following settings in turn:- hours,- minutes,- 12 or 24 hour format.
Instruments

47

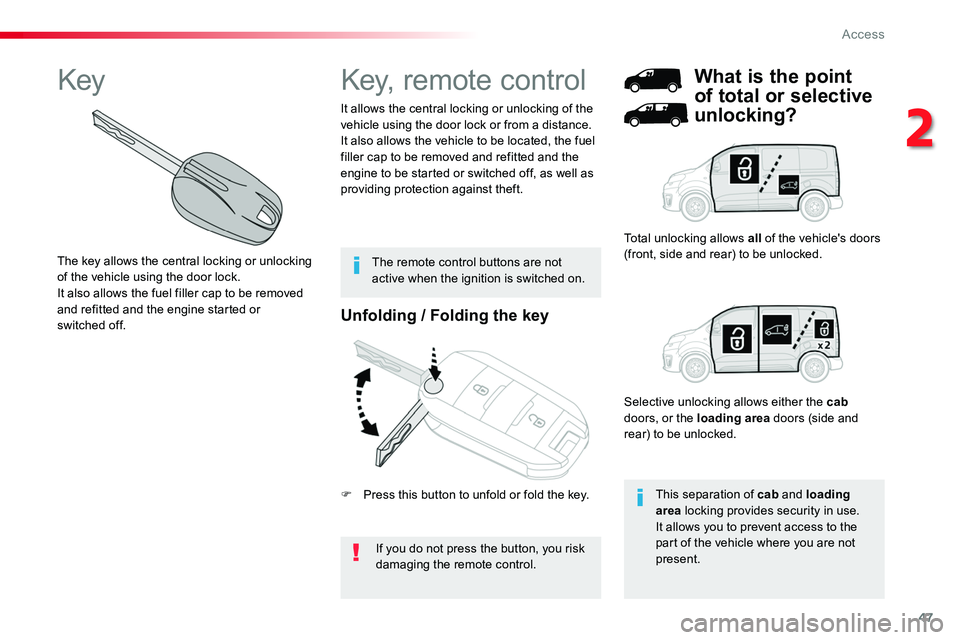

Unfolding / Folding the key
If you do not press the button, you risk damaging the remote control.
It allows the central locking or unlocking of the vehicle using the door lock or from a distance.It also allows the vehicle to be located, the fuel filler cap to be removed and refitted and the engine to be started or switched off, as well as providing protection against theft.
Key, remote control
This separation of cab and loading area locking provides security in use.It allows you to prevent access to the part of the vehicle where you are not present.
What is the point
of total or selective
unlocking?
Total unlocking allows all of the vehicle's doors (front, side and rear) to be unlocked.The remote control buttons are not active when the ignition is switched on.
Selective unlocking allows either the cab doors, or the loading area doors (side and rear) to be unlocked.
Key
The key allows the central locking or unlocking of the vehicle using the door lock.It also allows the fuel filler cap to be removed and refitted and the engine started or switched off.
F Press this button to unfold or fold the key.
2
Access

48

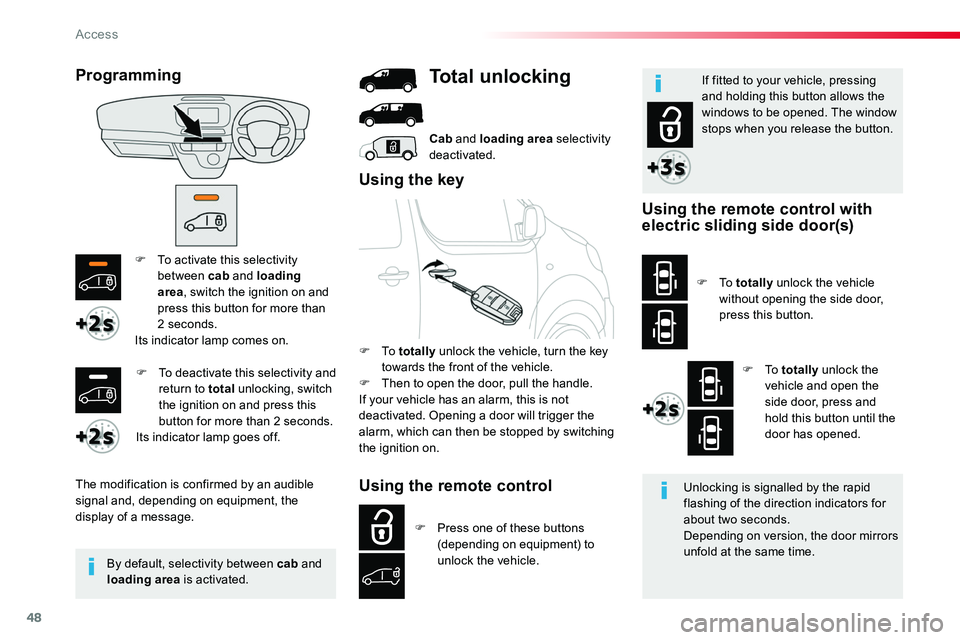

F To activate this selectivity between cab and loading area, switch the ignition on and press this button for more than 2 seconds.Its indicator lamp comes on.
The modification is confirmed by an audible signal and, depending on equipment, the display of a message.
F To deactivate this selectivity and return to total unlocking, switch the ignition on and press this button for more than 2 seconds.
Its indicator lamp goes off.
By default, selectivity between cab and loading area is activated.
Total unlocking
Using the remote control
F Press one of these buttons (depending on equipment) to unlock the vehicle.
Unlocking is signalled by the rapid flashing of the direction indicators for about two seconds.Depending on version, the door mirrors unfold at the same time.
If fitted to your vehicle, pressing and holding this button allows the windows to be opened. The window stops when you release the button.
Using the key
Using the remote control with electric sliding side door(s)
F To totally unlock the vehicle and open the side door, press and hold this button until the
door has opened.
F To totally unlock the vehicle without opening the side door, press this button.
Programming
F To totally unlock the vehicle, turn the key towards the front of the vehicle.F Then to open the door, pull the handle.If your vehicle has an alarm, this is not deactivated. Opening a door will trigger the
alarm, which can then be stopped by switching the ignition on.
Cab and loading area selectivity deactivated.
Access

49

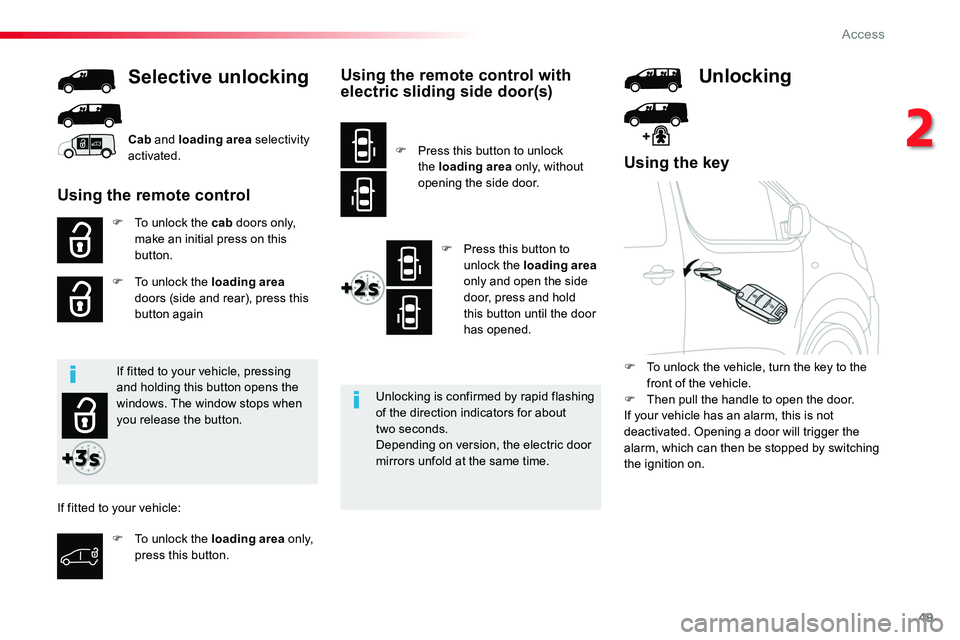

Using the key
F To unlock the cab doors only, make an initial press on this button.
F To unlock the loading area doors (side and rear), press this button again
Selective unlocking
Unlocking is confirmed by rapid flashing of the direction indicators for about two seconds.Depending on version, the electric door mirrors unfold at the same time.
F To unlock the vehicle, turn the key to the front of the vehicle.F Then pull the handle to open the door.If your vehicle has an alarm, this is not deactivated. Opening a door will trigger the alarm, which can then be stopped by switching the ignition on.
Cab and loading area selectivity activated.
Using the remote control
If fitted to your vehicle, pressing and holding this button opens the windows. The window stops when you release the button.
F To unlock the loading area o n l y, press this button.
If fitted to your vehicle:
Using the remote control with electric sliding side door(s)
F Press this button to unlock the loading area only and open the side door, press and hold this button until the door has opened.
F Press this button to unlock the loading area only, without opening the side door.
Unlocking
2
Access

50

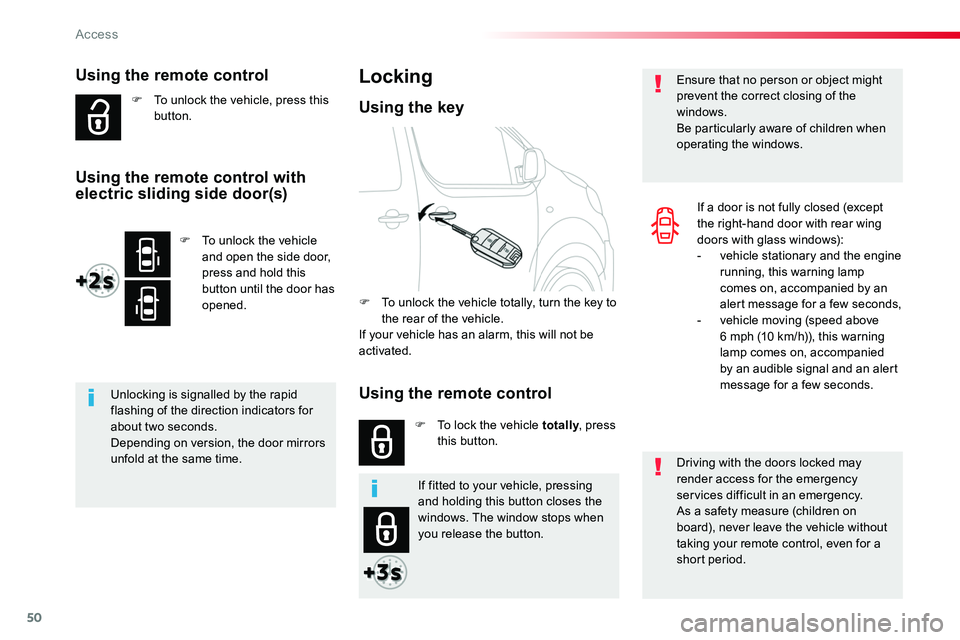

Using the remote control
F To unlock the vehicle, press this button.
Unlocking is signalled by the rapid flashing of the direction indicators for about two seconds.Depending on version, the door mirrors unfold at the same time.Driving with the doors locked may render access for the emergency services difficult in an emergency.As a safety measure (children on board), never leave the vehicle without
taking your remote control, even for a short period.
Ensure that no person or object might prevent the correct closing of the windows.Be particularly aware of children when operating the windows.
Locking
F To unlock the vehicle totally, turn the key to the rear of the vehicle.If your vehicle has an alarm, this will not be activated.
F To lock the vehicle totally, press this button.
Using the key
If a door is not fully closed (except the right-hand door with rear wing doors with glass windows):- vehicle stationary and the engine running, this warning lamp comes on, accompanied by an alert message for a few seconds,- vehicle moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and an alert message for a few seconds.
If fitted to your vehicle, pressing and holding this button closes the windows. The window stops when you release the button.
F To unlock the vehicle and open the side door, press and hold this button until the door has opened.
Using the remote control with electric sliding side door(s)
Using the remote control
Access
