81

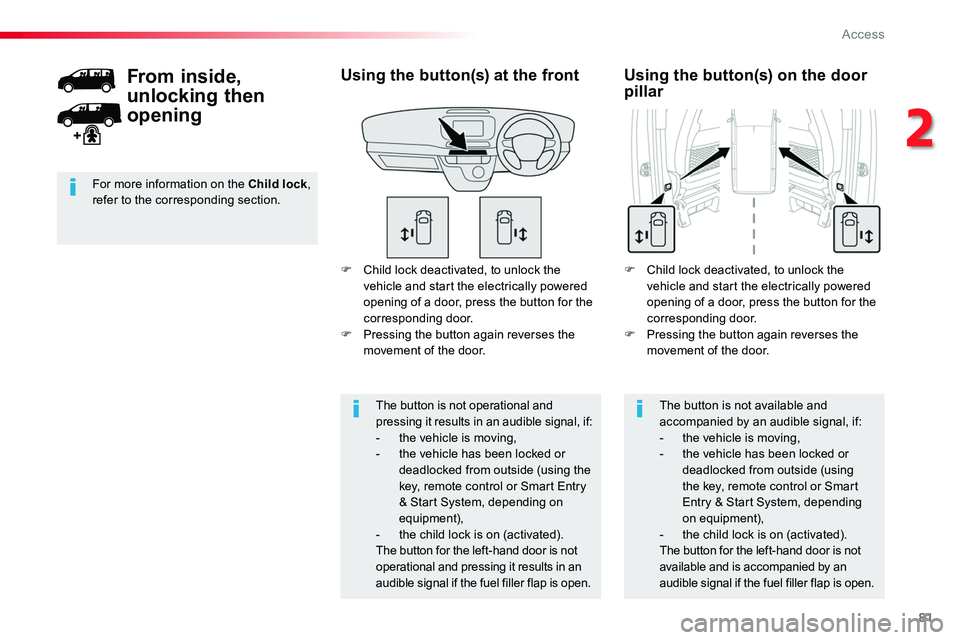

F Child lock deactivated, to unlock the vehicle and start the electrically powered opening of a door, press the button for the corresponding door.F Pressing the button again reverses the movement of the door.
The button is not operational and pressing it results in an audible signal, if:
- the vehicle is moving,- the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment),- the child lock is on (activated).The button for the left-hand door is not operational and pressing it results in an audible signal if the fuel filler flap is open.
The button is not available and accompanied by an audible signal, if:
- the vehicle is moving,- the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment),- the child lock is on (activated).The button for the left-hand door is not available and is accompanied by an audible signal if the fuel filler flap is open.
Using the button(s) at the frontFrom inside,
unlocking then
opening
Using the button(s) on the door pillar
F Child lock deactivated, to unlock the vehicle and start the electrically powered opening of a door, press the button for the corresponding door.F Pressing the button again reverses the movement of the door.
For more information on the Child lock, refer to the corresponding section.
2
Access

82

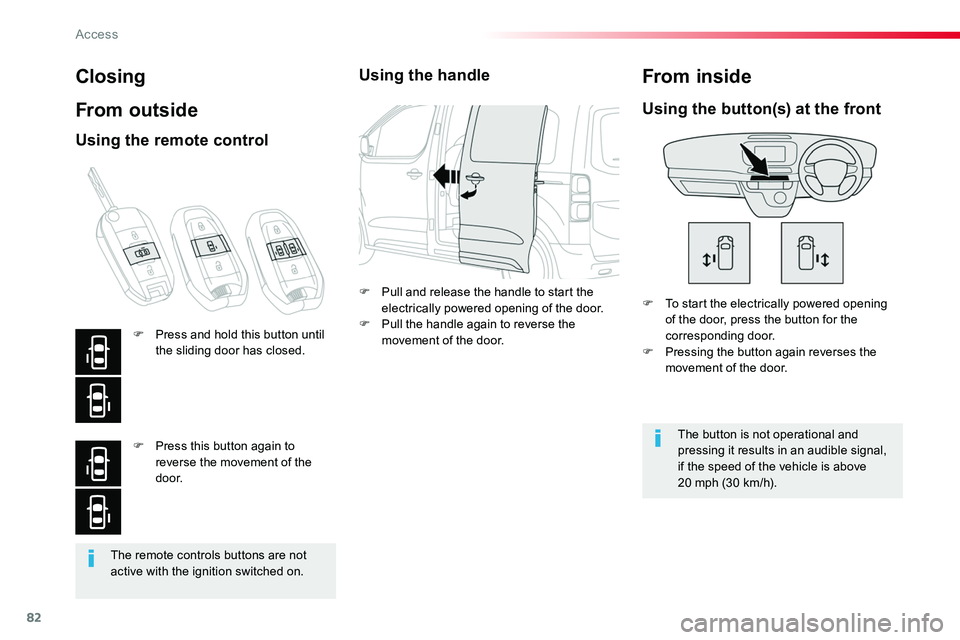

The remote controls buttons are not active with the ignition switched on.
Closing
From outside
F To start the electrically powered opening of the door, press the button for the corresponding door.F Pressing the button again reverses the movement of the door.
Using the button(s) at the front
The button is not operational and pressing it results in an audible signal, if the speed of the vehicle is above 20 mph (30 km/h).
From inside
Using the remote control
F Press and hold this button until the sliding door has closed.
F Press this button again to reverse the movement of the d o o r.
Using the handle
F Pull and release the handle to start the electrically powered opening of the door.F Pull the handle again to reverse the movement of the door.
Access

83

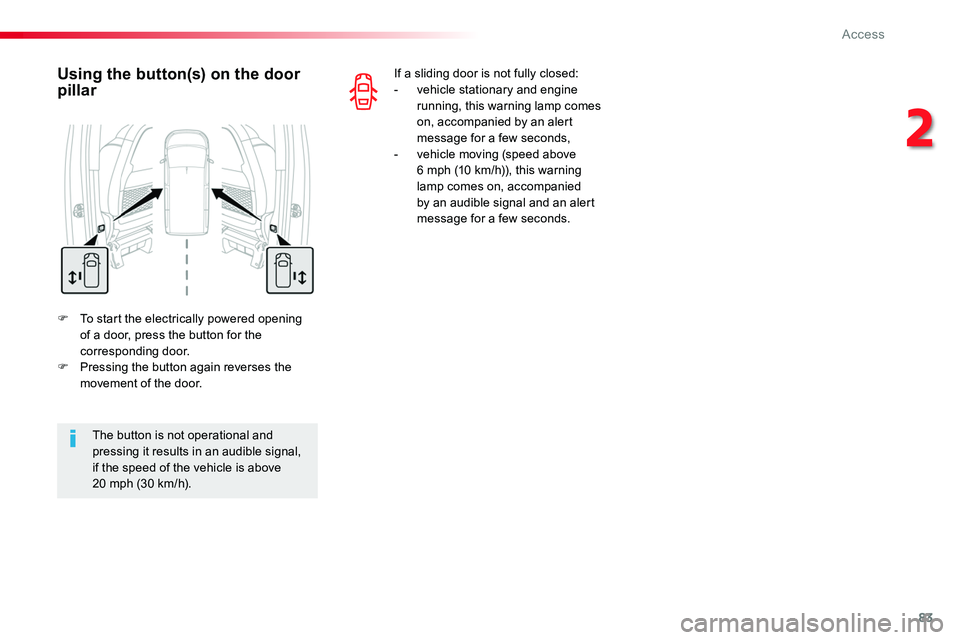

F To start the electrically powered opening of a door, press the button for the corresponding door.F Pressing the button again reverses the movement of the door.
Using the button(s) on the door pillar
The button is not operational and pressing it results in an audible signal, if the speed of the vehicle is above 20 mph (30 km/h).
If a sliding door is not fully closed:- vehicle stationary and engine running, this warning lamp comes on, accompanied by an alert message for a few seconds,- vehicle moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and an alert message for a few seconds.
2
Access

84
General
recommendations
The doors must only be operated when the vehicle is stationary.For your safety and for that of your
passengers, as well as for correct operation of the doors, you are strongly advised not to drive with a door open.Always check that it is safe to operate the door and in particular, be sure not to leave children or animals near the door controls without supervision.The audible warning, illumination of the "door open" warning lamp and the message in the multifunction screen are there to remind you. Contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional to deactivate these warnings.Lock your vehicle when using an automatic car wash.
Before any opening or closing and during any movement of the doors, ensure that no person, animal or object is protruding through the window frame or might prevent the intended manoeuvre, either inside or outside the vehicle.
If this advice is not followed, injuries or damage may occur if a person or an object is trapped or caught.Electric closing and opening of the doors is not possible above 2 mph (3 km/h):- If you set off with the door(s) open, you must slow down to below 20 mph (30 km/h) in order to close the door(s).- Any attempt to open a door electrically using the interior handle while driving, results in only being possible to open the door manually.- This situation is accompanied by the audible warning, illumination of the "door open" warning lamp and the message in the multifunction screen. To release the door and be able to operate it again, it is necessary to stop the vehicle.
Manual or electric sliding side door(s)
The electric controls are inhibited in the event of an impact. Manual opening and closing remain possible.
While starting the engine, the movement of a door is interrupted and restored once the engine is running.
Depending on the engine, in Stop mode of Stop & Start, if the door is closed and you initiate opening of the door, the door opens partially and stops. When the
engine changes automatically to Start mode, the door continues its movement.
Access

85

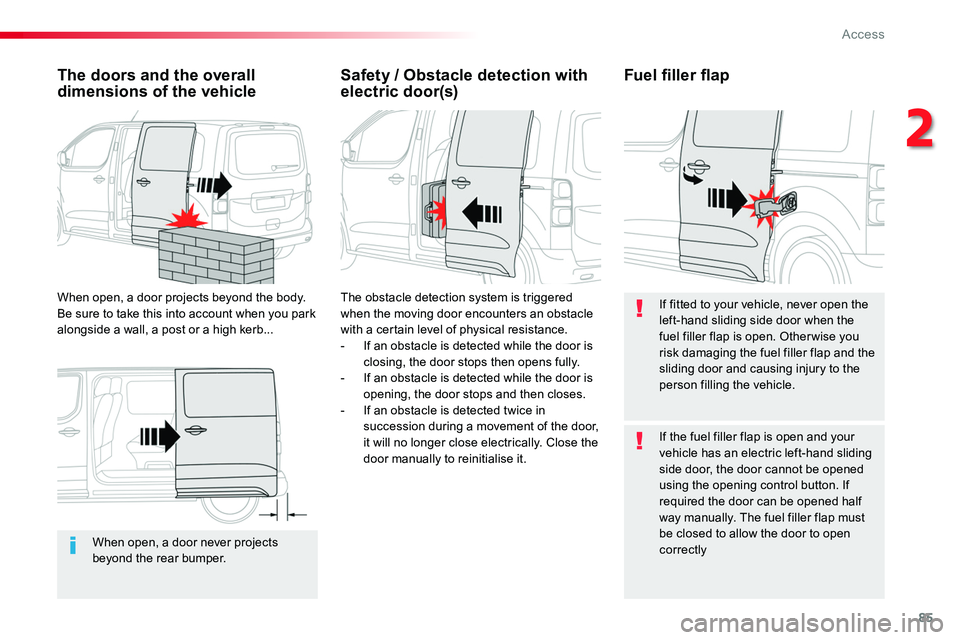

When open, a door never projects beyond the rear bumper.
The doors and the overall dimensions of the vehicle
When open, a door projects beyond the body. Be sure to take this into account when you park alongside a wall, a post or a high kerb...
Safety / Obstacle detection with electric door(s)Fuel filler flap
The obstacle detection system is triggered when the moving door encounters an obstacle with a certain level of physical resistance.- If an obstacle is detected while the door is closing, the door stops then opens fully.- If an obstacle is detected while the door is opening, the door stops and then closes.- If an obstacle is detected twice in succession during a movement of the door, it will no longer close electrically. Close the door manually to reinitialise it.
If fitted to your vehicle, never open the left-hand sliding side door when the fuel filler flap is open. Other wise you risk damaging the fuel filler flap and the sliding door and causing injury to the person filling the vehicle.
If the fuel filler flap is open and your vehicle has an electric left-hand sliding side door, the door cannot be opened using the opening control button. If required the door can be opened half way manually. The fuel filler flap must be closed to allow the door to open correctly
2
Access

86

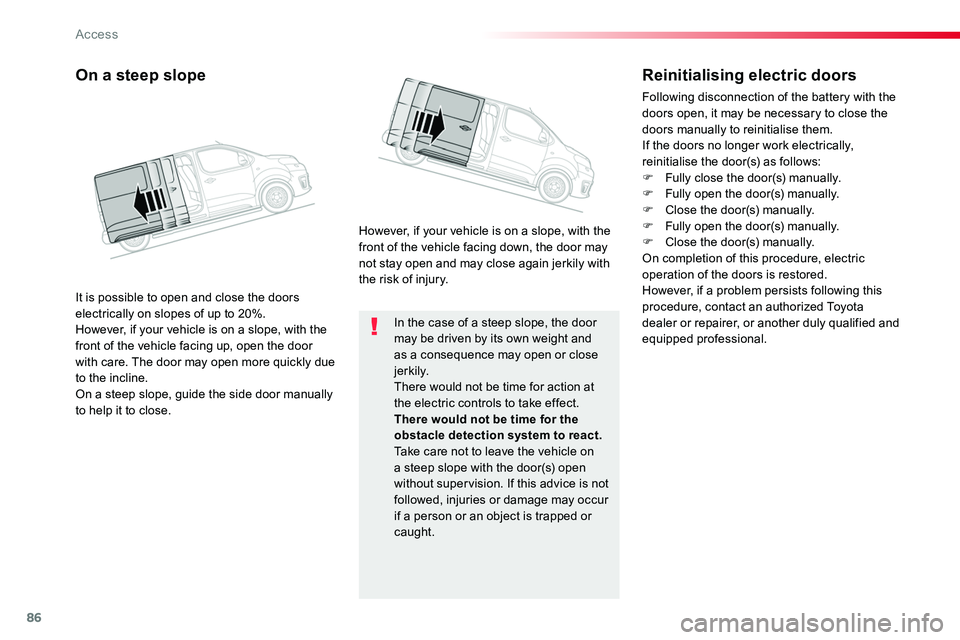

In the case of a steep slope, the door may be driven by its own weight and as a consequence may open or close j e r k i l y.There would not be time for action at the electric controls to take effect.There would not be time for the obstacle detection system to react.Take care not to leave the vehicle on a steep slope with the door(s) open without supervision. If this advice is not followed, injuries or damage may occur if a person or an object is trapped or caught.
On a steep slope
It is possible to open and close the doors electrically on slopes of up to 20%.However, if your vehicle is on a slope, with the front of the vehicle facing up, open the door with care. The door may open more quickly due to the incline.On a steep slope, guide the side door manually to help it to close.
However, if your vehicle is on a slope, with the front of the vehicle facing down, the door may not stay open and may close again jerkily with the risk of injury.
Reinitialising electric doors
Following disconnection of the battery with the doors open, it may be necessary to close the doors manually to reinitialise them.If the doors no longer work electrically, reinitialise the door(s) as follows:F Fully close the door(s) manually.F Fully open the door(s) manually.F Close the door(s) manually.F Fully open the door(s) manually.F Close the door(s) manually.On completion of this procedure, electric operation of the doors is restored.However, if a problem persists following this procedure, contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
Access

87
The automatic locking after closing the door is programmable in the vehicle configuration menu.
Kick-activated side doors opening and locking
By keeping the remote control on your person and with a movement of your foot, the system unlocks and opens the sliding side door or closes and locks it.The remote control must be located at the rear of the vehicle, more than about 30 cm and less than about 2 m from the vehicle.
Before making the movement with your foot, ensure that you are steady and well positioned, so that you do not lose your balance (rain, snow, ice, mud, ...).Take care not to touch the exhaust tailpipe when making the movement with your foot - risk of burns.
Make the movement without interruption and do not repeat it immediately after wards or several times.If the door does not open, wait about 2 seconds before trying again.Do not leave your foot in the air.
F Pass your foot below the rear bumper then remove it, as though kicking (upwards).The sensor detects your foot approaching and leaving and triggers opening or closing of the side door.
2
Access

88

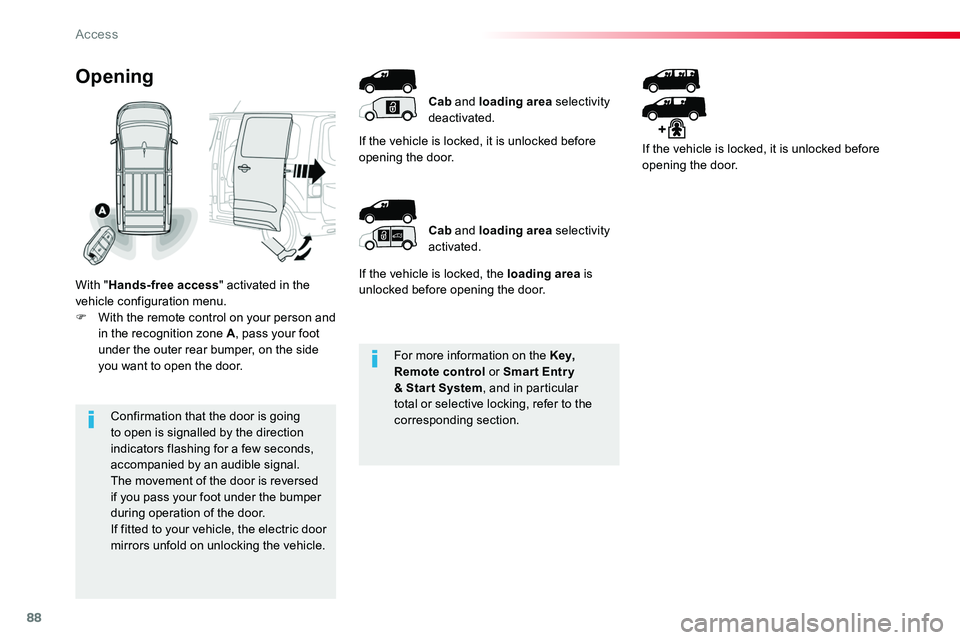

For more information on the Key, Remote control or Smar t Entr y & Star t System, and in particular total or selective locking, refer to the corresponding section.Confirmation that the door is going to open is signalled by the direction indicators flashing for a few seconds, accompanied by an audible signal.The movement of the door is reversed if you pass your foot under the bumper during operation of the door.If fitted to your vehicle, the electric door mirrors unfold on unlocking the vehicle.
Opening
With "Hands-free access" activated in the vehicle configuration menu.F With the remote control on your person and in the recognition zone A, pass your foot under the outer rear bumper, on the side you want to open the door.
Cab and loading area selectivity deactivated.
Cab and loading area selectivity activated.
If the vehicle is locked, it is unlocked before opening the door.
If the vehicle is locked, the loading area is unlocked before opening the door.
If the vehicle is locked, it is unlocked before opening the door.
Access

89

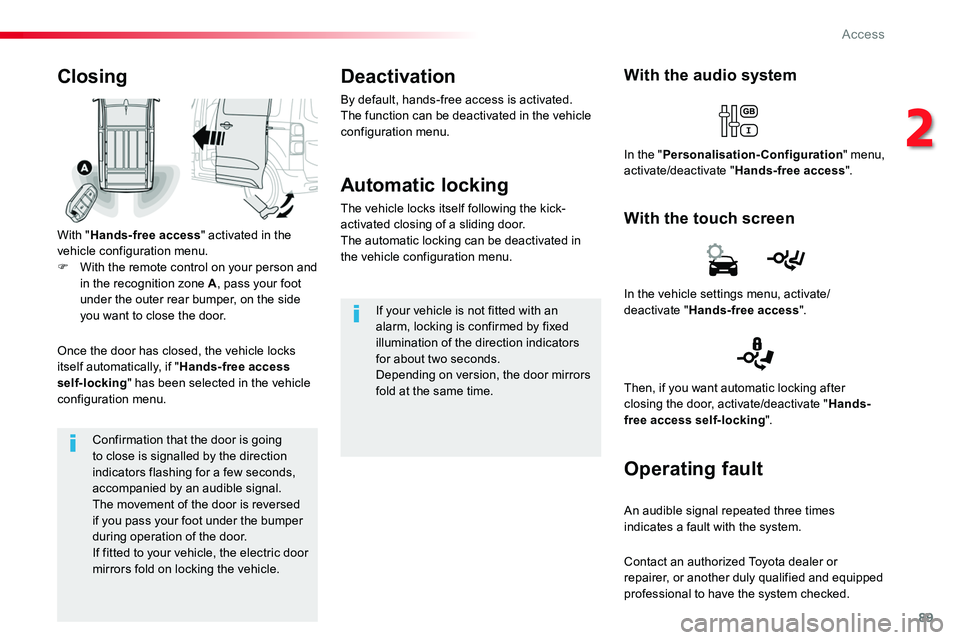

Confirmation that the door is going to close is signalled by the direction indicators flashing for a few seconds, accompanied by an audible signal.The movement of the door is reversed if you pass your foot under the bumper during operation of the door.If fitted to your vehicle, the electric door mirrors fold on locking the vehicle.
Closing
With "Hands-free access" activated in the vehicle configuration menu.F With the remote control on your person and in the recognition zone A, pass your foot under the outer rear bumper, on the side you want to close the door.
Once the door has closed, the vehicle locks itself automatically, if "Hands-free access self-locking" has been selected in the vehicle configuration menu.
With the audio system
With the touch screen
In the "Personalisation-Configuration" menu, activate/deactivate "Hands-free access".
Deactivation
By default, hands-free access is activated.The function can be deactivated in the vehicle configuration menu.
Automatic locking
The vehicle locks itself following the kick-activated closing of a sliding door.The automatic locking can be deactivated in the vehicle configuration menu.
If your vehicle is not fitted with an alarm, locking is confirmed by fixed illumination of the direction indicators for about two seconds.Depending on version, the door mirrors fold at the same time.
In the vehicle settings menu, activate/deactivate "Hands-free access".
Then, if you want automatic locking after closing the door, activate/deactivate "Hands-free access self-locking".
Operating fault
An audible signal repeated three times indicates a fault with the system.
Contact an authorized Toyota dealer or repairer, or another duly qualified and equipped
professional to have the system checked.
2
Access

90

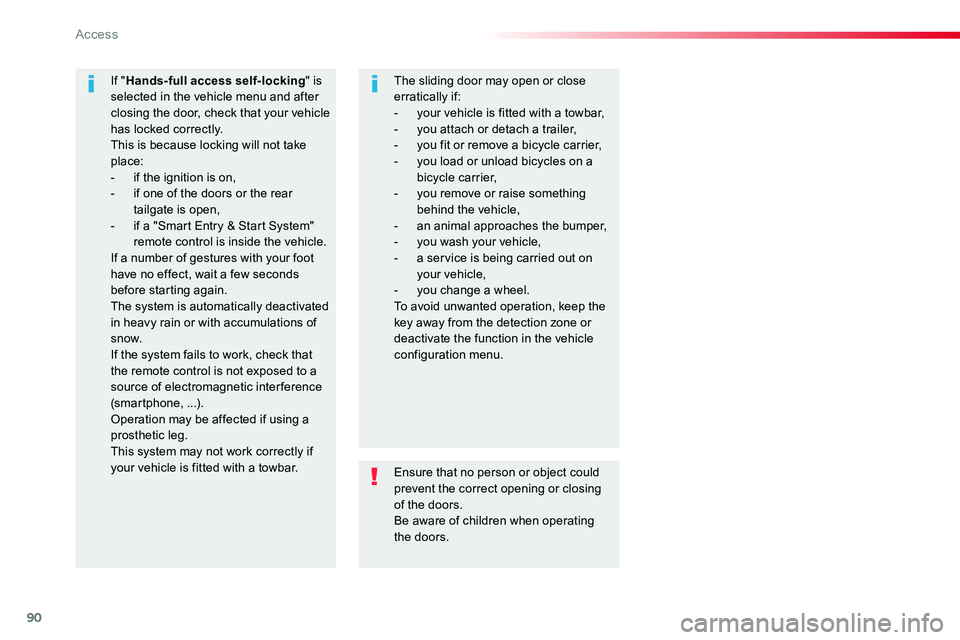

Ensure that no person or object could prevent the correct opening or closing of the doors.Be aware of children when operating the doors.
If "Hands-full access self-locking" is selected in the vehicle menu and after closing the door, check that your vehicle has locked correctly.This is because locking will not take place:- if the ignition is on,- if one of the doors or the rear tailgate is open,
- if a "Smart Entry & Start System" remote control is inside the vehicle.If a number of gestures with your foot have no effect, wait a few seconds before starting again.The system is automatically deactivated in heavy rain or with accumulations of snow.If the system fails to work, check that the remote control is not exposed to a source of electromagnetic interference (smar tphone, ...).Operation may be affected if using a prosthetic leg.This system may not work correctly if your vehicle is fitted with a towbar.
The sliding door may open or close erratically if:- your vehicle is fitted with a towbar,- you attach or detach a trailer,- you fit or remove a bicycle carrier,- you load or unload bicycles on a bicycle carrier,- you remove or raise something behind the vehicle,
- an animal approaches the bumper,- you wash your vehicle,- a service is being carried out on your vehicle,- you change a wheel.To avoid unwanted operation, keep the key away from the detection zone or deactivate the function in the vehicle configuration menu.
