300
Ensure that the jack is stable. If the ground is slippery or loose, the jack may slip or drop - Risk of injury!

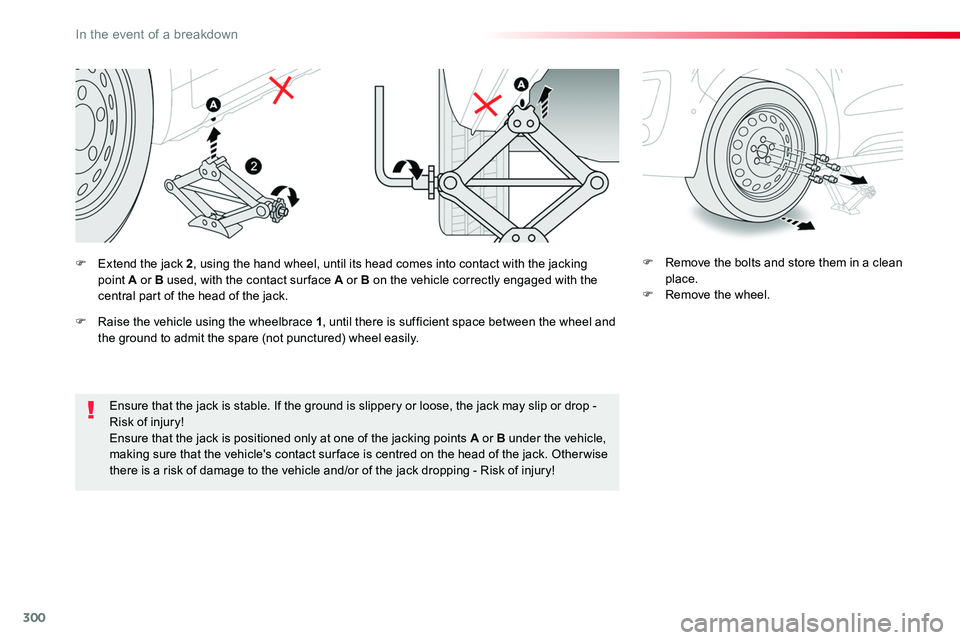

Ensure that the jack is positioned only at one of the jacking points A or B under the vehicle, making sure that the vehicle's contact sur face is centred on the head of the jack. Other wise there is a risk of damage to the vehicle and/or of the jack dropping - Risk of injury!
F Remove the bolts and store them in a clean place.F Remove the wheel.
F Extend the jack 2, using the hand wheel, until its head comes into contact with the jacking point A or B used, with the contact sur face A or B on the vehicle correctly engaged with the central part of the head of the jack.
F Raise the vehicle using the wheelbrace 1, until there is sufficient space between the wheel and the ground to admit the spare (not punctured) wheel easily.
In the event of a breakdown
