TOYOTA PROACE 2020 (in English) Owner's Guide

31
With the engine running, when the needle or the bar graph (depending on version) is:- in zone A, the temperature of the engine coolant is correct,- in zone B, the temperature of the engine coolant is too high; the maximum temperature and the central STOP warning lamps come on, accompanied by an audible signal and a warning message in the touch screen.You MUST stop as soon as it is safe to do so.Wait a few minutes before switching off the engine.Contact an authorized Toyota dealer orrepairer, or another duly qualified and equippedprofessional.
After driving for a few minutes, the temperature and pressure in the cooling system increase.To top-up the level:F wait at least one hour for the engine to cool,F unscrew the cap two turns to allow the pressure to drop,F when the pressure has dropped, remove the cap,F top-up the level to the "MA X" mark.
Be aware of the risk of burns when topping up the cooling system. Do not
fill above the maximum level (indicated on the header tank).
Engine coolant temperatureService indicator
System which informs the driver when the next ser vice is due, in accordance with the manufacturer's servicing schedule.
The point at which the next ser vice is due is calculated from the last indicator zero reset, depending on the distance travelled and the time elapsed since the last service.
For BlueHDi Diesel versions, the degree of deterioration of the engine oil is also taken into account (depending on the country of sale).
Checking the level
1
Instruments

32
Between 600 miles (1 000 km) and 1 800 miles (3 000 km) remain before the next service is due
For 5 seconds after the ignition is switched on, the spanner symbolising the ser vice operations comes on. The distance recorder display line indicates the distance remaining before the next ser vice is due.Example: 1 700 miles (2 800 km) remain before the next ser vice is due.For 5 seconds after the ignition is switched on, the screen indicates:
5 seconds after the ignition is switched on, the spanner goes off; the distance recorder resumes its normal operation. The screen then indicates the total distance.
Service overdue
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on.
For 5 seconds after the ignition is switched on, the spanner flashes to indicate that the ser vice must be carried out as soon as possible.Example: the ser vice is overdue by 180 miles (3 0 0 k m).For 5 seconds after the ignition is switched on, the screen indicates:
Less than 600 miles (1 000 km) remain before the next service is due
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on to indicate that a ser vice must be carried out soon.
For BlueHDi Diesel versions, this alert may also be accompanied by the fixed illumination of the ser vice warning lamp when the ignition is on.
More than 1 800 miles (3 000 km) remain before the next service is due
When the ignition is switched on, no ser vice information appears in the screen.Example: 560 miles (900 km) remain before the next ser vice is due.For 5 seconds after the ignition is switched on, the screen indicates:
Instruments

33
The distance remaining may be weighted by the time factor, depending on the driving conditions.Therefore, the spanner may also come on if you have exceeded the period since the last ser vice, indicated in the manufacturer's service schedule.For BlueHDi Diesel versions, the spanner may also be brought on earlier than expected, depending on the degree of deterioration of the engine oil (depending on the country of sale).The rate of deterioration of the engine oil depends on the driving conditions in which the vehicle is used.
Resetting the service indicatorIf you have to disconnect the battery following this operation, lock the vehicle and wait at least five minutes for the reset to be registered.
You can access the ser vice information at any time.
After each service, the service indicator must be reset to zero.If you have carried out the ser vice on your vehicle yourself, switch off the ignition:
Retrieving the service information
F Press and hold this button,
F Switch on the ignition; the distance recorder display begins a countdown,F When the display indicates "=0", release the button; the spanner disappears.
F Press this button.
The ser vice information is displayed for a few seconds, then disappears.
1
Instruments

34
Engine oil level indicator
On versions fitted with an electric oil gauge, information on the oil level is displayed in the instrument panel for a few seconds when the ignition is switched on, at the same time as the service information.
The level read will only be correct if the vehicle is on level ground and the engine has been off for more than 30 minutes.
Oil level correct
Oil level incorrect
Oil level indicator fault
Dipstick
There are 2 marks on the dipstick:- A = max; never exceed this level,- B = min; top-up the level via the oil filler, using the grade of oil suited to your engine.
To locate the dipstick and the oil filler cap for the Diesel engine, refer to the corresponding section.
This is indicated by a message in the instrument panel.If the low oil level is confirmed by a check using the dipstick, the level must be topped-up to avoid damage to the engine.
This is indicated by a message in the
instrument panel.
This is indicated by a message in the
instrument panel. Contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
Instruments

35

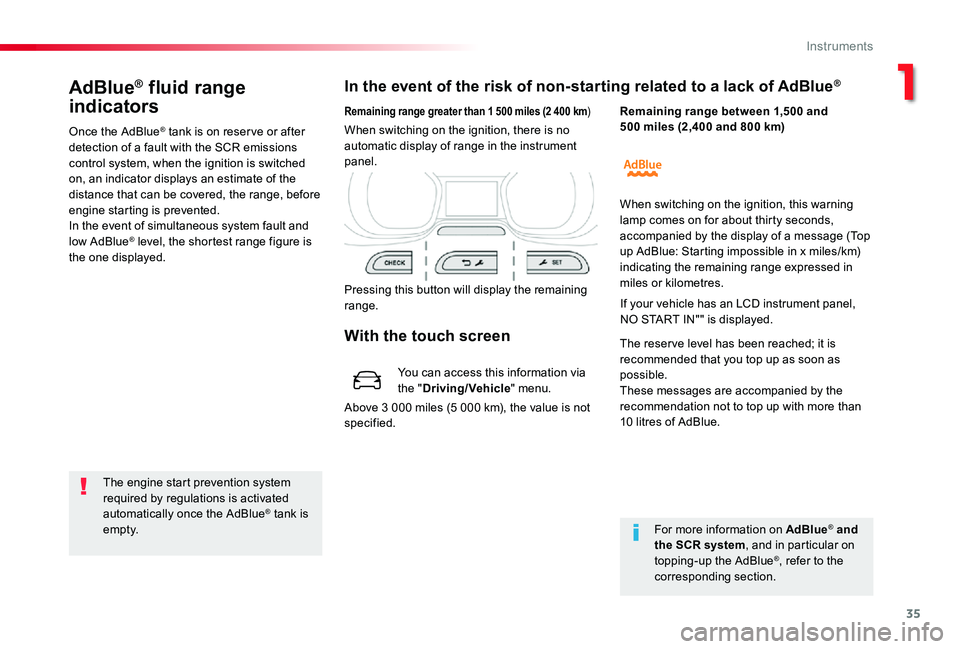

AdBlue® fluid range
indicators
Once the AdBlue® tank is on reser ve or after detection of a fault with the SCR emissions control system, when the ignition is switched on, an indicator displays an estimate of the distance that can be covered, the range, before engine starting is prevented.In the event of simultaneous system fault and low AdBlue® level, the shortest range figure is the one displayed.
In the event of the risk of non-starting related to a lack of AdBlue®
The engine start prevention system required by regulations is activated automatically once the AdBlue® tank is e m pt y.
Remaining range greater than 1 500 miles (2 400 km)
Pressing this button will display the remaining range.
When switching on the ignition, there is no automatic display of range in the instrument panel.
For more information on AdBlue® and
the SCR system, and in particular on topping-up the AdBlue®, refer to the corresponding section.
Remaining range between 1,500 and 500 miles (2,400 and 800 km)
When switching on the ignition, this warning lamp comes on for about thirty seconds, accompanied by the display of a message (Top up AdBlue: Starting impossible in x miles/km) indicating the remaining range expressed in miles or kilometres.
If your vehicle has an LCD instrument panel, NO START IN"" is displayed.
The reser ve level has been reached; it is recommended that you top up as soon as possible.These messages are accompanied by the recommendation not to top up with more than 10 litres of AdBlue.Above 3 000 miles (5 000 km), the value is not specified.
With the touch screen
You can access this information via the "Driving/Vehicle" menu.
1
Instruments

36
Breakdown related to a lack of AdBlue®
When switching on the ignition, this warning lamp flashes, accompanied by an audible signal and the display of the message "Top-up emissions additive: Starting prevented".
To be able to start the engine, we recommend that you call on an authorized Toyota dealer or repairer, or another duly qualified and equipped professional for the top-up required.If you carry out the top-up yourself, it is essential to add at least 3.8 litres of
AdBlue® to the tank.
For more information on AdBlue® and the SCR system, and in particular on topping-up the AdBlue®, refer to the corresponding section.
If your vehicle has an LCD instrument panel, "NO START IN" is displayed.
The AdBlue® tank is empty: the system required by regulations prevents engine starting.

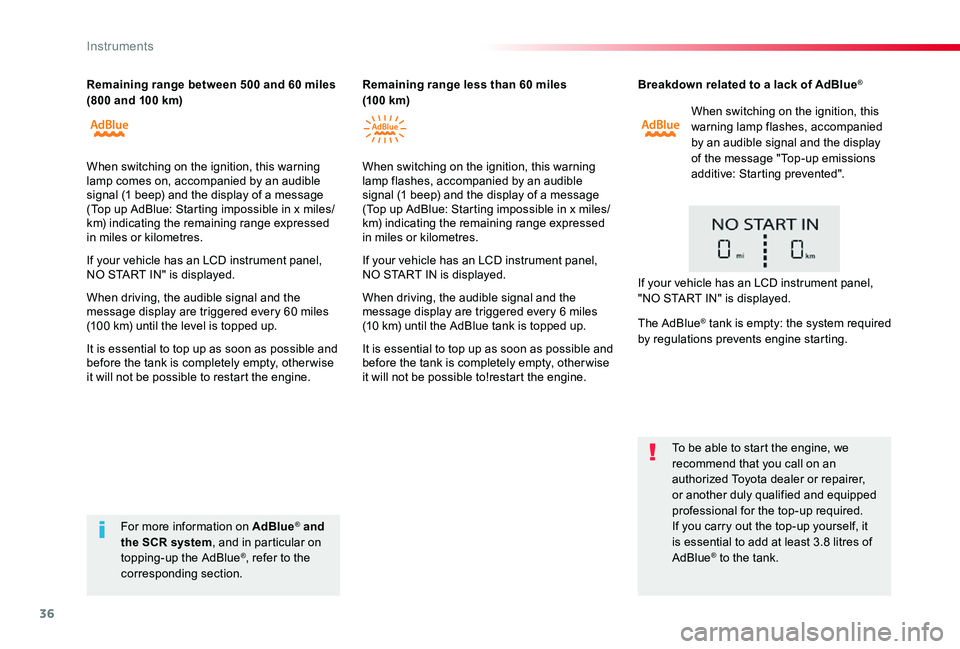

Remaining range between 500 and 60 miles (800 and 100 km)Remaining range less than 60 miles (10 0 km)
When switching on the ignition, this warning lamp comes on, accompanied by an audible signal (1 beep) and the display of a message (Top up AdBlue: Starting impossible in x miles/km) indicating the remaining range expressed in miles or kilometres.
If your vehicle has an LCD instrument panel, NO START IN" is displayed.
When driving, the audible signal and the message display are triggered every 60 miles (100 km) until the level is topped up.
It is essential to top up as soon as possible and before the tank is completely empty, other wise it will not be possible to restart the engine.
When switching on the ignition, this warning lamp flashes, accompanied by an audible signal (1 beep) and the display of a message (Top up AdBlue: Starting impossible in x miles/ km) indicating the remaining range expressed in miles or kilometres.
If your vehicle has an LCD instrument panel, NO START IN is displayed.
When driving, the audible signal and the message display are triggered every 6 miles (10 km) until the AdBlue tank is topped up.
It is essential to top up as soon as possible and before the tank is completely empty, other wise it will not be possible to!restart the engine.
Instruments

37
Starting prevented
Every time the ignition is switched on, these
warning lamps come on, accompanied by an audible signal and the display of the message "Emissions fault: Starting prevented".
You have exceeded the authorised driving limit: the starting prevention system inhibits engine starting.
To be able to start the engine, you must call on an authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.

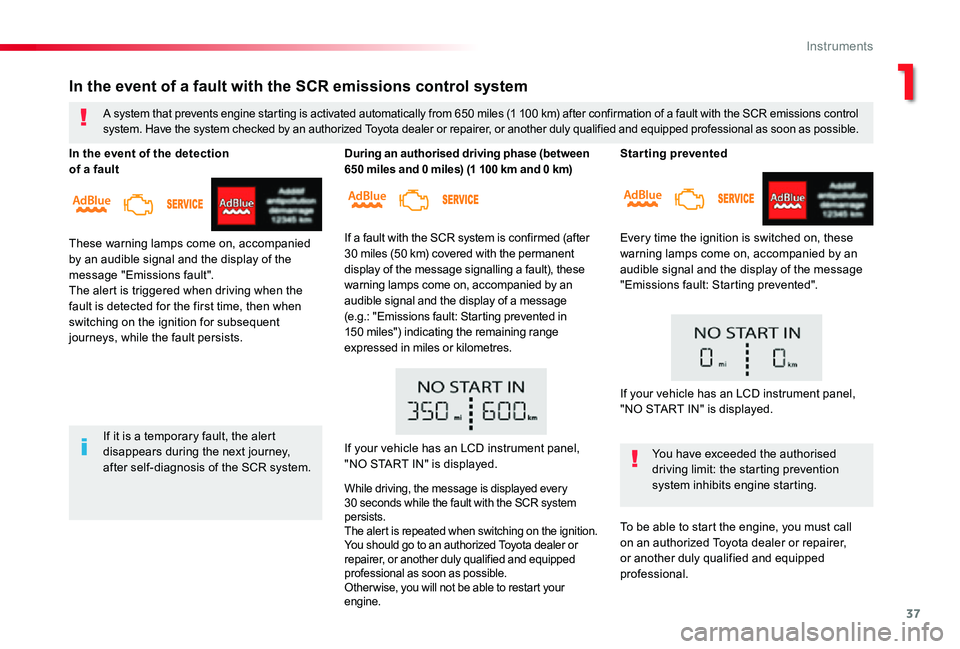

In the event of a fault with the SCR emissions control system
A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions control system. Have the system checked by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional as soon as possible.
If it is a temporary fault, the alert
disappears during the next journey, after self-diagnosis of the SCR system.
In the event of the detection of a fault
These warning lamps come on, accompanied
by an audible signal and the display of the message "Emissions fault".The alert is triggered when driving when the fault is detected for the first time, then when switching on the ignition for subsequent journeys, while the fault persists.
During an authorised driving phase (between 650 miles and 0 miles) (1 100 km and 0 km)
If a fault with the SCR system is confirmed (after
30 miles (50 km) covered with the permanent display of the message signalling a fault), these warning lamps come on, accompanied by an audible signal and the display of a message (e.g.: "Emissions fault: Starting prevented in 150 miles") indicating the remaining range expressed in miles or kilometres.
If your vehicle has an LCD instrument panel, "NO START IN" is displayed.
While driving, the message is displayed every 30 seconds while the fault with the SCR system persists.The alert is repeated when switching on the ignition.You should go to an authorized Toyota dealer or repairer, or another duly qualified and equipped professional as soon as possible.Other wise, you will not be able to restart your engine.
If your vehicle has an LCD instrument panel, "NO START IN" is displayed.
1
Instruments

38

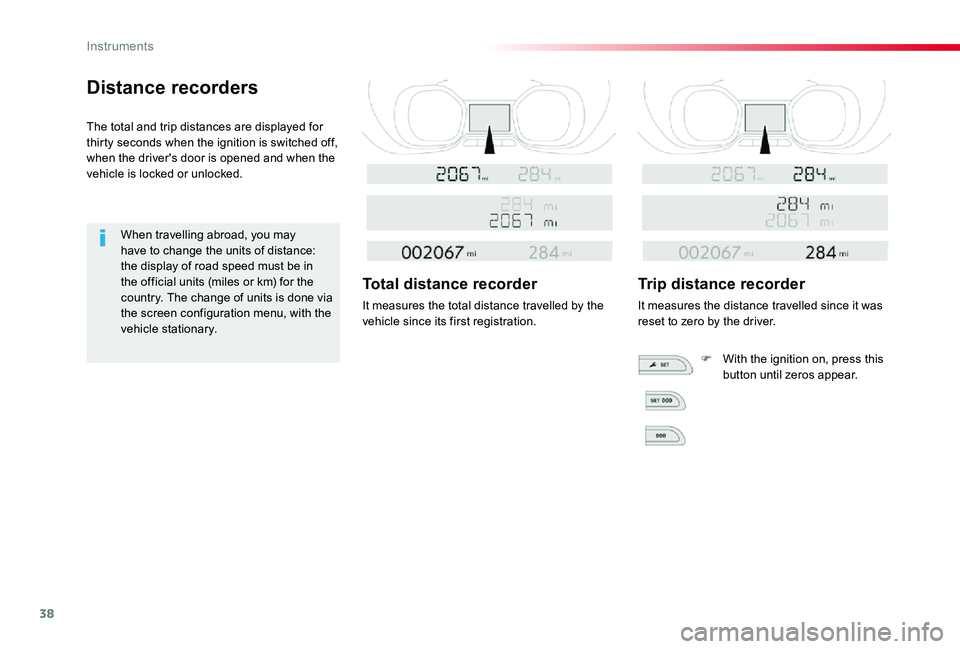

Distance recorders
The total and trip distances are displayed for thirty seconds when the ignition is switched off, when the driver's door is opened and when the vehicle is locked or unlocked.
When travelling abroad, you may have to change the units of distance: the display of road speed must be in the official units (miles or km) for the country. The change of units is done via the screen configuration menu, with the vehicle stationary.
Total distance recorder
It measures the total distance travelled by the vehicle since its first registration.
Trip distance recorder
It measures the distance travelled since it was reset to zero by the driver.
F With the ignition on, press this button until zeros appear.
Instruments

39

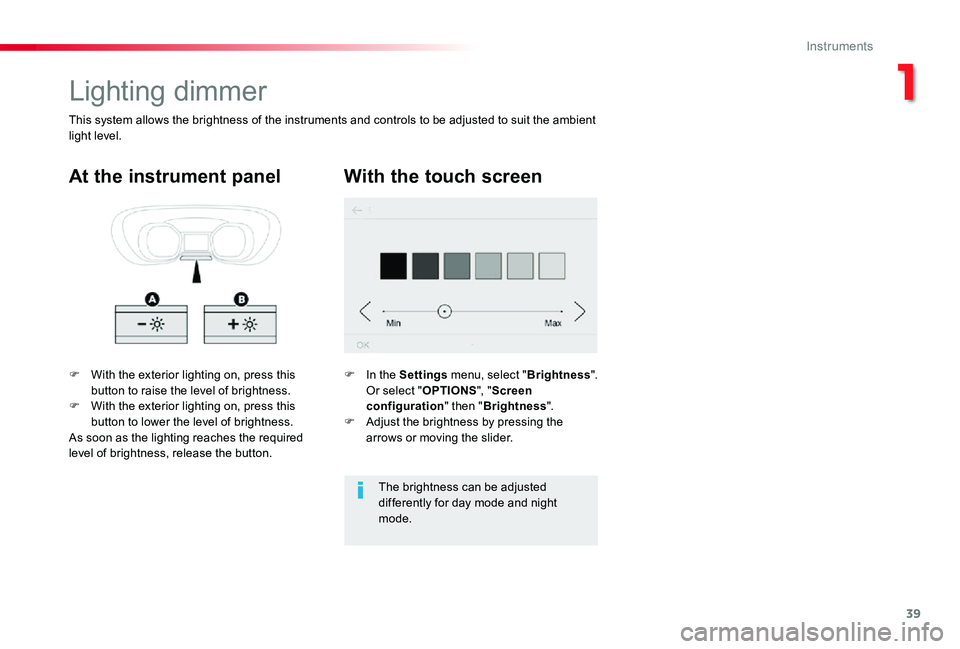

Lighting dimmer
F With the exterior lighting on, press this button to raise the level of brightness.F With the exterior lighting on, press this button to lower the level of brightness.As soon as the lighting reaches the required
level of brightness, release the button.
At the instrument panel
This system allows the brightness of the instruments and controls to be adjusted to suit the ambient light level.
With the touch screen
F In the Settings menu, select "Brightness". Or select "OPTIONS", "Screen configuration" then "Brightness".F Adjust the brightness by pressing the arrows or moving the slider.
The brightness can be adjusted differently for day mode and night mode.
1
Instruments

40
System that gives you information on the current journey (range, fuel consumption…).
Trip computer
Display of information
F Press the button on the end of the wiper control stalk to display the different trip computer tabs in turn.
F Or, depending on equipment, press the thumbwheel on the steering wheel.
- The current information with:● the range,● the current fuel consumption,● the Stop & Start time counter.
Tr i p s "1" and "2" are independent but their use is identical.For example, trip "1" can be used for daily figures, and trip "2" for monthly figures.
- Trip "2" with:● the average speed,● the average fuel consumption,● the distance travelled, for the second trip.
- Trip "1" with:● the average speed,● the average fuel consumption,● the distance travelled, for the first trip.
Depending on equipment, a 2nd trip is available.
Instruments
