oil temperature TOYOTA RAIZE 2023 Owners Manual

792-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument cluster
2
▶Vehicles with TFT color multi-information display
Warning lights
Warning lights inform the driver of malfunctions in the indicated vehicle’s
systems.
Warning lightsReference
*1Brake system warning light379
*1Charging system warning light✽379
*1Low engine oil pressure warning light✽379
*1High coolant temperature warning light (red)379
*1Malfunction indicator lamp379
*1
Continuously variable transmission warning
light
✽379
*1SRS warning light380
*1ABS warning light380
KBRO210102E
RAIZE_OM_General_BZ358E.book 79 ページ ２０２２年５月１７日　火曜日　午後１時５９分

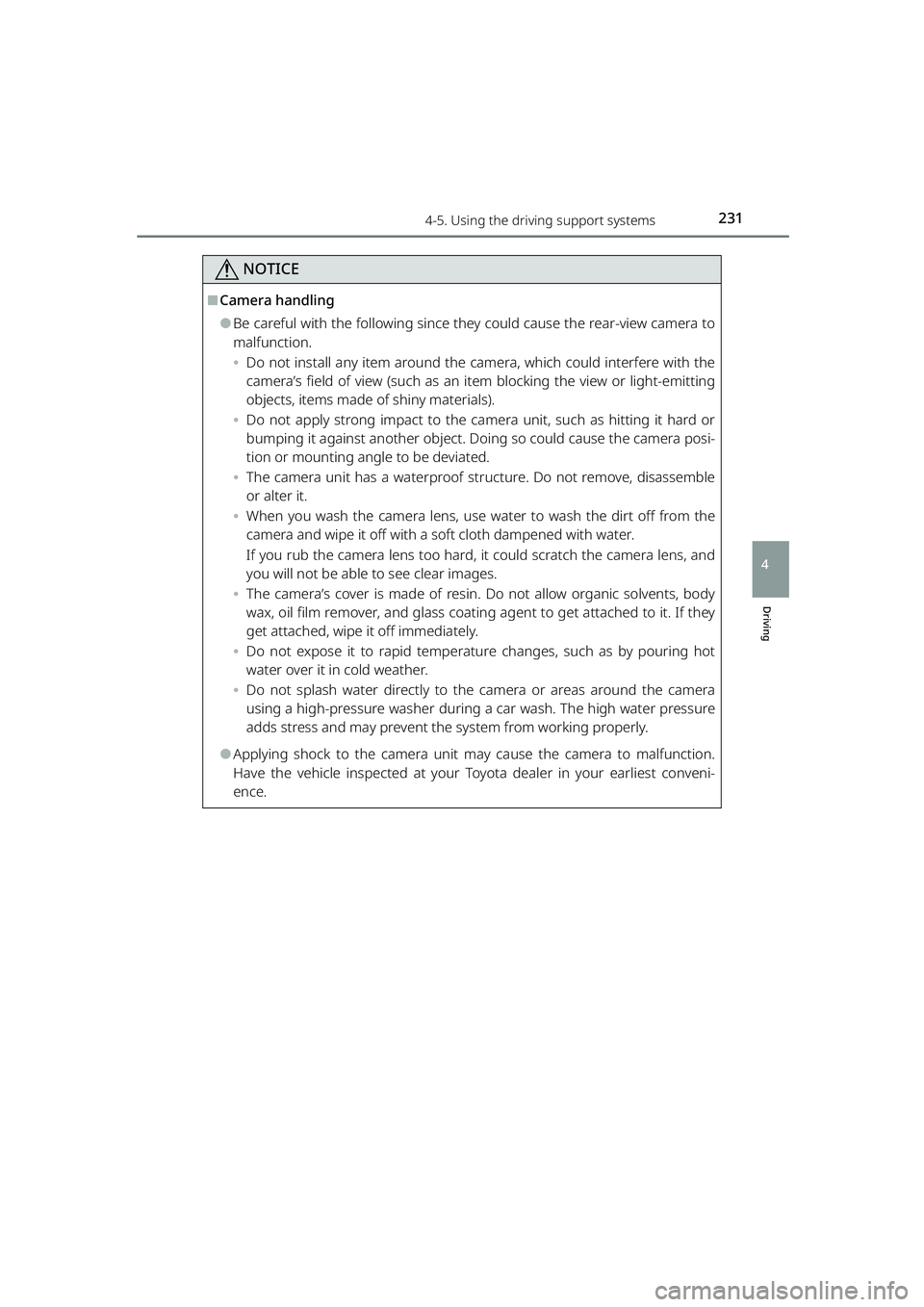

2314-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4
NOTICE
⬛Camera handling
⚫Be careful with the following since they could cause the rear-view camera to
malfunction.
⦁Do not install any item around the camera, which could interfere with the
camera’s field of view (such as an item blocking the view or light-emitting
objects, items made of shiny materials).
⦁ Do not apply strong impact to the ca mera unit, such as hitting it hard or
bumping it against another object. Doing so could cause the camera posi-
tion or mounting angle to be deviated.
⦁ The camera unit has a waterproof structure. Do not remove, disassemble
or alter it.
⦁ When you wash the camera lens, use water to wash the dirt off from the
camera and wipe it off with a so ft cloth dampened with water.
If you rub the camera lens too hard, it could scratch the camera lens, and
you will not be able to see clear images.
⦁ The camera’s cover is made of resin. Do not allow organic solvents, body
wax, oil film remover, and glass coating agent to get attached to it. If they
get attached, wipe it off immediately.
⦁ Do not expose it to rapid temperature changes, such as by pouring hot
water over it in cold weather.
⦁ Do not splash water directly to the camera or areas around the camera
using a high-pressure washer during a car wash. The high water pressure
adds stress and may prevent the system from working properly.
⚫Applying shock to the camera unit may cause the camera to malfunction.
Have the vehicle inspected at your Toyo ta dealer in your earliest conveni-
ence.
RAIZE_OM_General_BZ358E.book 231 ページ ２０２２年５月１７日　火曜日　午後１時５９分

238
RAIZE_OM_General_BZ358E
4-6. Driving tips
Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropri-
ate to the prevailing weather conditions.Preparation for winter
⚫Use fluids that are appropriate to the prevailing outside temperatures.
⦁ Engine oil
⦁ Coolant
⦁ Washer fluid
⚫Have a service technician inspec t the condition of the battery.
Before driving
Perform the following according to the driving conditions:
⚫Do not try to forcibly open a window or move a windshield wiper that is
frozen. Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
⚫To ensure proper operation of the air conditioning system fan, remove
any snow that has accumulated on the air inlet vents in front of the
windshield.
⚫Check for and remove any excess ice or snow that may have accumu-
lated on the exterior lights, vehicle’s roof, around the tires or on the
brakes.
⚫Look under the vehicle and check that there are no ice blocks around
the ground. Remove any attached ice blocks with great care to avoid
damaging vehicle components. Also check that the pedals and steering
wheel move smoothly.
⚫Remove any snow or mud from the bottom of your shoes before getting
in the vehicle.
RAIZE_OM_General_BZ358E.book 238 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2424-6. Driving tips
RAIZE_OM_General_BZ358E
◆Performing idling stops
⚫Avoid unnecessary idling. Stop the engine when parking the vehicle to
reduce excessive fuel consumption, even it is only for a short period of
time.
⚫Except in severe environment, such as when the outside temperature is
extremely low, warming up the engine before driving is unnecessary.
Rather than idling, it is more efficient to drive the vehicle gently to warm
up each part while avoiding increasing the engine revolutions unneces-
sarily and accelerating or decelerating suddenly.
◆Luggage
Carrying heavy luggage will lead to poor fuel economy. Avoid carrying
unnecessary luggage. Installing a large roof rack will also cause poor fuel
economy.
◆Regular maintenance
⚫Make sure to check the tire inflation pressure frequently. Improper tire
inflation pressure can cause poor fu el economy. Also, as snow tires can
cause large amounts of friction, thei r use on dry roads can lead to poor
fuel economy. Use tires that are appropriate for the season and road
conditions.
⚫Use oil and fluid of the recommended quality, which affect fuel con-
sumption and the life of the vehicle. Also, check oil and fluid periodically.
( ➞ P. 2 9 4 )
RAIZE_OM_General_BZ358E.book 242 ページ ２０２２年５月１７日　火曜日　午後１時５９分

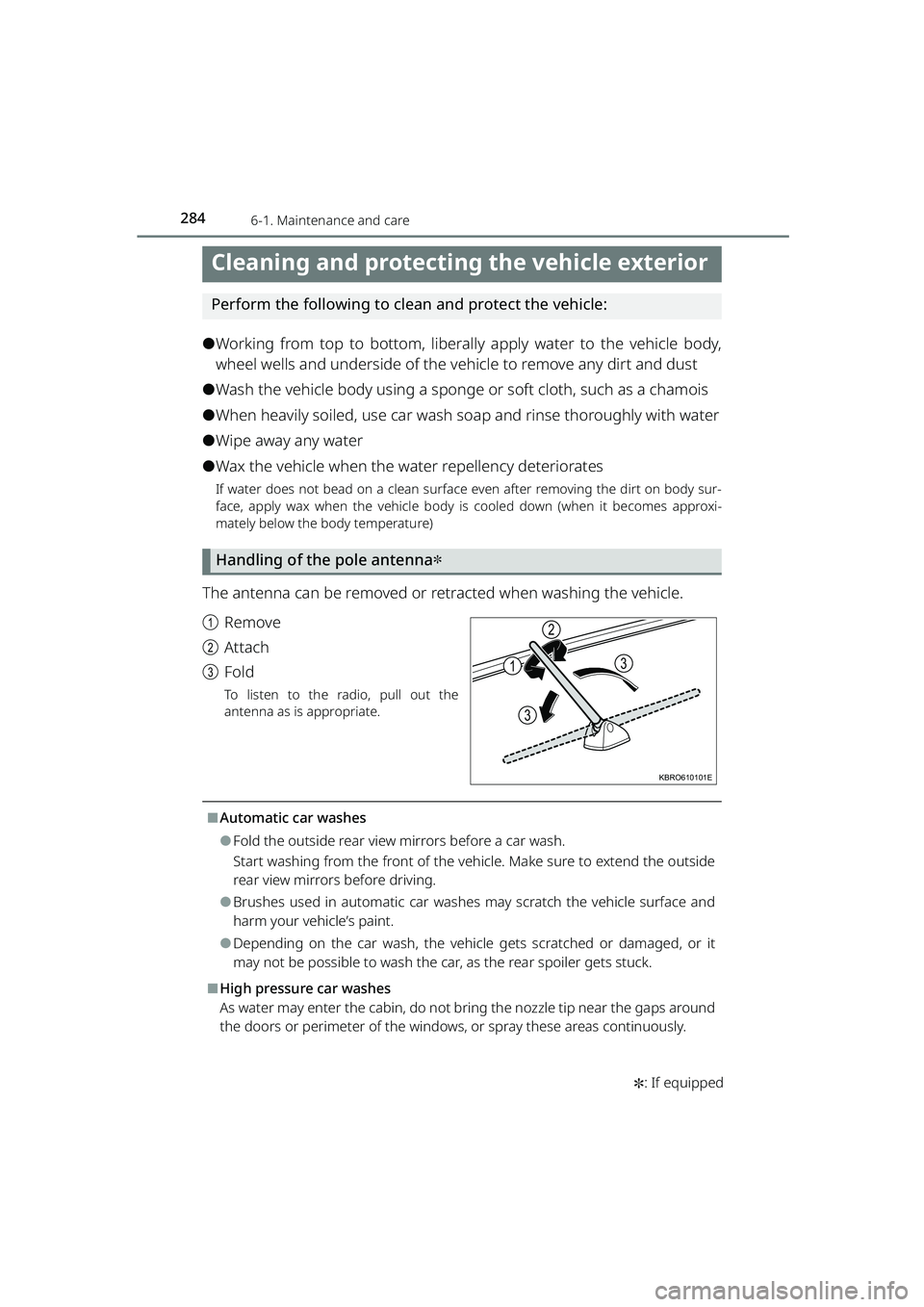

284
RAIZE_OM_General_BZ358E✽
: If equipped
6-1. Maintenance and care
Cleaning and protecting the vehicle exterior
Perform the following to clean and protect the vehicle:
⚫Working from top to bottom, liberally apply water to the vehicle body,
wheel wells and underside of the vehicle to remove any dirt and dust
⚫Wash the vehicle body using a sponge or soft cloth, such as a chamois
⚫When heavily soiled, use car wash so ap and rinse thoroughly with water
⚫Wipe away any water
⚫Wax the vehicle when the water repellency deteriorates
If water does not bead on a clean surface even after removing the dirt on body sur-
face, apply wax when the vehicle body is cooled down (when it becomes approxi-
mately below the body temperature)
Handling of the pole antenna✽
The antenna can be removed or retracted when washing the vehicle.
a Remove
b Attach
c Fold
To listen to the radio, pull out the
antenna as is appropriate.
⬛Automatic car washes
⚫Fold the outside rear view mirrors before a car wash.
Start washing from the front of the vehi cle. Make sure to extend the outside
rear view mirrors before driving.
⚫Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
⚫Depending on the car wash, the vehic le gets scratched or damaged, or it
may not be possible to wash the car, as the rear spoiler gets stuck.
⬛High pressure car washes
As water may enter the cabin, do not bring the nozzle tip near the gaps around
the doors or perimeter of the windows, or spray these areas continuously.
1
2
3
3
KBRO610101E
RAIZE_OM_General_BZ358E.book 284 ページ ２０２２年５月１７日　火曜日　午後１時５９分

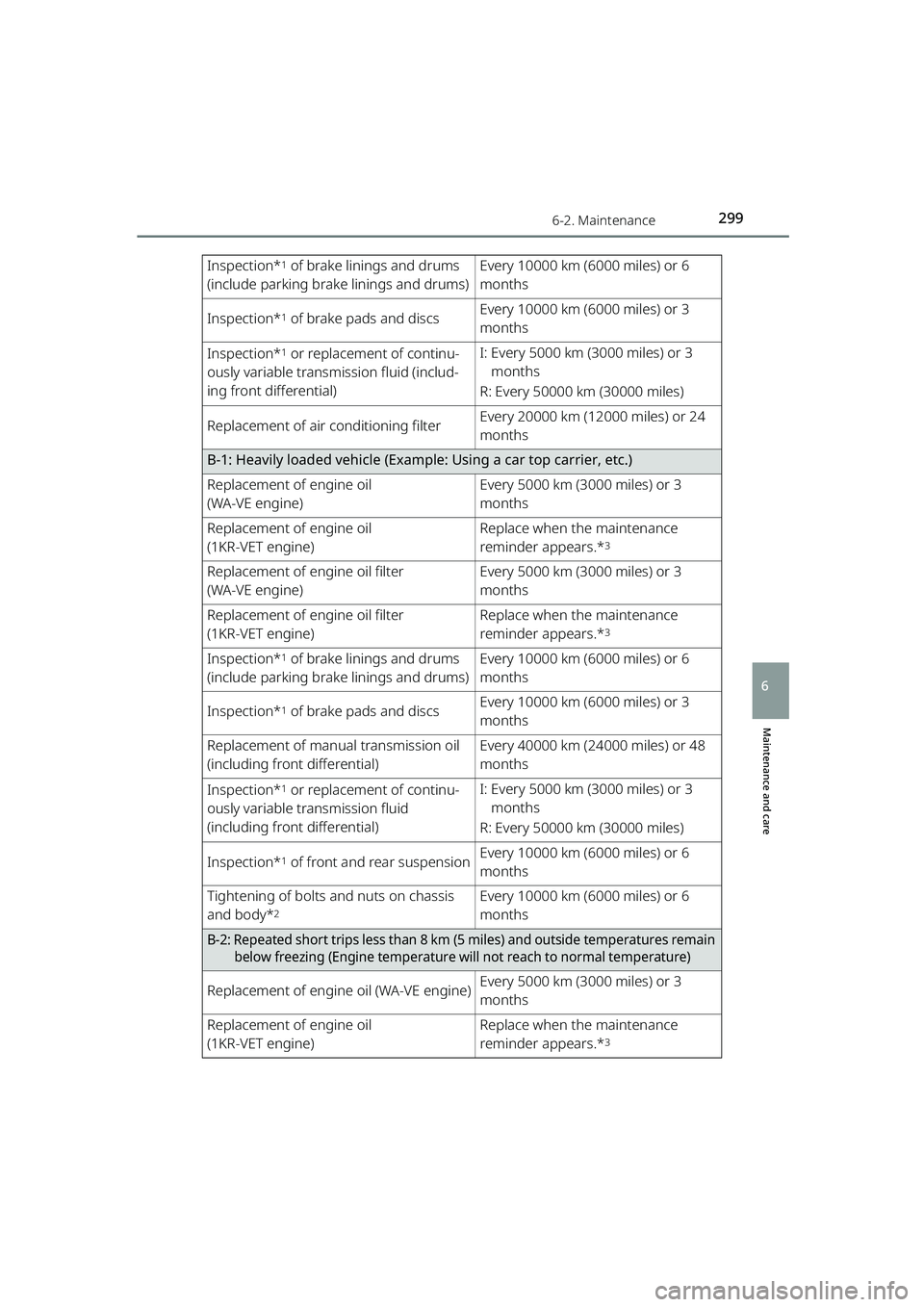

2996-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection*1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Replacement of air conditioning filter Every 20000 km (12000 miles) or 24
months
B-1: Heavily loaded vehicle (Example: Using a car top carrier, etc.)
Replacement of engine oil
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Replacement of engine oil filter
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil filter
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection*1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Replacement of manual transmission oil
(including front differential)Every 40000 km (24000 miles) or 48
months
Inspection*1 or replacement of continu-
ously variable transmission fluid
(including front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Inspection*1 of front and rear suspensionEvery 10000 km (6000 miles) or 6
months
Tightening of bolts and nuts on chassis
and body*
2
Every 10000 km (6000 miles) or 6
months
B-2: Repeated short trips less than 8 km (5 miles) and outside temperatures remain below freezing (Engine temperature will not reach to normal temperature)
Replacement of engine oil (WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
RAIZE_OM_General_BZ358E.book 299 ページ ２０２２年５月１７日　火曜日　午後１時５９分

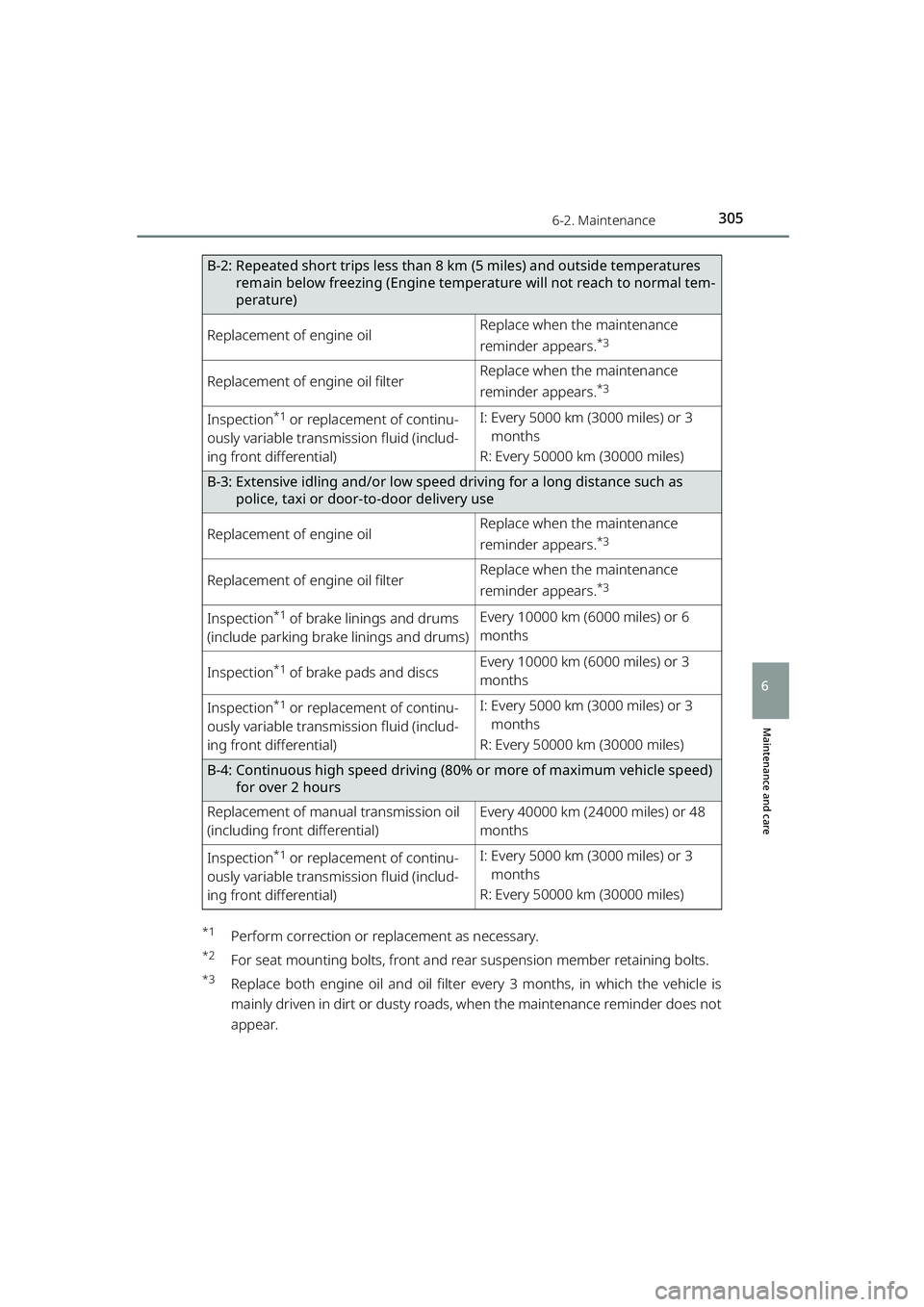

3056-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
*1Perform correction or replacement as necessary.
*2For seat mounting bolts, front and rear suspension member retaining bolts.
*3Replace both engine oil and oil filter every 3 months, in which the vehicle is
mainly driven in dirt or dusty roads, when the maintenance reminder does not
appear.
B-2: Repeated short trips less than 8 km (5 miles) and outside temperatures remain below freezing (Engine temperature will not reach to normal tem-
perature)
Replacement of engine oilReplace when the maintenance
reminder appears.
*3
Replacement of engine oil filterReplace when the maintenance
reminder appears.
*3
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
B-3: Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use
Replacement of engine oilReplace when the maintenance
reminder appears.
*3
Replacement of engine oil filterReplace when the maintenance
reminder appears.
*3
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection* 1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
B-4: Continuous high speed driving (80% or more of maximum vehicle speed) for over 2 hours
Replacement of manual transmission oil
(including front differential)Every 40000 km (24000 miles) or 48
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
RAIZE_OM_General_BZ358E.book 305 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3186-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
⚫When the outside temperature is low, the engine oil may become white and
creamy, and it may get to the back of the oil filler cap or oil filling port.This
phenomenon takes place when water vapor in the engine is cooled, forming
water drops, which in turn are mixed wi th the engine oil. This, however, will
disappear when the water evaporates as the outside temperature gets high
or the engine warms up.The engine oil does not deteriorate due to this phe-
nomenon and there will be no problem if the engine oil is continued to be
used.
WARNING
⬛Used engine oil
⚫Used engine oil contains potentially harmful contaminants which may cause
skin disorders such as inflammation and skin cancer, so care should be
taken to avoid prolonged and repeated contact. To remove used engine oil
from your skin, wash thoroughly with soap and water.
⚫Dispose of used oil and filters only in a safe and acceptable manner. Do not
dispose of used oil and filters in hous ehold trash, in sewers or onto the
ground.
Call your Toyota dealer, service stat ion or auto parts store for information
concerning recycling or disposal.
⚫Do not leave used engine oil within the reach of children.
⬛If engine oil is spilled
If oil is spilled on the alternator, wipe off the oil immediately. Oil spilled on the
alternator will cause a fire.
NOTICE
⬛To prevent serious engine damage
Observe the following precautions.
⚫Check the oil level on a regular basis.
⚫Do not use any engine oil additive.
⬛When replacing the engine oil
⚫Be careful not to spill engine oil on the vehicle components.
⚫Avoid overfilling, or the engine could be damaged.
⚫Check the oil level on the dipstick every time you refill the vehicle.
⚫Be sure the engine oil filler cap is properly tightened.
RAIZE_OM_General_BZ358E.book 318 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3196-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
Engine coolant
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines
on the reservoir when the engine is cold.
a Reservoir cap
b “FULL” line
c “LOW” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL” line.
(➞ P. 412)
⬛Coolant selection
Only use “Toyota Super Long Life Coolan t” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid org anic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35°C [-31°F])
For more details about engine coolant, contact your Toyota Genuine dealer.
⬛If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir cap, drain cock and
water pump.
If you cannot find a leak, have your Toyo ta dealer test the cap and check for
leaks in the cooling system.
WARNING
⬛When the engine is hot
Do not remove the radiator cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing seri ous injuries, such as burns.
⬛When replacing the coolant
To avoid coolant spilling on the altern ator, do not remove the upper radiator
hose from engine side (remove from the radiator side). Coolant spilled on the
alternator will cause corrosion of the coil and a fire.
1
3
2
KBRO620908N
RAIZE_OM_General_BZ358E.book 319 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3797-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
When trouble arises
7
If a warning light turns on
If a warning light remains on or flashes, remain calm and take the
following actions. Even if the warn ing light lights up or flashes then
goes out, it is not a malfunction. However, if the same phenomenon
occurs again, have the vehicle inspected at your Toyota dealer.
Warning light/Warning buzzers list
Warning lightsWarning light name/Warning content/Action to take
Brake system warning light (warning buzzer *1)
⦁Low brake fluid level
⦁Malfunction in the brake system
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer. Continuing to drive the vehicle is dangerous.
Charging system warning light✽
Malfunction in the vehicle’s charging system
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
Low engine oil pressure warning light✽ (warning buzzer)
Abnormal engine oil pressure
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
(Red light
flashing or lit)
High coolant temperature warning light
Abnormal engine coolant temperat ure (light changes from flash-
ing to lit as the temperature rises ➞P. 412.)
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
Malfunction indicator lamp
⦁Malfunction in the electron ic engine control system
⦁Electronic control throttle error
➞ Have the vehicle inspected at your Toyota dealer immedi-
ately.
Continuously variable transmission warning light✽
Malfunction of the continuously variable transmission electronic
control system
➞ Have the vehicle inspected at your Toyota dealer immedi-
ately.
RAIZE_OM_General_BZ358E.book 379 ページ ２０２２年５月１７日　火曜日　午後１時５９分
