TABLE OF CONTENTS
For your information................................ 6
Reading this manual .............................. 10
How to search ......................................... 11
Pictorial index .......................................... 12
1 For safety and security
1-1. For safe use
Before driving ............................... 28
For safe driving ............................ 30
Seat belts ....................................... 32
SRS airbags ................................... 37
Exhaust gas precautions............ 47
1-2. Safety information for children
When children are
in the vehicle .............................. 48
Child restraint systems ............... 49
1-3. Emergency assistance
eCall ................................................ 68
1-4. Theft deterrent system
Engine immobilizer system ....... 72
Alarm .............................................. 73
2 Instrument cluster
2-1. Instrument cluster
Warning lights and indicators... 78
Gauges and meters .................... 84
Multi-information display ........... 86
TFT color mult i-information
display ......................................... 98
3 Operation of each component
3-1. Keys
Keys .............................................. 118
3-2. Opening, closing and locking the doors
Key-free system.......................... 121
Wireless remote control .......... 131
Doors
(front doors, rear doors) ....... 133
Back door .................................... 142
3-3. Adjusting the seats
Front seats .................................. 148
Rear seats .................................... 149
Head restraints .......................... 152
3-4. Steering wheel position and mirrors
Steering wheel ........................... 154
Inside rear view mirror ............. 156
Outside rear view mirrors........ 157
3-5. Opening and closing the windows
Power windows .......................... 160
RAIZE_OM_General_BZ358E.book 2 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3
RAIZE_OM_General_BZ358E
1
2
3
4
5
6
7
8
4 Driving
4-1. Driving the vehicle
Driving the vehicle ..................... 166
Precautions when loading luggage ..................................... 177
Trailer towing.............................. 179
4-2. Driving procedures
Engine (ignition) switch (vehicles without key-free
system) ...................................... 180
Engine (ignition) switch (vehicles with key-free
system) ...................................... 184
Continuously variable transmission ............................ 189
Driving the manual transmission vehicle........................................ 194
Turn signal lever ........................ 196
Parking brake ............................. 197
4-3. Operating the lights and windshield wipers
Headlight switch ........................ 198
Fog light switch .......................... 201
Windshield wipers and washer
(front) ......................................... 203
Windshield wipers and washer (rear) .......................................... 205
4-4. Refueling
Opening the fuel tank cap ....... 207
4-5. Using the driving support systems
BSM (Blind Spot Monitor) ........ 211
Front corner sensors/
Reverse sensors ...................... 221
Rear-view camera ...................... 228
Driving assist systems .............. 232
4-6. Driving tips
Winter driving tips ..................... 238
Eco-friendly driving tips............ 241
5 Interior features
5-1. Using the air conditioning system and defogger
Manual air conditioning system
(Type A)...................................... 244
Manual air conditioning system (Type B)...................................... 248
Automatic air conditioning system ....................................... 254
5-2. Using the audio system
Steering switches ...................... 262
5-3. Using the interior light
Interior lights list........................ 263
5-4. Storage features
List of storage features ............ 266
Luggage compartment features ..................................... 271
5-5. Using the other interior features
Other interior features ............. 276
RAIZE_OM_General_BZ358E.book 3 ページ ２０２２年５月１７日　火曜日　午後１時５９分

15Pictorial index
RAIZE_OM_General_BZ358E✽
: If equipped
c Meters ....................................................................................................... P. 84, 85
How to read/adjust the brightness ................................................................ P. 89, 104
Warning lights and indicators .................................................................................. P. 78
When the warning lights come on ....................................................................... P. 379
Multi-information display
✽………………………………………………………………… P. 86
TFT color multi-in formation display
✽.......................................................... P. 98
Display contents ................................................................................................... P. 86, 98
When warning messages are displayed
✽........................................................... P. 387
d Turn signal lever .......................................................................................... P. 196
Headlight switch ……………………………………………………………………………… P. 198
Headlights/front position lights/tail lights .......................................................... P. 198
Front fog lights
✽....................................................................................................... P. 201
e Windshield wipers and washer switch .............................................. P. 203, 205
Usage ................................................................................................................. P. 203, 20 5
Adding washer fluid ................................................................................................. P. 324
f Emergency flashers switch ......................................................................... P. 366
g Hood lock release lever ............................................................................... P. 311
h Tilt Steering .................................................................................................. P. 154
i Parking brake ............................................................................................... P. 197
Engaging/releasing.................................................................................................. P. 197
Precautions against winter season ...................................................................... P. 238
Warning buzzer/warning message
✽........................................................... P. 382, 391
j Air conditioning system .............................................................. P. 244, 248, 254
Operation method ................................................................................. P. 244, 248, 254
Defogging the rear window (Rear window defogger)
✽................. P. 245, 249, 256
k Power outlet ................................................................................................. P. 277
l USB ports .............................................................................................. P. 278, 280
m Fuel tank opening lever .............................................................................. P. 209
n Audio system
✽*
*Refer to the instruction manual included with the audio system.
RAIZE_OM_General_BZ358E.book 15 ページ ２０２２年５月１７日　火曜日　午後１時５９分

17Pictorial index
RAIZE_OM_General_BZ358E✽
: If equipped
Steering switches (Left-hand drive vehicles)
Locations of the steering switches vary according to the vehicle grade
level, etc.
a Meter control switch✽................................................................................... P. 99
b Paddle shift switch
✽..................................................................................... P. 191
c Talk switch
✽*
d Audio control switch
✽*
e Telephone switch
✽*
f D assist switching steering switch
✽........................................................... P. 190
*Refer to the instruction manual included with the audio system.
111223
44
444
65
KBRO040302E
RAIZE_OM_General_BZ358E.book 17 ページ ２０２２年５月１７日　火曜日　午後１時５９分

21Pictorial index
RAIZE_OM_General_BZ358E✽
: If equipped
c Meters ....................................................................................................... P. 84, 85
How to read/adjust the brightness ................................................................ P. 89, 104
Warning lights and indicators .................................................................................. P. 78
When the warning lights come on ....................................................................... P. 379
Multi-information display
✽………………………………………………………………… P. 86
TFT color multi-in formation display
✽.......................................................... P. 98
Display contents ................................................................................................... P. 86, 98
When warning messages are displayed
✽........................................................... P. 387
d Turn signal lever .......................................................................................... P. 196
Headlight switch ……………………………………………………………………………… P. 198
Headlights/front position lights/tail lights .......................................................... P. 198
Front fog lights
✽....................................................................................................... P. 201
e Windshield wipers and washer switch .............................................. P. 203, 205
Usage ................................................................................................................. P. 203, 20 5
Adding washer fluid ................................................................................................. P. 324
f Emergency flashers switch ......................................................................... P. 366
g Hood lock release lever ............................................................................... P. 311
h Tilt Steering .................................................................................................. P. 154
i Parking brake ............................................................................................... P. 197
Engaging/releasing.................................................................................................. P. 197
Precautions against winter season ...................................................................... P. 238
Warning buzzer/warning message
✽........................................................... P. 382, 391
j Air conditioning system .............................................................. P. 244, 248, 254
Operation method ................................................................................. P. 244, 248, 254
Defogging the rear window (Rear window defogger) ................... P. 245, 249, 256
k Power outlet ................................................................................................. P. 277
l USB ports .............................................................................................. P. 278, 280
m Fuel tank opening lever .............................................................................. P. 209
n Audio system
✽*
*Refer to the instruction manual included with the audio system.
RAIZE_OM_General_BZ358E.book 21 ページ ２０２２年５月１７日　火曜日　午後１時５９分

23Pictorial index
RAIZE_OM_General_BZ358E✽
: If equipped
Steering switches (Right- hand drive vehicles)
Locations of the steering switches vary according to the vehicle grade
level, etc.
aMeter control switch✽................................................................................... P. 99
b Paddle shift switch
✽..................................................................................... P. 191
c Talk switch*
d Audio control switch*
e Telephone switch*
f D assist switching steering switch
✽........................................................... P. 190
*Refer to the instruction manual included with the audio system.
111223
44
444
65
KBRO040302E
RAIZE_OM_General_BZ358E.book 23 ページ ２０２２年５月１７日　火曜日　午後１時５９分

301-1. For safe use
RAIZE_OM_General_BZ358E
For safe driving

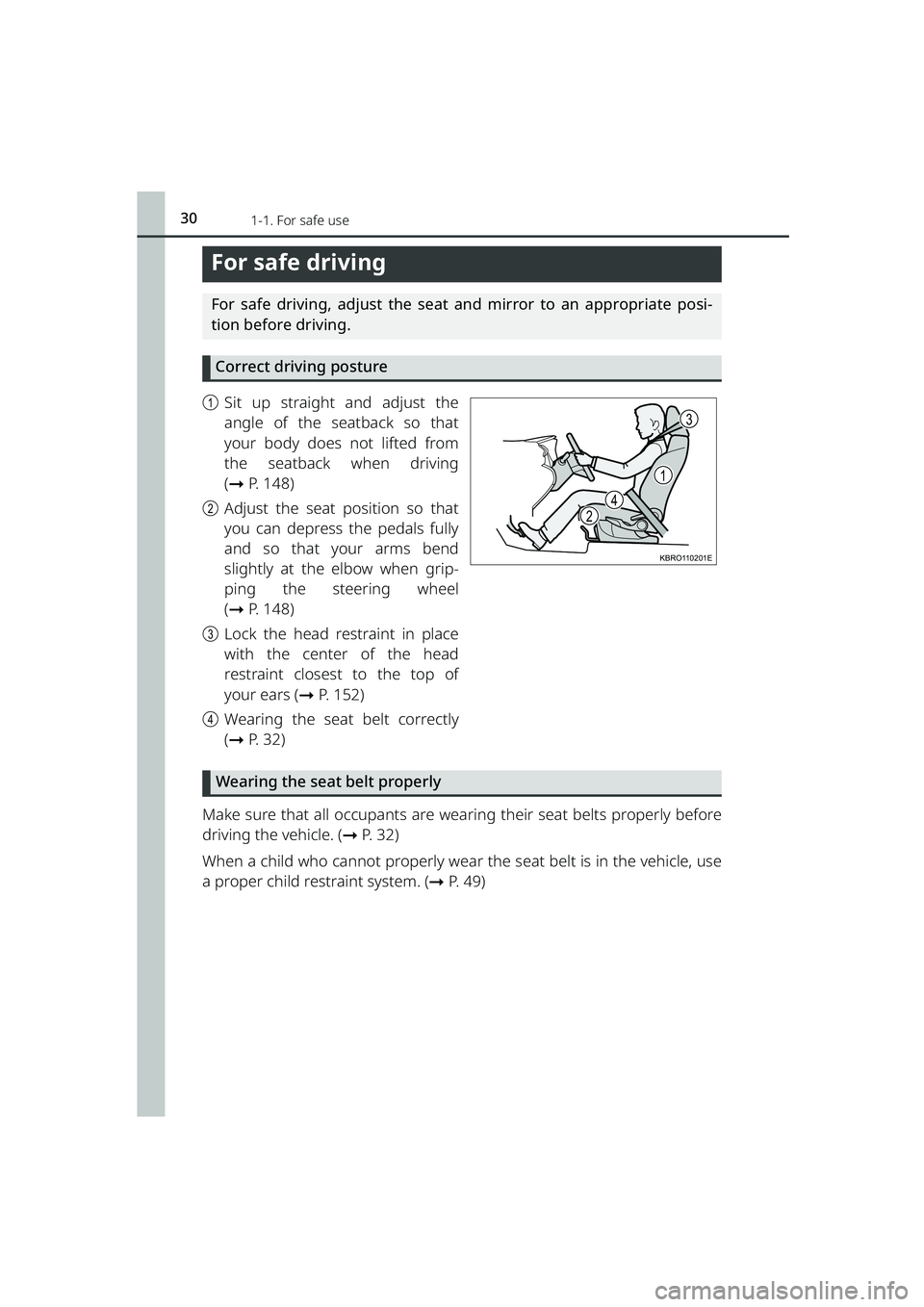

For safe driving, adjust the seat and mirror to an appropriate posi-
tion before driving.Correct driving posture
a Sit up straight and adjust the
angle of the seatback so that
your body does not lifted from
the seatback when driving
(➞ P. 148)
b Adjust the seat position so that
you can depress the pedals fully
and so that your arms bend
slightly at the elbow when grip-
ping the steering wheel
(➞ P. 148)
c Lock the head restraint in place
with the center of the head
restraint closest to the top of
your ears ( ➞P. 152)
d Wearing the seat belt correctly
(➞ P. 32)
Wearing the seat belt properly
Make sure that all occupants are wear ing their seat belts properly before
driving the vehicle. ( ➞P. 32)
When a child who cannot properly wear th e seat belt is in the vehicle, use
a proper child restraint system. ( ➞P. 49)
2
1
4
3
KBRO110201E
RAIZE_OM_General_BZ358E.book 30 ページ ２０２２年５月１７日　火曜日　午後１時５９分

341-1. For safe use
RAIZE_OM_General_BZ358E

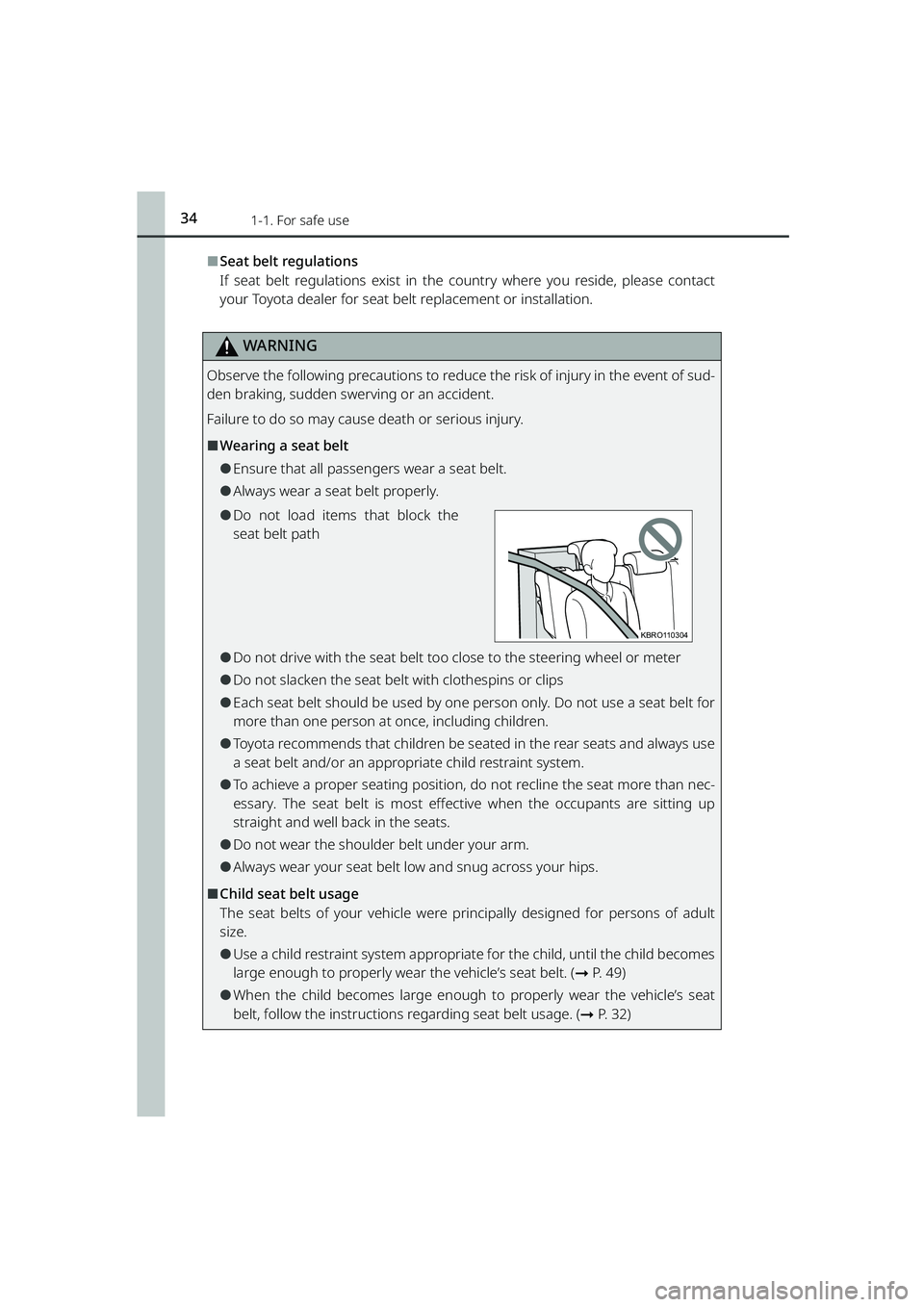

⬛Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
your Toyota dealer for seat belt replacement or installation.
WARNING
Observe the following precautions to reduce the risk of injury in the event of sud-
den braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
⬛Wearing a seat belt
⚫Ensure that all passengers wear a seat belt.
⚫Always wear a seat belt properly.
⚫Do not load items that block the
seat belt path
⚫Do not drive with the seat belt too close to the steering wheel or meter
⚫Do not slacken the seat belt with clothespins or clips
⚫Each seat belt should be used by one person only. Do not use a seat belt for
more than one person at once, including children.
⚫Toyota recommends that children be se ated in the rear seats and always use
a seat belt and/or an appropriate child restraint system.
⚫To achieve a proper seating position, do not recline the seat more than nec-
essary. The seat belt is most effect ive when the occupants are sitting up
straight and well back in the seats.
⚫Do not wear the shoulder belt under your arm.
⚫Always wear your seat belt low and snug across your hips.
⬛Child seat belt usage
The seat belts of your vehicle were pr incipally designed for persons of adult
size.
⚫Use a child restraint system appropriat e for the child, until the child becomes
large enough to properly wear the vehicle’s seat belt. ( ➞P. 4 9 )
⚫When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. ( ➞P. 3 2 )
KBRO110304
RAIZE_OM_General_BZ358E.book 34 ページ ２０２２年５月１７日　火曜日　午後１時５９分

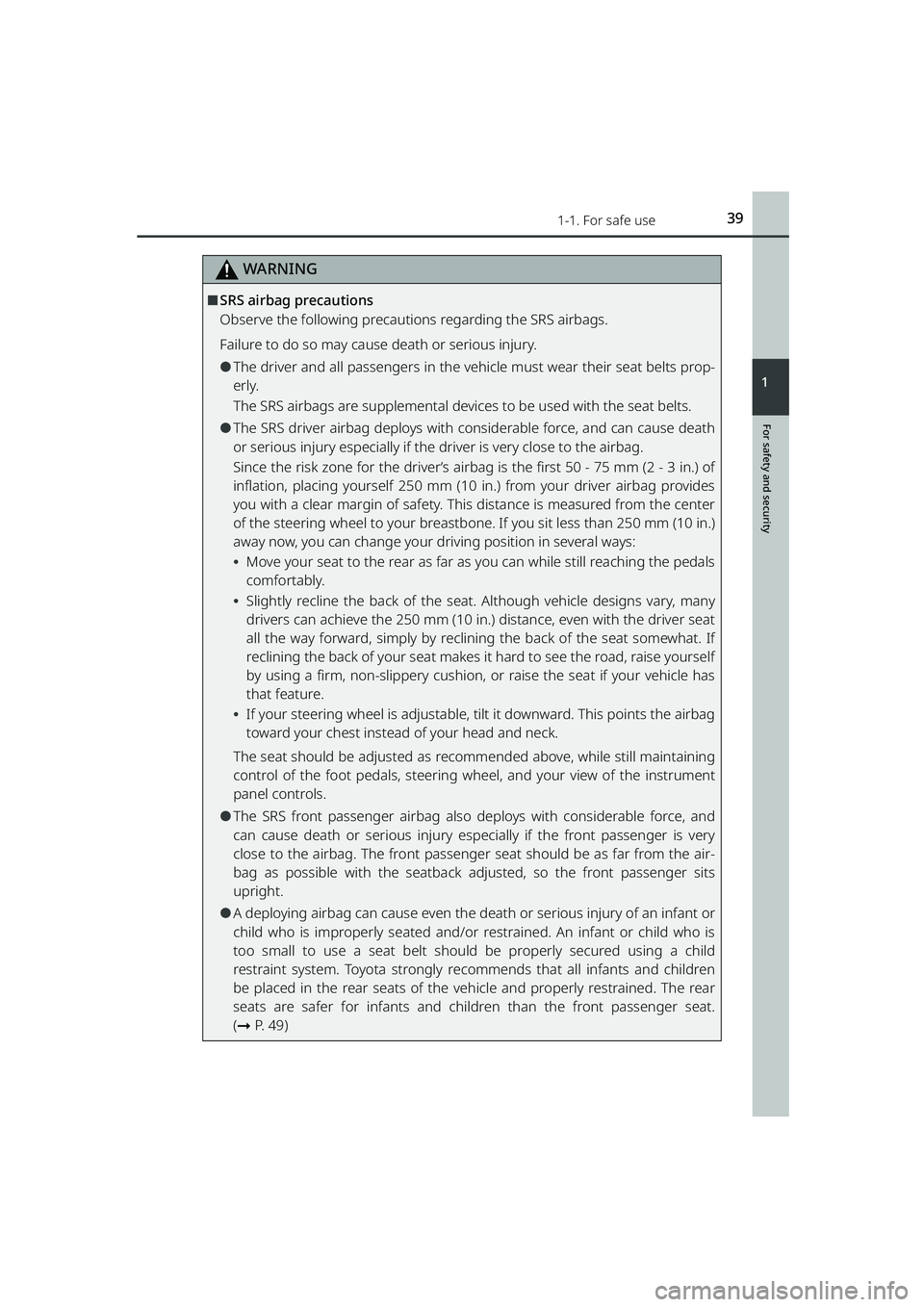

391-1. For safe use
RAIZE_OM_General_BZ358E
For safety and security
1
WARNING
⬛SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
⚫The driver and all passengers in the vehicle must wear their seat belts prop-
erly.
The SRS airbags are supplemental devices to be used with the seat belts.
⚫The SRS driver airbag deploys with co nsiderable force, and can cause death
or serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.) of
inflation, placing yourself 250 mm (10 in .) from your driver airbag provides
you with a clear margin of safety. This distance is measured from the center
of the steering wheel to your breastbo ne. If you sit less than 250 mm (10 in.)
away now, you can change your driving position in several ways:
⦁ Move your seat to the rear as far as you can while still reaching the pedals
comfortably.
⦁ Slightly recline the back of the seat . Although vehicle designs vary, many
drivers can achieve the 250 mm (10 in.) distance, even with the driver seat
all the way forward, simply by reclin ing the back of the seat somewhat. If
reclining the back of your seat makes it hard to see the road, raise yourself
by using a firm, non-slippery cushion, or raise the seat if your vehicle has
that feature.
⦁ If your steering wheel is adjustable, ti lt it downward. This points the airbag
toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintaining
control of the foot pedals, steering wh eel, and your view of the instrument
panel controls.
⚫The SRS front passenger airbag also de ploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the air-
bag as possible with the seatback ad justed, so the front passenger sits
upright.
⚫A deploying airbag can cause even the de ath or serious injury of an infant or
child who is improperly seated and/or restrained. An infant or child who is
too small to use a seat belt should be properly secured using a child
restraint system. Toyota strongly re commends that all infants and children
be placed in the rear seats of the ve hicle and properly restrained. The rear
seats are safer for infants and child ren than the front passenger seat.
( ➞ P. 49)
RAIZE_OM_General_BZ358E.book 39 ページ ２０２２年５月１７日　火曜日　午後１時５９分

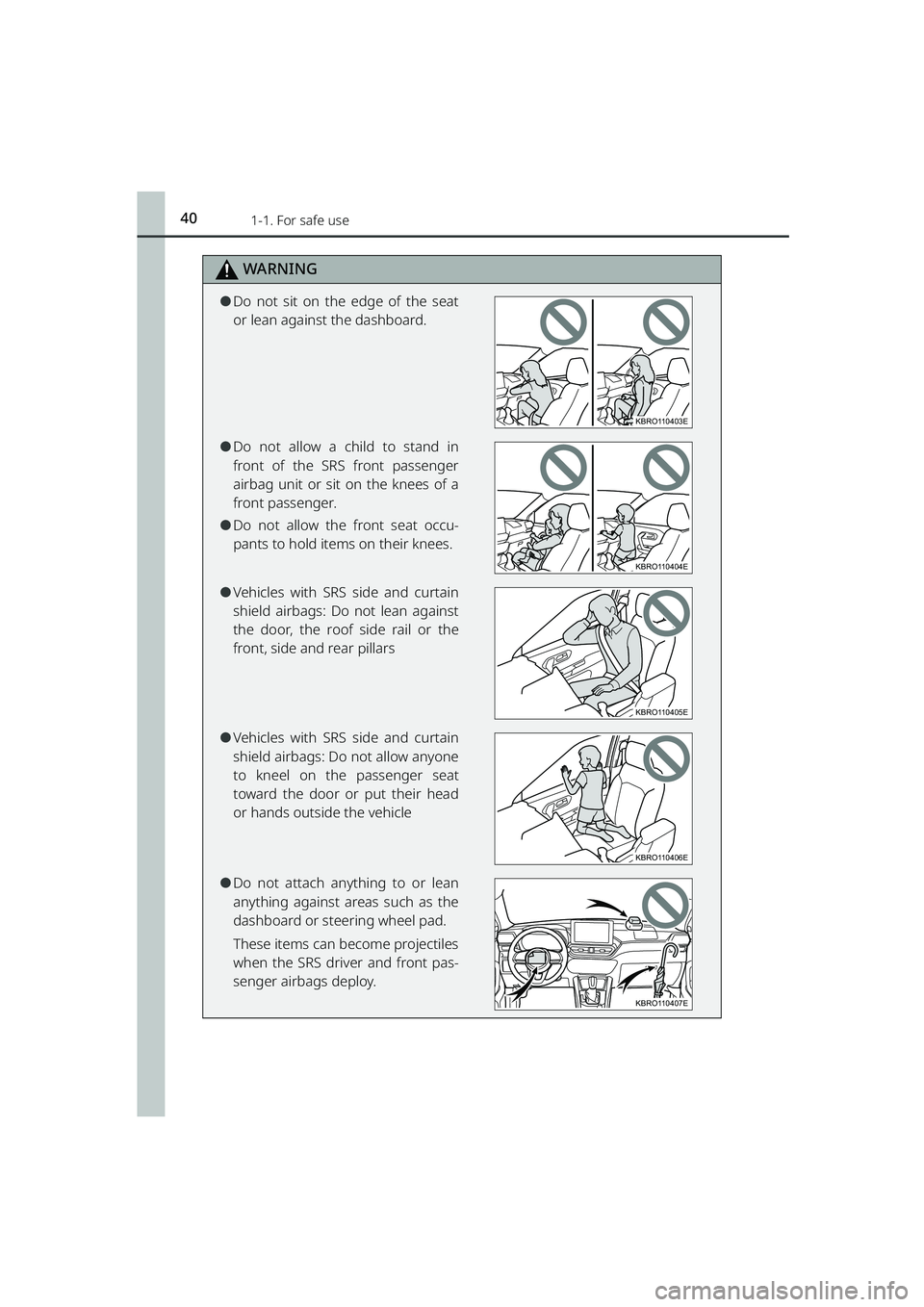

401-1. For safe use
RAIZE_OM_General_BZ358E
WARNING
⚫Do not sit on the edge of the seat
or lean against the dashboard.
⚫Do not allow a child to stand in
front of the SRS front passenger
airbag unit or sit on the knees of a
front passenger.
⚫Do not allow the front seat occu-
pants to hold items on their knees.
⚫Vehicles with SRS side and curtain
shield airbags: Do not lean against
the door, the roof side rail or the
front, side and rear pillars
⚫Vehicles with SRS side and curtain
shield airbags: Do not allow anyone
to kneel on the passenger seat
toward the door or put their head
or hands outside the vehicle
⚫Do not attach anything to or lean
anything against areas such as the
dashboard or steering wheel pad.
These items can become projectiles
when the SRS driver and front pas-
senger airbags deploy.
KBRO110403E
KBRO110404E
KBRO110405E
KBRO110406E
KBRO110407E
RAIZE_OM_General_BZ358E.book 40 ページ ２０２２年５月１７日　火曜日　午後１時５９分
