temperature sensor TOYOTA RAIZE 2023 Owners Manual

862-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Multi-information display✽
Display contents
The multi-information display shows a va riety of outside temperature- and
driving-related information.
⚫Trip information ( ➞P. 8 9 )
The displayed items are as follows.
⦁Odometer
⦁ Tr ip m eter A/B
⦁ Instrument panel illumination adjust-
ment
⚫Driving information ( ➞P. 90)
The displayed items are as follows.
⦁Instantaneous fuel economy
⦁ Average fuel economy
⦁ Cruising distance
⦁ Outside temperature
⚫Fuel gauge
Indicates the amount of remaining fuel.
⚫Shift position display✽ (➞ P. 189)
⚫Clock display ( ➞P. 88)
⚫Front corner sensor/Reverse sen-
sor indicator
✽ (➞ P. 221)
▶Vehicles without tachometer
▶Vehicles with tachometer
KBRO210501E
KBRO210301E
RAIZE_OM_General_BZ358E.book 86 ページ ２０２２年５月１７日　火曜日　午後１時５９分

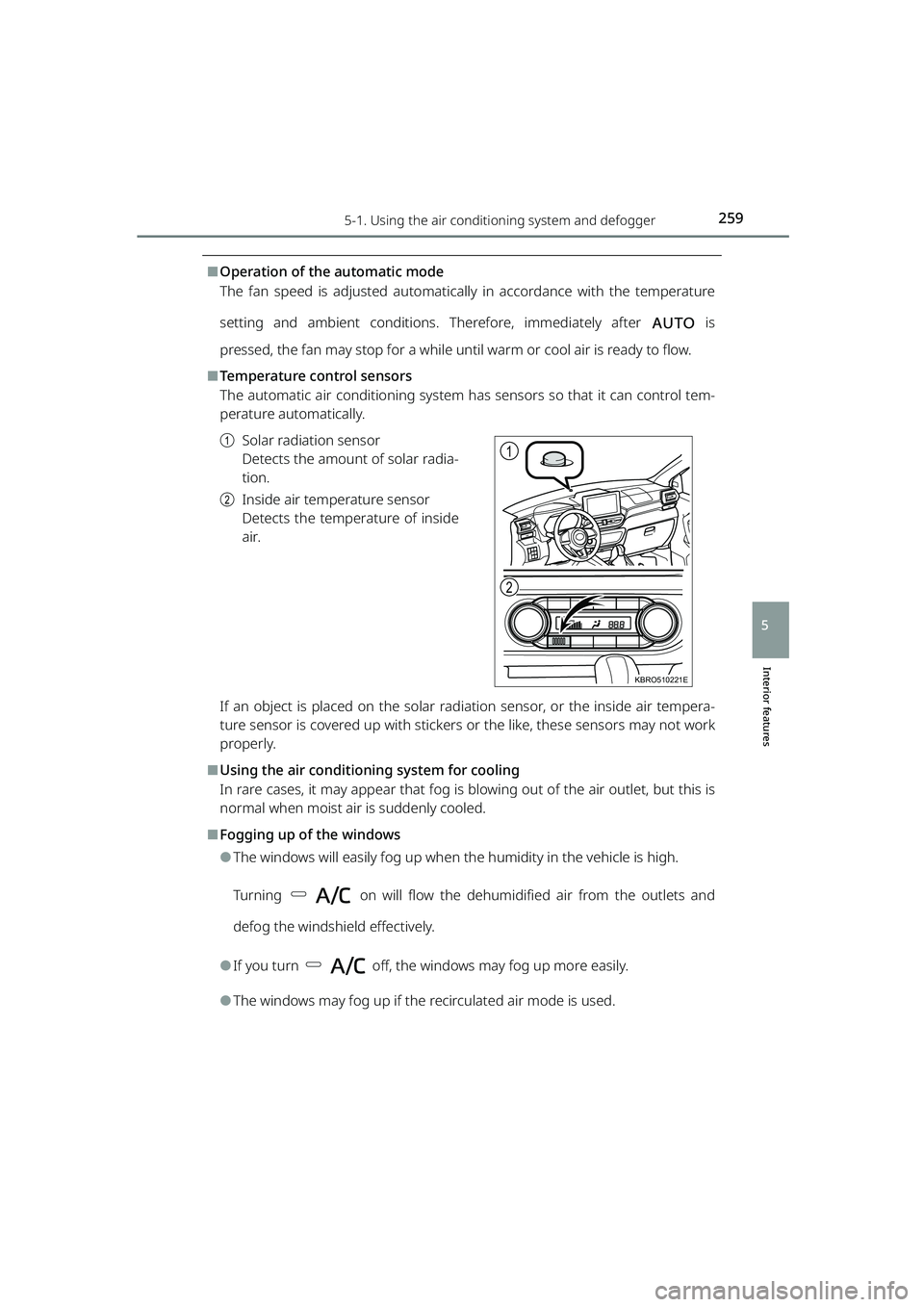

2595-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5
⬛Operation of the automatic mode
The fan speed is adjusted automatically in accordance with the temperature
setting and ambient conditions. Th erefore, immediately after is
pressed, the fan may stop for a while until warm or cool air is ready to flow.
⬛Temperature control sensors
The automatic air conditioning system has sensors so that it can control tem-
perature automatically.
a Solar radiation sensor
Detects the amount of solar radia-
tion.
b Inside air temperature sensor
Detects the temperature of inside
air.
If an object is placed on the solar radiation sensor, or the inside air tempera-
ture sensor is covered up with stickers or the like, these sensors may not work
properly.
⬛Using the air conditioni ng system for cooling
In rare cases, it may appear that fog is blowing out of the air outlet, but this is
normal when moist air is suddenly cooled.
⬛Fogging up of the windows
⚫The windows will easily fog up when th e humidity in the vehicle is high.
Turning on will flow the dehumi dified air from the outlets and
defog the windshield effectively.
⚫If you turn off, the windows may fog up more easily.
⚫The windows may fog up if the re circulated air mode is used.
1
2
KBRO510221E
RAIZE_OM_General_BZ358E.book 259 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2795-5. Using the other interior features
RAIZE_OM_General_BZ358E
Interior features
5
cAfter use, make sure to remove the cable
Check that the lids are closed.
⚫If charging stops temporarily when th e engine restarts, the battery may be
deteriorated. In that case, contact your Toyota dealer.
⚫Depending on the devices connected, charging may occasionally be sus-
pended and then start again. This is not a malfunction.
⬛Operating conditions
When the engine switch is “ACC” or “ON”
⬛Situations where the USB ports may not work properly
⚫If a device requiring more than the maximum rating is connected
⦁ Charging may not be possible due to protection features.
⦁ Even if charging starts, it may ta ke long time to be completed.
⚫If the temperature inside the vehicle is high, such as immediately after the
vehicle has been parked in the hot sun
⦁ By using the air conditioning system or other means, ventilate the vehicle
and decrease the temperature inside it. After a while, start charging.
⦁ If charging is performed in a high temperature environment, it may be
automatically stopped by the temperature sensor.
WARNING
⚫Inserting fingers or foreign matter such as metals and liquid into the USB
ports may cause damage, a short circuit, or electric shock.
⚫Be careful not to trip over the cables co nnected. This may cause damage to the
device or injury due to falling.
NOTICE
⚫Do not apply strong impact or force.
⬛To prevent battery discharge
⚫Do not use the USB ports for a long time with the engine stopped.
⚫Even when the ports are used while dr iving, remove the cables when they
are no longer in use.
RAIZE_OM_General_BZ358E.book 279 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3917-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
When trouble arises
7
“Fasten Seat Belt”
Rear seat belt is not fastened
The warning buzzer will sound.
It will be displayed when the vehicle speed
exceeds approx. 20 km/h (12 mph) and the
seat belt is unfastened.
➞ Wear a seat belt
“Release Parking
Brake”
The parking brake is not released
If the vehicle speed exceeds approx. 5 km/h
(3 mph) with the parking brake being
applied, the warning buzzer will sound.
➞ Release the parking brake
“Sonar Sensor in Oper-
ation Pay Attention”―
Front corner sensors or reverse sensors is
activated
✽
The activated sonar is displayed.
The warning buzzer may sound.
➞ Check the situation around you and drive
accordingly such as stepping on the
brake pedal
“VSC in Operation”
(Flashing)
VSC is activated
➞Drive with extreme caution
“Turn Lights OFF”
The driver’s door was opened while the
front position lights are turned on
The warning buzzer will sound.
➞ Turn off the front position lights
“Steering Angle Left”
―
The steering wheel is mo ved to left or right
while the vehicle is stopped
➞ Check the tire direction and move the
vehicle safety
“Steering Angle Right”
“Roads may be Icy”―
The outside temperature has become
approx. 3°C (37 ℉) or below
➞ Since the road could be frozen, check the
road condition and drive with extreme
caution
Warning messages
Indicators/
Warning lights
Warning content/Action to take
RAIZE_OM_General_BZ358E.book 391 ページ ２０２２年５月１７日　火曜日　午後１時５９分

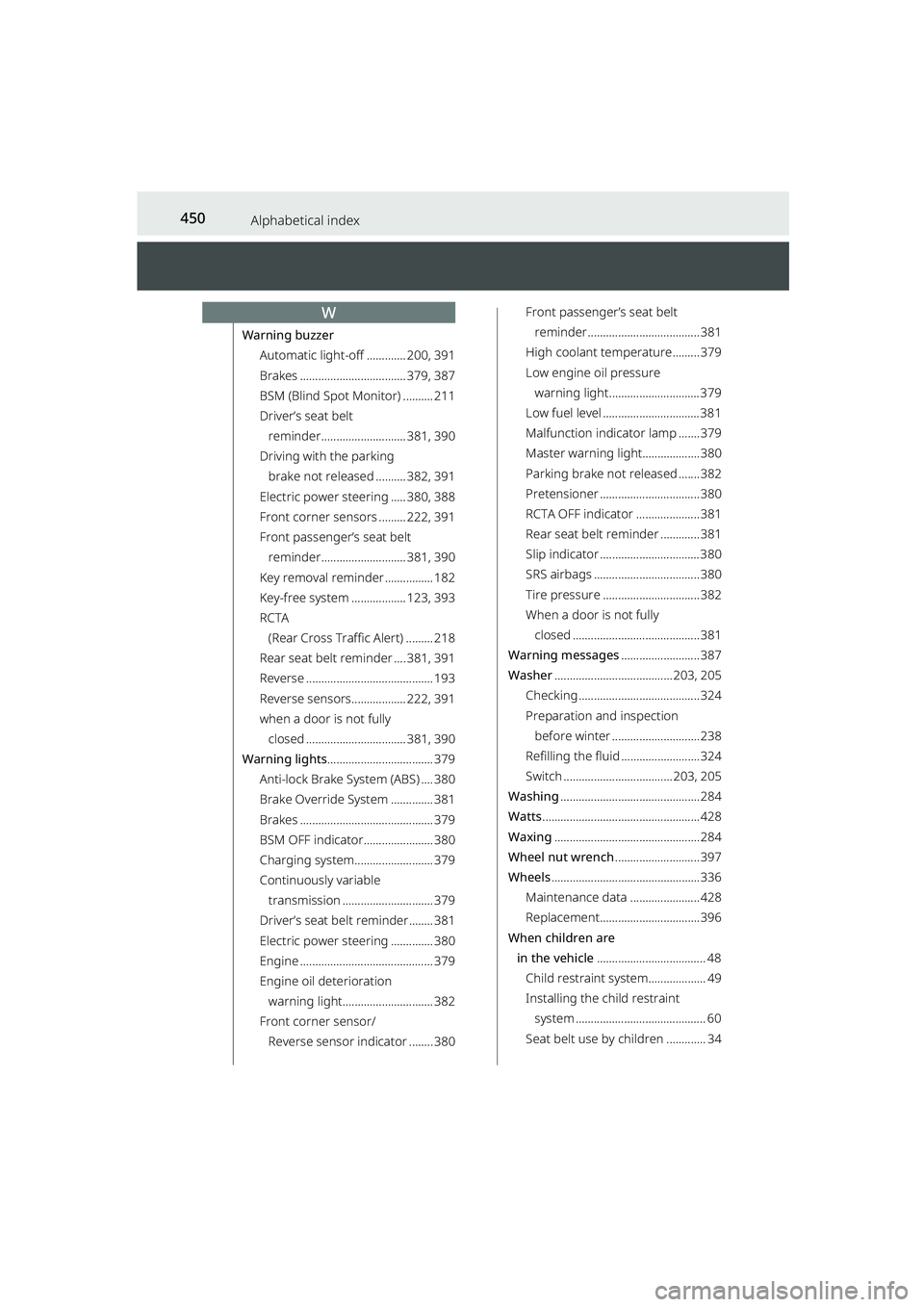

450Alphabetical index
RAIZE_OM_General_BZ358E
W
Warning buzzerAutomatic light-off .. ........... 200, 391
Brakes ...... ............................. 379, 387
BSM (Blind Spot Monitor) .......... 211
Driver’s seat belt reminder...... ...................... 381, 390
Driving with the parking brake not released .......... 382, 391
Electric power st eering ..... 380, 388
Front corner sens ors ......... 222, 391
Front passenger’s seat belt
reminder...... ...................... 381, 390
Key removal reminder ................ 182
Key-free system ..... ............. 123, 393
RCTA (Rear Cross Traffic Alert) ......... 218
Rear seat belt reminder .... 381, 391
Reverse .......................................... 193
Reverse sensor s.................. 222, 391
when a door is not fully
closed .......................... ....... 381, 390
Warning lights ................................... 379
Anti-lock Brake System (ABS) .... 380
Brake Override System .............. 381
Brakes ............................................ 379
BSM OFF indicator....................... 380
Charging system.......................... 379
Continuously variable
transmission .............................. 379
Driver’s seat belt reminder........ 381
Electric power steering .............. 380
Engine ............................................ 379
Engine oil deterioration warning light.............................. 382
Front corner sensor/ Reverse sensor indicator ........ 380 Front passenger’s seat belt
reminder ..................................... 381
High coolant temperature......... 379
Low engine oil pressure warning light.............................. 379
Low fuel level ................................ 381
Malfunction indica tor lamp ....... 379
Master warning light................... 380
Parking brake not released ....... 382
Pretensioner ................................. 380
RCTA OFF indicator ..................... 381
Rear seat belt reminder ............. 381
Slip indicator ................................. 380
SRS airbags ................................... 380
Tire pressure ................................ 382
When a door is not fully closed .......................................... 381
Warning messages .......................... 387
Washer .................... ...................203, 205
Checking ........................................ 324
Preparation and inspection
before winter ............................. 238
Refilling the fluid .......................... 324
Switch .......... ..........................203, 205
Washing .............................................. 284
Watts .................................................... 428
Waxing ................................................ 284
Wheel nut wrench ............................ 397
Wheels ................................................. 336
Maintenance data ....................... 428
Replacement................................. 396
When children are in the vehicle .................................... 48
Child restraint system................... 49
Installing the ch ild restraint
system ........................................... 60
Seat belt use by children ............. 34
