e Fuel filler door .............................................................................................. P. 207
Refueling method .................................................................................................... P. 207
Fuel type/fuel tank capacity ................................................................................... P. 421
f Tires ............................................................................................................... P. 327
Tire size/inflation pressure ..................................................................................... P. 428
Checking/rotation .................................................................................................... P. 327
Dealing with flat tires............................................................................................... P. 396
g Hood .............................................................................................................. P. 311
Opening ..................................................................................................................... P. 3 11
Engine oil .......................................................................................................... P. 421, 423
Coping with overheat .............................................................................................. P. 412
Light bulbs of the exterior lights for driving
(Replacing method: P. 352, Watts: P. 428)
h Headlights .................................................................................................... P. 198
i Turn signal lights ......................................................................................... P. 196
j Front position lights .................................................................................... P. 198
k Front fog lights
✽........................................................................................... P. 201
l Daytime running lights
✽............................................................................. P. 198
m Back-up lights
Setting the shift lever to R ............................................................................. P. 189, 194
n Tail lights ....................................................................................................... P. 198
o License plate lights ...................................................................................... P. 198
p Rear fog light
✽.............................................................................................. P. 201
RAIZE_OM_General_BZ358E.book 13 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1132-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
⬛Initialization of display settings
Display settings can be initialized (default setting).
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch the
“Settings” screen, select “Reset Settings” and press the ENTER switch
c Press the / switch to select “Y es”, and then press the ENTER switch
Items in the following table are initialized.
ItemInitial setting
“Display Brightness”For day illuminationLevel 8
For night illuminationLevel 6
“Time and Date”“Auto Time ADJ”“ON”
“12H/24H”“24H”
“Designs”“Disp.1”
“Display Settings”
“Eco Indicator Light”“ON”
“AVG Fuel Reset after Refuel”“OFF”
“Trip A Reset after Refuel”“OFF”
“Opening Display”“ON”
“Ending Display Type”“STD”
“Steering Angle”“ON”
“Buzzer”
“Turn Signal Tone Type”“1”
“Opening Sound Volume”“2”
“BSM Buzzer Volume”“2”
“RCTA Buzzer Volume”“2”
“Notification Day
Settings”“Date 1” - “Date 10”“(Not Set)”
“Maintenance Set- tings”“Oil Change Timing Notice”“OFF”
“Oil Filter Change Timing Notice”“OFF”
“Tire Rotation Timing Notice”“OFF”
“Language”“English”
RAIZE_OM_General_BZ358E.book 113 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1573-4. Steering wheel position and mirrors
RAIZE_OM_General_BZ358E
Operation of each component
3
Outside rear view mirrors
Adjustment procedure (manual type)
Adjusting the mirrors by moving the
entire mirror unit with hand
After the adjustment, sit on the driver’s
seat and make sure that the rear view is
visible.
Adjustment procedure (electric type)
Use the switch to adjust the mirror angle.
aSelect a mirror to adjust
aLeft
b Right
b Operate the switch to adjust the
mirror surface
aTo p
b Right
c Bottom
d Left
KBRO340305E
1
2
KBRO340301E
3
2
41
KBRO340302E
RAIZE_OM_General_BZ358E.book 157 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3286-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped

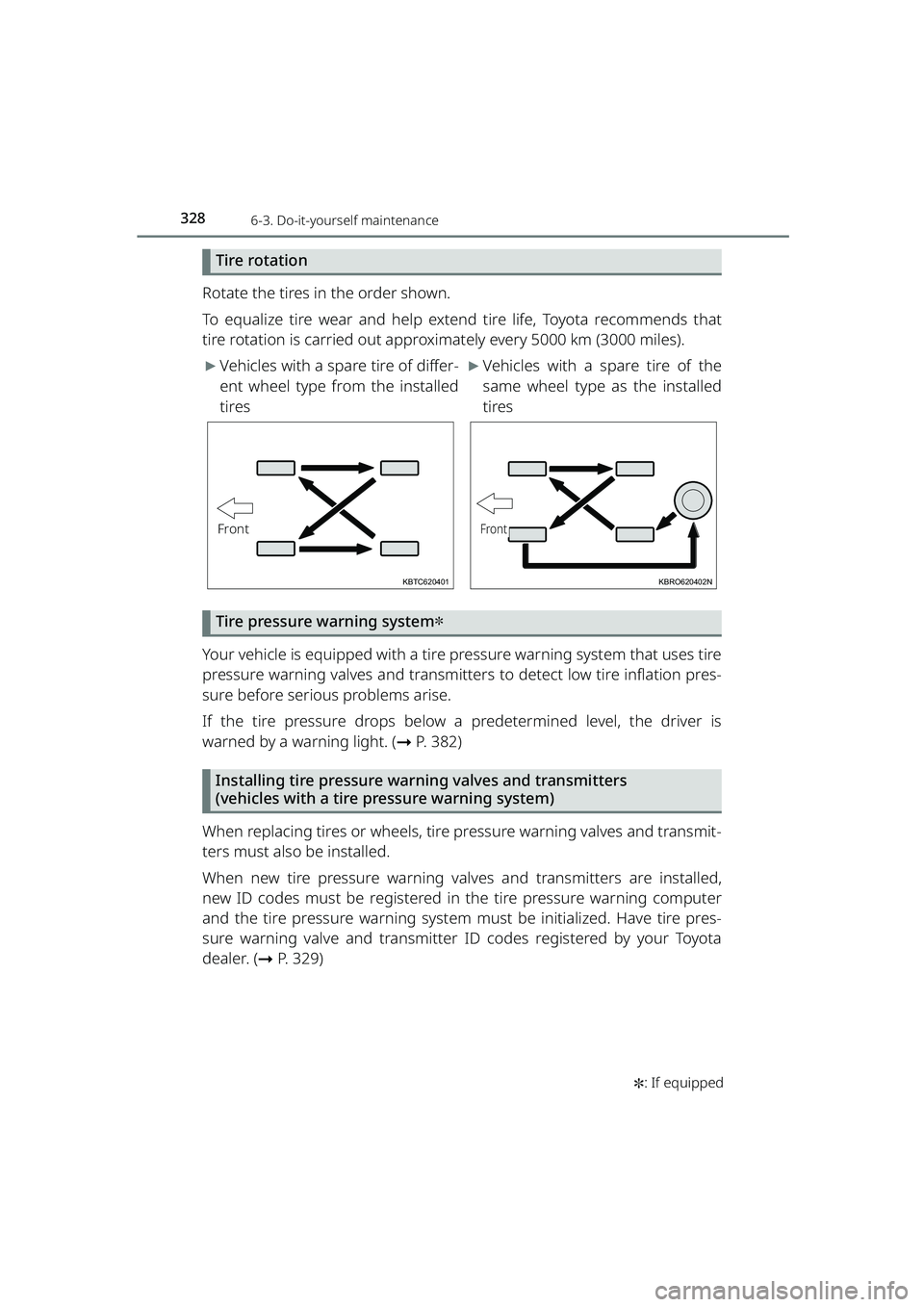

Tire rotation
Rotate the tires in the order shown.
To equalize tire wear and help exte nd tire life, Toyota recommends that
tire rotation is carried out appr oximately every 5000 km (3000 miles).
▶Vehicles with a spare tire of differ-
ent wheel type from the installed
tires▶Vehicles with a spare tire of the
same wheel type as the installed
tires
Tire pressure warning system✽
Your vehicle is equipped with a tire pressure warning system that uses tire
pressure warning valves and transmitters to detect low tire inflation pres-
sure before serious problems arise.
If the tire pressure drops below a predetermined level, the driver is
warned by a warning light. (➞P. 382)
Installing tire pressure warning valves and transmitters
(vehicles with a tire pressure warning system)
When replacing tires or wheels, tire pressure warning valves and transmit-
ters must also be installed.
When new tire pressure warning valv es and transmitters are installed,
new ID codes must be registered in the tire pressure warning computer
and the tire pressure warning system must be initialized. Have tire pres-
sure warning valve and transmitter ID codes registered by your Toyota
dealer. ( ➞P. 329)
KBTC620401
Front
KBRO620402N
Front
RAIZE_OM_General_BZ358E.book 328 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3366-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped

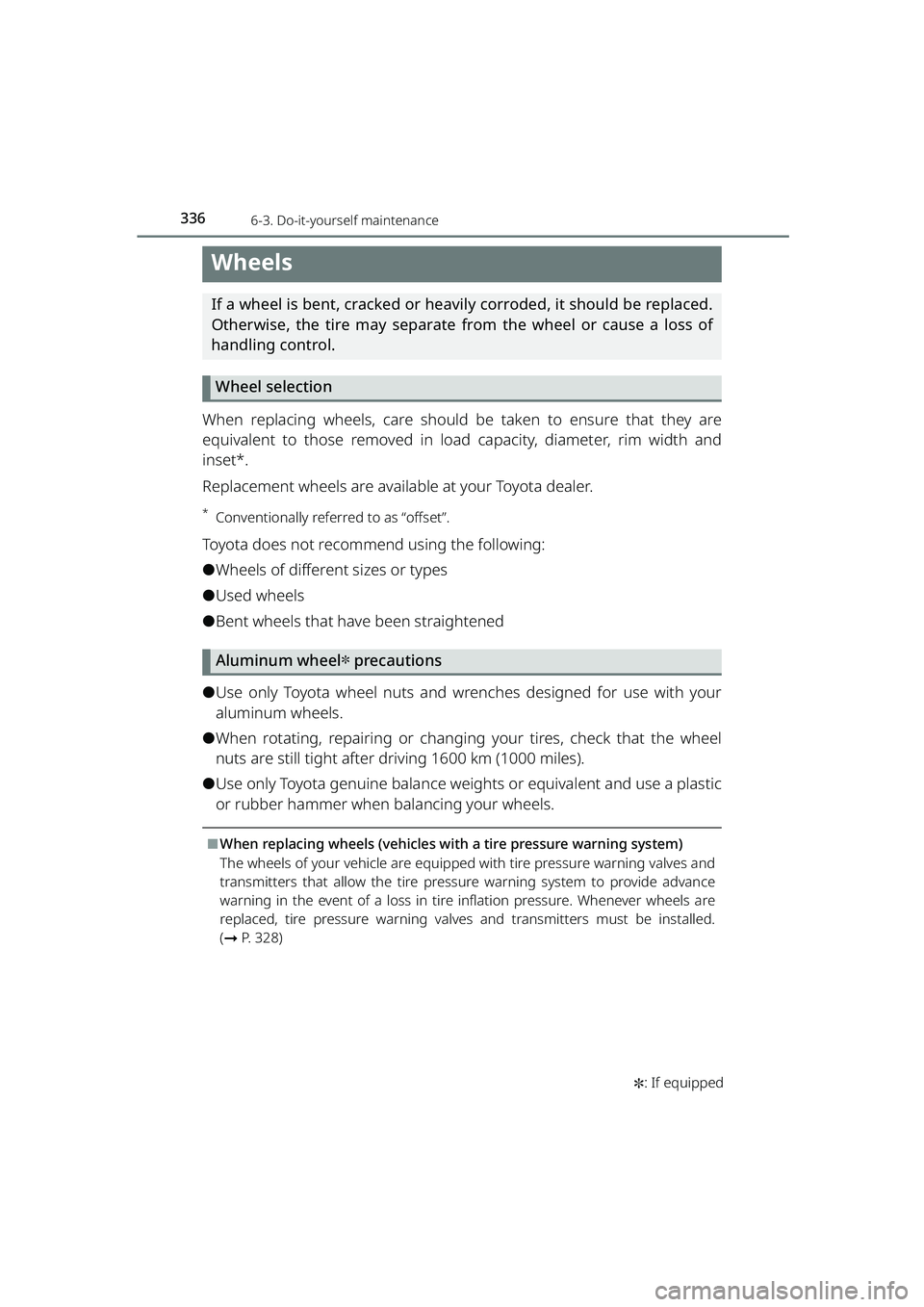

Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause a loss of
handling control.
Wheel selection
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset*.
Replacement wheels are available at your Toyota dealer.
*Conventionally referred to as “offset”.
Toyota does not recommend using the following:
⚫Wheels of different sizes or types
⚫Used wheels
⚫Bent wheels that ha ve been straightened
Aluminum wheel
✽ precautions
⚫Use only Toyota wheel nuts and wrenches designed for use with your
aluminum wheels.
⚫When rotating, repairing or changing your tires, check that the wheel
nuts are still tight after driving 1600 km (1000 miles).
⚫Use only Toyota genuine balance weights or equivalent and use a plastic
or rubber hammer when balancing your wheels.
⬛When replacing wheels (vehicles with a tire pressure warning system)
The wheels of your vehicle are equipped with tire pressure warning valves and
transmitters that allow the tire pressu re warning system to provide advance
warning in the event of a lo ss in tire inflation pressure. Whenever wheels are
replaced, tire pressure warning valves and transmitters must be installed.
( ➞ P. 328)
RAIZE_OM_General_BZ358E.book 336 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3857-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
⚫If electronic devices or facilities us ing similar radio wave frequencies are
nearby
⚫If a radio set at a similar frequency is in use in the vehicle
⚫If a window tint that affects the radio wave signals is installed
⚫If there is a lot of snow or ice on th e vehicle, particularly around the wheels
or wheel housings
⚫If non-genuine Toyota wheels are used (Even if you use Toyota wheels, the
tire pressure warning system may no t work properly with some types of
tires.)
⚫If tire chains are used
⚫If the spare tire is in a location subject to poor radio wave signal reception.
⚫If a large metallic object which can in terfere with signal reception is put in
the luggage room.
⬛If the tire pressure warning light freq uently comes on after blinking for 1
minute (vehicles with a tire pressure warning system)
If the tire pressure warning light freque ntly comes on after blinking for 1 min-
ute when the engine switch is turned on, have it checked by your Toyota
dealer.
RAIZE_OM_General_BZ358E.book 385 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4288-1. List of specifications
RAIZE_OM_General_BZ358E✽
: If equipped

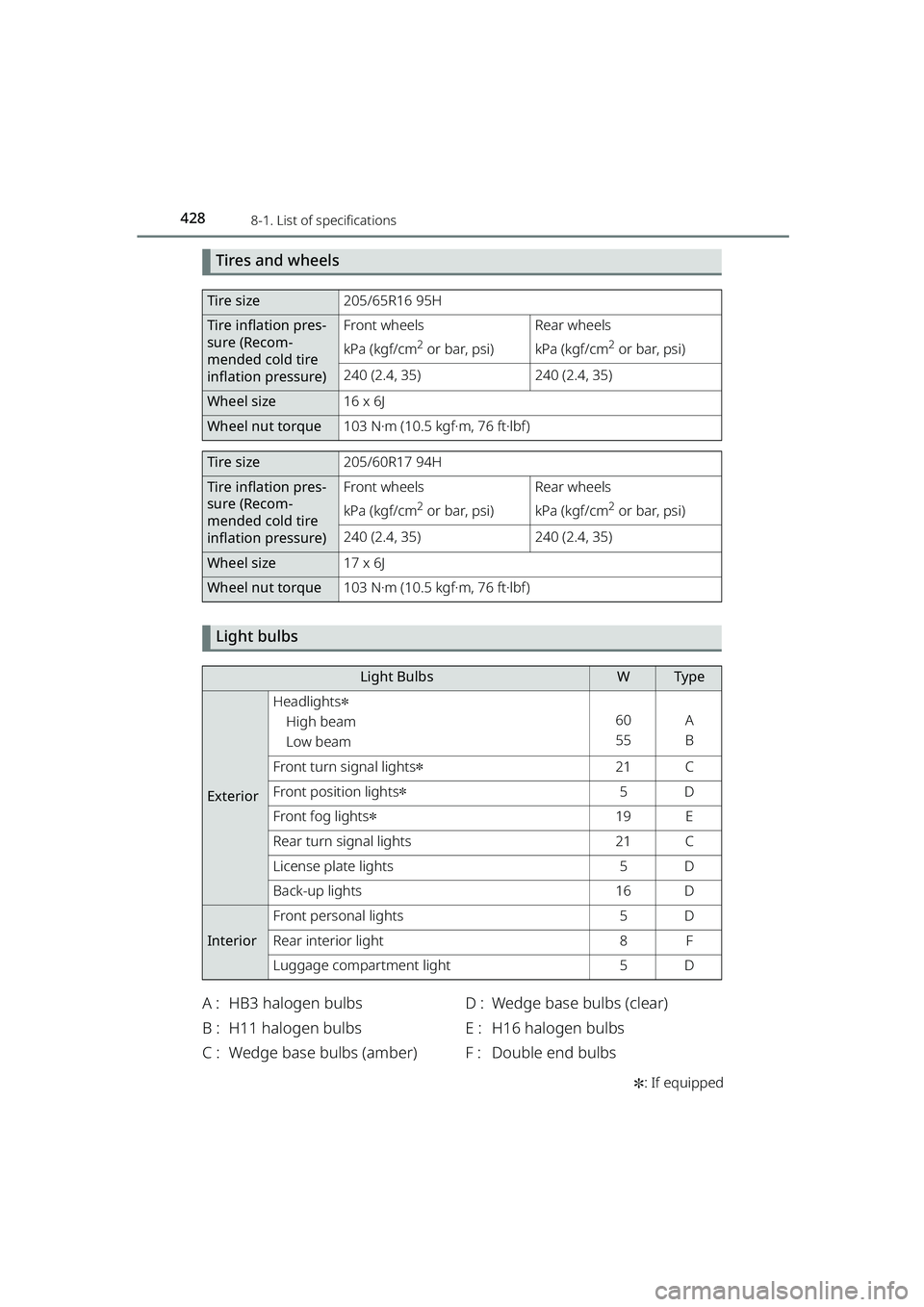

Tires and wheels
Light bulbs
A : HB3 halogen bulbs
B : H11 halogen bulbs
C : Wedge base bulbs (amber) D : Wedge base bulbs (clear)
E : H16 halogen bulbs
F : Double end bulbs
Tire size205/65R16 95H
Tire inflation pres-
sure (Recom-
mended cold tire
inflation pressure)Front wheels
kPa (kgf/cm
2 or bar, psi)
Rear wheels
kPa (kgf/cm
2 or bar, psi)
240 (2.4, 35)240 (2.4, 35)
Wheel size16 x 6J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size205/60R17 94H
Tire inflation pres-
sure (Recom-
mended cold tire
inflation pressure)Front wheels
kPa (kgf/cm
2 or bar, psi)
Rear wheels
kPa (kgf/cm
2 or bar, psi)
240 (2.4, 35)240 (2.4, 35)
Wheel size17 x 6J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Light BulbsWType
Exterior
Headlights✽
High beam
Low beam60
55A
B
Front turn signal lights✽21C
Front position lights✽5D
Front fog lights✽19E
Rear turn signal lights21C
License plate lights5D
Back-up lights16D
Interior
Front personal lights5D
Rear interior light8F
Luggage compartment light5D
RAIZE_OM_General_BZ358E.book 428 ページ ２０２２年５月１７日　火曜日　午後１時５９分

512
RAIZE_OM_General_BZ358E

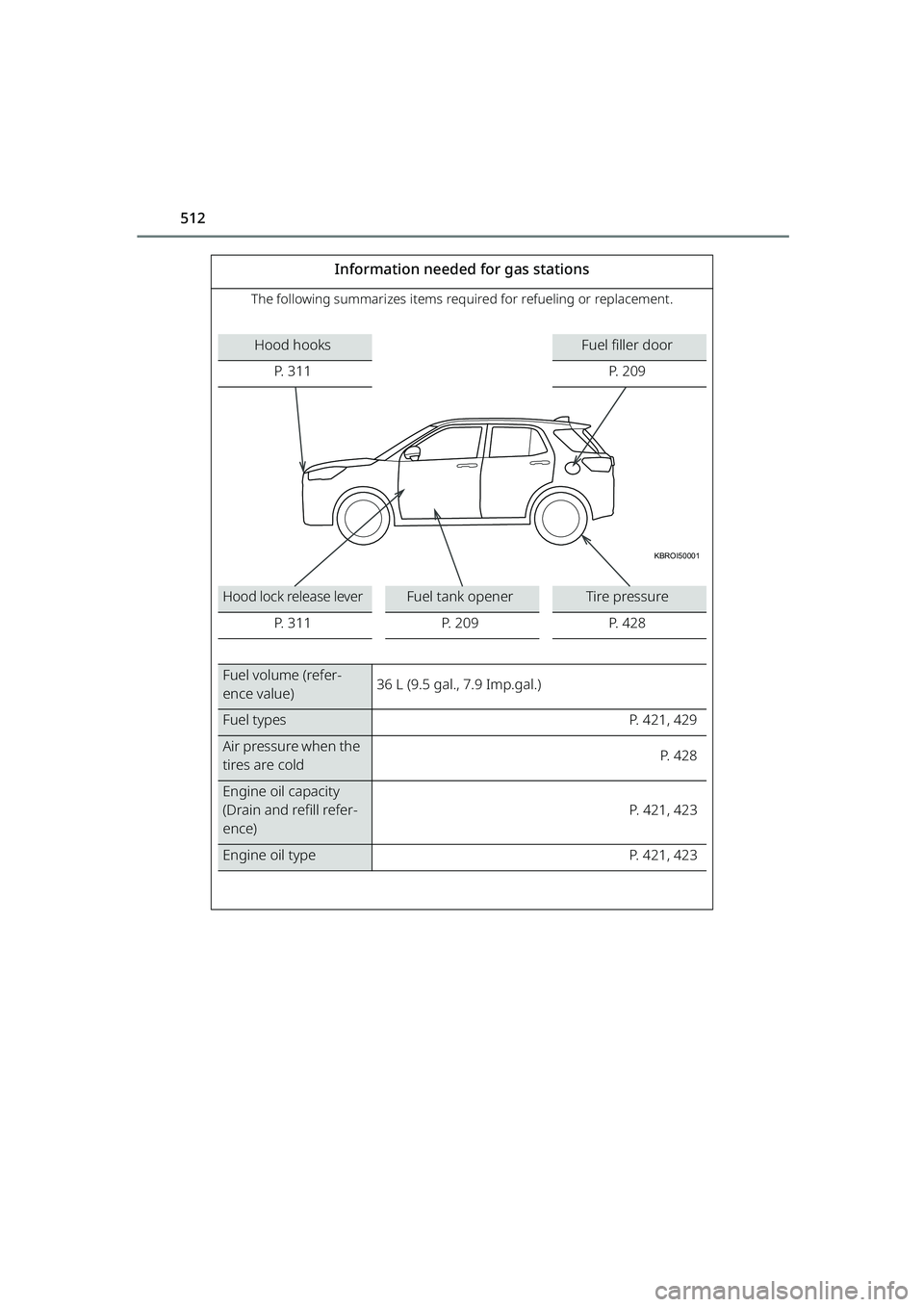

Information needed for gas stations
The following summarizes items required for refueling or replacement.
Hood hooks
P. 3 1 1Fuel filler door P. 2 0 9
KBROI50001
Hood lock release lever
P. 3 1 1
Fuel tank opener
P. 2 0 9Tire pressureP. 4 2 8
Fuel volume (refer-
ence value) 36 L (9.5 gal., 7.9 Imp.gal.)
Fuel types
P. 421, 429
Air pressure when the
tires are cold P. 4 2 8
Engine oil capacity
(Drain and refill refer-
ence)P. 421, 423
Engine oil type
P. 421, 423
RAIZE_OM_General_BZ358E.book 512 ページ ２０２２年５月１７日　火曜日　午後１時５９分
