1764-1. Driving the vehicle
RAIZE_OM_General_BZ358E
NOTICE
⬛If you feel the clutch is slipping (Manual transmission vehicles)
Have the vehicle inspected at your Toyota dealer as soon as possible. If your
vehicle does not accelerate by stepping on the accelerator pedal even when
the clutch is engaged, the clutch ma y be slipping and the vehicle may no
longer be able to run.
⬛To prevent damage to the tu rbo system (Turbo vehicles)
⚫Immediately after driving at high speed or climbing on a hill, do not stop the
engine. Make sure to idle the engine for approx. 1 minute to cool down the
turbo system, and then stop the engine.
⚫Do not use any parts other than those specified for the exhaust pipes.
⚫Never alter the exhaust pipes.
⚫Never race or accelerate suddenly when the engine is cold.
⚫Make sure to change the oil periodically. ( ➞P. 418)
⬛When encountering flooded roads
Do not drive on a road that has flooded after heavy rain, etc. Doing so may
cause the following serious damage to the vehicle:
⚫Engine stalling
⚫Short in electrical components
⚫Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your Toyota dealer check the following:
⚫Brake function
⚫Changes in quantity and quality of oi ls and fluids such as engine oil,
transaxle oil, and differential oil
⚫Poor lubrication of the bearings and joints, etc.
RAIZE_OM_General_BZ358E.book 176 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2936-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
Do-it-yourself maintenance
⚫What about do-it-yourself maintenance?
Many of the maintenance items are easy to do yourself if you have a little mechanical
ability and a few basic automotive tools. Simple instructions for how to perform them
are presented in this section.
Note, however, that some maintenance task s require special tools and skills. These
are best performed by qualified technician s. Even if you are an experienced do-it-
yourself mechanic, we recommend that repairs and maintenance be conducted by
your Toyota dealer who will keep a record of maintenance on your vehicle. This
record could be helpful should you ever require Warranty Service.
⬛Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs that
indicate service is needed. Some important clues are:
⚫Engine misses, stumbling or pinging
⚫Appreciable loss of power
⚫Strange engine noises
⚫A fluid leak under the vehicle (However , water dripping from the air condi-
tioning system after use is normal.)
⚫Change in exhaust sound (This may indica te a dangerous carbon monoxide leak.
Drive with the windows open and have th e exhaust system checked immediately.)
⚫Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
⚫Vehicle pulls to one side when driven straight on a level road
⚫Strange noises related to suspension movement
⚫Loss of brake effectiveness, spongy feeling brake pedal or clutch pedal (vehi-
cles with a manual transmission), pe dal almost touches the floor, vehicle
pulls to one side when braking
⚫Engine coolant temperature continually higher than normal
If you notice any of these clues, take yo ur vehicle to your Toyota dealer as soon
as possible. Your vehicle may need adjustment or repair.
WARNING
⬛If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and pos-
sible death or serious injury.
⬛Handling of the battery
Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after han-
dling. ( ➞P. 321)
RAIZE_OM_General_BZ358E.book 293 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2976-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
*1Replace both the engine oil and oil filter, even when the maintenance
reminder does not appear, after 6 mont hs have passed, since the last oil
change.
*2After 80000 km (48000 miles) or 48 months inspection, inspect every 20000
km (12000 miles) or 12 months.
*3Including the filter in fuel tank.
25Drive shaft bootsIIIIIIII6
26Front wheel align-
ment (toe-in)II48
27Suspension ball joint
and dust coverIIII12
28
Manual transmis-
sion oil (including
front differential)
IRI: 48
R: 96
29
Continuously varia-
ble transmission
fluid (including front
differential)
Inspect every 12 months, Replace every
100000 km (60000 miles)―
30Front and rear sus-
pensionIIII12
31Tires and inflation
pressureIIIIIIII6
32Lights, horns, wipers
and washersIIIIIIII6
33Air conditioning filterRRRR24
SERVICE
INTERVAL:ODOMETER READING
MONTHS
(Odometer reading or months,
whichever
comes first.) x1000
km 1 1020304050607080
x1000 miles 1 6 12 18 24 30 36 42 48
RAIZE_OM_General_BZ358E.book 297 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2986-2. Maintenance
RAIZE_OM_General_BZ358E

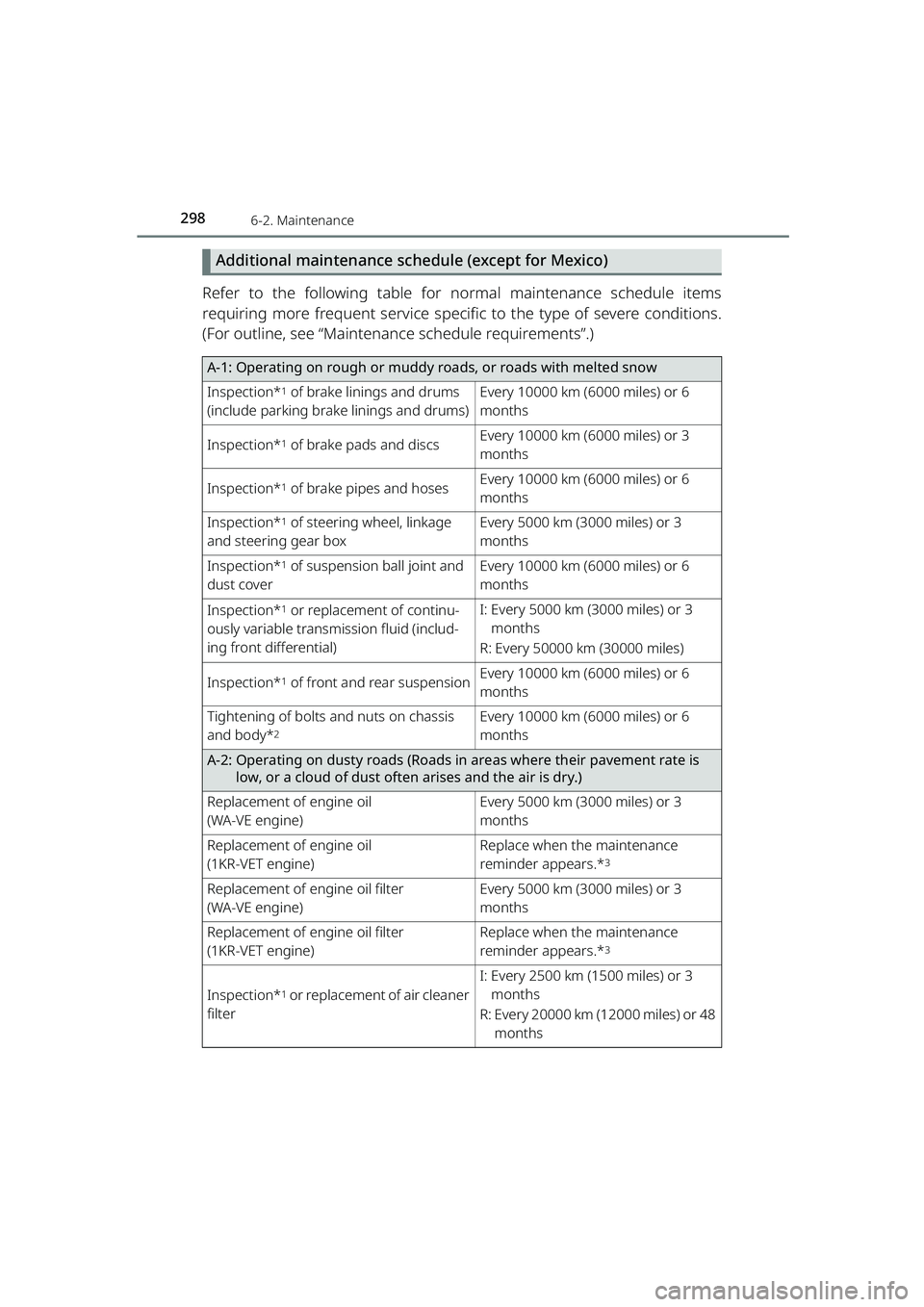

Additional maintenance schedule (except for Mexico)
Refer to the following table for normal maintenance schedule items
requiring more frequent service specific to the type of severe conditions.
(For outline, see “Maintenan ce schedule requirements”.)
A-1: Operating on rough or muddy roads, or roads with melted snow
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection*1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 of brake pipes and hosesEvery 10000 km (6000 miles) or 6
months
Inspection*1 of steering wheel, linkage
and steering gear boxEvery 5000 km (3000 miles) or 3
months
Inspection*1 of suspension ball joint and
dust coverEvery 10000 km (6000 miles) or 6
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Inspection*1 of front and rear suspensionEvery 10000 km (6000 miles) or 6
months
Tightening of bolts and nuts on chassis
and body*
2
Every 10000 km (6000 miles) or 6
months
A-2: Operating on dusty ro ads (Roads in areas where their pavement rate is
low, or a cloud of dust ofte n arises and the air is dry.)
Replacement of engine oil
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Replacement of engine oil filter
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil filter
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Inspection*1 or replacement of air cleaner
filter
I: Every 2500 km (1500 miles) or 3 months
R: Every 20000 km (12000 miles) or 48 months
RAIZE_OM_General_BZ358E.book 298 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2996-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection*1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Replacement of air conditioning filter Every 20000 km (12000 miles) or 24
months

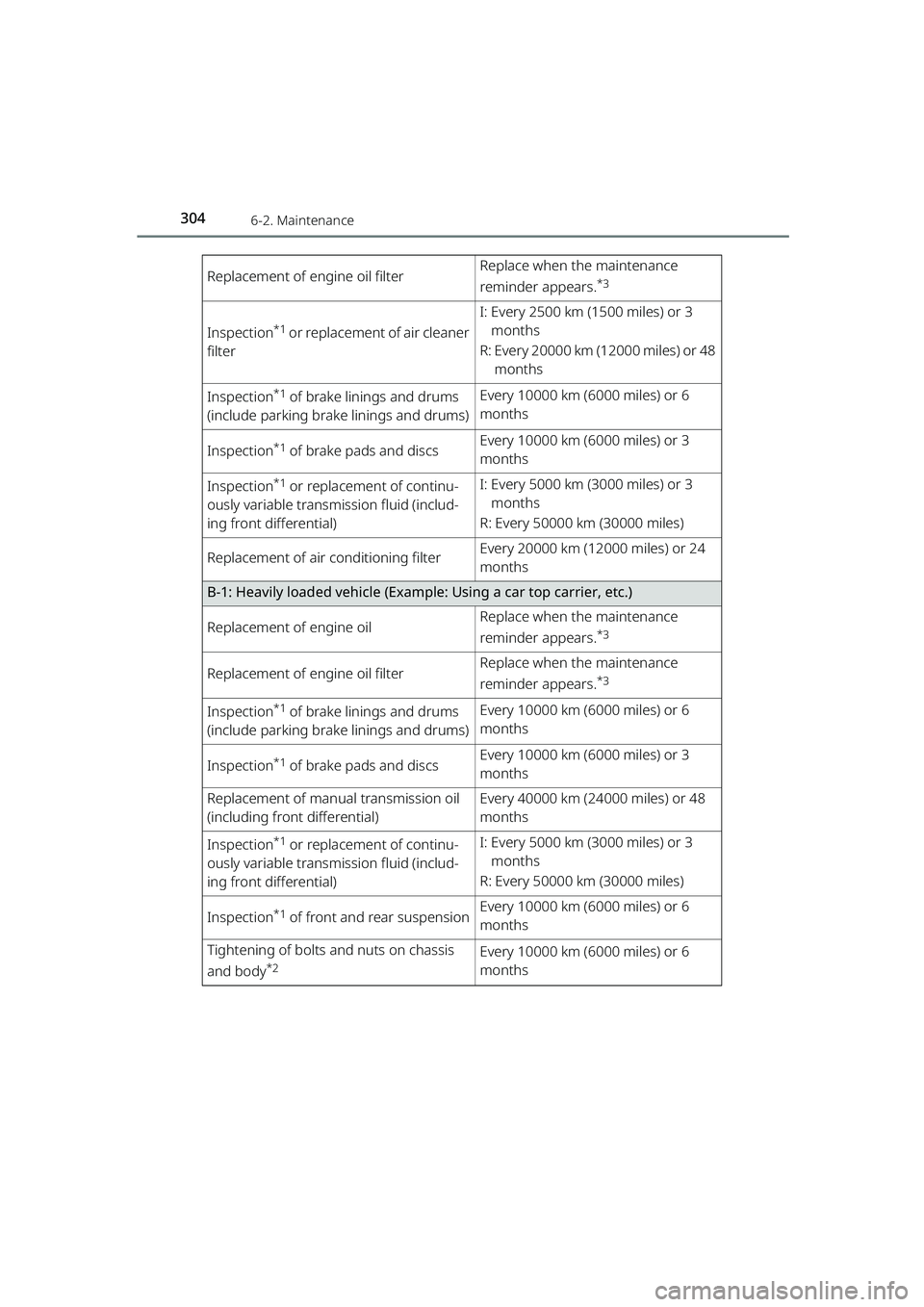

B-1: Heavily loaded vehicle (Example: Using a car top carrier, etc.)
Replacement of engine oil
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Replacement of engine oil filter
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil filter
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection*1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Replacement of manual transmission oil
(including front differential)Every 40000 km (24000 miles) or 48
months
Inspection*1 or replacement of continu-
ously variable transmission fluid
(including front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Inspection*1 of front and rear suspensionEvery 10000 km (6000 miles) or 6
months
Tightening of bolts and nuts on chassis
and body*
2
Every 10000 km (6000 miles) or 6
months
B-2: Repeated short trips less than 8 km (5 miles) and outside temperatures remain below freezing (Engine temperature will not reach to normal temperature)
Replacement of engine oil (WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
RAIZE_OM_General_BZ358E.book 299 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3006-2. Maintenance
RAIZE_OM_General_BZ358E
*1Perform correction or replacement as necessary.
*2For seat mounting bolts, front and rear suspension member retaining bolts.
*3Replace both engine oil and oil filter every 3 months, in which the vehicle is
mainly driven in dirt or dusty roads, when the maintenance reminder does not
appear.
Replacement of engine oil filter
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil filter
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Inspection*1 or replacement of continu-
ously variable transmission fluid
(including front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)

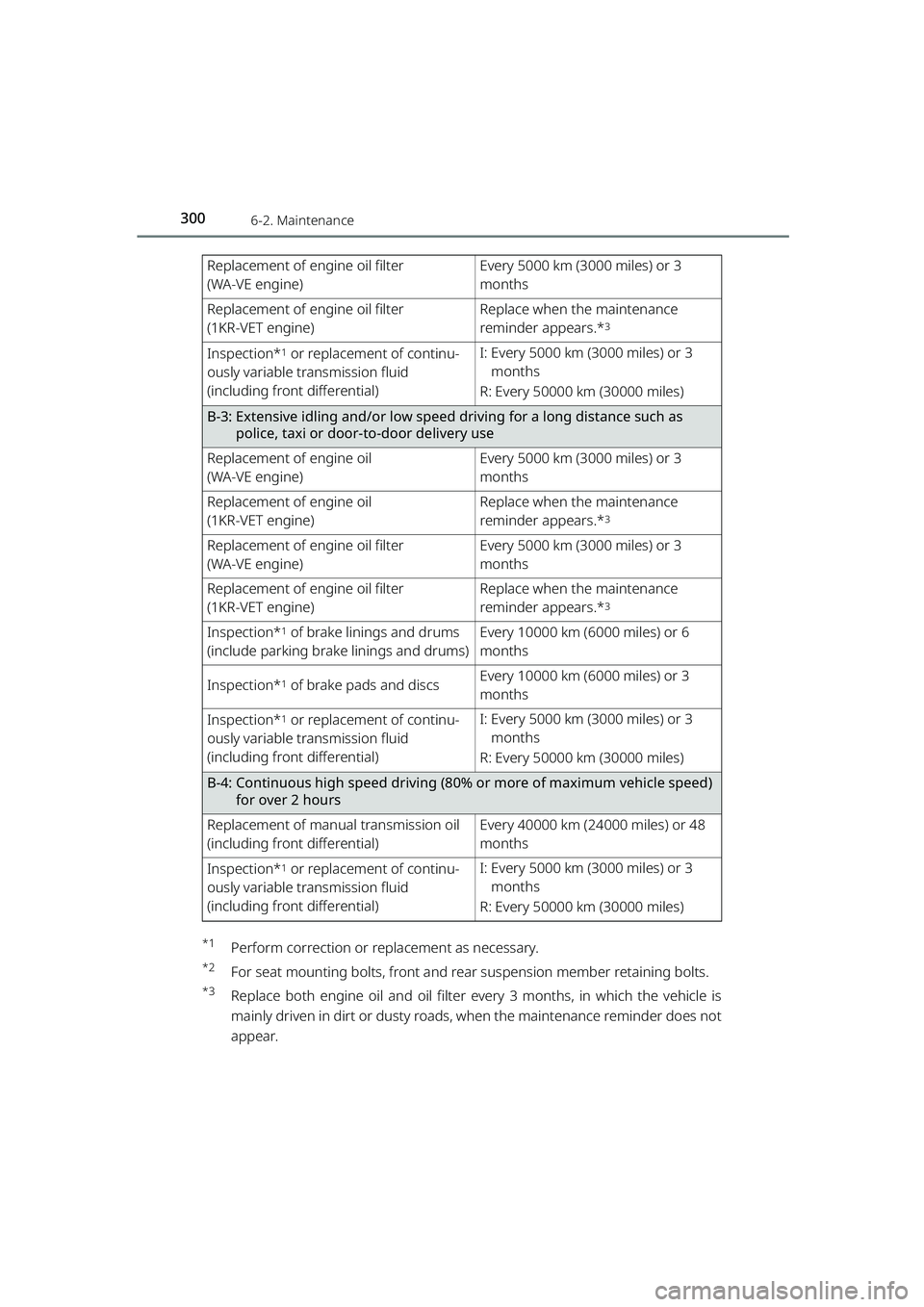

B-3: Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use
Replacement of engine oil
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Replacement of engine oil filter
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil filter
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection*1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 or replacement of continu-
ously variable transmission fluid
(including front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
B-4: Continuous high speed driving (80% or more of maximum vehicle speed) for over 2 hours
Replacement of manual transmission oil
(including front differential)Every 40000 km (24000 miles) or 48
months
Inspection*1 or replacement of continu-
ously variable transmission fluid
(including front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
RAIZE_OM_General_BZ358E.book 300 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3026-2. Maintenance
RAIZE_OM_General_BZ358E
CHASSIS AND BODY
13
Brake linings and
drums (include park-
ing brake linings and
drums)
IIII12
14Brake pads and discsIIII6
15Brake fluidIIIRIIIRI: 6
R: 24
16Clutch fluidIIIRIIIRI: 6
R: 24
17Brake pipes and
hosesIIII12
18
Steering wheel, link-
age and steering
gear box
IIII12
19Drive shaft bootsIIIIIIII6
20Suspension ball joint
and dust coverIIII12
21
Manual transmis-
sion oil (including
front differential)
IRI: 48
R: 96
22
Continuously varia-
ble transmission
fluid (including front
differential)
Inspect every 12 months, Replace every
100000 km (60000 miles)―
23Front and rear sus-
pensionIIII12
24Front wheel align-
ment (toe-in)II48
25Air conditioning filterRRRR24
SERVICE
INTERVAL:ODOMETER READING
MONTHS
(Odometer reading or months,
whichever
comes first.) x1000
km 10 20 30 40 50 60 70 80
x1000 miles 6 12182430364248

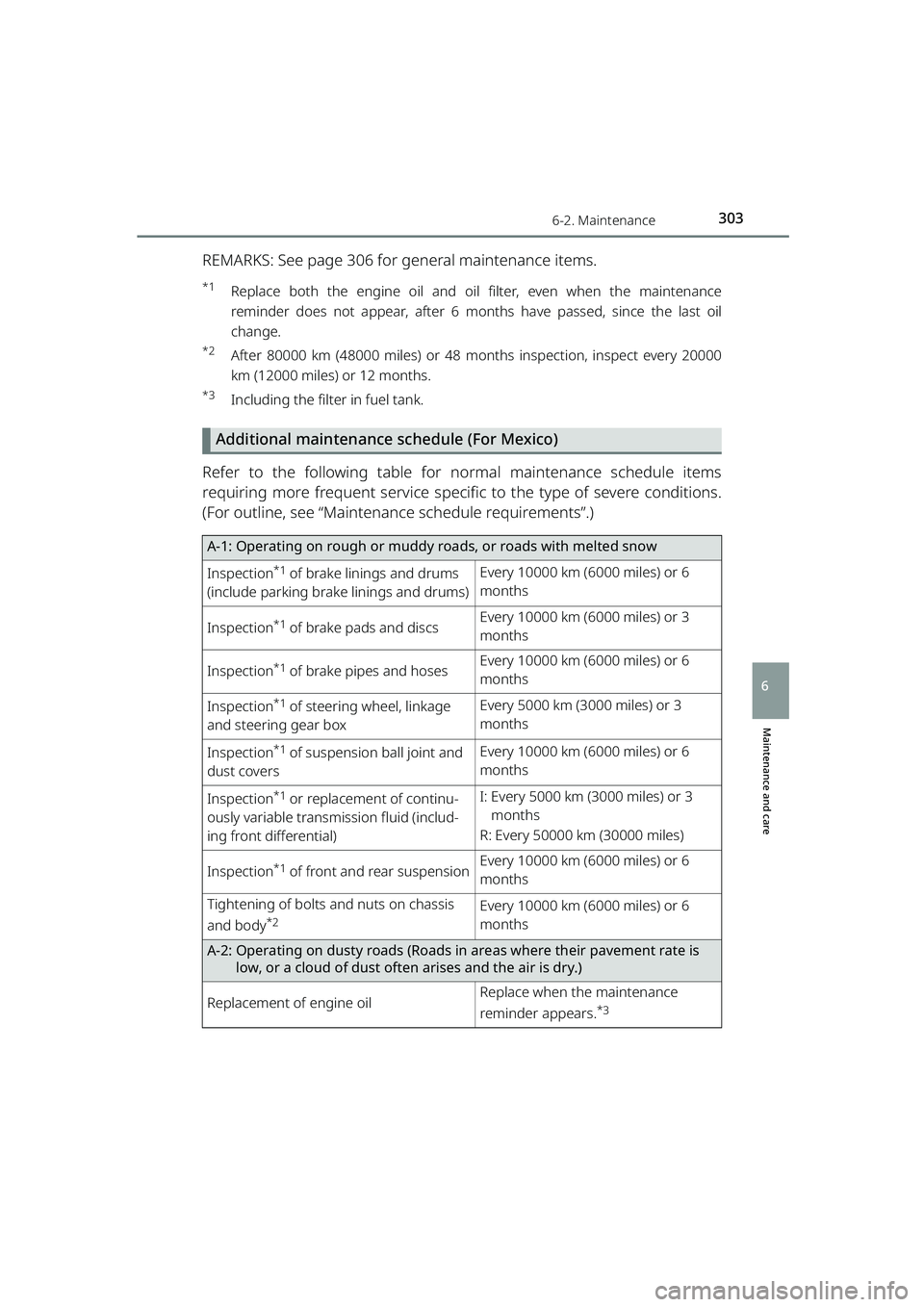

RAIZE_OM_General_BZ358E.book 302 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3036-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
REMARKS: See page 306 for general maintenance items.
*1Replace both the engine oil and oil filter, even when the maintenance
reminder does not appear, after 6 mont hs have passed, since the last oil
change.
*2After 80000 km (48000 miles) or 48 months inspection, inspect every 20000
km (12000 miles) or 12 months.
*3Including the filter in fuel tank.
Additional maintenance schedule (For Mexico)
Refer to the following table for normal maintenance schedule items
requiring more frequent service specific to the type of severe conditions.
(For outline, see “Maintenan ce schedule requirements”.)
A-1: Operating on rough or muddy roads, or roads with melted snow
Inspection*
1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection* 1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 of brake pipes and hosesEvery 10000 km (6000 miles) or 6
months
Inspection*1 of steering wheel, linkage
and steering gear boxEvery 5000 km (3000 miles) or 3
months
Inspection* 1 of suspension ball joint and
dust coversEvery 10000 km (6000 miles) or 6
months
Inspection* 1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Inspection* 1 of front and rear suspensionEvery 10000 km (6000 miles) or 6
months
Tightening of bolts and nuts on chassis
and body
*2Every 10000 km (6000 miles) or 6
months
A-2: Operating on dusty ro ads (Roads in areas where their pavement rate is
low, or a cloud of dust ofte n arises and the air is dry.)
Replacement of engine oilReplace when the maintenance
reminder appears.
*
3
RAIZE_OM_General_BZ358E.book 303 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3046-2. Maintenance
RAIZE_OM_General_BZ358E
Replacement of engine oil filterReplace when the maintenance
reminder appears.
*3
Inspection*1 or replacement of air cleaner
filter
I: Every 2500 km (1500 miles) or 3 months
R: Every 20000 km (12000 miles) or 48 months
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection* 1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Replacement of air conditioning filterEvery 20000 km (12000 miles) or 24
months
B-1: Heavily loaded vehicle (Example: Using a car top carrier, etc.)
Replacement of engine oilReplace when the maintenance
reminder appears.
* 3
Replacement of engine oil filterReplace when the maintenance
reminder appears.
*3
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection* 1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Replacement of manual transmission oil
(including front differential)Every 40000 km (24000 miles) or 48
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Inspection* 1 of front and rear suspensionEvery 10000 km (6000 miles) or 6
months
Tightening of bolts and nuts on chassis
and body
*2Every 10000 km (6000 miles) or 6
months
RAIZE_OM_General_BZ358E.book 304 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3056-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
*1Perform correction or replacement as necessary.
*2For seat mounting bolts, front and rear suspension member retaining bolts.
*3Replace both engine oil and oil filter every 3 months, in which the vehicle is
mainly driven in dirt or dusty roads, when the maintenance reminder does not
appear.
B-2: Repeated short trips less than 8 km (5 miles) and outside temperatures remain below freezing (Engine temperature will not reach to normal tem-
perature)
Replacement of engine oilReplace when the maintenance
reminder appears.
*3
Replacement of engine oil filterReplace when the maintenance
reminder appears.
*3
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
B-3: Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use
Replacement of engine oilReplace when the maintenance
reminder appears.
*3
Replacement of engine oil filterReplace when the maintenance
reminder appears.
*3
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection* 1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
B-4: Continuous high speed driving (80% or more of maximum vehicle speed) for over 2 hours
Replacement of manual transmission oil
(including front differential)Every 40000 km (24000 miles) or 48
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
RAIZE_OM_General_BZ358E.book 305 ページ ２０２２年５月１７日　火曜日　午後１時５９分
