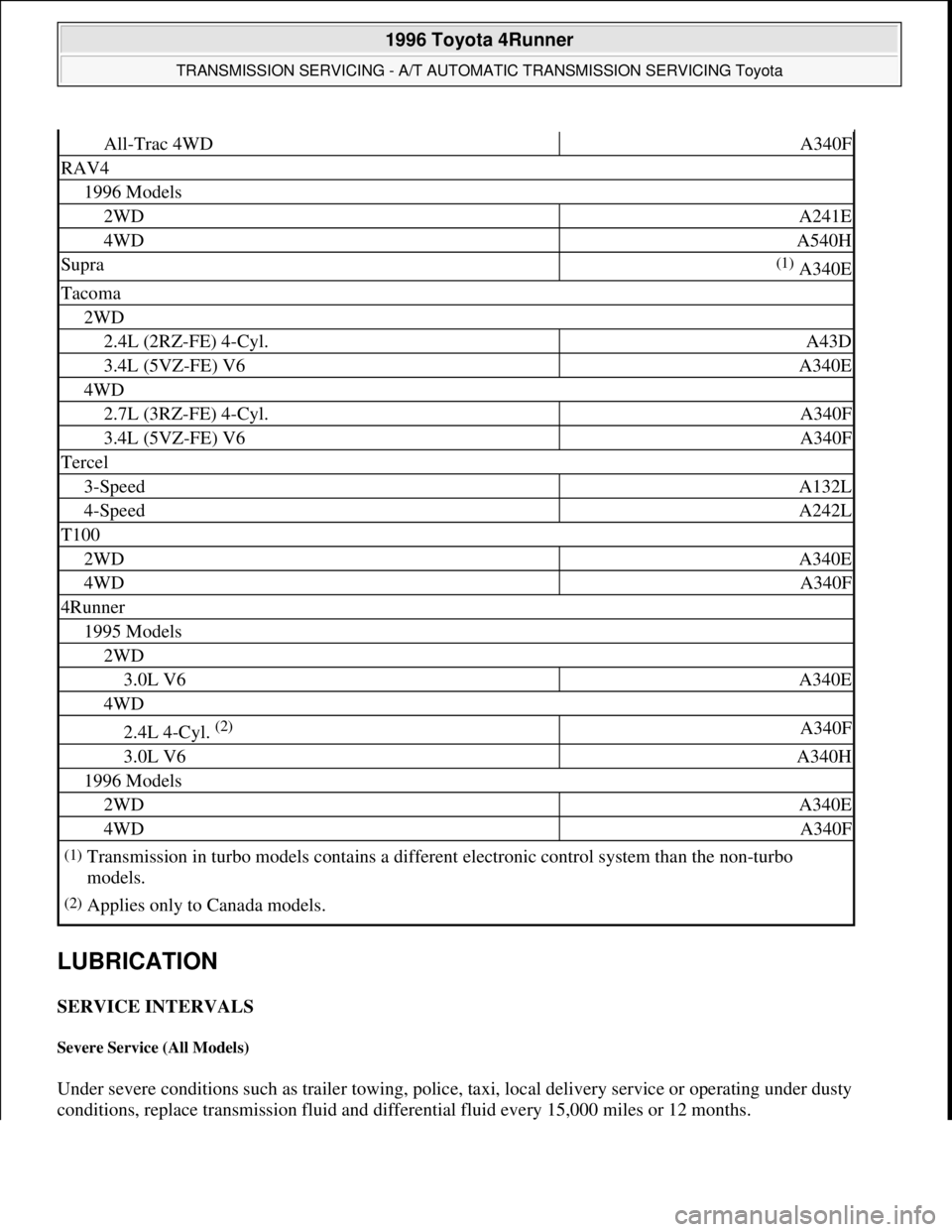

LUBRICATION
SERVICE INTERVALS
Severe Service (All Models)
Under severe conditions such as trailer towing, police, taxi, local delivery service or operating under dusty
conditions, replace transmission fluid and differential fluid ever
y 15,000 miles or 12 months.
All-Trac 4WDA340F
RAV4
1996 Models
2WDA241E
4WDA540H
Supra(1) A340E
Tacoma
2WD
2.4L (2RZ-FE) 4-Cyl.A43D
3.4L (5VZ-FE) V6A340E
4WD
2.7L (3RZ-FE) 4-Cyl.A340F
3.4L (5VZ-FE) V6A340F
Tercel
3-SpeedA132L
4-SpeedA242L
T100
2WDA340E
4WDA340F
4Runner
1995 Models
2WD
3.0L V6A340E
4WD
2.4L 4-Cyl. (2) A340F
3.0L V6A340H
1996 Models
2WDA340E
4WDA340F
(1)Transmission in turbo models contains a different electronic control system than the non-turbo
models.
(2)Applies only to Canada models.

1996 Toyota 4Runner
TRANSMISSION SERVICING - A/T AUTOMATIC TRANSMISSION SERVICING Toyota
Microsoft
Tuesday, August 18, 2009 7:18:46 PMPage 2 © 2005 Mitchell Repair Information Company, LLC.

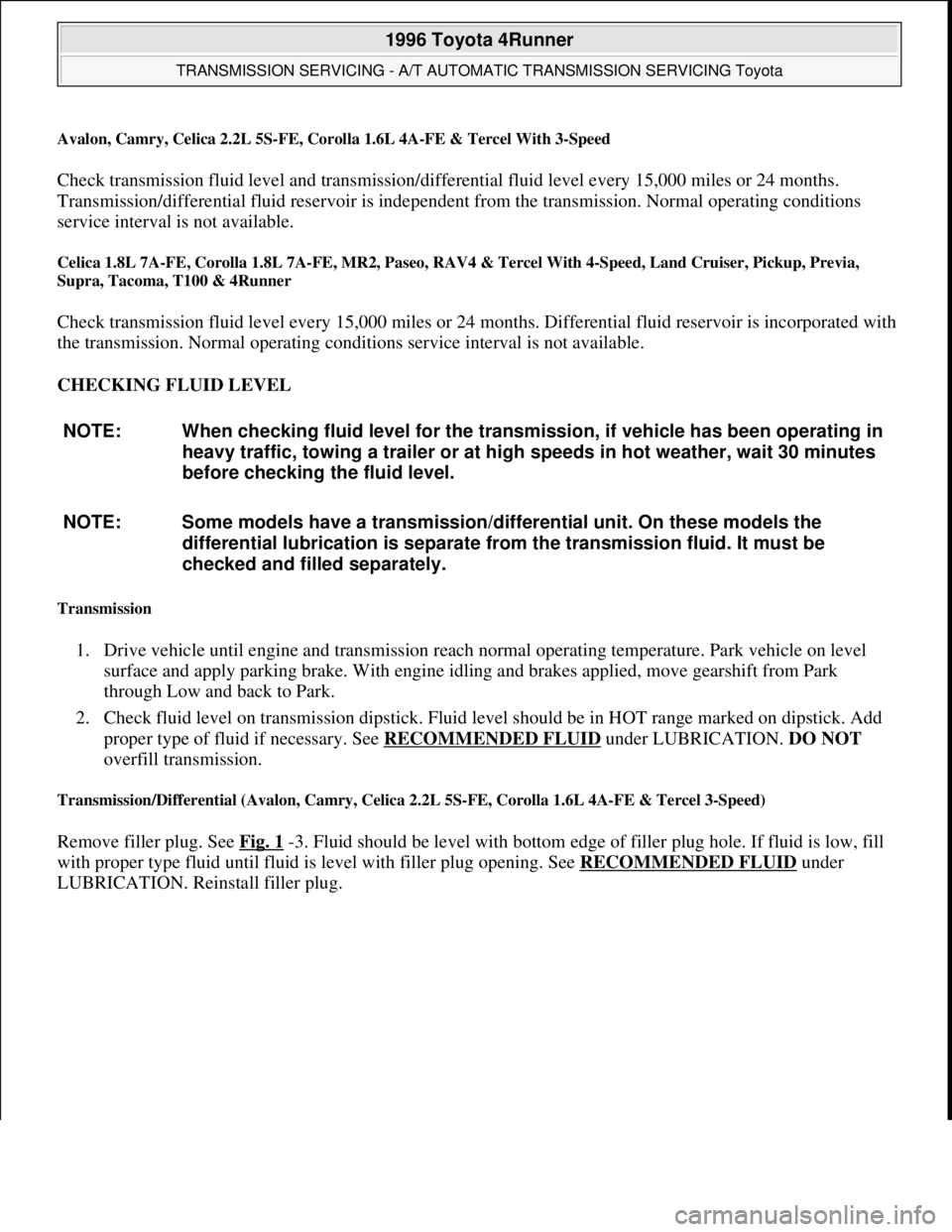

Avalon, Camry, Celica 2.2L 5S-FE, Corolla 1.6L 4A-FE & Tercel With 3-Speed
Check transmission fluid level and transmission/differential fluid level every 15,000 miles or 24 months.
Transmission/differential fluid reservoir is independent from the transmission. Normal operating conditions
service interval is not available.
Celica 1.8L 7A-FE, Corolla 1.8L 7A-FE, MR2, Paseo, RAV4 & Tercel With 4-Speed, Land Cruiser, Pickup, Previa,
Supra, Tacoma, T100 & 4Runner
Check transmission fluid level every 15,000 miles or 24 months. Differential fluid reservoir is incorporated with
the transmission. Normal operating conditions service interval is not available.
CHECKING FLUID LEVEL
Transmission
1. Drive vehicle until engine and transmission reach normal operating temperature. Park vehicle on level
surface and apply parking brake. With engine idling and brakes applied, move gearshift from Park
through Low and back to Park.
2. Check fluid level on transmission dipstick. Fluid level should be in HOT range marked on dipstick. Add
proper type of fluid if necessary. See RECOMMENDED FLUID
under LUBRICATION. DO NOT
overfill transmission.
Transmission/Differential (Avalon, Camry, Celica 2.2L 5S-FE, Corolla 1.6L 4A-FE & Tercel 3-Speed)
Remove filler plug. See Fig. 1 -3. Fluid should be level with bottom edge of filler plug hole. If fluid is low, fill
with proper type fluid until fluid is level with filler plug opening. See RECOMMENDED FLUID
under
LUBRICATION. Reinstall filler plu
g. NOTE: When checking fluid level for the transmission, if vehicle has been operating in
heavy traffic, towing a trailer or at high speeds in hot weather, wait 30 minutes
before checking the fluid level.
NOTE: Some models have a transmission/differential unit. On these models the
differential lubrication is separate from the transmission fluid. It must be
checked and filled separately.

1996 Toyota 4Runner
TRANSMISSION SERVICING - A/T AUTOMATIC TRANSMISSION SERVICING Toyota
Microsoft
Tuesday, August 18, 2009 7:18:46 PMPage 3 © 2005 Mitchell Repair Information Company, LLC.

Fig. 31: Electric Cooling Fan System Wiring Diagram (1999-2000 Sienna -With Towing Package)

1999 Toyota RAV4
1999-2000 ENGINE COOLING Electric Cooling Fans
Microsoft
Sunday, November 22, 2009 10:21:41 AMPage 52 © 2005 Mitchell Repair Information Company, LLC.

Fig. 32: Electric Cooling Fan System Wiring Diagram (1999-2000 Sienna -Without Towing Package)

1999 Toyota RAV4
1999-2000 ENGINE COOLING Electric Cooling Fans
Microsoft
Sunday, November 22, 2009 10:21:41 AMPage 54 © 2005 Mitchell Repair Information Company, LLC.

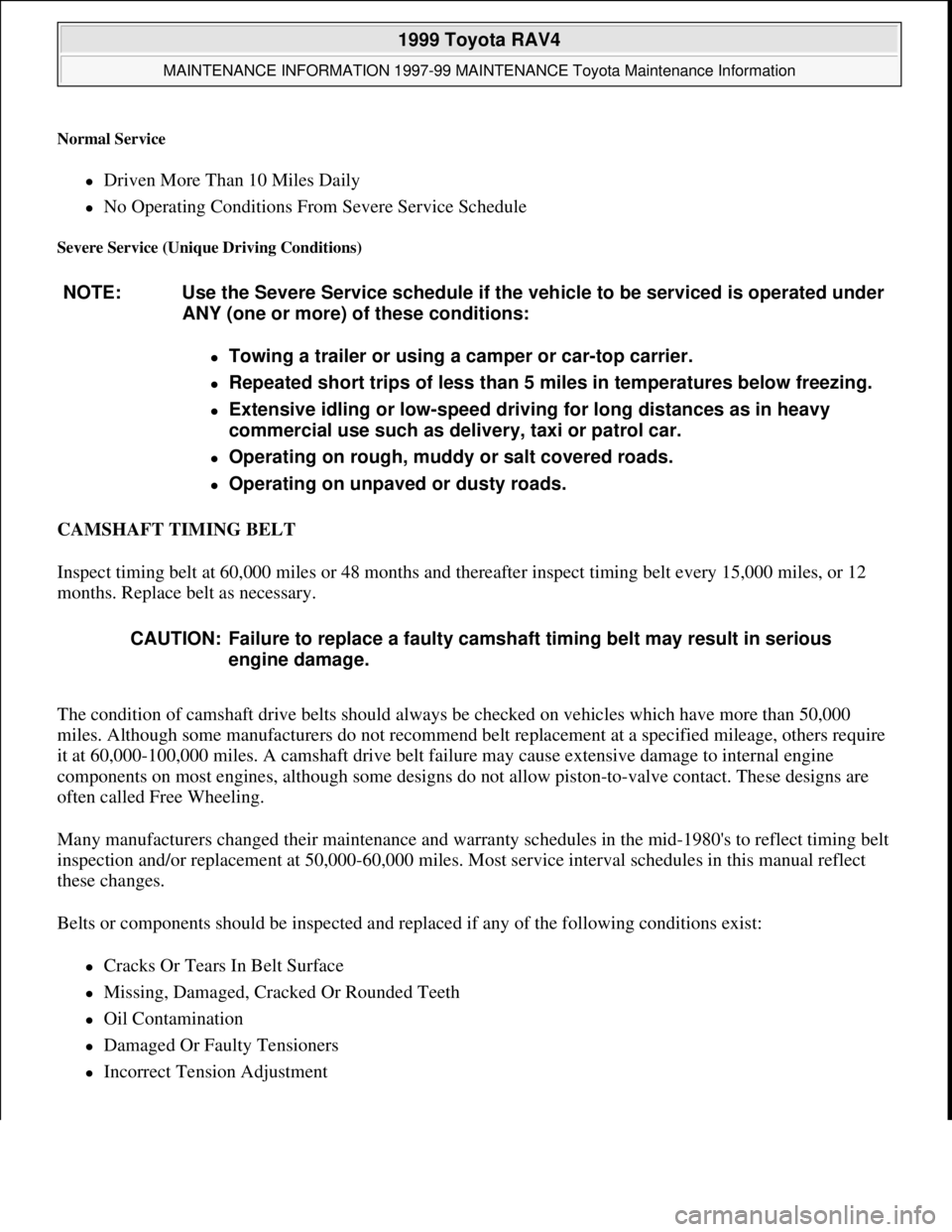

Normal Service
Driven More Than 10 Miles Daily
No Operating Conditions From Severe Service Schedule
Severe Service (Unique Driving Conditions)
CAMSHAFT TIMING BELT
Inspect timing belt at 60,000 miles or 48 months and thereafter inspect timing belt every 15,000 miles, or 12
months. Replace belt as necessary.
The condition of camshaft drive belts should always be checked on vehicles which have more than 50,000
miles. Although some manufacturers do not recommend belt replacement at a specified mileage, others require
it at 60,000-100,000 miles. A camshaft drive belt failure may cause extensive damage to internal engine
components on most engines, although some designs do not allow piston-to-valve contact. These designs are
often called Free Wheeling.
Many manufacturers changed their maintenance and warranty schedules in the mid-1980's to reflect timing belt
inspection and/or replacement at 50,000-60,000 miles. Most service interval schedules in this manual reflect
these changes.
Belts or components should be inspected and replaced if any of the following conditions exist:
Cracks Or Tears In Belt Surface
Missing, Damaged, Cracked Or Rounded Teeth
Oil Contamination
Damaged Or Faulty Tensioners
Incorrect Tension Adjustment NOTE: Use the Severe Service schedule if the vehicle to be serviced is operated under
ANY (one or more) of these conditions:
Towing a trailer or using a camper or car-top carrier.
Repeated short trips of less than 5 miles in temperatures below freezing.
Extensive idling or low-speed driving for long distances as in heavy
commercial use such as delivery, taxi or patrol car.
Operating on rough, muddy or salt covered roads.
Operating on unpaved or dusty roads.
CAUTION: Failure to replace a faulty camshaft timing belt may result in serious
engine damage.

1999 Toyota RAV4
MAINTENANCE INFORMATION 1997-99 MAINTENANCE Toyota Maintenance Information
Microsoft
Sunday, November 22, 2009 10:32:41 AMPage 3 © 2005 Mitchell Repair Information Company, LLC.

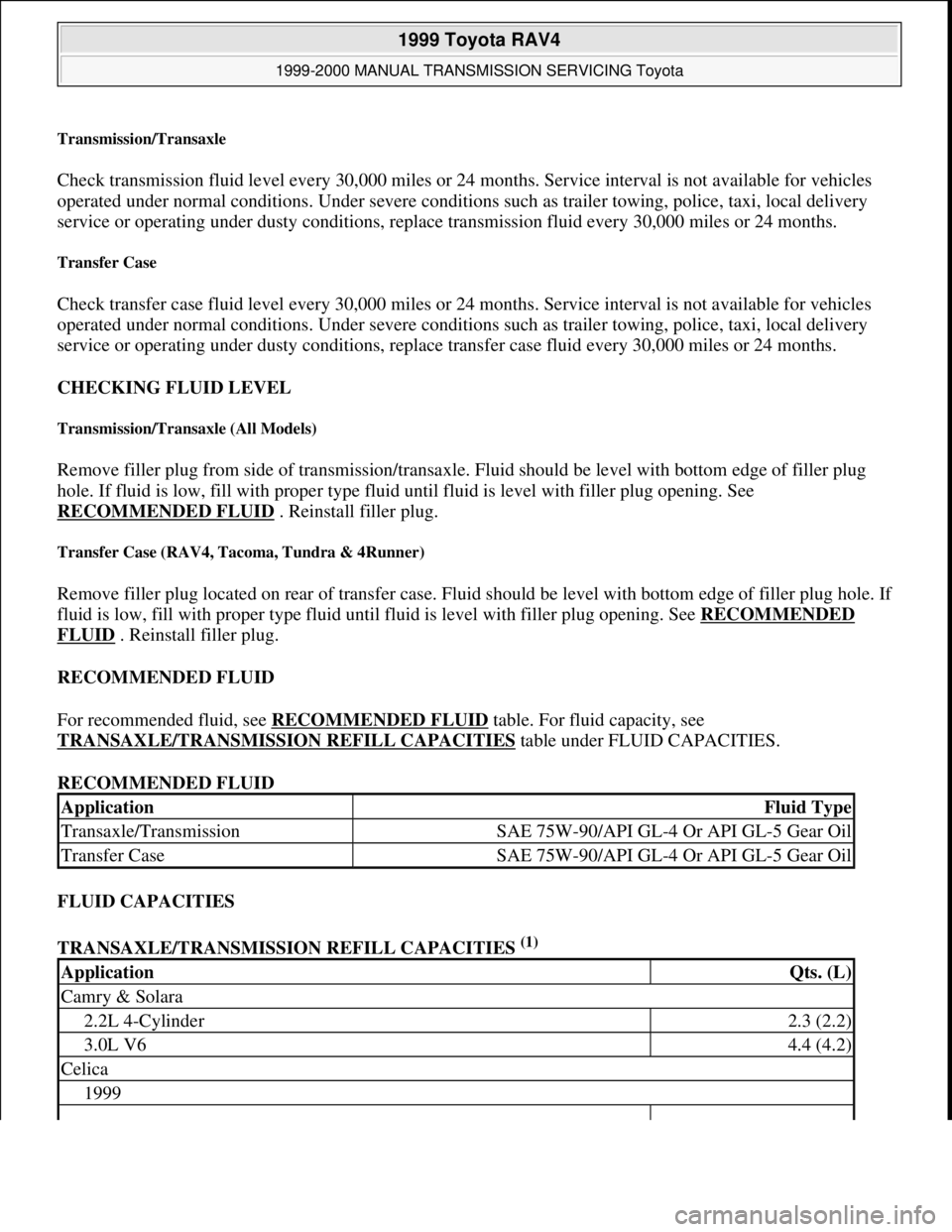

Transmission/Transaxle
Check transmission fluid level every 30,000 miles or 24 months. Service interval is not available for vehicles
operated under normal conditions. Under severe conditions such as trailer towing, police, taxi, local delivery
service or operating under dusty conditions, replace transmission fluid every 30,000 miles or 24 months.
Transfer Case
Check transfer case fluid level every 30,000 miles or 24 months. Service interval is not available for vehicles
operated under normal conditions. Under severe conditions such as trailer towing, police, taxi, local delivery
service or operating under dusty conditions, replace transfer case fluid every 30,000 miles or 24 months.
CHECKING FLUID LEVEL
Transmission/Transaxle (All Models)
Remove filler plug from side of transmission/transaxle. Fluid should be level with bottom edge of filler plug
hole. If fluid is low, fill with proper type fluid until fluid is level with filler plug opening. See
RECOMMENDED FLUID
. Reinstall filler plug.
Transfer Case (RAV4, Tacoma, Tundra & 4Runner)
Remove filler plug located on rear of transfer case. Fluid should be level with bottom edge of filler plug hole. If
fluid is low, fill with proper type fluid until fluid is level with filler plug opening. See RECOMMENDED
FLUID . Reinstall filler plug.
RECOMMENDED FLUID
For recommended fluid, see RECOMMENDED FLUID
table. For fluid capacity, see
TRANSAXLE/TRANSMISSION REFILL CAPACITIES
table under FLUID CAPACITIES.
RECOMMENDED FLUID
FLUID CAPACITIES
TRANSAXLE/TRANSMISSION REFILL CAPACITIES
(1)
ApplicationFluid Type
Transaxle/TransmissionSAE 75W-90/API GL-4 Or API GL-5 Gear Oil
Transfer CaseSAE 75W-90/API GL-4 Or API GL-5 Gear Oil
ApplicationQts. (L)
Camry & Solara
2.2L 4-Cylinder2.3 (2.2)
3.0L V64.4 (4.2)
Celica
1999
